SLIM, AFFORDABLE 46" AND 55" LED DISPLAYS FOR
ATTRACTIVE VIDEOWALLS
The narrower the bezel, the more impactful the videowall. That’s
the beauty of the UE-D Series. The displays’ bezel-to-bezel
width is just 11mm, making them ideal for those needing
to deploy an affordable videowall solution. Edge-lit LED
technology delivers an ultra-slim chassis design and vibrant
imagery while consuming less energy. The System-on-Chip
(SoC) semiconductor and quad-core CPU provide savings
in hardware, installation and operating costs. And since the
displays are lightweight and ultra slim, they’re easier to install in
a wider range of environments, whether it’s retail, healthcare,
corporate or broadcasting stations. The New Business Experience
KEY FEATURES
Edge-Lit LED
Samsung’s edge-lit LED technology allows for a slimmer display
and enables the UED Series to achieve deeper blacks and a higher
contrast ratio of 4000:1. It also reduces power consumption and
heat output.
Ultra-Slim 1.2" Chassis
The stylishly thin chassis of the UE-D Series helps simplify installation
while meeting ADA compliance requirements.
Slim 5.5mm Bezels
With a slim bezel-to-bezel width of 11mm, you keep the focus on
the imagery, not the screen. The result is an amazing videowall that
cannot be ignored.
No PC Required
Display a range of content across your videowall without the need
for an external media player using the powerful System-on-Chip
(SoC) technology.
Expanded Daisy Chain Capability
The UED Series enables you to daisy chain multiple displays without
the need for additional media players and/or PCs, helping you
reduce the cost of deploying multiple displays.
Built-In Wi-Fi and AllShare Cast
Enjoy the advantages of expanded connectivity to mobile devices
and simple mirroring of content on a tablet to the display.
UE-D SERIES COMMERCIAL LED LCD DISPLAYS
PICTURE-PERFECT DISPLAYS FOR A PERFECT VIDEOWALL SOLUTION

©2014 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd. Specifications and designs are subject to change without notice. Non-metric weights and measurements are
approximate. All other brand, product, service names and logos are trademarks and/or registered trademarks of their respective manufacturers and companies. Simulated screen images. See samsung.com for detailed
information. Printed in USA. LFD-UEDSERIESB2BDSHT-JUL14T
Samsung Electronics has been named 2013 ENERGY STAR Partner of the Year in the product manufacturing category by the U.S. Environmental Protection Agency (EPA).
Sales Support: 1-800-SAMSUNG or 1-866-SAM4BIZ
|
Follow Us: youtube.com/samsungbizusa
|
@SamsungBizUSA
For complete product information and accessories, visit samsung.com/business or samsung.com/prodisplay

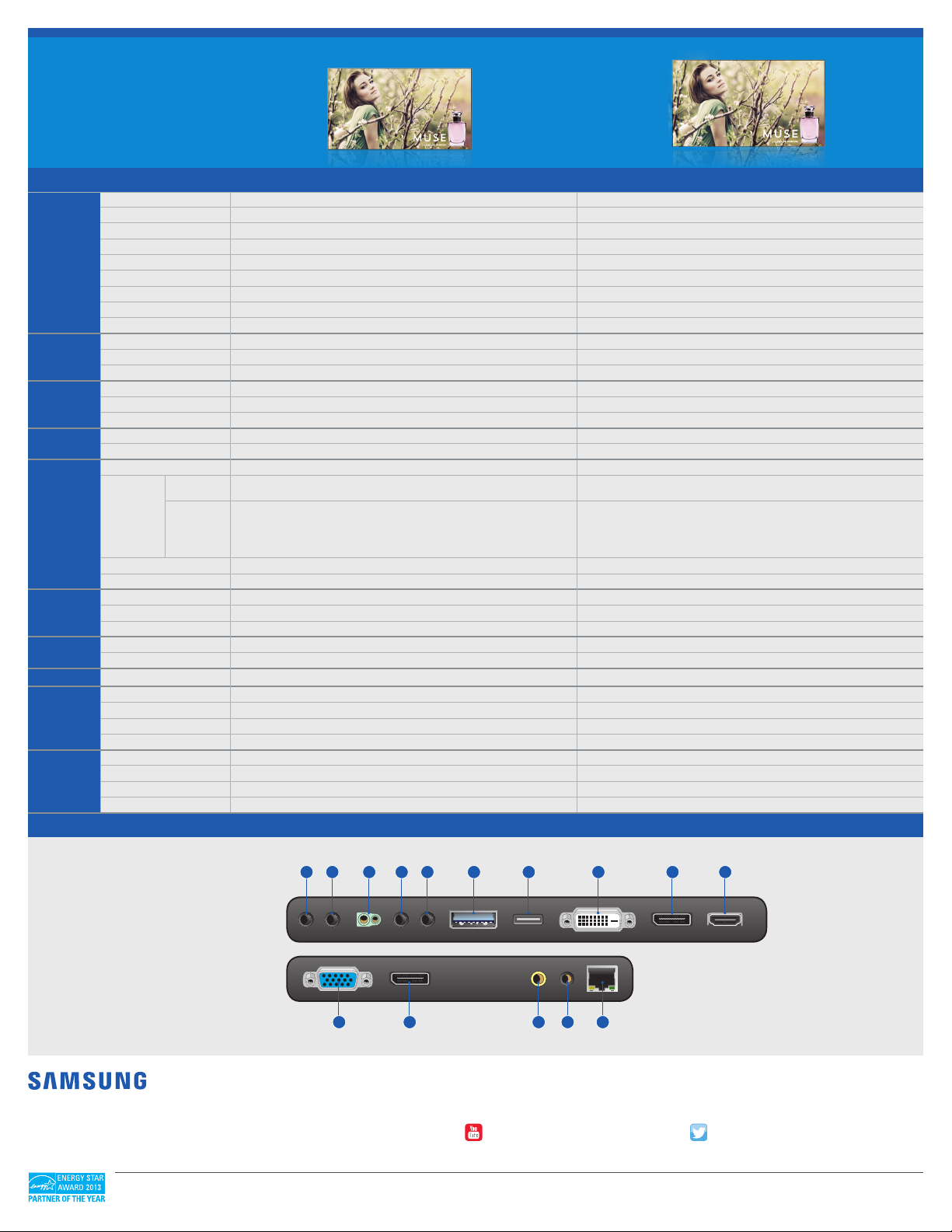

KEY SPECIFICATIONS For complete product specifications, visit samsung.com/displays
Samsung UE-D Series
Commercial LED
LCD Displays
CONNECTIVITY
1. RS232C In
2. RS232C Out
3. IR/Ambient Sensor In
4. Audio In
5. Audio Out
6. SD Card Slot
7. USB
8. DVI In
9. DisplayPort In
10. HDMI In
Display Model Number UE46D UE55D
Screen Size 46" 55"
Panel Technology 120Hz E-LED BLU 120Hz E-LED BLU
Resolution 1920 x 1080 (16:9) Full HD 1920 x 1080 (16:9) Full HD
Brightness 450 nits 450 nits
Contrast Ratio 4000:1 4000:1
Viewing Angle (Horizontal/Vertical) 178° / 178° 178° / 178°
Orientation Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 8ms 8ms
Connectivity Input Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
Output Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45
Power Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 115W / 132W 130W / 154W
Power Consumption (Standby) < 0.5W < 0.5W
Environmental
Conditions
Operating Temperature 0°C - 40°C 0°C - 40°C
Operating Humidity 10%~80% 10%~80%
Features Key LED Slim Videowall LED Slim Videowall
Special Hardware Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display,
Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2ch),
Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display,
Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch),
Software Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug
and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD
Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall
(15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for
Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug
and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD
Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall
(15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for
Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Media Player Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS
VESA Standard Wall Mount Interface 400 x 400mm 400 x 400mm
Dimensions Product Dimensions (without stand) 40.6" 23.0" x 1.2" 48.1" x 27.3" x 1.2"
Packaging Dimensions 43.7" x 26.3" x 5.1" 52.8" x 31.5" x 5.7"
Bezel Width 5.5mm 5.5mm
Weight Product Weight 22 lbs. 29.3 lbs.
Shipping Weight 28 lbs. 38.6 lbs.
Service Standard Warranty 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)
Accessories Included Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries
Optional Mount WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M) WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M)
Optional Stand STN-L4055AD, STN-L4655E STN-L4055AD, STN-L4655E
Optional Media Player SBB-C, SBB-CD7, SBB-CQ7 SBB-C, SBB-CD7, SBB-CQ7
Green
Management
Emission Standard EMC EMC
ENERGY STAR®6.0 Compliant Yes Yes
RoHS Compliant Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable
11. VGA In
12. DisplayPort Out
13. AV In
14. IR Out
15. RJ45 In
1 42 5 6 7 8 9 103
11 12 13 14 15
Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
