Samsung VM46R-U User manual

Quick Setup Guide
VM46R-U
*WARNING: Please ensure this product is inspected by yourself (to identify if there are
any defects) prior to any installation. Any defect should be brought to the attention of
Samsung as soon as discovered. Please do not install the product if it appears to have
a defect. Any damage caused by carelessness in the process of installing the product
will be treated as damage caused by yourself (and not a product defect). To determine
whether or not this product has been installed Samsung will view evidence of the screw
hole label being pierced (as well as any other cosmetic evidence of an installation).
*The colour and the appearance may differ depending on the product, and the content in
the manual is subject to change without prior notice to improve the performance.
*Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
-00
1 Receives the remote control signal via the external sensor board
and outputs the signal via LOOP OUT.
2 Connects to an external IR cable that receives signals from the
remote control.
3 Outputs sound to an audio device via an audio cable.
4 Connects to MDC using an RS232C adapter.
5 Connect to a USB memory device.
*The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB ports
may not work.
6 Connects to MDC using a LAN cable. (10/100 Mbps)
7 Connects to a source device using a HDMI cable or HDMI-DVI cable.
8 Connects to a source device using a HDMI cable or HDMI-DVI cable.
Connects to another product using a HDMI cable.
9 Connects to a PC using a DP cable.
0 Connects to another product using a HDMI cable.
Checking the Components
Ports
Issues Solutions
The screen keeps
switching on and off.
Check that the cable between the product
and the PC is connected correctly.
No Signal is
displayed on the
screen.
Check that products (including source
device) are connected correctly with a cable.
Check that the source device connected to
the product is powered on.
Depending on the type of external device,
the screen may not display properly. In this
case, connect it with the HDMI Hot Plug
function turned On.
Not Optimum Mode
is displayed.
This message is displayed when a signal
from the graphics card exceeds the product’s
maximum resolution and frequency.
Refer to the Standard Signal Mode Table
and set the maximum resolution and
frequency according to the product
specifications.
The images on
the screen look
distorted.
Check the cable connection to the product.
The screen appears
unstable and shaky. Check that the resolution and frequency of
the PC and graphics card are set within a
range compatible with the product. Then,
change the screen settings if required by
referring to ‘Preset Timing Modes’.
There are shadows or
ghost images left on
the screen.
Troubleshooting Guide
Contact the vendorwhere you purchased the product if any
components are missing.
The pictures may look different from the actual components.
Quick Setup Guide
Warranty card
(Not available in
some locations)
Power cord
Batteries (AAA x 2)
(Not available in
some locations)
Remote Control RS232C adapter
HDMI cable Holder-Ring x 4 Screw (M8 x L30) x 4
Parts
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
1 Remote sensor
Press a button on the remote control pointing at the sensor on the product to perform the corresponding function.
*Using other display devices in the same space as the remote control of this product can cause the other display devices to be
inadvertently controlled.

Model Name VM46R-U
Panel
Size 116.8 cm
Display area
1018.08 mm (H) x 572.67 mm (V)
Power Supply AC100-240V~ 50/60Hz
Refer to the label at the back of the product as the standard voltage can vary in different countries.
Environmental
considerations
Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)
Humidity: 10% – 80%, non-condensing
Storage Temperature: -20 °C – 45 °C (-4 °F – 113 °F)
Humidity: 5% – 95%, non-condensing
*This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to
take adequate measures.
*For detailed device specifications, visit the Samsung Electronics website.
*The PVC Free (except for accessory cables) logo is the self-declared trademark of Samsung.
- Accessory cables: signal cables and power cords
Warning! Important Safety Instructions
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Tel. 1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) / 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free)
www.samsung.com/in/support
Contact SAMSUNG WORLD WIDE
Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact with
any internal part of this product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
This product is RoHS compliant.
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of theirworking life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
For more information on safe disposal and recycling visit ourwebsite www.samsung.com/in or contact our Helpline numbers
- 1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) / 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free)
ꞏIf your equipment uses an AC adapter:
‐Only use the AC adapter with your product by
Samsung.
‐Do not use the power cord with other products.
ꞏDo not install this equipment in a confined space such as a case or
similar.
ꞏThe slots and openings in the cabinet and in the back or bottom
are provided for necessary ventilation. The slots and openings
must never be blocked or covered.
ꞏThe product should be located away from heat sources such as
radiators, heat registers, or other products that produce heat.
ꞏDo not place a vessel containing water (vases etc.) on this
apparatus, as this can result in a risk of fire or electric shock.
(Apparatus shall not be exposed to dripping or splashing)
ꞏThe apparatus must be connected to an earthed MAINS socket-
outlet (Class l Equipment only). Or Use only a properly grounded
plug and receptacle (Class l Equipment only).
ꞏTo disconnect the apparatus from the mains, the plug must be
pulled out from the mains socket, therefore the mains plug shall
be readily operable.
ꞏAs long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if you turn off this
Power button on the body of the product.

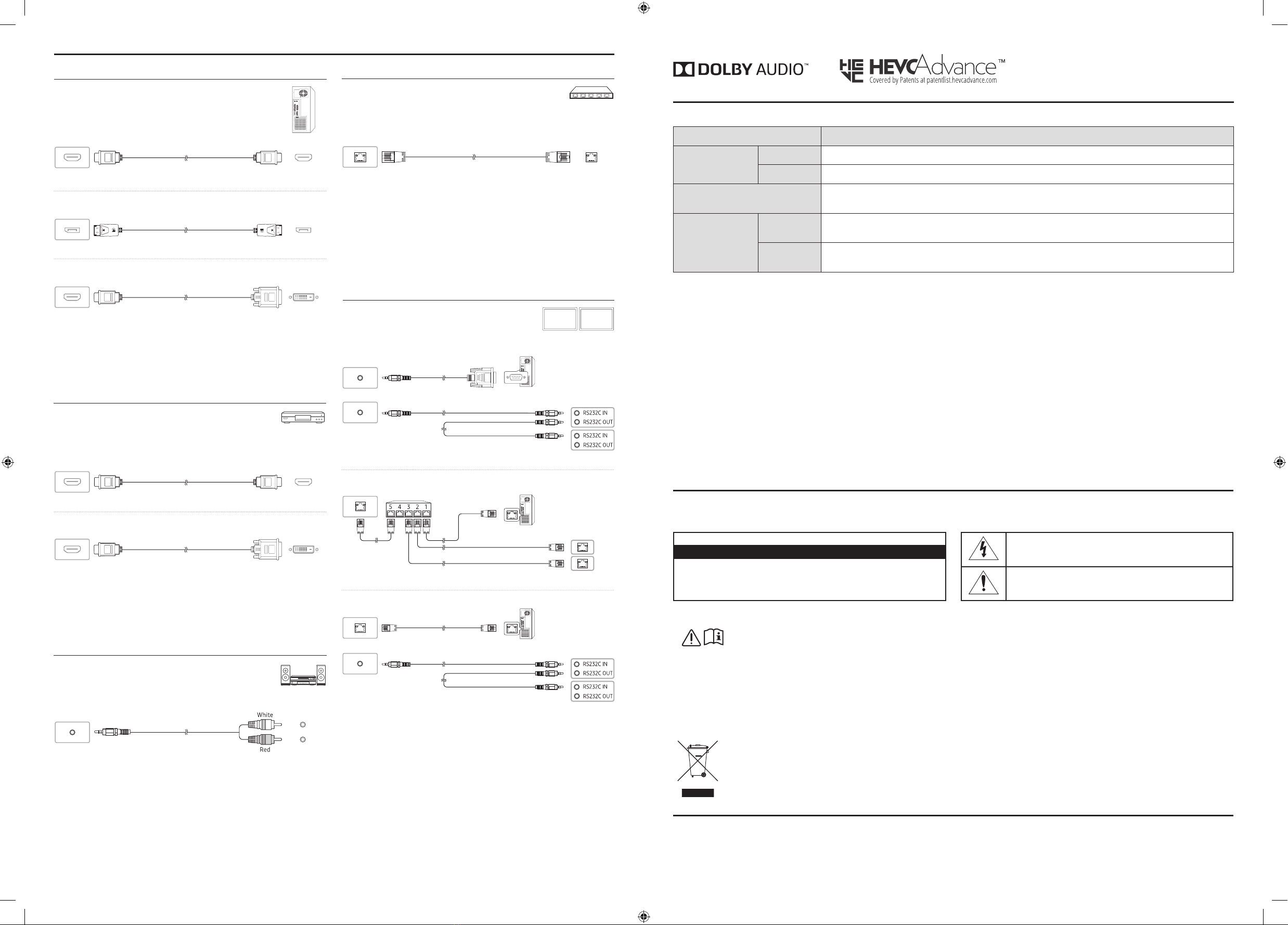

Connecting to a PC
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
Connecting to MDC
For details on how to use the MDC programme, refer to Help after
installing the programme.
The MDC programme is available on the website.
http://www.samsung.com/displaysolutions
RS232C IN
RJ45
HUB
RS232C OUT
RJ45
RS232C IN
RS232C OUT
RS232C IN
RJ45
HUB
RS232C OUT
RJ45
RS232C IN
RS232C OUT
RS232C IN
RJ45
HUB
RS232C OUT
RJ45
RS232C IN
RS232C OUT
Connecting to a Video Device
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
Connecting the LAN Cable
Use Cat7(*STP Type) cable for the connection. (10/100 Mbps)
*Shielded Twist Pair
DP IN
HDMI IN
HDMI IN
HDMI IN
DVI/HDMI/AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI/AUDIO IN
AUDIO OUT
RJ45
Connecting to an Audio System
DP IN (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN 1 (ARC), HDMI IN 2 (DAISY CHAIN IN)
HDMI IN
DVI/HDMI AUDIO IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
AUDIO OUT
Connecting and Using a Source Device
Specifications
