Samsung S3FM02G User manual

S3FM02G
Evaluation Board
Revision 1.00
February 2011
U
Us se er r' 's s G Gu ui id de e
2011 Samsung Electronics Co., Ltd. All rights reserved.

Important Notice
The information in this publication has been carefully
checked and is believed to be entirely accurate at the
time of publication. Samsung assumes no
responsibility, however, for possible errors or
omissions, or for any consequences resulting from the
use of the information contained herein.
Samsung reserves the right to make changes in its
products or product specifications with the intent to
improve function or design at any time and without
notice and is not required to update this
documentation to reflect such changes.
This publication does not convey to a purchaser of
semiconductor devices described herein any license
under the patent rights of Samsung or others.
Samsung makes no warranty, representation, or
guarantee regarding the suitability of its products for
any particular purpose, nor does Samsung assume
any liability arising out of the application or use of any
product or circuit and specifically disclaims any and all
liability, including without limitation any consequential
or incidental damages.
"Typical" parameters can and do vary in different
applications. All operating parameters, including
"Typicals" must be validated for each customer
application by the customer's technical experts.
Samsung products are not designed, intended, or
authorized for use as components in systems intended
for surgical implant into the body, for other
applications intended to support or sustain life, or for
any other application in which the failure of the
Samsung product could create a situation where
personal injury or death may occur.
Should the Buyer purchase or use a Samsung product
for any such unintended or unauthorized application,
the Buyer shall indemnify and hold Samsung and its
officers, employees, subsidiaries, affiliates, and
distributors harmless against all claims, costs,
damages, expenses, and reasonable attorney fees
arising out of, either directly or indirectly, any claim of
personal injury or death that may be associated with
such unintended or unauthorized use, even if such
claim alleges that Samsung was negligent regarding
the design or manufacture of said product.
Copyright 2011 Samsung Electronics Co., Ltd.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electric or mechanical, by photocopying, recording, or otherwise, without the prior
written consent of Samsung Electronics.
Samsung Electronics Co., Ltd.
San #24 Nongseo-Dong, Giheung-Gu
Yongin-City, Gyeonggi-Do, Korea 446-711
Contact Us: [e-mail]
TEL: (82)-(31)-209-4956
FAX: (82)-(31)-209-6494
Home Page: http://www.samsungsemi.com

Revision History
Revision No.
Date
Description
Author(s)
1.00
Feb. 08, 2011
Initial draft
Juil Kim

Table of Contents
1 S3FM02G DESCRIPTION .............................................................................1-1
1.1 Instruction to S3FM02G........................................................................................................................... 1-1
1.2 S3FM02G Block Diagram ........................................................................................................................ 1-2
1.3 System Requirements.............................................................................................................................. 1-3
1.3.1 Software Requirements.................................................................................................................... 1-3
1.3.2 Hardware Requirements................................................................................................................... 1-3
1.4 Board Components.................................................................................................................................. 1-3
2 EVB DESCRIPTION ......................................................................................2-1
2.1 Configuration............................................................................................................................................ 2-1
2.2 Detailed Block Configurations.................................................................................................................. 2-2
2.2.1 Power Generator Block .................................................................................................................... 2-2
2.2.2 Mode Set Block................................................................................................................................. 2-3
2.2.3 CAN Block ........................................................................................................................................ 2-4
2.2.3.1 Features.................................................................................................................................. 2-4
2.2.3.2 Block Description .................................................................................................................... 2-5
2.2.4 ENC Block ........................................................................................................................................ 2-6
2.2.4.1 Features.................................................................................................................................. 2-6
2.2.4.2 Block Description .................................................................................................................... 2-7
2.2.5 USART Block (LIN / RS-485 Include)............................................................................................... 2-8
2.2.5.1 Features.................................................................................................................................. 2-8
2.2.5.2 Block Description .................................................................................................................... 2-9
2.2.6 SSP Block....................................................................................................................................... 2-11
2.2.6.1 Features................................................................................................................................ 2-11
2.2.6.2 Block Description .................................................................................................................. 2-12
2.2.7 I2C Block ........................................................................................................................................ 2-13
2.2.7.1 Features................................................................................................................................ 2-13
2.2.7.2 Block Description .................................................................................................................. 2-13
2.2.8 ADC Block ...................................................................................................................................... 2-14
2.2.8.1 Features................................................................................................................................ 2-14
2.2.8.2 Block Description .................................................................................................................. 2-14
2.2.9 OP-AMP Block................................................................................................................................ 2-15
2.2.9.1 Features................................................................................................................................ 2-15
2.2.9.2 Block Description .................................................................................................................. 2-15
2.2.10 LCD Block..................................................................................................................................... 2-16
2.2.10.1 Features.............................................................................................................................. 2-16
2.2.10.2 Block Description ................................................................................................................ 2-17
2.2.11 Other Blocks................................................................................................................................. 2-18
2.2.11.1 Buzzer................................................................................................................................. 2-18
2.2.11.2 LED Display ........................................................................................................................ 2-18
2.2.11.3 Wake Up ............................................................................................................................. 2-19
2.3 Total Blocks Unit & Jumper Summary................................................................................................... 2-20
2.3.1 Each Blocks.................................................................................................................................... 2-20
2.3.1.1 Switch.................................................................................................................................... 2-21

List of Figures
Figure Title Page
Number Number
Figure 1-1 Block Diagram................................................................................................................................... 1-2
Figure 2-1 Board Configuration.......................................................................................................................... 2-1
Figure 2-2 Power Generator Block..................................................................................................................... 2-2
Figure 2-3 Mode Set Block................................................................................................................................. 2-3
Figure 2-4 CAN Block Description ..................................................................................................................... 2-5
Figure 2-5 Encoder Block Description................................................................................................................ 2-7
Figure 2-6 USART Block Description............................................................................................................... 2-10
Figure 2-7 SSP Block Description.................................................................................................................... 2-13
Figure 2-8 I2C Block Description ..................................................................................................................... 2-13
Figure 2-9 ADC Block Description ................................................................................................................... 2-14
Figure 2-10 OP-AMP Block Description........................................................................................................... 2-15
Figure 2-11 LCD Block Description.................................................................................................................. 2-17
Figure 2-12 Buzzer Block Description.............................................................................................................. 2-18
Figure 2-13 LED Block Description.................................................................................................................. 2-18
Figure 2-14 Wake Up Block Description.......................................................................................................... 2-19

List of Tables
Table Title Page
Number Number
Table 2-1 ENC Pin Description .......................................................................................................................... 2-6
Table 2-2 USART Pin Description...................................................................................................................... 2-8

S3FM02G_USER'S GUIDE_REV 1.00 1 S3FM02G DESCRIPTION
1-1
1 S3FM02G Description
1.1 Instruction to S3FM02G
S3FM02G is a family of cost-effective and high-performance microcontrollers with Cortex-M3 designed by
Advanced RISC Machines (ARM). This Microcontroller unit (MCU) applies to inverter motor control within the
home appliance applications.
ARM Cortex-M3 Core
Built-in up to 384 Kbytes Program Flash Memory
Built-in up to 16 Kbytes Data Flash
Internal up to 24 Kbytes SRAM for stack, data memory, or cod memory
Operating temperature: –40 to 85C
Operating voltage range: 2.7 to 5.5V
Interrupt controller: Dynamically reconfigurable Nested Vectored Interrupt Controller (NVIC)
Clock and Power Controller (CM)
10-ch DMA Controller (DMAC)
Watch-Dog Timer (WDT)
8-ch 16-bit Timer/Counters (TC)
32-bit Free-Running Timer (FRT)
8-ch 16-bit PWM
2-ch 16-bit Encoder Counter (ENC)
2-ch 6-Phase Inverter Motor Controller (IMC)
2-ch I2C, 2-ch SSP, 2-ch CAN and 4-ch USART
12-bit ADC (4 channels with OP-AMP)
10-bit ADC
5-ch OP-AMP
4com. 40seg. LCD Controller (LCDC)
Support Normal, High-speed, IDLE, and STOP mode

S3FM02G_USER'S GUIDE_REV 1.00 1 S3FM02G DESCRIPTION
1-2
1.2 S3FM02G Block Diagram
CM3
Core
Interrupts
sleep
debug
N
V
I
V
S
W
J
-
D
P
Systick
AHB-AP
Inst
Data
DWP ITM
APB
I-Code
D-Code
S-BUS
Cortex-M3
Cortex-M3
APB
E
T
M
T
P
I
U
INTNMI
INTISR
NMI
I/O conf
GPIO
JTAG/SWDBG
AHB Bus Matrix
Program Flash
384KB
PF Controller
Data Flash
16KB
DF Controller
SRAM
24KB
SRAM Controller
AHB2APB DMA
Con.
CM
IVC Controller
PLLCLK (8 ~ 75MHz)
EMCLK (4 ~ 8MHz)
IMCLK (8/16/20MHz)
ESCLK (32.768KHz)
ISCLK (32.768KHz)
I/O conf
GPIO
PLL
IMOSC20
IMOSC16
ISOSC
IVC
WDT
12-BIT
ADC0 12-BIT ADC0
10-BIT
ADC0 5ch OP-AMP
ADC 0/1
Controller
I/O conf
GPIO
OP-AMP
Controller
FRT
8-ch
Timer/Counter
8ch PWM
4ch USART
2ch SSP
2ch I2C
2ch IMC
2ch ENC
2ch CAN
4 com x 40 seg
LCD Controller
From CM
STT
Figure 1-1 Block Diagram

S3FM02G_USER'S GUIDE_REV 1.00 1 S3FM02G DESCRIPTION
1-3
1.3 System Requirements
This section describes the hardware and software system requirements
1.3.1 Software Requirements
Windows NT version 4.0 , Window 95 or higher for using Multi-ICE, the debugger
1.3.2 Hardware Requirements
S3FM02G EVB Board set
Main EVB board
Power to supply DC 7 to 12V (recommend:12V)
For running the Multi-ICE server:
200MHz Pentium PC
32MB RAM for Windows95, or 64MB RAM for Windows NT
Parallel Port
1.4 Board Components
The board consists of:
32-bit RISC ARM CortexTM-M3 Core : Micro controller –S3FM02G
oETM function embedded with ARM CortexTM-M3
oSWD (Serial Wire Debug) and JTAG Debugging Solution
Memory:
oSerial EEPROM: SSP8 (8 Kbytes 8-bit) , SSP16 (4 Kbytes 16-bit), IIC (16 Kbytes 8-bit)
Serial communication lines:
o2 CAN (IOS 11898): 9 pin D-sub (male)
o1 ENC: 15 pin D-sub (female)
o2 UART (RS-232): 9 pin D-sub (female)
o2 LIN (ISO 9141): 3 pin Terminal Block (CCP3.5)
o1 RS-485: 3pin Terminal Block (CCP3.5)
Function blocks interfaces:
o1 Buzzer
o6 LED (Power(2), Port signal(4) )
o6 Switch (Power, RESET, Wake up(4) )
oJumper & Header pin (each Blocks)

S3FM02G_USER'S GUIDE_REV 1.00 1 S3FM02G DESCRIPTION
1-4
Power Supply:
o3.3V / 5V Output regulator
oDC power connector (7 to 12V)
Clocks:
o4MHz or 8MHz (External main clock)
oLoad capacitor: 15pF to 30pF (recommend: Default 22pF)
Debugging Method:
oA standard 20-pin JTAG interface connector
oCortex debug connector (5 2 1.27mm header (male))
oCortex debug + ETM connector (10 2 1.27mm header (male))
Display:
oEnable 4com/40seg LCD (22 2 2.54mm header (male))

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-1
2 EVB Description
2.1 Configuration
JTAG
CORTEX
DEBUG
CORTEX
DEBUG+ETM
AS -PRO
S3FM02G
POWER
Supply
MODE set
& Clock
CAN Block
Connector USART Block
Connector
ENC Block
Connector LIN & RS -
485 Terminal
LCD
SSP BlockI2C Block
BUZZER
ADC Block
Figure 2-1 Board Configuration

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-2
2.2 Detailed Block Configurations
2.2.1 Power Generator Block
1. CN1,CN2,J7: Power Supply Connector
 CN1: VIN / CN2 : GND
 J7: DC adapter connector
2. U2,U3: 1.5A Low Drop Positive:
Voltage Regulator
 3.3V(U2) / 5V(U3) fixed
D2PAK package
3. J5,J6,J8,J9: Jumper Setting for S3FM02G Power Block
 J5: S3FM02Gs VDDCORE Voltage level selection (3.3V or 5V)
 J5: S3FM02Gs VDDIO Voltage level selection (3.3V or 5V)
 J5: S3FM02Gs AVDD0 Voltage level selection (3.3V or 5V)
 J5: S3FM02Gs AVDD1 Voltage level selection (3.3V or 5V)
4. D2,D3: Power Display LED
 D2: 3.3V Display (red color) / D3 : 5V Display (green color)
5. SW1: Power Input [ON/OFF] toggle Switch ([J7 / CN] Share a switch)
6. J10: Reserve Power Pin Header

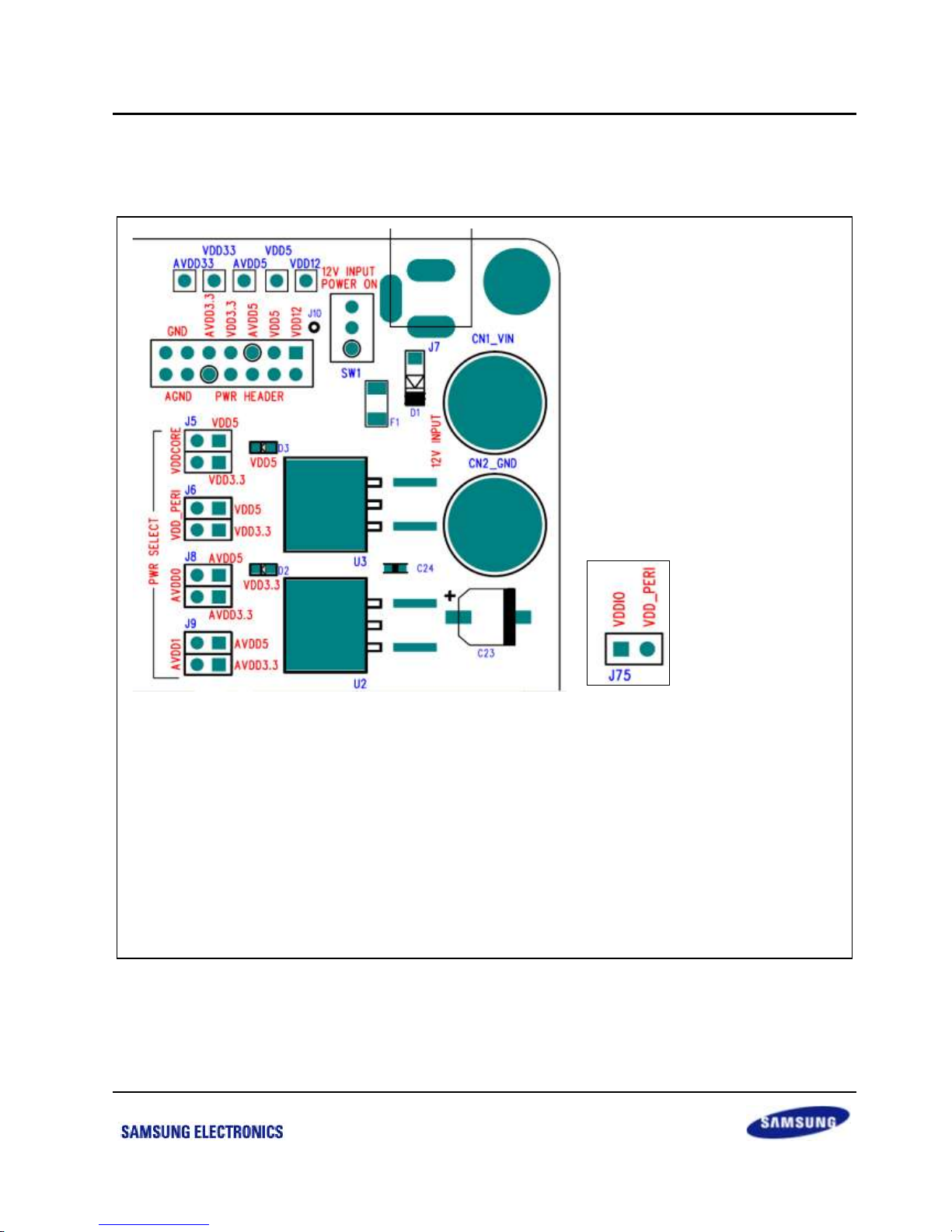

Figure 2-2 Power Generator Block

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-3
2.2.2 Mode Set Block
PCB TOP PCB Bottom
Figure 2-3 Mode Set Block
J11/J13: Jumper Setting
J13 (MODE1)
J11 (MODE0)
Mode Description
0(low)
0(low)
User Normal / Debug
0(high)
1(high)
User Flash Writing Tool
1(low)
0(low)
User UART SPGM Tool
R8: MODE 2 Connect GND
R8 (MODE2)
J13 (MODE1)
J11 (MODE0)
Mode Description
1(high)
0(low)
1(high)
SCAN Mode (Test)

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-4
2.2.3 CAN Block
2.2.3.1 Features
Supports CAN protocol version 2.0 part A and B
Bit rates up to 1 Mbit/s
32 Message Objects
Each Message Object has its own identifier mask
Programmable FIFO mode (concatenation of Message Objects)
Maskable interrupt
Disabled Automatic Retransmission mode for Time Triggered CAN applications
Programmable loop-back mode for self-test operation
Power management block and wake up mode allowing optimization of power consumption
CAN_TX output pin configurable in open drain allowing connection without external transceiver

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-5
2.2.3.2 Block Description
1. U4,U5: CAN Transceiver (U4 - high speed / U5 - low speed)
2. P1,P2: 9pin D-sub connector (P1 - low speed / P2 - low speed)
3. J32: Jumper Setting (Receiver)
 1-2 closed: Connect RXD to P0.19 (high speed CAN_RX [CH0])
 3-4 closed: Connect RXD to P1.6 (high speed CAN_RX [CH1])
 5-6 closed: Connect RXD to P1.27 (low speed CAN_RX[CH0])
4. J33: Jumper Setting (Transmitter)
 1-2 closed: Connect TXD to P0.18 (high speed CAN_TX [CH0])
 3-4 closed: Connect TXD to P1.7 (high speed CAN_TX [CH1])
 5-6 closed: Connect TXD to P1.28 (high speed CAN_TX [CH0])
5. J34: Jumper Setting (Mode Control input)
 Closed: CAN Transceiver standard mode (Default close)
6. J35: Jumper Setting (Battery voltage)
 1-2 Closed: VDDIN 12V input
 2-3 Closed: CAN bus line input
7. J36: Low speed CAN mode select (2.54mm 5pin header)
1. INH
2. NERR
3. STB (low active)
4. EN
5. WAKE (low active)
 The J36 Headers isn’t connect with ports.
If want connect to ports please use of jumper cable.

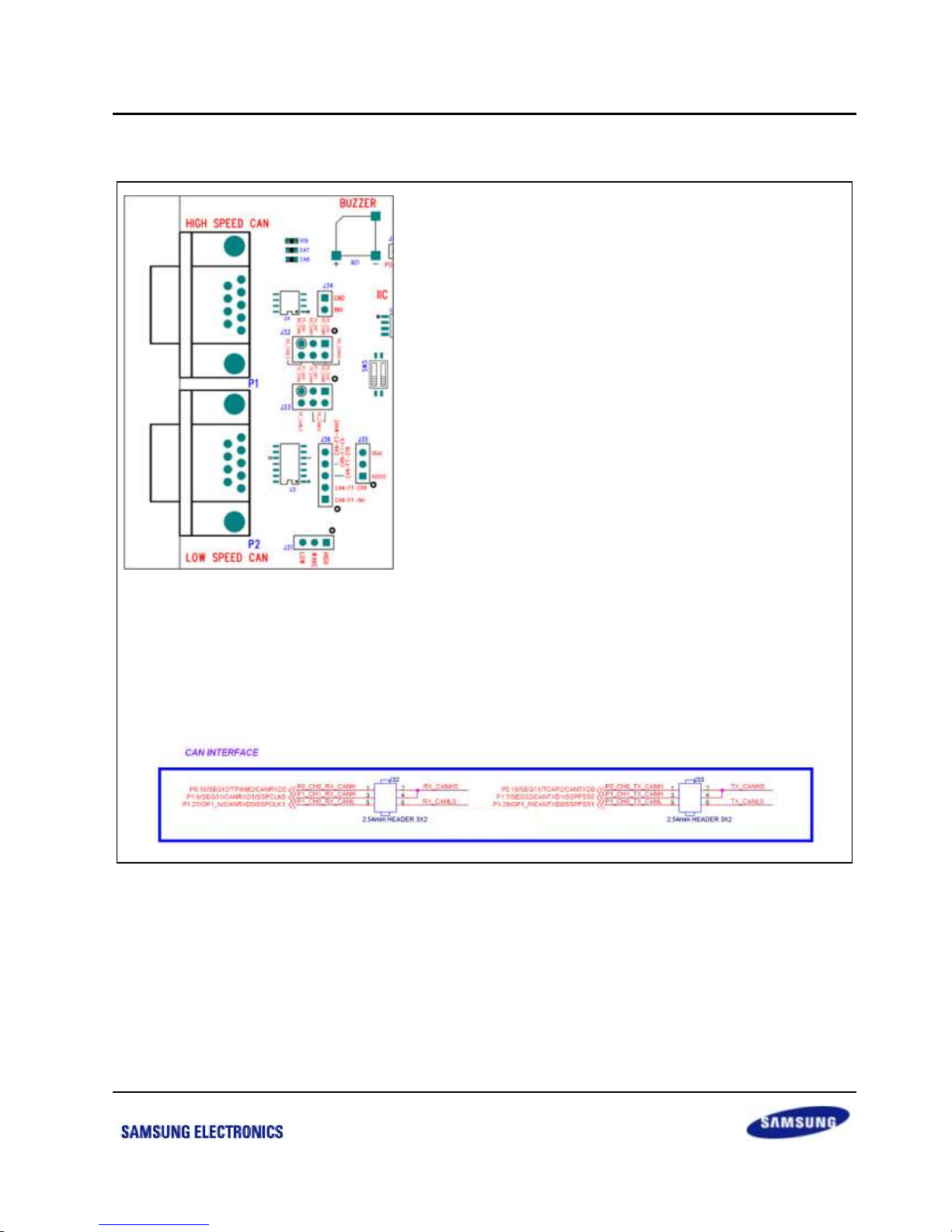

Figure 2-4 CAN Block Description

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-6
2.2.4 ENC Block
2.2.4.1 Features
Three input signals: PHASEA, PHASEB and PHASEZ
Two 16-bit up/down counters: Position Counter (PCR) and Speed Counter (SPCR)
Capture function support for slow rotating: Phase a Capture (PACDR) and Phase B Capture (PBCDR)
Filter in the PHASEZ and edge selector for PHASEZ
Up to 2 channels
Up / Down counter
Table 2-1 ENC Pin Description
Pin Name
Function
I/O Type
Comments
PHASEA[1:0]
Phase A input
I
–
PHASEB[1:0]
Phase B input
I
–
PHASEZ[1:0]
Phase Z input
I
–

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-7
2.2.4.2 Block Description
àCN3: 15pin D-sub(female)
1. CN3: 15pin D-sub(female)
 1-2 closed: Connect [Channel A] to P2.23 (CH0)
 2-3 closed: Connect [Channel A] to P0.29 (CH1)
2. J38: Jumper Setting (Channel B)
 1-2 closed: Connect [Channel B] to P2.24 (CH0)
 2-3 closed: Connect [Channel B] to P0.30 (CH1)
3. J39: Jumper Setting (Index Z)
 1-2 closed: Connect [Index Z] to P2.25 (CH0)
 2-3 closed: Connect [Index Z] to P0.31 (CH1)

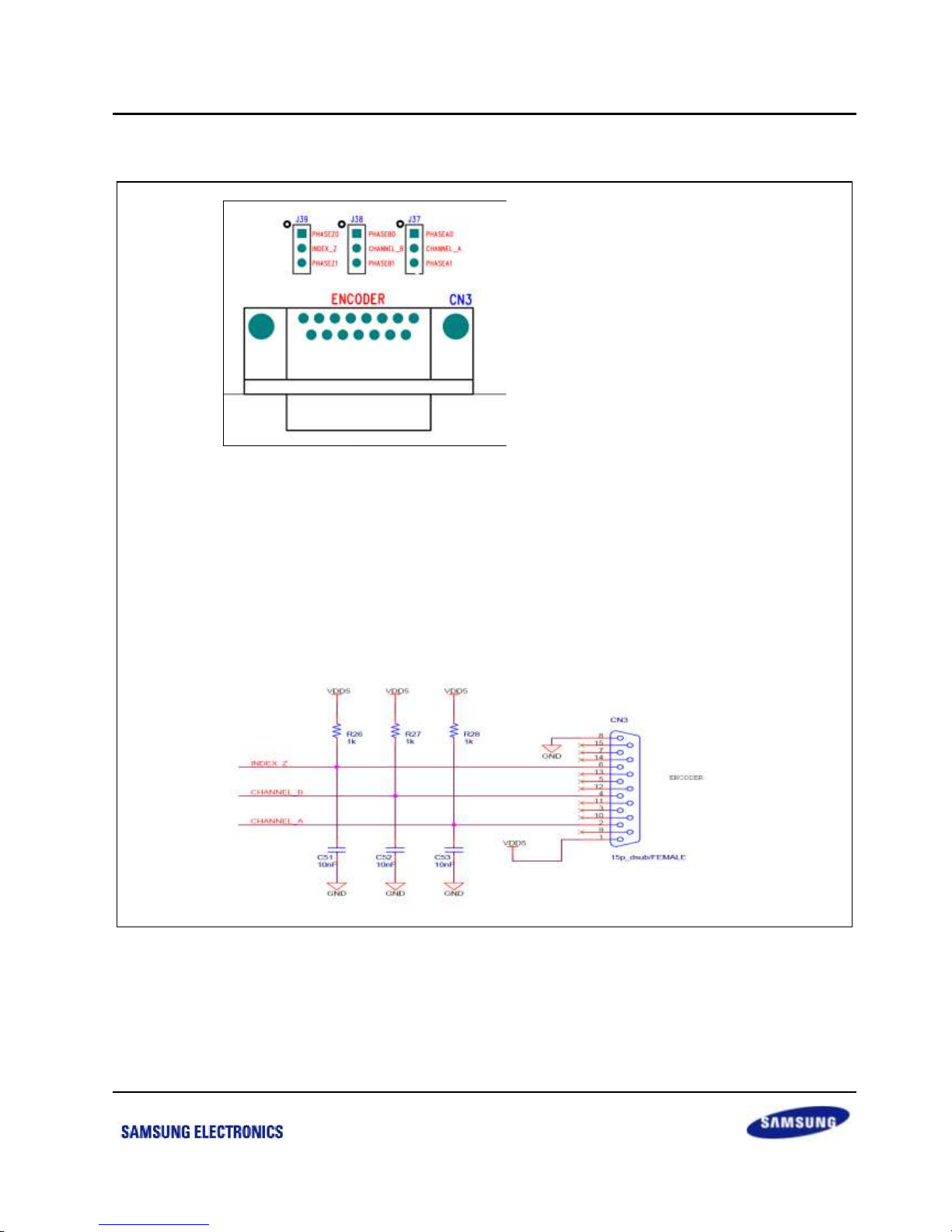

Figure 2-5 Encoder Block Description

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-8
2.2.5 USART Block (LIN / RS-485 Include)
2.2.5.1 Features
Programmable baud rate generator
Parity, framing and overrun error detection
Idle flag for J1587 protocol
Line break generation and detection
Automatic echo, local loopback and remote loopback channel modes
Multi-drop mode: address detection and generation
Interrupt generation
2 dedicated LDMA channels per USART
5 to 9-bit character length
Configurable start bit of data transmission
Support the LIN protocol: LIN1.2 or LIN2.0 configurable release
Smart–Card protocol: error signaling and re-transmission
Asynchronous mode maximum baud rate: PCLK/16
Synchronous mode maximum baud rate when providing SCK clock: PCLK/2
Synchronous mode maximum baud rate when receiving SCK clock: PCLK/4
Table 2-2 USART Pin Description
Pin Name
Function
I/O Type
Active Level
Comments
USARTTXD [3:0]
USART Transmit Data Line
O
–
–
USARTRXD [3:0]
USART Reception Data Line
I
–
–
USARTCLK [3:0]
USART transmission clock
Bi-Direction
–
–

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-9
2.2.5.2 Block Description
1. P3,P4: 9pin D-sub connector (Female)
2. U12: 2Channel RS-232 Transceiver (SP3232EEY)
3. J55,J56,J57,J58: Select the input signal to each block
J55: Jumper Setting (USART RX)
 1-3 closed: Connect P0.0(USART_RXD0) to J56
 2-4 closed: Connect P0.21(USART_RXD1) to J56
J57: Jumper Setting (USART TX)
 1-3 closed: Connect P0.1(USART_TXD0) to J58
 2-4 closed: Connect P0.22(USART_TXD1) to J58
J56: Jumper Setting (RX - LIN / USART / RS-485)
Connect RXD0 or RXD1 to each block (Depending on the J55 Setting)
 1-2 closed: LIN RX line (LIN driver 0 / J59 terminal block)
 3-4 closed: USART RX line (Transceiver ch1 / P4 D-sub)
 5-6 closed: RS-485 RX line (J62 terminal block)
J56: Jumper Setting (TX - LIN / USART / RS-485)
Connect TXD0 or TXD1 to each block (Depending on the J57 Setting)
 1-2 closed: LIN0 TX line (LIN driver 0 / J59 terminal block)
 3-4 closed: USART TX line (Transceiver ch1 / P4 D-sub)
 5-6 closed: RS-485 TX line (J62 terminal block)

S3FM02G_USER'S GUIDE_REV 1.00 2 EVB DESCRIPTION
2-10
4. J64,J65: Select the input signal to USART & LIN
J64: Jumper Setting (RX - USART / LIN)
 1-2 closed: Connect P1.30(USART_RXD0) to RS232 transceiver channel 0 (P3 D-sub)
 3-4 closed: Connect P1.9(USART_RXD2) to LIN driver 1 (J67 terminal block)
 5-6 closed: Connect P0.27(USART_RXD3) to RS232 transceiver channel 0 (P3 D-sub)
 7-8 closed: Connect P0.27(USART_RXD3) to LIN driver 1 (J67 terminal block)
J64: Jumper Setting (RX - USART / LIN)
 1-2 closed: Connect P1.31(USART_TXD0) to RS232 transceiver channel 0 (P3 D-sub)
 3-4 closed: Connect P1.10(USART_TXD2) to LIN driver 1 (J67 terminal block)
 5-6 closed: Connect P0.28(USART_TXD3) to RS232 transceiver channel 0 (P3 D-sub)
 7-8 closed: Connect P0.28(USART_TXD3) to LIN driver 1 (J67 terminal block)
5. J59,J62,J67: CCP3.5 - 3pin Terminal Block
 J59: LIN0 Interface / J62: RS - 485 Interface / J67: LIN1 Interface
6. U59,U62: LIN(ISO9141) Driver - TLE7259-2GU
7. U59,U62: RS-485 Transceiver - SN65HVD08
8. SW6: LIN0 Wake up
9. SW7: LIN1 Wake up
10. J60,J66: Enable input - device set to normal operation mode when HIGH
 J60 closed: EN pin low state
 J61 closed: EN pin port control [ P1.13 ]
11. J61: Closed - Driver EN port control [ P1.11] / Open - High state
12. J63: Closed - Receiver Out port control [ P1.12] / Open - Low state
Figure 2-6 USART Block Description
