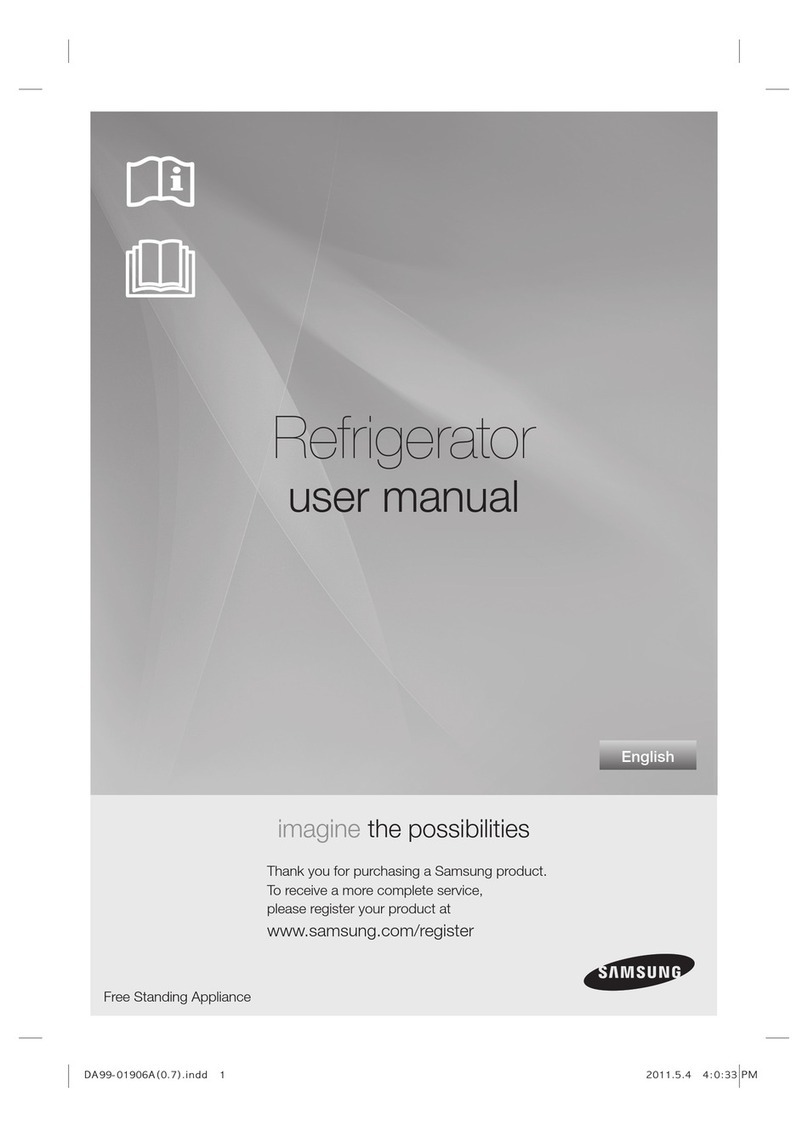

Samsung RSA1D series User manual

Refrigerator
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
English
Free Standing Appliance
RSA1Z***
RSA1S***
RSA1D***
RSA1J***
RSA1N***
DA68-02439Z-16
V
***
***
RSA1U
RSA1
条形码

2_ features
features of your new
refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and
energy-efficient features.
• HIDDEN HINGES & DOOR S/W
Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view.
• CoolSelect Duo (Optional)
The customizable CoolSelect Duo lets you choose between meat and vegetable mode
depending on your needs. In meat mode, your deli items and meats keep their juicy
texture and freshness. In vegetable mode, the box maintains optimal humidity for fruits and
vegetables, transforming into a perfect crisper to keep them fresh longer. Now, you always
have food at its freshest.
• BLACK CLEAR LED DISPLAY
With luxurious black window, you can look and feel neat & clear design.
For easy future reference write the model and serial
number down. You will find your model number on the
left hand side wall of the refrigerator.
Model #
Serial #

safety information _03
safety information
SAFETY INFORMATION
•Before operating the appliance, please read this manual
thoroughly and retain it for your reference.
•Because these following operating instructions cover
various models, the characteristics of your refrigerator
may differ slightly from those described in this manual.
•This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
CAUTION/WARNINGSYMBOLSUSED
Indicates that a danger of death or serious injury
exists.
CAUTION
Indicates that a risk of personal injury or material
damage exists.
OTHERSYMBOLSUSED
Represents something you must NOT do.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug
from the socket.
Represents a ground is needed to prevent electric
shock.
It is recommended that this symbol be handled by
service man.
WARNING
WARNING
WARNING
WARNING

04_safety information
safety information
WARNING
These warning signs are here to prevent injury to you
and others.Please follow them explicitly.After reading
this section, keep it in a safe place for future reference.
• This refrigerator must be properly installed and located
in accordance with the manual before it is used.
• Use this appliance only for its intended purpose as
described in this user manual.
• We strongly recommend that any servicing be
performed by a qualified individual.
• R600a/R134a can be used as a refrigerant. Check the
compressor label or the circuit diagram on the rear of
the appliance to see which refrigerant is used for the
refrigerator
• In case of R600a refrigerant, this gas is natural
gas with high environmental compatibility that is,
however, also combustible. When transporting and
installing the appliance, care should be taken to
ensure that no parts of the refrigerating circuit are
damaged.
• Refrigerant squirting out of the pipes could ignite
or cause an eye injury. If a leak is detected, avoid
any naked flames or potential sources of ignition
and air the room in which the appliance is standing
for several minutes.
• In order to avoid the creation of a flammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
• The room must be 1m³ in size for every 8g of R600a
refrigerant inside the appliance.
• Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.

safety information _05
• Please dispose of the packaging material for this
product in an environmentally friendly manner
• Do not change the pars in the refrigerator at random.
SEVERE WARNING SIGNS
• Do not install the refrigerator in a damp place or place
where it may come in contact with water.
- Deteriorated insulation of electrical parts may cause
an electric shock or fire.
• Do not place this refrigerator in direct sunlight or
expose to the heat from stoves, room heaters or other
appliance.
• Do not place a lighted candle or open flames on the
refrigerator.
- This may result in electric shock or fire.
• Allow sufficient space to install the refrigerator on a flat
surface.
- If your refrigerator is not level, the internal cooling
system may not work correctly.
• Use 220~240V power. Do not plug several appliances
into the same multiple power board. The refrigerator
should always be plugged into its own individual
electrical which has a voltage rating that matched the
rating plate.The refrigerator must be grounded.
- This provides the best performance and also prevents
overloading house wiring circuits,which could cause a
fire hazard from overheated wires.
• Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
- Damage to the cord may cause a short-circuit, fire
and/or electric shock.
safety information
WARNING

06_safety information
safety information
• Make sure that the power plug is not squashed or
damaged by the back of the refrigerator.
• Do not bend the power cord excessively or place
heavy articles on it.
- This constitutes a fire hazard.
• Do not use a loose socket or a cord that shows
cracks or abrasion damage along its length or at either
end.
• If the power cord is damaged, have it replaced
immediately by the manufacturer or its service agent.
• When moving the refrigerator, be careful not to roll
over or damage the power cord.
• Do not insert the power plug with wet hands.
• Disconnect the power before cleaning or maintaining
your refrigerator.
- Do not use a wet or damp cloth when cleaning the
pulug.
• Remove any foreign matter or dust from the power
plug pins.
- Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power
supply, you should wait for at least ten minutes before
plugging it back.
• If the wall socket is loose, do not insert the power
plug.
- There is a risk of electric shock or fire.
• The appliance must be positioned so that the plug is
accessible after installation.
• Do use separate and reliable earthing power. Don’t
share a socket with other appliances. In order to
ensure safety, the socket and its connecting wire must
be able to bear over 10A current.

safety information _07
• The refrigerator must be grounded.
- You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
• Never use gas pipes, telephone lines or other
potential lightening rods as ground.
- Improper use of the ground plug can result in electric
shock.
• Do not dissemble or repair the refrigerator by yourself.
- You run risk of causing a fire, malfunction and/or personal
injury.
• If you smell pharmaceutical or smoke, pull out power
plug immediately and contact your Samsung electronics
service center.
• Keep ventilation opening in the appliance enclosure or
mounting structure clear of obstruction.
• Do not use mechanical devices or any other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Don’t dismantle, repair or adapt structure of the
refrigerator unadvisedly; otherwise, its refrigeration system
may be damaged. Do not damage the refrigerant circuit.
• Do not place or use electrical appliance inside
the refrigerator/freezer, unless they are of a type
recommended by the manufacturer.
• Don’t put a dryer in the refrigerator for drying.
• Do not replace LED lamp privately and please contact
the specialized repair staff if necessary.
• Children and other retardates can’t use the refrigerator
without supervision.
• Children should be supervised to ensure that they do not
play with the appliance.
safety information

08_safety information
safety information
• The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Do not let children hang on the door. If not, a serious
injury may occur.
• Do not touch the inside walls of the freezer or products
stored in the freezer with wet hands.
- This may cause frostbite.
• If the refrigerator is not to be used for a long period of
time, pull out the power plug.
- Deterioration in the insulation may cause fire.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
CAUTION SIGNS
• Before the refrigerator is put into use, its leveling legs
must be adjusted to contact the ground, and the
refrigerator must be leveled, so as to avoid tilting.
• This product is intended only for the storage of food in a
domestic environment.
• Manufacturer’s recommended storage times should be
adhered to.
Refer to relevant instructions.
• Bottle should be stored tightly together so that they do
not fall out.
• Don’t store any carbonated drink or soda water in the
freezer.
CAUTION

safety information _09
safety information
• Do not overfill the refrigerator with food.
- When you open the door, an item may fall out and cause
personal injury or material damage.
• Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause
personal injury.
• Do not spray inflammable gas near the refrigerator.
- There is a risk of explosion or fire.
• Do not directly spray water inside or outside the
refrigerator or wipe it with benzene or alcohol.
- There is a risk of fire or electric shock.
• Do not store volatile or flammable substances in the
refrigerator.
- The storage of benzene, thinner, alcohol, ether, LP gas
and other such products may cause explosions.
• You are recommended to empty the refrigerator and turn
it off when you have a long term journey.
• Do not re-freeze frozen foods that have thawed
completely.
• Do not store pharmaceuticals products, scientific materials
or temperature-sensitive products in the refrigerator.
- Products that require strict temperature controls must not
be stored in the refrigerator.
• Do not put a container filled with water on the refrigerator.
- If spilled, there is a risk of fire or electric shock.
• The two legs in the front of the refrigerator are rotatable.
The front legs contact the ground so that the refrigerator
will not move when opening its doors.
• Do not apply strong shock or excessive force onto the
surface of glass.
- Broken glass may result in a personal injury and/or
property damage.

10_safety information
CAUTION SIGNS FOR CLEANING
• Do not insert your hands into the bottom area under the
appliance.
- Any sharp edges may cause personal injury.
• Never put fingers or other objects into the dispenser hole
and ice chute.
- It may cause personal injury or material damage.
• Don’t use wet cloth to clean the plug or remove its
foreign substances or dust.
- Otherwise, it will result in fire hazard.
• If the refrigerator is disconnected from the power supply,
you should wait for at least tenminutes before plugging it
back.
WARNING SIGNS FOR DISPOSAL
• When disposing of this or other refrigerator/s, remove
the door/door seals, so that small children or animals
cannot become trapped inside.
• Leave the shelves in place so that children may not easily
climb inside.
• Check the cimpressor label or the rating label on the
rear of the appliance to see which refrigerant is used for
your refrigerator. When this product contains flammable
gas(Refrigerant R600a/R134a)contact your local authority
in regard to safe disposal of this product.
• Cyclopentane is used as a insulation blowing gas. The
gases in insulation material require special disposal
procedure. Please contact your local authorities in
regard to the environmentally safe disposal of this
product. Ensure that none of the pipes on the back of
the appliances are damaged prior to disposal. The pipes
shall be broke in the open space.
CAUTION

_11
safety information
In the event of a power failure, call the local office of your
Electricity Company
and ask how long it is going to last.
Most power failures that are corrected in an hour or two will
not affect your
refrigerator temperatures.
However, you should minimize the number of door openings
while the power is off.
But should the power failure last more than 24hours, remove
all frozen food.
For doors or lids fitted with locks and keys, the keys be kept
out of the reach of
children and not in the vicinity of the refrigerating appliance,
in order to prevent
children from being locked inside.
There is protective film on the surface of some refrigerator
models, which is
used to protect the refrigerator from scratches during
transport. To avoid static
electricity, please peel off the protective film slowly. If the
protective film is not
removed for a long time, it may cause color shading of the
steel plate.
safety information
CAUTION
CAUTION

safety information
12_
safety information
ADDITIONAL TIPS FOR PROPER USAGE
• Allow the appliance to stand for 2hours after installation.
• To get best performance of product,
- Do not place foods too closely in front of the vents
at the rear of the appliance as it can obstruct free air
circulation in the freezer compartment.
- Wrap the food up properly or place it in airtight
containers before put it into the fridge freezer
- Do not put any newly introduced food for freezing near
to already frozen food.
• Please observe maximum storage times and expiry
dates of frozen goods.
• There is no need to disconnect the refrigerator from
the power supply if you will be away for less than three
weeks. But, remove all the food if you are going away
for the three weeks or more. Unplug the refrigerator and
clean it, rinse and dry.
• Most power failures that are corrected in an hour or two
will not affect your refrigerator temperatures. However,
you should minimize the number of door openings while
the power is off. But should the power failure last more
than 24hours, remove all frozen food.
• Do not store food which goes bad easily at low
temperature, such as bananas, melons.
• Place the ice tray at the originally provided posistion by
manufacturer in order to achieve optimal ice-freezing.
• Your refrigerator is frost-free, so you are no need
to defrost manually and the refrigerator will do so
automatically.
• Temperature rising during the defrost can comply with
relevant national requirement. But If you want to prevent
an undue rise in the temperature of the frozen food

_13safety information
while defrosting the appliance, please wrap the frozen food
in several layers of paper such as newspaper.
• Any increase in temperature of frozen food during defrosting
can shorten its storage life.
SAVING ENERGY TIPS
- Install the appliance in a cool, dry room with adequate
ventilation.
Ensure that it is not exposed to direct sunlight and never put
it near a direct source of heat (radiator, for example).
- Never block any vents or grilles on the appliance.
- Allow warm food to cool down before placing it in the
appliance.
- Put frozen food in the refrigerator to thaw. You can then use
the low temperatures of the frozen products to cool food in
the refrigerator.
- Do not keep the door of the appliance open for too long
when putting food in or taking food out. The shorter time for
which the door is open, the less ice will form in the freezer.
Clean the rear of the refrigerator regularly. Dust increases
energy consumption.
- Do not set temperature colder than necessary.
- Ensure sufficient air exhaust at the refrigerator base and at
the back wall of the refrigerator.
- Do not cover air vent openings.
- Allow clearance to the right, left, back and top when
installing.
This will help reduce power consumption and keep your
energy bills lower.
safety information

14_
contents
contents
seTTING UP yOUR sIde-by-sIde
RefRIGeRATOR
15 Getting ready to install the refrigerator
16 Removing the refrigerator doors
19 Reattaching the refrigerator doors
22 Leveling the refrigerator
seTTING UP yOUR sIde-by-sIde
RefRIGeRATOR
23 Making minor adjustments to the doors
24 Checking the water dispenser line(optional)
25 Installing the water dispenser line
OPeRATING The sAMsUNG
sIde-by-sIde RefRIGeRATOR
28 Setting up the refrigerator
29 Operating the refrigerator
30 Using the digital display
31 Controlling the temperature
32 Using the ice and cold water dispenser
33 Shelves and bins
34 Storing food
36 CoolSelect Duo
(Optional)
37 Removing the freezer accessories
38 Removing the fridge accessories
39 Cleaning the refrigerator
40 Changing the interior lights
Using the doors
TROUbleshOOTING
28
23
15
41
40

setting up _15
setting up your side-by-side
refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the
many state-of-the-art features and efficiencies that this new appliance has to offer.
Selecting the best location for the refrigerator
• Select a location with easy access to the water supply.
• Select a location without direct exposure to sunlight.
• Select a location with level (or nearly level) flooring.
• Select a location with enough space for the refrigerator doors to open easily.
• Allow sufficient space to install the refrigerator on a flat surface.
- If your refrigerator is not level, the internal cooling system may not work correctly.
- Overall space required in use. Refer to drawing and dimension as below.
• Allow clearance to the right, left, back and top when installing. This will help reduce
power consumption and keep your energy bills lower.
• Do not install the refrigerator where the temperature will go below 50°F (10°C).
• Make sure you disconnect the water supply line BEFORE removing the freezer door.
See the next section on “Separating the Water Line” to avoid damage.
25mm
50mm
1546mm
1163mm
at least 50mm
at least 50mm
01 SETTING UP
Spacer
Spacer
• Spacer(gray block) installation
For better performance, please certainly fix the
spacer on the rear of unit when installing the
refrigerator. It is improving refrigerator performance.
(RSA1Z**)

setting up
REMOVING THE REFRIGERATOR DOORS
If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors.
1. Removing the Front Leg Cover
First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning
the three screws counter-clockwise.
Separating the Water Supply Line from the Refrigerator
1. Remove the water line by pressing the coupler 1 and pulling the water line 2 away.
:
Do not cut the water line. Gently separate it from the coupler.
1
2
16_

setting up _17
setting up your side-by-side
refrigerator

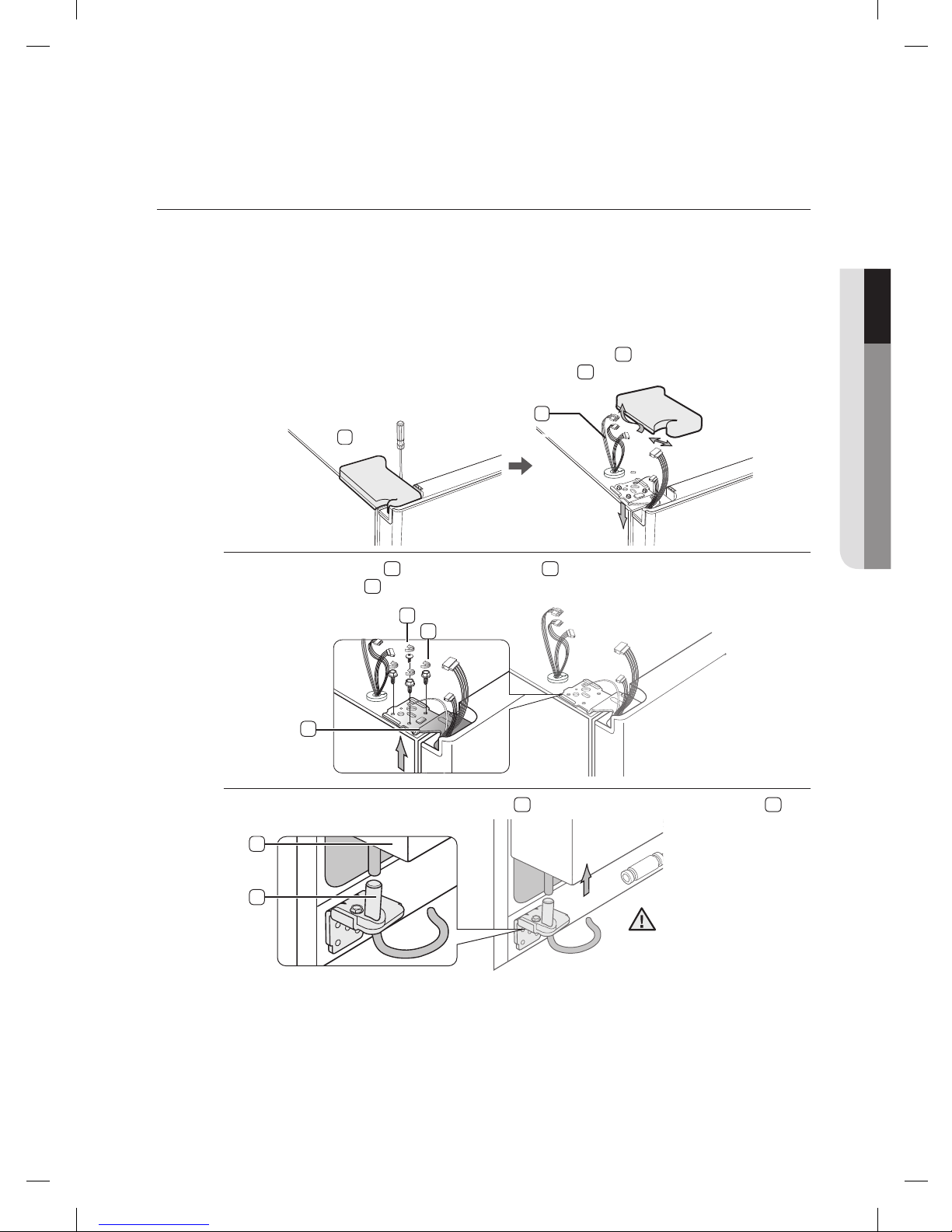

2. Removing the freezer door
A few things to mention first.
• Make sure that you lift the door straight up so the hinges are not bent or broken.
• Be careful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface to prevent scratching or damage.
1. With the Freezer door closed, remove the upper hinge cover 1using a screwdriver, and
then disconnect the wires by gently pulling them apart 2.
2. Remove hinge screws 3and the ground screw 4by turning counter-clockwise, and take
off the upper hinge 5. Be careful that the door does not fall on you as you are removing it
3. Next, remove the door from the lower hinge 6by carefully lifting the door straight up 7.
2
3
4
5
7
6
1
01 SETTING UP
Be careful not to pinch
the water tubing and
wire harness on the
door.

18_ setting up

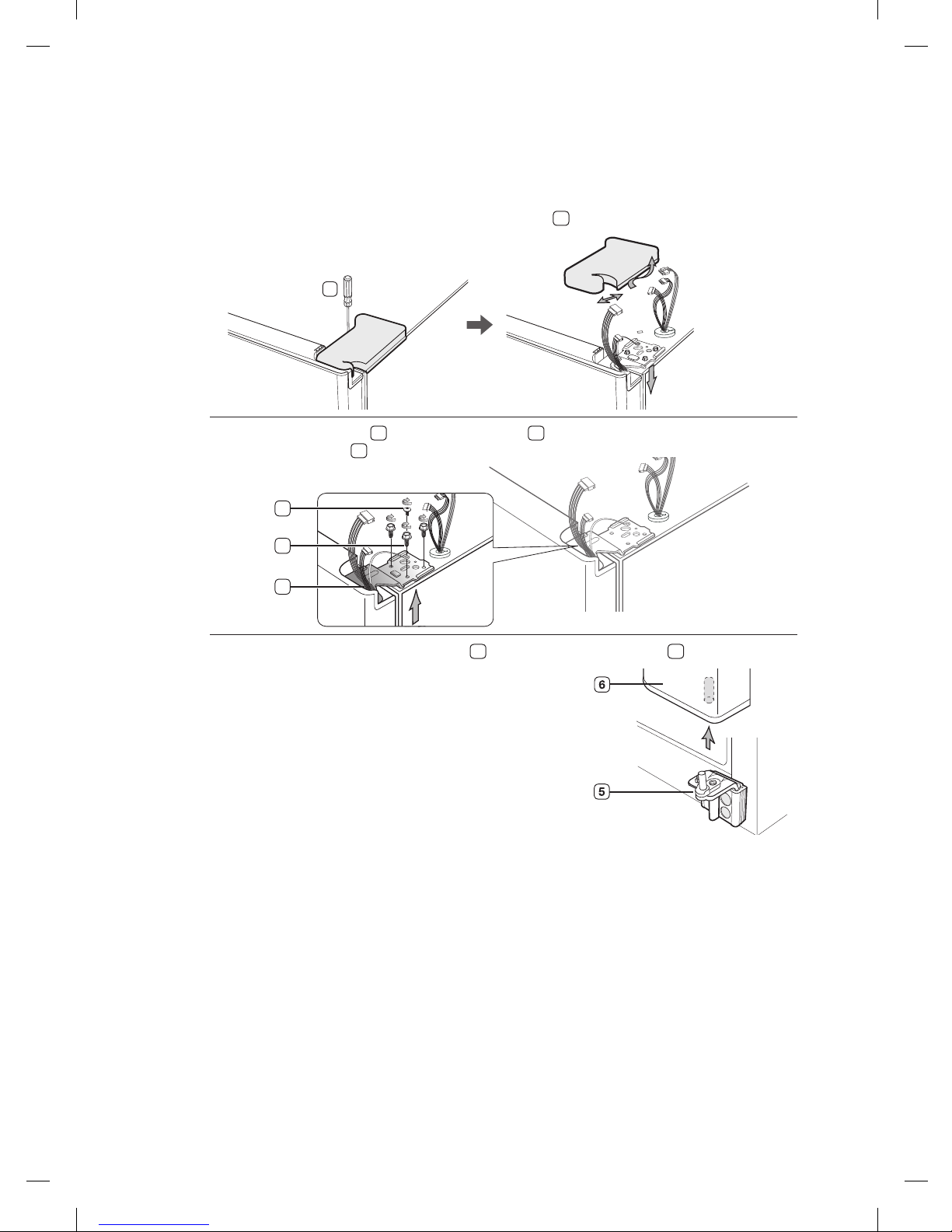

Removing the Fridge Door
1. With the door closed, remove the upper hinge cover 1using a screwdriver.
2. Remove hinge screws 2and the ground screw 3by turning counter-clockwise, and take
off the upper hinge 4. Be careful that the door does not fall on you as you are removing it.
3. Remove the door from the lower hinge 5by lifting the door straight up 6.
1
4
2
3

setting up _19
setting up your side-by-side
refrigerator

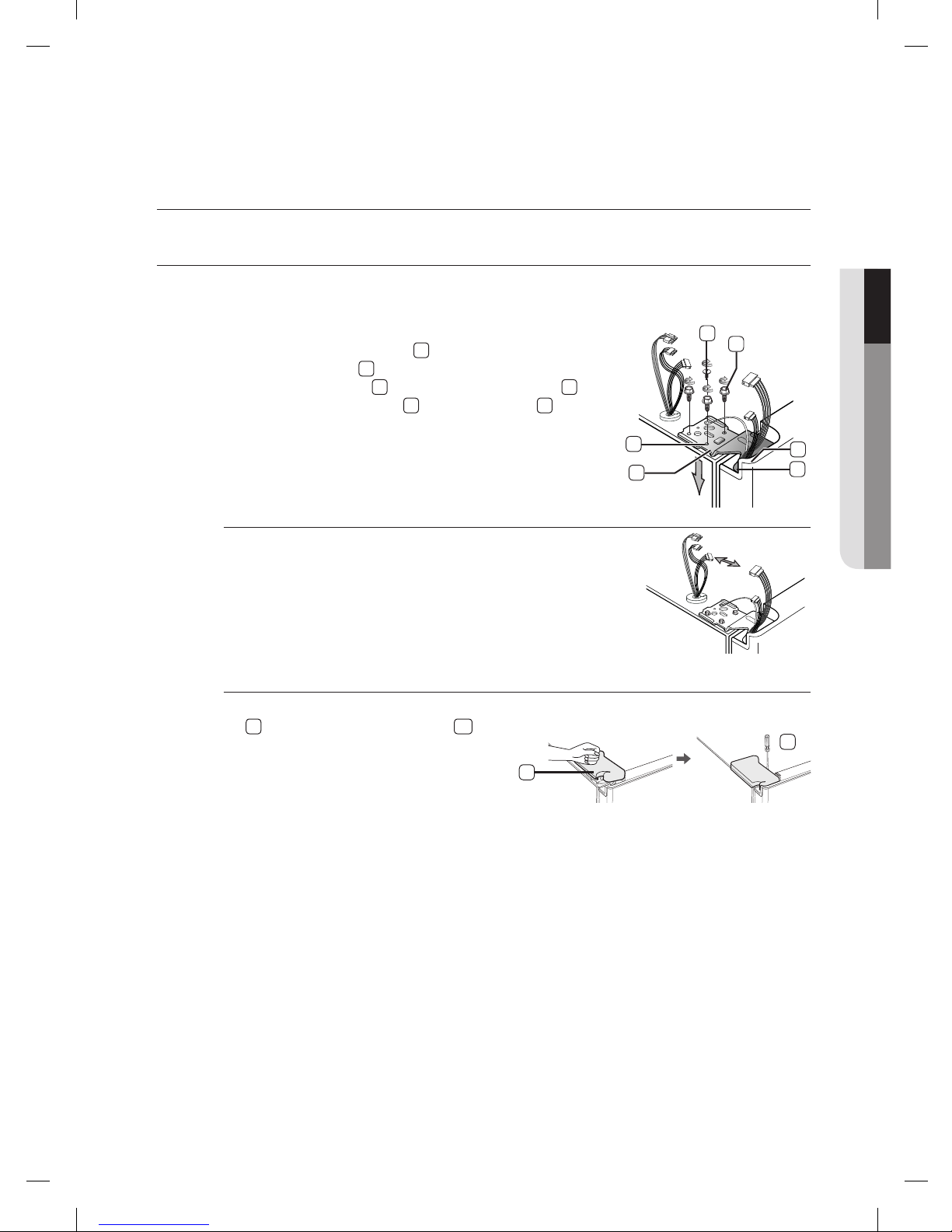

REATTACHING THE REFRIGERATOR DOORS
Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on.
Reattaching the Freezer Door
1. Insert the upper hinge shaft 3into the hole on the corner
of the freezer door 4. Make sure the hinge is level between
the upper hinge hole 5and the hole of the cabinet 6and
reattach the hinge screws 7and ground screw 8by turning
in a clockwise direction.
2. Reconnect the wires.
3. Place the front part of the upper hinge cover
9on the front of the upper hinge 10
and
reattach with the screw.
01 SETTING UP
10
9
4
5
6
7
8
3

20
_setting up
Reattaching the Fridge Door
1. Fit the hole in the corner of the fridge door 3over the lower
hinge 4.
2. Insert the upper hinge shaft 5into the hole on the hinge 6
. Make sure the hinge is level between the upper hinge
hole 7and the hole on the top of the cabinet 8. Then,
reattach hinge screws 9and the ground screw
10
by
turning it in a clock wise direction.
3. Place the front part of the upper hinge cover
11
on the front of the upper hinge
12
and
reattach it with the screw.
3
4
12
11
