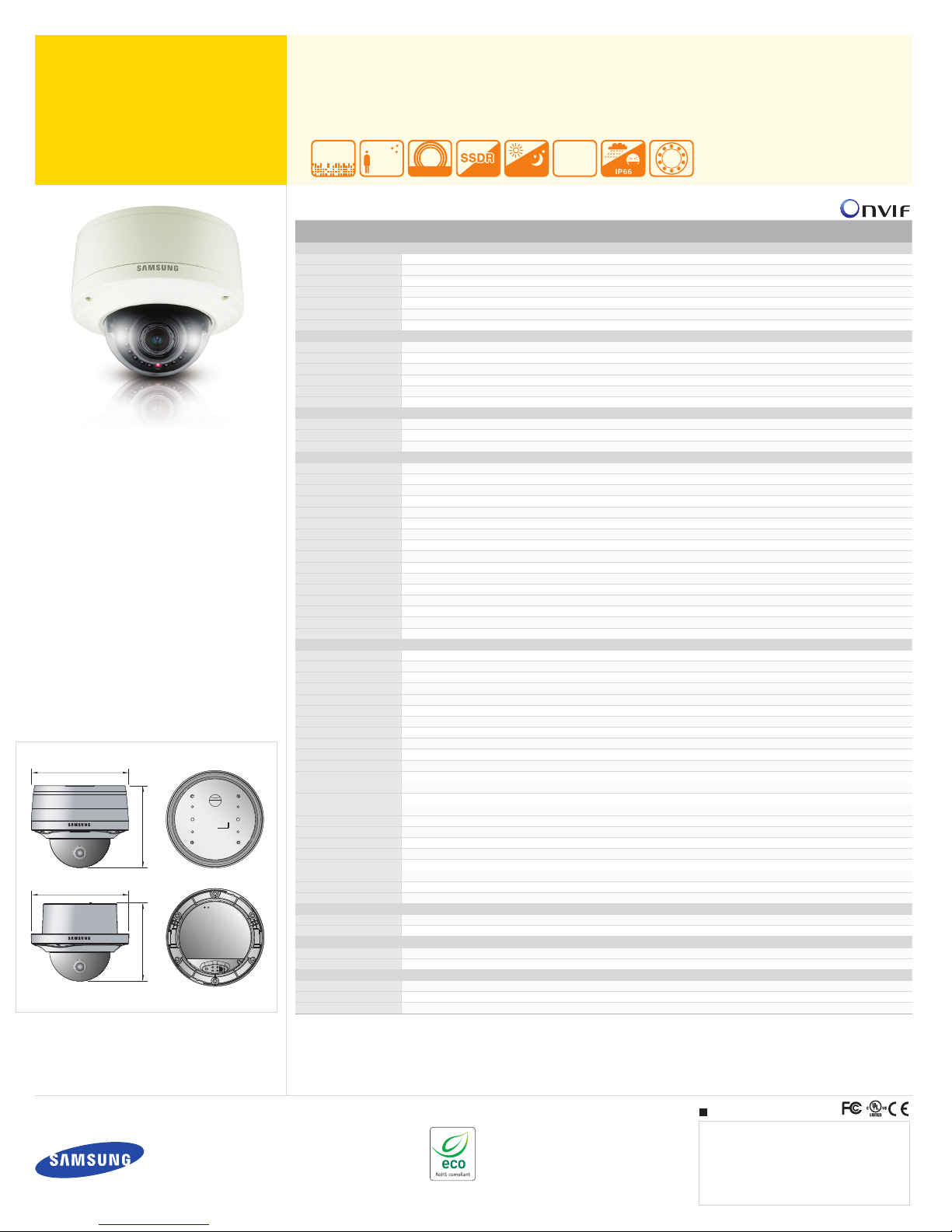

SNV-5080R
The SNV-5080R is a high performance vandal resistant dome
camera featuring built-in IR LEDs making it suitable for use in
the most demanding applications. With H.264 compression and
HD megapixel output (720p) it is capable of illuminating subjects
up to 50ft from the camera in order to provide bandwidth-
friendly, high resolution images both during the day and at
night. Encased in a tough vandal resistant housing and
weatherproof to IP66, the SNV-5080R is suitable for installation
both indoors and outdoors and built to last.
1.3Megapixel HD Vandal-Resistant IR Dome Camera
Tough HD
1.3MP HD Vandal-Resistant
IR Network Camera
• 3 ~ 8.5mm (2.8x) motorized vari-focal lens
• Max. 1.3M (1280 x 1024) resolution
• HD (720p) display support
• H.264 / MJPEG / MPEG-4 multiple codecs
• IP66 (outdoor rated)
• Built in IR LED, viewable length of 50ft
09-2011

Ø160.0 (6.3")
134.5 (5.3")
Ø160.0 (6.3")
125.0 (4.92")
Ø160.0 (6.3")
134.5 (5.3")
Ø160.0 (6.3")
125.0 (4.92")
SNV-5080RN/P
VIDEO
Imaging Device 1/3" 1.3M PS CMOS
Total Pixels 1,384(H) x 1,076(V)
Effective Pixels 1,329(H) x 1,049(V)
Scanning System Progressive
Min. Illumination Color : 0.3 Lux (F1.2, 50IRE), 0.005 Lux (Sens up 60X), B/W : 0Lux (F1.2, 50IRE, IR LED ON)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vp-p / 75Ω composite, 704x480(N), 704x576(P), for installation
LENS
Focal Length (Zoom Ratio)
3~8.5mm (2.8X) Motorized Vari-focal
Max. Aperture Ratio F1.2
Angular Field of View H: 94°(Wide)~69.86°(Tele), V: 32.9°(Wide)~24.92°(Tele)
Focus Control Remote control via network (Manual, One-shot AF)
Lens Type DC Auto Iris
Mount Type Board-in type
PAN / TILT / ROTATE
Pan Range 0° ~ 355°
Tilt Range 0° ~ 90°
Rotate Range 0° ~ 355°
OPERATIONAL
IR LED 15 ea
Viewable Length 50ft
Camera Title
Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation
Off / BLC / HLC
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNR
III (2D+3D Noise filter) (Off / On)
Motion Detection Off / On (4 programmable zones)
Privacy Masking
Off / On (12 programmable zones)
Sens-up (Frame Integration)
Off / Auto (2X ~ 60X)
Gain Control Off / Low / Medium / High / Manual
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics
Scene Change, Virtual Line, Enter/Exit, Appear / Disappear
Alarm I/O Input 1ea / Output 1ea (Relay)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format
H.264, MPEG4, MJPEG
Resolution
1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate 22fps (1280 x 1024), 30fps (720P HD)
Video Quality Adjustment
H.264/MPEG4 : Compression Level, Target Bitrate Level Control, MJPEG : Quality Level Control
Bitrate Control Method H.264/MPEG4 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple Streaming (Up to 10 Profiles)
Audio I/O Mic/Line in , Line out
Audio Compression Format
G.711 u-law
Audio Communication 2-Way
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPOE,
FTP, SMTP, ICMP, IGMP, SNMPv1 / v2C / v3 (MIB-2), ARP, DNS, DDNS, ONVIF
Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering
User access Log, 802.1x Authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at Unicast Mode
Memory Slot SD/SDHC Memory Slot
ONVIF Conformance Ye s
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Denish
Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatia, Hungary, Greek
Web Viewer
Supported OS : Windows XP / VISTA / 7, MAC OS, Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software
NET-i viewer
ENVIRONMENTAL
Operating Temperature / Humidity
-40°C ~ +50°C (-40°F ~ +122°F) / ~ up to 100%
Ingress Protection IP66 Grade (Waterproof)
ELECTRICAL
Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 9W or 650mA (Heater Off), Max. 13W or 800mA (Heater On); Heaters work on 24VAC only
MECHANICAL
Color / Material Body : Ivory / Aluminum
Dimensions (WxH) Ø160 x 134.5mm (Ø6.3" x 5.3")
Weight 1.4Kg (3.09 lb)
D&N ICR
2.8X
V/F Lens
PoE
0 Lux
IR LED
1.3M
1.3Megapixel HD Vandal-Resistant IR Dome Camera
I.E-1105
DISTRIBUTED BY
Specifications
Dimensions Unit : mm (inch)
SNV-5080R
Design and specifications are subject to change without notice.
