Samsung SOC-4120AN User manual

SAMSUNG CCD CAMERA
SOC-4120AN/P
LENSBUILTIN
WDRCOLORCCDCAMERA
INSTRUCTION MANUAL
About this manual
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
P/No. : Z6806-0474-01A
VAN 04. 2
•SAMSUNG TECHWIN CO., LTD.
Optics & Digital Imaging Division 145-3, Sangdaewon 1-Dong,
Jungwon-Gu,Sungnam,Kyungki-Do,Korea462-703
TEL:[phone]~41 FAX:[phone]
•SAMSUNG OPTO-ELECTRONICS AMERICA, INC. (SOA)
ClosedCircuitDivision40Seaview Drive, Secaucus N.J 07094,
U.S.A
TEL: [phone] FAX:[phone]
•SAMSUNG OPTO-ELECTRONICS UK LTD (SOUK)
Samsung House, 1000 Hillswood Drive Hillswood Business
ParkChertseySurreyKT16OPS
TEL:[phone] FAX:[phone]
•
TIANJINSAMSUNGOPTO-ELECTRONICSCO.,LTD(TSOE)
7PingchangRd,NankaiDist, Tianjin, P.R China
PostCode:300190
TEL: [phone] FAX: [phone]
SALES NETWORK
www.samsungtechwin.com
www.samsungcctv.com

This installation should be made by a qualified service person and
should conform to all local codes.
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION-This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING -Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
54
Features Warning
Wide Dynamic Range(WDR)
Fine Picture Condition Under Very
Low Illumination (SENSE UP)
1/3 high density CCD and digital
processor permit high quality pictures to
be captured in very low light condition.
SV-II DSP chip built-in SAMSUNGTECHWIN
allows the camera to find the best picture
conditions in any environment and
automatically gives a necessary light level
compensation, so you can always obtain
the clear picture, the finest detail and
perfect light contrast.
MOTION DETECTION
The camera transmits an alert signal to
the REMOTE jack when it detects motion
of an object. If you connect an optional
alarm to the camera, you can get the
effective surveillance.
Auto Iris Vari-Focal Lens Built In
The focal length of lens is 3.8 to 9.5
mm, equivalent to 2.5x zoom.
The built-in lens allows the camera to
have a Wider Dynamic Range, therefore
you can use in various applications.
Wide Range ATW
The White Balance can be automatically
adjusted in response to light condition
so that you can observe in an appropriate
color balance.
Adoptable
One power connection self-configures
to either 12V DC or 24V AC.
AC line lock standards with all cameras
in 24V AC operation.
High Resolution
The horizontal resolution of 500TV lines
can be achieved by using a high density
CCD having Double Speed 410,000 pixels
SONY CCD, which provides clean,
noiseless and reliable pictures.
The camera needs periodic inspection.
Contact an authorized technician for inspection.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time, a
fire may be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.
SSNR(Samsung Super Noise
Reduction) CHIP
SOC-4120AN/P has an assistant DSP chip
that can remove image noise efficiently
and it shows clean and obvious image in
low luminance
Electronic DAY/NIGHT
In normal or high luminance, camera
maintains color mode. On the contrary, it
get changed into B/W mode in low
luminance.

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
76
Contents
Front
Bottom
Back
Connecting to Monitor
Connecting to Power
Configuration of The Menu
8
16
16
17
18
21
22
23
26
27
28
29
30
31
33
34
10
11
14
14
15
11
12
13
Operating Your Camera
Setting Up The Menu
• CAMERA ID
• BACKLIGHT
• WHITE BALANCE

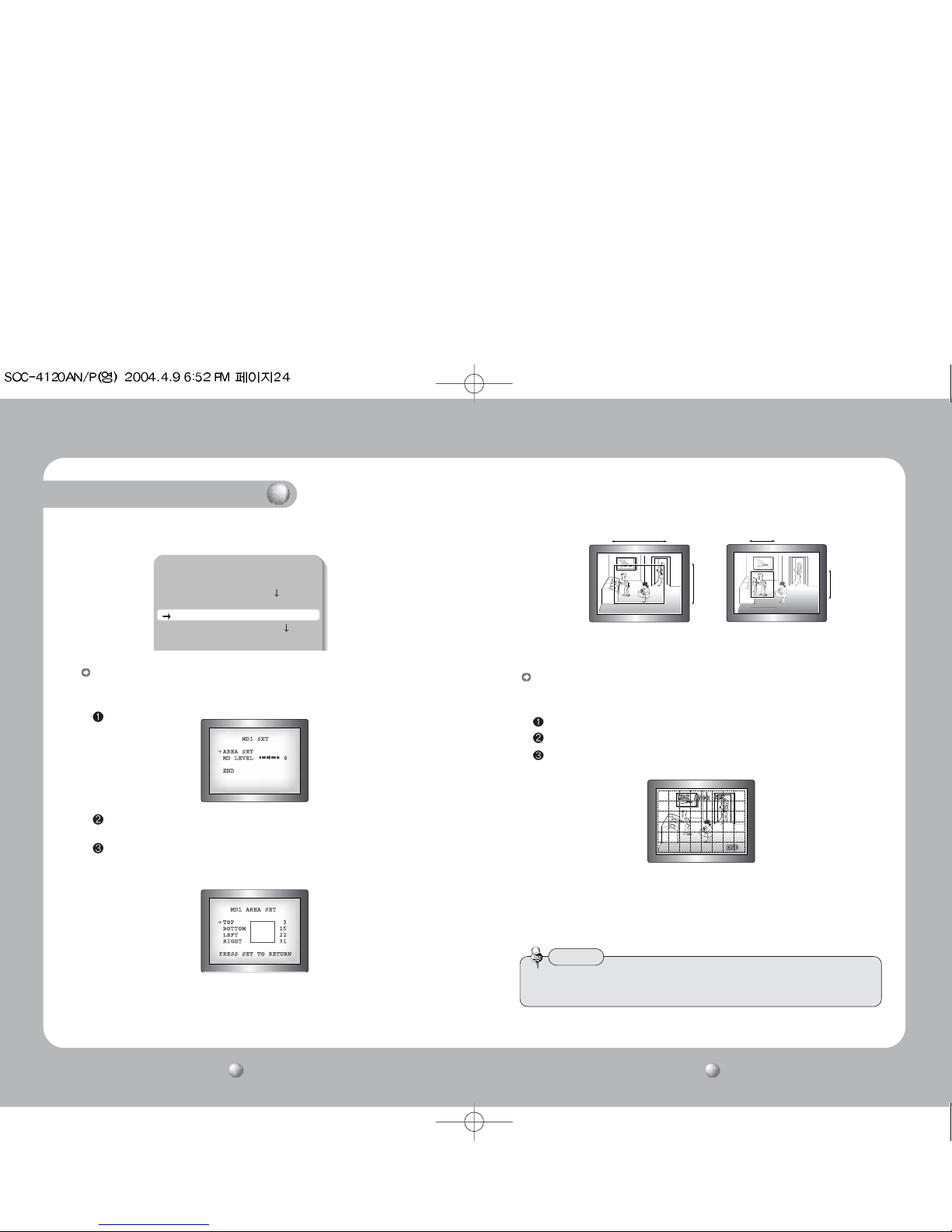

• MOTION DETECTION

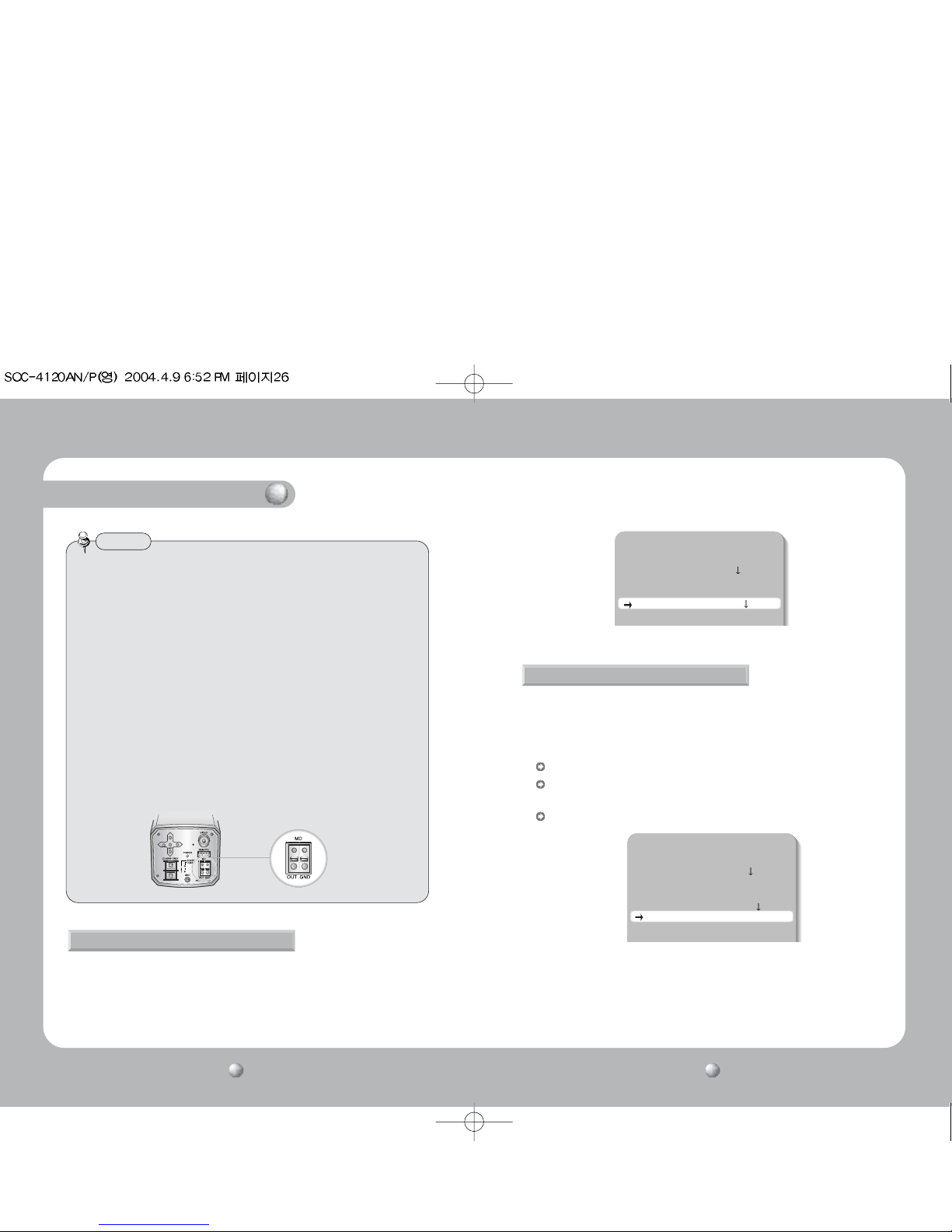

• IRIS LEVEL CONTROL
• SHUTTER SPEED CONTROL
• SENSE UP
• GAIN
• SSNR
• SPECIAL

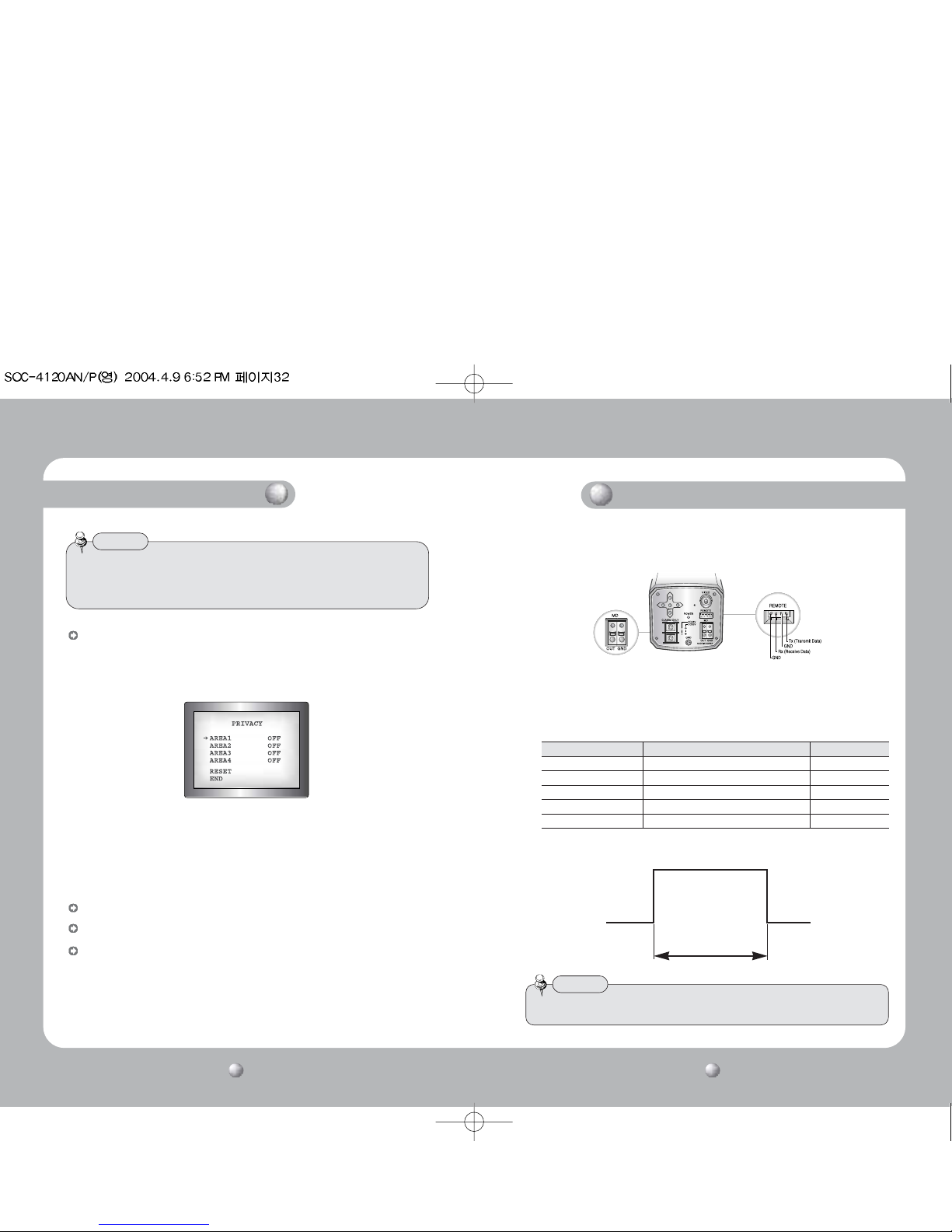

Using Remote Jack / MD Output
Troubleshooting
36
Specifications
Connection
Precautions
Composition
Name and Function of Each Part

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
98

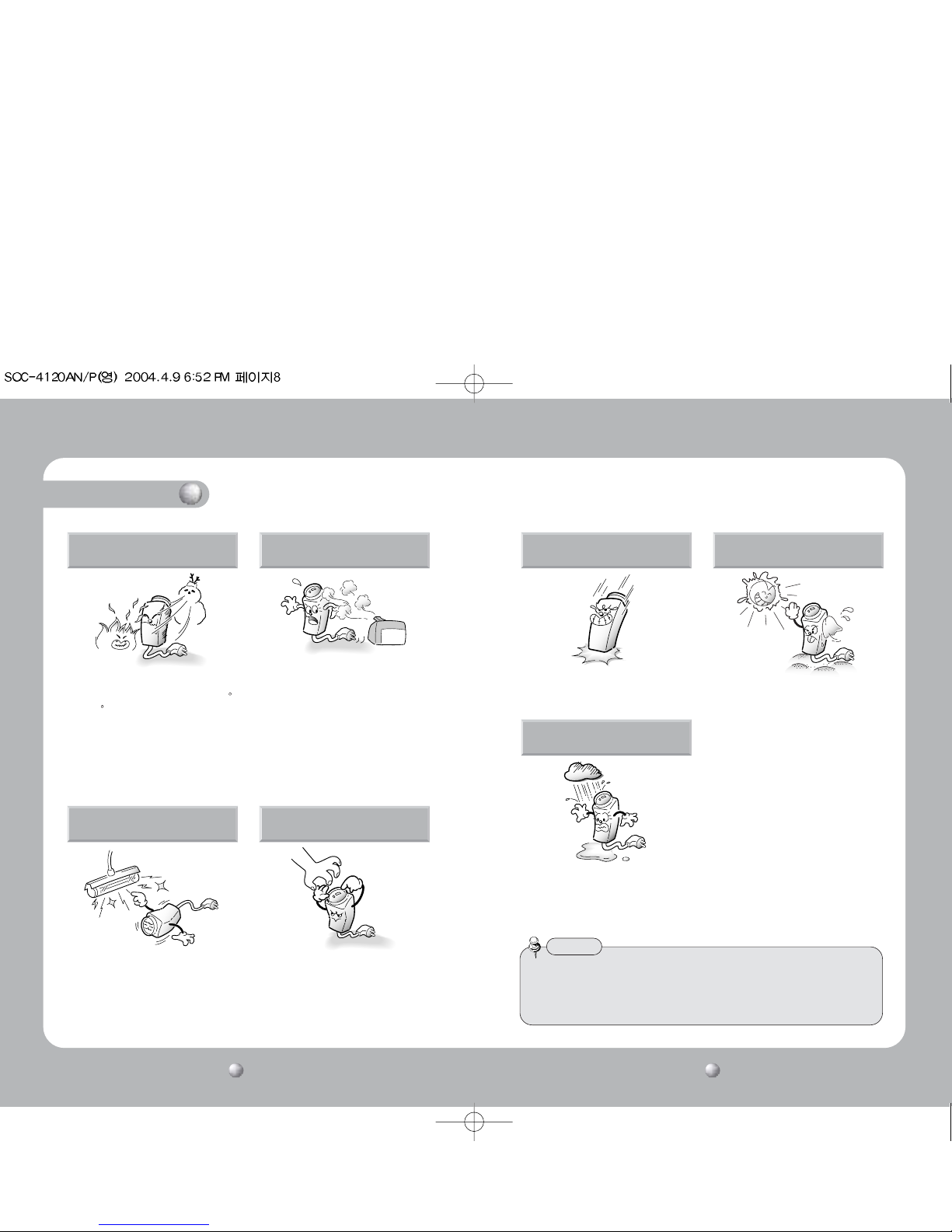

Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between -10 C
and +50 C. Be especially careful to provide
ventilation when operating under high
temperatures.
Do not install or use the camera in an
environment where the humidity is high.
It can cause the image quality to be poor.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not touch the front lens of the
camera.
It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.
Do not drop the camera or subject
them to physical shocks.
It can cause malfunctions to occur.
Never keep the camera face to
strong light directly.
It can damage the CCD.
Do not expose the camera to rain
or spill beverage on it.
If it gets wet, wipe it dry immediately.
Liquids can contain minerals that corrode
the electronic components.
• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.
• Please check that the power satisfies the normal specification before connecting
the camera.
Notes

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
1110
Composition
Front
Name and Function of Each Section
1. WDR Color CCD Camera
SOC-4120AN/P
2. Remote Plug
3. Instruction Manual
Tripod Mounting Bracket Screw Hole
Used to fix the Tripod mounting bracket on the
top of the camera.
Control Cover
Used to access focus or zoom handle
Zoom Handle
To adjust zoom maginification by turning.
Focus Handle
To provide for accurate focusing of an
object within the lens field of view.
• When you finish adjusting zoom and focus lever, fix the lever by turning clockwise.
Notes

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
1312
Name and Function of Each Section
Bottom
Menu Setup Buttons
• SET Button: Used to access menu mode. Also used to confirm the setting.
• UP/DOWN Button: Used to choose the desired menu item. It also moves
the cursor up or down in the menu screen.
• LEFT/RIGHT Button: Used to change the parameter of the selected menu item.
It also moves the cursor the left or right in the menu screen.
You can remove and install this bracket on the top
of the camera. You must use the supplied screw
or the equivalent (within 6mm). If not, the bracket
may not be fixed properly.
Tripod Mounting Bracket
Tripod Mounting Hole
Used to install the camera on an optional
tripod. The tripod must be equipped with
the screw specified as shown below.
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L
Back
MD Output Terminal
Used to output motion
detection signal.
Frame Ground
AC / DC Power Terminal
Used to connect an AC 24V or DC 12V power source.
Video Output Jack
Used to connect an external
video monitor in jack.
Remote Jack
Used to connect a
remote plug.
Power LED
The LED turns on
when power is supplied.

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
1514
Connection
Connecting to Monitor
Connect the VIDEO Out jack to the monitor VIDEO In jack.
CCD Camera Monitor
• As the connecting method varies with the instruments, refer to the manual
supplied with the instrument.
• If necessary, you can connect the monitor to the REMOTE jack on the back
of your camera. For details, see page 33.
• Only connect the cable when the power is turned off.
•
Set the 75Ω/Hi-Z selection switch as shown below if you have an intermediate device.
CCD Camera Intermediate End monitor
Connecting to Power
• Use AC 24V/300mA or DC 12V/500mA power source for SOC-4120N/P.
Resistance of copper wire [at 20C˚ (68˚F)]
• As the voltage drop according to the length of the cable in the above table, a
camera may malfunction if there is an excessively long cable run.
* Voltage for camera operation: 12V DC ±10%
* Voltage drops in the above table are variable according to types of cable manufacturer.
Copper wire size (AWG) #24(0.22mm2)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)
Resistance (Ω/ m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
• Be sure to connect power only after all the installation is complete.
• Note that AC or DC adaptor is not supplied with camera.
• Use the UL listed, class 2 power transformer of AC 24V adaptor.
• Ground should be connected to the GND terminal.
Notes

COLORCCD CAMERACOLORCCD CAMERA User’s ManualUser’s Manual
1716
Operating Your Camera
Configuration of The Menu Setting Up The Menu
Use the five SETUP MENU buttons on back of the camera.
1. Press the SET button to access the SETUP mode.
• SETUP menu is displayed on the monitor screen.
2. Select the desired feature using the UP or DOWN button.
• Each time you press the UP or DOWN button, the arrow indicator
moves up or down.
• Move the arrow indicator to the desired feature item.
LEFT button
UP button
SET button
RIGHT button
DOWN button
SETUP MENU CAMERA ID (see page 18)
• OFF • ON
BACKLIGHT (see page 21)
• WDR • BLC • OFF
WHITE BAL. (see page 22)
• W-ATW • S-ATW • AWC • MANUAL
MOTION DET. (see page 23)
• OFF • MD1 • MD2
IRIS LEVEL CONTROL (see page 26)
• LEVEL
SHUTTER (see page 27)
• OFF • 1/100 (1/120) • MANUAL
SENSE UP (see page 28)
• Auto • OFF
GAIN (see page 29)
• OFF • AGC-L • AGC-H
SSNR (see page 30)
• OFF • LOW • MIDDLE • HIGH
SPECIAL (see page 31)
• COLOR • SYNC • PRIVACY • RESET
• END • EXIT
EXIT
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT

COLORCCD CAMERA User’s Manual
19
COLORCCD CAMERA User’s Manual
18
3. Change the status of the selected feature using the LEFT or RIGHT button.
4. When completed, move the arrow indicator to 'EXIT' and press the SET
button.
If you enter a CAMERA ID, the name will be displayed in the screen monitor.
1. Press the SET button to display the SETUP menu and move the arrow
indicator to 'CAMERA ID' using the UP or DOWN button.
2. Set 'CAMERA ID' to 'ON' using the LEFT or RIGHT button.
CAMERA ID
• If the CAMERA ID feature is set to 'OFF', the name
will not displayed in the monitor.
Notes
• For the mode with you can access submenu.
• You can access submenu using SET button.
Notes
Operating Your Camera
3. Press SET button.
4. You can enter up to 16 characters.
Move the cursor to character-enter location by using the LEFT or
RIGHT button.
Select the desired character by using UP or DOWN button.
•The factory defualt characters are A, B, ···, a, b, ···, ., -, ··· 0, 1···, 8, 9
Press the SET button to confirm the blinking character. The first
character is saved and the cursor in the bottom of the screen moves to
the next position.
Repeats steps , and until you create the full name you want.
• If you make a mistake while entering name
Move the cursor to ‘CLR’, press ‘SET’ button.
After erasing the character from right to left, correct the character again.
Notes
CANERA ID
POS CLR RESET END
CAMERA ID
POS CLR RESET END
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
Change the status using
the LEFT or RIGHT button.
Select the function using
the UP or DOWN button.
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT

COLORCCD CAMERA User’s Manual
21
COLORCCD CAMERA User’s Manual
20
Operating Your Camera
COLORCCD CAMERA User’s Manual
21
COLORCCD CAMERA User’s Manual
20
5. Select the position at which the CAMERA ID will be located on the screen.
Move the cursor to 'POS' and press SET button.
T he CAMERA ID is displayed on the bottom-left of the monitor screen.
(Default position)
Select the position by using the 4-directional buttons, then press the SET
button to confirm the position.
6. When completed, move the cursor to 'END' and press SET button.
FRONT DOOR
FRONT DOOR
SV-II DSP chip built-in provides intelligent light level control to overcome the
severe Backlight conditions.
1. Press the SET button to display the SETUP menu and move the arrow
indicator to ‘BACKLIGHT’ using the UP or DOWN button.
2. SET ‘BACKLIGHT’ to the desired mode using the LEFT or RIGHT button.
WDR: In case that bright and dark parts exist on the screen at the same time,
your camera allows you to see both parts clearly
BLC: When the image is in front of strong background lighting, your camera
allows you to get the clear image
OFF: Deactivation
3. Press the ‘SET’ button.
• When ‘WDR’ is chosen, you can adjust the level.
BACKLIGHT
Youcanselect thelevel from -4to 4. WDRsensitivity is increasedor decreased.
WDR BLC OFF
CAMERA ID
POS CLR RESET END
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
WDR SET
LEVEL 0
PRESS SET TO RETURN

Operating Your Camera
COLORCCD CAMERA User’s Manual
23
COLORCCD CAMERA User’s Manual
22
• If you select WDR mode, the following phenomenon may appear by lighting
condition. In these cases do not select WDR mode.
Unnatural color change or unnatural phenomenon on the screen
Noise of bright part on the screen
• According to the area of bright part on the screen there may be the difference of
WDR performance so be sure to adjust the degrees of the visual angle when
installing your camera.
• If you increase WDR level, unnatural phenomenon may appear.
Notes
WHITE BALANCE CONTROL
4. When completed, press the SET button.
Your camera provides 4 ‘WHITE BAL.’ control modes. You can select the
most suitable one. You can adjust the white balance.
1. Press the SET button to display the SETUP menu and move the arrow
indicator to 'WHITE BALANCE' using the UP or DOWN button.
2. Set ‘WHITE BAL.’ to the desired mode using LEFT or RIGHT button.
The six WHITE BALANCE control modes are as follows :
W-ATW(Wide Auto Tracking White balance): When color temperature is
2400~12000K, select this mode. (EX. a fluorescent lamp, outdoor)
MOTION DETECTION
S-ATW(Special Auto Tracking White balance): When color temperature is
1800~6000K, specially in sodium lamp, select this mode. (EX. sodium lamp, inside the
tunnel)
AWC(Auto White balance Control): The white balance is automatically adjusted
in a specific environment. In order to obtain the best result, press the SET button while
the camera focuses on white paper. If the environment including the light source is
changed, you have to adjust the white balance again.
MANUAL: To fine adjust, select the Manual mode. You can increase or
decrease the red or blue factor while monitoring the difference on the screen. Set
to 'MANUAL' mode and press the SET button. Increase or decrease the value for
RED(R-Gain) and BLUE(B-Gain), watching the color of the picture, and press the
SET button when you obtain the best color.
• Proper White Balance may not be obtained under the following conditions, in these
cases select the AWC mode.
When the scene contains mostly high color temperature object, such as a blue
sky or sunset.
When the scene is dim.
If your camera faces fluorescent lamp directly or is installed in the place of the
changing illumination.
Notes
Your camera transmits an alert signal when it detects motion of an object
on the screen. If you connect the camera to an external alarm, you can pay
attention to the screen when the alarm sounds. This feature is useful when
you have to monitor several screens simultaneously. Whenever your camera
detects motion of object displaying ‘MOTION DETECTED’ with the number
counted up on the screen.
1. Press the SET button to display the SETUP menu and move the arrow
indicator to 'MOTION DET.' using the UP or DOWN button.
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF

Operating Your Camera
COLORCCD CAMERA User’s Manual
25
COLORCCD CAMERA User’s Manual
24
MD1:Your camera detects the object’s motion by outline or difference of a
color tone, so this mode is very useful for the daytime or observing
small moving object.
Press SET button.
Move the arrow indicator to ‘AREA SET’ using UP and DOWN button, and
then press the SET button.
Set the areas you want to observe.
· You can adjust the top, bottom, left and right base lines by 13 steps
from top to bottom, 18 steps from left to right with an increment of 1.
· Move the arrow indicator to 'TOP' using the UP or DOWN button and
increase or decrease the value using the LEFT or RIGHT button. Repeat the
procedure for bottom, left and right.
2. Set ‘MOTION DET.’ to the desired mode using LEFT or RIGHT button.
· When completed, press SET button.
MD2:Your camera detects object’s motion by the variation of brightness, so
this mode is very useful for night or observing large moving object.
Also MD2 enables you to set seperated areas.
Press SET button.
Move the arrow indicator to ‘AREA SET’ like MD1.
Set the areas you want to observe of the 48 areas.
· Move the cursor to the area you want to observe, and then press the SET button.
· After setting, move the cursor to edge in any direction and then press the
button just one more, let ‘END’ blink.
· Press the SET button.
Maximum
18
13
Minimum
6
5
• If you set some areas of 48 areas, your camera detects the object’s motion within
the areas you set.
Notes
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF

Operating Your Camera
COLORCCD CAMERA User’s Manual
27
COLORCCD CAMERA User’s Manual
26
Tips on Using the Motion Detection Feature
• As you increase or decrease MD LEVEL, the areas’ sensitivity is increased or
decreased for object.
• After selecting zone and sensitivity, perform a test operation to make sure it
works properly.
• If the lighting flickers, the motion detection feature might not work properly.
• The object should occupy 10% or more of its zone. The bigger the object, the
higher sensitivity.
• If the brightness of an object changes rapidly by sudden lighting change, the
camera may detect it as a motion.
• Your camera can count up to 999. If you reset your camera with selecting
‘RESET’ in SPECIAL menu or turn it off and on, your camera’ll count up from 0.
• When this feature is activated, another algorithm may take more time to be operated.
• This system does not guarantee prevention of fires or thefts. The manufacturer
is not responsible for any accident or damage.
• You can use the MD output terminal jack on the rear of the camera to connect
an external alarm device. For details, see page 33.
Notes
3. When completed move the arrow indicator to ‘END’ and press the SET button.
You can control brightness of the screen by the shutter speed.
1. Press the SET button to display the setup menu and move the arrow
indicator to ‘SHUTTER’ using the UP or DOWN button.
2. Set ‘SHUTTER’ to the desired mode using the LEFT or RIGHT button.
OFF:Deactivation
1/100(1/120: PAL Models):Flickerless mode (When WDR is on, the image
can flicker a little)
MANUAL:When setting shutter speed manually
3. If you choose ‘MANUAL’, select the optimal shutter speed.
•You can select speed from ‘1/60’ to ‘1/200,000’sec (NTSC Models), ‘1/50’
to ‘1/200,000’sec (PAL Models).
•
When the shutter speed is increased or decreased using the LEFT or RIGHT
button, you can find the difference by monitoring the brightness of the screen.
IRIS LEVEL CONTROL
SHUTTER SPEED CONTROL
You can control the brightness of the screen.
1. Press the SET button to display the setup menu and move the arrow
indicator to 'IRIS' using the UP or DOWN button and press SET button.
2. Set ‘LEVEL’ to the desired brightness using LEFT or RIGHT button.
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF

Operating Your Camera
COLORCCD CAMERA User’s Manual
29
COLORCCD CAMERA User’s Manual
28
4. When completed, press the SET button.
MANUAL SET
VALUE : 1/60
PRESS SET TO RETURN
NTSC Models
MANUAL SET
VALUE : 1/50
PRESS SET TO RETURN
PAL Models
• For effective 1/100(1/120) mode set WDR mode in BACKLIGHT menu to OFF.
1/100(1/120) mode is not effective with WDR mode.
• If you choose MANUAL mode, you can’t use WDR mode in ‘BACKLIGHT’ menu.
• If you select MANUAL mode, SENSE UP is not operated.
Notes
You can always get the clear image with this function under night or low-
lighting level.
1. Press the SET button to display the setup menu and move the arrow
indicator to 'SENSE UP' using the UP or DOWN button.
2. Set ‘SENSE UP’ to the desired mode using the LEFT or RIGHT button.
AUTO: When your camera is under night or low-lighting level, select this mode.
OFF:Deactivation
SENSE UP
• If you press the set button on ‘AUTO’ mode. You can adjust brightness by increasing
or decreasing the shutter speed. (EX. x2,...., x32, x64, ...., x128)
•If you increase the number of shutter speed, moving object gets an more afterimage.
• Under SENSE UP activated noise, spots or a whitish phenomenon may appear in the
picture as the sensitivity of the camera is increased. This is normal phenomenon.
Notes
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
GAIN
To get brighter picture.
1. Press the SET button to display the setup menu and move the arrow
indicator to ‘GAIN’ using the UP or DOWN button.
2. Set ‘gain’ to desired mode using the LEFT or RIGHT mode.
AGC-H: Gain is increased or decreased from 0 to 30dB automatically as
following the illumination.
AGC-L: Gain is increased or decreased from 0 to 27dB automatically as
following the illumination.
OFF: Deactivation
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT

Operating Your Camera
COLORCCD CAMERA User’s Manual
31
COLORCCD CAMERA User’s Manual
30
•If you change the ‘GAIN’ menu from AGC-L to AGC-H, sensitivity is increased as well
as noise on the screen.
• Afterimage may appear with SSNR.
• If you select OFF on GAIN menu, SSNR doesn’t operate.
• Incidental image will be displayed more obviously according to SSNR step from
LOW to HIGH.
Notes
SSNR(Samsung Super Noise Reduction)
To reduce the noise on the screen.
1. Press the SET button to display the setup menu and move the arrow
indicator to ‘SSNR’ using the UP or DOWN button.
2. Set ‘SSNR’ to desired mode using the LEFT or RIGHT mode.
LOW: lowreduction of thenoise
MIDDLE: middle reduction of the noise
HIGH: high reduction of the noise
OFF: Deactivation
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
SPECIAL
1.Press the SET button to display the setup menu and move the arrow
indicator to ‘SPECIAL’ using the UP or DOWN button.
2. Press the SET button.
COLOR : choose color or B/W mode electrically
- ON : color mode
- OFF : B/W mode
- AUTO1 : generally color mode, B/W mode in low luminance.
- AUTO2 :
AUTO2 is identical with AUTO1 under SENSE UP : AUTO condition.
SYNC : Two SYNCHRONIZATION modes are available INTERNAL and
EXTERNAL LINE-LOCK. In LINE-LOCK mode, it synchronizes the
video signal between cameras without a synchronous generator.
The line-lock synchronization is only used in the areas of 60Hz
(NTSC Models) / 50Hz (PAL Models).
- INT : Internal synchronization
- OFF : External line-lock synchronization
· If you choose ‘L/L’, you can adjust the desired phase. Press the SET button.
-You can adjust the desired phase from 0 to 270.
LINE LOCK
PHASE : 225
PRESS SET TO RETURN

Operating Your Camera
COLORCCD CAMERA User’s Manual
33
COLORCCD CAMERA User’s Manual
32
PRIVACY: To mask area which you want to mask
- OFF: Deactivation
- ON: Privacy mode activated
· Press the SET button.
· Move the arrow indicator to area you want to mask.
· Set ‘ON’ using LEFT or RIGHT button.
· Press the SET button and then set the area’s bounds with the method like
MD1 Set. (see page 24)
· When completed, press the SET button.
RESET: To reset your camera to factory default condition
END: To move Top-menu
EXIT: To finish setting menu
• When the power frequency is 50Hz, you can not use line-lock mode(NTSC Models).
• When the power frequency is 60Hz, you can not use the line-lock mode(PAL Models).
• ‘Sync.’ mode is fixed to ‘INT’ in DC 12V input power.
Notes
Using Remote Jack / MD Output
If you connect a remote plug to the REMOTE jack on the rear of the camera
as shown below, you can access the menu setup mode from a remote place.
1. RS-232C Communication Setting.
• Mode : Serial • Data Bit : 8 • Bit/sec : 19200bps • Stop Bit : 1
• Port : Com1 • Parity : None
2. Setup menu Command.
3. MD(MOTION DETECTION) output Signal Level (Less than 10mA)
Setup menu Command Byte
Set AA, EE, 0F, CC, 55 5
Up AA, EE, 1E, CC, 55 5
Down AA, EE, 1D, CC, 55 5
Left AA, EE, 1B, CC, 55 5
Right AA, EE, 17, CC, 55 5
• You must turn the camera power off when you connect or remove the remote plug.
Notes
2.5±0.5sec
0V
+4.0V~+5.0V
There is motion
There is no motion

Troubleshooting
COLORCCD CAMERA User’s Manual
35
COLORCCD CAMERA User’s Manual
34
If you have trouble operating your camera, refer to the following table. If the
guidelines do not enable you to solve the problem, contact an authorized
technician.
Problem
Nothing appears on
the screen.
The image on the
screen is dim.
The image on the
screen is dark.
The camera is not
working properly, and
the surface of the
camera is hot.
MOTION DETECTION
function is not active.
Solution
•Check that the power cord and line connection
betweenthe camera and monitor arefixedproperly.
•Check that you have properly connected VIDEO
cabletothe camera VIDEO output jack.
•Is lens stained with dirt? Clean your lens with soft,
clean cloth.
• Set the monitor to proper condition.
•If the camera is exposed to too strong light, change
the camera position.
• Adjust the lens’ focus properly.
•Adjustthe contrast feature of the monitor.
•If you have an intermediate device, set the 75Ω/ Hi-z
properly.(refer topage14)
•Check that you have properly connected the camera
to an appropriate power source.
• Have you set ‘MOTION DET.’ menu to OFF?
• Have you set ‘MD LEVEL’ to too low?
• Have you set ‘MD AREA’ properly?
Problem
The color of the picture
is not matched.
The image on the screen
flickers.
L/L mode isn’t able to
be selected.
Solution
• Check that you have properly set the ‘WHITE BAL.’
menu. (refer to page 22)
• Is the camera facing to direct sunlight or fluoresent
lighting? Change the camera position.
•Have you connected your camera to DC power
source? Connect it to AC power source.

Item
Power Source
Power Consumption
Image Sensor
Total Pixels
Effective Pixels
LENS TYPE
Maximum Aperture Ratio
Angle of View
Scanning System
Synchronization
Video Output
Resolution
Wide Dynamic Range
Gain Control
Electronic Shutter Speed
SENSE UP
IRIS MODE
WHITE BALANCE
S/N (Y signal)
SSNR
RS-232C
MOTION DETECTION
O.S.D
PRIVACY Function
Operating Temperature
Operating Humidity
Dimension (mm)
Weight (W/O Lens & Power Cord)
DC12V / AC 24V compatible
280mA(DC) / 3.8 W (AC)
1/3",Vertical double density interline CCD
811(H)x 508(V),1/3" CCD 795(H)x 596(V),1/3" CCD
768(H)x 494(V),1/3" CCD 752(H)x 582(V),1/3" CCD
X2.5Vari-Focal, f=3.8~9.5
1:1.3~2.0
H:74.2˚ ~ 30.0˚, V: 54.0˚~ 22.4˚, D: 96.8˚ ~37.4˚
2:1Interlaced525 Lines/60 Fields/30 Frames 2:1 Interlaced 625 Lines/50 Fields/25Frames
Internal/ Line Lock selectable
1.0V[p-p]NTSCComposite, 75Ω/BNCConnector 1.0V[p-p] PAL Composite,75Ω/BNCConnector
500TVLines
ON/ OFF / AUTO
AGC-L,AGC-H, OFF Selectable
1/60~1/200,000sec 1/50~1/200,000sec
Built-in(selectable limit~X128)
DCDrive
W-ATW/ S-ATW / AWC /MANUAL
50dB(Weight On)
LOW/ MIDDLE / HIGH /OFF
Built-in
MD1/ MD2 / OFF (Built-inAlarm Output Connector)
Built-in
ON/ OFF (4 Programmable Zone)
-10°C~ +50°C (14°F ~ 122°F)
30%~ 90% RH
63(W)X 58(H) X 157(D)
350g
SOC-4120APSOC-4120AN
COLORCCD CAMERA User’s Manual
37
COLORCCD CAMERA User’s Manual
36
Specifications DECLARATION OF CONFORMITY
Application of Council Directive(s) 89 / 336 / EEC
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-120
European Representative Name
European Representative Address
Equipment Type/Environment CCTV Camera
Model Name SOC-4120AN/P
Beginning Serial NO. S4200001
Year of Manufacture 2004. 2. 1
Conformance to EN 50081-1 : 1992
EMC-Directive 89/336 EEC and 92/31/EEC
EN 50130-4 : 1996
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD
Legal Representative in Europe
Signature Signature
Full Name YOUNG TAEK SON Full Name
Position QUALITY CONTROL MANAGER Position
Place CHANGWON, KOREA Place
Date 2004. 2. 1 Date

MEMOMEMO
