Samsung MZ-5PA064B Owner's manual

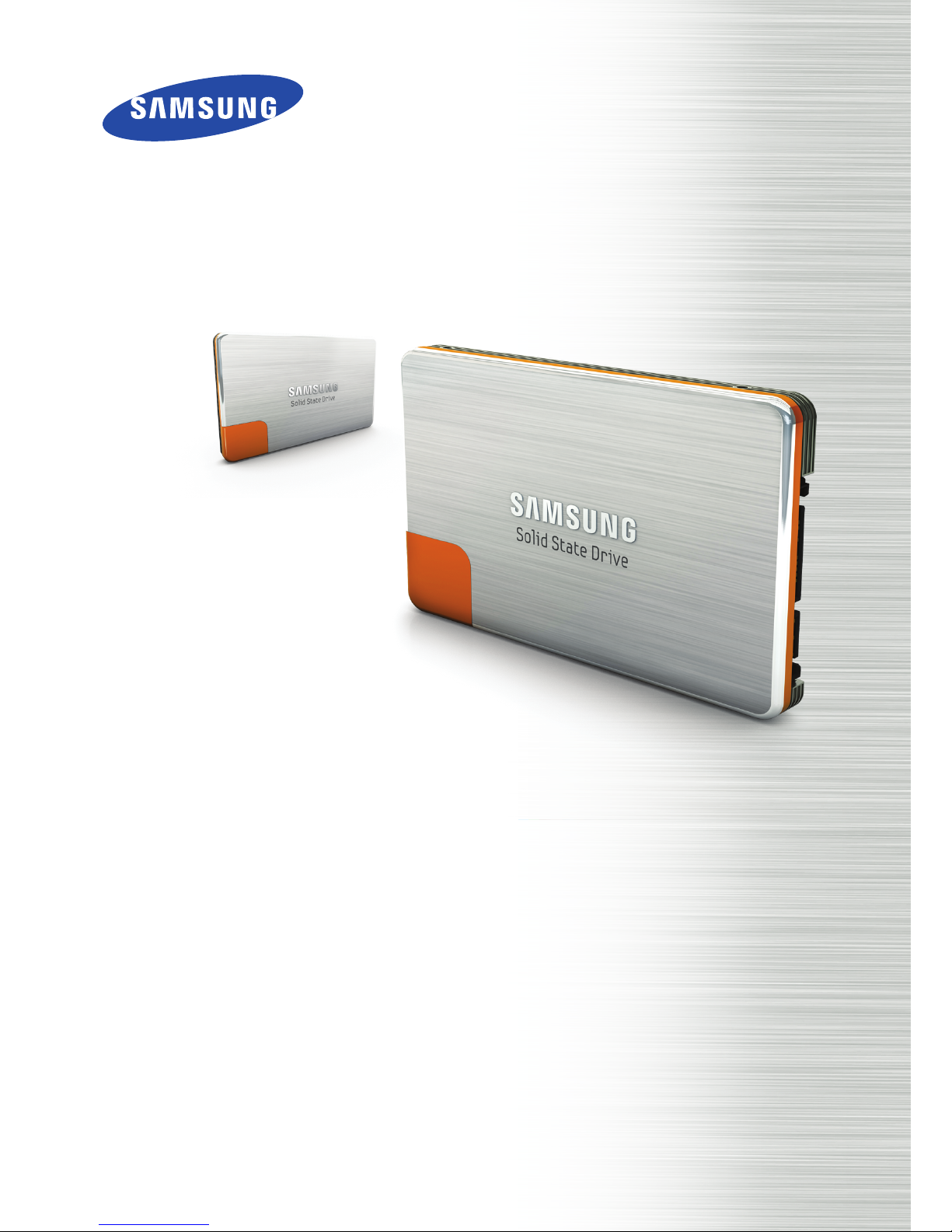

Samsung Solid State Drive
Quick User Manual
Rev 2.0
MZ-5PA064
MZ-5PA128
MZ-5PA256

Table of Contents
1. SSD (Solid State Drive) Overview...........................................3
2. Precautions..........................................................................................3
Handling Precautions..................................................................3
Installation Precautions..............................................................4
3. Hardware Installation Guide.....................................................5
Notebook PC.....................................................................................5
Desktop PC.........................................................................................6
4. BIOS Configuration.........................................................................7
5. Operating System (OS) Installation ......................................8
6. Magician Software Installation................................................8
7. Certified Specifications................................................................9
8. SAMSUNG SSD 470 Series Warranty Statement ............10

Samsung Solid State Drive 3
Quick User Manual
1. SSD (Solid State Drive) Overview
SSD is an innovative information storage medium that boasts superior performance
and higher reliability than conventional HDDs (Hard Disk Drive). SSDs provide very fast
PC booting, application loading speed, and perform exceptionally well in multi-tasking
environments. SSDs also have several great features such as very low power consumption,
extremely low heat emission, no-noise, and outstanding stability compared to conventional
HDDs. Please visit www.samsung.com/SSD for more information on SSDs.
The information contained in this document is subject to change without notice.
All rights reserved.
2. Precautions
Handling Precautions
Injury or product damage may occur if the following guidelines are not followed.
1. Shock
SSDs are built stronger against shock or vibration and can protect data with greater
safety than conventional HDDs. However, please protect the product against severe
shock. Excessive Shock may damage components in SSD and may also cause hardware
detection failures or operational failures when installed in your PC. In addition, severe
shock may open or break the SSD cover.
2. Short Circuit
Please keep metal objects out of the SATA Interface circuit. SSD circuits may be shorted
if the SATA interface is contacted by metal objects or electrical shock. This may cause
hardware detection failures or operational failures.
3. Disassemble/Damage/Removal
Please do not disassemble the SSD, damage the SSD or remove the sticker or the label
affixed on the product. Any product that has the case opened, or has a damaged or
removed label on the back of the product shall not be covered by the warranty.

Samsung Solid State Drive 4
Quick User Manual
Installation Precautions
1. Please ensure that the PC power is turned OFF and the power cable is unplugged
before removing the PC cover to install the SSD. Serious damage may occur if an HDD is
removed or SSD is installed while the PC power is turned on. Even though many PCs and
storage devices support the Hot Plugging (Hot Swapping) feature of SATA interface, we
strongly recommend that you still turn the PC power OFF and then start the installation
process.
Note: Hot Plugging (Hot Swapping) allows changing storage devices while the PC power is turned
on.
2. If an existing SATA HDD is being replaced with an SSD, you can use the existing SATA
interface cable and SATA power cable. If the SSD is being newly installed to your desktop
PC, then you should prepare some necessary items such as a SATA interface cable, SATA
power cable, 3.5 inch bracket, screws, etc.
3. A SATA interface cable that is longer than 1 meter may result in hardware detection
failures or operational failures.
Note: SATA cables are compatible with all SATA interface types (SATA 1.5 Gbps, 3 Gbps, and 6 Gbps).
4. Please check the terms and conditions of your PC manufacturer’s warranty since it may
prohibit the user from disassembling the PC and self-installing the SSD.
5. This SSD 470 Series is designed, manufactured and certified for general desktop PC and
notebookPC environments,soit is notintendedor allowedtobe usedinenterpriseServer
Systems, Workstations, and Storage Systems. If you need SSDs for other applications
or environments other than general PCs, please purchase a different product made
specifically for such purposes.

Samsung Solid State Drive 5
Quick User Manual
3. Hardware Installation Guide
This section briefly describes the installation procedures of the SSD. For more information,
please refer to the user manual of your PC.
Notebook PC
1. Turn OFF the notebook PC power. Disconnect the power plug and remove the battery
from the PC.
2. Remove the HDD cover on the back of the notebook PC, and then carefully remove the
HDD from the bay without damaging the HDD connector.
3. If the HDD is fixed with a bracket, then disassemble the HDD from the bracket. Be careful
when you disconnect the connector or cables from the HDD.
4. Precisely assemble the SSD with the bracket, and then connect the cable.
5. Insert the SSD into the bay carefully and properly, and then close the HDD cover.
6. Reinstall the battery.

Samsung Solid State Drive 6
Quick User Manual

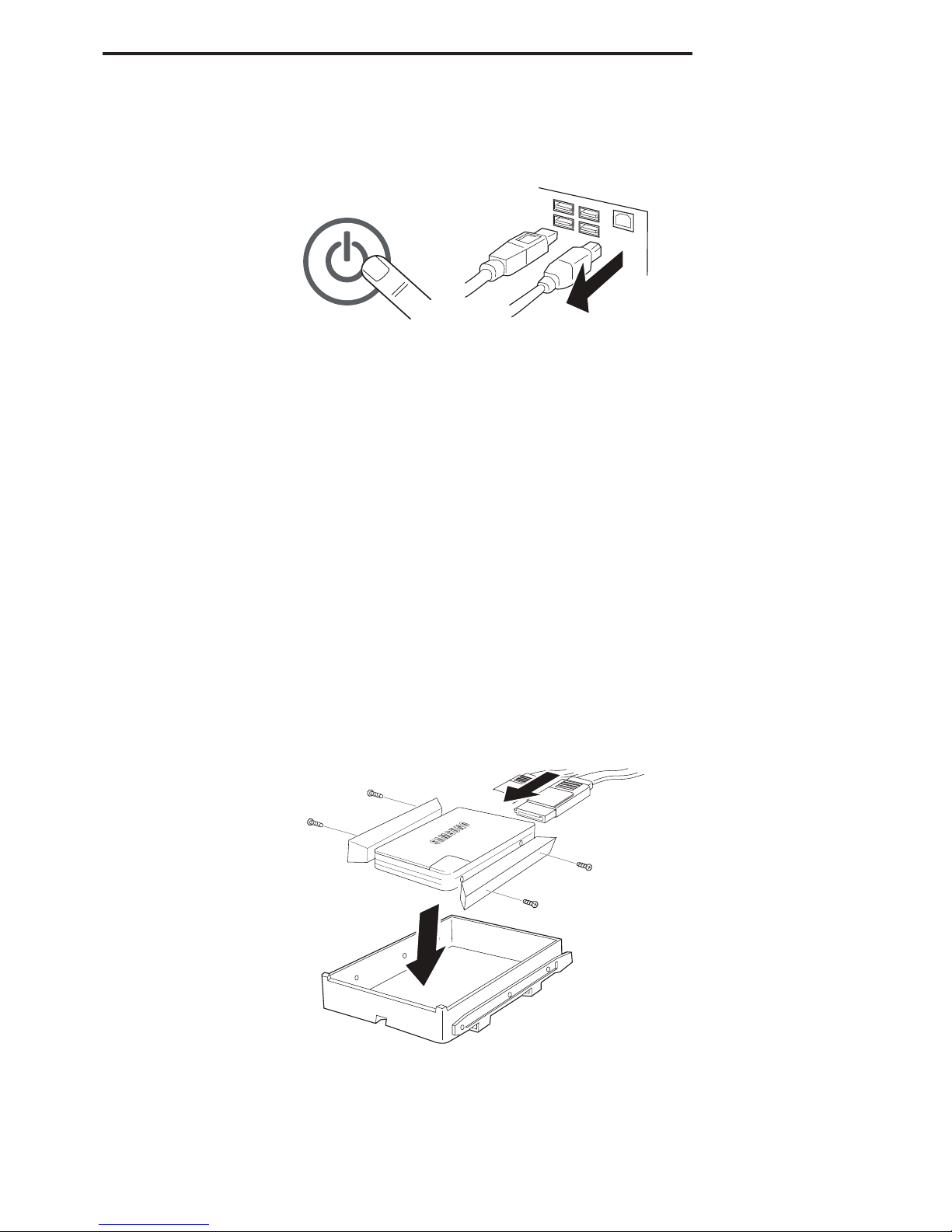

Desktop PC
1. Turn OFF the desktop PC power and disconnect the power cable.
2. Remove the desktop PC cover.
3. If the SSD is added in addition to the existing storage device, mount it in a 2.5”HDD bay.
Next, connect the SATA cable and power cable to the SSD. If your PC is only equipped
with 3.5”HDD bays, then attach the SSD in a 2.5”to 3.5”bracket first and then mount the
bracket in an empty HDD bay or slot.
4. If you are replacing an existing HDD with the SSD, disconnect all cables connected to
the HDD and then remove the HDD from the bay. Attach the SSD in a 2.5”to 3.5”bracket
first and then mount the bracket in an empty HDD bay. Next connect the SATA cable
and power cable properly.
Note: You may need proprietary chassis screws, rails, or brackets to use in the drive bay.
Note: Desktop PCs have multiple SATA ports based on the PC chipset and motherboard model. It is
recommended that the SSD be connected to the lowest numbered SATA port. Most desktop
PCs have 4~6 SATA ports and each SATA port is numbered on the motherboard or indicated in
the user manual. If SATA port numbers are not indicated on the motherboard or you are not
sure about port numbers, then you can simply install the SSD on any available port.

Samsung Solid State Drive 7
Quick User Manual
5. Close the desktop PC cover and reconnect the PC power cable.
4. BIOS Configuration
In most cases, the system will automatically detect the newly installed SSD when you restart
the PC. If not, please follow the procedure indicated below, or refer to the user manual of
your PC.

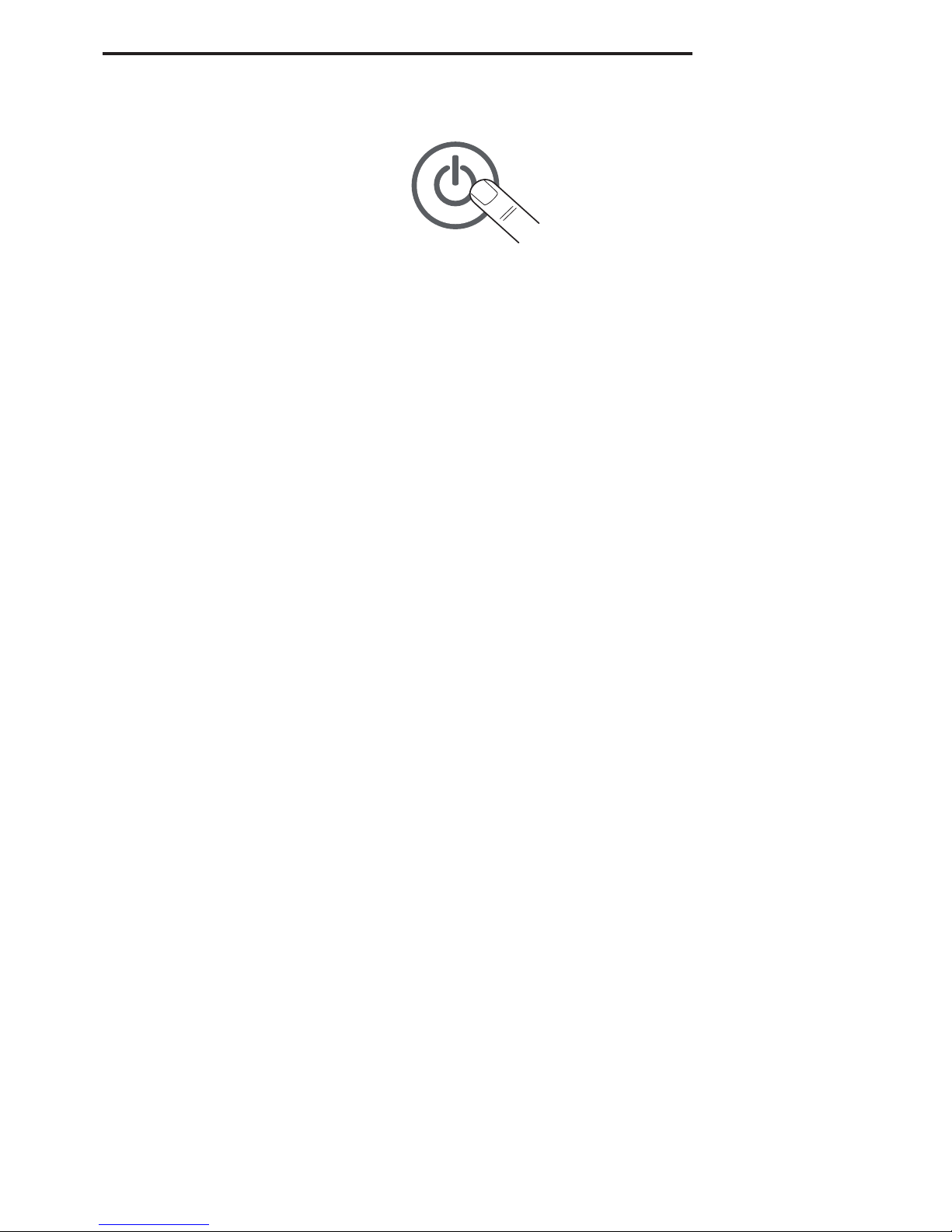

1. Turn the PC Power ON.
2. Press the special key for your system to get into the PC BIOS settings (also called CMOS)
during the initial booting process.
Note: The way to get into the BIOS settings and the settings menu differs between PC manufacturers.
Refer to your PC’s user manual for the detailed procedure. In most cases the key is the F2 or
Delete key.
3. After entering the PC BIOS settings, make sure that your PC BIOS recognizes your
Samsung SSD 470 Series, and the operation mode is [SATA].
Note: TheBIOStypemaybedifferentbetweenPCmotherboardmanufacturersandPCmanufacturers.
As a result, the BIOS configuration and the menu names of the features may vary slightly
for different PC brands and/or models. Some PC manufacturers have the BIOS optimized
exclusively for their PCs and may provide only limited setting options. Please refer to the user’s
manual provided by your PC manufacturer for more details.
4. If the PC BIOS and OS support [AHCI] mode, enable [AHCI] mode.
Note: Some PC chipsetsdonot support [AHCI] operationmode eveniftheysupportthe SATA interface.
Check your PC’s user manual.
5. Save BIOS settings and reboot the PC.
Note: If the BIOS detects the SSD and a booting error message appears during the PC booting process,
then the SSD installation has been done correctly and you can now start installing an OS.

Samsung Solid State Drive 8
Quick User Manual
5. Operating System (OS) Installation
It is recommended that you newly install an OS to ensure an optimal operating environment
for the SSD.
For the detailed OS installation procedures, refer to the user manual or installation guide for
the OS that you prefer to install.
Note: If you are using a previous version of Windows OS, such as Windows XP or Windows Vista, then it
is recommended that you upgrade to Windows 7 because it supports the most optimal operating
environment for SSDs such as native support of AHCI drivers and TRIM command support.
Note: The SSD 470 Series may not operate properly under Mac OS X versions lower than 10.5 Leopard.
6. Magician Software Installation
Samsung provides dedicated software for the Samsung SSD 470 Series in order to
maintain the best operating environment for Samsung SSDs. The Samsung SSD Magician
software provides various features, such as system information analysis, SSD performance
optimization (TRIM features), SSD benchmark testing, and the latest firmware updates.
To install the Samsung SSD Magician software, please visit www.samsung.com/SSD and
download the installation file and user manuals.
Note: The Samsung Magician software only supports the SSD 470 Series.

Samsung Solid State Drive 9
Quick User Manual
7. Certified Specifications
yCE (European Union/Community)
yVCCI (Voluntary Control Council for Interference by Information)
yFCC (Federal Communications Commission)
yC-TICK (Australian Communications Authority certification mark)
yKCC (Korea Communications Commission)
yBSMI (Bureau of Standards, Metrology and Inspection)
ycUL (C- Underwriter’s Laboratories, Inc.)
yTUV (Technischer Uberwachungs Verein)
yCB (IECEE CB Scheme)
This marking on products, accessories and / or accompanying
documents means that used electrical and electronic equipment
should not be mixed with general household waste. For proper
treatment, recovery and recycling, take this product to designated
collection points where it will be accepted free of charge. Contact
your local authority for further details about your nearest
designated collection point. Business users in the European
Union intending to discard electrical and electronic equipment
should contact their dealer or supplier for further information.

Samsung Solid State Drive 10
Quick User Manual
8. SAMSUNG SSD 470 Series Warranty Statement
Thank you for purchasing a SAMSUNG Solid State Drive 470 Series (the“Product”). SAMSUNG
values your business and always attempts to provide you the very best quality of service.
PLEASE CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THE
PRODUCT PROVIDED BY SAMSUNG ELECTRONICS CO., LTD. (“SAMSUNG”). YOUR USE OF
THE PRODUCT CONSTITUTES AGREEMENT WITH THE TERMS AND CONDITIONS OF THIS
SAMSUNG SSD WARRANTY STATEMENT (“AGREEMENT”). IF YOU DO NOT AGREE TO THE
TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT USE THE PRODUCT.
A. Warranty Policy
SAMSUNG warrants to the original end user customer or purchaser of this Product (“You”)
that the Product is free from material defects and workmanship, subject to the conditions
stated herein.
In the event SAMSUNG determines, in its sole discretion, that the Product suffers from
material defects in manufacture and does not substantially conform to the published
specifications under normal use, for as long as You own the Product, and subject to the
conditions and exceptions stated in this Agreement, SAMSUNG will, at its option, either: (1)
repair or replace the Product with new or refurbished Product of equal or greater capacity
and functionality; or (2) issue a credit, less any rebates, in accordance with the credit
schedule provided in Section E of this Agreement. In the case of replacements, SAMSUNG
may replace Your Product with one that was previously used, repaired and tested to meet
SAMSUNG specifications. This warranty is provided only to You and is not transferable.
Proof of purchase may be required.
THIS AGREEMENT CONTAINS SAMSUNG’S ENTIRE LIABILITY AND YOUR EXCLUSIVE
REMEDY FOR BREACH OF THIS AGREEMENT. SAMSUNG DISCLAIMS ALL OTHER EXPRESS
AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL SAMSUNG, ITS SUPPLIERS OR ANY AFFILIATES BE LIABLE FOR ANY
INDIRECT, CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES, ANY FINANCIAL LOSS OR
ANY LOST DATA OR FILES, EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE AND NOTWITHSTANDING THE FAILURE OF ESSENTIAL PURPOSE OF ANY
LIMITED REMEDY. IN NO EVENT WILL SAMSUNG’S LIABILITY EXCEED THE AMOUNT PAID
BY YOU FOR THE PRODUCT. THESE LIMITATIONS AND EXCLUSIONS APPLY TO THE FULLEST
EXTENT PERMITTED BY APPLICABLE LAW.

Samsung Solid State Drive 11
Quick User Manual
B. Warranty Limitations
The warranty stated herein shall not apply if: (i) the Product was not used in accordance
with any accompanying instructions, (ii) the Product was not used for its intended function
(for example, SSD 470 Series used in an enterprise Server Systems, Workstations, and
Storage Systems), (iii) any failure or defect arose out of the presence of a third party product,
software or component, whether authorized or not, (iv) any failure or defect was a result of
improper installation, misuse, unauthorized repair, modification or accident, and (v) there
exist any other circumstances which SAMSUNG determines is evidence of a breach of this
Agreement by You.
You agree that the Product shall not be used in life support systems or other applications
where failure could threaten injury or life. SAMSUNG disclaims any and all liability in
connection with, arising out of, or related to, any such use of the Product.
SAMSUNG's warranty also does not cover Products which, by way of example, have been
received improperly packaged, altered, or physically damaged. Products will be inspected
upon receipt. You can refer to a non-exhaustive list of examples of the warranty limitations
below.
yImproperly packaged or shipped, including use of non-qualified shipping container
yAny alterations, modifications, or physical damage of the Product, including but not
limited to, deep scratches
yAny alterations, modifications, or removal of any SAMSUNG labels or barcodes on the
Product
yOpened SSD casing
yTampered or missing tape seal or serial number
C. Warranty Period
Type Period
SSD 470 Series for Desktop PC & Note PC Usage 3 years

Samsung Solid State Drive 12
Quick User Manual
D. Return Procedure and Guidelines
SAMSUNG will not provide any warranty coverage unless claims are made in compliance
with the proper return procedure. For more information regarding warranty service and
customer support, You may contact an authorized SAMSUNG service center or refer to
www.SAMSUNG.com/SSD . For more information regarding the location of authorized
SAMSUNG service centers as well as access to the SAMSUNG automated customer service
directory, You may call +1-800-SAMSUNG. Callers outside the United States can reach
this service by dialing each region's authorized SAMSUNG service centers. If determined
necessary, You will be asked to provide Your name, address, phone number, email and
the Product serial number. You will then be issued a Return Material Authorization ("RMA")
number that must be included when returning the Product to SAMSUNG.
Products returned to SAMSUNG must be properly packaged in either its original packaging
or packaging that provides protection equivalent to the original packaging and then sent
to the address provided when receivingYour RMA Number. An unauthorized return, i.e. one
for which an RMA number has not been issued or improperly packaged, will be returned to
You at Your expense. Customer is responsible for the shipping charges to the service center
and SAMSUNG will cover the shipping cost when sending a replacement Product to the
customer if replacement is deemed to be necessary by SAMSUNG.
You are advised to ship any Products to SAMSUNG with the benefit of tracking information,
as SAMSUNG is not responsible for any damage or loss to the Product while in transit.
SAMSUNG also recommends that all data on the Product should be backed up before
being sent to SAMSUNG. In the case of replacements, ownership of the original Product
will be transferred to SAMSUNG and SAMSUNG will not return original Product to You. Data
recovery is not covered under this warranty and is not part of the repair or replacement
process. SAMSUNG is not liable for any data loss or corruption in any cases.
You hereby acknowledge and agree that each region may have regional specific warranty
implications that may change the terms and conditions of this Agreement in its specific
application to You.
yFor detailed information, please contact to SAMSUNG or an authorized SAMSUNG
service center.
Area Center Contact Point Remark
U.S.A
(New Jersey) TTS Email: suppor[email protected]
Phone: [phone]~1
End user
support only

Samsung Solid State Drive 13
Quick User Manual
E. Credit Schedule
In the event SAMSUNG elects to provideYou with a credit in accordance with the terms and
conditions of this Agreement, SAMSUNG will remit to You such credit in accordance with
(i) the stage of the Product in its applicable warranty term, and (ii) the current sales price of
the same model of the Product or one of similar capacity. Remittance will be provided as
follows:
Year of Warranty
(From the date of Purchase)
Percentage of Current Sales Price of
Product or Similar Product
Within One year 100%
Within Two year 75%
Within Three year 50%

www.samsung.com/ssd
All brand and product names are trademarks of their respective companies.
Design and contents of this manual are subject to change without notice.
© 2011 Samsung Electronics Co., Ltd. All rights reserved.
