Samsung GT-E2370 User manual

GSM TELEPHONE
GT-E2370
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-2
EGSM900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 &
975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 5~19(class4) 0~15(class1)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM 900/1800
•1.77" QQVGA 262K TFT (SMD)
•VGA 0.3 MEGA PIXEL
•MP3 /64Poly Ringtones
•BT 2.0
•USB 2.0
•WAP 2.0
•SOS Message, Auto time setting
•Battery 2000mAh
•GSM Dual Band /GPRS Class 10+
•Band : 900 / 1800 GPRS
•BB :PNX 4852 (STE)

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QFR01
QAR01
QLC01
QMP01
QSP01
QCA01
QMO01
QCR91
QDC01
QCK02
QKP01
QMI01
QCR72
QAN02
QDC02
QRE01
QBC00
QVK02
QIF01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001450
QCR72 SCREW-MACHINE 6001-002051
QCR91 SCREW-MACHINE 6001-002260
QMI01 MICROPHONE-ASSY-GT-E2370 GH30-00643A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QAN02 INTENNA-MAIN (GT-E2370) GH42-02389A
QSP01 MODULE-SPK(GT-E2370) GH59-08984A
QVK02 KEY FPCB-TORCH KEY(GT-E2370) GH59-09722A
QMP01 A/S ASSY-GTE2370_PBA MAIN (COMM) GH82-04944A
QLC01 ELA MODULE-LCD MOD ASSY(SCH_R100) GH96-04101A
QCA01 ASSY CAMERA-GT-E2370 GH96-04339A
QFR01 ASSY CASE-FRONT GH98-16245A
QRE01 ASSY CASE-REAR GH98-16246A
QBC00 ASSY COVER-BATT GH98-16692A
QKP01 ASSY KEYPAD-(EU) GH98-17106A
QDC01 ASSY DECO-SIDE LGH98-16830A
QIF01 PMO COVER-IF GH72-59775A
QDC02 ASSY DECO-SIDE RGH98-16831A
QCK02 PMO KEY-TORCH GH72-59773A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D201 0403-001688 USFZ5.6V-RTK/H
ZD100,ZD300,ZD301 0406-001201 uClamp0501H
ZD302,ZD304 0406-001201 uClamp0501H
ZD103 0406-001208 uClamp0505A
ZD101,ZD102,ZD303 0406-001286 PESD5V0L5UV
ZD104 0406-001293 ESD9B3.3ST5G
D200 0407-001002 DAN222TL
Q100 0505-002341 SI1013X-T1-GE3
TR200 0505-002664 TPCF8304
LED300,LED301,LED302 0601-002846 19-217UTD/S759/TR8
LED303 0601-002846 19-217UTD/S759/TR8
LED304 0601-002890 99-216UMC/3842S3K/TR8
U309 0801-002237 TC7SH04FU-TE85L
U305 0904-002568 AIT708U
U300 1001-001546 STG5223QTR
TR300 1003-001440 MDC3105LT1
UME200 1108-000228 K5N5629ATA-AT80
PAM100 1201-002985 SKY77548
U303,U304 1201-003012 SCY99136FCCT2G
U301 1203-004819 RP103K281D-TR
U302,U307,U308 1203-005512 MIC5365-3.3YMT
U310 1203-005848 MIC5370-MGYMT
U306 1203-006203 AHK3291IGU-T1
U101 1204-003155 SI4708-C-GMR
U100 1205-003816 E-STLC2584TR
UCP200 1205-003945 PNX4852
TH200 1404-001221 NCP15WB473J04RC
R300,R337 2007-000138 RC1005J101CS
R111 2007-000139 RC1005J221CS
R105,R106,R107,R109 2007-000141 RC1005J222CS
R318,R319 2007-000141 RC1005J222CS
R110,R112,R209 2007-000143 RC1005J472CS
R200,R203,R310,R312 2007-000148 RC1005J103CS
R341 2007-000151 RC1005J153CS
R306,R307,R322,R323 2007-000152 RC1005J203CS
R305,R308,R321,R324 2007-000153 RC1005J223CS
R326,R329 2007-000155 RC1005J273CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R313,R314,R315,R316 2007-000157 RC1005J473CS
R217 2007-000162 RC1005J104CS
R336,R338 2007-000164 RC1005J154CS
R118 2007-000170 RC1005J105CS
R317,R320,R335 2007-000172 RC1005J100CS
R115 2007-000242 RC1005J152CS
R113,R114 2007-001291 RC1005J300CS
R330,R332 2007-001298 RC1005J510CS
R331,R333 2007-001305 RC1005J121CS
R104,R108,R213 2007-001333 MCR01MZP5J183
R340 2007-003025 RMC16S-6R8J-TP
R116,R117 2007-003112 MCR01MZP5J270
R207 2007-007698 RK73H1ETP5101F
R206 2007-010071 MCR10EZHFLR100
C130,C135,C138,C143 2203-000386 GRP1555C1H150J
C220 2203-000386 GRP1555C1H150J
C136,C142,C146,C151 2203-000425 GRP1555C1H180J
C153,C154 2203-000425 GRP1555C1H180J
C137 2203-000438 GRP155R71H102K
C152 2203-000585 GRP155R71H221KD01E
C128,C133,C141 2203-000679 GRP1555C1H270J
C150,C155,C156,C236 2203-000812 GRP1555C1H330J
C331 2203-000812 GRP1555C1H330J
C107 2203-000995 GRP1555C1H470J
C132 2203-001153 GRP1555C1H680J
C116 2203-002443 GRP155R71H331KD01E
C131,C139,C140,C145 2203-002709 C1005Y5V1C104ZT
C147,C202,C204,C205 2203-002709 C1005Y5V1C104ZT
C206,C207,C208,C300 2203-002709 C1005Y5V1C104ZT
C305,C306,C311,C313 2203-002709 C1005Y5V1C104ZT
C315,C316,C335 2203-002709 C1005Y5V1C104ZT
C157 2203-003054 GRP1555C1H9R0C
C127 2203-005052 GRP1555C1H3R3CZ01E
C121,C123 2203-005234 GRP1555C1H1R2CZ01E
C124,C126 2203-005281 GRP1555C1H1R5BZ01E
C227 2203-005344 GRM155R71E223KA61D
C158 2203-005395 C1005CG1H4R7BT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C235,C237 2203-006048 GRM155R71A104K
C100,C101,C103,C104 2203-006190 GRM155R60J224KE01E
C105,C106,C111,C129 2203-006190 GRM155R60J224KE01E
C134 2203-006190 GRM155R60J224KE01E
C211,C212 2203-006208 CM105X5R475M06AT
C203,C209,C210,C213 2203-006399 GRM155R60J105KE19D
C214,C215,C216,C238 2203-006399 GRM155R60J105KE19D
C301,C302,C303,C308 2203-006399 GRM155R60J105KE19D
C312,C314,C317,C318 2203-006399 GRM155R60J105KE19D
C320,C321,C325,C329 2203-006399 GRM155R60J105KE19D
C330,C332,C334 2203-006399 GRM155R60J105KE19D
C307,C309,C310,C323 2203-006562 CV05X5R105K10AH
C324,C328,C333 2203-006562 CV05X5R105K10AH
C217,C218,C232 2203-006824 CV105X5R475K10AT
C229 2203-006841 CV05X5R105K16AH
C102 2203-006872 GRM155R60J225ME15D
C322 2203-007240 CL10A226MQ8NRNE
C110,C234,C319 2203-007279 CV105X5R106M10AT
C201,C239 2203-007317 CV05X5R475M06AH
C228 2203-007425 CL10A225KA5LNNC
TA100 2404-001377 F980J226MMA
L106 2703-002170 CIH05T6N8JNC
L102,L117 2703-002198 CIH05T10NJNC
L108 2703-002201 CIH05T33NJNC
L107 2703-002204 CIH05T22NJNC
L100,L119,L120,L121 2703-002269 CIH05T56NJNC
L122 2703-002269 CIH05T56NJNC
L116 2703-002281 CIH05T5N6SNC
L104 2703-002365 CIH05T1N2SNC
L103 2703-002368 CIH05T1N8SNC
L115 2703-002557 CIH10TR27JNC
L202 2703-003297 APIS08G4R7MT
OSC200 2801-004688 MC-146(32.768KHZ,12.5pF)
OSC201 2801-004769 CXC6X260000GHVRP70
F300,F301,F302 2901-001418 AVRC-18S-03Q-015-100R
F100 2903-001404 DEA202450BT-7112E1
F101 2904-001879 SFR942PY002

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
L200 3301-001158 BLM18PG300SN1D
L118,L201,L300 3301-001534 BLM15AG121SN1D
L301 3301-001729 BLM15AG102SN1D
L109,L110,L111,L113 3301-001756 BLM15HG102SN1D
L114 3301-001756 BLM15HG102SN1D
RFS100 3705-001503 KMS-560
HEA300 3708-002222 FH26-21S-0.3SHBW
SIM200 3709-001488 5000-6P-1.5S
SD300 3709-001591 SCHB1B0102
IFC100 3710-002683 HY20-AB0310
BTC200 3711-006137 2005-03-263
ANT102 3712-001348 HJ-ICT-05Y
ANT101 4202-001515 AMAN201510ST01
SC100,SC101,SC102 GH70-03951A ONBOARD-CLIP-7
SC105,SC106,SC107 GH70-03951A ONBOARD-CLIP-7
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program(PNX49xx Downloader v1.0 For Lite)
•GT-E2370 Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01313A)
•Adapter (GH99-38251A)
•Serial Cable
•Binary files
※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

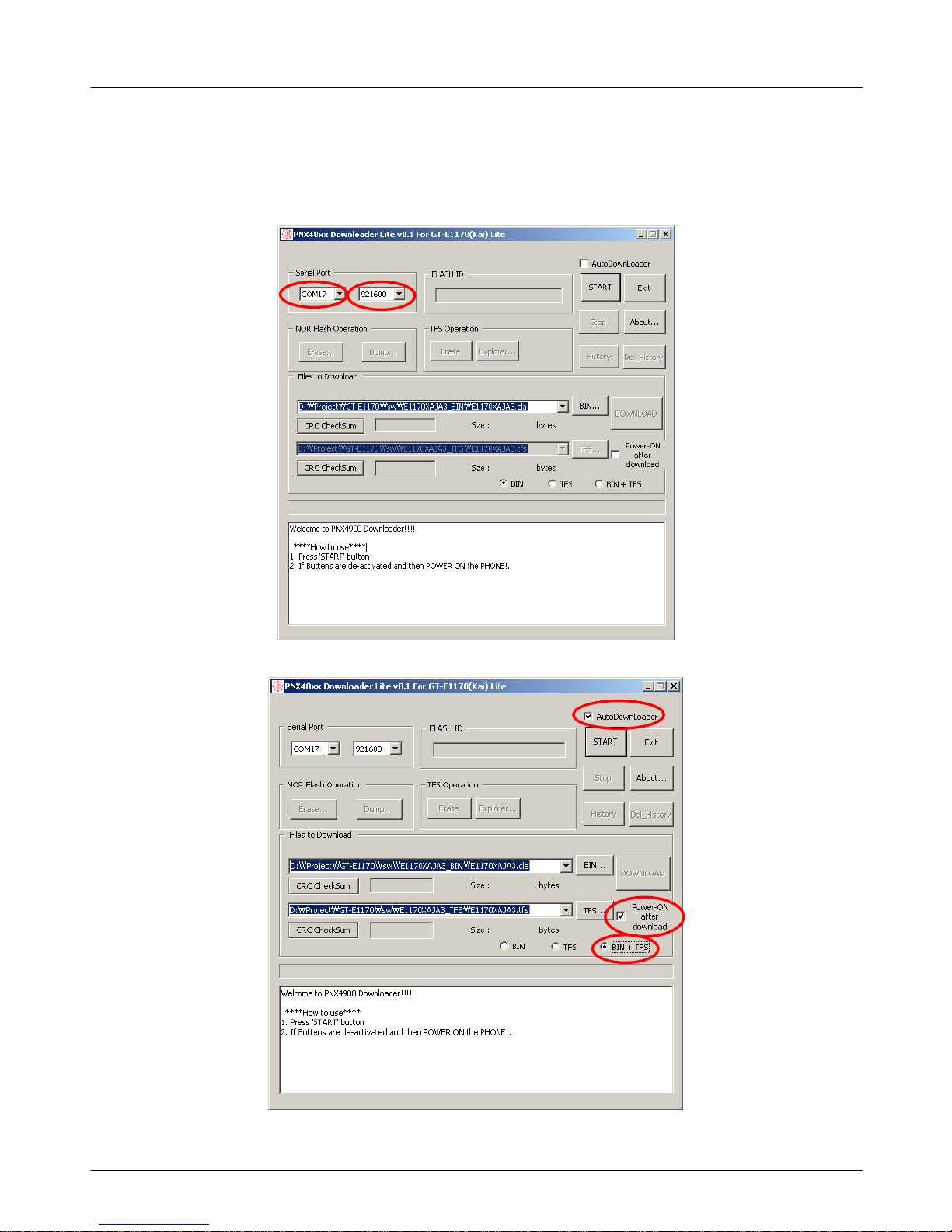

6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"PNX49xx Downloader v1.0 Lite "←enter this file.
1.Select the connected serial port and the rate of speed.
2.Select the D/L Mode.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
3.Select the Binary &TFS file.
4.P
ress the "Start" button and connect the Handset.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
5.When downloading is complete, automatically the small window was showed up.
6.Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!

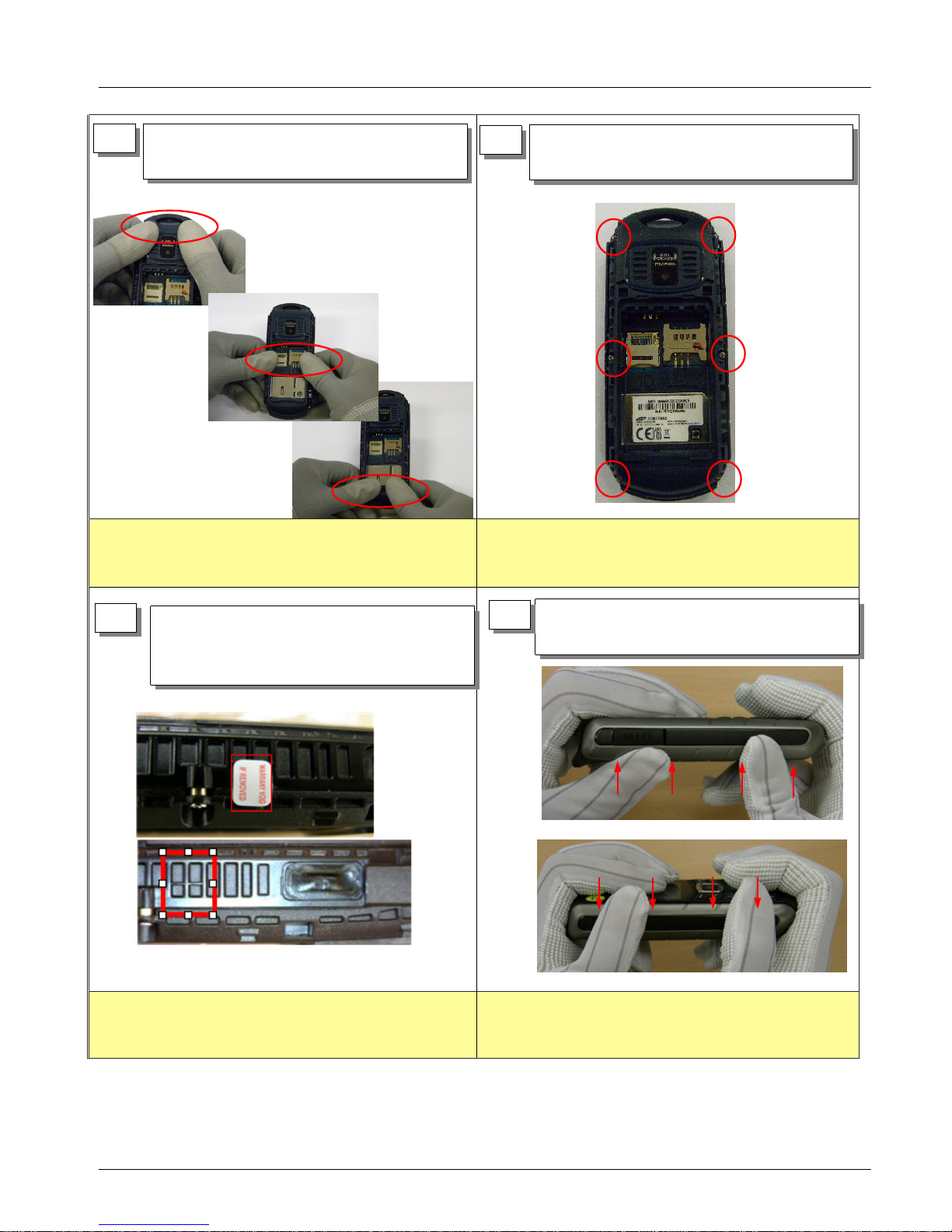

7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
Release Side Cover 2Pointatrear
1 2 Release Screw 6Point at rear
3Disjoint hook on the right side of the rear Pull the REAR by lifting it from top to bottom
4

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization

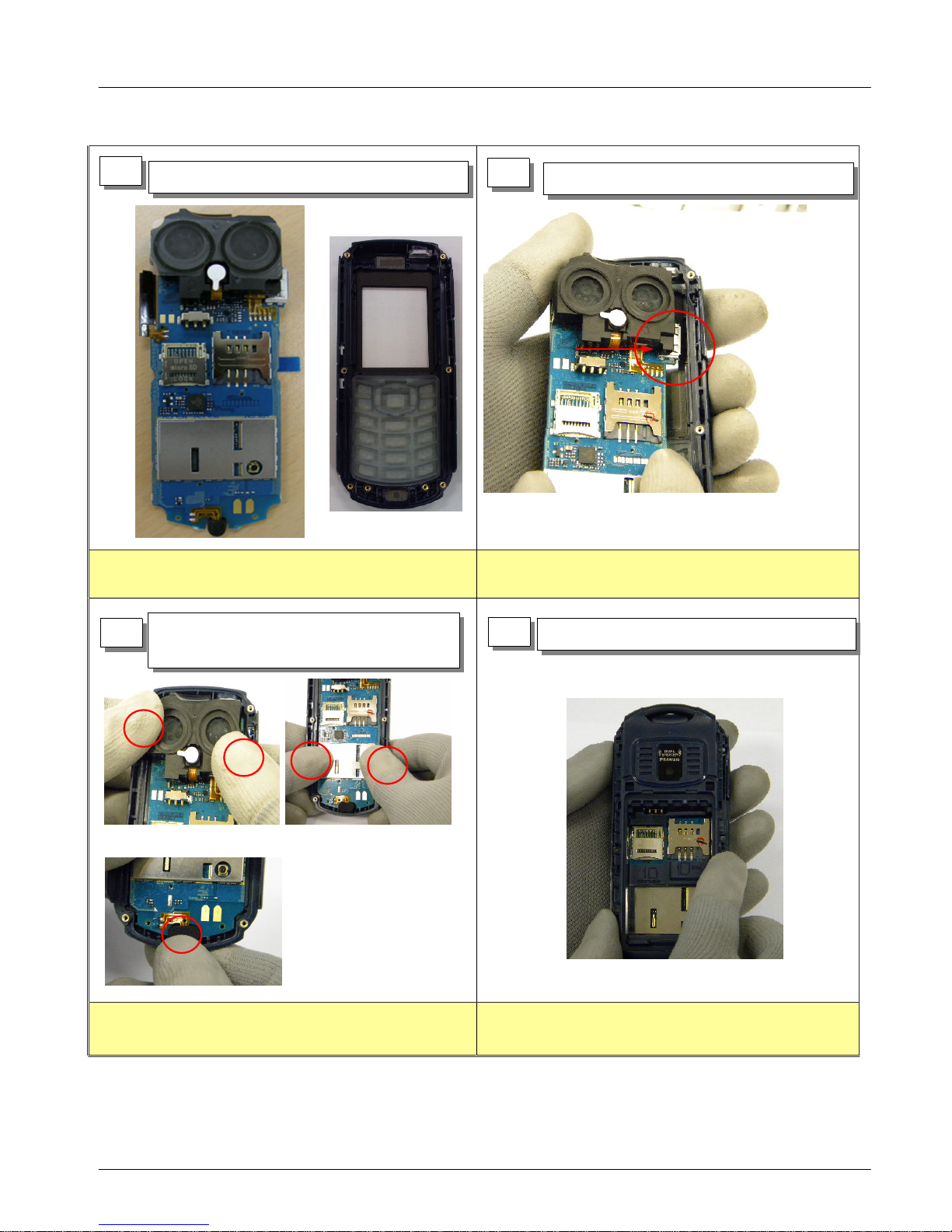

1)Be careful not to make scratch and molding damage.1) Be careful not to damage to LCD Module.
1) Be careful not to make damage to MIC FPCB
8Disassemble Main PBA from the FRONT . 7Disassemble Main PBA from the FRONT.
5Release Screw 2Point at rear Press front side hook to release Main PBA.
6

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
1) Be careful not to damage to LCD Module.
1) Be careful not to make damage to MIC FPCB 1) Beware that you do not damage MIC F-PCB.
7-1-2. Assembly
12
34
Set aPBA and front.
Assemble the hooks on the bottom of the rear
Press front side hook to lock Main PBA.
and insert MIC to front carefully
Assemble PBA to the front

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization
1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!
1) Connect and attach front and rear 1) Be careful not to make scratch and molding damage!
56Drive Screws at 6points with torque 1.2 +/-
0.1 Kgf/㎠.
Assemble the left, right hook on the
side of the rear
Assemble the left, right Side Cover on the
side of the rear
8
①②
③④
⑤⑥
①
②
7SEC Code GH68-23505A
LABEL(P)-PREVENT DISASSEMBLEA
→Attach left spot
