Samsung GT-P5210 User manual

N
GSM TELEPHONE
GT-P5210
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2013. 06. Rev.1.0
ⓒ

2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4-1. Cellular phone Exploded View

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Design LOC SEC CODE Description
D9000 0401-001110 DIODE-SWITCHING
ZD5005,ZD7000 0403-001870 DIODE-ZENER
D7002 0404-001250 DIODE-SCHOTTKY
D7000 0404-001394 DIODE-SCHOTTKY
D8000 0404-001669 DIODE-SCHOTTKY
D5001 0406-001239 DIODE-TVS
ZD5000,ZD5001,ZD9001 0406-001267 DIODE-TVS
ZD9002,ZD9003,ZD9004 0406-001267 DIODE-TVS
ZD9005,ZD9006 0406-001267 DIODE-TVS
ZD7001,ZD7002 0406-001293 DIODE-TVS
ZD9000 0406-001390 DIODE-TVS
ZD4000,ZD4001,ZD4004 0406-001413 DIODE-TVS
ZD4005,ZD4007,ZD4008 0406-001413 DIODE-TVS
ZD4009 0406-001413 DIODE-TVS
D4000,D4001,ZD4003 0406-001505 DIODE-TVS
ZD4006,ZD5003 0406-001505 DIODE-TVS
ZD5004 0406-001506 DIODE-TVS
ZD5002 0406-001561 DIODE-TVS
ZD5006 0406-001583 DIODE-TVS
D7001 0407-001002 DIODE-ARRAY
TR7001,TR7002 0504-001113 TR-DIGITAL
Q5001 0504-001171 TR-DIGITAL
Q7000 0505-001995 FET-SILICON
Q5000,Q5004,Q9000 0505-002341 FET-SILICON
Q100,Q4000 0505-002384 FET-SILICON
Q5003 0505-002388 FET-SILICON
Q5002 0505-002720 FET-SILICON
U4000 0801-003024 IC-CMOS LOGIC
U6012 0801-003079 IC-CMOS LOGIC
U6002 0801-003346 IC-CMOS LOGIC
U6015 0801-003435 IC-CMOS LOGIC
U5000,U7007 0801-003437 IC-CMOS LOGIC
UCP6001 0902-003015 IC-MICROPROCESSOR
U8004 0904-002738 IC-GRAPHIC CONT.
U4004 1001-001846 IC-ANALOG MULTIPLEX
U104 1003-002391 IC-LEVEL DRIVER

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
Design LOC SEC CODE Description
U6014 1006-001552 IC-BUS TRANSCEIVER
U103 1009-001058 IC-HALL EFFECT S/W
UCP6001UP 1105-002305 IC-DDR2 SDRAM
UME6000 1107-002239 IC-FLASH MEMORY
U2001 1201-003579 IC-GPS AMP
U4002 1202-001123 IC-VOLTAGE COMP.
U5004,U5007 1203-002250 IC-VOL. DETECTOR
FPC7000,U5006 1203-004776 IC-POSI.FIXED REG.
U6010,U9000 1203-004818 IC-POSI.FIXED REG.
U9002 1203-004819 IC-POSI.FIXED REG.
U9005 1203-005512 IC-POSI.FIXED REG.
U105 1203-005574 IC-POSI.FIXED REG.
U8007 1203-005599 IC-DC/DC CONVERTER
U9004 1203-006044 IC-DC/DC CONVERTER
U9001 1203-006115 IC-POWER SUPERVISOR
U5001 1203-006766 IC-VOL. DETECTOR
U7001,U8005 1203-006768 IC-DC/DC CONVERTER
U107 1203-006817 IC-POSI.FIXED REG.
U108 1203-006872 IC-MULTI REG.
U100,U8000 1203-006874 IC-MULTI REG.
U8006 1203-006920 IC-BACKLIGHT DRIVER
U7005 1203-007084 IC-RESET
U6000 1203-007142 IC-DC/DC CONVERTER
U7003 1203-007623 IC-BATTERY
U8001 1203-007702 IC-DC/DC CONVERTER
U4001,U6016 1203-007791 IC-POSI.FIXED REG.
U8002 1203-007842 IC-POSI.FIXED REG.
U7002 1203-007909 IC-POWER SUPERVISOR
U5005 1203-007951 IC-POWER SUPERVISOR
U109 1204-003387 IC-REMOTE CONTROL
U9006 1205-003692 IC-EXPANDER
U106 1205-004233 IC-TRANSMITTER
U5002 1205-004513 IC-SWITCH
U8003 1205-004548 IC-TRANSMITTER
U2003 1205-004598 IC-WIFI
U2002 1205-004649 IC-GPS RECEIVER

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
Design LOC SEC CODE Description
U9003 1205-004803 IC-COMM. CONTROLLER
U4003 1205-004804 IC-CODEC
U102 1209-002142 IC-SENSOR
U101 1209-002153 IC-SENSOR
TH7001,TH7002 1404-001694 THERMISTOR-NTC
R6088 2007-000141 R-CHIP
R123,R124 2007-000143 R-CHIP
R5010,R5030 2007-000162 R-CHIP
R8009 2007-000163 R-CHIP
R8004 2007-000170 R-CHIP
R104,R105,R106,R107 2007-001217 R-CHIP
R109,R110,R111,R112 2007-001217 R-CHIP
R113,R114,R115,R116 2007-001217 R-CHIP
R117,R118,R119,R120 2007-001217 R-CHIP
R7000 2007-002796 R-CHIP
R6016,R6103,R6105 2007-002970 R-CHIP
R5025,R5027,R5038 2007-003015 R-CHIP
R9014 2007-007131 R-CHIP
R4002 2007-007137 R-CHIP
R5023,R9023 2007-007142 R-CHIP
R6018,R6019 2007-007307 R-CHIP
R8001 2007-007489 R-CHIP
R6060 2007-007538 R-CHIP
R9011 2007-007590 R-CHIP
R8011 2007-007627 R-CHIP
R127,R128,R5013 2007-007741 R-CHIP
R5018,R7020,R7029 2007-007741 R-CHIP
R7031,R7032,R7033 2007-007741 R-CHIP
R9000,R9001,R9002 2007-007741 R-CHIP
R4016,R4017,R4024 2007-007942 R-CHIP
R4027,R4028 2007-007942 R-CHIP
R4025,R4026 2007-007943 R-CHIP
R8000,R9020 2007-007981 R-CHIP
R4018,R5000,R5006 2007-008045 R-CHIP
R5041,R6021,R6077 2007-008045 R-CHIP
R6109,R7040,R7041 2007-008045 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
Design LOC SEC CODE Description
R9004 2007-008045 R-CHIP
R131,R132,R2015 2007-008048 R-CHIP
R125,R133,R134,R5014 2007-008052 R-CHIP
R6011,R6012,R6033 2007-008052 R-CHIP
R6034,R6107,R6108 2007-008052 R-CHIP
R5022,R5043,R6026 2007-008055 R-CHIP
R6058,R6080,R7036 2007-008055 R-CHIP
R7043,R8010,R9022 2007-008055 R-CHIP
R9024,R9025 2007-008055 R-CHIP
R6104 2007-008057 R-CHIP
R7002,R7003 2007-008137 R-CHIP
R9021 2007-008210 R-CHIP
R6051,R6094 2007-008298 R-CHIP
R4023 2007-008312 R-CHIP
R6055,R8014 2007-008354 R-CHIP
R5004,R5007 2007-008419 R-CHIP
R5028 2007-008420 R-CHIP
R9015,R9016,R9018 2007-008483 R-CHIP
R9019 2007-008483 R-CHIP
R100,R5021 2007-008486 R-CHIP
R121,R126,R2000 2007-008516 R-CHIP
R2002,R2003,R2023 2007-008516 R-CHIP
R2024,R4011,R4012 2007-008516 R-CHIP
R5001,R5003,R5008 2007-008516 R-CHIP
R5037,R6000,R6005 2007-008516 R-CHIP
R6006,R6007,R6036 2007-008516 R-CHIP
R6038,R7004,R7025 2007-008516 R-CHIP
R9007,R9017 2007-008516 R-CHIP
R6048 2007-008531 R-CHIP
R4004 2007-008588 R-CHIP
R6047 2007-008697 R-CHIP
R7017,R8013 2007-008721 R-CHIP
R9003 2007-008774 R-CHIP
R5005 2007-008800 R-CHIP
R4000,R4019 2007-008806 R-CHIP
R7022 2007-008812 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
Design LOC SEC CODE Description
R108,R122,R4009 2007-009084 R-CHIP
R4010,R5016,R5031 2007-009084 R-CHIP
R5040,R7014,R8003 2007-009084 R-CHIP
R6027 2007-009111 R-CHIP
R5011 2007-009155 R-CHIP
R129,R130 2007-009158 R-CHIP
R8012 2007-009168 R-CHIP
R2007,R2008,R2009 2007-009171 R-CHIP
R2010,R2011,R6039 2007-009171 R-CHIP
R6040,R6041,R6042 2007-009171 R-CHIP
R6043,R6044,R6045 2007-009171 R-CHIP
R6046,R5042 2007-009171 R-CHIP
R6086 2007-009182 R-CHIP
R6031 2007-009199 R-CHIP
R4021,R4022 2007-009208 R-CHIP
R4001,R6052,R6053 2007-009212 R-CHIP
R6025 2007-009314 R-CHIP
R7030 2007-009323 R-CHIP
R6008,R6009,R6010 2007-009408 R-CHIP
R5009 2007-009793 R-CHIP
R6030 2007-009805 R-CHIP
R6057,R6059 2007-009920 R-CHIP
R7011 2007-009954 R-CHIP
R5012 2007-010856 R-CHIP
C2065 2203-000233 C-CER,CHIP
C2013,C8014,C8020 2203-000254 C-CER,CHIP
C9044 2203-000254 C-CER,CHIP
C6096,C7061 2203-000278 C-CER,CHIP
C8030 2203-000359 C-CER,CHIP
C134,C135 2203-000386 C-CER,CHIP
C4014,C4015,C4016 2203-000425 C-CER,CHIP
C4017 2203-000425 C-CER,CHIP
C7031 2203-000438 C-CER,CHIP
C8024 2203-000489 C-CER,CHIP
C8006 2203-000627 C-CER,CHIP
C4018,C4019 2203-001239 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
Design LOC SEC CODE Description
C7076,C7086 2203-002687 C-CER,CHIP
C107,C8005 2203-002709 C-CER,CHIP
C6095 2203-003054 C-CER,CHIP
C2020,C5000,C5001 2203-005682 C-CER,CHIP
C5003 2203-005682 C-CER,CHIP
C7043 2203-005717 C-CER,CHIP
C2002,C2006,C7042 2203-005725 C-CER,CHIP
C5025,C5027,C5032 2203-005727 C-CER,CHIP
C2049,C4002,C4003 2203-005729 C-CER,CHIP
C4010,C4011 2203-005729 C-CER,CHIP
C2050 2203-005731 C-CER,CHIP
C4006,C4007,C4012 2203-005732 C-CER,CHIP
C5002 2203-005732 C-CER,CHIP
C5021,C7085 2203-005734 C-CER,CHIP
C2010,C2014 2203-005736 C-CER,CHIP
C2012 2203-005777 C-CER,CHIP
C8022,C8023 2203-005779 C-CER,CHIP
C2008,C2045,C2056 2203-005806 C-CER,CHIP
C4013 2203-005806 C-CER,CHIP
C8012,C8013,C8017 2203-006048 C-CER,CHIP
C8018,C8019,C9026 2203-006048 C-CER,CHIP
C9050 2203-006048 C-CER,CHIP
C126 2203-006121 C-CER,CHIP
C7002 2203-006194 C-CER,CHIP
C7008,C7009,C7068 2203-006208 C-CER,CHIP
C6094 2203-006257 C-CER,CHIP
C2015,C2016,C2026 2203-006305 C-CER,CHIP
C2037,C2046,C2053 2203-006305 C-CER,CHIP
C2057,C2060,C2063 2203-006305 C-CER,CHIP
C2064 2203-006305 C-CER,CHIP
C9014 2203-006348 C-CER,CHIP
C1138,C1139 2203-006377 C-CER,CHIP
C131,C4005,C6080 2203-006399 C-CER,CHIP
C6093,C6097,C6098 2203-006399 C-CER,CHIP
C8003,C8026 2203-006399 C-CER,CHIP
C100,C102,C110,C111 2203-006423 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
Design LOC SEC CODE Description
C112,C115,C118,C119 2203-006423 C-CER,CHIP
C121,C123,C128,C129 2203-006423 C-CER,CHIP
C136,C2007,C5013 2203-006423 C-CER,CHIP
C6084,C6087,C7082 2203-006423 C-CER,CHIP
C8037,C9000,C9001 2203-006423 C-CER,CHIP
C9004,C9005,C9006 2203-006423 C-CER,CHIP
C9007,C9008,C9009 2203-006423 C-CER,CHIP
C9010 2203-006423 C-CER,CHIP
C114,C130,C4004 2203-006562 C-CER,CHIP
C4008,C4009,C5019 2203-006562 C-CER,CHIP
C5020,C5039,C6079 2203-006562 C-CER,CHIP
C6092,C7000,C7012 2203-006562 C-CER,CHIP
C7013,C7030,C7032 2203-006562 C-CER,CHIP
C7033,C7037,C7041 2203-006562 C-CER,CHIP
C7049,C7056,C7069 2203-006562 C-CER,CHIP
C7070,C7073,C7077 2203-006562 C-CER,CHIP
C7078,C8025,C8038 2203-006562 C-CER,CHIP
C8041,C8042,C9045 2203-006562 C-CER,CHIP
C125 2203-006668 C-CER,CHIP
C7053,C8033 2203-006681 C-CER,CHIP
C2022,C2029,C2034 2203-006707 C-CER,CHIP
C2047 2203-006707 C-CER,CHIP
C5017 2203-006815 C-CER,CHIP
C4021,C5010 2203-006839 C-CER,CHIP
C113,C8034,C8035 2203-006844 C-CER,CHIP
C116,C117,C120,C122 2203-006872 C-CER,CHIP
C127,C2003,C4023 2203-006872 C-CER,CHIP
C4038,C4040,C4041 2203-006872 C-CER,CHIP
C6085,C6086,C7074 2203-006872 C-CER,CHIP
C8000,C8002,C8015 2203-006872 C-CER,CHIP
C8021,C9032 2203-006872 C-CER,CHIP
C5014,C5018,C5023 2203-006978 C-CER,CHIP
C5015 2203-006979 C-CER,CHIP
C9042 2203-007133 C-CER,CHIP
C5011,C6090,C7001 2203-007240 C-CER,CHIP
C7004,C7005,C7006 2203-007240 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-8
Design LOC SEC CODE Description
C7007,C7014,C7015 2203-007240 C-CER,CHIP
C7016,C7017,C7018 2203-007240 C-CER,CHIP
C7019,C7045,C7062 2203-007240 C-CER,CHIP
C7063,C7064,C7065 2203-007240 C-CER,CHIP
C7066,C7067,C7071 2203-007240 C-CER,CHIP
C7083,C7084 2203-007240 C-CER,CHIP
C5016,C7075 2203-007269 C-CER,CHIP
C5031,C7046,C7047 2203-007270 C-CER,CHIP
C8027,C8031,C8032 2203-007270 C-CER,CHIP
C9051 2203-007270 C-CER,CHIP
C137,C2036,C7003 2203-007271 C-CER,CHIP
C7020,C7029,C7034 2203-007271 C-CER,CHIP
C7035,C7036,C7038 2203-007271 C-CER,CHIP
C7039,C7050,C7051 2203-007271 C-CER,CHIP
C7081,C9011,C9012 2203-007271 C-CER,CHIP
C9013,C9021,C9022 2203-007271 C-CER,CHIP
C9023,C9024,C9025 2203-007271 C-CER,CHIP
C9027,C9029,C9048 2203-007271 C-CER,CHIP
C9049 2203-007271 C-CER,CHIP
C7023,C7048,C7052 2203-007279 C-CER,CHIP
C7054,C7055 2203-007279 C-CER,CHIP
C4024,C4025,C4029 2203-007317 C-CER,CHIP
C4035,C5004,C8001 2203-007317 C-CER,CHIP
C8004,C9047 2203-007317 C-CER,CHIP
C101,C103,C108,C109 2203-007385 C-CER,CHIP
C138,C139,C8011 2203-007385 C-CER,CHIP
C5040,C6000,C6001 2203-007391 C-CER,CHIP
C6002,C6003,C6004 2203-007391 C-CER,CHIP
C6005,C6006,C6007 2203-007391 C-CER,CHIP
C6008,C6009,C6010 2203-007391 C-CER,CHIP
C6011,C6012,C6013 2203-007391 C-CER,CHIP
C6014,C6015,C6016 2203-007391 C-CER,CHIP
C6017,C6018,C6019 2203-007391 C-CER,CHIP
C6020,C6021,C6022 2203-007391 C-CER,CHIP
C6023,C6024,C6025 2203-007391 C-CER,CHIP
C6026,C6027,C6028 2203-007391 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-9
Design LOC SEC CODE Description
C6029,C6030,C6031 2203-007391 C-CER,CHIP
C6032,C6033,C6034 2203-007391 C-CER,CHIP
C6035,C6036,C6037 2203-007391 C-CER,CHIP
C6038,C6039,C6040 2203-007391 C-CER,CHIP
C6041,C6042,C6043 2203-007391 C-CER,CHIP
C6044,C6045,C6046 2203-007391 C-CER,CHIP
C6047,C6048,C6049 2203-007391 C-CER,CHIP
C6050,C6051,C6052 2203-007391 C-CER,CHIP
C6053,C6054,C6055 2203-007391 C-CER,CHIP
C6056,C6057,C6058 2203-007391 C-CER,CHIP
C6059,C6060,C6061 2203-007391 C-CER,CHIP
C6062,C6063,C6064 2203-007391 C-CER,CHIP
C6065,C6066,C6067 2203-007391 C-CER,CHIP
C6068,C6069,C6070 2203-007391 C-CER,CHIP
C6071,C6072,C6073 2203-007391 C-CER,CHIP
C6074,C6075,C6076 2203-007391 C-CER,CHIP
C6077,C6078 2203-007391 C-CER,CHIP
C124,C132,C133,C2042 2203-007393 C-CER,CHIP
C2043,C2061,C6091 2203-007393 C-CER,CHIP
C7011,C7024,C7025 2203-007393 C-CER,CHIP
C7026,C7027,C7028 2203-007393 C-CER,CHIP
C7040,C7044,C7057 2203-007393 C-CER,CHIP
C7058,C7059,C7060 2203-007393 C-CER,CHIP
C7072,C8010 2203-007393 C-CER,CHIP
C105,C106,C2001 2203-007449 C-CER,CHIP
C2005,C2011,C4000 2203-007449 C-CER,CHIP
C4022,C4026,C4027 2203-007449 C-CER,CHIP
C4030,C4031,C4039 2203-007449 C-CER,CHIP
C5009,C5012,C5022 2203-007449 C-CER,CHIP
C5038,C6088,C8007 2203-007449 C-CER,CHIP
C8008,C8009,C8036 2203-007449 C-CER,CHIP
C9002,C9003,C9020 2203-007449 C-CER,CHIP
C9028,C9031,C9035 2203-007449 C-CER,CHIP
C9036,C9037,C9039 2203-007449 C-CER,CHIP
C9040,C9041,C9046 2203-007449 C-CER,CHIP
C5005,C5026 2203-007456 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-10
Design LOC SEC CODE Description
C9043 2203-007693 C-CER,CHIP
C4020 2203-007775 C-CER,CHIP
C8029,C8039,C8040 2203-007790 C-CER,CHIP
C5006,C5007 2203-007795 C-CER,CHIP
C104,C2004,C2009 2203-007796 C-CER,CHIP
C2027,C2028,C2032 2203-007796 C-CER,CHIP
C2058,C4033,C4034 2203-007796 C-CER,CHIP
C4036,C4037,C5008 2203-007796 C-CER,CHIP
C5036,C7010,C8028 2203-007796 C-CER,CHIP
C9019,C9030 2203-007796 C-CER,CHIP
C2031,C2033,C2054 2203-008095 C-CER,CHIP
C2024,C2035,C2039 2203-008097 C-CER,CHIP
C2040,C2041,C2044 2203-008097 C-CER,CHIP
C2059,C2062,C8016 2203-008097 C-CER,CHIP
C9015,C9016,C9017 2203-008097 C-CER,CHIP
C9018 2203-008097 C-CER,CHIP
C5024 2203-008126 C-CER,CHIP
C7079,C7080 2203-008527 C-CER,CHIP
C1140 2203-008528 C-CER,CHIP
C4001,TA7001,TA7002 2404-001506 C-TA,CHIP
L2004 2703-002204 INDUCTOR-SMD
L2000 2703-002367 INDUCTOR-SMD
L9004 2703-003485 INDUCTOR-SMD
L6000 2703-003498 INDUCTOR-SMD
L8001 2703-003686 INDUCTOR-SMD
L7011,L9001 2703-003754 INDUCTOR-SMD
L7004,L7006 2703-003911 INDUCTOR-SMD
L7005,L8005 2703-003913 INDUCTOR-SMD
R2001 2703-004012 INDUCTOR-SMD
L5000 2703-004230 INDUCTOR-SMD
L5001 2703-004297 INDUCTOR-SMD
L2011 2703-004338 INDUCTOR-SMD
L2002 2703-004345 INDUCTOR-SMD
L2014 2703-004364 INDUCTOR-SMD
L2003 2703-004366 INDUCTOR-SMD
L8004 2703-004530 INDUCTOR-SMD

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-11
Design LOC SEC CODE Description
L7000,L7001,L7002 2703-004635 INDUCTOR-SMD
L7003,L7007,L7008 2703-004635 INDUCTOR-SMD
L7009,L7010 2703-004635 INDUCTOR-SMD
L4004,L4005,L4009 2703-004697 INDUCTOR-SMD
L4010 2703-004697 INDUCTOR-SMD
OSC100 2801-004785 CRYSTAL-SMD
OSC8000 2801-004836 CRYSTAL-SMD
OSC6000 2801-005165 CRYSTAL-SMD
OSC2002 2801-005167 CRYSTAL-SMD
OSC7000 2801-005254 CRYSTAL-SMD
OSC2001 2805-001098 OSCILLATOR-TCXO
F5000 2901-001625 FILTER-EMI/ESD
F8001 2901-001673 FILTER-EMI SMD
F8000,F8002,F9000 2901-001674 FILTER-EMI SMD
F9001 2901-001674 FILTER-EMI SMD
F2001,F2002 2904-002085 FILTER-GPS SAW
F2004 2909-001324 FILTER-LC
U2004 2911-000257 DUPLEXER-FEM
U2005 2911-000258 DUPLEXER-FEM
L8000,R2004 3301-001534 BEAD-SMD
L101,L102,L9003 3301-001729 BEAD-SMD
L100 3301-001812 BEAD-SMD
L2001 3301-001895 BEAD-SMD
L9000,L9002 3301-001901 BEAD-SMD
L4011,L4012 3301-001929 BEAD-SMD
L8003 3301-002037 BEAD-SMD
L4000,L4001,L4002 3301-002065 BEAD-SMD
L4003,L4006,L7012 3301-002065 BEAD-SMD
L7013 3301-002065 BEAD-SMD
L4007,L4008 3301-002078 BEAD-SMD
L8002 3301-002085 BEAD-SMD
L5004 3301-002254 BEAD-SMD
SLC5000,SLC8000 3708-002183 CONNECTOR-FPC/FFC/PIC
SLC9000 3708-002781 CONNECTOR-FPC/FFC/PIC
CD9000 3709-001811 CONNECTOR-CARD EDGE
HDC6000,HDC9000 3711-006925 HEADER-BOARD TO BOARD

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-12
Design LOC SEC CODE Description
HDC9001 3711-006925 HEADER-BOARD TO BOARD
HDC4001 3711-007173 HEADER-BOARD TO BOARD
HDC100,HDC4000 3711-008010 HEADER-BOARD TO BOARD
HDC5000 3711-008010 HEADER-BOARD TO BOARD
HDC9002 3711-008347 HEADER-BOARD TO BOARD
BTC7000 3711-008421 CONNECTOR-HEADER
ANT2001,ANT2002 3712-001458 CONNECTOR-TERMINAL
F2005 4709-001672 FREQ-DISTRIBUTER
F2003 4709-002028 FREQ-DISTRIBUTER
SC1000 GH98-27736A ASSY COVER-ASSY SHIELD COVER 1
SC1001 GH98-27737A ASSY COVER-ASSY SHIELD COVER 2
SC1002 GH98-27738A ASSY COVER-ASSY SHIELD COVER 3
Please consult the GSPN website(Samsung Portal) for the most recent version of the product's part list.

7. Level 2Repair
7-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Be careful, do not damage TSP FPCB & IR LED Screw points is 15EA
Be careful, do not damage FPCB connector

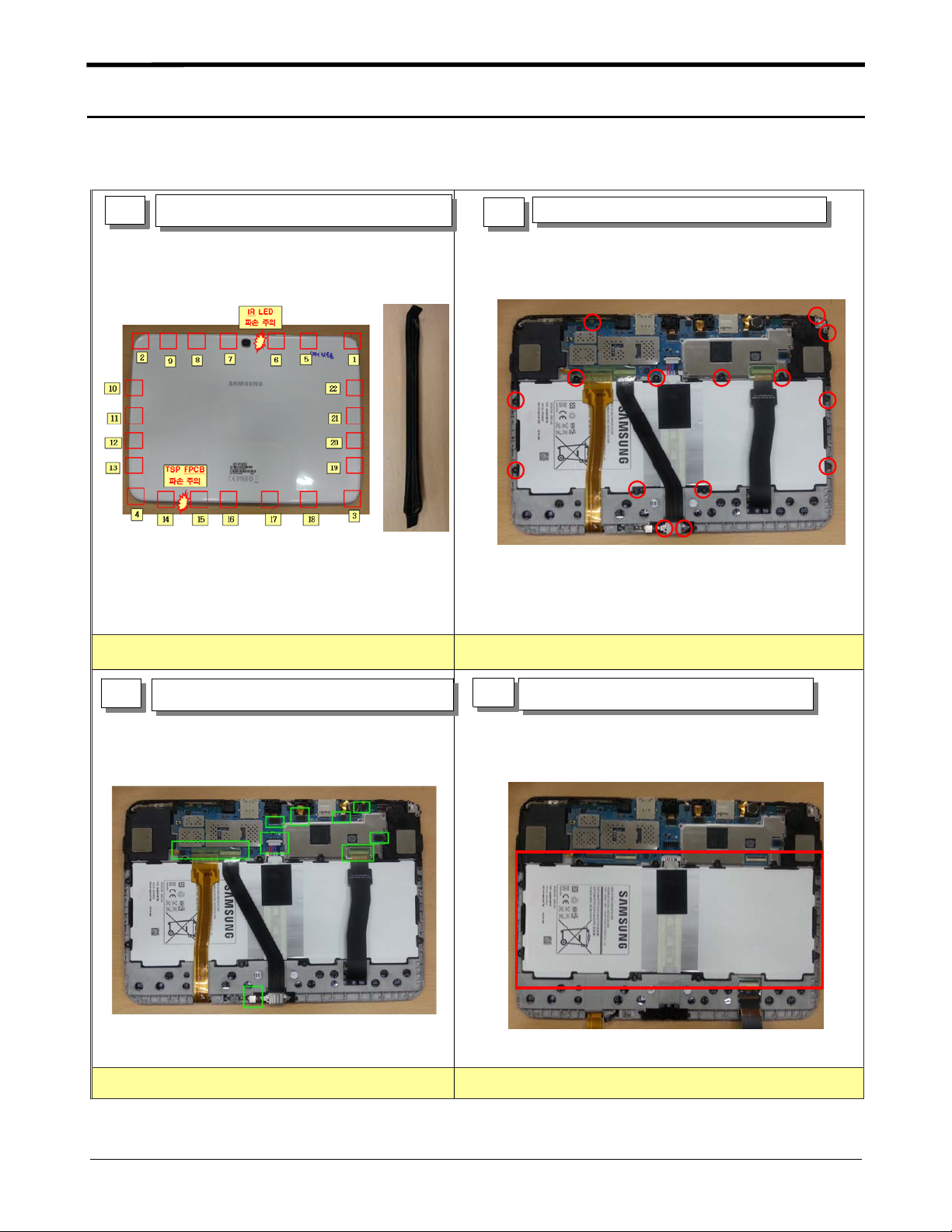

7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
Disassembly Rear Cover using jig
1unscrew from SET
2
disassembly all of the connector
3disassembly the battery
4

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-2
Make sure not to damage the PBA
Dissambly the PBA
5

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-3
Be careful, do not damage connector FPCB connector is 7EA
Be careful, do not damage LCD FPCB
7-1-2. Assembly
Assembly the PBA on the bracket
1Assembly the CIF/3M Camera and battery.
Assembly the FPCB connector
2
Assembly the LCD FPCB and I/F FPCB.
Assembly the FPCB connector
3Assembly the FPCB(TSP, I/F, LCD).
Attach the tape
4
CONNECTOR

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-4
● Torque : 1.0 ~ 1.2 Kgf·cm
● Size : 1.4 * 2.5 (6001-002051) Be careful, do not damage Earjack.
screw 15 point.
Assembly the Battery connector.
5Assembly the rear cover
6
1
2
