Samsung SP-C700R User manual

900 MHz Phone
SP-C700R
GG68-00405E
03/10. Rev.1.0
English Manual

2
Always disconnect from the
power supply when cleaning.
Do not spray water and do not
use benzene, thinner or any other
alcohol while cleaning the phone.
●It can cause electric shock or fire.
Do not pour water or any liquid
on the phone.
●It can cause electric shock or fire.
Do not dispose batteries into
a fire.
●It can cause an explosion.
If you hear any weird or unusual
noises or smell anything weird,
immediately disconnect the
power line and call the service
center.
●It can cause electric shock or fire.
Never pull out the power plug by
pulling the line or when your
hands are wet.
●It can cause electric shock or fire.
Do not fold the power line or
leave it under heavy objects.
●It can cause electric shock or fire.
Use only the designated
adapter.
●It can cause fire.
Always disconnect the Phone Jack
first before disconnecting the DC
Power Jack of the adapter
from the phone.
●It can electric shock.
This product is for 220V only.
Do not use for any other
voltages.
●It can cause electric shock or fire.
Note
1
SafetyPrecautions
The following is to ensure the user's safety and to minimize potential damages.
Carefully read the following guidelines and use in accordance with the instructions.
Do not use damaged power lines
or loose plugs.
●It can cause electric shock or fire.
Do not disassemble or repair.
●It can cause electric shock, fire or
injury.
●If it needs repairing, please contact
our local service center.
If there is dust or water on the
power plug, wipe it off with a dry
cloth.
●Do not use water, as it can cause
electric shock or fire.
When you see this sign, it indicates a
warning that something can cause death or
serious injury.
Warning
Warning
When you see this sign, it indicates a warning
that something can cause minor injury
or product damage.
Note

43
Recent call function
You can easily search and
redial the most recent numbers
you called without dialing them
up again.
(Up to 10 calls)

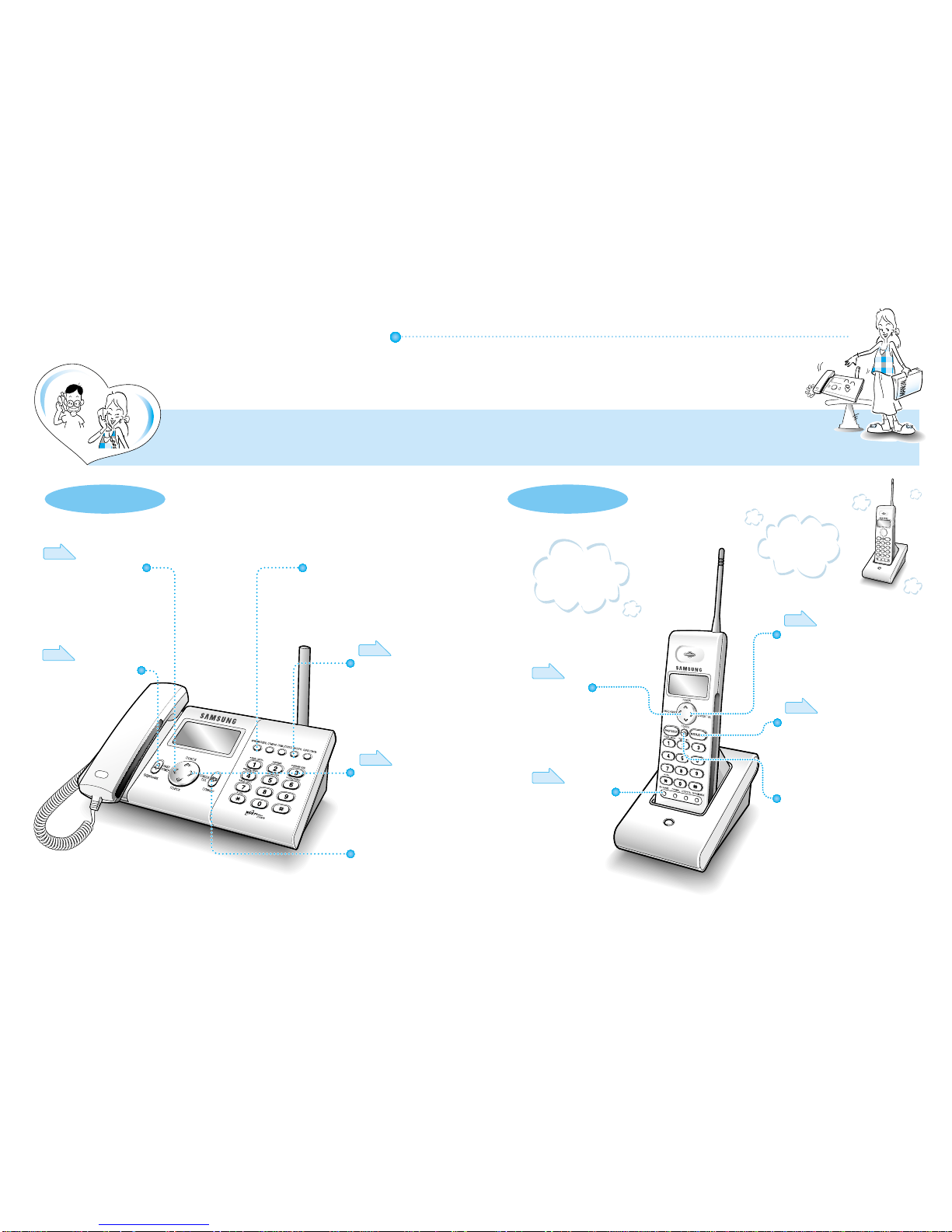

WIDE 900 MHz Phone
●
Here are some instructions concerning
various functions of the phone.
Base set : Phone directory (20 phone numbers), recent calls (10 calls).
Remote set : Phone directory (10 phone numbers), recent calls (10 calls).
The phone directory is saved separately from the recent call function and the base
set and the remote set are controlled separately.
OverviewofMajorFeatures
You can easily carry
the remote set when
moving around.
An illuminated
dial pad adds to your
convenience. It allows
you to dial phone
numbers even in dark
places.
Base Set
Remote Set
On Hook Dialing
You can make a call without
picking up the remote set.
Setting function
You can set and manage your own
settings for various phone
functions.
page 28
Morning call/alarm
function
This button will set an
alarm to sound at a
certain time.
page 22
Intercom function
You can easily switch
between an internal call
(intercom) with the base set
and an external call.
Phone directory
search function
This helps you store or
search up to 20 phone
numbers.
page 23~26
page 17, 19
Recent call
function
You can easily search and redial
the recent numbers you called
without dialing them
up again. (Up to 10 calls)
page 28
Noise reduction
function
It will detect a clear
channel when the call
has a bad connection
page 31
Setting function
You can manage settings for various
phone functions.
Intercom function
You can easily switch between an
internal call (intercom) with the base set
and an external call.
page
17~19
Phone directory search
function
This helps you store or search up to
10 phone numbers.
page 23~26

65
TableofContents
Preparation & Installation
Basic Features
Safety precautions
Overview of major features
Table of contents / Components
Product information
Phone installation

















Making calls
Answering calls
Date / Time setting
Using the intercom function
Transferring calls
Changing the ringing melody and adjusting
the voice volume
Morning call / alarm setting
Using the phone directory








Convenient features for making calls
Redialing the recently dialed number
Deleting the recently dialed number
Blocking a user from making long
distance calls
Dialing another number after a call (Flash)
Pause function
Help functions
Selecting Pulse / Tone Dial Type
Noise reduction
Out of range warning
Low voltage warning
Adjusting the Flash Time
Initializing the phone
Registering the remote set
Reference
Convenient features
Troubleshooting
How to Clean
Product Specifications
Components
Base set Base adapter
(DC 12V 500mA)
Charger Adapter
(DC 12V 500mA)
Remote set Charger Battery
(DC 3.6V 450mAh)
User's manual



 Please check the components.
 In case there is a problem with the components, please contact a retail shop where you made your purchase.
Phone line cord Warranty
card
Preparation & Installation
Basic features
Convenient features
Reference


Screen Displaying
87

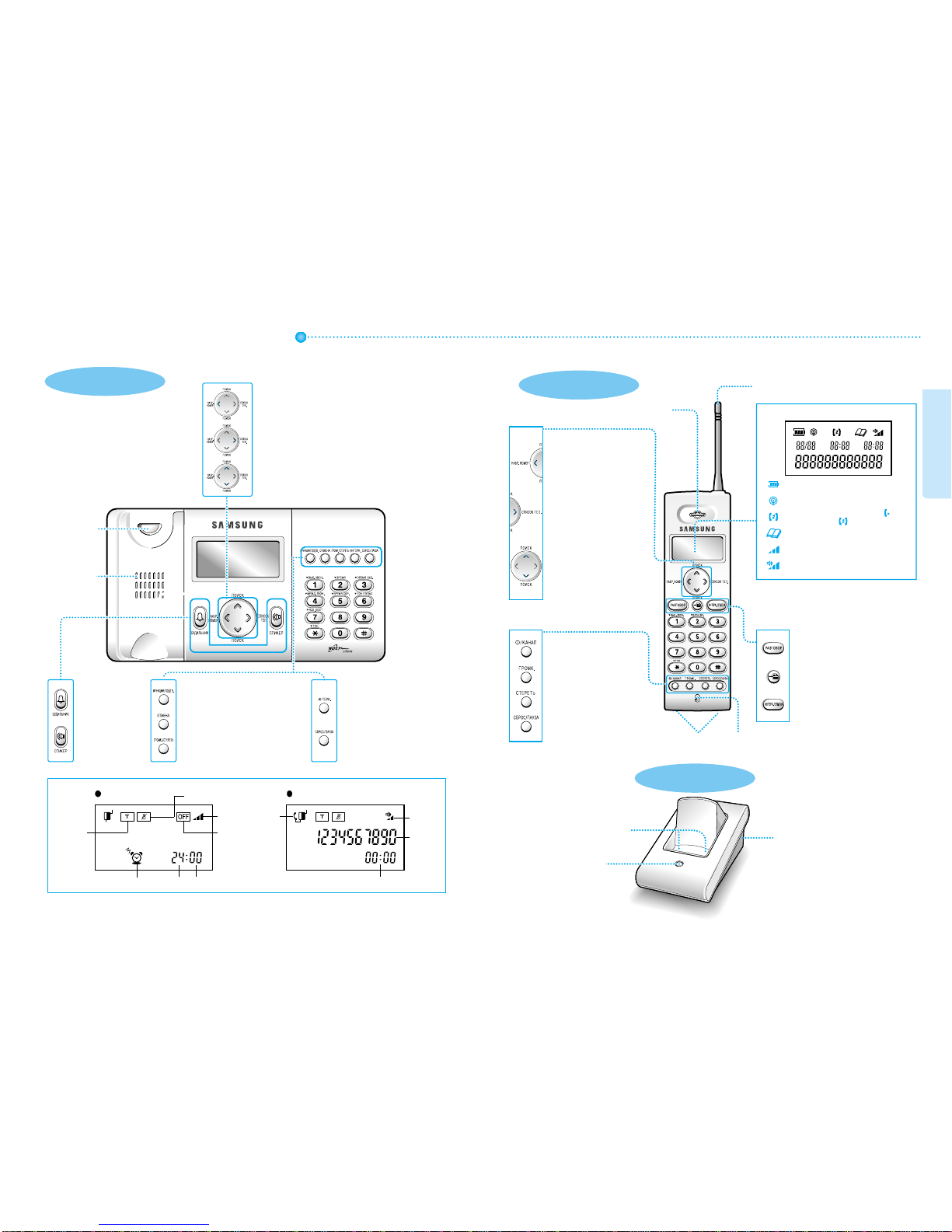

ProductIntroduction
Base Set
Charger
Use it for searching or registering numbers in
your own phone directory ( up to 20 numbers ).
Use it to navigate upward when moving and
searching through the menu.
Use it to navigate downward when moving and
searching through the menu.
 Use it for redialing the last number you called.
Use it for calling, answering or
hanging up.
Use it for redialing the last
number you called.
Use it for searching or
registering numbers in your
personal phone directory
( up to 10 numbers ).
Use it for searching the order of
the most recent calls
Use it for changing the function
setting ( e.g. bell type, device
number ).
Use it for turning on/off the
power.
Use it for reducing
misconnected calls or noise.
Use it for deleting the most recently
called numbers or saved numbers
in searching phone numbers.
Use it for making another call
without hanging up.
Use it for adjusting the ring
tone or the voice volume. Use it for either communicating with
the base set or transferring a call to
the base set.
Use it for canceling a function.
Use it for setting or canceling the
phone's features.

Use it for setting or canceling the
phone's features.
 Use it for confirming the function setting.
Standby Screen
Call Screen
Use it for setting or
canceling the
morning alarm call.
Use it for dialing
numbers without
picking up the
handset.
Minute

Use if for adjusting the volume of the ring
tone or speakerphone.
 Use it for deleting certain phone numbers
from the directory, recent calls or saved
numbers in searching phone numbers.
Use it for either communicating
with the remote set or
transferring a call to
the remote set.
Use it for making another call
without hanging up.

Use it for canceling functions.
Battery status
When out of range from the base set
When the line is busy with a call ( ) or
an extension call ( )
When searching or registering numbers
in your phone directory
Volume of receiving ring
(2 levels)
Volume of one's voice during a call (3 levels)
Remote Set
LED lamp for
recharging status
Power cable connector
(back side)
Hour
Morning call
Call
indicator
Speaker
phone
Volume
Call Restriction
Ring
Volume
Tone Dial
(indicator) Bell Off
This shows you the duration of the call.
Dial
(Phone
Number)
Speaker
Hook switch
Charger connector Microphone
Antenna
Speaker
Charger connector
Preparation & Installation

109
PhoneInstallation

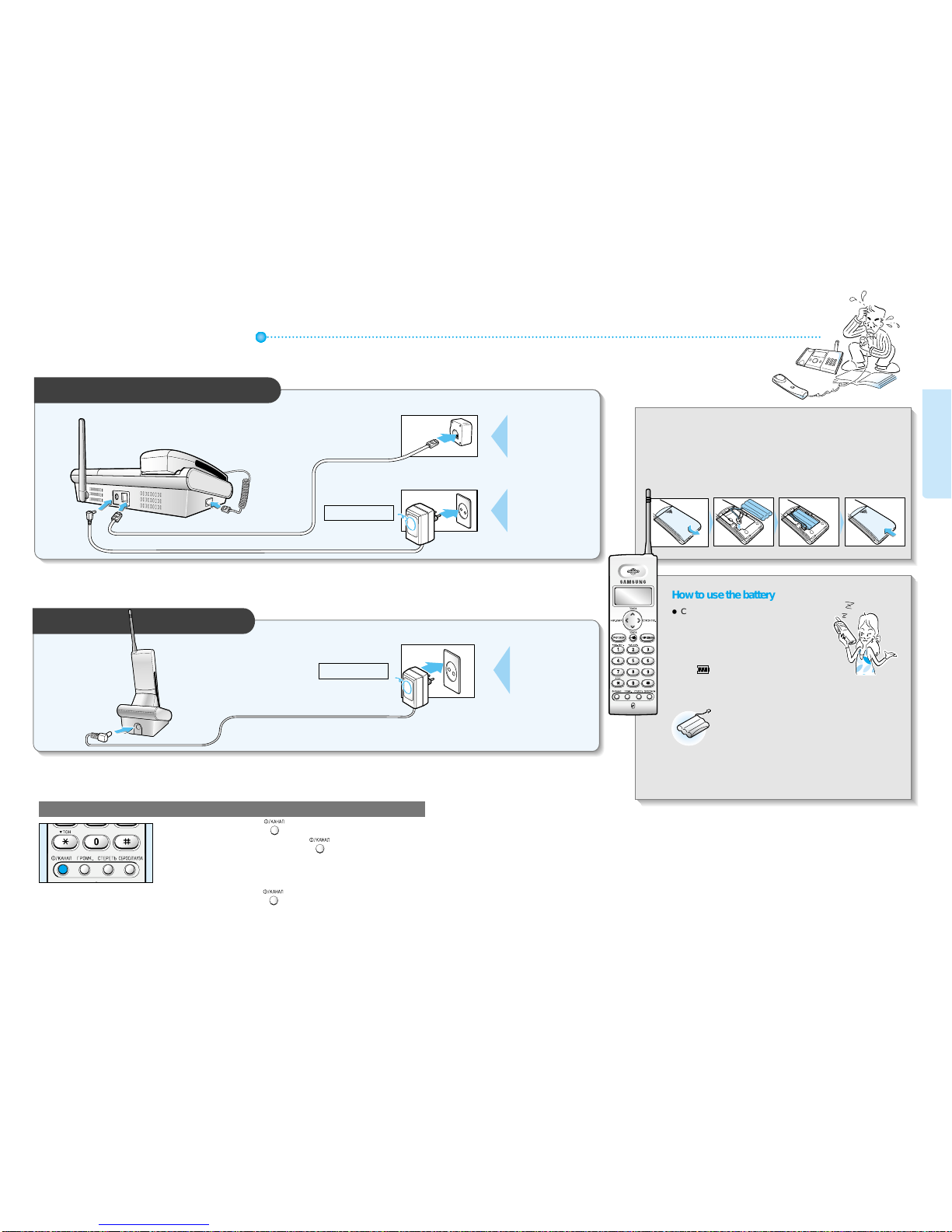

 To turn on the power: Press button (hold for more than 2 seconds) until
you begin to hear the beeping sound.
  


 

 To turn off the power: Press buttons (hold for more than 3 seconds) until
you hear the beeping sound.
Connect the phone line.
Connect the power
plug to
220 V.
Connect the power
plug to 220 V.
DC 12V 500mA
Open the
battery cover. Place the battery as
shown in the
picture.
Installing the Remote Set
Installing the Base Set
12
Rearrange the
line by setting
the battery as
shown in the
picture.
3
Close the
battery cover.
4
Loading the battery to the remote set
Battery life
● The battery life has a 6-month warranty after
purchase.
● As time goes by, there will be a reduction in the
battery's power. When battery's power capacity is
reduced by half, purchase a new battery and
replace it.
● Please contact your local Samsung Electronics
Service Center on how to purchase and replace
the battery.
;;
;;
;;
@@
@@
@@



ÀÀ
ÀÀ
ÀÀ
How to use the battery
● Charge the battery for approximately 24
hours before using.
● Always remove the battery from the remote
set, when you are not using it for an
extended period.
● It is best to charge the battery until you see
the ( ) sign on the screen.
To turn on / off the power
When you have finished installing the base set, pressOn Hookbutton and check for a dial tone.
If you cannot hear a dial tone, then check both the power and phone line connections.
This product works for 220V.
Place the remote set on the charger and check if the lamplight is on.
Press the call button and check for a dial tone.
If you cannot hear the tone, check the installation.
DC 12V 500mA
Preparation & Installation

BasicFeatures
 Making calls 13
 Answering calls 14
 Date / Time setting 15
 Using the intercom function 17
 Transferring calls 18
 Changing the ringing melody and
adjusting the voice volume
20
 Morning call / alarm setting 22
 Using the phone directory 23
BasicFeatures
1211

13 14
AnsweringCallsMakingCalls
If you have incorrectly dialed the number in standby mode, you can delete a digit by pressing button and
then pick up the handset or press 'On Hook' button.
You can switch from pulse to tone mode by pressing button during dialing.
 You can switch from pulse to tone mode by pressing button during dialing.
What is "On Hook Dialing"?
 It is a very convenient feature. With it, you can first dial the number you want to call and then pick up the handset
to talk to the caller after identifying his/her voice through the speaker. (NB. If you don't pick up the handset, the
other side can't hear you.)

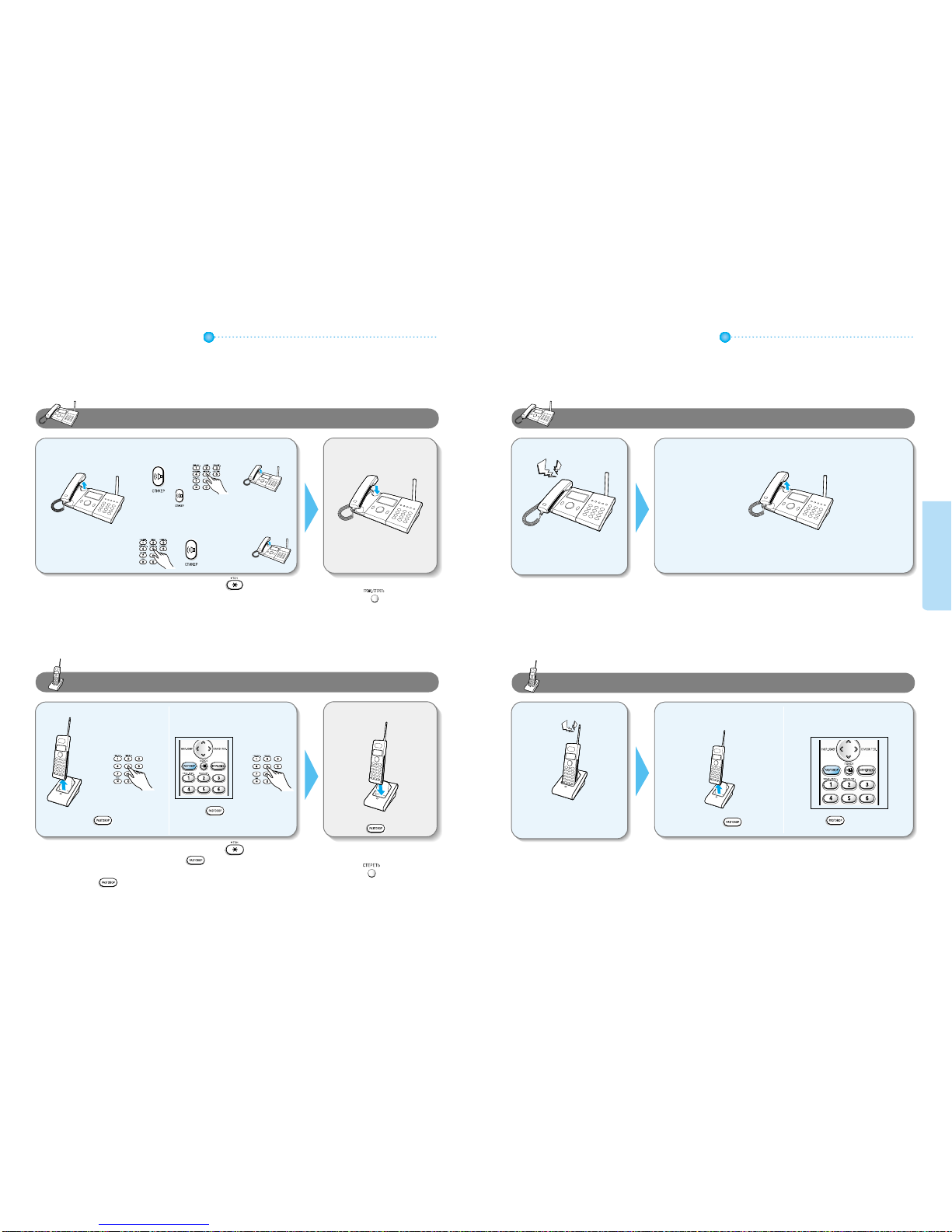

Pull out the remote set from the
charger, press button and dial
the number you want to call.
Place the handset down on
its position.
When the remote set is not
placed on the Charger
Making a Call with the Base Set
When hanging up the phone
When hanging up the phone
Making a Call with the Remote Set
Pick up the handset to answer
the call.
When using the base-handset When using the On Hook
When calling in standby mode
Answering a Call with the Base Set
When the remote set is placed
on the Charger
Answering a Call with the Remote Set
Press button and dial the
number you want to call.
 You can dial the number before pressing button.
 If you have incorrectly dialed the number in standby mode, you can delete a digit by pressing button
and then press button.
When the Phone Rings
When the Phone Rings
Press button and dial the number
you want to call.
Pick up the base-handset
and dial the number you
want to call.
When the remote set is placed
on the charger When the remote set is not placed on the charger
Place the remote set on the charger
or pressing button.




You can get
a dial tone in
3 seconds.
Pull out the remote set from the
charger and press button to
answer the call. press button to answer
the call.
Basic features

1615

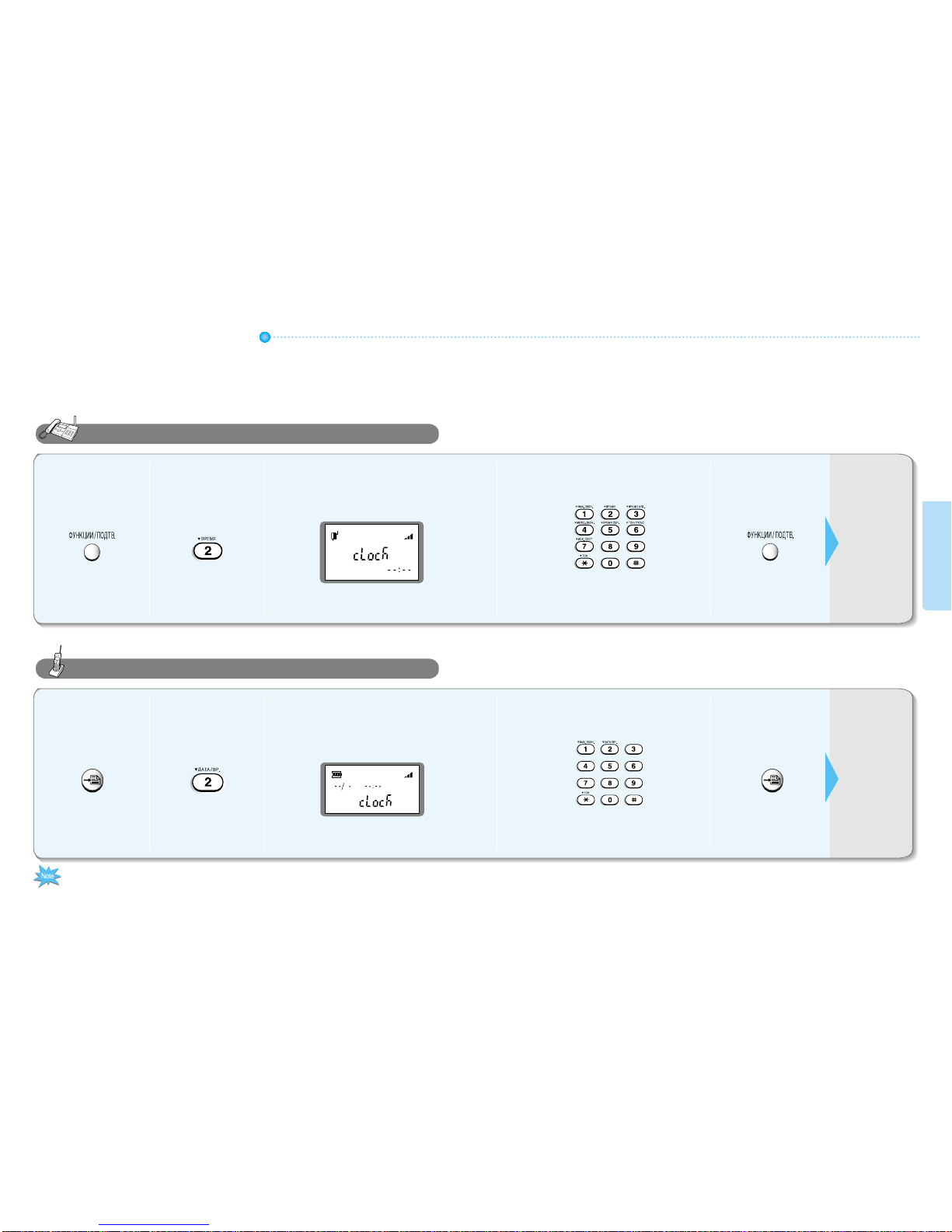

Date/TimeSetting
 You need to setup the Date/Time feature in order to see the current time and to use
the Morning Call/Alarm function.
 
12 435
You will hear a
beep confirming
the completion
of the setting.
� Press 4 digits in the order of
hour, and minute.
Displaying
12 4 5
You will hear a
beep confirming
the completion
of the setting.
Setting up the Base Set
3
� Press 8 digits in the order of
day, month, hour, and minute.
Setting up with the Remote Set
Displaying
In the case of a power failure or if you have deliberately disconnected the power,
the date and time will be erased. Therefore you will have to set it up once again.
Basic features

12 43
18
UsingtheIntercomFunction
17
� When you hear it ringing,
pick up the handset.
12 3
Base SetRemote set
 Separating from external calls, you can use intercom function between the base set
and the remote set. In this particular case the calls are not charged.
 When an external call comes during an intercom talk,
To answer by the base set
 Press button on the remote set to hang up the call
To answer by the remote set
 simply place the handset of the base set on its cradle to
transfer the call.
Note
or
Remote setBase Set
Calling from to
Calling from to
 In order to cancel the intercom during any call, simply press button, or lift up the handset and place it back on
the hook.
 In order to cancel the intercom during any call, simply press or button, or place the remote set on
the charger.
When you are
connected
through to the
person, talk on
the phone.
When the
internal call is
connected,
pick up the
handset to talk.
Displaying of the
Internal call
TransferringCalls
 While talking you can transfer the call either to the base set or to the remote set.
How to transfer from to
1
4
When you hear it ringing Pick up the remote set and
press button to
talk on the phone.

Base Set
While talking
2
Base Set
3
Place the handset on the
hook to hang up the call.
 To cancel the transferring, simply pick up the handset.
Basic features
When you hear it ringing
