Meeting Console
11
Parts

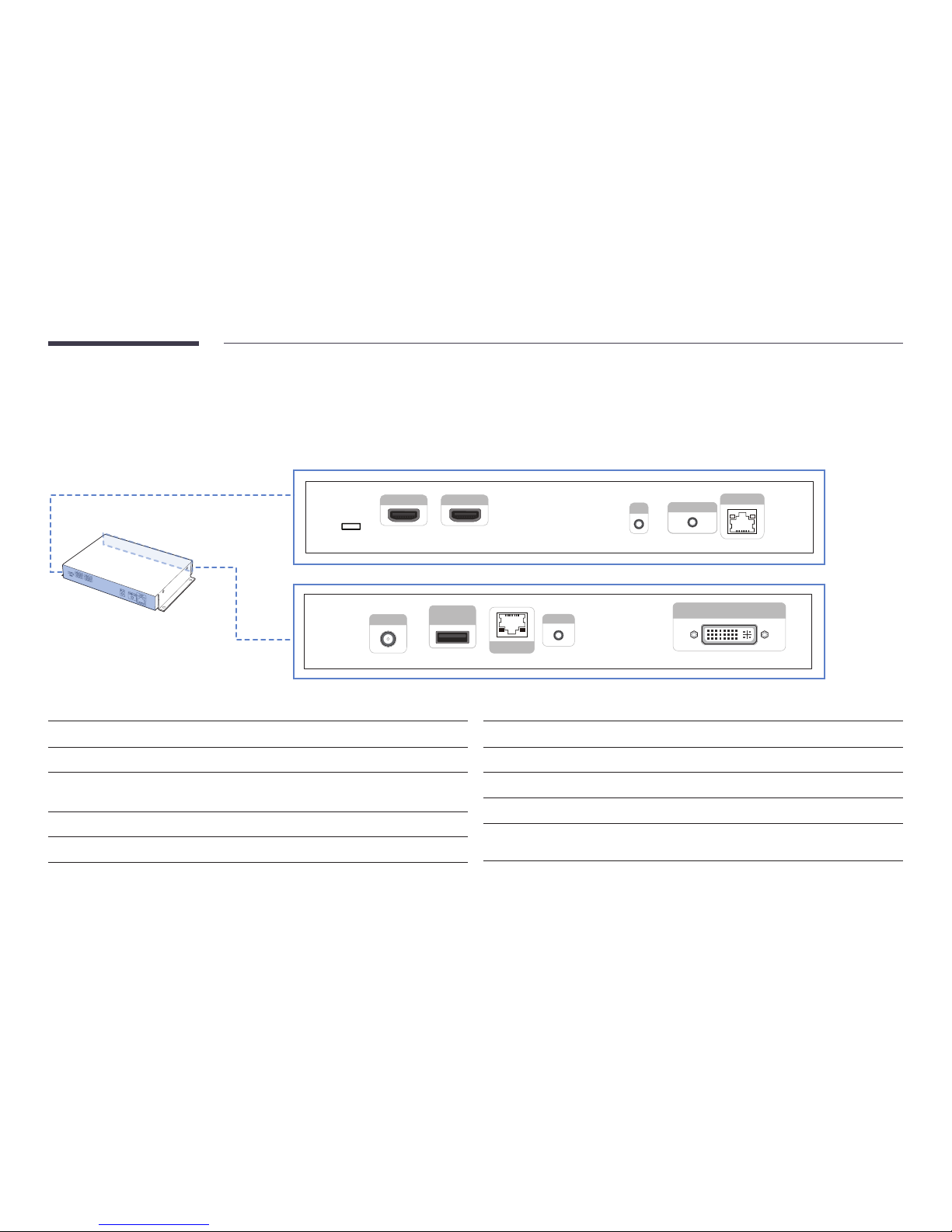

Reverse Side
POWER
STATUS
HDMI IN 2 HDMI IN 1
IR IN
RS232C IN RJ45
DC 14V SERVICE
(5V 0.5A)
HDBT OUT
RESET DVI OUT
Port Description
POWER STATUS
Meeting Box.
HDMI IN 1, HDMI IN 2
IR IN
- To install, connect to the external IR sensor.
- To operate, connect to the Meeting Console.
RS232C IN
RJ45
Port Description
DC 14V
SERVICE (5V 0.5A)
Dedicated to service technicians.
HDBT OUT
RESET
DVI OUT
Meeting Box to the display
device.
12
Buttons Description
Turn on the display.
Deactivating mute
+VOL-
Turn off the display.
Control the volume of the display.
Change the external input of the Meeting Box.
Meeting Console
Control Meeting Box and the connected display.
Remote Control

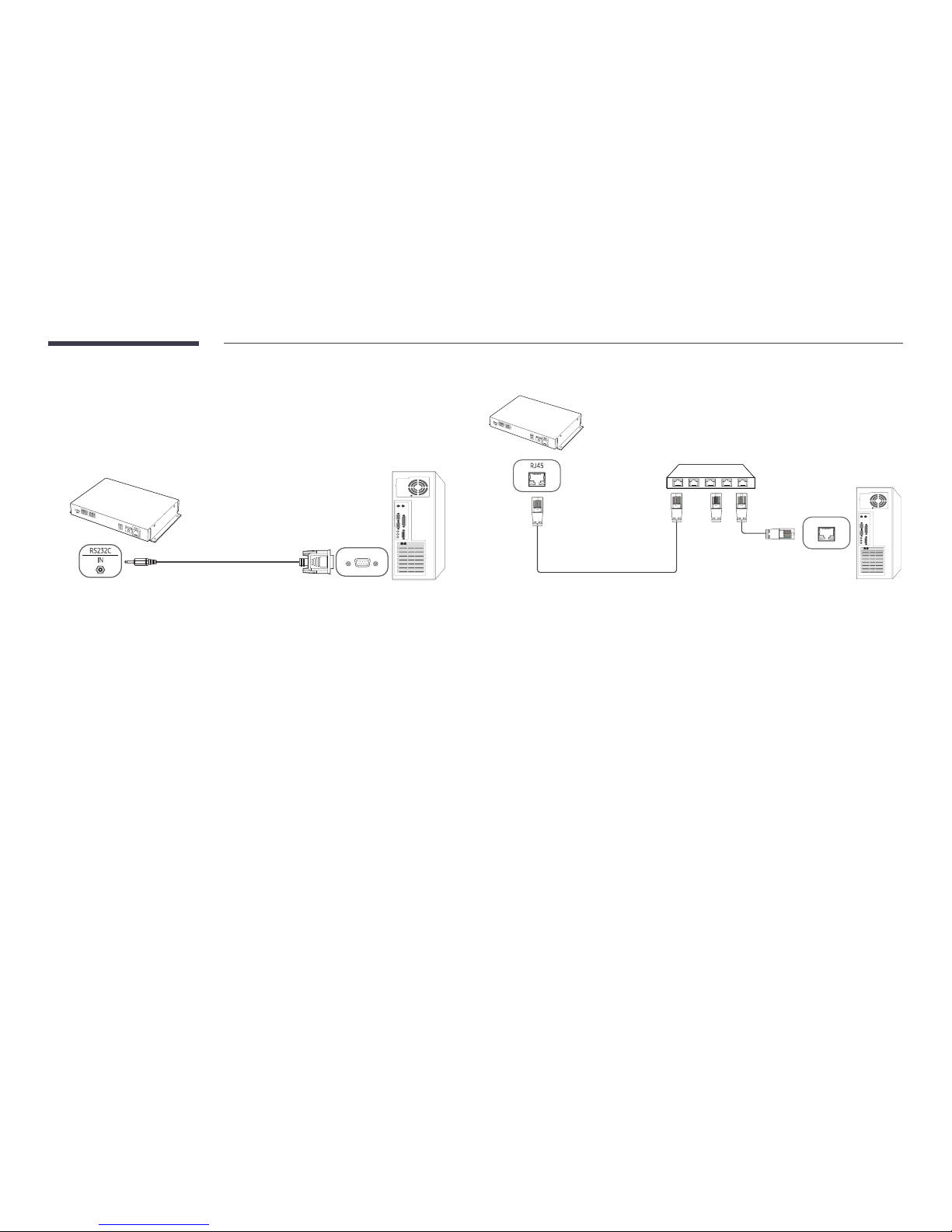

Cable Connection
RS232C Cable
Interface
Pin
Bit rate
Data bits
Parity
None
Stop bit
Flow control
None
Maximum length

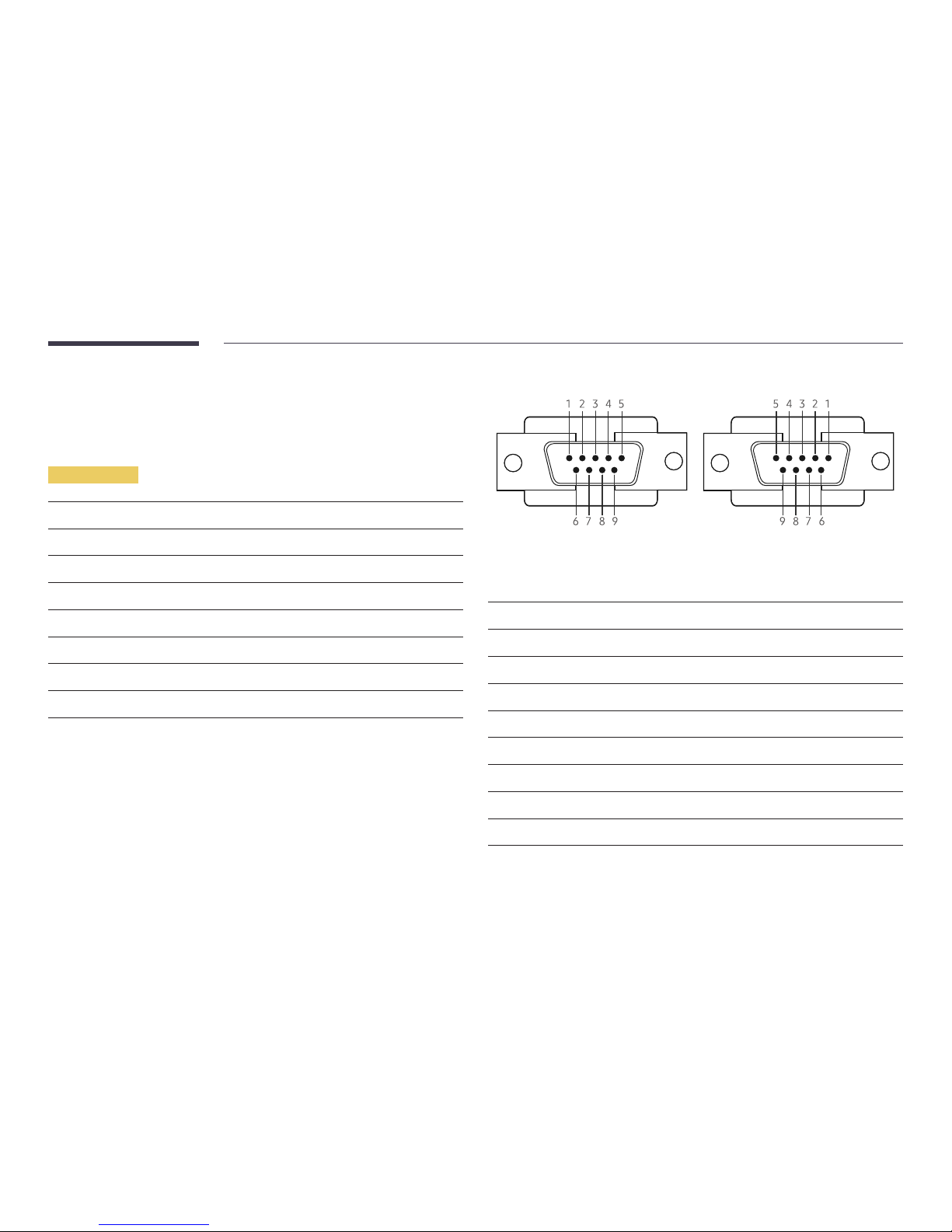

Pin assignment
<Male type> <Female type>
Pin Signal
1
Detect data carrier
2
Received data
3
Transmitted data
4
Prepare data terminal
5
Signal ground
6
Prepare data set
7
8
Clear to send
9
Ring indicator
14
-P1- -P1- -P2- -P2-
Male type Rx
Tx
Gnd
3
2
5
----------
----------
----------
1
2
3
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
LAN Cable
Pin assignment
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
White and green RX+
4 Blue NC
NC
6 Green RX-
7 NC
8 NC
Direct LAN cable (PC to HUB)
Signal P1 P2 Signal
TX+ 1 <--------> 1 TX+
TX- 2 <--------> 2 TX-
RX+ <--------> RX+
RX- 6 <--------> 6 RX-
Cross LAN cable (PC to PC)
Signal P1 P2 Signal
TX+ 1 <--------> RX+
TX- 2 <--------> 6 RX-
RX+ <--------> 1 TX+
RX- 6 <--------> 2 TX-
16
Connection
Connection 1
Connection 2
17
Control Codes
Viewing control state (Get control command)
Header Command ID Data length Checksum
0xAA Command
type
0
Controlling (Set control command)
Header Command ID Data length Data Checksum
0xAA Command
type
1 Value
Command
No. Command type Command Value range
1
0x11 0~1
2
Volume control 0x12 0~100
3
Input source control 0x14 -
4
Screen mode control 0x18 -
5
0x19
6
0~1
7
BNC only)
0
No. Command type Command Value range
8
0~1
9
Safety Lock 0~1
10
Video Wall On 0x84 0~1
11
Video Wall User Control 0x89 -
Header Command ID Data length Data 1 Checksum
0xAA 0x11 1
Header Command ID Data length Data 1 12
0xAA 0x11 1 1
18
Power control
Function
Header Command ID Data length Checksum
0xAA 0x11 0
Header Command ID Data length Data Checksum
0xAA 0x11 1
Ack
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x11
Nak
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x11 "ERR"
Volume control
Function
Header Command ID Data length Checksum
0xAA 0x12 0
Header Command ID Data length Data Checksum
0xAA 0x12 1 "Volume"
Ack
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x12 "Volume"
Nak
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x12 "ERR"
19
Input source control
Function
Header Command ID Data length Checksum
0xAA 0x14 0
Header Command ID Data length Data Checksum
0xAA 0x14 1 "Input Source"
0x14 PC
0x18 DVI
0x0C Input source
0x08 Component
0x20 MagicInfo
0x1F DVI_video
0x40 DTV
0x21
0x22
HDMI2
0x24 HDMI2_PC
HDBT
They only respond to "Get" commands.
MagicInfoMagicInfo function.
Ack
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x14 "Input
Source"
Nak
Header Command ID Data length r-CMD Val1 Checksum
0xAA 0xFF 0x14 "ERR"
20
PIP On/Off control
Function
Video Wall is set to On.
MagicInfo.
Header Command ID Data length Checksum
0xAA 0
Header Command ID Data length Data Checksum
0xAA 1 "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
Ack
Header Command ID Data
length
r-CMD Val1 Checksum
0xAA 0xFF "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
Nak
Header Command ID Data
length
r-CMD Val1 Checksum
0xAA 0xFF "PIP"
Safety Lock
Function
Safety Lock function on or off on a product.
Header Command ID Data length Checksum
0xAA 0
Header Command ID Data length Data Checksum
0xAA 1 "Safety
Lock"
Ack
Header Command ID Data
length
r-CMD Val1 Checksum
0xAA 0xFF "Safety Lock"
Nak
Header Command ID Data
length
r-CMD Val1 Checksum
0xAA 0xFF "ERR"
