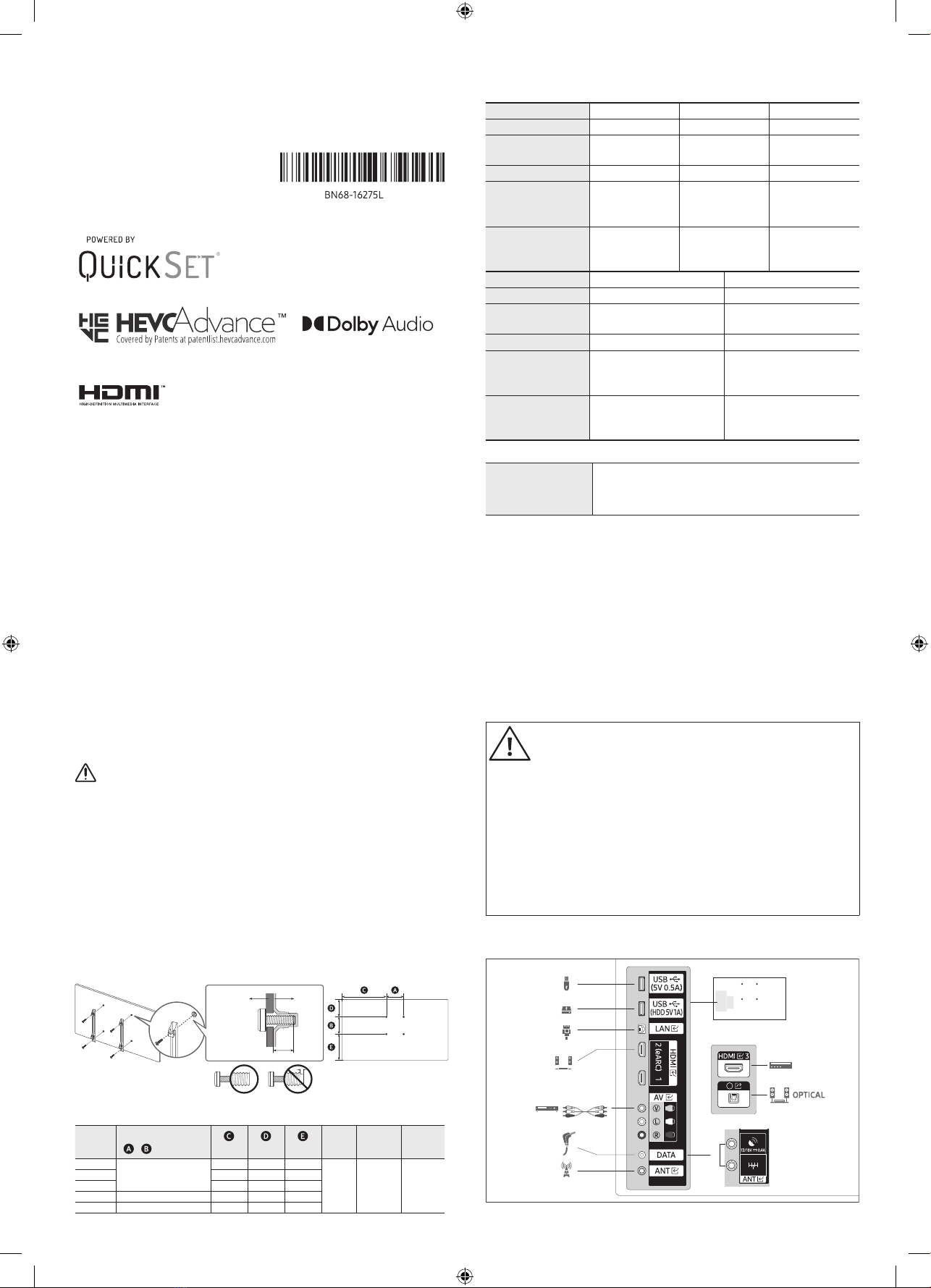

Samsung HG43BU800A User manual

Quick Setup Guide
To registerthis product please visit www.samsung.com
The terms HDMI, HDMI High-Definition Multimedia
Interface, HDMI trade dress and the HDMI Logos are
trademarks orregistered trademarks of HDMI Licensing
Administrator, Inc.
Open Source License Notice
Open Source used in this product can be found on the following webpage.
(https://opensource.samsung.com)
1. List of Parts
The provided accessories mayvary depending on the model.
Formore information about Samsung Smart Remote, refer to "Install Guide".
•Samsung Smart Remote
•Power Cable
• Warranty Card / Quick Setup Guide / Regulatory Guide (Not available in some locations)
•Data Cable (Not available in some locations)
2. Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall, perpendicularto the floor. When attaching to
other building materials, please contact yournearest dealer. If installing on a ceiling or
slanted wall, TV may fall and result in severe personal injury.
•Standard dimensions for wall mount kits are shown in the table below.
•Samsung wall mount kits contain a detailed installation manual. All parts necessary
for assembly are provided.
Do not install yourwall mount kit while your TV is turned on. This may result in
personal injury from electric shock.
•Do not use screws that are longer than the standard dimension ordo not comply
with the VESA standard screw specifications. Screws that are too long may cause
damage to the inside of the TV set.
•Forwall mounts that do not complywith the VESA standard screw specifications,
the length of the screws may differ depending on the wall mount specifications.
•Do not fasten the screws too firmly. This may damage the product orcause the
product to fall, leading to personal injury. Samsung is not liable for these kinds of
accidents.
•Samsung is not liable forproduct damage or personal injury when a non-VESA or
non-specified wall mount is used orwhen the consumerfails to follow the product
installation instructions.
•Do not mount the TV at more than a 15 degree tilt.
•Always have two people mount the TV onto a wall.
Wall mount
bracket
TV
C
•The Product shape may differ depending on the model.
TV size in
inches
VESA screw hole specs
(* ) in millimetres
(mm) (mm) (mm)
C (mm)Standard
Screw Quantity
43
200 x 200
382.8 192.2 167.7
11-13 M8 4
50 459.2 2 0 7.4 237.2
55 516.1 239.3 269.5
65 400 x 300 525.5 264.0 267.9
75 400 x 400 638.4 259.6 300.7
3. Specifications
Model Name HG43BU800A HG50BU800A HG55BU800A
Display Resolution 3840 x 2160 3840 x 2160 3840 x 2160
Screen Size
Measured Diagonally 108 cm 125 cm 138 cm
Sound (Output) 20 W20 W20 W
Dimensions (W x H x D)
Body
With stand
96.55 x 55.99 x 2.57 cm
96.55 x 59.90 x 20.56 cm
111.83 x 64.46 x 2.57 cm
111.83 x 68.36 x 22.88 cm
123.21 x 70.88 x 2.57 cm
123.21 x 74.78 x 22.88 cm
Weight
Without Stand
With Stand
8.4 kg
8.7 kg
11.5 kg
11.8 kg
15.5 kg
15.8 kg
Model Name HG65BU800A HG75BU800A
Display Resolution 3840 x 2160 3840 x 2160
Screen Size
Measured Diagonally 163 cm 189 cm
Sound (Output) 20 W20 W
Dimensions (W x H x D)
Body
With stand
145.09 x 83.19 x 2.57 cm
145.09 x 86.96 x 28.18 cm
167.67 x 96.03 x 2.66 cm
167.67 x 100.55 x 34.04 cm
Weight
Without Stand
With Stand
20.9 kg
21.3 kg
31.4 kg
32.0 kg
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
50 °F to 104 °F (10 °C to 40 °C)
10 % to 80 %, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5 % to 95 %, non-condensing
•This device is a Class B digital apparatus.
•The design and specifications are subject to change without prior notice.
•Forinformation about the power supply, and more information about power
consumption, refer to the label-rating attached to the product.
•To connect a LAN cable, use a CAT 7 (*STP type) cable forthe connection. (100/10 Mbps)
* Shielded Twisted Pair
•You can see the label-rating attached to the back of the TV. (For some models, you
can see the label-rating inside the cover terminal.)
•Your TV and its accessories may look different than the product images presented in
this manual, depending on the model.
•All drawings are not necessarily to scale. Some dimensions are subject to change
without prior notice. Referto the dimensions before installing your TV. Not
responsible fortypographical or printed errors.
THIS PRODUCT SHOULD BE MOUNTED OR ANCHORED TO A WALL
OR OTHER SUITABLE SURFACE TO AVOID SERIOUS INJURY.
To help avoid anyserious orfatal injury, we strongly recommend that this product be permanently
mounted oranchored to the wall or other suitable surface. Anchoring devices are not included
since different surface materials require different attachments. Please seek professional advice if
you are in doubt about mounting this product orwhat anchoring device to use.
Serious injury or death can be caused by toppling furniture and TVs.
Help prevent tip-over:
•Mount or anchor this product to a wall or othersuitable surface.
•Check anchors regularly.
• Avoid placing this TV on top of furniture unless both the furniture and the TV are anchored.
•Use drawer locks to prevent children climbing.
4. The Connection Panel
O
or
HDMI
HDD
ARC
USB
LAN
ANT IN
DATA
AV
BACK OF TELEVISION
•The colourand shape of the product maydifferdepending on the model orgeographical area.
ENG
-00

5. Installing the LED TV Stand
Assembling the Stand and Components
When installing the stand, use the provided components and parts.
x 2
Stand Holder-Cable
25 mm
•Place a soft cloth over the table to protect the TV, and then place the TV
so that its screen faces down toward the table surface.
143-65"
75″ L R
•Insert the Stands into the slot on the
bottom of the TV.
•Slide and assemble it to the end line in
the direction of arrow.
243″
50-75″
3
NOTE
•Make sure to distinguish between the front and back of each component when
assembling them.
•Make sure that at least two persons lift and move the TV.
