Samsung SC06H70 0H Series User manual

English
Vacuum Cleaner
user manual
Thank you for purchasing a Samsung product.
✻Please read the User Manual thoroughly before operating the vacuum.
✻For indoor use only.
SC06H70*0H Series
DJ68-00721H-01.indb 1 14. 10. 20. �� 4:48

Contents
YOUR VACUUM CLEANER
07
BEFORE USING THE VACUUM
CLEANER
08
08 Assembly
09 Installing the Dust Sensor (Option)
09 Using accessory
OPERATING CLEANER
11
11 Power cord
11 Check filter
11 ON/OFF
12 Power control
13 Dust Sensor (Option)
MAINTENANCE
14
14 Cleaning the dust bin and grille
17 Cleaning the outlet filter
18 Maintain floor tools
TROUBLESHOOTING
19
DJ68-00721H-01.indb 2 14. 10. 20. �� 4:48

Safety information _03
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a risk of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
This vacuum cleaner is designed for household use only.
Do not use this vacuum cleaner to clean building waste or debris.
Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.
Do not use this vacuum cleaner with any of the filters removed.
Failure to meet these requirements could cause injury, damage the vacuum
cleaner and void your warranty.
Notes on the energy label
• Declared energy efficiency and cleaning performance class on carpet
or in places where the carpet is used can be met with the enclosed
"Eco Carpet " brush.
• When the hard floor has joints and gaps, please use the enclosed "Eco
Hard Floor " brush which is designed to meet the energy efficiency and
cleaning performance class on hard floor with joints and gaps.
• The values provided on the energy label have been determinded
according to the prescribed measuring process (in accordance with
EN60312 - 1).
Eco Hard Floor
Eco Carpet
DJ68-00721H-01.indb 3 14. 10. 20. �� 4:48

04_ Safety information
IMPORTANT SAFEGUARDS
GENERAL
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or floor is
wet. Do not use to suck up water.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts. Keep the vacuum cleaner away from stoves and
other heat sources. Heat can deform and discolour the plastic
parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before emptying the dust bin.
To avoid damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
DJ68-00721H-01.indb 4 14. 10. 20. �� 4:48

Safety information _05
Children shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
UV BRUSH
• Since the UV rays from the UV Brush damage skin and eyes,
never allow the rays to make contact with skin or eyes and
do not let children or the elderly use the UV Brush. If used
incorrectly it may cause damage to a persons eyesight.
• If the transparent window is broken and the UV rays are exposed
directly, turn the power off and contact the service center.
• Do not use the UV Brush for purposes other than the sterilization
of mattresses, bedclothes, beds, cushions and so on made from
material. The company will not be held liable for any loss due to
accidents from using the UV Brush for purposes other than its
original purpose as listed above.
• Do not sit on the UV Brush or drop it, and avoid imparting
impacts on the product. Failing to do so may result in injury or
product damage.
• Do not touch the power terminals on the back of the UV Brush
with a metal pin or rod. This may result in electric shock or fire.
DJ68-00721H-01.indb 5 14. 10. 20. �� 4:48

06_ Safety information
• When the UV lamp is out of order, never disassemble or modify
the product yourself.
Please contact the manufacturer or service center for a
replacement.
• Since an internal discharge occurs within the UV Brush, never
use the product near an inflammable spray or substance.
• Take care not to touch the UV lamp window after using the
UV Brush for an extended period of time as the surface of the
window may be hot.
• The UV Brush may start slowly at a low temperature due to the
inherent characteristics of UV lamps.
Please keep the UV Brush indoors.
DJ68-00721H-01.indb 6 14. 10. 20. �� 4:48

Your vacuum cleaner _07
01 YOUR VACUUM CLEANER

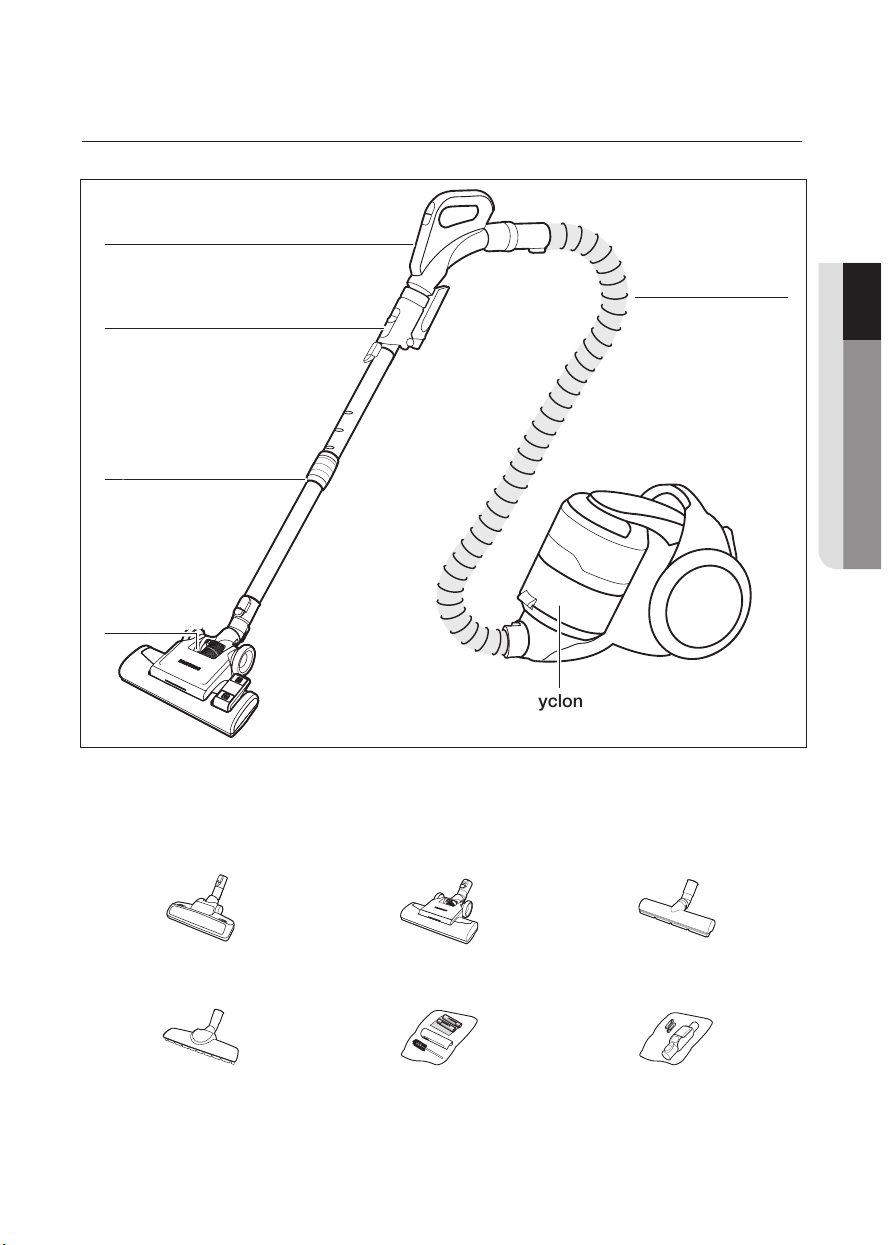

Your vacuum cleaner
Handle
Hose
Cyclone
Combination accessory
Pipe
2-Step brush
OPTION (Depending on model) *
Power turbo plus * ECO carpet * ECO Hard floor *
Parquet master * Cover battery * Dust sensor *
DJ68-00721H-01.indb 7 14. 10. 20. �� 4:48

08_ Before using the vacuum cleaner

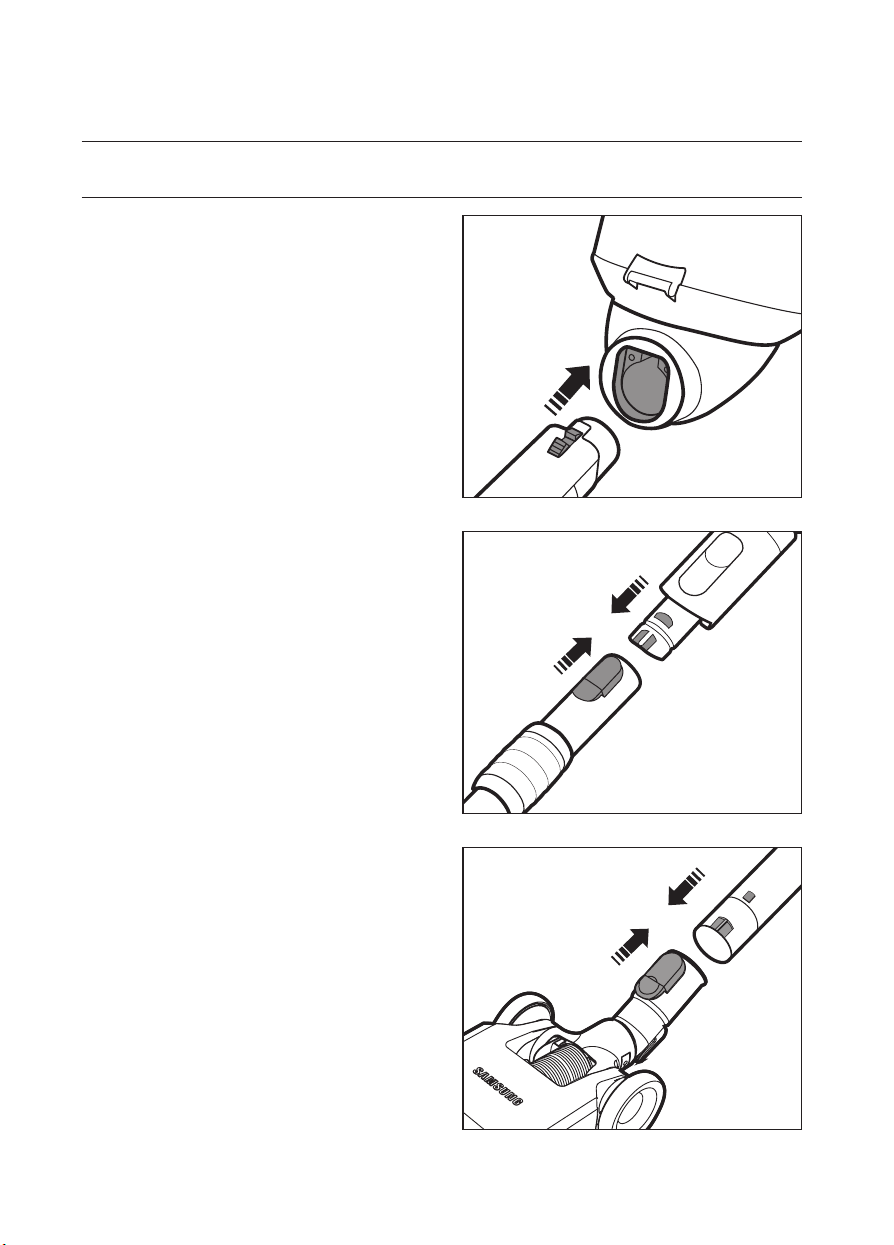

ASSEMBLY
Connecting the Hose
Connecting the handle and pipe
Connecting the brush
Before using the vacuum cleaner
DJ68-00721H-01.indb 8 14. 10. 20. �� 4:48

Before using the vacuum cleaner _09
02
BEFORE USING THE VACUUM CLEANER
INSTALLING THE DUST SENSOR (OPTION)
Assemble the dust sensor
between the brush and the pipe
between the pipe and the hose
USING ACCESSORY
Combination accessory (Option)
Dusting brush Crevice tool
1
2
DJ68-00721H-01.indb 9 14. 10. 20. �� 4:48

10_ Before using the vacuum cleaner
Pipe
Adjust the length of the pipe by sliding the
length control button located in the center of
the telescopic pipe.
For storage, park the floor nozzle
Do not pick up a machine while the
floor nozzle parked.
CAUTION
DJ68-00721H-01.indb 10 14. 10. 20. �� 4:48

Operating cleaner _11
03
OPERATING CLEANER

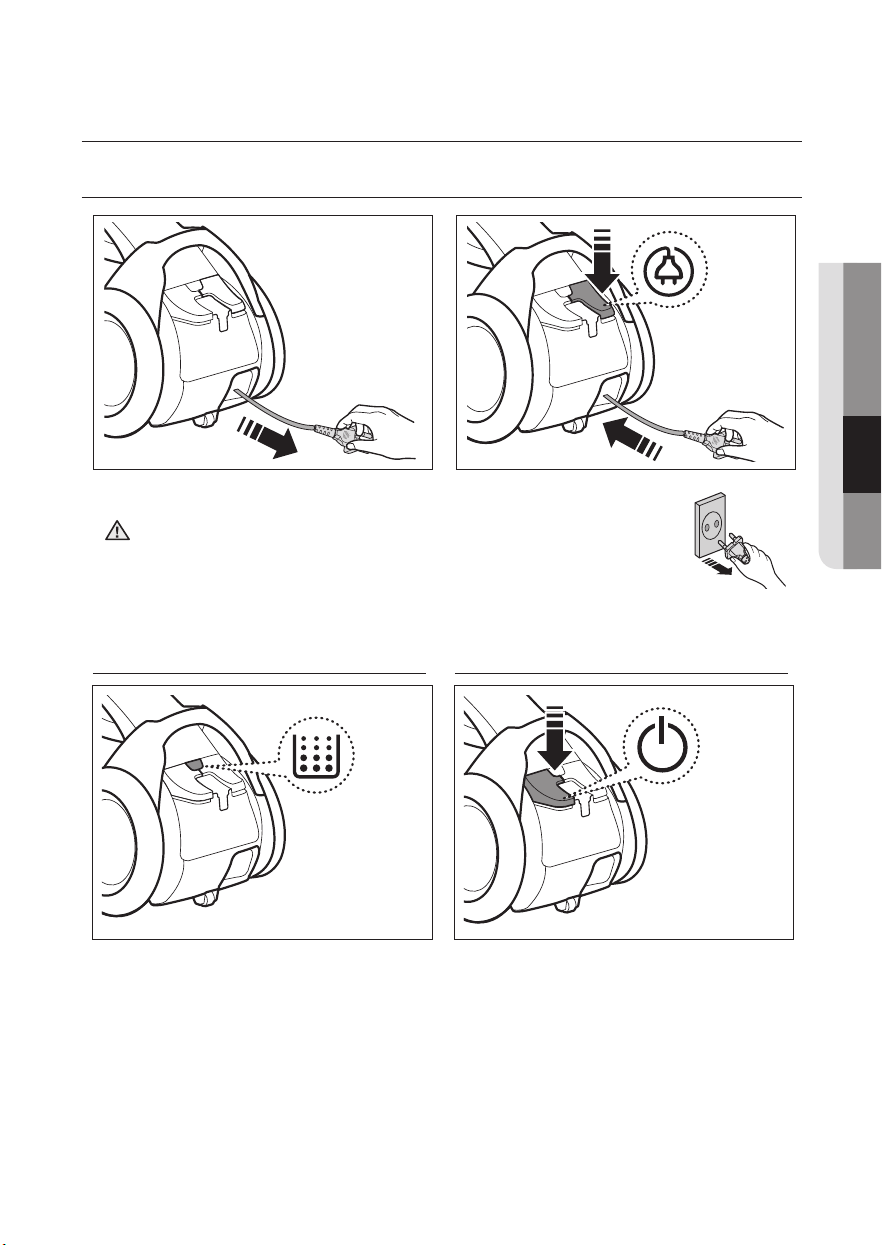

POWER CORD
CAUTION
When removing the plug from the electrical outlet, grasp the plug,
not the cord.
CHECK FILTER ON/OFF
The filter light is illuminated when the dust
pack requires checking or emptying.
Operating cleaner
DJ68-00721H-01.indb 11 14. 10. 20. �� 4:48

12_ Operating cleaner

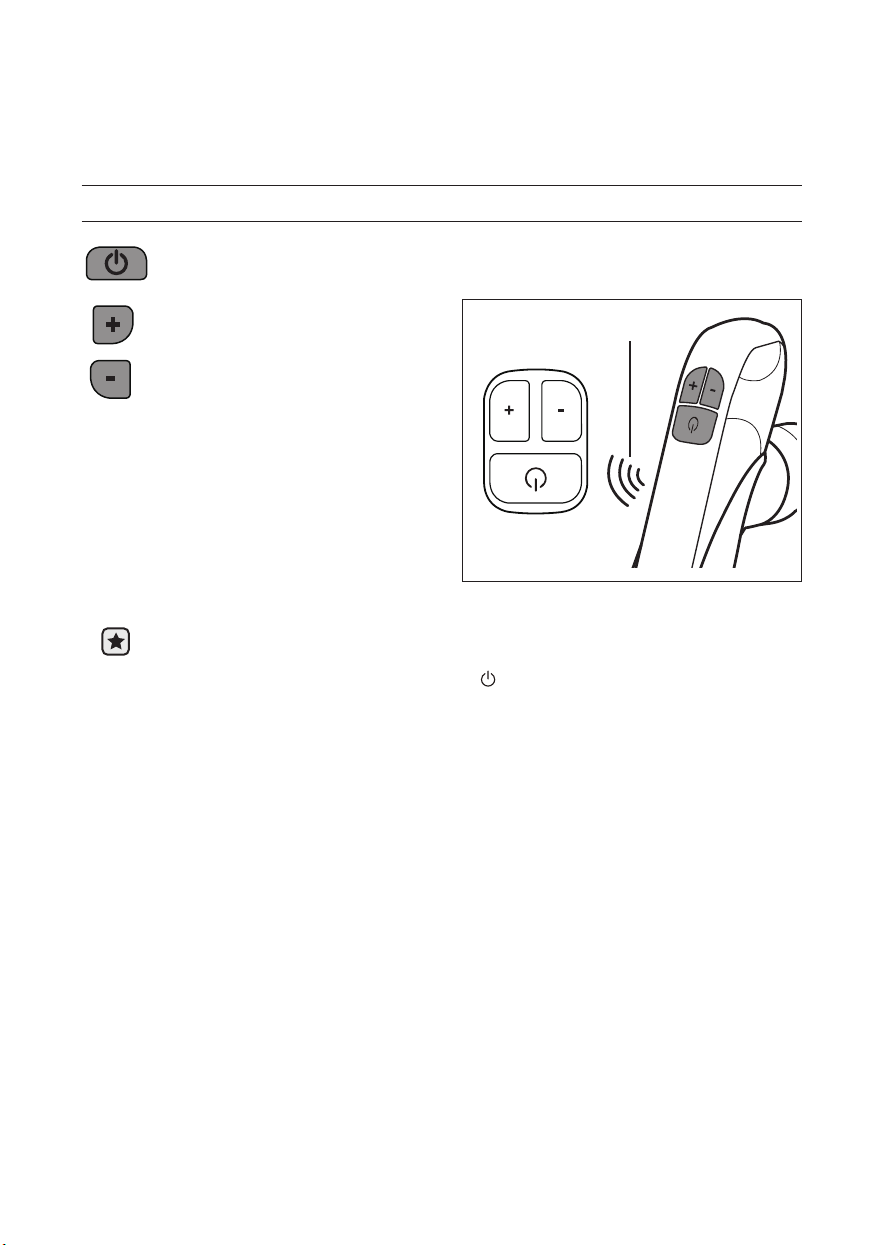

POWER CONTROL
Hose (controlled by radio frequency signals)
ON/OFF
Select a higher power
Select a lower power
Transmitter
• Don’t cover the handle transmitter when you use a handle control.
• If no button is pressed for 30 minutes while cleaning, the power will shut off as
a precaution. If this happens, press the button on the main unit or replug the
power cord in again.
DJ68-00721H-01.indb 12 14. 10. 20. �� 4:48

Operating cleaner _13
03
OPERATING CLEANER
DUST SENSOR (OPTION)
Dust Sensor Operations
• Indicates the amount of dust being picked
up and passing by the sensor which assist
the user to clean more efficiently.
• The dust sensor is activated au tomatically
when the cleaner runs and is turned off
when the cleaner is stopped.
Green : Amount of dust passing
sensor is small.
Red : Amount of dust passing
sensor is large.
If the red light does not light
up when cleaning a dusty
location
- Clean the sensors (2EA) with a
dry cloth.
- Take care when you use the
cleaner because the dust
sensor may malfunction or may
break due to an impact.
Installing the Batteries
If the dest sensor does not work, change the
batteries.
BATTERY TYPE : AAA Size
DJ68-00721H-01.indb 13 14. 10. 20. �� 4:48

14_ Maintenance
CLEANING THE DUST BIN AND GRILLE
Empty the dust bin, if dust reaches 'MAX'
or Check filter ( ) light is illuminating. 1
Take the dust bin out by lifting the handle. 2
Push the button aside. 3
Turn the grille and take out it. 4
Maintenance
DJ68-00721H-01.indb 14 14. 10. 20. �� 4:48

Maintenance _15
04 MAINTENANCE
Push the button.
Separate the dust bin from body. 5
Clean the dust bin and body with water. 6
Leave the dust bin and body in the shade
until completely dry. 7
Install the grille and turn to clockwise.
12
CAUTION
DJ68-00721H-01.indb 15 14. 10. 20. �� 4:48

16_ Maintenance

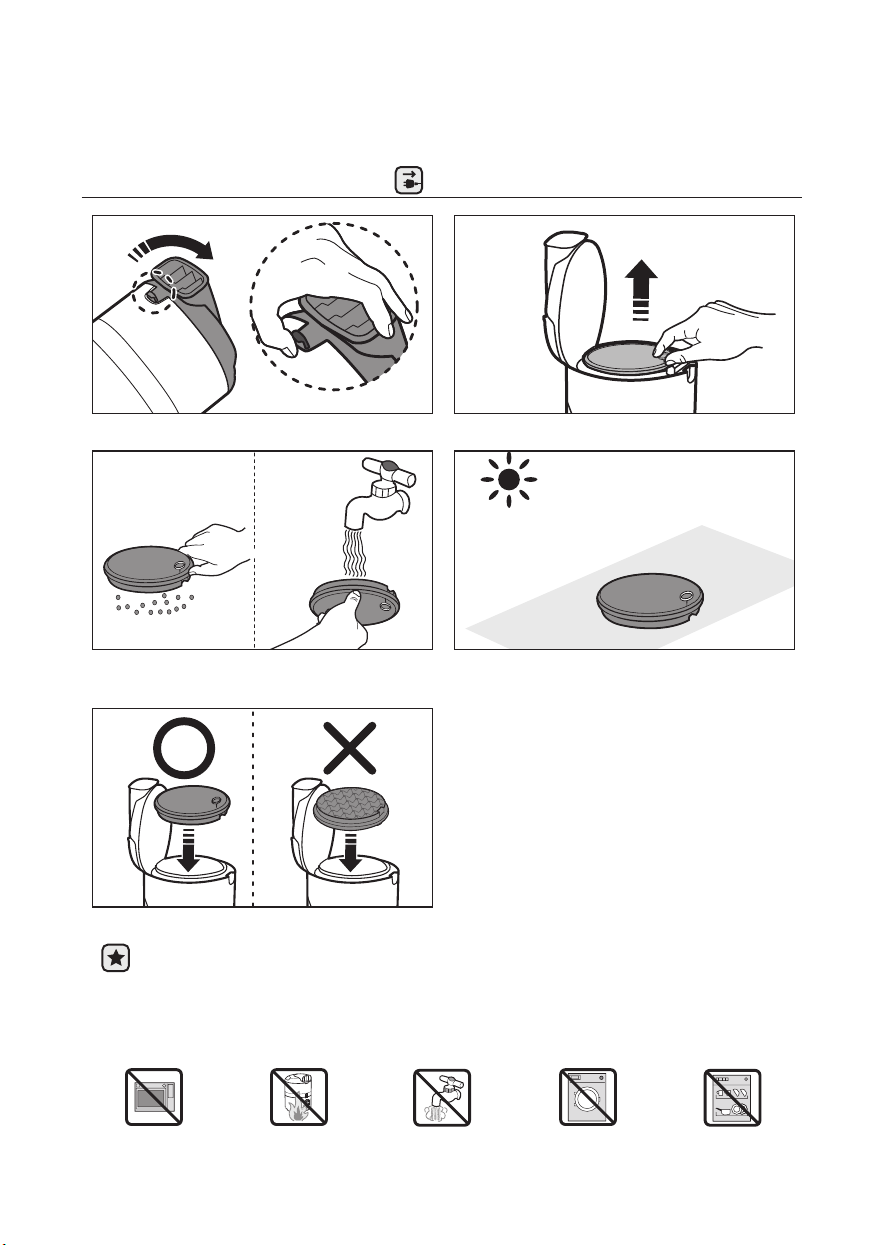

CLEANING THE DUST FILTER
1 2
Pull the dust bin cover to open. Remove the filter from the dust bin.
3 4
Shake the filter to remove dust, then wash
the filter.
Let the filter dry for more than 12 hours.
5
Put the filter into the dust bin.
Make sure the filter is completely dry before putting it back into the vacuum cleaner.
Allow 12 hours for it to dry.
Do not use wet filter.
Replace the dust filter if it becomes damaged or deformed.
The dust bin cover will not close if the filter is not installed correctly.
DJ68-00721H-01.indb 16 14. 10. 20. �� 4:48

Maintenance _17
04 MAINTENANCE

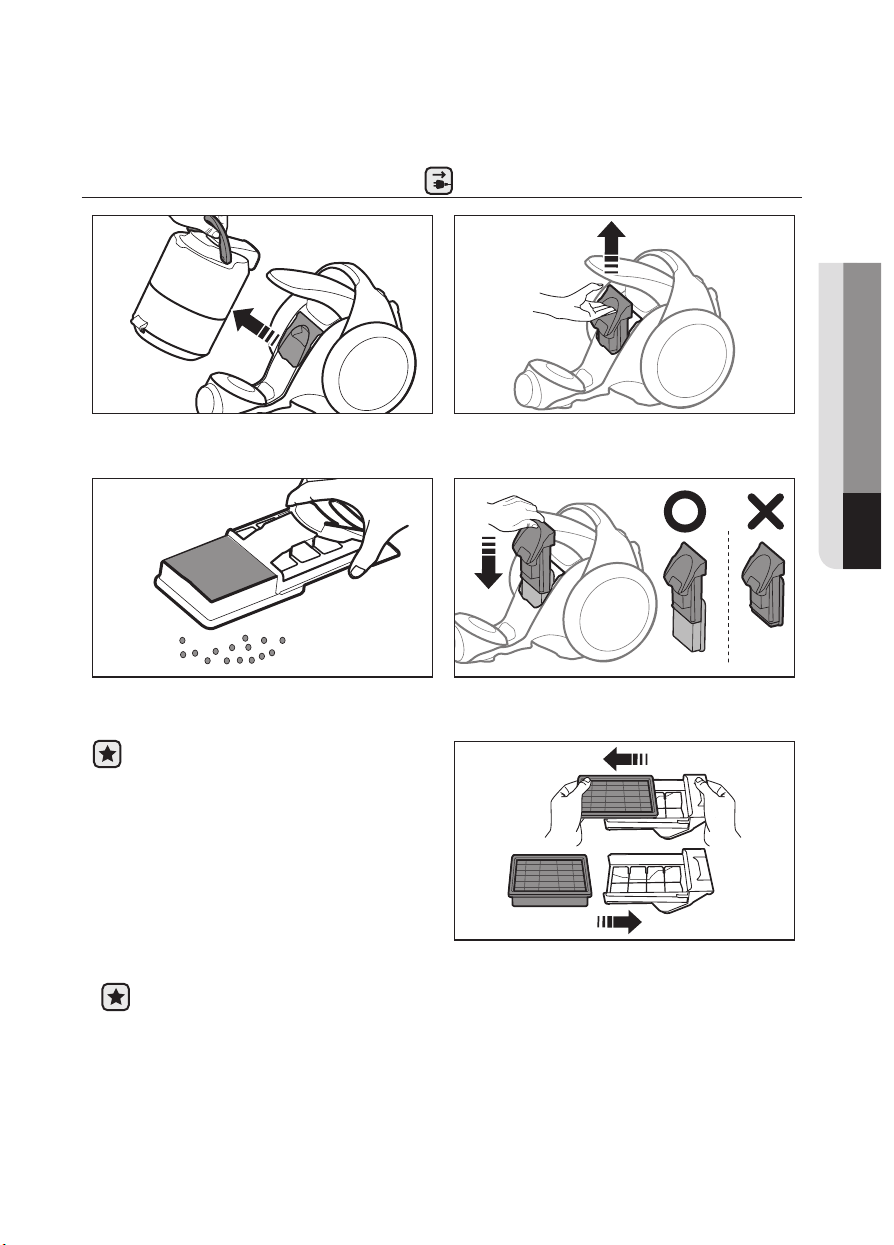

CLEANING THE OUTLET FILTER
1 2
Take the dust bin out by lifting the handle. Pull out the Filter.
3 4
Shake the Filter to clean. Install the filter and holder in main body.
• The filter can be replaced and
separated from holder by pulling.
• Clean the outlet filter when suction is noticeably reduced continuously or the
vacuum cleaner abnormal overheads.
Note: Filters are not washable.
Replace filter if cleaning does not resolve the problem.
• Recommend that Filter should be changed once in 6 month.
DJ68-00721H-01.indb 17 14. 10. 20. �� 4:48

18_ Maintenance
MAINTAIN FLOOR TOOLS
2-Step Brush
• Adjust the inlet lever according to the floor
surface.
Floor
Carpet
• Remove waste matter completely if the
inlet is blocked.
Power Turbo Plus Brush (Optional Accessory)
1 2
341
2
Frequent vacuuming of hair or pet fur may reduce cleaning effectiveness over time due to
matters tangled around the drum. In this case, clean the drum with care.
DJ68-00721H-01.indb 18 14. 10. 20. �� 4:49

Troubleshooting _19
Troubleshooting
PROBLEM SOLUTION
Motor does not start. • Check cable, pulg and socket.
• Leave to cool.
Suction force is
gradually decreasing.
• Check for blockage and remove.
• Please unclog the intake.
In operation, the
vacuum cleaner stops
after repeating runs
and stops three times.
Cord does not rewind
fully. • Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner dows
not pick up dirt. • Check hose and replace if required.
Low or decreasing
suction.
• Please check filter and, if required, clean as illustrated in the
instructions. if filters are out of condition change them to new
ones.
Body overheating. • Please check filters, if required clean as illustrated in the
instruction.
Static electicity
discharge.
• Please decrease power suction.
• This can also occur when air in the room is very dry.
Please ventilate the room till air humidity becomes normal.
The vacuum cleaner
makes a strange
noise.
• In order to protect the motor in the cleanr, it rotates slowly when
you just turn on the cleaner.
(Before the motor stabilizes,) this causes the loud noise at the
initial state and it is not failure in the machine.
This vacuum cleaner is approved by the following:
Electromagnetic Compatibility Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
DJ68-00721H-01.indb 19 14. 10. 20. �� 4:49

Product fiche
[English]
According to Commission Regulation (EU) No 665/2013 and No 666/2013
ASupplier Samsung Electronics., Co. Ltd
BModel SC06H70E0H SC06H70F0H
CEnergy Efficiency Class A
DAnnual Energy Consumption
(kWh/yr) 28
ECarpet Cleaning Performance Class D
FHardfloor Cleaning Performance
Class A
GDust Re-Emission Class A
HSound Power Level (dBA) 79
IRated Input Power (W) 600
JType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.
Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on methods in
EN60312-1 and EN60704.
DJ68-00721H-01.indb 20 14. 10. 20. �� 4:49
