Samsung SC45 Series User manual

Vacuum Cleaner
user manual
English
SC45** Series
✻ Before operating this unit, please read the instructions carefully.
✻ For indoor use only.
Thank you for purchasing a Samsung product.
DJ68-00586J-02.indb 1 2017. 7. 13. �� 11:20

2_ safety information
safety information _3
safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly
and retain it for your reference.
WARNING
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from
those described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
DJ68-00586J-02.indb 2 2017. 7. 13. �� 11:20

2_ safety information
safety information _3
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully. Before switching
on, make sure that the voltage of your electricity
supply is the same as that indicated on the
rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner
when rug or floor is wet.
Do not use to suck up water.
3. Close supervision is necessary when any
appliance is used by or near children. Do
not allow the vacuum cleaner to be used as
a toy. Do not allow the vacuum cleaner to
run unattended at any time. Use the vacuum
cleaner only for its intended use as described
in these instructions.
4. Do not use the vacuum cleaner without a
dust bin.
Empty the dust bin before it is full in order to
maintain the best efficiency.
5. Slide to the Stop(or Min)position before
inserting a plug into the electrical outlet.
6. Do not use the vacuum cleaner to pick up
matches, live ashes or cigarette butts.
Keep the vacuum cleaner away from stoves
DJ68-00586J-02.indb 3 2017. 7. 13. �� 11:20

4_ safety information
safety information _5
and other heat sources. Heat can deform
and discolour the plastic parts of the unit.
7. Avoid picking up hard, sharp objects with
the vacuum cleaner as they may damage
the cleaner parts. Do not stand on the hose
assembly. Do not put weight on the hose.
Do not block the suction or the exhaust port.
8. Switch the vacuum cleaner off on the body
of the machine before unplugging from the
electrical outlet. Disconnect the plug from the
electrical outlet before changing the dust bag
or dust container. To avoid damage, please
remove the plug by grasping the plug itself,
not by pulling on the cord.
9. This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
10. Children should be supervised to ensure
that they do not play with the appliance.
DJ68-00586J-02.indb 4 2017. 7. 13. �� 11:20

4_ safety information
safety information _5
11. The plug must be removed from the socket
outlet before cleaning or maintaining the
appliance.
12. The use of an extension cord is not
recommended.
13. If your vacuum cleaner is not operating
correctly, switch off the power supply and
consult an authorized service agent.
14. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order
to avoid a hazard.
15. Don’t carry the vacuum cleaner by holding
the hose.
Use the handle on the vacuum cleaner set.
16. Unplug the cleaner when not in use. Turn
off the power switch before unplugging.
17. Do not use to suck up water.
18. Do not immerse in water for cleaning.
19. The hose should be checked regularly and
must not be used if damaged.
20. The vacuum cleaner handle contains
electrical connections the handle is not a
serviceable part.
21. The current carrying hose handle contains
DJ68-00586J-02.indb 5 2017. 7. 13. �� 11:20

contents _7
6_ safety information
electrical connections is not a serviceable
part by user.
22. Please contact the manufacturer or service
center for a replacement.
23. For information on Samsung’s
environmental commitments and product
specific regulatory obligations e.g. REACH
visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/
data_corner.html
DJ68-00586J-02.indb 6 2017. 7. 13. �� 11:20

contents _7
contents
6_ safety information
ASSEMBLING THE CLEANER
08
08 Assembling the Cleaner
OPERATING THE CLEANER
09
09 On/Off Switch
09 Power cord
10 Power control
MAINTAIN TOOLS AND FILTER
11
11 Using accessory
12 Maintain floor tools
13 Emptying the dust bin
14 When to clean the dust pack
15 Cleaning the dust pack
16 Cleaning the outlet filter
TROUBLESHOOTING
17
DJ68-00586J-02.indb 7 2017. 7. 13. �� 11:20

operating the cleaner _9
8_ assembling the cleaner
assembling the cleaner
• Please do not press the button
of dust bin handle when carrying
machine.
OPTION
OPTION
• For storage, park the floor nozzle.
DJ68-00586J-02.indb 8 2017. 7. 13. �� 11:20

operating the cleaner _9
02 OPERATING THE CLEANER
operating the cleaner
8_ assembling the cleaner
ON/OFF SWITCH
CAUTION
• When removing the plug from the electrical outlet, grasp
the plug, not the cord.
1) BODY CONTROL TYPE 2) ON/OFF TYPE
POWER CORD
DJ68-00586J-02.indb 9 2017. 7. 13. �� 11:20

maintain tools and filter _11
10_ operating the cleaner

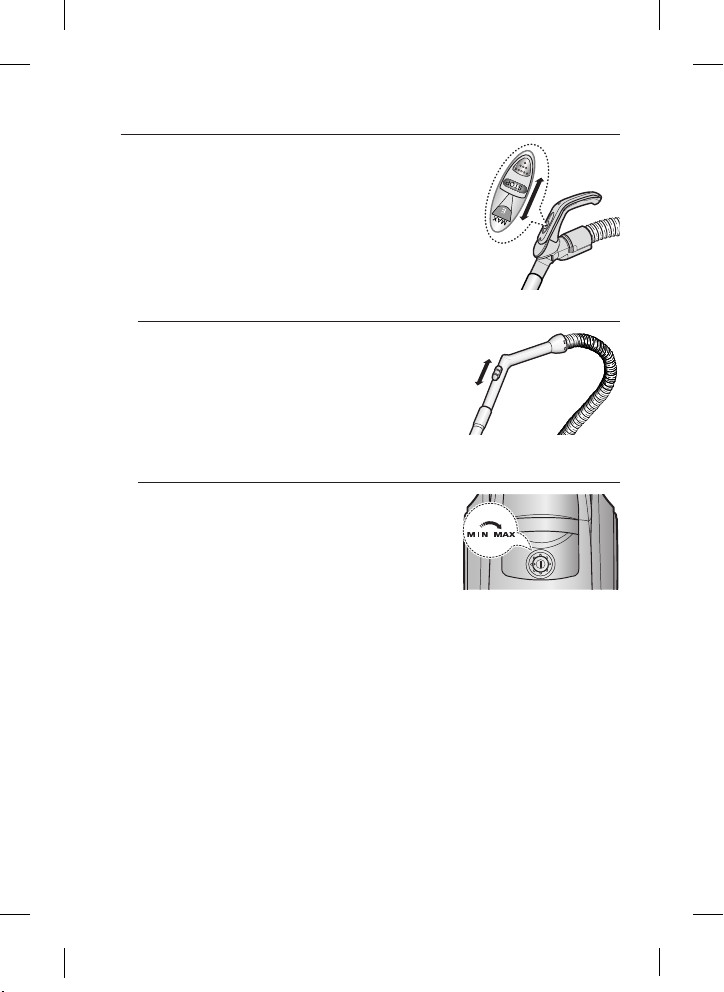

POWER-CONTROL
1) SLIDE CONTROL TYPE ONLY (OPTION)
• SLIDE TO THE STOP POSITION
Vacuum-cleaner switches off (stand by mode)
• SLIDE FORWARD TO MAX
Suction capacity increases smoothly up to
maximum.
- BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net curtains.
MAX = For hard floors and heavily soiled carpets.
2) BODY-CONTROL TYPE / ON/OFF TYPE
- HOSE
To reduce suction for cleaning draperies, small rugs,
and other light fabrics, pull the tap air until the hole
is open.
DJ68-00586J-02.indb 10 2017. 7. 13. �� 11:20

maintain tools and filter _11
03 MAINTAIN TOOLS AND FILTER
maintain tools and filter
10_ operating the cleaner

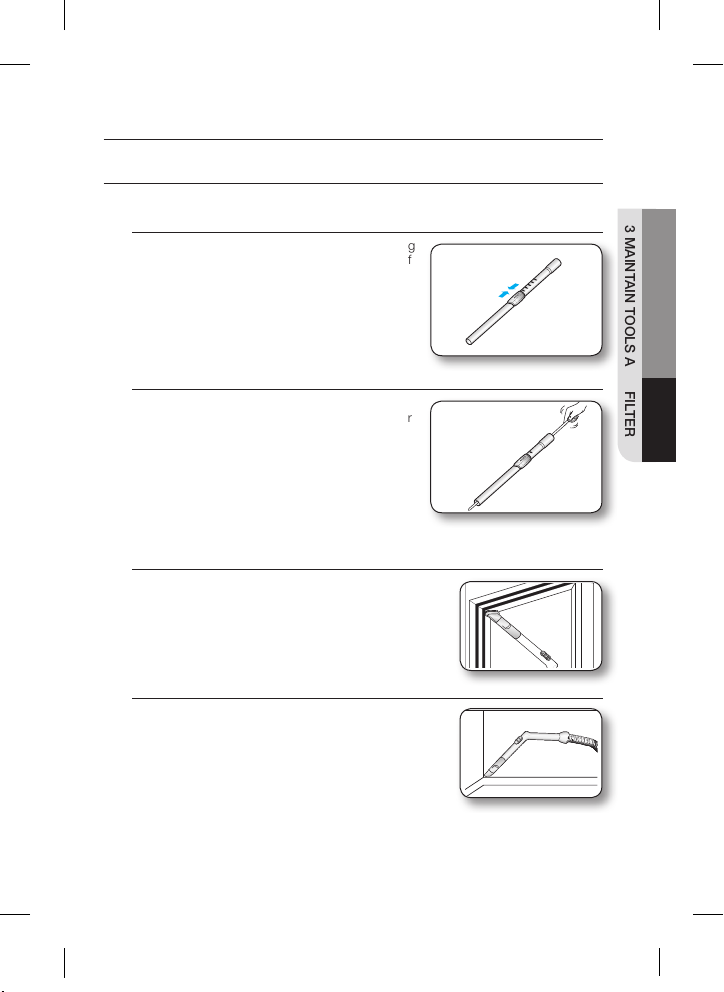

PIPE (OPTION)
• Adjust the length of the telescopic pipe by sliding
the length control button located in the center of
the telescopic pipe back and forth.
USING ACCESSORY
• To check for blockages, separate the telescopic
pipe and adjust to shorten. This allows for easier
removal of waste clogging the tube.
ACCESSORY (OPTION)
• Dusting brush for furniture. shelves, books, etc.
• Crevice tool for radiators, crevices, corners, between
cushions.
DJ68-00586J-02.indb 11 2017. 7. 13. �� 11:20

12_ maintain tools and filter
maintain tools and filter _13

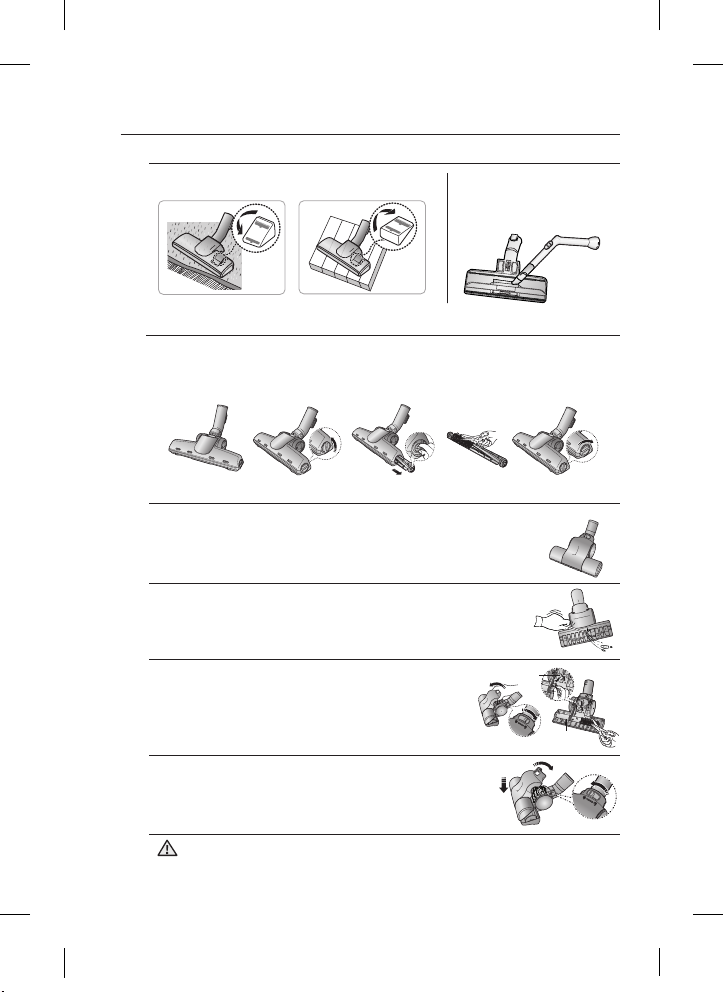

MAINTAIN FLOOR TOOLS
BLANKET BRUSH (OPTION)
Clogs on turbine keep brush from turning, thus need to be
unclogged as follows.
For picking up pet hair and fibre on upholstery and bed linen.
Remove waste matter completely when inlet is blocked.
PET BRUSH (OPTION)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
2-STEP BRUSH (OPTION)
• Adjust the inlet lever according to the floor surface. • Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning Floor Cleaning
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
To reassemble, align the cover to the front of the main body
and close. After closing the cover, ensure that the lock
button is turned to the ‘LOCK’ position.
Use for bedclothes only. Be cautious not to damage brush during
unclogging.
Turbine
Brush
WARNING
DJ68-00586J-02.indb 12 2017. 7. 13. �� 11:20

12_ maintain tools and filter
maintain tools and filter _13
03 MAINTAIN TOOLS AND FILTER
maintain tools and filter

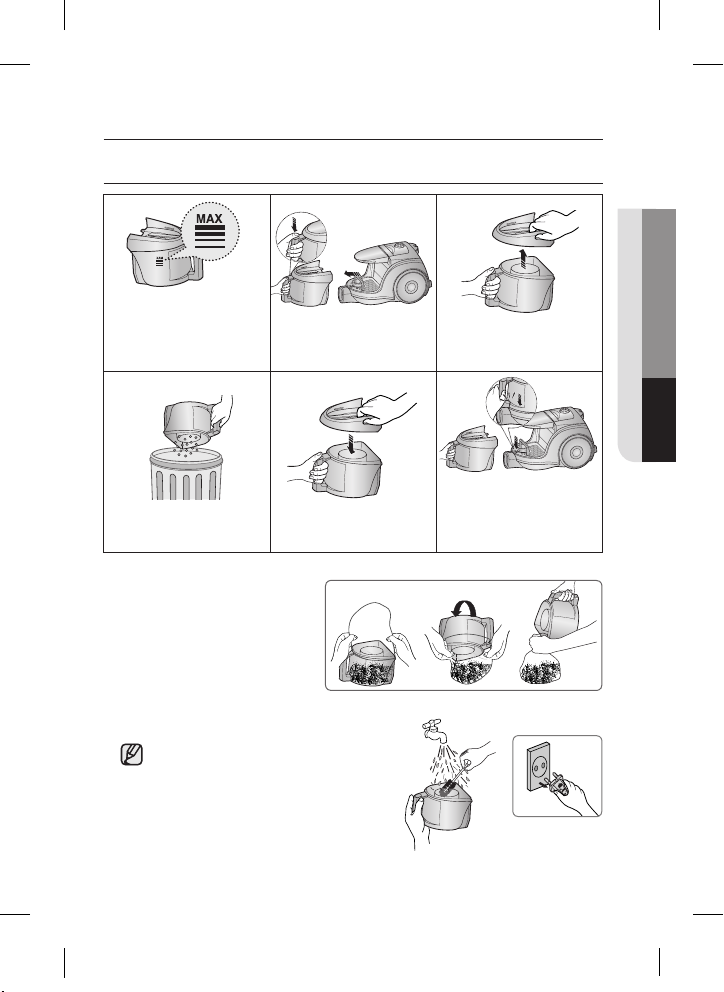

EMPTYING THE DUST BIN
Once dust reaches the
dust full mark, or sution is
noticeably reduced during
cleaning, empty the dust bin.
4 5 6
Take the dust bin out by
pressing the button. Separate the dust bin cover.
Throw away dust into the bin. Close the dust bin cover.
Before use, push the dust
bin into the main body of the
vacuum cleaner until you hear
the “click” sound.
1 2 3
- Empty into a plastic bag
(recommended for asthma/allergy
sufferers)
You may rinse the dust bin with cold water.
DJ68-00586J-02.indb 13 2017. 7. 13. �� 11:20

14_ maintain tools and filter
maintain tools and filter _15
maintain tools and filter
WHEN TO CLEAN THE DUST PACK
- If suction is noticeably reduced during cleaning, please check the dust pack as indicated
below.
If suction is noticeably reduced with the inlet floating
10cm above flat floor, clean it.
Turn the vacuum power to
'MAX'.
HANDLE CONTROL
When suction is noticeably reduced continuously,
please cleaning the Dust Pack as shown in the following illustration.
DJ68-00586J-02.indb 14 2017. 7. 13. �� 11:20

14_ maintain tools and filter
maintain tools and filter _15
03 MAINTAIN TOOLS AND FILTER
CLEANING THE DUST PACK
2. Remove the sponge and filter from the dust pack.
1. Remove the dust bin and dust pack as shown.
Make sure the filter is completely dry
before putting it back into the vacuum
cleaner. Allow 12 hours for it to dry.
3. Wash the sponge and the filter of the dust pack with water.
4. Let the sponge and filter dry in the shade for more than
12 hours.
5. Put the sponge and filter into the dust pack.
6. Put the assembled dust pack into the main body.
DJ68-00586J-02.indb 15 2017. 7. 13. �� 11:20

16_ maintain tools and filter
maintain tools and filter
troubleshooting _17
Replacement filters are available at your local
Samsung distributor.
Press the fixed frame part at the
back of the main body to remove.
CLEANING THE OUTLET FILTER
OPTION - MICRO FILTER
Remove and replace the blocked
outlet filter.
OPTION
DJ68-00586J-02.indb 16 2017. 7. 13. �� 11:20

16_ maintain tools and filter
troubleshooting _17
PROBLEM SOLUTION
Motor dows not start.
• Check cable, plug and socket.
• Leave to cool.
Suction force is gradually
decreasing.
• Check for blockage and remove.
Cord does not rewind fully.
• Pull the cord out 2-3m and push down the
cord rewind button.
Vacuum cleaner dows not pick up
dirt.
• Check hose and replace if required.
Low or decreasing suction
• Please check filter and, if required, clean as
illustrated in the instructions. if filters are out
of condition change them to new ones.
Body overheating
• Please check filters, If required clean as
illustrated in the instruction.
Static electicity discharge • Please decrease power suction.
This Vacuum cleaner is approved the following.
EMC Directive : 2004/108/EC
Low Voltage Directive : 2006/95/EC
troubleshooting
DJ68-00586J-02.indb 17 2017. 7. 13. �� 11:20

Product information
[English]
According to Commission Regulation (EU) No 666/2013
ASupplier Samsung Electronics Co., Ltd.
BModel SC45S0 SC45W0
CAnnual Energy Consumption (kWh/yr) 61.0 28.0
DSound Power Level (dBA) 87 80
ERated Input Power (W) 1300 650
FType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning
tasks.
Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on
methods in EN 60312 - 1 and EN 60704.
FICHE-00586J.indd 1 2019. 3. 19. �� 10:43

Memo
DJ68-00586J-02.indb 19 2017. 7. 13. �� 11:20

Country Customer Care Center ☎Web Site
AUSTRIA 0800 72 67 864
(0800-SAMSUNG) www.samsung.com/at/support
SWITZERLAND 0800 726 78 64
(0800-SAMSUNG)
www.samsung.com/ch/support
(German)
www.samsung.com/ch_fr/support
(French)
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
DJ68-00586J-02.indb 20 2017. 7. 13. �� 11:20
