Vacuum cleaner
Usermanual
VS28C97****/VS25C97****
• In order to save valuable resources, we are reducing paper manuals and
providing electronic user manuals that you can check on your smartphone
or a website.
• For the instructions of how to use the product, please refer to the user
manuals provided as QR code or the Samsung Electronics’ website (www.
samsung.com).
Untitled-27 1 2023-05-15  3:53:48

English2
Contents
Contents
Safety information 3
Important safety symbols 3
General 4
Vacuum cleaner 5
Maintenance 7
Clean Station 8
Battery 10
Preparation 12
Accessories 12
Parts overview 13
Operation 14
Installing the Clean Station 14
Using the Clean Station 14
Charging the additional battery 15
How to use the batteries optimally 15
Using the buttons and display 16
Appendix 17
Product specification 17
Untitled-27 2 2023-05-15  3:53:49

English 3
Safety information
• Before operating the appliance, please read this manual thoroughly
and retain it foryour reference.
• Because the following operating instructions covervarious models,
the characteristics of yourvacuum cleanermay differslightly from
those described in this manual.
Important safety symbols
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
NOTE
Indicates that the following text contains additional important
information.
Safety information
Untitled-27 3 2023-05-15  3:53:49

Safety information
English4
Safety information
General
Forinformation on Samsung’s environmental commitments and
product specific regulatory obligations e.g. REACH (WEEE, Batteries)
visit: samsung.com/uk/aboutsamsung/samsungelectronics/
corporatecitizenship/data_corner.html
Failure to meet these requirements could cause damage to the internal
parts of the vacuum and void yourwarranty.
• Read all instructions carefully. Before plug the station in, make
sure that the voltage of your electricity supply is the same as that
indicated on the rating plate at the bottom of the station.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children should not playwith the
appliance. Children should not clean orperform maintenance on the
vacuum without adult supervision.
• Do not allow the vacuum cleanerto run unattended at any time.
• This product is intended for household use only. (Do not use this
product for other than its intended purposes.)
• Do not allow children to ride on orplay with the product.
–An injury or product damage may occur.
Untitled-27 4 2023-05-15  3:53:49

English 5
Safety information
Vacuum cleaner
• When assembling the vacuum, be careful not to catch yourfingers or
hands in the movement fold of the handle.
• Do not use the vacuum cleaneron a wet rug orfloor.
• Do not use the product at the following places;
–In a place where a burning candle or a desk lamp is placed on the
floor.
–In a place where heaters are turned on orunextinguished embers
exist in an unattended fireplace or an ashtray etc.
–In a place where there are combustible materials such as oil paint,
paint thinner, mothproofing substances, gasoline, alcohol, thinner,
ashtrays with unextinguished cigarettes, etc.
–In a closed place filled with explosive or toxic vapor.
• Do not pick up the following things. Abnormal operation or product
damage may occur.
–A match orunextinguished ashes or cigarettes
–Hard or sharp objects
–Toxic materials (chlorine bleach, ammonia, drain cleaneretc.)
–Liquid such as water or beverage orpet's waste
–Chalk powder
• If there is a gas leak or combustible spray such as a dust remover
is used, do not touch the power outlet and open the window for
ventilation.
–An explosion orfire may occur.
• If the product makes a strange sound or emits a smell or smoke, turn
off the product immediately, and then contact a Samsung service
center.
–Electric shock orfire may occur.
Untitled-27 5 2023-05-15  3:53:49

Safety information
English6
Safety information
• When using the vacuum cleaner, be careful not to hurt yourself on the
moving orspinning parts.
–Keep yourbody parts (Hair, hands, etc.) from the spin brush or the
spin disk.
• When cleaning the wall or ceiling, you should use both hands.
–If you clean with one hand, you can damage yourwrist or drop the
vacuum and cause an injury or damage the vacuum.
• Do not use the vacuum cleaneron objects that can be easily scratched
(monitors, stainless steel appliances, etc.).
• Sometimes the wheel of a brush can scratch the floor. Before using
the vacuum cleaner, check the wheels of the brush.
–If there is foreign matteron the wheel of the brush which cannot
be removed easily, contact a Samsung service center.
• When the spin brush inside a brush is working, do not touch the
brush.
–Otherwise, your hand can be caught and it may cause an injury.
• Do not use the vacuum cleanerin direct sunlight or high heat.
• If excessive force is applied to an accessorywith motor orforeign
matteris caught in the spin brush (or spin disk), the accessory may
stop working to protect the motoror the product. Turn the vacuum
cleaneroff, remove the foreign matter, and then turn it back on.
• Static electricity may occurdepending on the humidity, temperature,
orfloor material, etc. in yourhome. If it happens repeatedly, contact a
Samsung service center.
• Do not use the brush ortools in one spot for a long time because the
floormay get damaged depending on its material.
Untitled-27 6 2023-05-15  3:53:49

English 7
Safety information
• Do not use Pet Tool + in a small area fora long time and do not let Pet
Tool + keep spinning in one place.
–Damage may occurif used on sensitive materials
• Do not use Combination Tool on hard materials such as leatheror
wood while bristles are not extended.
Maintenance
• While using orafter using the vacuum cleaner, you should lay the
vacuum cleaner down orplace it on the Clean Station to store.
–The product may fall and an injury and severe product damage
occur. In addition, you may not be compensated forthe damage.
• Do not store the vacuum cleanerinside a car.
• Before removing foreign matter inside the product, turn off the
product first.
–If the product is on while you are removing the foreign matter, you
can hurt yourself or damage the product.
• When cleaning the exterior of the product, turn off the product first
and then wipe it with a dry towel. Do not spraywater directly onto the
product orwipe it with volatile materials such as benzene, thinner, or
alcohol.
–If water gets into the product and an error occurs, turn off the
product and contact a Samsung service center.
• When cleaning the washable parts, do not use alkaline detergent,
acid, industrial detergent, airfreshener, acetic acid, etc.
–Product damage such as plastic breakage, deformation,
discoloration, printing deterioration, etc. may occur.
Untitled-27 7 2023-05-15  3:53:49

Safety information
English8
Safety information
Washable Parts Dustbin, Washable Micro Filter, Fine Dust Filter, Spinning
Cyclone Filter, dry cloth
Non-washable parts PremotorFilter and Fine Dust Filter of the Clean Station
Acceptable
detergent Neutral Dish washing detergent
Prohibited
detergent
Alkaline Lox, mold cleaner, etc.
Acid Paraffin oil, an emulsifier, etc.
Industrial
cleaners NV-I, PB-I, Opti, alcohol, acetone, benzene, thinner, etc.
Airfreshener Jet spray airfresheners (coffee flavor, herb, etc.)
Oils Animal oils, vegetable oils
Etc. Edible acetic acid, vinegar, glacial acetic acid, etc.
• Storing the product in sunlight for long hours may cause parts of
the product to deform or discolor. Therefore, store the product in the
shade.
• Aftercleaning the dustbin, Spinning Cyclone Filter, orWashable Micro
Filterwith water, dry them in the shade.
–When heat is applied, part deformation may occur.
Clean Station
• Do not pull orcarry by the cord, use the cord as a handle, close a door
on the cord, or pull the cord around sharp edges or corners. Keep the
cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not
the cord.
• Do not pull the power cord and do not touch the power plug with wet
hands.
–Electric shock orfire may occur.
• Do not use extension cords or outlets with inadequately rated current.
Untitled-27 8 2023-05-15  3:53:49

English 9
Safety information
• If there is dust, water, etc. on a pin orcontact point of the powerplug
pin, wipe them carefully.
–Abnormal operation orelectric shock may occur.
• Do not use a damaged power plug, power cord, or loose power outlet.
–Electric shock orfire may occur.
• Unplug the Clean Station from the outlet before servicing.
• Do not expose the Clean Station to high temperatures or allow
moisture or humidity of any kind to come into contact with the Clean
Station.
• Do not plug the Clean Station into a power source with the incorrect
voltage. Do not plug the Clean Station into a multi-plug outlet or
power strip.
–Electric shock orfire may occur.
• If the power cord is damaged, have a Samsung authorized service
centerreplace the powercord with a new power cord.
–Electric shock orfire may occur.
• Make sure that the charging terminals of the vacuum cleanerand the
Clean Station do not come into contact with a conductor such as a
bracelet, watch, metal rod, nail, etc.
–Product malfunction or electric shock may occur.
• As the Clean Station is designed forthe use of Samsung Jet cordless
vacuum cleaner only, do not use the Clean Station for otherelectronic
appliances and other purposes.
–Severe damage to the Clean Station orfire may occur.
• Do not allow children to cling to or push the Clean Station.
–Personal injury, product and floor damage may occur.
• Do not charge the product neara window, heater, toilet, bathroom,
etc.
Untitled-27 9 2023-05-15  3:53:49

Safety information
English10
Safety information
• Do not attempt to open the Clean Station. Repairs should be only
carried out by a qualified Samsung service center.
• Injury orproduct malfunction from incorrect installation of the Clean
Station may not be compensated.
• Do not bend the power cord with excessive force or put heavy objects
on the power cord.
–Electric shock orfire may occur.
• Before unplugging orplugging in the Clean Station, turn off the
vacuum cleaner and make sure that the pins of the power plug do not
come into contact with your hands.
–Fire or electric shock may occur.
Battery
• Do not mutilate or incinerate batteries as theywill explode at high
temperatures.
• Do not drop or strike the battery or subject it to a sudden shock.
• Do not disassemble the battery and make sure that you do not create
a short circuit across the plus (+) and minus (-) terminals.
• As the battery is manufactured only for this product, do not use the
battery for other electronic appliances or other purposes.
• When you purchase a new battery, make sure to check the model
name (VCA-SBTC97, VCA-SBTC97S) and the genuine
logo.
–Contact yournearest Samsung Electronics retailer or Samsung
service center to purchase any consumable accessories.
Untitled-27 10 2023-05-15  3:53:49

English 11
Safety information
• Leaks from battery cells can occur underextreme usage or
temperature conditions. If the liquid gets on yourskin, wash the
affected area quicklywith water. If the liquid gets into youreyes, flush
them immediatelywith clean waterfora minimum of 10 minutes.
Seek medical attention.
• When attaching the battery to the vacuum cleaner, insert it until you
hear a click. This assures that the battery is firmly attached.
–Otherwise, the battery may fall and could cause product damage
or injury.
• If you are not going to use the vacuum cleaner for a long period of
time oryou are going to be away from home for a long period of
time, unplug the Clean Station, and then detach the battery from the
vacuum cleaner. When the battery is not being charged and not being
used, it will slowly discharge.
• To protect the motorand the battery, the product may not operate
when the temperature is lowerthan 5 °C or higher than 45 °C.
• Dispose of the dead battery in compliance with the local regulations.
Untitled-27 11 2023-05-15  3:53:49

English12
Preparation

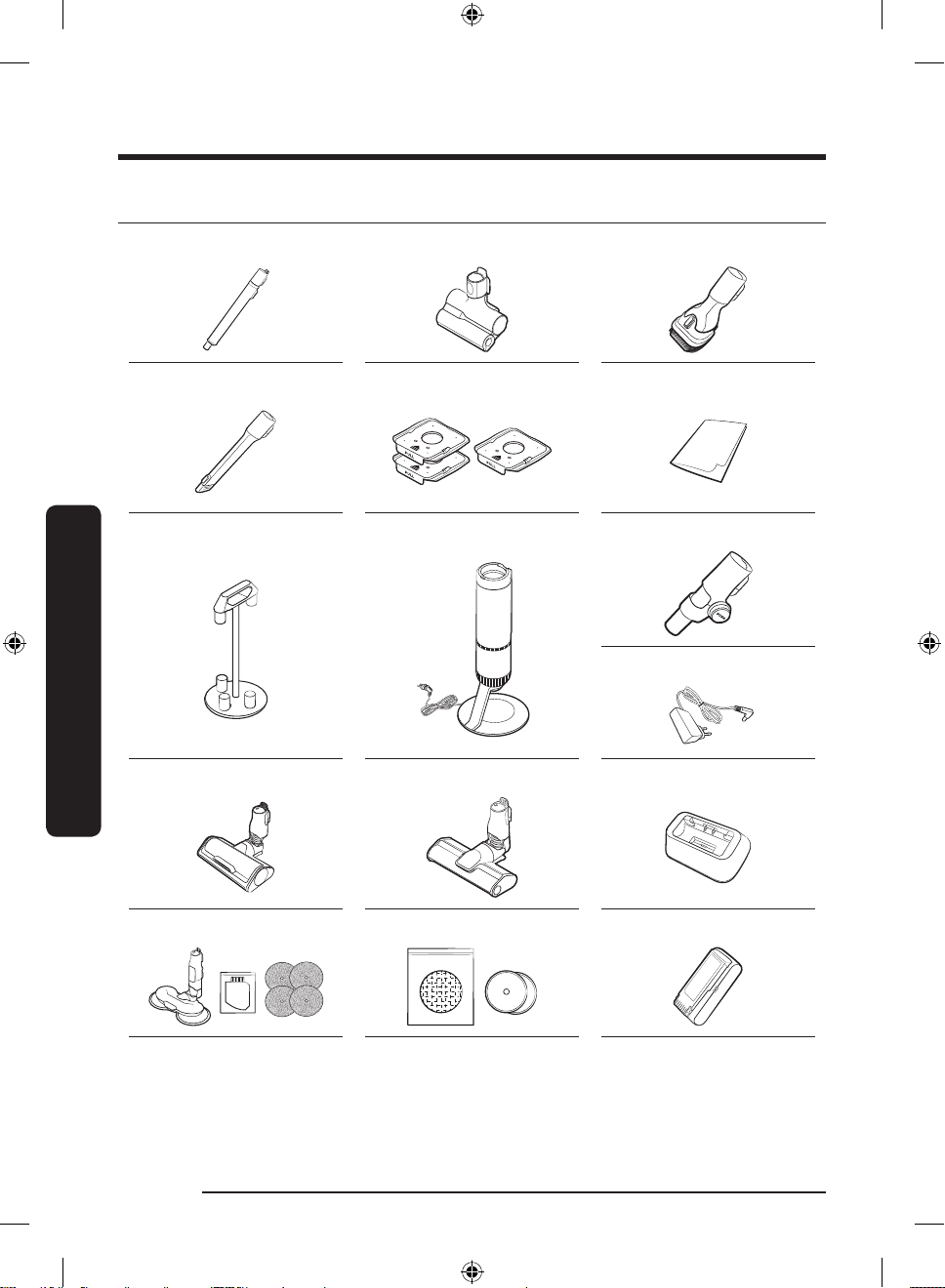

Accessories
The accessories with the ' * ' mark may differ depending on the models.
Telescopic pipe Pet Tool + Combination Tool
Extension Crevice Tool Dust bags (1 installed, 2 extra) User manual
* Flexible Tool
* Accessory Cradle Clean Station * Battery charger
* Active Dual Brush * Slim LED Brush+ * Battery cradle
* Spray Spinning Sweeper/
Water tank / Reusable wet pads
* Disposable wet pads /
Attachable pad
* Battery
* Optional
• The Spray Spinning Sweeperincludes reusable wet pads and disposable wet pads.
• The number of dust bags may differ depending on the model.
Preparation
Untitled-27 12 2023-05-15  3:53:51

English 13
Preparation

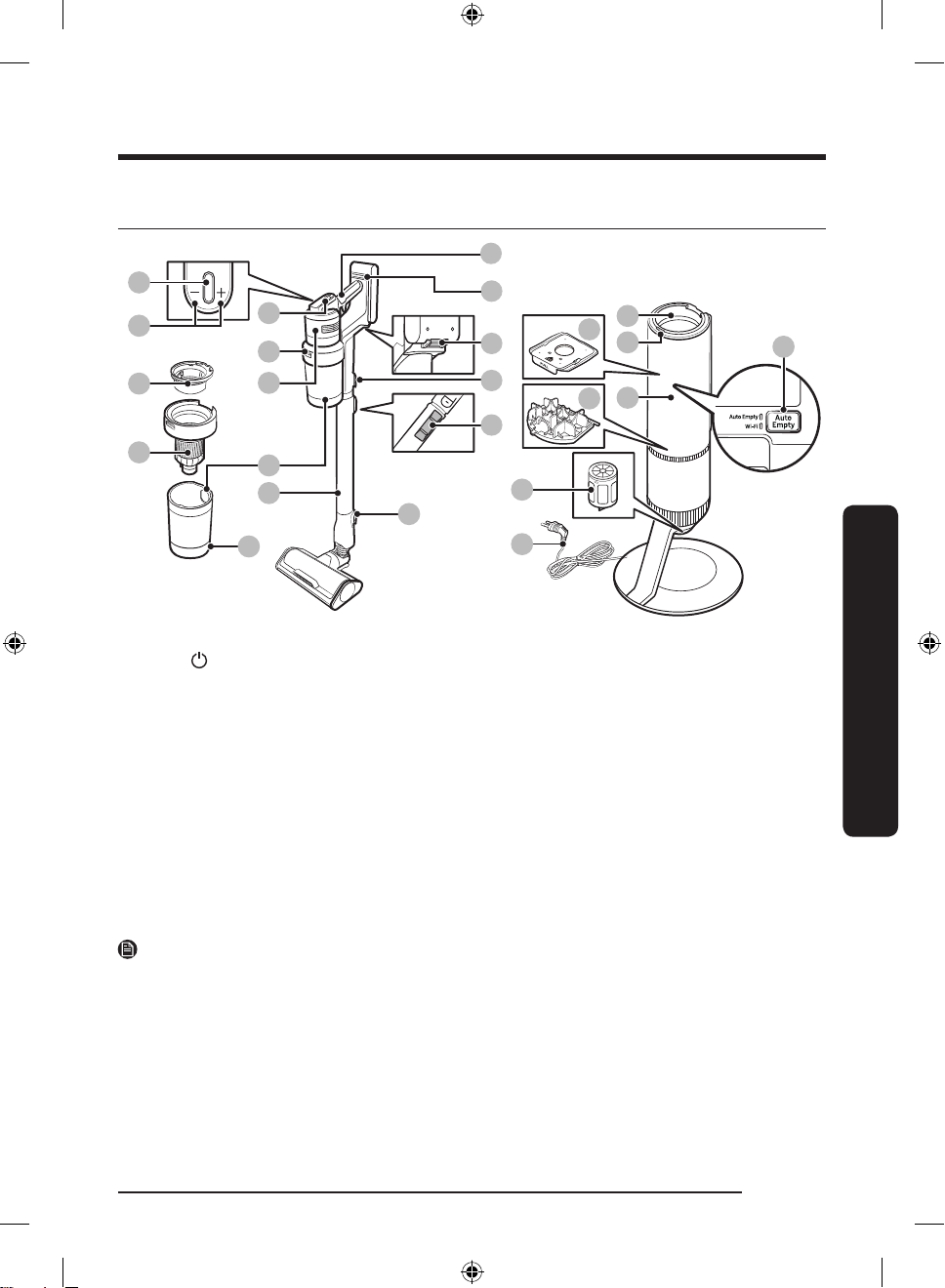

Parts overview
01
03
04
12
15
16
14
24
17
20
21
13
06
09
07
08
10
02
18
22
19
23
11
05
01 Power ( ) button
02 Suction powercontrol buttons
03 Washable Micro Filter
04 Spinning Cyclone Filter
05 Display
06 Dustbin release button
07 Fine Dust Filter
08 Dustbin
09 Adjustable pipe
10 Handle
11 Battery level indicator
12 Battery release button
13 Pipe release button
14 Pipe length adjustment button
15 Brush release button
16 Dustbin Lid Release button
17 Dustbin joint
18 Clean Station START/STOP button
19 Dust bag
20 Clean Station front cover
21 Auto Empty button/Wi-Fi button
22 Clean Station Premotor Filter
23 Clean Station Fine Dust Filter
24 Power cord
NOTE
The wave pattern on the exterior of the product is a natural appearance due to the use of pearl plastic
materials and its pearl distribution. In addition, the shining pearl used in the material gives an excellent
gloss coating, no extra coating necessary.
Untitled-27 13 2023-05-15  3:53:51

English14
Operation
Fordetailed information, please refer to the QR code.
Installing the Clean Station
• Run the powercord of the Clean Station along the round groove at the bottom.
-Make sure the power cord is correctly placed so that the Clean Station stands without tilting.
• Before plugging in the Clean Station, arrange the power cord neatly.
• When plugging in the Clean Station, the START/STOP button turns blue for 5 seconds and goes off.
Using the Clean Station
START/STOP button
• The vacuum cleaner’s dustbin will be emptied automaticallywhen you put the vacuum cleaneron the
Clean Station.
-The Auto Empty function is enabled as a default setting.
• You can press the START/STOP button to start orstop the emptying process at a desired time.
• If the vacuum cleaner is placed back on the Clean Station within a minute from it was taken off from the
Clean Station, the Auto Empty function will not operate even it the function is enabled.
Operation
Untitled-27 14 2023-05-15  3:53:52

English 15
Operation
Charging the additional battery
Battery level
indicator
Charge the additional batteryon the battery cradle.
• Firmly push the battery onto the battery cradle.
• Battery level indicatorturns on and changes
colorto red, orange, and yellow as the battery
charges. The battery level indicatorwill turn
green when the battery is fully charged.
Howto use the batteries optimally
Battery level
indicator
Battery level
indicator
30 times
5 times
Blink
Blink
• To use the batteries longer, use the vacuum
cleanerwith the lowersuction power setting.
• We recommend alternating the use of battery
with an additional battery.
• If the additional battery is fully charged and will
not be used foran extended period of time, we
recommend removing the additional battery
from the batterychargerand storing it at room
temperature.
• The vacuum cleaner has a battery protection
mode, which can suddenly stop the operating
vacuum cleanerwhen it detects a dangerto
battery use.
-If the battery level indicatorblinks red for 30
times, you must wait for30 seconds before
you can use the vacuum cleaneragain.
-If the battery level indicatorblinks red for 5
times, the battery is no longer usable. Please
replace the battery with a new one.
Untitled-27 15 2023-05-15  3:53:52

Operation
English16
Operation
Using the buttons and display
8:
89
8;
01 Display
-Displays the current mode (‘MIN, AI, MID, MAX, JET, or WET’) or the
alert message.
02 Power ( )
-Press this button to turn on or off the vacuum cleaner.
-When you turn on the power, the vacuum cleaner starts in the ‘MID’
mode.
-If you assemble the Spray Spinning Sweeper, the vacuum cleaner
starts in the ‘WET’ mode.
-If you assemble the Active Dual Brush orSlim LED Brush+, the
vacuum cleanerstarts in the ‘AI’ mode.
03 Suction powercontrol (+/ -)
-You can change the suction powermode (‘MIN, AI, MID, MAX, or
JET’).
-In the 'AI' mode, the vacuum cleanerautomatically adjusts
the suction powerand brush rotation speed according to the
surrounding environment foroptimized performance. The vacuum
cleanerproceeds the optimization process for1 ~ 2 seconds when it
detects changes in the floor.
-In the ‘WET’ mode, press the +button to spraywater once or press
and hold the +button to spraywaterfor up to 2 seconds.
-While the vacuum cleaner is on the Clean Station, press and hold the
+button for 5 seconds to enable or disable the Energy Saving mode.
Press and hold the Auto Empty button on the Clean Station for15
seconds to turn off the Wi-Fi and save extra energy.
NOTE
• The ‘AI’ mode is only available if the Active Dual Brush orSlim LED Brush+ is assembled.
• The ‘AI’ mode may not work well on some floorenvironments (floorswith thin rugs and some yoga mats
with grooves, etc.).
• The automatic brush rotation speed adjustment in the ‘AI’ mode is only available when the Active Dual
Brush is attached.
• Only the +button works when the vacuum cleaneris in the ‘WET’ mode.
• You cannot enterthe language settings when the vacuum cleaneris in the ‘WET’ mode.
• The Energy Saving mode is automatically disabled if you use the vacuum cleaner.
• The brush may cling to the flooror does not turn properly depending on the floormaterial (a carpet, a
mat, bedding, etc.). If such a problem occurs, change the suction powermode to ‘MIN or MID’.
Selecting the language
1. Press and hold the +button for3 seconds to enter or exit the language setting.
2. Press the +or –button to select a language.
Untitled-27 16 2023-05-15  3:53:52

English 17
Appendix
Product specification
Charging and cleaning time may differ depending on the type of brush and the conditions of use.
Model VS28C97**** Series VS25C97**** Series
Power consumption
730 W
(with VCA-SBTC97
battery)
660 W
(with VCA-SBTC97S
battery)
Battery specification (VCA-SBTC97) Li-ion 25.2 V, 3970 mAh, 7 cell
Battery specification (VCA-SBTC97S) Li-ion 25.2 V, 2200 mAh, 7 cell
Weight (Vacuum
cleaner)
With batteryVCA-SBTC97 3.2 kg (With Active Dual Brush)
With batteryVCA-SBTC97S 3.0 kg (With Active Dual Brush)
Dimensions
(Vacuum cleaner)
With batteryVCA-SBTC97 Width 250 mm x Depth 243 mm x Height 1036 mm
With batteryVCA-SBTC97S Width 250 mm x Depth 243 mm x Height 1011 mm
Charging time With batteryVCA-SBTC97 5.0 hours
With batteryVCA-SBTC97S 3.5 hours
Cleaning time
(With battery
VCA-SBTC97)
(Default mode: AI)
Combination Tool /
Extension Crevice Tool
MIN: Approx.100 min. MID: Aprrox. 49 min.
MAX: Approx.16 min. JET: Approx. 4 min.
Active Dual Brush MIN: Approx. 58 min. MID: Aprrox. 40 min.
MAX: Approx. 20 min. JET: Approx. 14 min.
Slim LED Brush+ MIN: Approx. 77 min. MID: Aprrox. 43 min.
MAX: Approx. 24 min. JET: Approx. 18 min.
Spray Spinning Sweeper Approx. 160 min.
Cleaning time
(With battery
VCA-SBTC97S)
(Default mode: AI)
Combination Tool /
Extension Crevice Tool
MIN: Approx. 60 min. MID: Aprrox. 30 min.
MAX: Approx.10 min. JET: Approx. 2.5 min.
Active Dual Brush MIN: Approx. 34 min. MID: Aprrox. 21 min.
MAX: Approx.12 min. JET: Approx. 8 min.
Slim LED Brush+ MIN: Approx. 45 min. MID: Aprrox. 25 min.
MAX: Approx.14 min. JET: Approx.10 min.
Spray Spinning Sweeper Approx.100 min.
NOTE
Cleaning time stated in the above table is based on a test using one battery. Cleaning time doubleswhen
you use two batteries consecutively.
Appendix
Untitled-27 17 2023-05-15  3:53:52

DJ68-00900H-01
Untitled-27 20 2023-05-15  3:53:52

Visualizzazione dei manuali dell’utente
PASSAGGIO1 Avviare la app di lettura dei codici QR ed
eseguire la scansione dell’immagine QR
allegata al prodotto.
PASSAGGIO 2 Selezionare un menu dalla registrazione
del prodotto, visualizzando i manuali
o connettendo un servizio. Durante la
selezione di un manuale è possibile
visualizzare il manuale del prodotto
acquistato.
Aspirapolvere
Manuale dell'utente
VS28C97****/VS25C97****
• Al fine di risparmiare preziose risorse, stiamo costantemente riducendo i manuali cartacei
fornendo al contempo manuali elettronici che possono essere consultati mediante
smartphone e siti web.
• Perle istruzioni sull’uso del prodotto, vedere i manuali dell’utente forniti in forma di
codice QR o il sitoweb Samsung Electronics (www.samsung.com).
Untitled-25 1 2023-05-15  3:51:17
