Instruction Manual
DVD Player
S1HDVD10
Sandstrom S1HDVD10_IB_100617_Zell.indd 1 17/06/2010 10:29 AM

Sandstrom S1HDVD10_IB_100617_Zell.indd 2 17/06/2010 10:29 AM

Contents
Unpacking.............................................................................................................................3
Product Overview.................................................................................................................4
Front Panel......................................................................................................................................................4
Rear Panel........................................................................................................................................................4
Remote Control.............................................................................................................................................5
Installing the Batteries................................................................................................................................7
Handling the Batteries ...............................................................................................................................7
Handling the Remote Control .................................................................................................................8
Remote Control Operation Range..........................................................................................................8
Connections ..........................................................................................................................9
1. Connecting to Devices with an HDMI Cable..................................................................................9
2. Connecting to a TV with a SCART Cable..........................................................................................9
3. Connecting to a Stereo System with an Audio Cable.................................................................9

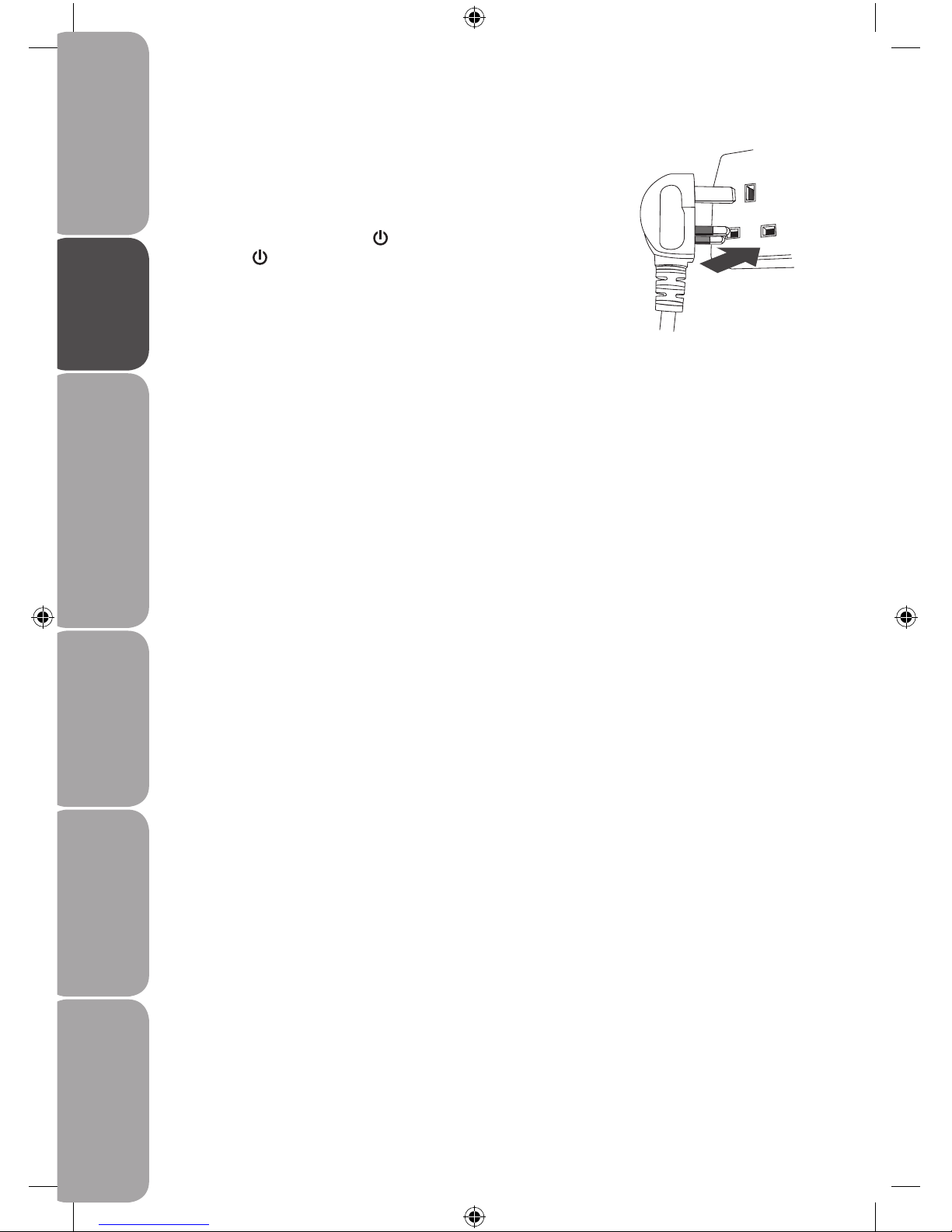

Connecting to the Mains Socket ......................................................................................................... 10
Compatible Disc Types .......................................................................................................11
Supported Formats................................................................................................................................... 11
Region Code................................................................................................................................................ 11
Start Up ...............................................................................................................................12
Basic Playback.....................................................................................................................12
Stop Playback ............................................................................................................................................. 12
Previous and Next ..................................................................................................................................... 12
Fast Forward and Fast Reverse ............................................................................................................. 12
Pause Playback........................................................................................................................................... 13
Single Step Playback................................................................................................................................ 13
Volume Adjustment ................................................................................................................................. 13
Advanced Playback ............................................................................................................13
DVD/USB....................................................................................................................................................... 13
Search............................................................................................................................................................ 13
Program ........................................................................................................................................................ 14
OSD................................................................................................................................................................. 14
Title................................................................................................................................................................. 14
Subtitle Language..................................................................................................................................... 14
Repeat ........................................................................................................................................................... 14
A-B Repeat ................................................................................................................................................... 14
Clear ............................................................................................................................................................... 15
Zoom.............................................................................................................................................................. 15
Angle.............................................................................................................................................................. 15
Audio Channel............................................................................................................................................ 15
Sandstrom S1HDVD10_IB_100617_Zell.indd 1 17/06/2010 10:29 AM

JPEG Disc Playback.............................................................................................................15
Repeat ........................................................................................................................................................... 15
Image Rotation........................................................................................................................................... 16
Zoom.............................................................................................................................................................. 16
Digest............................................................................................................................................................. 16
USB Function............................................................................................................................................... 16
System Setup ......................................................................................................................17
TV Display .................................................................................................................................................... 17
Angle Mark ......................................................................................................................................... 17
OSD (On Screen Display) Language ................................................................................................... 17
Captions........................................................................................................................................................ 18
Screen Saver................................................................................................................................................ 18
Last Memory ............................................................................................................................................... 18
Speaker Setup Page.................................................................................................................................. 18
SPDIF Output .............................................................................................................................................. 19
LPCM Out ..................................................................................................................................................... 19
Dual Mono ................................................................................................................................................... 19
DRC................................................................................................................................................................. 19
Video Output .............................................................................................................................................. 19
Resolution Setup Page ............................................................................................................................ 19
Video Quality Setup Page....................................................................................................................... 20
HDMI Setup ................................................................................................................................................. 20
Audio Source............................................................................................................................................... 20
Deep Colour ................................................................................................................................................ 20
TV System..................................................................................................................................................... 21
Audio ............................................................................................................................................................. 21
Subtitle.......................................................................................................................................................... 21
Disc Menu .................................................................................................................................................... 21
Parental......................................................................................................................................................... 22
Password Mode.......................................................................................................................................... 22
Default........................................................................................................................................................... 22
Maintenance .......................................................................................................................23
Handling Discs............................................................................................................................................ 23
Cleaning Discs ............................................................................................................................................ 23
Storing Discs ............................................................................................................................................... 23
Hints and Tips .....................................................................................................................24
Specications......................................................................................................................25
Safety Warnings..................................................................................................................26
Sandstrom S1HDVD10_IB_100617_Zell.indd 2 17/06/2010 10:29 AM

GB-3
Safety Warnings Product Overview
Connections
System Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
Remote Control
(P.N.: 1-3000-A599-0001-R)
DVD Player
Instruction Manual
(P.N.: 1-3090-A599-0002-R)
Quick Start Guide
(P.N.: 1-3010-A599-0002-R)
If items are missing or damaged, please contact Partmaster (UK only).
Tel: [phone] for assistance.
Unpacking
Remove all packaging from DVD Player. Retain the packaging. If you dispose of it please do
so according to local regulations.
The following items are included:
SEARCH
REPEAT A-B RPT
MENU
CLEA ANGLER
VOLUME
MUTEAUDIO
F.FWDF.REV NEXTPREV
ZOOM
SETUP
1 2 3
456
7 8 9
0 10+
SUBTITLE
OSD
PROG
TITLE
STOP
PAUSE/STEP
/
DVD/USB
STANDBY/ON
USB
PLAY/PAUSE STOP
Congratulations on the purchase of your new Sandstrøm DVD Player.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it oers. You will
also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
Sandstrom S1HDVD10_IB_100617_Zell.indd 3 17/06/2010 10:29 AM

GB-4
Safety WarningsProduct Overview Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
Product Overview
Front Panel
STANDBY/ON
USB
PLAY/PAUSE STOP
1 2 3 4 5 6 7 8 9
No Control Function
1STANDBY/ON button To turn the power on or restore the DVD player to
standby mode.
2 Power Indicator Illuminate red when the DVD player is in standby
mode and light o when the DVD player is power on.
3 Disc Tray To load a disc into the disc drive.
4OPEN/CLOSE button To open and close the disc tray.
5 LED Screen Show information about the current status of the
DVD player.
6 Remote Control Sensor Receive infrared signals from the remote control.
7 USB Interface Connection for a USB Flash Drive.
8PLAY/PAUSE button To start playback/stop playback momentarily.
9STOP button To stop playback.
Rear Panel
1 2 3 4
No Control Function
1 Power Line Input Connect the supplied mains cable to the mains
socket.
2 HDMI Output Connect to a TV, a monitor or an AV amplier
equipped with a HDMI input terminal.
3 2 Channels Audio Output Connect to a stereo system equipped with an AUDIO
input terminal.
4 SCART Output Connect to a TV or a monitor equipped with a
composite video input terminal.
Sandstrom S1HDVD10_IB_100617_Zell.indd 4 17/06/2010 10:29 AM

GB-5
Safety Warnings Product Overview
Connections
System Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
Remote Control
SEARCH
REPEAT A-B RPT
MENU
CLEA ANGLER
VOLUME
MUTEAUDIO
F.FWDF.REV NEXTPREV
ZOOM
SETUP
1 2 3
456
7 8 9
0 10+
SUBTITLE
OSD
PROG
TITLE
STOP
PAUSE/STEP
/
DVD/USB
No Control Function
1OPEN/CLOSE To open or close the DVD disc tray.
2DVD/USB To switch between DVD and USB as the input source.
3OSD (On screen
Display)
To display the disc information.
4SUBTITLE To switch between dierent subtitle languages. (Available
languages depend on the DVD features)
1 16
17
21
18
20
22
23
25
24
26
27
19
2
3
4
7
9
10
11
14
5
12
6
15
13
8
Sandstrom S1HDVD10_IB_100617_Zell.indd 5 17/06/2010 10:29 AM

GB-6
Safety WarningsProduct Overview Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
No Control Function
5TITLE To go back to the previous menu or show title menu.
6SEARCH To search and start playback from a selected point on the disc.
7REPEAT To select between dierent repeat modes – REPEAT CHAPTER,
REPEAT TITLE, REPEAT ALL.
8A-B RPT To repeat playback between 2 particular points on a disc.
9SETUP To display the Setup Menu of the DVD.
10 ENTER/PLAY To conrm the selection or play the DVD disc.
11 ZOOM To enlarge the picture on the TV.
12 F.REV To fast reverse during playback.
13 F.FWD To fast forward during playback.
14 PAUSE/STEP
/
To play or move the playback forward frame by frame.
15 STOP To stop the playback.
16 STANDBY To turn the power on or restores the DVD player to standby
mode.
17 0–10+ To select the numeric items in a menu.
18 ANGLE To switch / change the camera angle during playback. (If it is
available in the DVD features)
19 CLEAR To clear and cancel the previous input information.
20 MENU To enter or exit the disc contents menu.
21 CURSOR
To move up, down, left and right in the Setup Menu
/ Starts the forward and reverse search during playback.
/ Allows slow forward and backward during playback.
22 PROG To program and view the selected starting point of a chapter
and title in the DVD disc.
23 NEXT To skip to the next title, chapter or track.
24 PREV To return back to the previous title, chapter or track.
25 MUTE To mute and restore your DVD sound output.
26 AUDIO To change the audio mode.
27 VOLUME +/– To increase and decrease the volume.
Sandstrom S1HDVD10_IB_100617_Zell.indd 6 17/06/2010 10:29 AM

GB-7
Safety Warnings Product Overview
Connections
System Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
Installing the Batteries
1. Press and lift the back cover up to open the battery
compartment of the remote control.
2. Insert two AAA size batteries (not supplied).
3. Close the battery compartment cover.
Handling the Batteries
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which
could cause re, personal injury or damage to property.
• When the batteries are exhausted, the remote will not function. Replace both batteries at
the same time with new ones.
• Only use the battery type indicated in this manual.
• Do not install new batteries with used one and do not mix dierent types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with
local regulations.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Install the batteries correctly by following the polarity
(+ and -) indications in the battery compartment.
Sandstrom S1HDVD10_IB_100617_Zell.indd 7 17/06/2010 10:29 AM

GB-8
Safety WarningsProduct Overview Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
Handling the Remote Control
• Take care of your ngernails when you press and hold the battery release tab.
• To avoid possible failure, read the following instructions and handle the remote control
properly.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the batteries from the remote control when not in use for a long period of time,
as it could cause corrosion or battery leakage and may result in physical injury and/or
property damage including re.
Remote Control Operation Range
Point the remote control at the DVD player no more than 5 metres from the remote control
sensor and within 60° of the front of the DVD player. The operating distance may vary
depending on the brightness of the room.
Within about 5m
IR 30° 30°
SEARCH
REPEAT A-B RPT
MENU
CLEA ANGLER
VOLUME
MUTEAUDIO
F.FWDF.REV NEXTPREV
ZOOM
SETUP
1 2 3
456
7 8 9
0 10+
SUBTITLE
OSD
PROG
TITLE
STOP
PAUSE/STEP
/
DVD/USB
STANDBY/ON
USB
PLAY/PAUSE STOP
Sandstrom S1HDVD10_IB_100617_Zell.indd 8 17/06/2010 10:29 AM
