Sanitaire RSCS280 User manual

Document No. 98-1133C • Revised January 2011 • ©2003-2011 Atlantic Ultraviolet Corporation®
ultraviolet.com
375 Marcus Boulevard •Hauppauge, NY 11788 •USA
631.273.0500 •Fax: [phone]
e-mail: [email protected]
Extensive Product Information Available at:

2
TABLE OF CONTENTS
SAFETY WARNINGS.....................................................................................................................................................3
SAFETY INSTRUCTIONS............................................................................................................................................3
PRODUCT APPLICATION...........................................................................................................................................4
CONSTRUCTION ............................................................................................................................................................4
PRINCIPLE OF OPERATION.............................................................................................................................................5
LIMITATIONS.................................................................................................................................................................5
UNPACKING...................................................................................................................................................................6
INSTALLATION .............................................................................................................................................................7
FIXTURE PLACEMENT ...................................................................................................................................................7
SET-UPINSTRUCTIONS..................................................................................................................................................7
OPERATION AND MONITORING CONTROLS......................................................................................................7
MAINTENANCE.............................................................................................................................................................8
LAMP INSTALLATION, REPLACEMENT OR CLEANING......................................................................................................8
INTAKE FILTER .............................................................................................................................................................9
CLEANING OF ELECTROSTATIC FILTER...........................................................................................................................9
BREAKAGE ...................................................................................................................................................................9
DISPOSAL OF MERCURY ADDED LAMPS........................................................................................................................9
OPTIONALACCESSORIES.......................................................................................................................................10
TROUBLESHOOTING................................................................................................................................................10
TECHNICAL SPECIFICATIONS...............................................................................................................................11
REPLACEMENT PARTS.............................................................................................................................................11
USER ASSISTANCE.....................................................................................................................................................12
WARRANTY..................................................................................................................................................................12
PATENT NOTICE...........................................................................................................................................................12
These instructions generally describe the installation, operation and maintenance of the Sanitaire®Room
Air Sanitizer Model RSCS280. Questions that are not specifically answered by these instructions should
be directed to the Factory.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent
damage. Carefully inspect and report all damages immediately. Do not install damaged equipment.
Follow all instructions on any labels or tags. Carefully inspect all packing materials before discarding to
prevent the loss of accessories, mounting hardware, spare parts or instructions.
The information and recommendations contained in this publication are based upon data collected by
the Atlantic Ultraviolet Corporation® and are believed to be correct. However, no guarantee or warranty
of any kind, expressed or implied, is made with respect to the information contained herein.
Specifications and information are subject to change without notice.

3

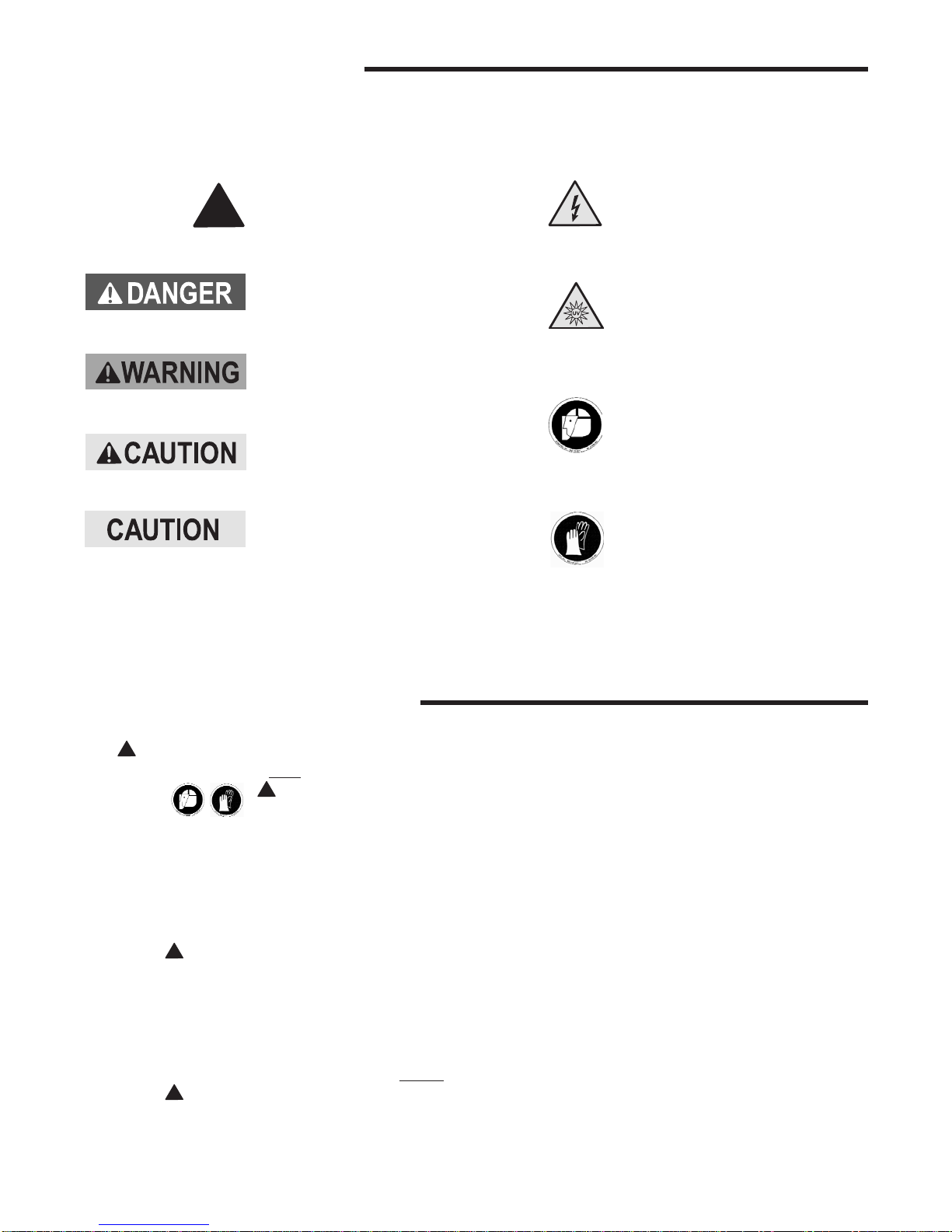

SAFETY WARNINGS
• All personnel should be alerted to the potential hazards indicated by the product safety labeling on this fixture.
• The following conventions are used to indicate and classify precautions in this manual and on product safety
labeling. Failure to observe precautions could result in injury to people or damage to property.
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Danger indicates an IMMINENTLY
hazardous situation, which, if not avoided,
WILL result in death or serious injury.
Warning indicates a POTENTIALLY
hazardous situation, which, if not avoided,
COULD result in death or serious injury.
Caution indicates a POTENTIALLY
hazardous situation, which, if not avoided,
MAY result in minor or moderate injury.
Caution used without the safety alert
symbol indicates a potentially hazardous
situation, which, if not avoided, may result
in property damage.
This symbol/pictorial is used to identify
an ELECTRICAL SHOCK or
ELECTROCUTION hazard.
• Product safety labels should be periodically inspected and cleaned, as necessary, to maintain good legibility.
Always replace illegible safety labels. Contact factory to obtain replacement safety labels.
This symbol/pictorial is used to identify
an ULTRAVIOLET LIGHT hazard.
This symbol/pictorial is used to identify
the need to wear approved ultraviolet
resistant face shield.
This symbol/pictorial is used to identify
the need to wear protective gloves.
!
SAFETY INSTRUCTIONS
WARNING: To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow ALL safety instructions.
WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
2. Intended for indoor use only.
3. Do not alter the construction or design.
4. Do not use this fixture for other than its intended purpose, as described in this manual.
5. Do not override safety interlock.
6. Do not remove any labels or devices.
7. Do not mount under any source of moisture or condensation.
8. CAUTION: Do not operate without proper electrical ground.
9. Do not operate the fixture if there is visible or suspected damage to the fixture or, if applicable, there is
damage to power cord and/or plug.
10. Keep inlet and outlet, of the blowers, clean and clear of debris.
11. Do not operate without access cover secured.
12. Stay clear of blowers, or other moving parts that can cause injuries.
13. Utility power supplied, to the fixture, MUST match power requirements listed on the fixture label.
14. WARNING:Always disconnect power to the fixture before performing any service or maintenance.
15. Read and follow all notices and warnings on the fixture.
16. SAVE THESE INSTRUCTIONS.
!
!
!
!

4
PRODUCT APPLICATION
CONSTRUCTION
The Sanitaire®Room Air Sanitizer Model RSCS280 consists of:
• Germicidal ultraviolet lamps, which deliver germicidal ultraviolet energy in the specific wavelength of 254
nanometers (nm), which is highly effective against airborne microbes including: virus, bacteria, and mold spores.
• Electronic ballasts.
• A polished reflector, whose design and specular aluminum construction, maximizes ultraviolet intensity within the
exposure chamber.
• NEMA 5-15, three-prong plug that operates on 120VAC 60Hz single-phase standard household current is standard
in most units. The Sanitaire®is also available for operation on 230VAC 50Hz.
• Permanent, washable, electrostatic intake filter, capable of removing airborne particles as small as 5 microns.
• A louvered exhaust, which restricts ultraviolet radiation from passing into the room, protecting the room's
occupants from ultraviolet exposure.
• An enclosure and access cover constructed of stainless steel, type 304. Stainless steel construction provides
strength, durability and lasting value.
• An interlock safety switch. The interlock switch interrupts power to the sanitizer, when the access cover is
removed from the lamp/exposure chamber.

5
Figure 1 - Sanitaire®Room Air Sanitizer Model RSCS280 Operation
PRINCIPLE OF OPERATION
The Sanitaire®Room Air Sanitizer is categorized as a germicidal ultraviolet fixture that utilizes germicidal ultravi-
olet lamps that are completely enclosed within a stainless steel exposure chamber and is safe for use in a clean, dry
environment. The Sanitaire®effectively destroys airborne microbes including: bacteria, mold and virus in enclosed
spaces.
The Sanitaire®design has been carefully conceived to provide germicidal ultraviolet exposure for air disinfection.
The dosage, as it applies to ultraviolet disinfection, is a function of time, and the intensity, of ultraviolet radiation, to
which the air is exposed. The exposure time, in seconds, is the total time it takes the air to move through the ultraviolet
field, produced by the germicidal lamps. Exposure time is related to the airflow rate; the higher the airflow, the lower
the exposure time or the lower the airflow, the higher the exposure time.
All components are mounted in a stainless steel frame. Access to the lamp/exposure chamber is gained through the
interlocked, access door. Fixture operation can be monitored from the base panel.
The operation of the Sanitaire®Room Air Sanitizer Model RSCS280 is as follows:
1. Air is drawn into the fixture through the the louvered filter panel.
2. LED indicator lights provide positive indication of operation of germicidal ultraviolet lamps.
3. The air is forced into the exposure chamber, where it is irradiated by the germicidal ultraviolet lamps.
4. The purified air exits the fixture, through the louvered exhaust panel, located at the opposite end of the fixture.
LIMITATIONS
• Overexposure to germicidal ultraviolet rays will result in the irritation of the eyes and reddening of the skin. For
that reason, it is of the utmost importance that your ultraviolet application be carefully planned and implemented
so as to avoid exposure, of personnel, to direct or reflected ultraviolet rays.
• The American Conference of Governmental Industrial Hygienists (ACGIH) has established that the ultraviolet
radiant exposure incident for unprotected eyes or skin should not exceed 0.2 microwatts per square centimeter
(µW/cm2) at 254 nanometers (nm) for an eight (8) hour period. ("2004 TLVs®and BEIs®")

6
UNPACKING
• Remove the Sanitaire®Room Air Sanitizer Model RSCS280 from its shipping carton.
• Atlantic Ultraviolet Corporation takes all possible precautions when packaging this fixture to prevent damage.
Carefully inspect the sanitizer, power cord and plug, if applicable, for damage, report all damage immediately.
Do not assemble or operate if there is any damage, visible or suspected.
• Germicidal lamps are packed separately, to ensure maximum protection for the lamps. Keep the lamps aside until
ready for installation.
• Carefully inspect all packing materials to prevent the loss of accessories, mounting hardware, spare parts or
instructions.
• Do not discard packing materials until fixture is assembled and check out is complete.
The Sanitaire® Model RSCS280 Room Air Sanitizer includes:
• 1 - Louvered intake panel with filter
• 1 - Louvered exhaust panel
• 4 - 120v 60Hz, 230v 50Hz Electronic Ballasts
• 4 - Germicidal ultraviolet lamps
• 2 - Blowers producing 280 CFM (in free air)

7
INSTALLATION
FIXTURE PLACEMENT
The Sanitaire®Model RSCS280 fixture is recommended for use in rooms with suspended "T-Bar" ceilings.
Access to the room does not need to be controlled while the fixture is operating. The exposure chamber, of the
Sanitaire®fixture, protects the room's occupants from ultraviolet exposure by restricting ultraviolet radiation from
passing into the room.
To ensure safe and proper use;
• The Sanitaire®Model RSCS280 Room Air Sanitizer should be installed by qualified professionals so that local
and national building and electrical codes are fully complied with.
WARNING: Failure to adequately support this equipment could result in serious injury or even death.
• The Sanitaire®Model RSCS280 has 4 suspension points. The suspension method chosen should be structurally
adequate to support the weight of the unit independently from any one of these suspension points (unit weight can
be found in the equipment specification).
• Avoid using a single cable or chain or other structural element to support more than one suspension point.
• Never attempt to support or suspend this unit on the ceiling tile track system.
• Remember it is the equipment user’s responsibility to insure an adequate and safe installation of this equipment
and the safety of room occupants.
• It is recommended that the Sanitaire®Model RSCS28 be wired to a wall switch to control on and off operation.
!
OPERATION AND MONITORING CONTROLS
The Sanitaire®is designed to operate with minimal operator supervision. Fixture operation is monitored from the Base Panel.
Lamp Operation Indicators:Provide positive indication, when lit, of each germicidal lamp operation. Lamp
Operation LEDs, which are not lit, indicate faulty germicidal lamps or ballasts. Lamp Operation LED position, in the
LED array, is relative to the germicidal lamp position in the exposure chamber, aiding in the location of the faulty
lamps or ballast(s).

8
MAINTENANCE
• The Sanitaire®Model RSCS280 is designed to operate with a minimal amount of maintenance.
• A regular cleaning cycle of the germicidal lamps, interior, and intake filter should be established, and carefully
maintained, based on inspection and experience. The frequency of cleaning will vary with the conditions
surrounding each installation. It is recommended that the ultraviolet lamps be cleaned at least once every three
(3) months.
• The germicidal ultraviolet lamps used in the Sanitaire®have a manufacturer's rated average effective life of
10,000 hours. Lamps may operate longer than their rated effective life, but the reduction in ultraviolet output will
make it impractical to use past the manufacturer's rated life. For maximum efficiency lamp replacement is
recommended every 10,000 hours of operation or about one (1) year of continuous use.
• Unless lamp replacement is due to failure or breakage, it is recommended that all lamps be replaced at the same time.
• The Sanitaire®Model RSCS280 is equipped with a safety interlock switch, which will shut down the germicidal
lamps when the Access Door is opened.
CAUTION: Do not override the safety interlock switch. Operation of the fixture with the interlock
switch overridden and the Access Door open will expose personnel to direct or strongly reflected germicidal
ultraviolet rays. Germicidal ultraviolet rays are harmful to the eyes and skin.
WARNING:Always disconnect power to the fixture before performing any service or maintenance.
LAMP INSTALLATION, REPLACEMENT OR CLEANING
WARNING:Always disconnect power to the fixture before performing any service or maintenance.
CAUTION: Ultraviolet lamps are easily damaged and may cause injury if broken. Exercise care when
handling lamps.
1. Disconnect power to the fixture.
2. Open access door, by unlocking the two (2) latches.
3. Remove lamps, carefully press lamp against the spring-loaded lamp holder, when upper lamp pin clears the
stationary lamp holder pull lamp out, and away from fixture .
4. Moisten a clean, lint-free cloth with denatured alcohol and clean lamps.
5. When lamps have been removed, cleaned and safely set aside, remove any loose dust or dirt from the interior of
the fixture with a soft dry cloth, or vacuum.
6. To remove any dust, dirt, fingerprints, smears, etc, from the outer surfaces of the conditioner, moisten a clean,
lint-free cloth with denatured alcohol and wipe down the conditioner. Buff out any streaks, left from the cleaning,
using a soft dry cloth.
7. Install lamps, insert lamp pin into spring-loaded lamp holder. Carefully press lamp against the spring-loaded
lamp holder. Align upper lamp pin with stationary lamp holder. Slowly ease the pressure until lamp is fully seated
in lamp holders.
8. Verify that lamps are properly seated.
9. Repeat until all lamps have been properly reinstalled.
10 Close and lock access door.
11. Restore power to the fixture.
WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
12. Verify operation by viewing Lamp Operation Indicators (LEDs). If the sanitizer is not operating properly, go to
“Troubleshooting” section on page 10.
!
!
!
!
!

9
INTAKE FILTER
• The Sanitaire®Room Air Sanitizers Model RSCS280 are fitted with a permanent, washable, electrostatic air
filter. DO NOT apply oil, or adhesive sprays to the filter.
• In most applications, regular vacuuming will maintain peak performance of electrostatic filter; periodically flushing
electrostatic filter with clean water is recommended whenever vacuuming fails to restore a clean appearance.
• The electrostatic filter may be cleaned repeatedly without loss of efficiency. The frequency of cleaning will vary
with the conditions surrounding each installation.
CLEANING OF ELECTROSTATIC FILTER
WARNING: Always disconnect power to the fixture before performing any service or maintenance.
1. Disconnect power to the fixture.
2. Unlatch and remove access cover.
3. Remove filter from the housing.
4. Vacuum the upstream side first, and repeat on the discharge side. (Skip to step 7 unless washing filter.)
CAUTION: Do not use a high velocity water stream to clean the filter. A high velocity stream may
destroy the filter's internal fibers.
5. To wash filter, flush thoroughly with clean water, either by immersing or with a fine spray in the direction
opposite to the airflow. If the filter is contaminated with heavy grease concentrations, wash filter with a
detergent solution. NOTE: Follow all manufacturer's instructions and precautions for handling detergents. The
filter should be rinsed thoroughly with clean water.
6. Shake off any excess water from filter and let dry.
7. Replace filter into the housing, with airflow direction label pointing into the electrical enclosure.
8. Close and re-latch access louver.
9. Restore power to the fixture.
10. Verify operation by viewing Lamp Operation Indicators (LEDs). If the sanitizer is not operating properly, go to
“Troubleshooting” section on page 10.
BREAKAGE
CAUTION: Broken Quartz is SHARP.
Wear protective gloves when handling broken ultraviolet lamps.
In the event of breakage, DO NOT use a household vacuum cleaner to pick up fragments of the lamp.
Sweep up debris into a plastic bag and dispose of properly.
DISPOSAL OF MERCURY ADDED LAMPS
Germicidal ultraviolet lamps, like standard fluorescent lamps contain small amounts of mercury. Mercury added
lamps should not be placed in the trash. Dispose of properly.
For further information regarding the disposal and recycling of lamps containing mercury, along with Federal and State
requirements visit http://www.lamprecycle.org. Product Data Sheets for germicidal ultraviolet lamps can be found in the
“PDF Library for Ster-L-Ray®Germicidal Ultraviolet Lamps” section of http://www.ultraviolet.com.
!
!
!

10
TROUBLESHOOTING
WARNING: Always disconnect power to the fixture before performing any service or maintenance.
•IMPORTANT: This fixture is to be serviced ONLY by qualified, and appropriately licensed, personnel.
Table 1 - Troubleshooting
!
Problem Possible Cause Corrective Action
No electrical power… Verify that the fixture is connected to a live power source.
System not operating. Power connections, Verify power connections are fully engaged.
loose or disconnected…
Internal blower(s) not Loose power connection… Confirm connection to blowers; connections are tight and
functioning. making full contact.
Faulty blower motor… Replace blower motor.
Ballast Swap lamp, with known good lamp. If good lamp still does
not operate, replace ballast.
Germicidal lamp not Swap suspect lamp, with known good lamp. If suspect
Individual Lamp Operation operating… lamp still does not operate, replace lamp.
Indicator not lighting. Germicidal lamp not Confirm contact of lamp and lamp socket, contacts are
properly seated… tight and lamp socket is making full contact with lamp.
Ballast not functioning… Locate corresponding ballast and replace.
All germicidal lamps Lamps not installed… Install lamps.
not operating: Interlock switch open… Confirm access cover is on and latched.
Interlock switch faulty… Replace interlock switch.
1. ArmorLite™ Safety Shield
Protective coating applied to Ster-L-Ray®Lamps
Insures protection by eliminating the dangers associated with fragments of broken quartz and mercury contamination.
2. The ZenithTM Ultraviolet Meter is a sensitive, hand-held, ultraviolet meter that can be used to:
• Survey ultraviolet room air sanitizer installations to ensure that the germicidal ultraviolet radiant exposure, of
personnel within the treated area, is within acceptable limits. The ZenithTM Ultraviolet Meter provides accurate
and easy-to-read levels of intensity that may be interpreted by anyone - not just engineers.
• Check the intensity of aging ultraviolet lamps.
The ZenithTM Part No. 30-0081-R is the recommended meter for this application.
For more information and purchasing contact our offices, weekdays between 8:30 am and 5:00 pm Eastern time,
at: Atlantic Ultraviolet Corporation, 375 Marcus Boulevard, Hauppauge, New York, 11788
Tel: [phone] • Fax: [phone] • E-mail: [email protected] • Website: www.ultraviolet.com
OPTIONAL ACCESSORIES

11
NO. DESCRIPTION QTY PART NO.
1 Germicidal Ultraviolet Lamp 4 05-1352-R
2 Electronic Ballast, 120v 50/60Hz 4 10-0137
Electronic Ballast, 230v 50/60Hz 4 10-0136
3 Lamp Holder Set 4 05-1320A
4 Interlock Switch, SPDT 1 40-4040A
5 Air Filter, Electrostatic, Washable, 6"x20"x1" 1 40-0062A
6 Blower, 140CFM, 120v 50/60Hz 2 40-1079B
Blower, 140CFM, 220v 50/60Hz 2 40-0031A
7 Eyebolt, 8-32 x 1" Long with Hex Nut 4 50-0157
8 Lead Cord, 120v 1 35-1100
Lead Cord, 220v - 240v 1 35-1452
REPLACEMENT PARTS
Table 3 - Replacement Parts for Model RSCS280
Other replacement parts are available. Consult the Factory for specific requirements.
TECHNICAL SPECIFICATIONS
Table 2 - Technical Specifications
Blower Capacity: (Cubic Feet per Minute) 280
Nominal Fixture Capacityc: (Cubic Feet per Minute) 210
Max Treatment Capacity: (Cubic Feet per Hour) 12,600
Max Room Size @ 3 Air Changes/Hour: (Cubic Feet) 4,200
Max Room Size @ 4 Air Changes/Hour: (Cubic Feet) 3,150
Max Room Size @ 5 Air Changes/Hour: (Cubic Feet) 2,520
Max Room Size @ 6 Air Changes/Hour: (Cubic Feet) 2,100
Dimensions: Length: (Inches) 46-5/8
Width: (Inches) 22-1/8
Height: (Inches) 9-7/16
Electrical: Volts: (Volts) 120 220-240
Amps: (Amps) 4.4 2.32
Line Frequency: (Hertz) 60 50
Lamp Data: Power Consumptiond: (Watts/Lamp) 32
Ultraviolet Outpute: (Watts/Lamp) 11.2
cFixture capacity incorporates an estimated allowance for airflow friction loss across filter and fixture.
dWattage is lamp watts only and does not include ballast loss.
eUltraviolet output at 254nm at 100 hours and 80°F (approximate).
All specifications, dimensional data, etc. are approximate and subject to change without notice.

12
WARRANTY
We warrant that this product will be free from defects in material and workmanship for a period of one year
from the date of shipment thereof or the product’s total rated life, whichever first occurs. Within the warranty
period we shall repair or replace such products, which are returned to us with shipping charges prepaid, and
which are determined by us to be defective. This warranty will not apply to any product, which has been sub-
jected to misuse, negligence, or accident; or misapplied; or modified; or repaired by unauthorized persons; or
improperly installed.
The Buyer shall inspect the product promptly after receipt and shall notify us at our main office in writing of
claims, including claims of breach of warranty, within thirty (30) days after the Buyer discovers or should have
discovered the facts upon which the claim is based. Failure of the Buyer to give written notice of a claim within
the time period shall be deemed to be a waiver of such claim.
The provisions of the above warranty are our sole obligation and exclude all other remedies or warranties,
expressed or implied, including warranties of merchantability and fitness for a particular purpose, whether or not
purposes or specifications are described herein. We further disclaim any responsibility whatsoever to the cus-
tomer, or to any person, for injury to person, damage to, or loss of property or value caused by any product
which has been subjected to misuse, negligence, accident; or modified or repaired by unauthorized persons; or
improperly installed.
Under no circumstances shall the Company be liable for any incidental, consequential or special damages,
losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use,
our product for any purpose whatsoever.
PATENT NOTICE
No attempt has been made to determine the patent status of applications illustrated or described in this publi-
cation. Inclusion in this publication of any design or method of use, which may be patented, is not to be con-
strued as promoting or sanctioning unauthorized use.
USER ASSISTANCE
Purchased From: Date:
Model: Serial No.:
Atlantic Ultraviolet Corporation
makes every effort to ensure that
the Sanitaire® Room Air
Sanitizers are products of superior
quality and workmanship. This
manual describes the installation,
operation and maintenance of the
Sanitaire®Room Air Sanitizers.
Please read and become familiar
with the contents of this manual
before installing or using this fix-
ture. If after reading the manual
you still have questions, or con-
cerns, regarding the installation or
use of this fixture, contact our
offices, weekdays between 8:30 am
and 5:00 pm Eastern time, at:
Atlantic Ultraviolet Corporation
375 Marcus Boulevard
Hauppauge, New York, 11788
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.ultraviolet.com
Please REGISTER your product immediately - you can do this in a number of ways. Go online to
Ultraviolet.com and on the bottom left of each page either click on “Fill out Warranty Reg. Form on-line!” com-
plete and hit submit or click on “Download a PDF of the Warranty Reg. card” which you can print, fill out and
mail in. If you prefer to register over the telephone please call 631-273-0500.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage.
Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions on any labels
or tags. Carefully inspect all packing materials before discarding to prevent the loss of accessories, mounting
hardware, spare parts or instructions.
For your convenience, record the following information below. The model and serial number can be found on
a label located on the Sanitaire®Room Air Sanitizer. Keep this manual, along with proof of purchase, handy
when contacting our offices.
