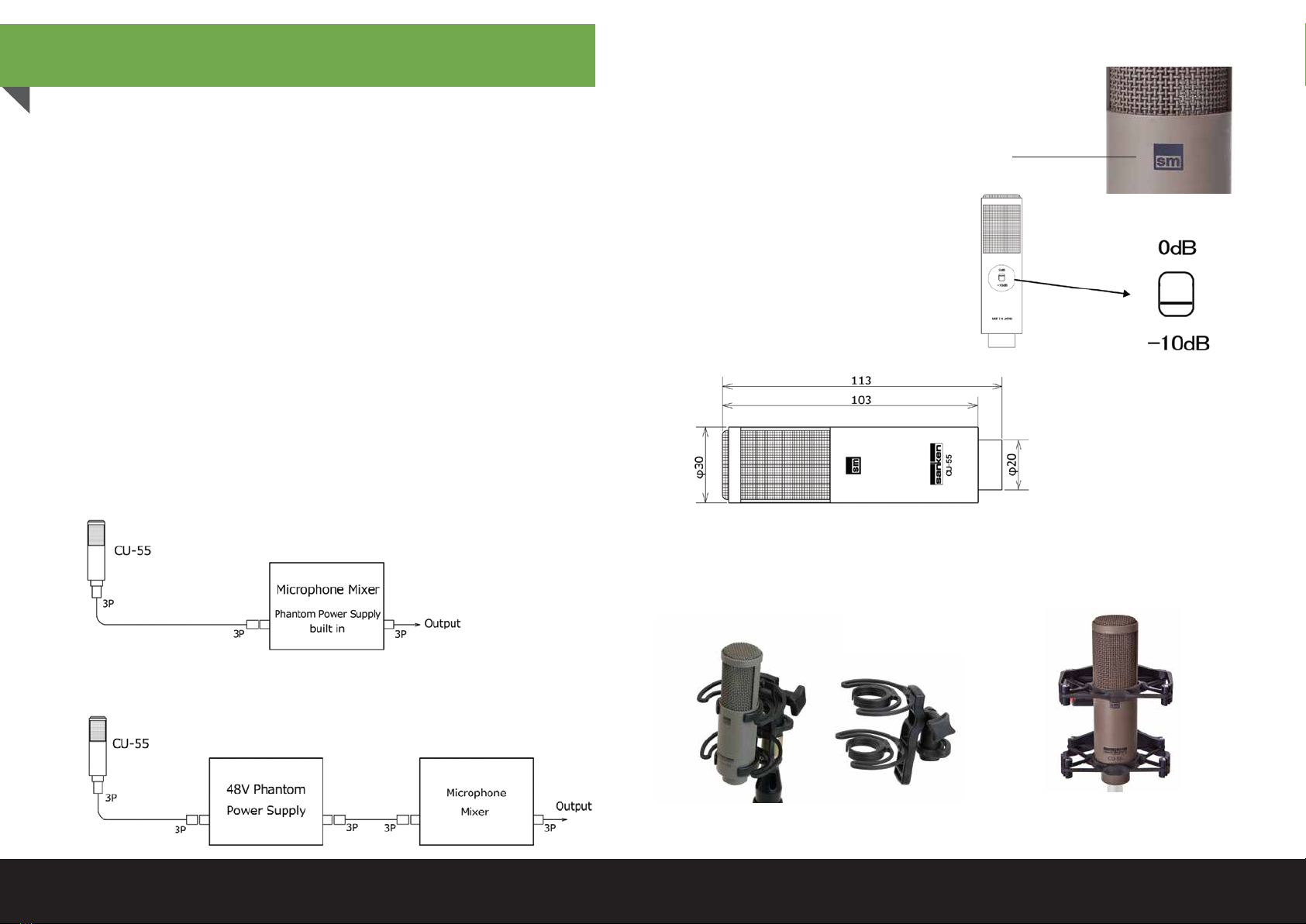

  9. Sanken CU-55 User manual

Sanken CU-55 User manual

1
FROM SANKEN MICROPHONES
SINGLE CONDENSER CARDIOID MICROPHONE
INSTRUCTION MANUAL FOR CU-55
POWERING
This microphone is designed to be driven by 48V phantom power only.
ENVIROMENTAL CONDITIONS FOR USE AND STORAGE
The microphone should be stored only in temperatures between 0˚ and
40˚ C (32˚-104˚ F), and humidity between 0% and 80%.
Do not store or use this microphone in dusty environments.
Do not store where there is high humidity or excess moisture.
Do not store in situations with strong vibrations or constant shaking.
MAINTENANCE
Wipe only with a soft cloth.
Do not use thinners or benzene.
Use a neutral detergent and clean with a dry, soft cloth.
HOW TO CONNECT
Microphone Mixer - phantom power supply built-in
Front direction
mark
External phantom power supply
INSTALLATION
The SM Logo indicates the front of the microphone.
Optional S-55 Basket Shock Mount Optional K-55 Band Shock Mount
SETTINGS
Suspend the mic using the optional S-55 basket shock mount or the
K-55 band shock mount.
DIMENSIONS
PAD SWITCH
Use the slide switch at the rear side of
CU-55 to reduce the microphone’s
sensitivity for loud recordings by
turning it to -10dB position.
For more information visit sankenchromatic.com
FREQUENCY RESPONSE & POLAR PATTERN SPECIFICATIONS
2
Specification subject to change without notice
Powering
Weight
Model Name CU-55
Transducer DC biased condenser
Directivity Cardioid
Frequency response 40Hz – 20kHz
Sensitivity PAD@:0dB -26dB
(50.1mV, 0dB=1V/Pa)
PAD@:-10dB -36dB
(15.8mV, 0dB=1V/Pa)
Equivalent noise level (IEC) 15dB-A
Max SPL(1% THD) 137dB SPL(PAD@:0dB),
147dB SPL(PAD@:-10dB)
Output impedance( 1kHz ) 180 ohms
+48V±4V phantom
Current consumption 3.5mA
180g/ .4lbs
Dimensions
Surface finish
113mm x 30mm (D)
4.45in x 1.18in (D)
Matte brown
Connector XLR-3-12C(M) equivalent
1: GND, 2: Hot, 3: Cold
CONTACT US
Sanken Chromatic c/o plus24
8974 Kramerwood Place
Los Angeles, CA 90034
ph: 323-845-1171 fx: 323-845-1170
e: [email protected]
For more information visit sankenchromatic.com
Optional K-55 Band Shock Mount
