FROM SANKEN MICROPHONES
SINGLE CONDENSER CARDIOID MICROPHONE
INSTRUCTION MANUAL FOR CU-51
POWERING
This microphone is designed to be driven by 48V phantom power only.
ENVIROMENTAL CONDITIONS FOR USE AND STORAGE
The microphone should be stored only in temperatures between 0˚ and
40˚ C (32˚-104˚ F), and humidity between 0% and 80%.
Do not store or use this microphone in dusty environments.
Do not store where there is high humidity or excess moisture.
Do not store in situations with strong vibrations or constant shaking.
MAINTENANCE
Wipe only with a soft cloth.
Do not use thinners or benzene.
Use a neutral detergent and clean with a dry, soft cloth.

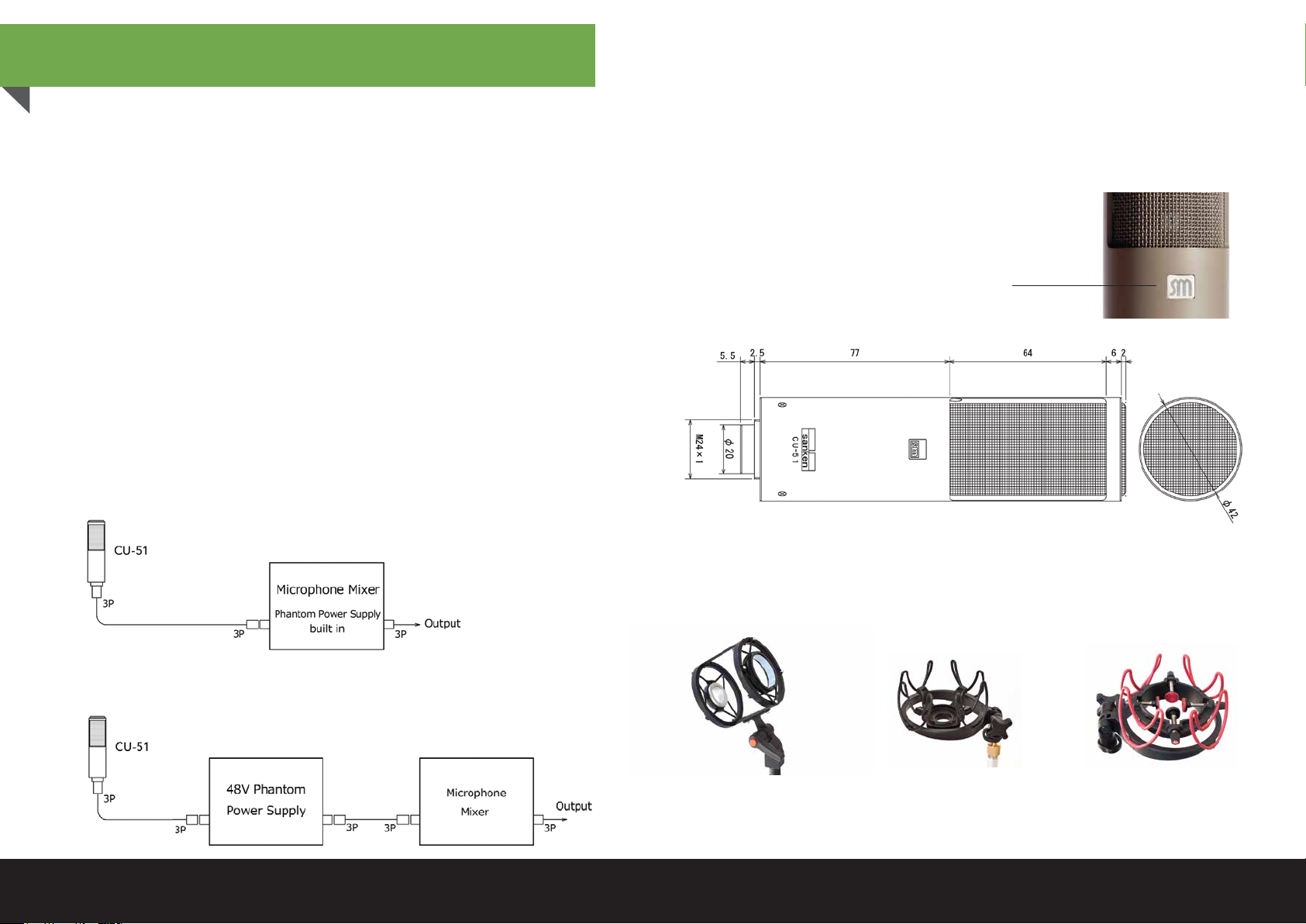

HOW TO CONNECT
Microphone Mixer - phantom power supply built-in
Front direction
mark
External phantom power supply
INSTALLATION
The SM Logo indicates the front of the microphone.
OUTPUT
The output signal is balanced and requires phantom
power. This mic cannot be used with unbalanced input
circuitry. Connect to a balanced input.
Optional KS-51
shock mount band
suspension
Optional S-51 shock
mount basket
suspension
Optional RS-51
shock mount basket
suspension
SETTINGS
Suspend the mic using the optional KS-51 shock mount band
suspension, the S-51 shock mount basket suspension, or the RS-51
shock mount basket suspension.
DIMENSIONS
For more information visit sankenchromatic.com
FREQUENCY RESPONSE & POLAR PATTERN SPECIFICATIONS
2
Specification subject to change without notice
Model Name CU-51
Transducer DC biased condenser
Directivity Cardioid
Frequency response 20Hz – 20kHz
Sensitivity -30dB (31.6mV , 0dB=1V/Pa)
Equivalent noise level (IEC) 14dB-A
Max SPL(1% THD) 138dB SPL
Output impedance( 1kHz ) 150 ohms
Powering +48V±4V phantom
Current consumption 4mA
Weight 430g/ .95lbs
Dimensions
Surface finish
157mm X 41.5mm (D)
6.2in x 1.6in (D)
Matte brown
Connector XLR-3-12C(M) equivalent
1: GND, 2: Hot, 3: Cold
CONTACT US
Sanken Chromatic c/o plus24
8974 Kramerwood Place
Los Angeles, CA 90034
ph: 323-845-1171 fx: 323-845-1170
