Santa Fe ULTRA Series User manual

1
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
Installation Instructions
ULTRA SERIES | ULTRA120V
Serial Number
Install Date
Sold By
The Santa Fe Ultra120V is a ventilating
dehumidier that is integrated into the heating and
cooling system to provide the ultimate in comfort,
health and property protection through:
+ Dehumidication
+Optional Outdoor Air Ventilation
+Air Filtration
Patent: thermastor.com/patents
TS-2018 02/23 Rev A
Santa-Fe-Products.com | 800.533.7533
* Previously the Ultra Aire120V.
Español
Versión
La Página
28

2Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
Safety Instructions........................................................................................3
Assembly & Installation ................................................................................4
Dehumidier Set Up ..................................................................................5-6
Attaching Duct Collars..................................................................................7
Electrical Requirements............................................................................8-9
Drain Installation.........................................................................................10
Ducting to HVAC Systems ..........................................................................11
Recommended HVAC System Installation ...............................12-13
Alternative Closet Installation...................................................14-15
Ducting to HVAC Systems (Closet Installations)
Recommended Closet Installation..................................................16
Alternative Closet Installation.........................................................17
Outdoor Air Ventilation ...............................................................................18
Determine Ventilation Requirements..............................................19
Controls .................................................................................................20-21
Air Filtration.................................................................................................22
MERV Rating Chart......................................................................................23
Service ...................................................................................................24-26
Warranty ......................................................................................................27
Spanish Version ..........................................................................................28
Santa Fe is committed to manufacturing quality products. To maintain
our standards, product specications may change without notice.
4201 Lien Road, Madison, WI 53704
[phone]
Thermastor.com | Santa-Fe-Products.com
© 2019 Therma-Stor LLC
FOR REPAIR & TECH SUPPORT: 1-800-533-7533 (follow prompts)
or CONTACT US AT: [email protected]
TABLE OF CONTENTS
1
REGISTRATIONS
THE SANTA FE ULTRA120V CONFORMS TO UNIFIED STANDARD UL 60335-2-
40 AND CSA STANDARD C22.2.60335-2-40.

3
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
WARNING!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN
RESULT IN SERIOUS INJURY OR DEATH.
Read the installation, operation and maintenance instructions carefully before installing and
operating this device. Proper adherence to these instructions is essential to obtain maximum
benet from the Santa Fe Whole House Ventilating Dehumidier.
CAUTION!
THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN
RESULT IN INJURY OR MATERIAL PROPERTY DAMAGE.
CAUTION!
READ ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION.
ALWAYS USE CAUTION AND WEAR CUT RESISTANT GLOVES WHEN HANDLING SHEET METAL.
IMPROPER INSTALLATION MAY CAUSE PROPERTY DAMAGE OR INJURY.
INSTALLATION, SERVICE, AND MAINTENANCE MUST BE PERFORMED BY A QUALIFIED SERVICE
TECHNICIAN.
THE DEHUMIDIFIER IS HEAVY. HANDLE WITH CARE AND FOLLOW INSTALLATION INSTRUCTIONS.
NEVER OPERATE A UNIT WITH A DAMAGED POWER CORD. IF THE POWER CORD IS
DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT, OR A SIMILARLY
QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE
OR KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION
CONCERNING THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR
SAFETY. CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE
APPLIANCE.
WARNING!
120 VOLTS MAY CAUSE SERIOUS INJURY FROM ELECTRIC SHOCK. DISCONNECT
ELECTRICAL POWER BEFORE STARTING INSTALLATION OR SERVICING, AND LEAVE
POWER DISCONNECTED UNTIL INSTALLATION OR SERVICE IS COMPLETED.
SAFETY INSTRUCTIONS
2

4Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
Read all remaining steps and warnings before continuing.
a. Dehumidifier (1)
b. Leveling feet (4)
c. Filter - 16”x20”x2” MERV 13 (1)
d. 6” Outdoor Air Intake Duct
e. 8” Return Duct
f. 8” Supply Duct (2)
g. 8” Duct Cover
ASSEMBLY & INSTALLATION
3
1. Unpack Box.
2. Check that you have all parts:
3. Register warranty at santa-fe-products.com
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
H
U
M
I
D
N
O
R
M
A
L
D
R
I
E
R
OFFON
BEFORE TURNING ON UNIT:
1. CUT AND REMOVE ZIP TIE
2. PLUG HOLES USING
INCLUDED PLUGS
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
24V AC
COMP FAN
HONEYWELL REMOTE HUMIDISTAT
WIRING DIAGRAM
QUEST DEH 3000R CONTROL
WIRING DIAGRAM

5
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
1. Important Precautions
• The device is designed to be installed indoors in a space that is protected from rain and flooding.
• Install the unit with enough space to access all sides for maintenance and service. The entire shell needs to
be removed in order to do repairs.
• Avoid directing the discharge air at people. The dehumidier should be used in the upright position.
• If used near a water source; be certain there is no chance the unit could fall into the water or get splashed
and that it is plugged into a dedicated circuit and Ground Fault Circuit Interrupter (GFCI) protected outlet.
• DO NOT use the dehumidier as a bench or table.
• Do not place the dehumidier directly on structural building members without vibration absorbers or
unwanted noise may result. Place the Santa Fe Ultra120V on supports to raise the base of the unit.
• A drain pan with a float switch must be placed under the dehumidier if installed above a living area or above
an area where water leakage could cause damage.
DEHUMIDIFIER SET UP
4

6Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
2. Location Considerations
• Allow sufcient clearance to handle the unit’s overall dimensions as well as the necessary return and
supply ductwork to the unit.
• Allow sufcient clearance for lter removal and to prevent airflow obstruction.
• Electrical service access will require the removal of the front panel. Allow sufcient clearance on this side of
the unit.
• Locate the dehumidier in an area where the cord’s length (9’) easily reaches a 115 VAC electrical outlet
with a minimum of a 15 Amp circuit capacity.
• Locate the dehumidier in an area where eld wiring the control (low voltage) to the unit will be possible.
• It is recommended that a backdraft damper be used in the discharge duct of the Santa Fe Ultra120V,
especially when connecting to the supply ducting system. The backdraft damper prevents supply air from
counter flowing through the Santa Fe Ultra120V when it is not operating. The dehumidier’s location should
be chosen to allow installation of this accessory if necessary.
• Do not hang the Santa Fe Ultra120V from its cabinet.
• Allow for proper routing and drainage of needed drain pipes.
DEHUMIDIFIER SET UP
4
70°F and 60% RH
90 pints/day
6.0 Pints/kWh
Shipping
24”
49”
21”
138 lbs.
6" Optional Outdoor Air Intake
8" Return Air Duct
8" Supply Air Duct #1
Front View
8" Supply Air Duct #2 (Optional)
8" Duct Cover (Optional)

7
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
1. Outdoor Air Ventilation Duct
Outdoor air ventilation is optional. A 6” diameter damper is included with the unit and can be attached to the
top using the corresponding foam tape provided. The 6” damper should be closed if outdoor air is not desired. If
setting up the unit to provide outdoor air ventilation, see page 17.
2. Return Air Inlet
An 8” diameter duct collar is included with the unit and can be attached to the top with the corresponding foam
tape provided.
3. Supply Air Outlet #1
An 8” diameter duct collar is included with the unit and can be attached to the side using the corresponding
foam tape provided.
4. Supply Air Outlet #2
An optional 8” diameter duct collar is included with the unit and can be attached to the other side with the
corresponding foam tape provided.
5. Supply Air Duct Cover
An optional 8” diameter duct cover (attached) can be used to block one of the supply air outlets if not being
used.
ATTACHING DUCT COLLARS
5
70°F and 60% RH
90 pints/day
6.0 Pints/kWh
Shipping
24”
49”
21”
138 lbs.
6" Optional Outdoor Air Intake
8" Return Air Duct
8" Supply Air Duct #1
Front View
8" Supply Air Duct #2 (Optional)
8" Duct Cover (Optional)
Side View
Air Flow Path

8Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
The Santa Fe Ultra120V plugs into a common grounded 115 VAC outlet. The device draws 5.8 Amps at 80°F and
60% RH. Locate the dehumidier in an area where the cord’s length (9’) easily reaches a 115 VAC electrical outlet
with a minimum of 15 Amp circuit capacity. If used in an area that may become wet, a GFCI protected circuit is
recommended. Consult local electrical codes for further information.
Santa Fe offers a variety of control devices for use with the Santa Fe Ultra120V. The control is to be located
remotely from the dehumidier and placed in the space to be conditioned. A low voltage (24 Volt) control MUST be
used with the Santa Fe Ultra120V and MUST be connected with low voltage (18-22 gauge) thermostat wire.
CAUTION!
DO NOT ALLOW THE 24V TERMINAL TO CONTACT THE COM/DMPR TERMINALS ON THE
SANTA FE ULTRA120V OR DAMAGE TO THE TRANSFORMER WILL RESULT.
1. Electrical Precautions
• Do not install the control where it may not accurately sense the relative humidity such as near HVAC
supply registers, near exterior doors, on an outside wall, near a window, or near a water source.
• The screw terminals on the Santa Fe Ultra120V and the control are labeled to prevent confusion.
• Be sure to consult the electrical schematic in the CONTROLS Section (page 12) of this manual or
inside the access panel of the Santa Fe Ultra120V before making control connections.
WARNING!
THE REMOTE CONTROLS OF THE SANTA FE ULTRA120V ARE POWERED BY A LOW VOLTAGE CIRCUIT (24VAC)
AND MUST NEVER CONTACT OR BE CONNECTED TO A HIGH VOLTAGE CIRCUIT.
CAUTION!
SOME OF THE SCREWS TERMINALS ON THE SANTA FE ULTRA120V MAY NOT BE USED WITH
CERTAIN CONTROLS AND SHOULD BE LEFT UNCONNECTED.
ELECTRICAL REQUIREMENTS
6

9
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
2. Wiring Schematic
ELECTRICAL REQUIREMENTS
6

10 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
The Santa Fe Ultra120V generates condensate.
Place a secondary drain pan with a float switch under the dehumidier if it is suspended above a nished area or
above an area where water leakage could cause damage.
The Santa Fe Ultra120V contains an internal drain trap for proper dehumidier operation. Install a 3/4” threaded
male NPT adapter to the external condensate tting. Install a drain pipe assembly utilizing 3/4” PVC pipe to
transport the condensate to a drain. Pitch of drain should be 1” per 10’. An optional condensate pump kit is
available for use with the Santa Fe Ultra120V and may be installed if lift is required to dispose of condensate.
Condensate is automatically pumped to a remote location when the water level in the pump’s reservoir rises to
close the float switch.
The pump also contains a safety float switch. If the pump fails, this switch opens the common control circuit
and stops water production before the reservoir overflows.
DRAIN INSTALLATION
7
Side View
Supply
Air
Outlet 3/4" FPT
Fitting

11

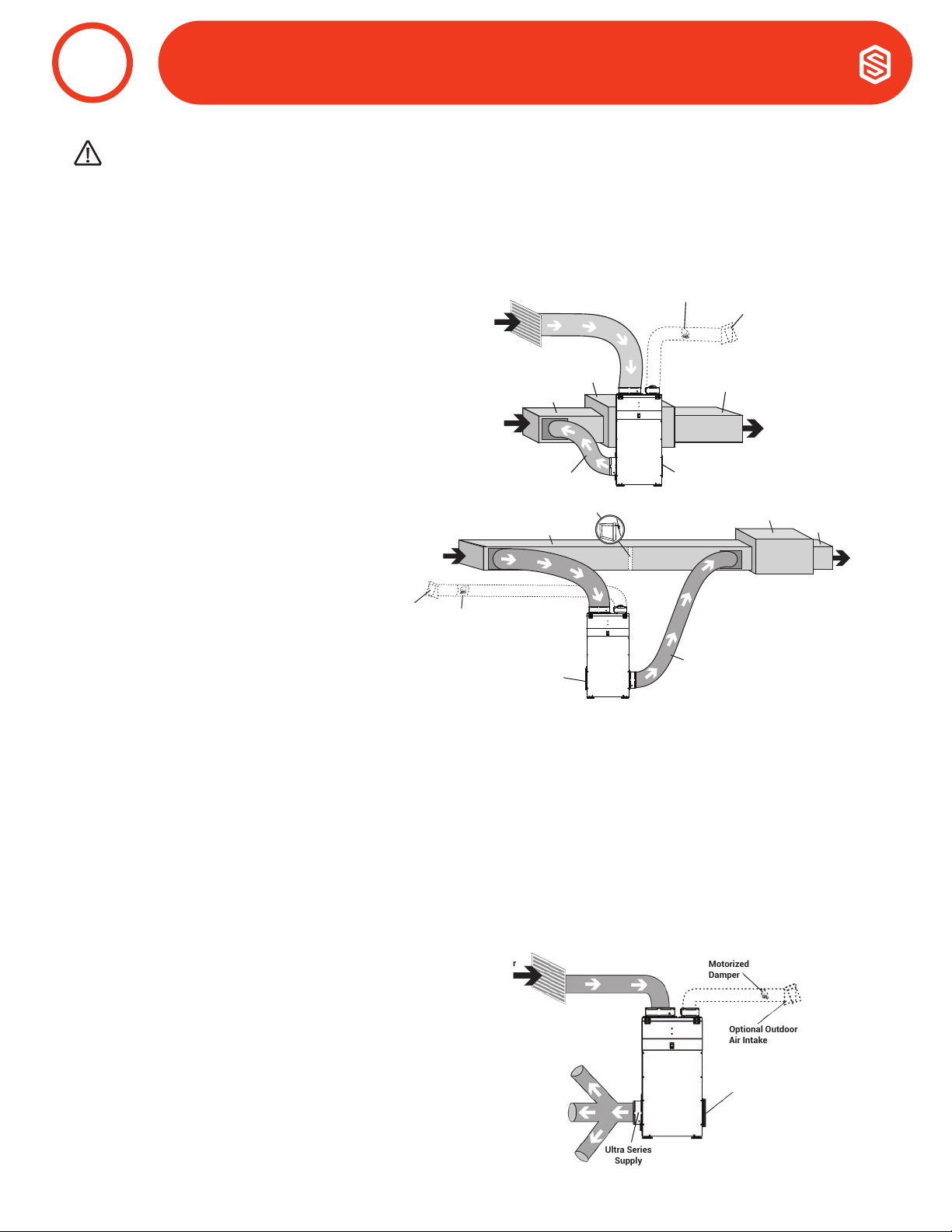

800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
CAUTION!
DO NOT CONNECT WITH A STATIC PRESSURE GREATER THAN OR EQUAL TO +0.5 WG.
CONTACT TECHNICAL SUPPORT AT [phone] FOR ADDITIONAL DETAILS.
1. Ducting Considerations:
• All flexible ducting connected to the Santa Fe Ultra120V should be UL listed.
• A short piece of flexible ducting on all Santa Fe Ultra120V duct connections is recommended to reduce noise
and vibration transmitted to rigid ductwork in the structure.
• Use a minimum 8” diameter round or equivalent rectangular duct for total duct lengths of up to 25’.
• Use a minimum 10” diameter round or equivalent rectangular duct for longer lengths.
• Grills or diffusers on the duct ends must not excessively restrict airflow.
• Effective dehumidication may require that ducting be branched to isolated, stagnant air flow areas. When
ducting to two or three areas, use 8” or larger diameter branch ducting. When ducting to four or more areas,
use 6” or larger diameter branch ducting. Provisions must be made to provide airflow from supply locations
to the central return location. Proper air distribution is important to ensure even humidity control and heat
distribution throughout the structure.
• DO NOT locate the return in a bathroom or a kitchen.
2. Decide Where To Place The Unit.
CAUTION! ALLOW FOR ENOUGH SPACING TO PROPERLY ROUTE THE RETURN AND
SUPPLY CONNECTION
a. Attach leveling feet. b. Supply ducts can be installed on both sides of the
unit. In cases where only one of the two supply
ducts is USED, the 8” duct cover can be installed to
concentrate the air supply through one duct.
3. Place Dehumidifier On The Floor.
CAUTION! INTERNAL STOPS LIMIT FEET HEIGHT. DO NOT TIGHTEN FEET BEYOND THE
RESISTANCE PROVIDED BY STOPS.
DUCTING TO HVAC SYSTEMS
8
DRAIN INSTALLATION
Ultra
Series
Supply
Ultra Series
Supply with
Duct Cover

12 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
4. Recommended HVAC System Installations
a. Attic
The recommended installation draws air from a central location through a dedicated return to the
dehumidier and ducts the supply of the dehumidier to the air supply of the HVAC system. Utilize the
optional outdoor air ventilation duct to provide outdoor air.
• Install a dedicated 10" air return for the Santa Fe Ultra120V from a central area of the structure.
• Duct the supply of the Santa Fe Ultra120V to the supply of the HVAC system with a backdraft
damper.
• If the existing system has multiple returns, instead of installing a dedicated return to the Santa Fe
Ultra120V, it is possible to select one to disconnect from the existing HVAC system and use it for
the dedicated Santa Fe Ultra120V return. Select a return from a central location in the house that
is always open to the rest of the structure. DO NOT use a return from a room where doors are kept
closed.
• DO NOT locate return in a bathroom or kitchen.
• Control should be located remotely from the dehumidier and placed in a central location.
Dedicated Santa Fe Return to HVAC Supply
DUCTING TO HVAC SYSTEMS
8
Motorized
Damper Optional
Outdoor Air
Intake
Air Handler
HVAC
Supply HVAC Return
Ultra Series
Indoor
Air Return
Backdraft
Damper Ultra Series
Supply
Duct Cover
Plate

13
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
DUCTING TO HVAC SYSTEMS DUCTING TO HVAC SYSTEMS
8
b. Installation in a Basement or Crawlspace
Install a separate 8" return for the Ultra120V in a central area of the structure. Duct the supply of the
dehumidier to the air supply of the HVAC system with a backdraft damper.
Optional: Duct the supply of the Ultra120V to a 8" x 8" x 8" tee/damper with a gravity draft damper, adjust-
ed to 20% open to the basement. CAUTION: Air takes the path of least resistance. If the upper levels of the
living space are not receiving the appropriate amount of dry air, this damper may need to be adjusted. When
the dehumidier is not running, there is a chance that air from the basement or crawlspace will make its way
back through the gravity damper and into the living space.
Optional
Outdoor Air
Intake
Dry Air to
Basement
Ultra Series
Supply Optional Duct Tee
& Gravity Damper
Air Handler Supply
Backdraft
Damper
Ultra Series
Indoor
Air Return
Duct Cover
Plate

14 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
If the Recommended Dedicated Ultra Series Return to HVAC Supply Installation is not possible, there are several
alternative installation options available.
• DO NOT locate return in a bathroom or kitchen.
• Control should be located remotely from the dehumidier and placed in a central location.
• For basement and crawl space installations, an optional tee can be installed on the Ultra Series Supply.
a. HVAC Return to HVAC Supply
Check Damper should be in place
between the Return and Supply
connections of the dehumidier.
If Check Damper is not in place, the
HVAC fan must turn on when the
dehumidier is in operation.
If the system has greater than 0.5” WG
the ducting must be recongured.
Air Handler
HVAC Supply
Optional Check Damper
(no HVAC fan needed)
HVAC Return
Motorized
Damper
Optional
Outdoor
Air Intake
Duct Cover
Plate
Ultra Series
Supply
5. Alternative HVAC System Installation
DUCTING TO HVAC SYSTEMS
8
WARNING
DUE TO PRESSURE RESISTANCE IT IS NOT RECOMMENDED TO USE THE OPTIONAL OUTDOOR AIR INTAKE
WHEN INSTALLING THE DEHUMIDIFIER SUPPLY TO SUPPLY.
b. HVAC Supply to HVAC Supply
Check Damper should be in place
between the Return and Supply
connections of the dehumidier.
If Check Damper is not in place, the
HVAC fan must turn on when the
dehumidier is in operation.
Air Handler
HVAC Supply
Optional Check Damper
(no HVAC fan needed)
Ultra Series
Supply
Motorized
Damper
Optional
Outdoor
Air Intake
Duct Cover
Plate
CAUTION!
TO AVOID THE DEHUMIDIFIER CYCLING IN AND OUT OF DEFROST, IT IS RECOMMENDED THAT THE LEAVING
AIR TEMPERATURE OF THE A/C COIL IS NOT BELOW 55°F. ALSO, THIS INSTALL IS NOT RECOMMENDED FOR
CLIMATES WERE THE HEATING SYSTEM WILL RUN DURING THE SPRING AND FALL TIMES OF THE YEAR, AS
THIS COULD DIMINISH THE WATER REMOVAL CAPABILITY OF THE DEHUMIDIFIER.

15
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
d. HVAC Return to HVAC Return
Check Damper should be in place
between the Return and Supply
connections of the dehumidier.
If Check Damper is not in place, the
HVAC fan must turn on when the
dehumidier is in operation.
Air Handler HVAC
Supply
HVAC Return
Optional Check Damper
(no HVAC fan needed)
Ultra Series
Supply
Motorized
Damper
Optional
Outdoor
Air Intake
Duct Cover
Plate
c. Dedicated Ultra Series Return to HVAC Return
Create a separate return for the Ultra
Series Dehumidier in a central area of
the building.
Installing the supply air from the Ultra
Series Dehumidier to the return of the
HVAC system requires the HVAC fan to
run when the Ultra Series Dehumidier
is operating.
Motorized
Damper Optional
Outdoor Air
Intake
Air Handler
HVAC
Return HVAC Supply
Ultra Series
Indoor
Air Return
Duct Cover
Plate
Ultra Series
Supply
Motorized
Damper
Ultra Series
Supply
Ultra Series
Indoor Air
Return
Optional Outdoor
Air Intake
Duct Cover Plate
e. No Existing Ductwork Installation
When installing the Ultra Series Dehumidier in a structure that does not have a forced-air HVAC system or is
not being tied into the system, a single return for the Ultra120V should be installed in a central location.
Install a 6” insulated duct from outside, teeing into the 8” return duct of the Ultra Series Dehumidier to provide
outdoor air ventilation (optional).
The supply of the Ultra Series Dehumidier should be ducted to the rooms in the home that have the ductless
mini-split heads and as close to the heads as possible. Be sure to utilize multiple rooms to allow air inside the
structure to properly circulate. Proper air distribution is important to ensure even humidity control and heat
distribution throughout the structure.
A 6” diameter duct is recommended for branches to bedrooms. An 8” diameter duct is recommended for
branches to larger areas.
• DO NOT locate return in a bathroom or
kitchen.
• DO NOT locate the supply in rooms
where doors may be closed.
• Control should be located remotely
from the dehumidier and placed in a
central location.
CAUTION!
PLEASE NOTE: RETURN TO RETURN INSTALLS ARE TO BE CONSIDERED LAST RESORT OPTIONS AND
ARE NOT RECOMMENDED. THE DEHUMIDIFIER WILL HEAT THE AC COOLING COILS WHICH DIMINISHES
THE AMOUNT OF WATER THE AC SYSTEM WILL REMOVE WHEN OPERATING. IF THIS INSTALLATION IS
CHOSEN, THE DEHUMIDIFIER MUST ACTIVATE THE HVAC BLOWER AND AC CALLS NEED TO LOCK OUT THE
DEHUMIDIFIER FROM RUNNING. PLEASE CHECK YOUR LOCAL CODES PRIOR TO INSTALLING.
DUCTING TO HVAC SYSTEMS
8

16 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
Due to space limitations, a closet installation may require additional considerations. Locate the dehumidier under
or next to the HVAC system as space allows. A passive vent or louver door is required to allow air to be pulled in
from the living space.
• No inlet duct is required. Air is pulled through the passive vent or louver door from the living space. Where
outlet space is restricted, the outlet duct collar is optional.
• Install an insulated duct from outside to the 6” collar of the Santa Fe Ultra Series Dehumidier to provide
outdoor air ventilation (optional).
• Control should be located remotely from the dehumidier and placed in a central location.
WHEN INSTALLING THE DEHUMIDIFIER AS PART OF A COMBUSTION TYPE HVAC SYSTEM (GAS, OIL, PROPANE,
ETC.), FOLLOW ALL LOCAL AND NATIONAL BUILDING AND SAFETY CODES.
WARNING!
a. Central Return to HVAC Supply
Duct the supply of the Ultra Series
Dehumidier to the supply of the
existing HVAC system with a backdraft
damper.
Motorized
Damper
HVAC
Supply
Ultra Series
Supply
HVAC
Return
Ultra Series
Return
Optional Outdoor
Air Intake
Backdraft
Damper
Duct Cover
Plate
1. Recommended Closet Installation
DUCTING TO HVAC SYSTEMS Closet Installations
9

17
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
2. Alternative Closet Installation
If the Recommended Closet Installation is not possible, there are alternative installation options available.
• No inlet duct is required. Air is pulled through the louvers or grille from the living space.
• Install a 6” insulated duct from outside, teeing into the 8” return duct of the Santa Fe Ultra Series
Dehumidier to provide outdoor air ventilation (optional).
• Control should be placed in a central location or the on board control can be used for this installation.
a. Central Return to HVAC Return
Duct the supply of the Ultra Series
Dehumidier to the return side of the
existing HVAC system.
In a central return system, the HVAC
fan must run when the dehumidier is
running.
Motorized
Damper
HVAC
Supply
Ultra Series
Supply
HVAC
Return
Ultra Series
Return
Optional Outdoor
Air Intake
Duct Cover
Plate
DUCTING TO HVAC SYSTEMS Closet Installations
9
CAUTION!
PLEASE NOTE: RETURN TO RETURN INSTALLS ARE TO BE CONSIDERED LAST RESORT OPTIONS AND ARE
NOT RECOMMENDED. THE DEHUMIDIFIER WILL HEAT THE AC COOLING COILS WHICH DIMINISHES THE
AMOUNT OF WATER THE AC SYSTEM WILL REMOVE WHEN OPERATING. PLEASE CHECK YOUR LOCAL
CODES PRIOR TO INSTALLING.

18 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
Outdoor air ventilation is optional.
Outdoor air may be brought into the structure by connecting an insulated duct from outside the structure to the
6” inlet of the Santa Fe Ultra120V. A ventilation control is needed to program the time and frequency that the unit
introduces outside air. The time and frequency of ventilation should be based on the size and occupancy of the
residence.
• The outdoor air ventilation duct should be connected to the 6” damper on the top of the Santa Fe
Ultra120V.
• An insulated 6” diameter duct can provide up to 100 CFM of outside air.
• If a motorized damper is not being used, outdoor air is controlled by the manual damper in the 6” collar
of the Santa Fe Ultra120V.
• The performance of the Santa Fe Ultra120V can be impacted by inside and outside air conditions.
• When a 6” motorized damper is used, a digital control is required.
• It may be necessary to use 8” duct work if additional outdoor air is required.
• In cold climates or at times when the dew point is low, ventilation can be used to dehumidify the
structure, making the Santa Fe Ultra120V capable of year-round drying.
1. 
Outside air mixes with return air prior to beginning the dehumidication process. Outside
and inside temperature and relative humidity will impact the combined outlet air conditions.
OUTDOOR AIR MECHANICAL VENTILATION
10
70°F and 60% RH
90 pints/day
6.0 Pints/kWh
Shipping
24”
49”
21”
138 lbs.
6" Optional Outdoor Air Intake
10" Return Air Duct
8" Supply Air Duct #1
8" Supply Air Duct #2 (Optional)
Front
View
Hot Climate Cold Climate
Indoor Air
70°F, 50%RH Outdoor Air 90°F, 65%RH Indoor Air 70°F, 50%RH Outdoor Air 30°F, 65%RH
Outlet Air
76°F, 59%RH Outlet Air 76°F, 59%RH Outlet Air 59°F, 60%RH Outlet Air 59°F, 60%RH
Front
View

19
800.533.7533 | Santa-Fe-Products.com Santa Fe ULTRA120V Installation & Operation Instructions
Option 1: Calculating Airflow Requirement Using ASHRAE 62.2-2016 Airflow Equation
ASHRAE Airflow in CFM = [House Area in Sq.Ft. x 0.03] + [(Number of Bedrooms +1) x 7.5]
NOTE: Use ‘Number of Bedrooms + 1’ or ‘Number of Occupants’, whichever is larger.
Example 1: Number of Bedrooms + 1
1800 square foot house with 3 bedrooms, 4 occupants = [1800 X 0.03] + [(3+1) X 7.5] = 84 CFM
Example 2: Number of Occupants
1800 square foot house with 3 bedrooms, 5 occupants = [1800 X 0.03] + [5 X 7.5] = 91.5 CFM
Record the required CFM ____________
1. Determine Ventilation Requirements
The MINIMUM ventilation requirement is calculated using ASHRAE 62.2-2016. Use one or both of the options below
to determine your ventilation requirement. Follow all local and national building and safety codes.
Option 2: Calculating Airflow Requirement Using Table 4.1 from ASHRAE 62.2-2019
Ventilation Air Requirements, CFM
Record the required CFM ____________ Table 4.1 from ASHRAE 62.2-2019
Floor Area
(ft2)
Number of Bedrooms
12345
<500 30 38 45 53 60
501-1000 45 56 60 68 75
1001-1500 60 68 75 83 90
1501-2000 75 83 90 98 105
2001-2500 90 98 105 113 120
2501-3000 105 113 120 128 135
3001-3500 120 128 135 143 150
3501-4000 135 143 150 158 165
4001-4500 150 158 165 173 180
4501-5000 165 173 180 188 195
OUTDOOR AIR VENTILATION
11

20 Santa Fe ULTRA120V Installation & Operation Instructions Santa-Fe-Products.com | 800.533.7533
A control must be used with the Santa Fe Ultra120V. Santa Fe offers the DEH 3000 proprietary control. The DEH 3000
allows homeowners to monitor and control relative humidity and proper ventilation levels in their home. This control is
also available with a remote sensing option.
NOTE: The DEH 3000 is sold separately. Other thermostats are compatible with the Santa Fe Ultra120V.
CAUTION!
DO NOT ALLOW THE 24V TERMINAL FROM THE SANTA FE ULTRA120V TO CONTACT THE COM
TERMINAL ON THE SANTA FE ULTRA120V OR DAMAGE TO THE TRANSFORMERS WILL RESULT.
a. Circuit Breaker
To prevent damage to the 24 volt control transformer, the Santa Fe Ultra120V comes with a resettable circuit
breaker. Check wiring for any electrical short and repair before resetting the breaker. Resetting the circuit
breaker without correcting the electrical short may result in transformer damage. Be sure to check the
electrical schematic in this manual or inside the access panel of the Santa Fe Ultra120V before making any
control connections. The reset button for the circuit breaker can be found on the side of the unit.
b. Control Connections
The control and the Santa Fe Ultra120V are labeled to prevent confusion. Depending on the control, some of
the screw terminals on the Santa Fe Ultra120V may not be used. Be sure to consult the electrical schematic
in this manual (see page 8) or inside the access panel of the Santa Fe Ultra120V before making control
connections.
1. Wiring Controls
CONTROLS
12
Side View
Circuit Breaker
Reset Button
COM
FAN 24V DEHU
FLOAT FLOAT
