Santa's Bags Tree Dolly User manual

Tree Dolly Assembly Instructions
ITEM SB-10120 / SB-10120RS
DO NOT RETURN TO VENDOR.
For assistance with assembly including instructional videos, parts and customer service visit
www.SantasBags.com
A.
B.
Wing Nut
Bolt
4
6
C.
Base 1
QUANTITYPART PICTUREPART
F.
G.
Storage
Bag
Back
Wheels
1
2
QUANTITYPART PICTUREPART
H.
I.
Front
Castors
Alan
Wrench
2
1
ASSEMBLY
Step 1. Rear side wheels (Part G) attach by screwing in the bolt (Part A) with the provided Alan wrench (Part I).
Step 2. Front castors are installed by threading the wheels (Part H) onto the base (Part C). Then by using the included
wrench (Part J), rotating until tight.
Step 3 & 4. Insert the middle frame section (Part D) into the tubes on the base of the dolly (Part C). Because the
section's tubing t's tightly, be sure to keep the frame sections lined perfectly straight with each other as you assemble
them together. Having one section or the other at a slightly "o" angle may result in diculty in assembling.
Step 5. Insert the top frame section (Part E) into the tubes of the middle frame section (Part D).
Step 6. Insert the bolts into the holes on both frame sections (Parts D & E) and tighten with the provided wing
nuts (Part B).
Ste p 7. Slide the rear bag sleeve (Part F) over the handle of the frame (Part E).
Step 8. Velcro the top bag handle onto the top of the dolly handle.
Step 9. Velcro the base of the bag (Part F) to the base of the dolly (Part C).

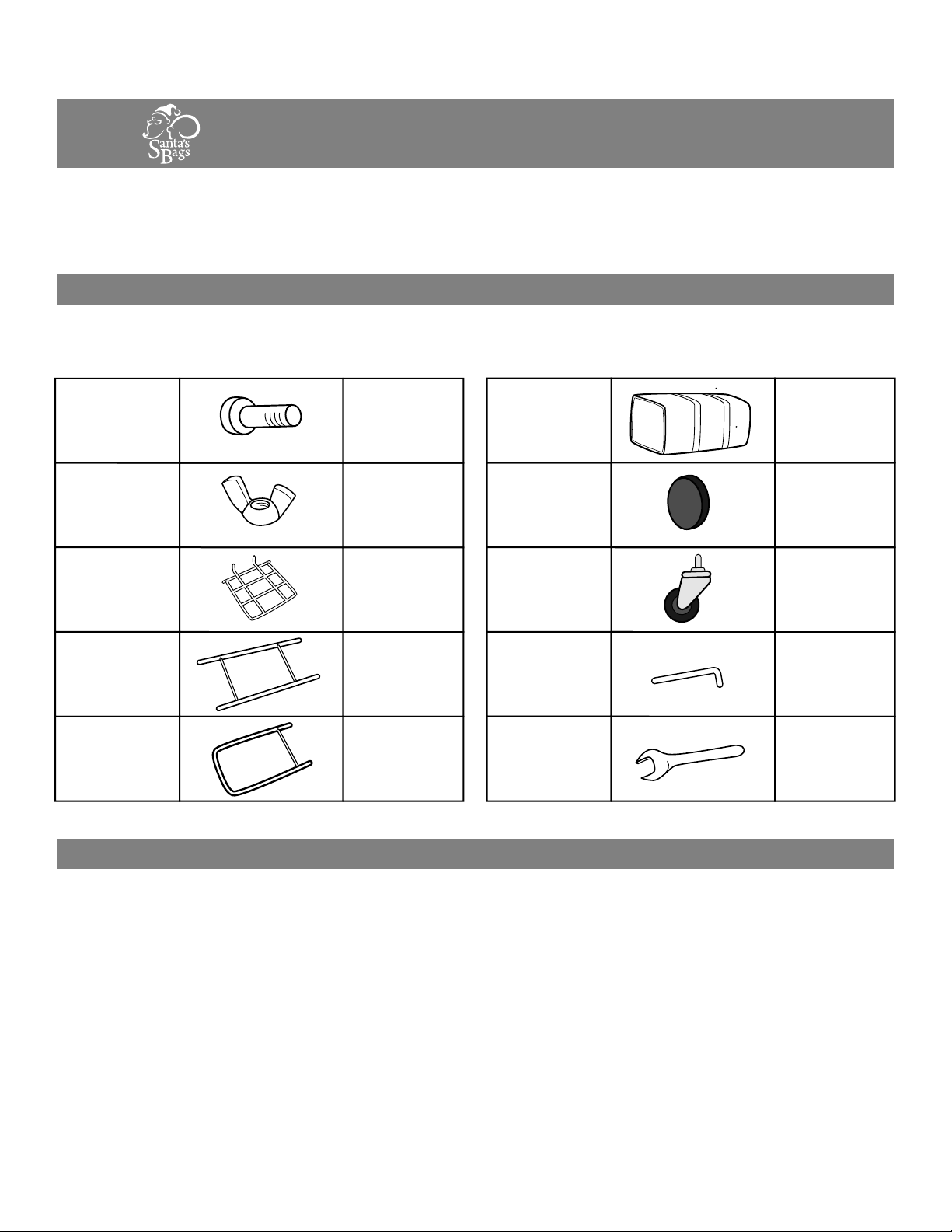

PARTS LIST
Please lay out all parts prior to assembly or installation. Read instructions prior to assembly.
D.
Middle
Frame 1
J.
Wrench 1
E.
Top
Frame 1
ILLUSTRATIONS ON NEXT PAGE

ASSEMBLY ILLUSTR ATIONS
TREE LOADING ILLUSTR ATIONS
Step 1. Disassemble your tree and compress the sections.
Step 2. Insert largest tree section bushy side rst into the back
of the bag (furthest from wheels).
Step 3. Insert second tree section opposite to the rst.
Step 4. Insert tree top and stand.
STEP 3STEP 2STEP 1
STEP 4 STEP 5 STEP 6
STEP 7 STEP 8 STEP 9
STEP 1
STEP 2
STEP 3
STEP 4
TOP
STAND
STAND
BOTTOM
BOTTOM
MIDDLE
MIDDLE
TOP
larger trees (7-9 ft)
normal trees (6-7 ft)
THE TOP OF THE BAG UNZIPS AND EXPANDS
TO EASILY FIT YOUR LARGER TREES!
TOP
BOTTOM TREE SECTION
MIDDLE TREE SECTION
