Hoshizaki B-250PD User manual

APRIL 26, 2001
HOSHIZAKI STORAGE BIN
ITEM NUMBER:
ISSUED:
MODEL B-250PD
B-300PD
B-500PD
B-700PD
B-800PD
B-900PD
PARTS LIST
REVISED:
APRIL 19, 1993
71100

2
B-250PD G-0 May, 1997
H-0 Dec., 1997
J-0 March,1999
K-0 March,2000
B-300PD C-1 Feb., 1993
D-0 April, 1994
E-0 Dec., 1994
E-1 May, 1995
F-0 Dec., 1995
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-500PD C-1 March,1993
D-0 Dec., 1993
E-0 Jan., 1995
E-1 June,1995
F-0 Dec., 1995
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-700PD D-1 Jan., 1994
E-0 Nov., 1994
E-1 June,1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-800PD D-1 Jan., 1994
D-0 Nov., 1994
E-1 June,1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999
B-900PD D-1 Feb., 1994
E-0 Nov., 1994
E-1 June,1995
F-0 Dec., 1995
F-1 Jan., 1996
G-0 Dec., 1996
H-0 Dec., 1997
J-0 Dec., 1998
K-0 Dec., 1999

3
FASTENER ABBREVIATION LIST
ST Phillips Truss Machine Screw
SP Phillips Pan Head Machine Screw
SF Phillips Flat Head Machine Screw
SS Phillips Pan Head Machine Screw with Split Lock Washer
SW Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 Phillips Truss Head Tapping Screw (Correspond to Type C)
FT Phillips Truss Head Tapping Screw (Special)
BH Hexagon Head Bolt
BC Socket Head Cap Screw
BS Hexagon Bolt with Split Washer
BW Hexagon Bolt with Split Washer and Flat Washer
BF Hexagon Flange Bolt
BR Cross-Recessed Hexagon Head Bolt
BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL Split Lock Washer
WT External Tooth Washer
WF Flat Washer
WS Spring Washer
NH Hexagon Nut
NF Hexagon Flange Nut
NC Hexagon Cap Nut
NS Square Nut
NW Wing Nut
Ex. ST0308S (Phillips Truss Head Machine Screw
3x8, made of stainless steel)
Material None: Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except toe list.
Ex. S1, S2, B3 etc.
And abbreviations and names are shown under the illustration.

4
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARYCODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "1990" or "2000".
o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "1991" or "2001".
Ex.3 A-2
Each time a part is changed
in a year, this number advances.

5
HA

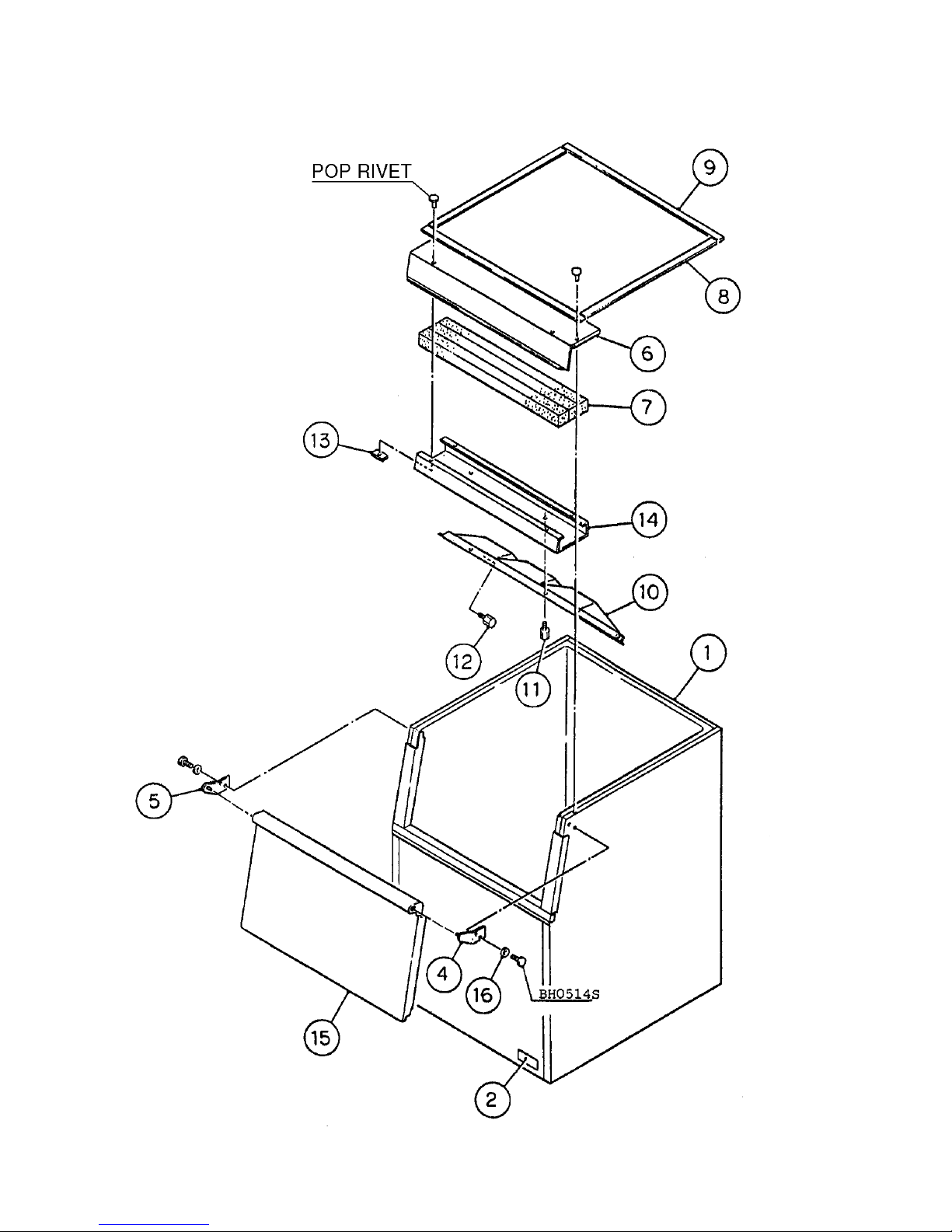

B-250PD A. BIN ASSEMBLY G-0, H-0

6
HA
B-250PD A. BIN ASSEMBLY J-0, K-0

7
MODEL: B-250PD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER G-0
H-0
J-0 K-0
1 BIN BODY - 2A0803G01 1 1 1
2 NAMEPLATE PES FILM 4A0158-12 1 1 1
3 COLLAR POM 431496-02 2 -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER (5) SS 3A0157-01 1 1 1
7 INSULATION (C2) PS FORM 437687-02 3 3 3
8 GASKET PVC, L=630 4A0808L01 2 2 2
9 GASKET PVC, L=757 4A0808L01 2 2 2
10 BAFFLE (5) PS 104322-01 1 1 1
11 THUMBSCREW ABS, SS 415949G01 2 2 2
12 THUMBSCREW ABS, SS 434168G01 2 2 2
13 FRONT FRAME SS 3A0420-01 1 1 1
14 FRONT FRAME COVER (5) ABS 324625-01 1 1 1
15 DOOR (5) PE 1A0034-01 1 -
BIN DOOR - 3A0540G05 1 1
16 WASHER SS 4A0198-01 4 4 4

8
HA

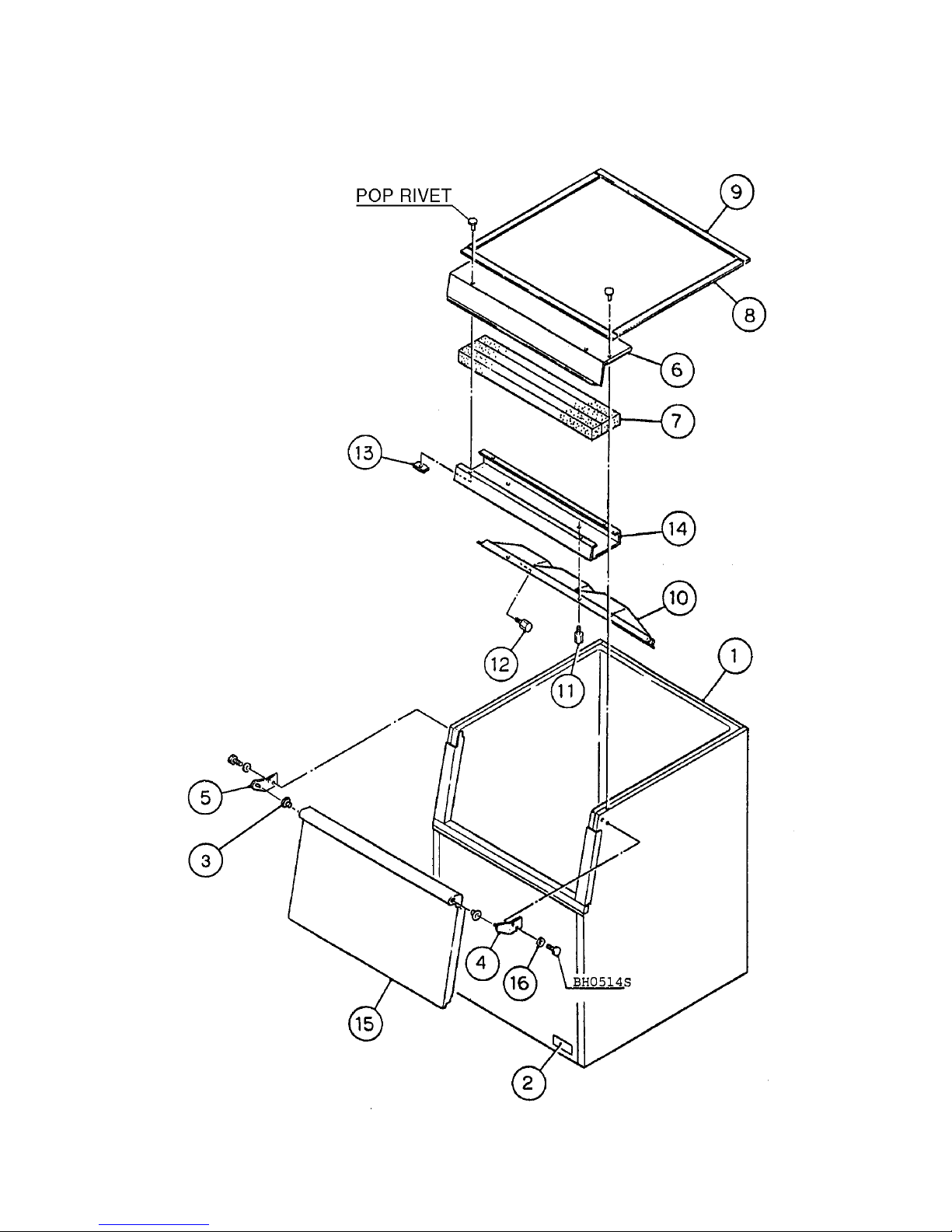

B-300PD A. BIN ASSEMBLY C-1, D-0, E-0, E-1

9
HA
B-300PD A. BIN ASSEMBLY F-0, G-0, H-0

10
HA
B-300PD A. BIN ASSEMBLY J-0, K-0

11
MODEL: B-300PD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER C-1
D-0
E-0
E-1 F-0 G-0
H-0
J-0 K-0
1 BIN BODY - 1A0044G01 x1
- 2A0484G01 o1 -
- 2A0512G01 11111
2 NAMEPLATE PES FILM 4A0158-01 111111
3 COLLAR POM 431496-01 2 2 x2
POM 431496-02 o2 2 -
4 HINGE-BODY(R) SS 3A0105G01 111111
5 HINGE-BODY(L) SS 3A0106G01 111111
6 TOP COVER (3) SS 3A0156-01 111111
7 INSULATION (C3) PS FORM 437687-01 333333
8 SEAL (C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2 2
9 SEAL (B3) PVC 434058-01 2 x2
GASKET PVC, L=554 4A0808L01 o2 2 2 2 2
10 BAFFLE (3) PS 104391-01 111111
11 THUMBSCREW ABS, SS 415949G01 222222
12 THUMBSCREW ABS, SS 434168G01 222222
13 PLATE SS 4A0199-01 2 2 2 -
WASHER SS 4A0928-01 2 2 2
14 FRONT FRAME COVER (3) ABS 324617-01 111111
15 DOOR (3) PE 1A0034-01 1111-
BIN DOOR - 3A0540G04 1 1
16 WASHER SS 4A0198-01 444444
17 SPACER PA 4A0074-01 2 2 -
18 BIN CAUTION LABEL PAPER 4A0740-01 1 -

12
HA

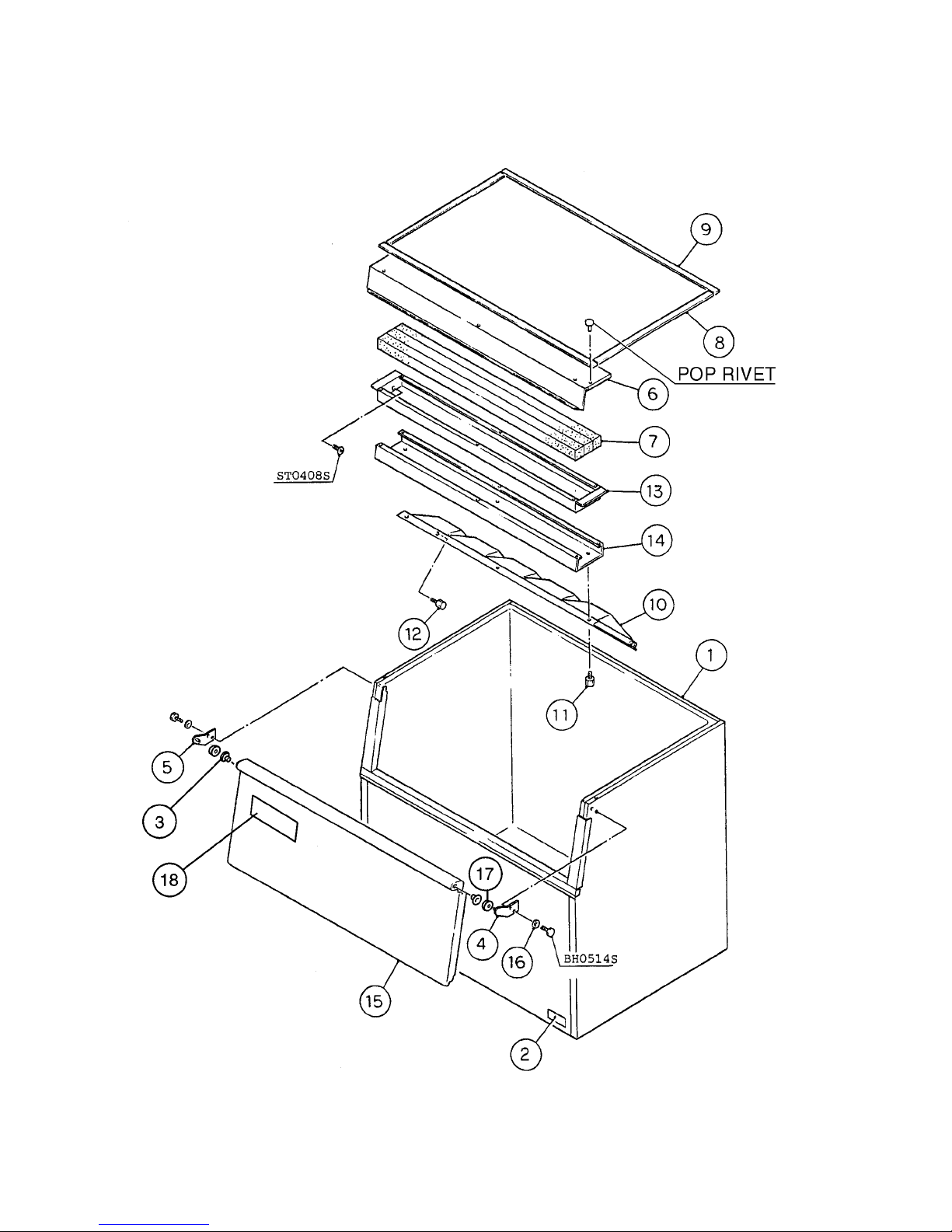

B-500PD A. BIN ASSEMBLY C-1, D-0, E-0, E-1

13
HA

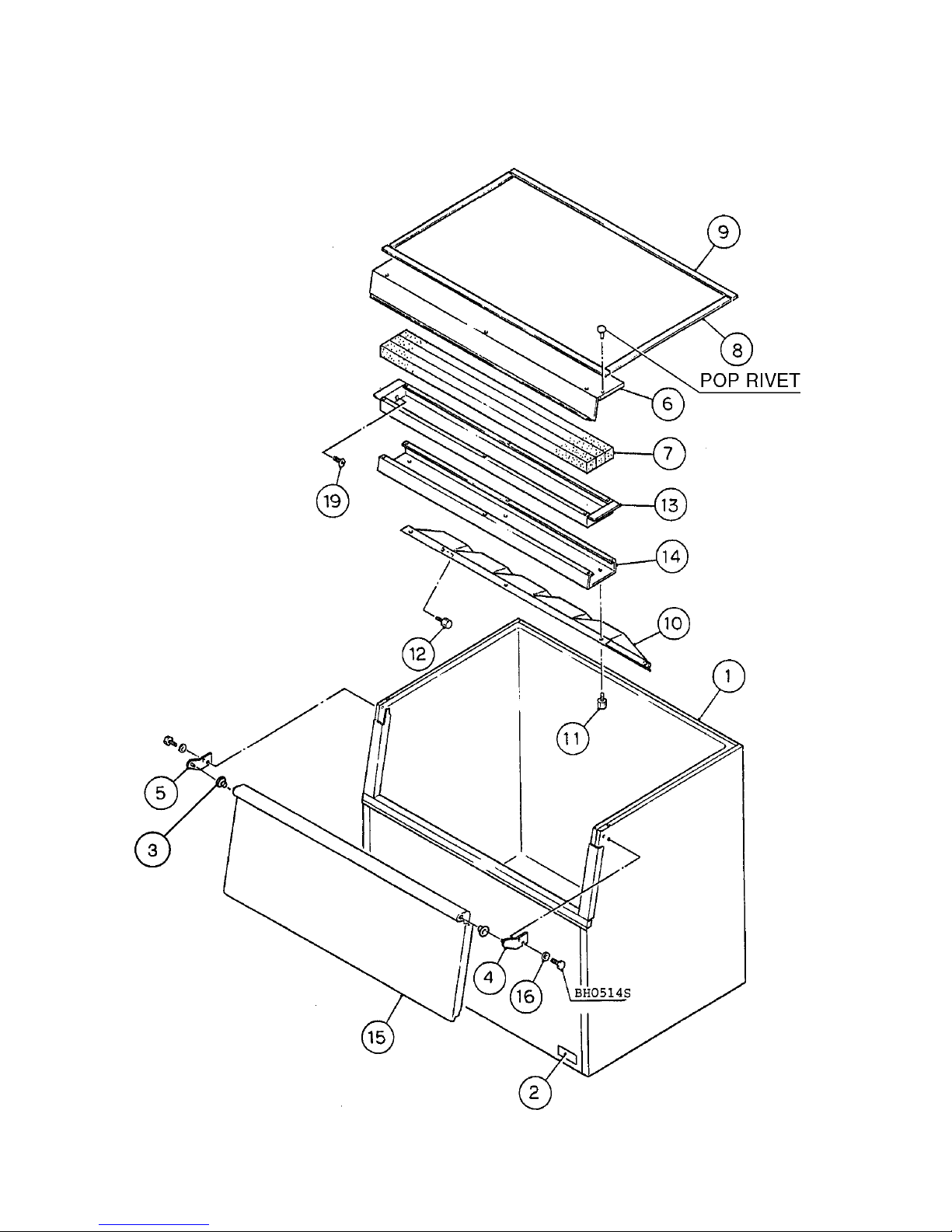

B-500PD A. BIN ASSEMBLY F-0, G-0, H-0

14
HA
B-500PD A. BIN ASSEMBLY J-0, K-0

15
MODEL: B-500PD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER C-1
D-0
E-0
E-1 F-0 G-0
H-0
J-0 K-0
1 BIN BODY - 1A0044G02 x1
- 2A0484G02 o1 -
- 2A0512G02 1 1 1 1 1
2 NAMEPLATE PES FILM 4A0158-02 1 1 1 1 1 1
3 COLLAR POM 431496-01 2 2 x2
POM 431496-02 o2 2 -
4 HINGE-BODY(R) SS 3A0105G01 1 1 1 1 1 1
5 HINGE-BODY(L) SS 3A0106G01 1 1 1 1 1 1
6 TOP COVER (5) SS 3A0157-01 1 1 1 1 1 1
7 INSULATION (C2) PS FORM 437687-02 3 3 3 3 3 3
8 SEAL (C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2 2
9 SEAL (B5) PVC 434058-02 2 x2
GASKET PVC, L=757 4A0808L01 o2 2 2 2 2
10 BAFFLE (5) PS 104322-01 1 1 1 1 1 1
11 THUMBSCREW ABS, SS 415949G01 2 2 2 2 2 2
12 THUMBSCREW ABS, SS 434168G01 2 2 2 2 2 2
13 FRONT FRAME (5) SS 3A0159-01 1 -
SS 3A0420-01 1 1 1 1 1
14 FRONT FRAME COVER (5) ABS 324625-01 1 1 1 1 1 1
15 DOOR (5) PE 1A0034-02 1 1 1 1 -
BIN DOOR - 3A0540G05 1 1
16 WASHER SS 4A0198-01 4 4 4 4 4 4
17 SPACER PA 4A0074-01 2 2 -
18 BIN CAUTION LABEL PAPER 4A0740-01 1 -
19 TAPPING SCREW - 4A0920-01 2 2 2 2

16
HA
B-700, 800, 900PD A. BIN ASSEMBLY D-1, E-0, E-1, F-0

17
HA
B-700, 800, 900PD A. BIN ASSEMBLY F-1, G-0, H-0, J-0, K-0

18
MODEL: B-700PD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER D-1
E-0
E-1
F-0
F-1 G-0
H-0
J-0
K-0
1 BIN BODY - 1A0044G11 x1
- 2A0484G03 o1 -
- 2A0512G03 1 -
- 2A0512G12 1 1 1
2 NAMEPLATE PES FILM 4A0158-03 1 1 1 1 1
3 COLLAR-PC POM 431496-02 2 2 -
4 HINGE(R) SS 437638G01 1 1 -
HINGE-BODY(R) SS 3A0105G01 1 1 1
5 HINGE (L) SS 437640G01 1 1 -
HINGE-BODY(L) SS 3A0106G01 1 1 1
6 TOP COVER (7) SS 214345-01 1 1 -
SS 3A0158-01 1 1 1
7 INSULATION (C7) PS FORM 437687-03 3 3 3 3 3
8 SEAL (C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2
9 SEAL (B3) PVC 434058-03 2 x2
GASKET PVC,
L=1112.5
4A0808L01 o2 2 2 2
10 BAFFLE (7) PS 104323-01 1 1 1 1 1
11 THUMBSCREW ABS,SS 415949G01 3 3 3 3 3
12 THUMBSCREW ABS,SS 434168G01 2 2 2 2 2
13 FRONT FRAME (7) SS 3A0446-01 1 1 1 1 1
14 FRONT FRAME COVER (7) ABS 3A0155-01 1 1 1 1 1
15 DOOR ASSEMBLY (214875A03) 214657G03 1 1 -
16 GASKET(7) 3A0052-03 1 1 -
17 WASHER SS 4A0198-01 4 4 4 4 4
18 SPACER PA 4A0074-01 2 2 -
19 BIN CAUTION LABEL PAPER 4A0740-01 1 -
20 BIN DOOR PE 3A0540G01 1 1 1
21 TAPPING SCREW - 4A0920-01 2 2 2

19
MODEL: B-800PD TITLE:A. BIN ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER D-1
E-0
E-1
F-0
F-1 G-0
H-0
J-0
K-0
1 BIN BODY - 1A0044G12 x1
2A0484G04 o1 -
2A0512G04 1 -
2A0512G13 1 1 1
2NAMEPLATE PESFILM4A0158-0411111
3 COLLAR-PC POM 431496-02 2 2 -
4 HINGE (R) SS 437638G01 1 1 -
HINGE-BODY (R) SS 3A0105G01 1 1 1
5 HINGE (L) SS 437640G01 1 1 -
HINGE-BODY (L) SS 3A0106G01 1 1 1
6 TOP COVER (8) SS 215331-01 1 1 -
SS 2A0106-01 1 1 1
7INSULATION(C8) PSFORM437687-0533333
8 SEAL (C) PVC 434059-01 2 x2
GASKET PVC, L=630 4A0808L01 o2 2 2 2
9 SEAL PVC 434058-04 2 x2
GASKET PVC, L=1316 4A0808L01 o2 2 2 2
10BAFFLE(8) PS 105012-0111111
11THUMBSCREW ABS,SS415949G0144444
12THUMBSCREW ABS,SS434168G0122222
13FRONTFRAME(8) SS 3A0447-0111111
14FRONTFRAMECOVER(8) ABS 325510-0111111
15 DOOR ASSEMBLY (214875A05) 214657G05 1 1 -
16 GASKET (8) 3A0052-05 1 1 -
17WASHER SS 4A0198-0144444
18SPACER PA 4A0074-0122222
19 BIN CAUTION LABEL PAPER 4A0740-01 1 -
20 BIN DOOR PE 3A0540G02 1 1 1
21 TAPPING SCREW - 4A0920-01 2 2 2
