TECHNICAL & SERVICE MANUAL
SAP–K181AA + SAP–C181AA
SAP–K241AA + SAP–C241AA FILE NO.
REFERENCE NO. SM700461
Indoor Unit Outdoor Unit
SPLIT SYSTEM AIR CONDITIONER
SAP–K181AA
SAP–K241AA SAP–C181AA
SAP–C241AA
Indoor Model No. Product Code No. Destination
SAP–K181AA–S 1 852 070 73
SAP–K241AA–S 1 852 070 74
Outdoor Model No. Product Code No. Destination
SAP–C181AA–S 1 852 070 81 Australia
SAP–C241AA–S 1 852 070 82
Australia

i
Important!
Please Read Before Starting
This air conditioning system meets strict safety and
operating standards. As the installer or service person,
it is an important part of your job to install or service the
system so it operates safely and efficiently.
For safe installation and trouble-free operation, you
must:
●Carefully read this instruction booklet before
beginning.
●Follow each installation or repair step exactly as
shown.
●Observe all local, state, and national electrical codes.
●Pay close attention to all warning and caution notices
given in this manual.
This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or
death.
This symbol refers to a hazard or
unsafe practice which can result
in personal injury or product or
property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help
for a special problem, contact our sales/service outlet
or your certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
Special Precautions
When Wiring
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR
DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
• Do not supply power to the unit until all wiring and
tubing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this
system. Carefully refer to the wiring diagram and
these instructions when wiring. Improper connections
and inadequate grounding can cause accidental
injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause
overheating at connection points and a possible fire
hazard.
WARNING
CAUTION
WARNING
When Transporting
Be careful when picking up and moving the indoor and
outdoor units. Get a partner to help, and bend your
knees when lifting to reduce strain on your back. Sharp
edges or thin aluminum fins on the air conditioner can
cut your fingers.
When Installing…
…In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the
units weight. It may be necessary to construct a strong
wood or metal frame to provide added support.
…In a Room
Properly insulate any tubing run inside a room to
prevent “sweating” that can cause dripping and water
damage to walls and floors.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to
provide a solid, level foundation for the outdoor unit.
This prevents water damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a
metal frame. Provide a suitable air baffle.
…In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
• Use the flare method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces
of the flare and union tubes before connecting them,
then tighten the nut with a torque wrench for a leak-
free connection.
• Check carefully for leaks before starting the test run.
When Servicing
• Turn the power off at the main power box (mains)
before opening the unit to check or repair electrical
parts and wiring.
• Keep your fingers and clothing away from any
moving parts.
• Clean up the site after you finish, remembering to
check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
Others
• Ventilate any enclosed areas when installing or
testing the refrigeration system. Escaped refrigerant
gas, on contact with fire or heat, can produce
dangerously toxic gas.
• Confirm upon completing installation that no
refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room
heater or other heat source, it can produce
dangerously toxic gas.
CAUTION

Table of Contents
Page
1. OPERATING RANGE .............................................................................................................................. 1
2. SPECIFICATIONS
2-1. Unit Specifications.......................................................................................................................... 2
2-2. Major Component Specifications.................................................................................................... 4
2-3. Other Component Specifications.................................................................................................... 8

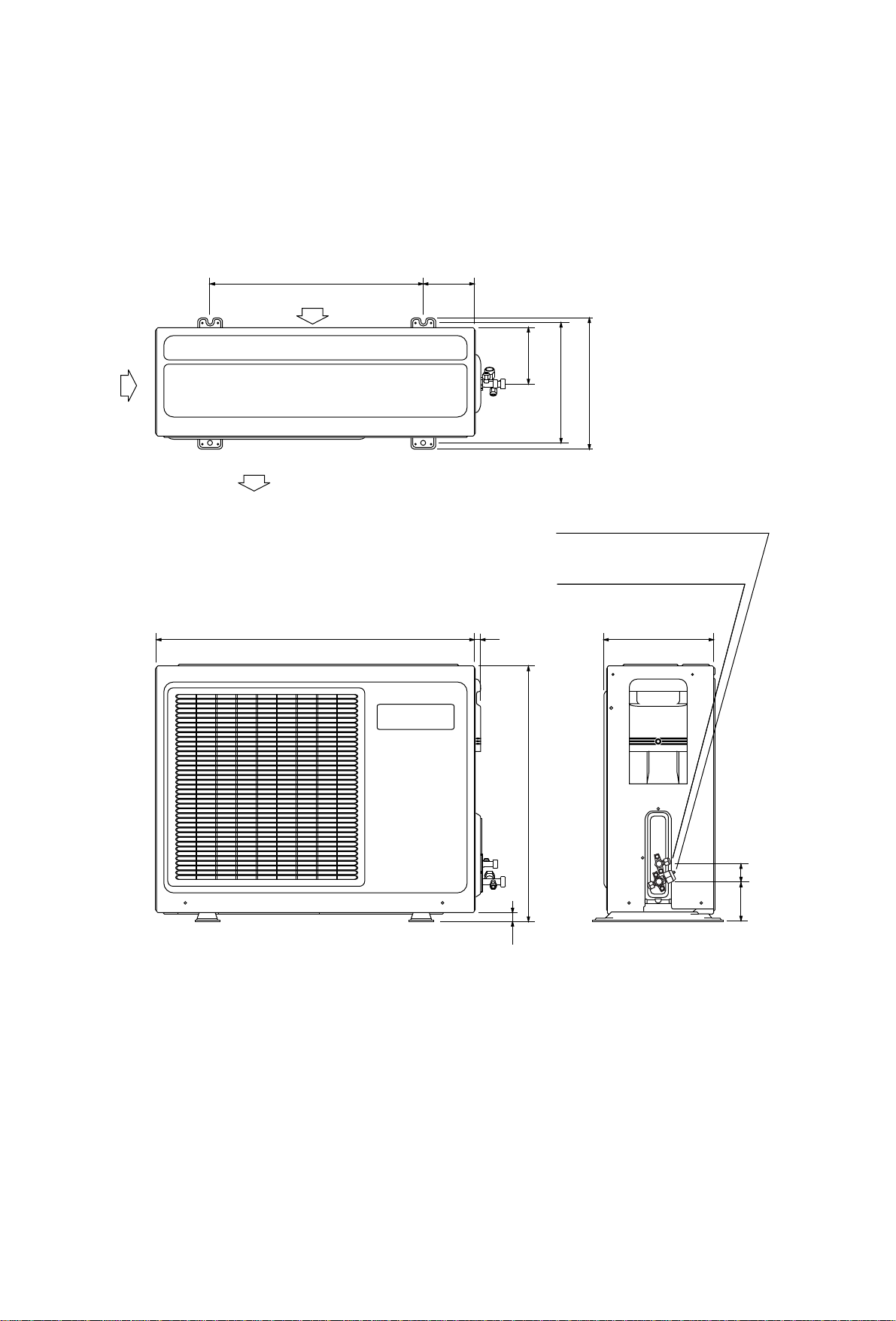

3. DIMENSIONAL DATA.............................................................................................................................. 9
4. REFRIGERANT FLOW DIAGRAM ......................................................................................................... 12
5. PERFORMANCE DATA
5-1. Performance charts ....................................................................................................................... 13
5-2. Air Throw Distance Chart .............................................................................................................. 14
5-3. Cooling Capacity ........................................................................................................................... 15
6. ELECTRICAL DATA
6-1. Electrical Characteristics................................................................................................................ 17
6-2. Electric Wiring Diagrams................................................................................................................ 18
7. INSTALLATION INSTRUCTIONS
7-1. Installation Site Selection ............................................................................................................... 21
7-2. Remote Control Unit Installation Position....................................................................................... 23
7-3. Recommended Wire Length and Diameter ................................................................................... 24
8. FUNCTION
8-1. Room Temperature Control ........................................................................................................... 25
8-2. Dry Operation ................................................................................................................................ 26
8-3. Freeze Prevention ......................................................................................................................... 26
8-4. Outdoor Fan Speed Control .......................................................................................................... 27
9. TROUBLESHOOTING
9-1. Check before and after troubleshooting ........................................................................................ 28
9-2. Air conditioner does not operate .................................................................................................... 29
9-3. Some part of air conditioner does not operate .............................................................................. 33
9-4. Air conditioner operates, but abnormalities are observed ............................................................. 35
9-5. If a sensor is defective ................................................................................................................... 36
10. CHECKING ELECTRICAL COMPONENTS
10-1. Measurement of Insulation Resistance .......................................................................................... 37
10-2. Checking Continuity of Fuse on PCB Ass'y.................................................................................... 38
10-3. Checking Motor Capacitor ............................................................................................................. 38
11. MAINTENANCE
11-1. Changing Address of Remote Control Unit in Indoor Unit ............................................................. 39
INSTRUCTION MANUAL ........................................................................................................ 40
APPENDIX
ii

1
1. OPERATING RANGE
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.
Cooling Maximum 32°C D.B. / 23°C W.B. 43°C D.B.
Minimum 19°C D.B. / 14°C W.B. 19°C D.B.

2
2. SPECIFICATIONS
2-1. Unit Specifications
Indoor Unit SAP–K181AA
Outdoor Unit SAP–C181AA
Power Source
240V Single phase 50Hz
Voltage rating 240 V
Performance Cooling
Capacity kW 5.0
BTU/h 17,100
Air circulation (High)
m3/h 760
Moisture removal (High) Liters/h 2.7
Electrical Rating Cooling
Available voltage range V 216 ~ 264
Running amperes A 9.6
Power input W 2,180
Power factor % 95
C.O.P. W/W 2.3
Compressor locked rotor amperes A 48
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer 1-hour OFF / 12-hours ON or OFF
Fan speeds Indoor / Outdoor 3 and Auto / Auto(Hi, Lo)
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Compressor Rotary (Hermetic)
Refrigerant / Amount charged at shipment g R22 / 1,140
Refrigerant control Capillary tube
Operation sound Indoor : Hi / Me / Lo dB-A 41 / 38 / 36
Outdoor : Hi dB-A 53
Refrigerant tubing connections Flare type
Max. allowable tubing length at shipment m 7.5
Refrigerant Narrow tube mm(in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 12.7(1/2)
Refrigerant tube kit / Accessories Optional / Hanging wall bracket
Dimensions & Weight
Indoor Unit
Outdoor Unit
Unit dimensions Height mm 285 630
Width mm 995 810
Depth mm 196 275
Package dimensions Height mm 276 704
Width mm 1,070 953
Depth mm 363 369
Weight Net kg 12.0 47.5
Shipping kg 15.0 52.0
Shipping volume
m30.11 0.25
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks:
Rating conditions are:
Cooling : Indoor air temperature 27°C D.B. / 19°C W.B.
Outdoor air temperature 35°C D.B. / 24°C W.B.

3
Indoor Unit SAP–K241AA
Outdoor Unit SAP–C241AA
Power Source
240V Single phase 50Hz
Voltage rating 240 V
Performance Cooling
Capacity kW 6.3
BTU/h 21,500
Air circulation (High)
m3/h 830
Moisture removal (High) Liters/h 3.3
Electrical Rating Cooling
Available voltage range V 216 ~ 264
Running amperes A 13.2
Power input W 2,830
Power factor % 89
C.O.P. W/W 2.2
Compressor locked rotor amperes A 73
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer 1-hour OFF / 12-hours ON or OFF
Fan speeds Indoor / Outdoor 3 and Auto / Auto(Hi, Lo)
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Compressor Rotary (Hermetic)
Refrigerant / Amount charged at shipment g R22 / 1,785
Refrigerant control Capillary tube
Operation sound Indoor : Hi / Me / Lo dB-A 43 / 41 / 39
Outdoor : Hi dB-A 54
Refrigerant tubing connections Flare type
Max. allowable tubing length at shipment m 10
Refrigerant Narrow tube mm(in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 15.88(5/8)
Refrigerant tube kit / Accessories Optional / Hanging wall bracket
Dimensions & Weight
Indoor Unit
Outdoor Unit
Unit dimensions Height mm 285 630
Width mm 995 810
Depth mm 196 275
Package dimensions Height mm 276 704
Width mm 1,070 953
Depth mm 363 369
Weight Net kg 12.0 59.0
Shipping kg 15.0 62.0
Shipping volume
m30.11 0.25
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks:
Rating conditions are:
Cooling : Indoor air temperature 27°C D.B. / 19°C W.B.
Outdoor air temperature 35°C D.B. / 24°C W.B.

4
2-2. Major Component Specifications
2-2-1. Indoor Unit
Indoor Unit SAP–K181AA
Controller PCB
Part No. POW-K181GJA
Controls Microprocessor
Control circuit fuse 250 V 3.15 A
Remote Control Unit RCS-2S4E
Fan & Fan Motor
Type Cross-flow
Q'ty ... Dia. and length mm 1 ... ø88 / L746
Fan motor model ... Q'ty UF2-31A5P-S ... 1
No. of poles ... rpm (240 V, High) 2 ... 1,440
Nominal output W 30
Coil resistance (Ambient temp. 20°C) ΩWHT-BRN : 133.7
WHT-PNK : 168.4
— —
— —
— —
Safety devices Type Thermal protector
Operating temp. Open °C 130±8
Close Automatic reclosing
Run capacitor µF 2.0
VAC 440
Flap Motor
Type Stepping motor
Model MP24GA2
Rating DC 12 V
Coil resistance (Ambient temp. 25°C) ΩEach terminals (1–2, 1–3, 1–4, 1–5) : 400 ±7%
Heat Exch. Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.3
Face area
m20.156
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

5
Indoor Unit SAP–K241AA
Controller PCB
Part No. POW-K241GJA
Controls Microprocessor
Control circuit fuse 250 V 3.15 A
Remote Control Unit RCS-2S4E
Fan & Fan Motor
Type Cross-flow
Q'ty ... Dia. and length mm 1 ... ø88 / L746
Fan motor model ... Q'ty UF2-31A5P-S ... 1
No. of poles ... rpm (240 V, High) 2 ... 1,440
Nominal output W 30
Coil resistance (Ambient temp. 20°C) ΩWHT-BRN : 133.7
WHT-PNK : 168.4
— —
— —
— —
Safety devices Type Thermal protector
Operating temp. Open °C 130±8
Close Automatic reclosing
Run capacitor µF 2.0
VAC 440
Flap Motor
Type Stepping motor
Model MP24GA2
Rating DC 12 V
Coil resistance (Ambient temp. 25°C) ΩEach terminals (1–2, 1–3, 1–4, 1–5) : 400 ±7%
Heat Exch. Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.3
Face area
m20.156
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

6
2-2-2. Outdoor Unit
Outdoor Unit SAP–C181AA
Compressor
Type Rotary (Hermetic)
Compressor model C-2R170H5T 80827445
Nominal output W 1,700
Compressor oil ... Amount cc SUNISO 4GSD-T ... 750
Coil resistance (Ambient temp. 25°C) ΩC–R : 1.353
C–S : 3.422
Safety devices Type Internal protector
Overload relay —
Operating temp. Open °C Automatic opening
Close °C Automatic reclosing
Operating amp.(Ambient temp. 25°C) —
Run capacitor µF 40.0
VAC 400
Crank case heater —
Fan & Fan Motor
Type Propeller
Q'ty ... Dia. 1 ... ø420
Fan motor model ... Q'ty KFG6S-51A5P-S ... 1
No. of poles ... rpm (240 V, High) 6 ... 880
Nominal output W 50
Coil resistance (Ambient temp. 20°C) ΩWHT-BRN : 67.09
WHT-YEL : 68.12
YEL-PNK : 15.66
Safety devices Type Thermal protector
Operating temp. Open °C 130±8
Close °C Automatic reclosing
Run capacitor µF 4.0
VAC 440
Heat Exch. Coil
Coil Aluminum plate fin / Copper tube
Rows 1
Fin pitch mm 1.3
Face area
m20.506
External Finish Acrylic baked-on enamel finish
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

7
Outdoor Unit SAP–C241AA
Compressor
Type Rotary (Hermetic)
Compressor model C-R221H5S 80687145
Nominal output W 2,200
Compressor oil ... Amount cc SUNISO 4GSD-T ... 1,350
Coil resistance (Ambient temp. 25°C) ΩC–R : 0.777
C–S : 2.408
Safety devices Type Internal protector External(OLR T)
Overload relay — OL-D24
Operating temp. Open °C Automatic opening 150±5
Close °C Automatic reclosing 63±11
Operating amp.(Ambient temp. 25°C) — Trip in 6 to 16 sec. at 59A
Run capacitor µF 40.0
VAC 400
Crank case heater —
Fan & Fan Motor
Type Propeller
Q'ty ... Dia. 1 ... ø420
Fan motor model ... Q'ty KFG6S-51D5P-S ... 1
No. of poles ... rpm (240 V, High) 6 ... 890
Nominal output W 50
Coil resistance (Ambient temp. 20°C) ΩWHT-BRN : 56.09
WHT-YEL : 42.13
YEL-PNK : 15.99
Safety devices Type Thermal protector
Operating temp. Open °C 130±8
Close °C Automatic reclosing
Run capacitor µF 4.0
VAC 440
Heat Exch. Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.2
Face area
m20.499
External Finish Acrylic baked-on enamel finish
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

2-3. Other Component Specifications
8
Thermostat (Fan Speed Control 23S) MQT5S
Switching temp. °C high ➞LOW 28.5°C ± 1.5
low ➞HIGH 31.5°C ± 2
Contact rating AC 220V, 3A
Power Relay (PR) G7L-2A-TUB
Coil rating AC 200–240V, 50/60Hz
Coil resistance Ω(at 23°C) 21 ± 15%
Contact rating AC 220V, 25A
Outdoor Unit SAP–C181AA
SAP–C241AA
Thermistor (Room sensor) DTN-TKS142B
Resistance kΩ25°C 5.0 ± 3%
Thermistor (Coil sensor) DTN-TKS131B
Resistance kΩ0°C 15.0 ± 2%
Transformer (TR) ATR-J105
Rating Primary AC 230V, 50/60Hz
Secondary 19V, 0.526A
Capacity 10VA
Coil resistance Ω(at 21°C) Primary (WHT – WHT): 205 ± 10%
Secondary (BRN – BRN): 2.0 ± 10%
Thermal cut-off temp. 150°C
Indoor Unit SAP–K181AA
SAP–K241AA

9
3. DIMENSIONAL DATA
Indoor Unit SAP–K181AA
SAP–K241AA
28545
995
45
147.5 147.5
196 (3)
Center of tubing
hole (2 places)
Narrow tube ø6.35 (1/4")
Drain hose ø18
Wide tube ø12.7 (1/2") K181
Wide tube ø15.88 (5/8") K241
Remote control unit
172
61 23
Unit : mm

10
Outdoor Unit SAP–C181AA
810 15
630
22
538
AIR INTAKE
AIR DISCHARGE
136
140
302
325
ø12
5275
98 45
Narrow tube service valve
ø6.35 (1/4")
Wide tube service valve
ø12.7 (1/2")
Unit : mm

11
Outdoor Unit SAP–C241AA
275
98 45
810 15
630
22
538 136
140
302
325
Narrow tube service valve
ø6.35 (1/4")
Wide tube service valve
ø15.88 (5/8")
Air intake
Air discharge
Unit : mm

4. REFRIGERANT FLOW DIAGRAM
12
Capillary tube
Capillary for
liquid injection
Compressor
Accumulator
Wide tube
service
valve
Wide tube
O.D.
ø12.7 mm
(1/2 ")
Narrow
tube
service
valve
Narrow tube
O.D.
ø6.35 mm
(1/4")
Condenser
Indoor Unit Outdoor Unit
Evaporator
Indoor Unit SAP–K181AA Outdoor Unit SAP–C181AA
Compressor
Wide tube
service
valve
Wide tube
O.D.
ø15.88 mm
(5/8 ")
Narrow
tube
service
valve
Narrow tube
O.D.
ø6.35 mm
(1/4")
Evaporator
Capillary for
liquid injection
Indoor Unit Outdoor Unit
Muffler
Capillary tube
Condenser
Strainer
Accumulator
Indoor Unit SAP–K241AA Outdoor Unit SAP–C241AA
Insulation of Refrigerant Tubing
Because capillary tubing is used in the outdoor unit, both the
wide and narrow tubes of this air conditioner become cold. To
prevent heat loss and wet floors due to dripping of
condensation, both tubes must be well insulated with a
proper insulation material. The thickness of the insulation
should be a min. 8 mm.
After a tube has been insulated,
never try to bend it into a narrow
curve because it can cause the tube
to break or crack.
IMPORTANT
CAUTION
Wide tube
Thickness:
Min. 8 mm
Insulation
Narrow tube
Thickness:
Min. 8 mm

13
5. PERFORMANCE DATA
5-1. Performance charts
■Cooling Characteristics
Low pressure at wide tube service valve MPa (kgf/cm2G)
1.38 (13)
1.28 (12)
1.18 (11)
1.08 (10)
0.98 ( 9 )
0.89 ( 8 )
0.79 ( 7 )
0.69 ( 6 )
0.59 ( 5 )
0.49 ( 4 )
0.39 ( 3 )
1.47 (14)
25 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Outdoor
fan speed
HighLow
15
14
13
12
11
10
9
8
725 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Operating current (A)
16
Outdoor
fan speed
HighLow
32
27
21
32
27
21
Indoor inlet air
D.B. temp. (°C)
Indoor inlet air
D.B. temp. (°C)
● ...... Points of Rating condition
Black dots in above charts indicate the following rating conditions.
Cooling: Indoor air temperature 27°C D.B./19°C W.B.
Outdoor air temperature 35°C D.B./24°C W.B.
NOTE
Indoor Unit SAP–K181AA
Outdoor Unit SAP–C181AA Indoor Unit SAP–K241AA
Outdoor Unit SAP–C241AA
■Cooling Characteristics
Low pressure at wide tube service valve MPa (kgf/cm2G)
1.38 (13)
1.28 (12)
1.18 (11)
1.08 (10)
0.98 ( 9 )
0.89 ( 8 )
0.79 ( 7 )
0.69 ( 6 )
0.59 ( 5 )
0.49 ( 4 )
0.39 ( 3 )
1.47 (14)
25 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Outdoor
fan speed
HighLow
32
27
21
25 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
18
17
16
15
14
13
12
11
10
Operating current (A)
19
Outdoor
fan speed
HighLow
32
27
21
Indoor inlet air
D.B. temp. (°C)
Indoor inlet air
D.B. temp. (°C)

5-2. Air Throw Distance Chart
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
Heating
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
0
1
2
3
4
0123456789
: Flap angle 0° , : Axis air velocity 0°
: Flap angle 30°, : Axis air velocity 30°
0
1
2
3
4
0123456789
: Flap angle 0° , : Axis air velocity 0°
: Flap angle 30°, : Axis air velocity 30°
14
Indoor Unit SAP–K181AA
Indoor Unit SAP–K241AA

15
5-3. Cooling Capacity
Indoor Unit SAP–K181AA
Outdoor Unit SAP–C181AA
240V Single Phase 50Hz
RATING CAPACITY 5.00 kW
AIR FLOW RATE 760
m3/h
EVAPORATOR CONDENSER
ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C
W.B. D.B. 30 35 40 43
TC 4.60 4.38 4.11 3.79
CM 1.75 1.88 2.03 2.23
21 SHC 3.06 2.95 2.81 2.64
15 23 SHC 3.42 3.30 3.16 3.00
25 SHC 3.77 3.66 3.52 3.35
27 SHC 4.13 4.01 3.87 3.71
29 SHC 4.48 4.37 4.11 3.79
31 SHC 4.60 4.38 4.11 3.79
TC 4.94 4.70 4.42 4.07
CM 1.80 1.93 2.09 2.29
21 SHC 2.70 2.58 2.45 2.28
17 23 SHC 3.05 2.94 2.80 2.63
25 SHC 3.41 3.29 3.16 2.99
27 SHC 3.76 3.65 3.51 3.34
29 SHC 4.12 4.00 3.87 3.70
31 SHC 4.47 4.36 4.22 4.05
TC 5.25 #5.00 4.70 4.33
CM 1.85 1.99 2.15 2.35
21 SHC 2.31 2.20 2.06 1.90
19 23 SHC 2.67 2.55 2.42 2.25
25 SHC 3.02 2.91 2.77 2.61
27 SHC 3.38 3.26 3.13 2.96
29 SHC 3.73 3.62 3.48 3.32
31 SHC 4.09 3.97 3.84 3.67
TC 5.57 5.30 4.98 4.58
CM 1.90 2.04 2.21 2.42
23 SHC 2.28 2.16 2.03 1.87
21 25 SHC 2.63 2.52 2.38 2.22
27 SHC 2.99 2.87 2.74 2.58
29 SHC 3.34 3.23 3.09 2.93
31 SHC 3.70 3.58 3.45 3.29
TC 5.90 5.57 5.21 4.85
CM 1.95 2.10 2.27 2.48
23 25 SHC 2.21 2.08 1.95 1.81
27 SHC 2.57 2.44 2.30 2.16
29 SHC 2.92 2.79 2.65 2.52
31 SHC 3.28 3.15 3.01 2.87
TC : Total Cooling Capacity (kW)
SHC : Sensible Heat Capacity (kW)
CM : Compressor Input (kW)
Rating conditions (#Mark) are
Outdoor Ambient Temp. 35°C D.B.
Indoor Unit Entering Air Temp. 27°C D.B. / 19°C W.B.

16
Indoor Unit SAP–K241AA
Outdoor Unit SAP–C241AA
240V Single Phase 50Hz
RATING CAPACITY 6.30 kW
AIR FLOW RATE 830
m3/h
EVAPORATOR CONDENSER
ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C
W.B. D.B. 30 35 40 43
TC 5.80 5.52 5.18 4.77
CM 2.31 2.48 2.69 2.94
21 SHC 3.76 3.61 3.42 3.20
15 23 SHC 4.14 3.99 3.80 3.58
25 SHC 4.52 4.37 4.18 3.96
27 SHC 4.90 4.75 4.56 4.34
29 SHC 5.28 5.13 4.94 4.72
31 SHC 5.66 5.51 5.18 4.77
TC 6.22 5.92 5.57 5.12
CM 2.38 2.55 2.76 3.01
21 SHC 3.38 3.22 3.03 2.81
17 23 SHC 3.76 3.60 3.41 3.19
25 SHC 4.14 3.98 3.79 3.57
27 SHC 4.52 4.36 4.17 3.95
29 SHC 4.90 4.74 4.55 4.33
31 SHC 5.28 5.12 4.94 4.71
TC 6.62 #6.30 5.92 5.45
CM 2.45 2.63 2.84 3.10
21 SHC 2.96 2.80 2.62 2.40
19 23 SHC 3.34 3.18 3.00 2.78
25 SHC 3.72 3.56 3.38 3.16
27 SHC 4.10 3.94 3.76 3.54
29 SHC 4.48 4.33 4.14 3.92
31 SHC 4.86 4.71 4.52 4.30
TC 7.01 6.68 6.28 5.78
CM 2.52 2.71 2.92 3.18
23 SHC 2.92 2.76 2.58 2.36
21 25 SHC 3.30 3.14 2.96 2.74
27 SHC 3.68 3.52 3.34 3.12
29 SHC 4.06 3.90 3.72 3.50
31 SHC 4.44 4.28 4.10 3.88
TC 7.43 7.01 6.56 6.10
CM 2.59 2.78 3.00 3.26
23 25 SHC 2.84 2.66 2.47 2.29
27 SHC 3.22 3.04 2.85 2.67
29 SHC 3.60 3.42 3.23 3.05
31 SHC 3.98 3.80 3.61 3.43
TC : Total Cooling Capacity (kW)
SHC : Sensible Heat Capacity (kW)
CM : Compressor Input (kW)
Rating conditions (#Mark) are
Outdoor Ambient Temp. 35°C D.B.
Indoor Unit Entering Air Temp. 27°C D.B. / 19°C W.B.

17
6. ELECTRICAL DATA
6-1. Electrical Characteristics
Indoor Unit Outdoor Unit Complete Unit
Fan Motor Fan Motor Compressor
Performance at 240V Single phase 50Hz
Rating Conditions Running Amps. A0.40 0.50 12.30 13.2
Power Input kW 0.080 0.118 2.632 2.83
Full Load Conditions Running Amps. A0.40 0.50 14.80 15.7
Power Input kW 0.080 0.118 3.262 3.46
Rating Conditions : Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B.
Full Load Conditions : Indoor Air Temperature 32°C D.B. / 23°C W.B.
Outdoor Air Temperature 43°C D.B.
Indoor Unit SAP–K241AA
Outdoor Unit SAP–C241AA
Indoor Unit Outdoor Unit Complete Unit
Fan Motor Fan Motor Compressor
Performance at 240V Single phase 50Hz
Rating Conditions Running Amps. A0.38 0.50 8.72 9.6
Power Input kW 0.073 0.119 1.988 2.18
Full Load Conditions Running Amps. A0.38 0.50 10.52 11.4
Power Input kW 0.073 0.119 2.478 2.67
Rating Conditions : Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B.
Full Load Conditions : Indoor Air Temperature 32°C D.B. / 23°C W.B.
Outdoor Air Temperature 43°C D.B.
Indoor Unit SAP–K181AA
Outdoor Unit SAP–C181AA
This manual suits for next models
7
Table of contents
Other Sanyo Air Conditioner manuals

Sanyo
Sanyo STB1023C1-S User manual

Sanyo
Sanyo TS2432 User manual

Sanyo
Sanyo CH2432 Owner's manual

Sanyo
Sanyo SAP-CMRV1426EH Operating manual

Sanyo
Sanyo 18KMH12W User manual

Sanyo
Sanyo SAP-KR184GJH Operating manual

Sanyo
Sanyo KHS1222 User manual

Sanyo
Sanyo XS2422 User manual

Sanyo
Sanyo STB0811C1-S User manual

Sanyo
Sanyo SAP-KMV91G-S Operating manual

Sanyo
Sanyo 24KL12W User manual

Sanyo
Sanyo 36UW72R User manual

Sanyo
Sanyo C4232 Manual

Sanyo
Sanyo KHS1872 User manual

Sanyo
Sanyo SAP90KCH Instruction manual

Sanyo
Sanyo C4272R User manual

Sanyo
Sanyo SAP-URV96EH User manual

Sanyo
Sanyo 42T72R Owner's manual

Sanyo
Sanyo SAP361TC User manual

Sanyo
Sanyo SA-79G Operating manual
