This air conditioner uses
the new refrigerant R410A.
INSTRUCTION MANUAL
Inverter-Controlled Split System Air Conditioner
Save These Instructions!

2
FEATURES
This air conditioner is an inverter type unit that automatically adjusts capability as appropriate. Details on these functions are provided
below; refer to these descriptions when using the air conditioner.
24-hour Clock with ON/OFF Program Timer
The remote control unit allows you to set a wide variety
of timer-based operations including automatic ON/OFF
with timer setting, same-time ON/OFF every day, ON
timer, OFF timer and Combination timer.
Mild Dry
By coupling the compressor and fan operation,
intermittent drying can be precisely controlled according
to room temperature so that air is efficiently
dehumidified.
Auto Clean
Fan operates when the unit is stopped to prevent the
generation of mold and odors within the indoor unit.
Humanized Sleep Function
Temperature gently rises or falls automatically to
maintain comfortable room temperature, saving energy.
Rapid Cooling (Heating)
The high-efficiency system cools quickly while
maintaining high EER/COP.
Super Quiet
Specially designed air vent efficiently reduces noise.
Turbo
Powerfully cools the room.
Automatic Fan Operation
Convenient microprocessor control automatically adjusts
fan speed to High, Medium or Low, according to room
temperature, to maintain a comfortable airflow
throughout the room.
Air Sweep Control
The air sweep function automatically moves the air outlet
flap up and down, directing air in a sweeping motion
around the room and ensuring comfort in every corner.
Automatic Restart Function for Power Failure
Even when power failure occurs, preset programmed
operation is reactivated once power resumes.
Self Diagnosis
Error code is displayed for fast and easy maintenance,
should a problem occur.
Low Voltage Startup (Min.198V)
The unit starts safely even when the voltage is below the
rated voltage.
Child Lock
Remote controller keys are lockable to prevent
misoperation.
Blue Fin
Anti-corrosion blue fin is more effective than a common
coil.
CONTENTS
Page
FEATURES ......................................................................................................................................... 2
PRODUCT INFORMATION ................................................................................................................ 3
ALERT SYMBOLS.............................................................................................................................. 3
INSTALLATION LOCATION ................................................................................................................ 3
ELECTRICAL REQUIREMENTS........................................................................................................3
SAFETY INSTRUCTIONS.................................................................................................................. 3
1. USAGE POINTS ........................................................................................................................... 4
2. NAMES AND FUNCTIONS OF PARTS ........................................................................................ 6
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT............................................................ 7
4. CLEANING AND CARE .............................................................................................................. 16
5. ADJUSTING THE AIRFLOW DIRECTION CORRECTLY ........................................................... 18
6. TROUBLESHOOTING ................................................................................................................ 18

3
PRODUCT INFORMATION
If you have problems or questions concerning your Air
Conditioner, you will need the following information.
Model and serial numbers are on the nameplate on the
bottom of the cabinet.
Model No. __________________________________
Serial No. ___________________________________
Date of purchase_____________________________
Dealer’s address _____________________________
Phone number ________________
ALERT SYMBOLS
The following symbols used in this manual, alert
you to potentially dangerous conditions to users,
service personnel or the appliance:
INSTALLATION LOCATION
•We recommend that this air conditioner be
installed properly by qualied installation
technicians in accordance with the Installation
Instructions provided with the unit.
•Before installation, check that the voltage of the
electric supply in your ho me or oce is the same as
the voltage shown on the nameplate.
Avoid:
To protect the air conditioner from heavy corrosion, avoid installing
the outdoor unit where salty sea water can splash directly onto it
or in sulphurous air near a spa.
ELECTRICAL
REQUIREMENTS
1. All wiring must conform to the local electrical codes.
Consult your d ealer or a qualied electrician for
details.
2. Each unit must be properly grounded with a ground
(or earth) wire or th rough the supply wiring.
3. Wiring must be done by a qualied electrician.
SAFETY INSTRUCTIONS
•Read this Instruction Manual carefully before
using this air conditioner. If you still have any
diculties or problems, consult your dealer for
help.
•This air conditioner is designed to give you
comfortable room conditions. Use this only for its
intended purpose as described in this Instruction
Manual.
This symbol refers to a hazard or
unsafe practice which can result in
severe personal injury or death.
This symbol refers to a hazard or
unsafe practice which can result in
personal injury or product orproperty
damage.
•Do not install this air conditioner
where there are fumes or ammable
gases, orin an extremely humid
space such as a greenhouse.
•Do not install the air conditioner
where excessively high heat-
generating objects are placed.
CAUTION
•Never use or store gasoline or other
ammable vapor or liquid near the
air conditioner — it is very
dangerous.
•This air conditioner has no ventilator
for intaking fresh air from outdoors.
You must open doors or windows
frequently when you use gas or oil
heating appliances in the same
room, which consume a lot of
oxygen from the air. Otherwise there
is a risk of suocation in an extreme
case.
•Do not turn the air conditioner on
and o from the power mains switch.
Use the ON/OFF operation button.
•Do not stick anything into the air
outlet of the outdoor unit. This is
dangerous because the fan is
rotating at high speed.
•Do not let children play with the air
conditioner.
•Do not cool or heat the room too
much if babies or invalids are
present.
CAUTION

4
1. USAGE POINTS
1.1 Working Principle
and Special
Functions for
Cooling
Principle:
An air conditioner (cooling) absorbs room heat and transmits and discharges
it outdoors, thereby decreasing the ambient indoor room temperature. Its
cooling capacity will decrease relative to an increase in the outdoor ambient
temperature.
Anti-freezing Function:
If the unit is running in COOL mode and at a low temperature, frost will form
on the heat exchanger; when the indoor heat exchanger temperature
decreases to below 0°C, the micro-computer of the indoor unit will stop
running the compressor to protect the unit.
1.2 Working Principle
and Special
Functions for
Heating
Principle:
1. An air conditioner (heating) absorbs heat from outdoors and transmits it
indoors, thereby increasing the indoor room temperature. Its heating
capacity will decrease relative to a decrease in the outdoor ambient
temperature.
2. If the outdoor temperature is lower than the room temperature, please
operate the system with other heating/ventilating equipment.
Defrosting:
1. When the outdoor temperature is low and there is high humidity, after the
unit runs for a while, frost will form on the outdoor unit and aect the
heating function. At this time, the auto-defrosting function will turn on, and
the heating operation will stop for 8-10 minutes.
2. While the auto-defrosting function is operating, both the fan motors of the
indoor and outdoor units will stop operating.
3. While the defrosting function is operating, the indoor indicator ashes and
the outdoor unit may emit vapor. This is due to the defrosting and is not a
malfunction.
4. After defrosting has nished, the heating process will resume
automatically.
Cold Draft Prevention:
In “HEAT” mode, the indoor blower will not act under the following 3 statuses,
until the heat exchanger reaches a certain temperature. This is to prevent
cool air from blowing. (Within 2 minutes)
1. When heating starts.
2. After auto-defrosting has nished.
3. Heating under low ambient temperature
Gentle Breeze:
Under the following conditions, the indoor unit may produce a gentle breeze,
and the guide louver may rotate to a predetermined position:
1. In “Heat” mode with the unit turned on, until the compressor starts
operationg
2. In “Heat” mode with the temperature at the set value and the compressor
has stopped running at about 1 minute.
** For Heatpump models Only **

5
1. USAGE POINTS
1.3 Working Temperature Range
Temperature Indoor Air Temperature Outdoor Air Temperature
COOLING
Max.32°C DB / 23°C WB 43°C DB / 26°C WB
Min. 19°C DB / 14°C WB 19°C DB

6

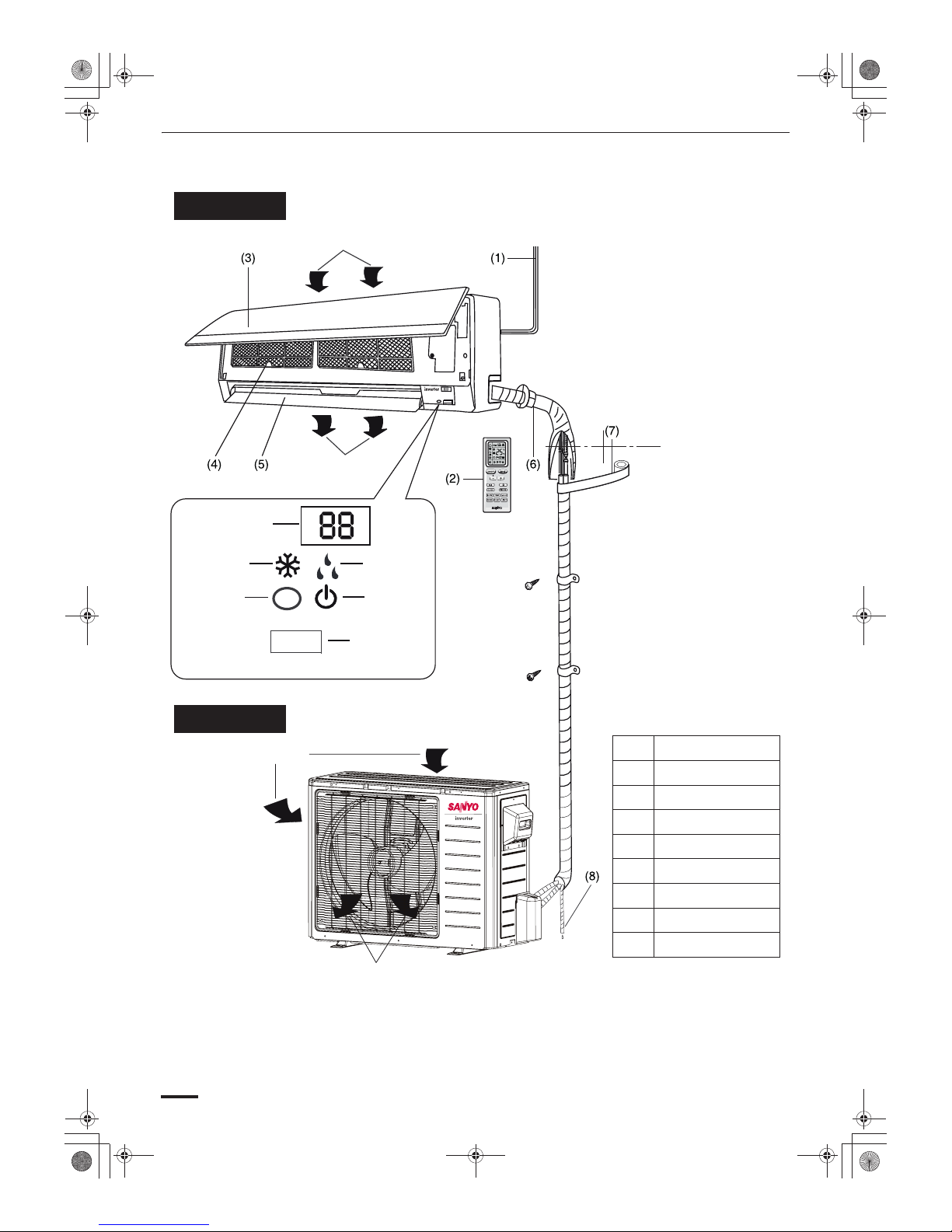

2. NAMES AND FUNCTIONS OF PARTS
S/n Part Name
(1) Power cable
(2) Remote control unit
(3) Front panel
(4)Filter
(5) Guide louver
(6) Wall pipe
(7)Bind tape
(8) Drainage pipe
Outdoor Unit
Indoor Unit
Air intake
Air outlet
Wireless remote
control unit
Air intake
Air outlet
Dry
Run
Receive
window
SET TEMP
Cool
ON/OFF
ON / OFF
COOL DRY
RUN

7

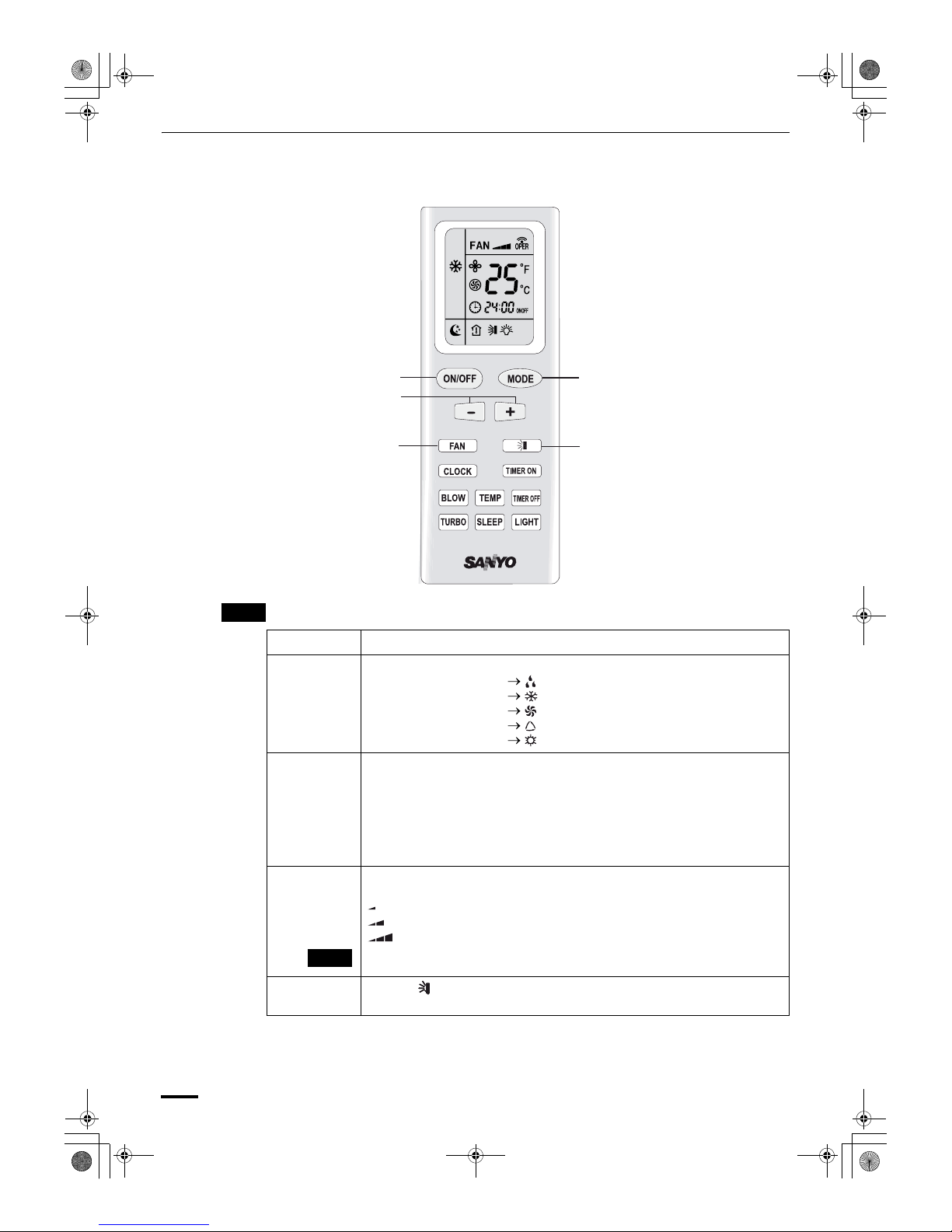

3. OPERATION OF WIRELESS REMOTE CONTROL UNIT

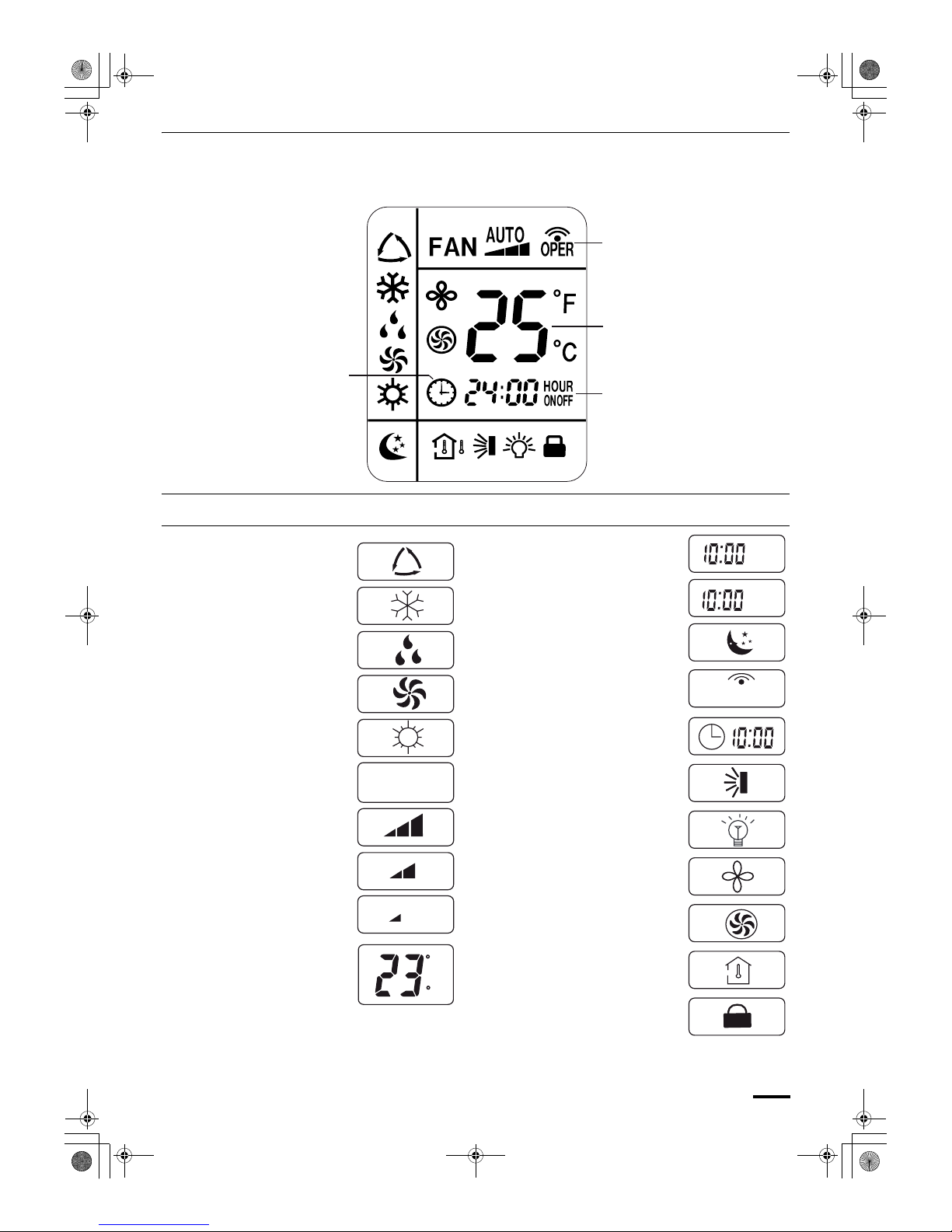

3.1 Remote Control Unit (Display)
(1) Operation mode
AUTO
COOL........................................
DRY...........................................
FAN ...........................................
HEAT
(2) Fan speed
Automatic operation ..................
HIGH ........................................
MID............................................
LOW ..........................................
(3) Set temperature
16–30°C
When set to 23 °C .....................
(4) Timer
24-hour ON Timer ....................
24hour OFF Timer ....................
(5) Sleep .........................................
(6) Conrmation of transmission.....
(7) Clock indication .........................
(8) Sweep indication .......................
(9) Light ..........................................
(10) Blow ........................................
(11) Turbo .......................................
(12) Temperature ............................
(13) Lock.........................................
Displayed when setting
timer
Displayed when
transmitting data
Displayed when setting
temperature
Displays clock
Symbols
AUTO
F
C
ON
OFF
OPER
(for Heatpump models only)..........
........................................

8
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.2 Remote Control Unit Functions
Transmitter When you press the buttons on the remote control unit, the mark
appears in the display to transmit the setting changes to the receiver in the
air conditioner.
Display Information on the operating conditions is displayed while the remote control
unit is turned on. If the unit is turned o, only the current time and the
operation mode temperature that has been set are displayed.
ON/OFF operation button This button is for turning the air conditioner ON and OFF.
MODE selector button To select “AUTO” “COOL” “DRY” “FAN” or “HEAT” mode.
(AUTO) : In this setting, the air conditioner calculates the dierence between the
thermostat setting and the room temperature and automatically
switches to appropriate running mode.
(COOL): The air conditioner makes the room cooler.
(DRY) : The air conditioner reduces the humidity in the room.
(FAN) : The air conditioner runs the indoor fan only.
(HEAT) : The air conditioner makes the room warmer. (** only for Heatpump models **)
(+) / (-) setting buttons: Press the (+) button to increase the set temperature; continue pressing
for two seconds to quickly increase the set temperature.
: Press the (-) button to reduce the set temperature; continue pressing
for two seconds to quickly reduce the set temperature.
LOCK / UNLOCK button: Simultaneously press the b button to lock or unlock the wireless
remote control unit.
TIMER ON buttonON : The air conditioner starts at the set time.
TIMER OFF button OFF : The air conditioner stops at the set time.
Signal Transmitter
MODE selector button
SWING button
TIMER ON button
TIMER OFF button
LIGHT button
Display
TEMP button
ON/OFF operation button
TEMP. setting button
FAN SPEED Selector button
CLOCK button
BLOW button
TURBO button
SLEEP button
OPER
+
+
OI-183-8-EG

9
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.2 Remote Control Unit Functions (Continued)
FAN SPEED selector button AUTO : The air conditioner automatically decides the fan speeds.
: Low fan speed.
: Medium fan speed.
: High fan speed.
TEMP button Press to see the set temperature or indoor temperature that are displayed on
the indicator lamp.
: Display the preset temperature.
: Display the indoor ambient temperature (5 seconds)
The ambient temperature will be displayed for 5 seconds,
following which the preset temperature will be displayed.
: Current displaying status will not be changed.
No Icon : Default display of preset temperature.
BLOW buttonPress to start or stop indoor fan drying indoor components. This function is
applicable to “COOL” & “DRY” mode only. In “AUTO,” and “FAN mode,
“BLOW” function is not available and “BLOW” is not displayed.
LIGHT button Press this button to turn ON/OFF indicator light display.
TURBO button Press to quickly cool or heat the room with powerful cool or hot air.
SLEEP buttonFor details, see “SLEEP MODE” (page 12). When you press this button in
the “DRY,” “COOL” or “HEAT” mode, the mark appears in the display and
the remote control unit will automatically adjust the set temperature to save
energy.
CLOCK ButtonUse this button to set the clock.
How it Works
Press the CLOCK button once if the indicator is not ashing. The
indication alone ashes. Within 5 seconds, press the +/– button. The time
can be set in 1-minute increments. Holding down the button advances the
time rapidly in 10-minut e increments. Press the CLOCK button again. The
is displayed, completing the setting of the current time.
SWING ButtonSets the air swing direction to change circularly as below:
When the guide louver begins swinging up and down, if swing is turned
o, the air guide louver will stop at the current position. (refer to page
14 for more details)
AUTO
NOTE
OFF
NOTE

10
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.3 General Operation
Press the setting buttons as described below and change the settings as desired.
STEP 1 To start the air conditioner, press the ON/OFF operation button.
STEP 2 Press the MODE selector button and select the desired mode.
For DRY operation
For COOLING operation
For FAN only operation
For AUTO operation
For HEATING operation
STEP 3 Press the TEMP. setting buttons to change the temperature setting to the
desired temperature.
Adjustable temperature range:
30°C (86°F) max.—16°C (61°F) min.
In “AUTO” mode, the temperature cannot be adjusted.
In “HEAT” mode, the initial value is 28°C (82°F).
In other operation, the initial value is to 25°C (77°F).
STEP 4 Set the FAN SPEED selector button to the desired setting.
AUTO : Auto fan speed.
: Low fan speed.
: Middle fan speed.
: High fan speed.
In Dry mode, the fan speed is automatically set to LOW.
STEP 5 Press the button and set the air-blow direction, as desired or
automatically.
To STOP the air conditioner, press the ON/OFF operation button again.
STEP 2
STEP 5
STEP 1
STEP 3
STEP 4
NOTE
NOTE
(** Only for Heatpump models **)
(** Only for Heatpump models **)

11
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT

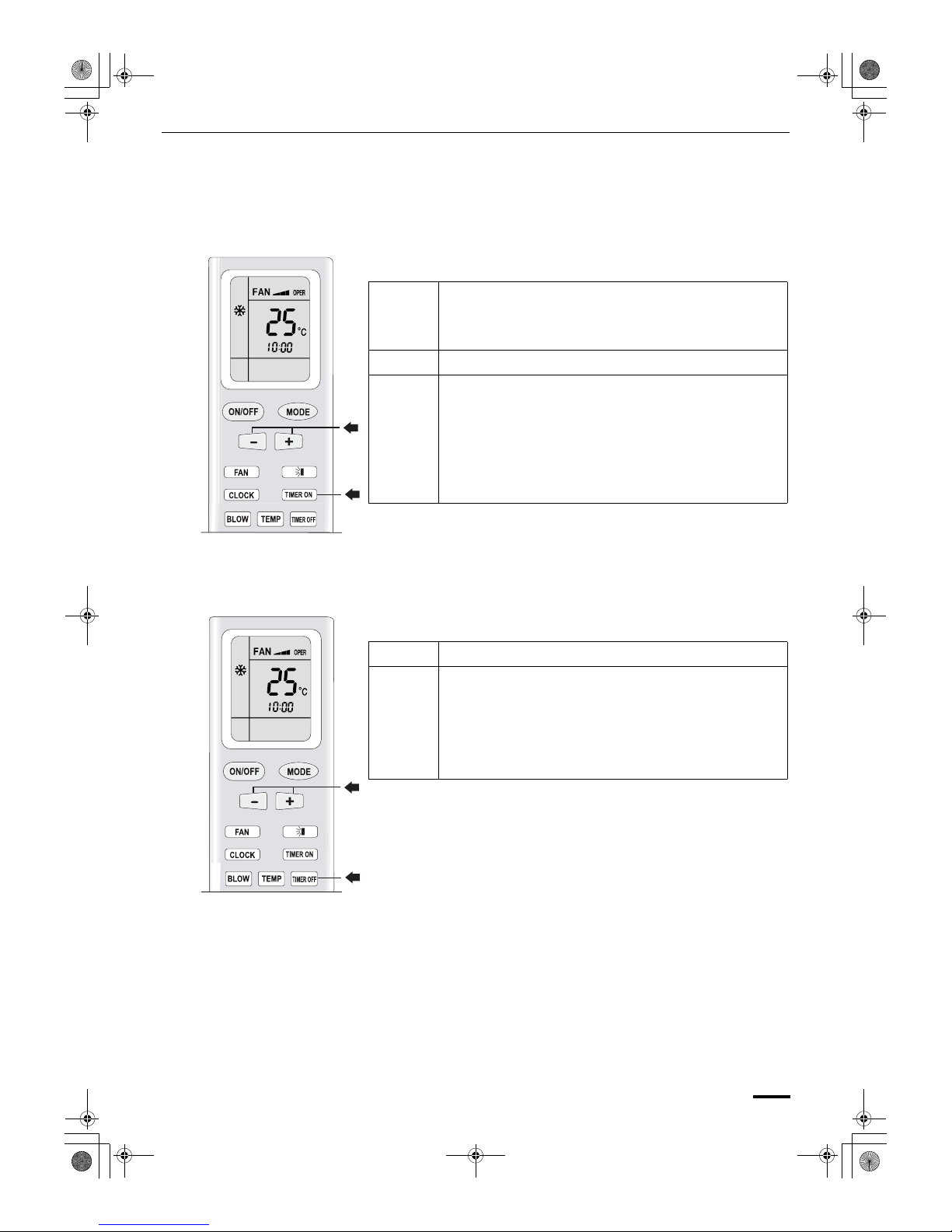

3.4 Using the 24-Hour “ON” or “OFF” Timer
3.4.1 TIMER ON
Mode
(Example)
After the length of time set for TIMER ON elapses, the unit begins
operating.
The display depicted at left indicates that the air conditioner will begin
operating in 10 hours.
Setting procedure:
•The display changes immediately to the current time, but ON indication
remains.
Cancellation procedure:Press the “TIMER ON” button again to cancel
3.4.2 TIMER OFF
Mode
(Example)
After the length of time set for TIMER OFF elapses, the unit stops
operating.
The display depicted at left indicates that the air conditioner will stop
operating in 10 A.M.
Setting procedure:
•The display changes immediately to the current time, but OFF indication
remains.
Cancellation procedure:Press the “TIMER OFF” button again.
ON
STEP 1 Press the “ON/OFF” button and “MODE” button to set the
desired operation mode. (See “Operation with the Remote
Control Unit”, page 8). Press the “ON/OFF” button again to
turn o the unit.
STEP 2 Press the “TIMER ON” button.
STEP 3 Press the “TIMER ON” button (which advances the clock
displayed) to set the time at which you want operation to
begin.
The time can be set for one-minute intervals for 24 hours.
Holding down the (+) / (-) button will rapidly change the time
value.
Press the “TIMER ON” button again to conrm the set time is
10 A.M.
OFF
STEP 1 Press the TIMER OFF button.
STEP 2 Press the “TIMER OFF” button (which advances the clock
displayed) to set the time at which you want operation to stop.
The time can be set for one-minute intervals for 24 hours.
Holding down the (+) / (-) button will rapidly change the time
value.
Press the “TIMER OFF” button again to conrm the o time is
10 A.M.

12
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.5 SLEEP Operation
SLEEP Mode is used for saving energy.
Press the SLEEP button while operation is on.
The mark appea rs in the display.
To release the SLEEP function, press the SLEEP button again.
3.5.1 In Cooling and
DRY Modes:
( and )
When the SLEEP mode is selecte d, the air conditioner automatically raises
the temperature setting 1°C when 1 hour has passed after the selection was
made, and then another 1°C after another 1 hour have passed, regardless
of the indoor temperature when SLEEP was selected. The unit will maintain
this temperature. This enables you to save energy without sacr ing
comfort. This function is convenient when gentle cooling is needed.
3.5.2 In Heating
Mode: ( )
When the SLEEP mode is selecte d, the air conditioner automatically lowers
the temperature setting 1°C when 1 hour has passed after the selection was
made, and then another 1°C after another 1 hour have passed, regardless
of the indoor temperature when SLEEP was selected. The unit will maintain
this temperature. This enables you to save energy without sacr ing
comfort. This function is convenient when gentle heating is needed.
1 hour
Setting
temperature
Press the
SLEEP button
Time
1°C
1 hour
Setting
temperature
Press the
SLEEP button
1°C
1°C
** (Only for Heatpump Models) **
1 hour
1 hour Time
1°C

13
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.6 “SPECIAL” Features
How it works
•During DRY operation, the fan speed is automatically set to LOW.
•If the room temperature is 2°C higher than the Set Temperature, the
unit will run in COOL mode.
•Once the room temperature reaches ± 2°C of the level that was set, the
unit automatically repeats the cycle of compressor turning “ON” for 6
minutes and turning “OFF” for 4 minutes.
How it works
•When AUTO mode is selected, the default temperature will be
displayed on the LCD, and the unit will automatically adjust to the room
temperature, selecting the appropriate operation method and ambient
comfort.
How it works
This function indicates that moisture on the evaporator of the indoor unit
will be dispersed after the unit is stopped to avoid the formation of mold.
Once the blow function resumes, the indoor fan will continue running for
about 10 minutes at low speed even after the unit is turned o by
pressing the ON/OFF button, in which case, pressing the “BLOW” button
again will immediately stop the indoor fan.
How it works
In “COOL” or “HEAT” mode, if this function is selected, the unit will run at
super-high fan speed to cool or heat rapidly to enable the ambient
temperature to approach the preset temperature as quickly as possible.
How it works
This special button is intended for users who are not accustomed to light
while sleeping.
Setting the display indicator light to ‘‘ON’’
When setting the light fu nction, pressing th is button will display the mark
on the remote control unit screen. The display indicator light will be
turn on if the air co nditioner receives this signal.
Setting the displayer indicator light to ‘‘OFF’’
Canceling the light function will cause the mark to disappear from the
remote control unit screen. The display indicator light will be turn o if the
air conditioner receives this signal.
How it works
Press “+” and “-” buttons simultaneously to Lock/Unlock the keyboard. If
unlocked, the mark will be disappear.
press any button and the mark will icker three times. If the keyboard is
will be displayed. In this case,
“DRY”
Operation
“AUTO”
Operation
“BLOW”
Operation
“TURBO”
Operation
“LIGHT”
Operation
“LOCK”
Operation the remote control unit is locked, the

14
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT
3.6 “SPECIAL” Features
(Continued)
How it works

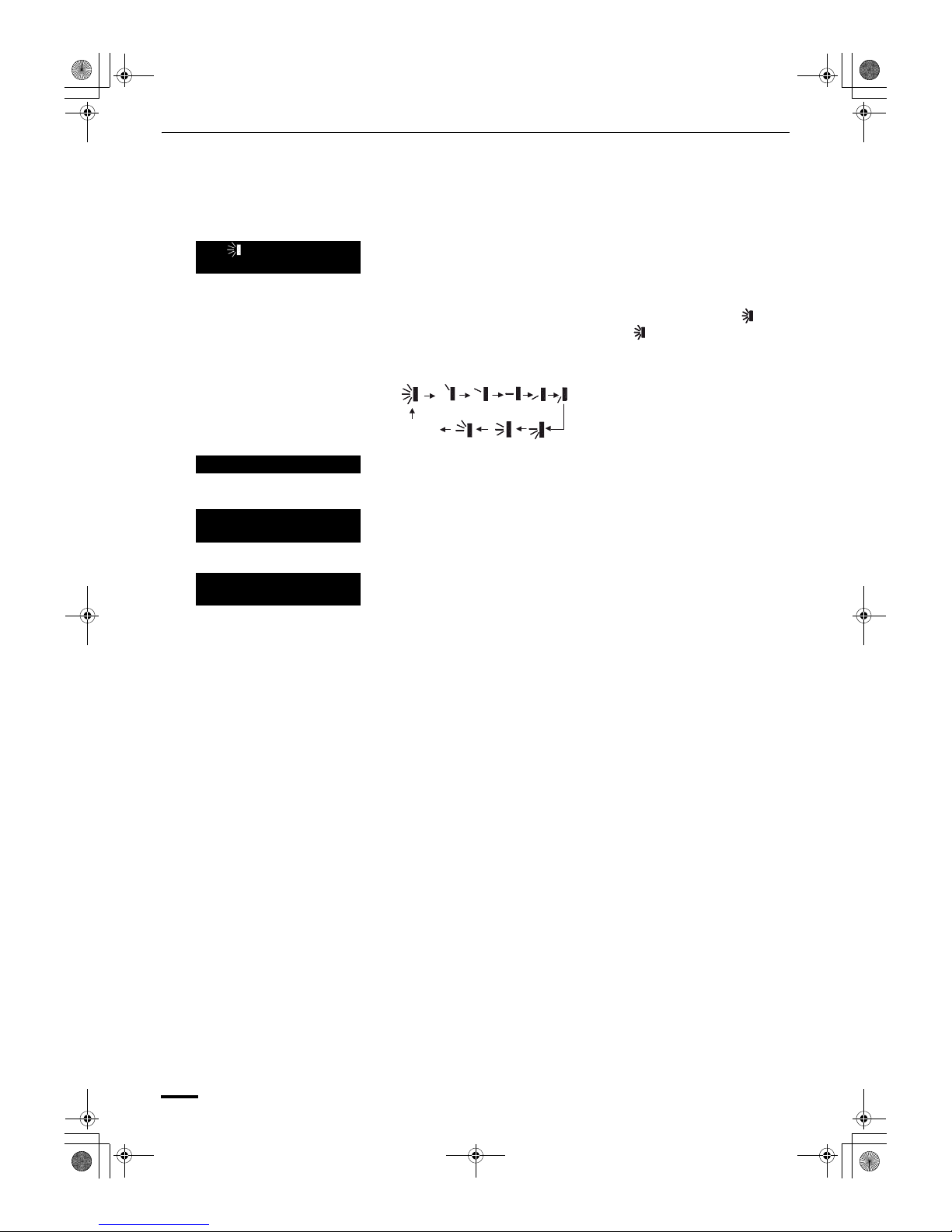

About swing up and down
1. Pressing the swing up and down button continuously for at least 2
seconds will cause the main unit to swing back and forth from up to
down. Release the button, and the unit will immediately stop swinging
and maintain the current position of the guide louver.
2. In swing up and down mode, when the status is switched from o to ,
if this button is pressed again 2 seconds later, status will
immediately switch to o stat us; if pressed again within 2 seconds,
swing status change will depend on the circulation sequence outlined
below:
How it works
To switch between Fahrenheit and Centigrade, in unit o status, press
“MODE” and “-” buttons simultaneously and then release both buttons
immediately to switch between °C and °F.
How it works
In the event of power failure, the unit will stop operation. When power
resumes, the unit will restart automatically after three minutes.
How it works
When the unit is in defrost status, “H1” will show on the display indicator
board. Even if the unit is turned of f with the remote co ntrol unit, the unit
will not stop defrosting until completed. If there is any change in the set
mode with the remote control unit, any new function that is set will not
initiate until the defrosting process is nished.
“SWING”
Operation
OFF
“ °F ” / “ °C ” Operation
Power Failure During
Operation
“H1” DEFROSTING
Operation
(** Only for Heatpump models **)

15
3. OPERATION OF WIRELESS REMOTE CONTROL UNIT

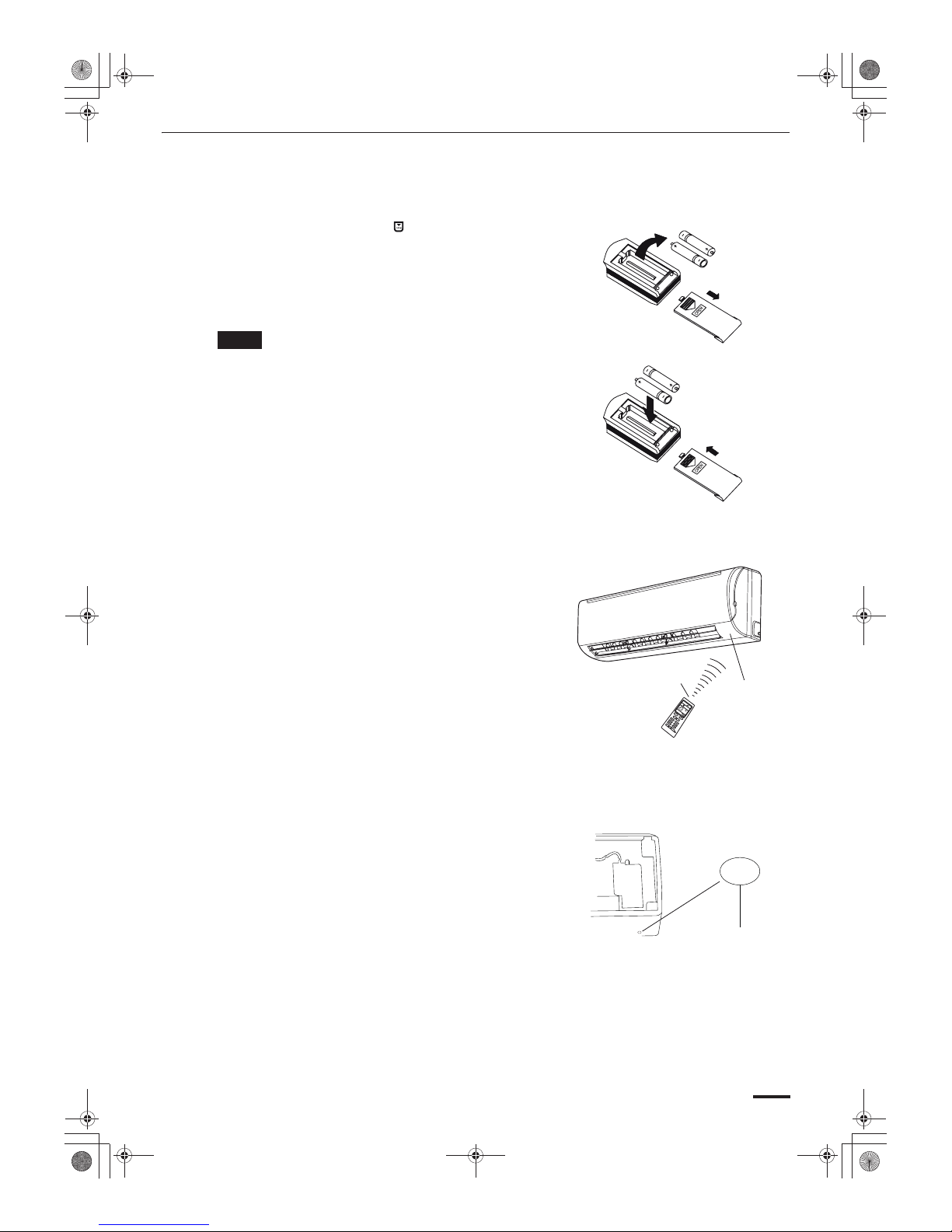

3.7 How to Remove and Install Batteries
1. Lightly press the place marked , in the direction of
the arrow to remove the back cover of wireless remote
control unit. (Fig. 1)
2. Remove the old batteries. (Fig. 1)
3. Insert two new AAA1.5V dry batteries, paying close
attention to their polarity. (Fig. 2)
4. Reattach the back cover. (Fig. 2, procedure 4)
•The batteries should last about six months. Replace the
batteries when the remote control unit’s display fails to
light, or when the remote control unit fails to change the
air conditioner’s settings.
•When changing the batteries, do not use old or incorrect
batteries. Use two new leak-proof type-AAA alkaline
batteries to avoid causing malfunction of the wireless
remote control unit.
•If the wireless remote control unit will not be used for
more than one month, remove the batteries to avoid
leaking liquid damaging the wireless remote control
unit.
•The wireless remote control unit should be placed more
than 1 m away from the TV set or stereo sound sets.
•If the remote control un it can not operate normally,
please remove and then reinsert the batteries 30
seconds later. If it still cannot operate, change the
batteries to new ones.
•The remote control signal can be received up to a
distance of about four meters.
•Dispose of used batteries ata designated location in
compliance with the applicable local ordinances.
3.8 Using the Remote Control Unit
When using the remote control unit, always point the
unit’s transmitter head directly at the air conditioner’s
receiver. (Fig. 3)
3.9 Emergency Operation
If the wireless remote control unit is lost or broken, please
use the manual switch button. In this case, the unit will run
in the “AUTO” mode, but the temperature and fan speed
cannot be changed. (Fig. 4)
To open the panel, the manual switch is located on the
display box. The operation is shown below:
•Turn ‘‘ON’’ the Unit:
By pressing the button, the unit will immediately run in
Auto mode. The microcomputer will select “COOL,”
or “FAN” mode relative to the indoor
temperature and produce a comfortable ambience.
•Turn “OFF” the Unit:
By pressing the button, the unit will stop working.
1
2
3
4
FAN
OPER
SWING
AM
C
ON
ON/OF
F
FAN
TEMP
-
TE
MP +
MODE
TIME
-
CANC
EL
TIME
+
S
WING
SLEEP
T-ON
T-OFF
CLOCK
Fig. 1
Fig. 2
(Indoor unit)
Air conditioner
Receiver
(Transmitter head)
Remote control unit
Fig. 3
Fig. 4
Manual switch
NOTE

16

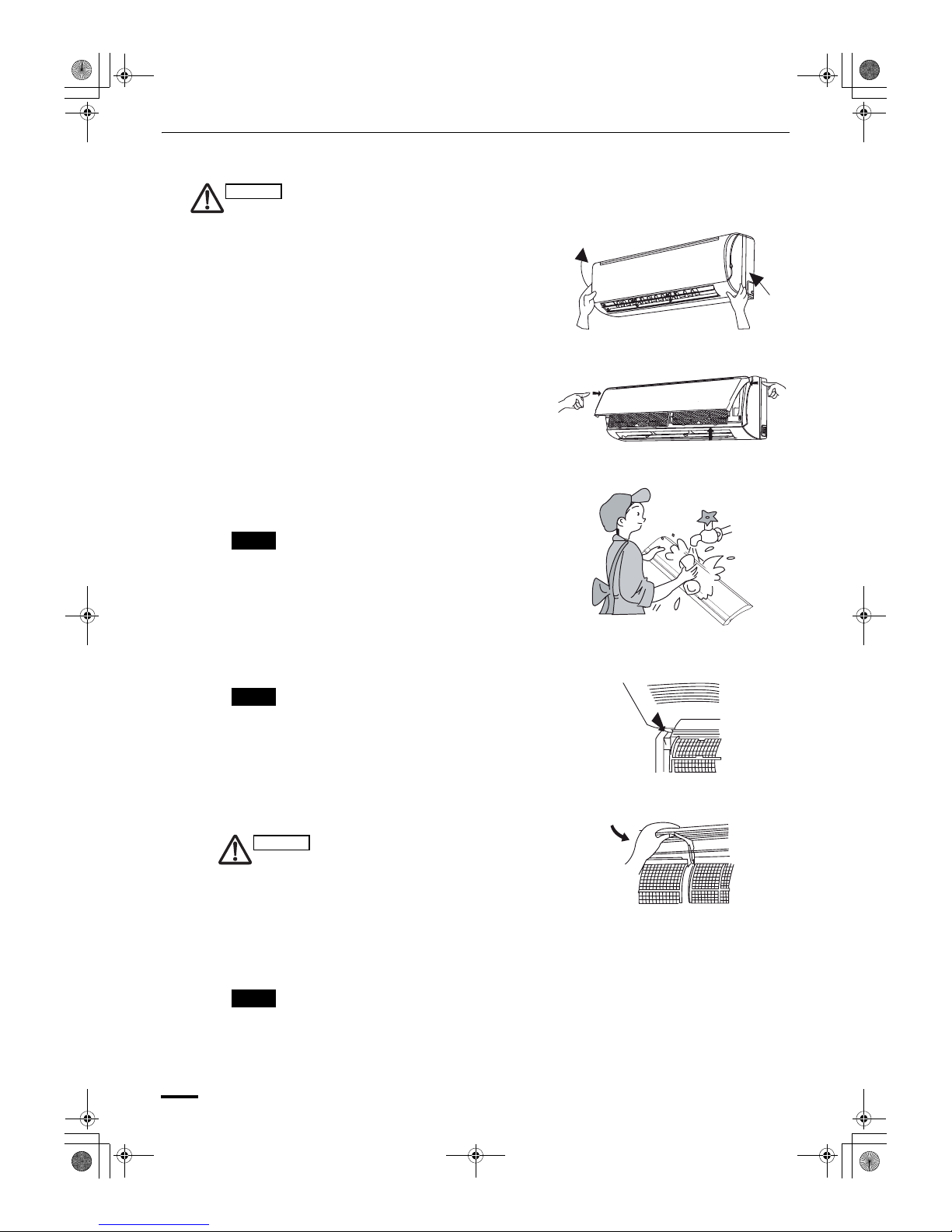

4. CLEANING AND CARE
1. For safety, be sure to turn the air conditioner off and
also disconnect the power before cleaning. Or it may
cause an electric shock.
2. Never sprinkle water on the indoor unit and the outdoor
unit for cleaning because it can cause an electric shock.
3. Volatile liquid (e.g. thinner or gasoline) will damage the
air conditioner. (So wipe the units with a dry soft cloth
or a cloth slightly moistened with water or cleanser.)

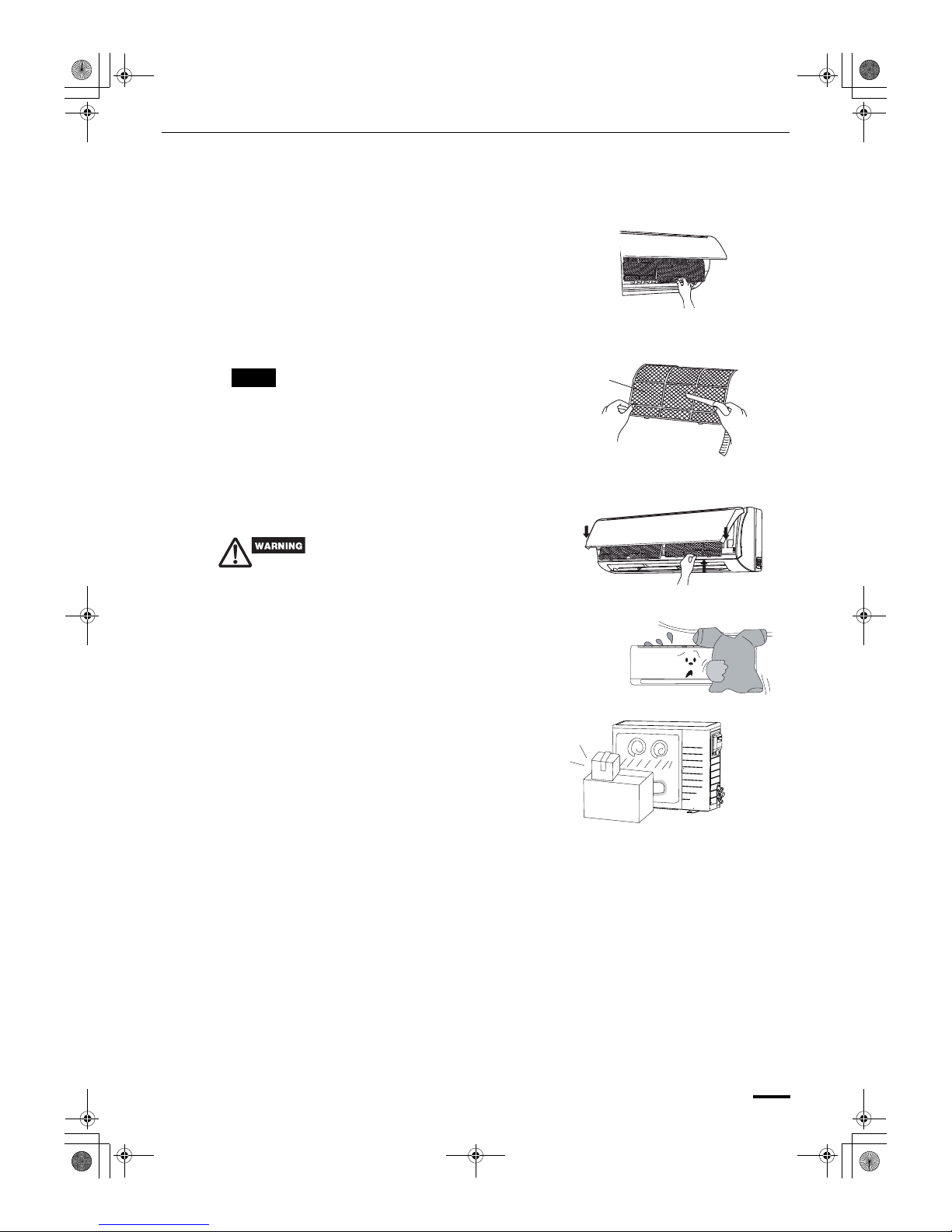

4.1 Clean the Front Panel
(Make sure to remove the front panel before cleaning it.)
1. Remove the Front Panel
Open the front panel until it is nearly horizontal, grasp
the sections near the front panel arms on both sides,
and then remove the panel by pushing the arms
towards the inside while pulling the panel towards you.
(Fig. 4a, 4b)
2. Washing
Clean with a soft brush, water and neutral detergent,
and dry with a clean soft cloth. (Fig. 5)
3. Replace the Front Panel
Grasp the sections near the front panel arms on both
sides, and hold the front panel so that it is nearly
horizontal. Push the arm shafts towards the inside so
that they come into contact with the top of the
indentations on the right and left sides of the air
conditioner. Then push firmly until the arm shafts click
into place. (Fig. 6a)
4.2 Cleaning the Air Filters
(Recommended once every 3 months)
1. After removing the filter, some metal edges and the
fins are sharp and may cause injury if handled
improperly; be especially careful when cleaning
these parts.
2. The internal coil and other components of the
outdoor unit must be cleaned every year. Consult
your dealer or service center.
CAUTION
Fig. 4a
Fig. 4b
Fig. 5
Fig. 6a
Fig. 6b
NOTE Do not use water hotter than 45°C to
prevent fading or deformation.
NOTE • The arm at the center of the front panel
slides into the groove at the front of the
unit. (Fig. 6b)
• After closing the front panel, press firmly
on the panel to securely fasten the panel in
place.
CAUTION
NOTE 1. There are microcomputer components
and circuit diagram on the LCD of the
front panel.
2. If dust is significant around the air
conditioner, the air filters should be
cleaned more often.

17
4. CLEANING AND CARE
4.2 Cleaning the Air Filters (Continued)
1. Remove the Air Filters
Pull out the panel at the angle of the bottom grooves on
the panel. Next, pull the airlter upward then downward
to remove it. (Fig. 7).
2. Cleaning
To clean dust adhering to the lters, either use a
vacuum cleaner, or wash them with warm water (water
with neutral detergent should be below 45°C) when the
lters are very dirty (e.g., oil-stained), and dry them in
the shade. (Fig. 8)
3. Install the Air Filters
Insert the top of the air lter, and then t the protrusions
on the bottom of the lter all the way into the hooks on
the unit.
Press the locations marked by the arrows and close the
front panel. (Fig. 9)
Since the air lter cannot remove harmful gases or
vapors nor ventilate the room, open doors or
windows frequently when using gas or oil heating
appliances. Not doing so carries a risk of suocation
in extreme cases.
4.3 Check Before Using
1. Be sure that nothing obstructs the air outlet or intake
vents. (Fig.10)
2. Check whether ground wire is properly connected or
not.
3. Check whether the batteries of the air conditioner have
been changed or not.
4. Check whether the installation stand of the outdoor unit
is damaged or not. If damaged, please contact the
dealer.
4.4 Maintenance After Use
1. Turn main power o.
2. Clean the lter, indoor and outdoor units.
3. Clear dust and obstructions from the outdoor unit.
4. Remove and repaint over any rust on the outdoor unit
in order to prevent it from spreading.
NOTE Do not use hot water of temperatures
above 45°C to prevent fading or
deformation. Do not use re to dry the
lter, to avoid re or deformation.
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Air lter

18
5. ADJUSTING THE AIRFLOW DIRECTION CORRECTLY
6. TROUBLESHOOTING
1. Horizontal
The horizontal ai sted by moving the louver
with your hand to the left or right.
When the humidity is high, the vertical vanes should be in
the front position during the cooling or dehumidifying
operation. If the vertical vanes are positioned all of the
way to the right or left, condensation may begin to form
around the air vent and drip down.
2. Vertical
The vertical ow can be adjusted by moving the with
the remote control unit.
Use the SWING button to set either the auto sweep or set to
the recommended position.
•Use the SWING button on the remote control unit to
adjust the position of the p. If you move th ap by
hand, the position according to the remote control
and the actu no longer match. If this
should happen, shut the unit, wait for the ap to
close, and then turn on the unit again; the p position
will now be normal again.
•Do not have the pointed down during cooling
operation. Condensation may begin to form around the
air vent and drip down.
Do not attempt to repair the air conditioner by yourself, as this can cause an electric shock or re.
Please check the following items before asking for repairs, as this can save time and money.
Does not operate immediately when the air
conditioner is restarted.
When the air conditioner is restarted immediately
after being protection switch
will delay starting for three minutes.
FAN
OPER
SWING
AM
C
ON
ON/OFF
FAN
TEMP
-
TEMP+
MODE
TIME
-
CANCEL
TIME
+
S
WING
SLEEP
T-ON
T-OFF
CLOCK
CAUTION
CAUTION
CAUTION
Waiting
Problem Solution

19

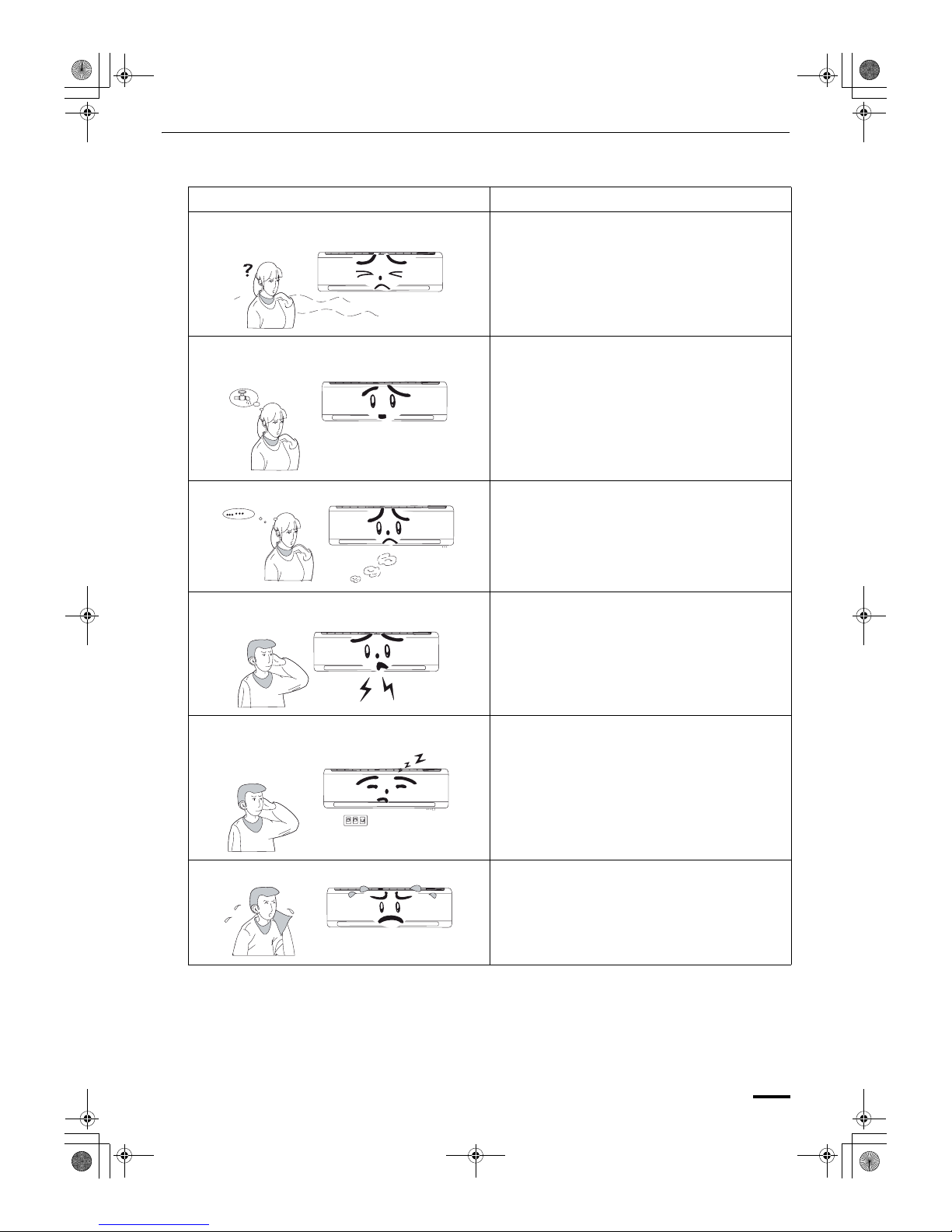

6. TROUBLESHOOTING
ProblemSolution
An unusual odor is emitted from the outlet after
operation is started.
Clean the air lters (see page16). If the problem
persists, the unit requires servicing. Please contact
your authorized SANYO maintenance center.
Sounds of water owing can be heard during
operation.
Occasionally there is a swooshing or gurgling sound
when the air conditioner is started, stopped or when
the compressor has started or stopped running.
These sounds are due to refrigerant owing and are
not malfunctions.
Mist is emitted. When the indoor temperature and humidity are high,
sometimes this phenomeno n occurs. It is caused by
the room air being swiftly cooled down. After running
for a while, the indoor temperature and humidity will
decrease, and the mist will disappear.
A creaking noise can be heard when starting or
stopping the unit.
This is caused by the deformation of plastic due to
the change of temperature.
The unit will not operate. •Has the power been turned o?
•Is the power plug loose?
•Is the voltage too high or too low? (Please ask a
qualied service representative to check the
voltage.)
•Has the TIMER ON function been correctly
operated?
Cooling (Heating) eciency is inadequate. •Is the temperature setting appropriate?
•Are the inlet or outlet vents obstructed?
•Is the lter dirty?
•Are the windows and doors closed?
•Is the fan speed set to low?
•Are there any heat sources in the room?
