Sanyo ECD-T1137S User manual

PLL Synthesized Stereo Radio with
Digital Compact Disc Player
1pair of RCA output
CD-R/CD-R W Compatibility
4 preset Equalization
Auxiliary Input
OWNER'S
MANUAL
ECD-T1137S

2

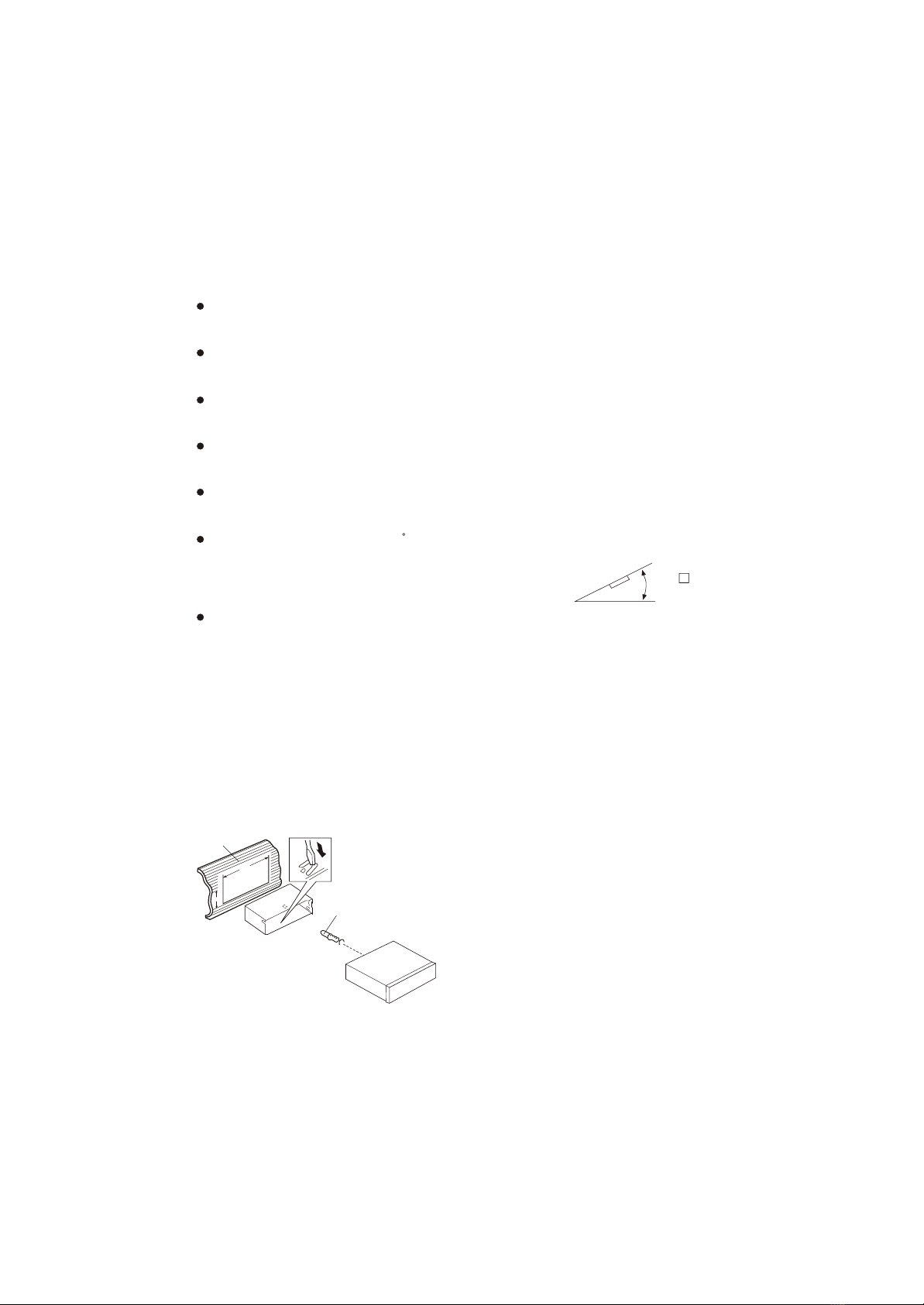

INSTALLATION
Notes:
•Choose the mounting location where the unit will not interfere with the normal
driving function of the driver .
• Before finally installing the unit, connect the wiring temporarily and make sur e it is
all connected up properly and the unit and the system works properly.
• Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
•If installation angle exceeds 30 from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater,or where it would be subject to dust,
dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front" (conventional DIN Front-mount)
or "Rear"(DIN Rear -mount installation, utilizing threaded screw holes at the sides of
the unit chassis). For details, refer to the following illustrated installation methods.

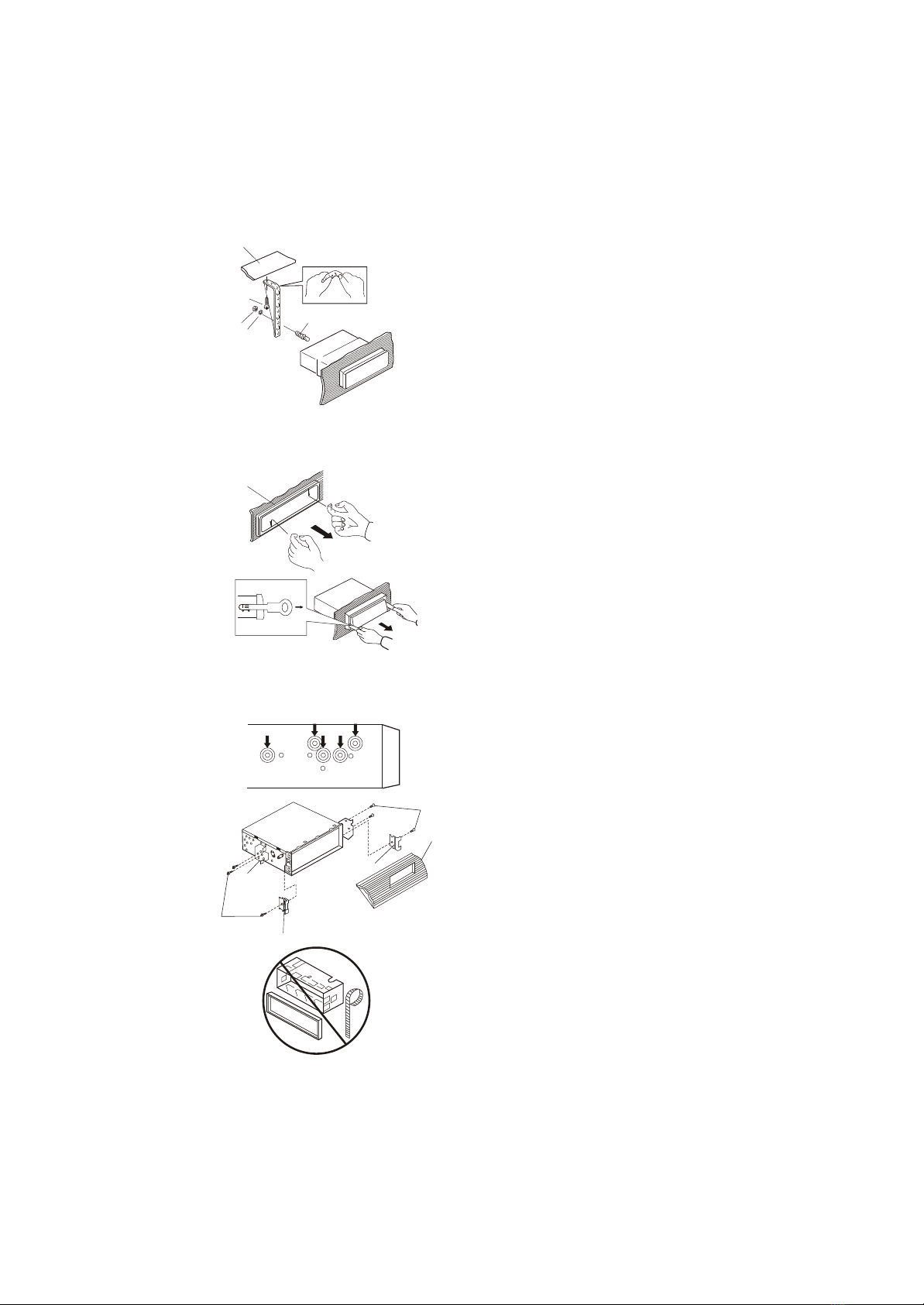

DIN FRONT-MOUNT (Method A)
Installation of the unit
1. Dashboard
2. Holder
After inserting the holder into the
dashboard, select the appropriate tab
according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.
3. Screw
30
1
3
2
182
53
(Fig. 1)
•

3
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 14mm)
5. Screw
6. Strap
Be sure to use the strap to secure the
back of the unit in place. The strap can
be bent by hand to the desired angle.
Removing the unit
1. Frame
2. Insert fingers into the groove in the front
of frame and pull out to remove the
frame. (When reattaching the frame,
point the side with a groove downwards
and attach it.)
3. Lever
Insert the levers supplied with the unit
into the grooves at both sides of the unit
as shown in figure until they click.
Pulling the levers makes it possible to
remove the unit from the dashboard.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio
mounting bracket.
1. Select a position where the screw holes
of the bracket and the screw holes of
the main unit become aligned (are fitted),
and tighten the screws at 2 places on
each side.
Use either truss screws (5 x 5mm) or
flush surface screws (4 x 5mm),
depending on the shape of the screw
holes in the bracket.
2. Screw
3. Factory radio mounting bracket
4. Dashboard or Console
5. Hook (Remove this part)
Note: The mounting box, outer trim ring,
and half-sleeve are not used for method B
installation.
1
3
4
5
2
2
5
1
2
6
5
4
3
(Fig. 2)
1
3
2

4
HOW TO REMOVE AND INSTALL THE FRONT PANEL
(OPTIONAL)
1. Press the release button and pull-of f the front panel.
Store front panel in the case.
2. Toinstall the front panel, insert the panel into the housing and make sure the panel
is properly installed, otherwise, abnormalities may occur on the display or some
keys may not function properly.
REMOVING THE FRONT PANEL
INSTALLING THE FRONT PANEL
Front Panel
Release Button

5
WIRING CONNECTION
GREEN
GREEN/BLACK
GREY
GREY/BLACK
VIOLET
VIOLET/BLACK
MAIN UNIT
WHITE
WHITE/BLACK
FRONT Lch
SPEAKER
REAR Lch
SPEAKER
FRONT Rch
SPEAKER
REAR Rch
SPEAKER
Rch RED
Lch WHITE
(GREY)
RCA CABLE
ANTENNACONNECTOR
RED
YELLOW
BLACK
BLUE
POWER
ANTENNA
GROUND (B-)
MEMORY
BACK-UP
IGNITION
SWITCH (B+)

6
2526
7 31 4
1420
11 9198
15241012
2 5 18 13
21 22 23 6 16 17
OPERATION
GENERAL OPERATION
ON/OFF
Switch on the unit by pressing any button [except button (7) and eject button
(4)]. When system is on, press PWR button (9) to turn off the unit.
FACEPLATE RELEASE
Press button (7) to detach the removable faceplate.

7
The adjustment mode will change in the following order:
By pressing VOL button + (11) or VOL button - (12), it is possible to adjust the
desired sound level.
LOUDNESS
Press BND/LOU button (13) for several seconds to reinforce the bass output and
display will show "LOUD". Press it for several seconds again to release this function.
SET THE CLOCK
Press the DSP button (15), the clock is shown on the LCD display. Then hold down
the button until the clock flashes. Then press the MANU/SKIP button (17) to
change hours or MANU/SKIP button (16) to change minutes.
SELECT MODE
Press MOD button (6) shortly to choose desired listening mode.
[e.g. radio mode to CD mode to AUX mode]
MUTE
Press MUT button (3) to mute the sound instantly . If any button is pr essed in the
mute state, the mute mode is released.
LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated functions on the display (8).
EQUALIZATION
Press EQ button (19) to turn on equalization function and to select desired audio
mode. There are five kinds of mode as below:
AUXILIARY INPUT
The unit can be connected to a portable audio player through the AUX IN jack (24).
To hear the i nput signal, press MOD (6) button several times until the display shows
“AUX”.
FLASHING LED
If the front panel is not installed in the main unit, the LED (25) will be flashing.
RESET
RESET button (26) can be activated with either a ball point pen or thin metal
object. RESET button (26) is to be activated for the following reasons:
- Initial installation of the unit when all wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
FLAT CLASSICS POP M ROCK M DSP OFF
Volume Bass Treble Balance Fader

8
RADIO OPERATION
BAND SELECTION
At tuner mode, press BND/LOU button (13) to select the desired band.
The reception band will change in the following order:
STATION SELECTION
Press MANU/SKIP button (16) or MANU/SKIP button (17) to activate
automatic seek function. To select manual tuning mode, press for several seconds
until "MANUAL" appears on the display. If both buttons are not pressed for several
seconds, the tuner will return to seek tuning mode and "AUTO" will appear on the
display.
LOCAL/DISTANCE
Press LOC button (2) to select between local and distant stations.
Local setting for reception of strong station, and a distant setting for reception of
weaker stations. This function is in effect during AUTO SEEK operation.
AUTOMATIC MEMORY STORING & PROGRAM SCANNING
- Automatic Memory Storing
Press ATP button (18) for several seconds, the radio will search from the current
station and check the signal strength until one cycle search is finished. The 6
strongest stations detected will be stored into the corresponding preset button.
- Program Scanning
Press ATP button (18) shortly to scan preset station.
STATION STORING
Press any one of the preset buttons (14) (M1 to M6) to select a station which had
been stored in the memory. Press this button for several seconds to store the
current station into that preset button.
SEEK FUNCTION
Press SEEK button (1) to scan and hear all tunable stations for a few seconds.
Press SEEK again to stop at current station.
FM1 FM2 FM3 AM

9
CD OPERATION
SELECT TRACKS
Press MANU/SKIP button (16) or MANU/SKIP button (17) to move to the
previous track or the following track. Track number shows on display.
Hold MANU/SKIP button (16) or MANU/SKIP button (17) to fast reverse or
fast forward. CD play starts from when you release the button.
PAUSE PLAYING
Press PAUbutton (20) to pause CD player. Press it again to resume play.
REPEAT THE SAME TRACK
Press RPT button (22) to continuously repeat the same track. Press again to stop
repeat.
PREVIEW ALL TRACKS
Press SCN button (21) to play first several seconds of each track on the current
disc. Press again to stop intr o and listen to track.
PLAY ALL TRACKS IN RANDOM
Press SHF button (23) to play all tracks on CD in random or der. Press again to
cancel the function.
EJECT
Press (eject) button (4) to stop CD playing and eject the disc from the disc slot (5).

Note:
A. Notes on discs:
1. Attempting to use non-standar d shape discs (e.g. square, start, heart) may
damage the unit. Be sure to use round shape CD discs only for this unit.
2. Do not stick paper or tape etc., onto the label side or the recording side of
any discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warping discs will cause misoperation.
B. Notes on CD-Rs (recordable CDs)/ CD-RWs (rewritable CDs):
1. Be sure to use discs with following marks only for the unit to play:
2. The unit can only play a CD-R and CD-RW that is finalized. (Please refer to the
manual of your CD-R/CD-RW recorder or CD-R/CD-RW software for more
information on finalization process).
3. Depending on the recording status, conditions of the disc and the equipment
used for the recording, some CD-Rs/CD-RWs may not play on this unit. (See *1)
*1: To have more reliable play back, please see following recommendations:
- Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.
- Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.
- Do not play a CD-RW which has been written for mor e than 5 times.
Recordable Rewritable
