Sanyo MCD-s900F User manual

Service Manual
SPECIFICATIONS
CD Radio Cassette Recorder
(CASSE~E DECK SECTfON)
Recording System .................AC bias 4-track stereo
Erasing System ..................... Magnet erase
Tape speed ...........................4.75 cmlsec.
LRewind and fast
forward time .......................... 110sec. (C-60 tape)
Frequency range ...................80 -12,000 Hz(Normal)
(CD SECTION)
Channels ...............................2 channels
S/N ratio ................................60 dB
Wow /Flutter .........................undetectable
Sampling frequency ..............44.1 kHz
Quantization .......................... 16 bits linear/ch
Pick-up ..................................Semiconductor laser
Pickup wave length ...............790 nm
Laser output .......................... Continuous wave max. 0.6 mW
(RADIO SECTION)
Frequency range ................... FM :87.5-108 MHz
AM :526.5-1,610 kHz
I
IFILE No. I
MCD-s900F (XE)
(AU)
(PA)
PRODUCT CODE No.
16402002 MCD-S900F(XE)
16402003 MCD-S900F(AU)
16402004 MCD-S900F(PA)
(GENERAL)
Output power ................4W /ch (DC max.)
Speakers ....................... 16 cm x2,4 ohms
PIEZO X2
Terminal impedance ..... PHONES: 32 ohms
Power source ................AC: 230V ,50Hz (XE)
:230- 240V ,50Hz (AU)
:110- 120V1220 -240V 50160Hz(PA)
DC: 12 V(8 “R20’ size batteries)
Dimensions ...................615 (W) x 282 (H) x 230 (D) mm
Weight (approx.) ............7.0 kg (including batteries)
Specifications subject to change without notice.
REFERENCE No. SM5810035

LEASER BEAM SAFETY PRECAUTION
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT .......... 0.6mW Max. (CW)
WAVELENGTH .............790 nm
[CAUTION-INVISIBLE LASERRADIATIONWHEN OPENANL
INTERLOOKSDEFEATED,AVOIDEXPOSURETO BEAM.
ADVARSEL-USYNLIGLASERSTRALINGVEDABNING,NAR
SIKKERHEDSAFBRYDEREERUDEAF FUNKTION,UND~ UDS/HTELSE
FORSTFIALING,
VARNING-OSYNLIGLASERSTRALNINGtiR DENNADELAR 6PPNAD
OCH SPARRAR URKOPPIAD. STRALENAR FARLIG.
VORSICHT-UNSICHTBARELASERSTRAHLUNGTRllT AUS,WENN A
DECKELGEdFFNET UND WENN SICHERHEITSVERRIEGELUNG
UBERBRUCKTlsT. NICHT, DEMSTRAHLAUS.5ETZEN.
VARO-AVAITAESSA JA SUOJALUKITUSOHIT~AESSA OLETALTHINA
NAIWMAITbtiLLE LASERSATEILYLLE.ALAKATSOSATEESEEN,
[.k
o
TUNER ADJUSTMENTS
J
00
IF
R. .
FM;:
MON “.
. .
. .
. .
AM
o
Qo
o~o~o (@ o
g%Llo4
mL101
“03 %-
L109
@l TP2
[
L103 “
@El
s
G
n
L11O
D@l
L1OS Llll
I
TPl
Adjustment VTVM
Oacilloscooe
\MADJUSTMENT
Adjusting Connection SG Position
circuit Input output Frequency Tuning dial
Cloaa the output terminal by Connect sweep generator to
IF sweep generator, it please to ICI 01 pinl 9(H) and pin6(E)
L101 460kHz Low
Tuning Connect AM SGto Connect VTVM to 515kHz Low end
Coverage TEST LCC)P speaker terminal 1650kHz Hgh end TC102
Tracking Connect AM SG to Connwt VTVM to 600kHz 600kHz LI 01 Max.
TFST 1c3C3P sneaker tarminal 1400kHz 1400kHz TC101 \
Repeat adjustments I I II I J
‘M ADJUSTMENT
Adjusting Connection SG Position Adjustment VIVM
circuit Input 1output Frequency Tuning dial Oscilloscope
Conned sweep generator to ]Connect sweep generator to
IF ICI 01 pin24(H) and pin23(E) IC101 pinl 9(H) and pin6(E) I10.7MHZ
ILow IL101 ,Llll l%- 1
Tuning Connect FM SG to Connect VTVM to 87MHz Low end L104 Max.
Coverage TP1 (H)& TP2(E) speaker terminal
Tracking 109MHz High end TC104
Connect FM SG to Conrwt VTVM to 9GMHz SQMHZ LI 03 Max.
06MHZ 1D6MHZ TC1G3ITP1 fH) &TP2Et ISDWkW terminal m
-1-

I
‘L
L
L

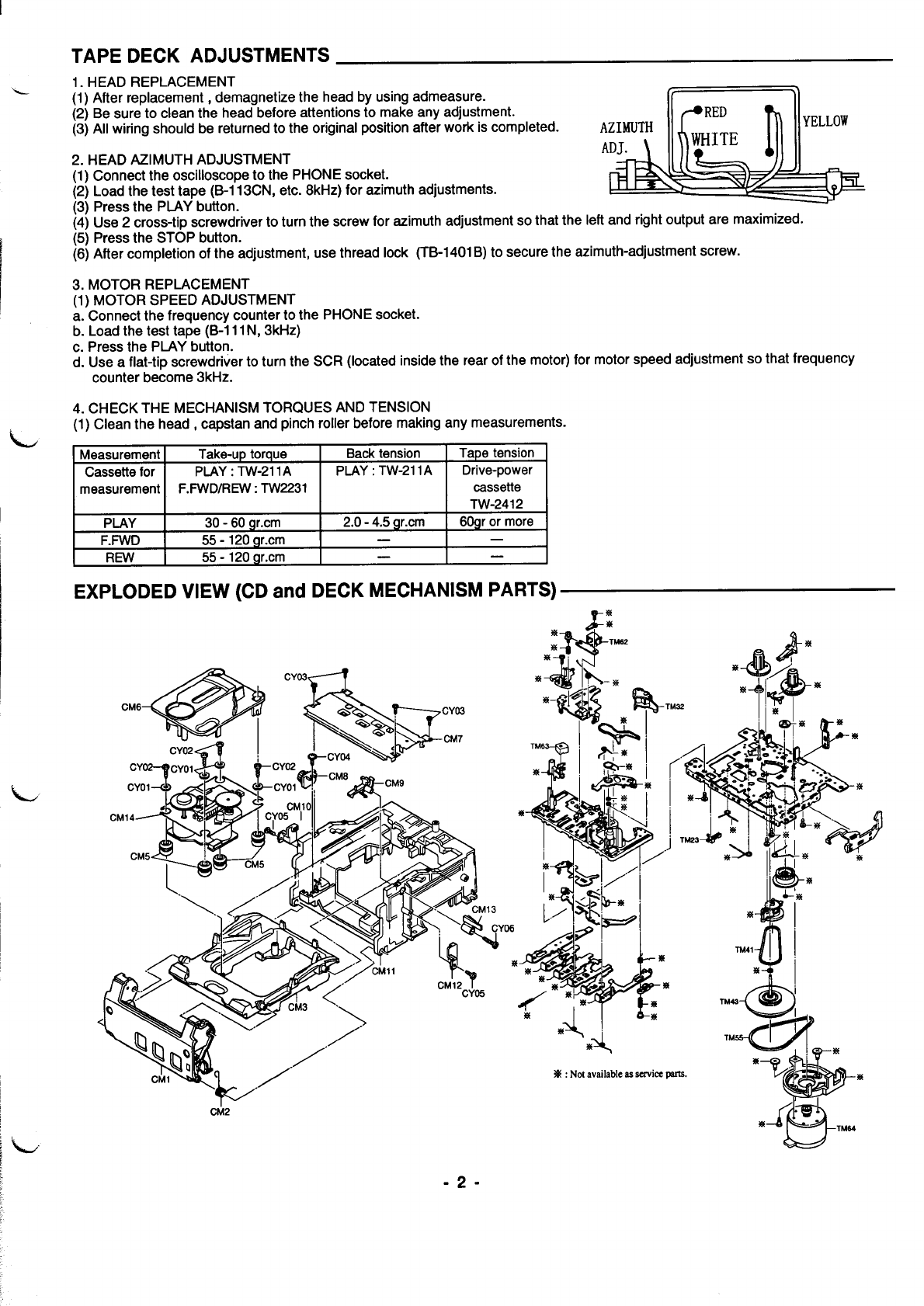

TAPE DECK ADJUSTMENTS
I.HEADREPLACEMENT
(1) After replacement, demagnetize the head by using admeasure.
(2) Be sure to clean the head before attentions to make any adjustment.
(3) All wiring should be returned to the original position after work is completed. AZIMUTH
ADJ.
2. HEAD AZIMUTH ADJUSTMENT
(1) Connect the oscilloscope to the PHONE socket.
(2) Load the test tape (B-1 13CN, etc. 8kHz) for azimuth adjustments.
(3) Press the PLAY button.
(4) Use 2cross-tip screwdriver to turn the screw for azimuth adjustment so that the left and right output are maximized.
(5) Press the STOP button.
(8) After completion of the adjustment, use thread lock (TB-1401 B) to secure the azimuth-adjustment screw.
3. MOTOR REPLACEMENT
(1) MOTOR SPEED ADJUSTMENT
a. Connect the frequency counter to the PHONE socket.
b. Load the test tape (B-111 N, 3kHz)
c. Press the PLAY button.
d. Use aflat-tip screwdriver to turn the SCR (located inside the rear of the motor) for motor speed adjustment so that frequency
counter become 3kHz.
4. CHECK THE MECHANISM TORQUES AND TENSION
(1) Clean the head, capstan and pinch roller before making any measurements.
Measurement Take-up torque Back tension Tape tension
Cassette for PLAY :TW-211 APLAY :TW-211A Drive-power
measurement F.FWDIREW :TW2231 cassette
)I55. lX’lnrcm I—l— I
PLAY I30-60 gr.cm !2.0- 4.5 gr.cm I60gr or more I
F.FWD
REW I55-120 gr.cm —I—
EXPLODED VIEW (CD
CM6
kQLB
‘ATMq,w-
w-
Xf :Not available 6s service pt.% 5
crJ2 %
!!3
-( TM64
-2-

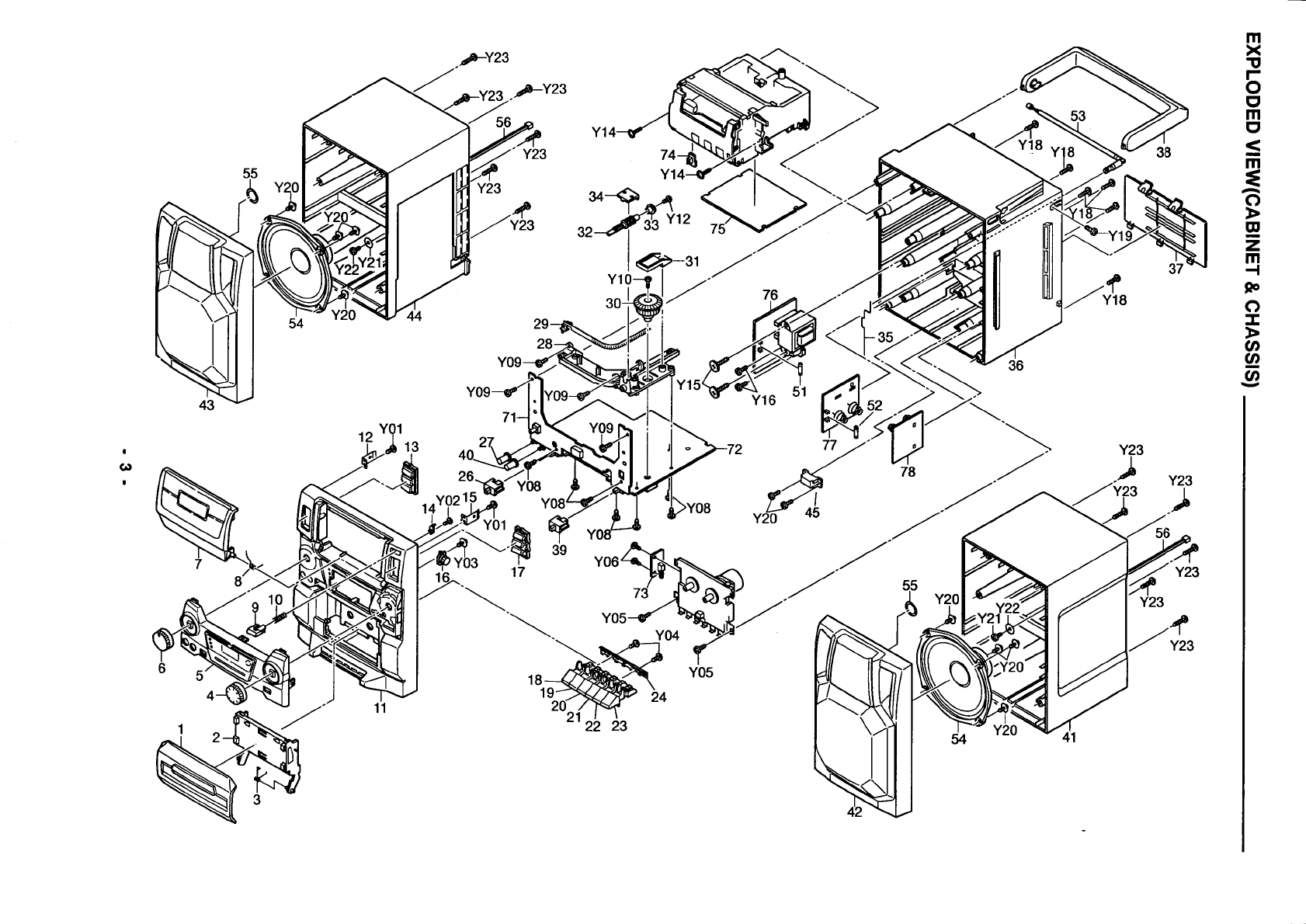

EXPLODED VIEW(CABINET &CHASSIS)
-3-

PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOLA IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY CAN
OF SPECIAL SIGNIFICANCE. WHEN REPLACING ACOMPONENT IDENTIFIED ,USE ONLY THE REPLACEMENT PARTS
DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED
IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING
THE PRODUCT TO THE CUSTOMER.
;AUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematio diagram.
Regular type resistors are less than 1/4W carbon type and Oohm chip resistors.
Regular type capacitors are less than 50V and less than 1000pF of Ceramic type and Electrolytic type.
PACKING &ACCESSORY REF. NO. PART NO.
REF. NO. PART NO.
A6450382840
A6450382857
A6450382864
6450383144
6450383151
6450383168
6450369230
6450369247
6450383182
6450383199
6450369254
6450369261
6450383205
6450383212
6450383229
6450369575
CABINET &CHASSIS
REF. NO. PART NO.
1 6450382697
26450367946
3 6450369452
46450368004
5 6450367953
6 6450368011
76450382703
L; 6450369476
6450367786
10 6450377303
11 6450367731
12 6450368424
13 6450367854
14 6450368257
15 6450368431
16 8450368349
17 8450367861
18 8450387793
19 6450387809
20 6450367816
21 6450367823
22 6450367830
23 8450387847
24 8450388394
26 6450388059
27 6450368035
28 8450368165
29 8450368226
L: 6450368141
6450388233
32 6450368158
DESCRIPTION
AC CORD, SAA(AU)
AC CORD(PA)
AC CORD,VDE(XE)
INSTRUCTION MANUAL(AU)
INSTRUCTION MANUAL(PA)
INSTRUCTION MANUAL(XE)
POLYBAG,FOR SET(AU,PA)
POLYBAG,FOR l/B(AU,PA)
POLYBAG;FOR SEt(XE)
POLYBAG,FOR l/B(XE)
CUSHION TOP
CUSHION BOTTOM
CARTON CASE(AU)
CARTON CASE(PA)
CARTON CASE(XE)
REMOCON,RB-S900
33
34
35
36
37
38
39
40
45
6450368370
6450368240
6450369483
6450367748
6450376566
6450367755
8450368042
6450368035
6450382789
DESCRIPTION
GEAR TUNING SHAFT
GEAR BRACKET (B)
ANT SPRING, FOR ROD ANT
REAR CABINET,l 00-MDS900CA-1 352
BATT COVER, IOO-MDS900CA-1360
HANDLE,l 00-MDS900CA-1353
KNOB SLIDE,BAND
KNOB PUSH, SURROUND
AC SELECTOR SWITCH(PA)
SPEAKER BOX RIGHT ASSY
REF. NO. PART NO.
41 6450376450
42 6450376467
54 6450377105
55 6450368950
56 6450368653
Y20 6450369315
Y21 6450369377
DESCRIPTION Y22 6450369520
ASSY CASS LID Y23 6450377280
DESCRIPTION
ASSY SPK REAR RIGHT
ASSY SPK FRONT RIGHT
SPEAKER, SP-246
PIEzo,Fr-2oT-8Al
2P WIRE,SPK PIEZO
SCR 3X12,SPK
SCR 3X12, FOR 2P CON WIRE
WASHER, FOR 2P CON WIRE
SCR 3X24, FOR SPK REAR CAB
CASS LID SPEAKER BOX LEFT ASSY
CASS LID OPEN SPRING, REF. NO.
603-MDS900US-215 PART NO.
43
KNOB ROTARY,TUNING 6450376467
44 6450376450
CONTROL PANEL
KNOB ROTARY, VOLUME
ASSY CD LID
CD OPEN SPRING,CD LID
CD OPEN KNOB,1OO-MDS9OOCA-1363
CD SPRING WIRE,
603-MDS900US-0211A
FRONT CABINET,l 00-MDS900CA-1351
PANEL BRACKET L,SECC
CD CONTROL KNOB L
ADAPTOR LEVER
PANEL BRACKET R,SECC
DAMPER GEAR,CASS LID
CD CONTROL KNOB R
CASS BUll_ON REC
CASS BUITON PLAY
CASS BUITON REW
CASS BUTTON FWD
CASS BUITON STOP
CASS BUITON PAUSE
CASS BUITON BRACKET,SECC
KNOB SLIDE, FUNCTION
KNOB PUSH,BASS XPANDER
DIAL BRACKET
DIAL POINTER
TUNING GEAR (A)
GEAR BRACKET (A)
TUNING GEAR (B) -4-
64 6450377105
55 6450368950
56 6450368653
Y20 6450369315
Y21 6450369377
Y22 6450369520
Y23 6450377280
FIXING PARTS
REF. NO. PART NO.
Yol 6450369322
Y02 6450369438
Y03 6450369339
Y04 6450369308
Y05
Y06
Y08
Y09
Ylo
Y12
Y14
Y15
Y16
Y18
Y19
Y20
6450369377
6450369308
6450369308
6450369377
6450369360
6450369438
6450369308
6450369384
6450383236
6450369414
6450369407
6450369308
DESCRIPTION
ASSY SPK FRONT LEFT
ASSY SPK REAR LEFT
SPEAKER,SP-246
PIEZ0,FT-20T-8A1
2P WIRE,SPK PIEZO
SCR 3X12,SPK
SCR 3X12,FOR 2P CON WIRE
WASHER,FOR 2P CON WIRE
SCR 3X24,FOR SPK REAR CAB
DESCRIPTION
SCR 3X8,CASE PANEL BKT UR
SCR 2X5,ADAPTOR LEVER
SCR 3X8,CD DAMPER GEAR
SCR 3X8,
CASS BUITON BRACK=(AU,PA)
SCR 3X12,CASS DECK
SCR 3X8,CASS KEY BKT
SCR 3X8, FOR MAIN PCB
SCR 3X12, DISPLAY PCB
SCR 2.6X0 .45X6, FOR TUNING GEAR A
SCR 2X5, FOR GEAR (B) SHAFT
SCR 3X8,CD HOLDER UR
SCR 4X20, FOR PWR TRANS
SCR 3X1 O,FOR AC INPUT
SCR 3X20, MASTER CABINET
SCR 3X1 O,ROD ANT
SCR 3X8,VOTAGE PCB ASSY(PA)

PARTS LIST
ELECTRIC-PARTS
REF.NO. PART NO. DESCRIPTION
A6450382901 POWER TRANS(AU)
A8450382918 POWER TRANS(PA)
A6450382925 POWER TRANS(XE)
51 A6450383038 FUSE
53 6450368769 ROD ANTENNA,415-MDS900US-O098
DISPLAY P. W. BOARD ASSY
REF.NO.
71
CN404
D0114
D0115
D0116
D0117
D0116
D0119
D0120
D0121
D0122
D0125
QO11O
QO1ll
QO112
sol 09
sol lo
Solll
S0112
S0113
S0114
Uolol
UO1O2
VR101
PART NO.
6143076025
6450368622
6450382888
6450382888
6450382888
6450382932
6450382932
6450382932
6450382932
6450382932
6450382932
6450382932
6450388875
6450368875
6450368882
6450368462
6450368462
6450368462
6450368462
6450368462
6450368462
6450382895
6450368929
6450368936
DESCRIPTION
ASSY,PWB,DISPLAY(Onlyinitial)
SOCKET 14P,404-MDS900US-0864
LED
LED
LED
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
TR 2SA1317 T
TR 2SA1317 T
TR2SC1815Y
SWITCH TACT,RS-014RA1-B1
SWITCH TACT,RS-014RA1-B1
SWITCH TACT,RS-014RA1-B1
SWITCH TACT,RS-014RA1-B1
SWITCH TACT,RS-014RA1-B1
SWITCH TACT,RS-014RA1-B1
LED DISPLAY,TOD-4201BE-1N
IR SENSER,SPS-444-1-E
ROTARY VR,XVO141GPVN20FS-
AMP-TU P.W.BOARD ASSY
REF.NO.
72
72
72
Coloo
Colol
C0142
C0144
C0145
C0146
CO152
Col 53
CO158
C0157
C0164
C0165
CO187
C0188
C0189
C0190
CN101
CN102
CN103
CN104
CN405
CNXO1
CNX02
DO1O1
DO1O2
DO1O3
DO1O4
DO1O9
PART NO.
6143076018
6143076032
6143076049
4030567106
4030587106
4030571905
4030571905
4030584608
4030584608
4030605204
4030569506
4030619607
4030619607
4030631203
4030631203
4030569506
4030569506
4030837007
4030637007
6450368615
6450382796
6450368639
6450368608
6450368585
6450368592
6450368592
6450382932
6450382932
6450382949
6450368721
6450382932
DESCRIPTION
ASSY,PWB,AMP-TU(XE)(Onlyinitial)
ASSY,PWB,AMP-TU(AU)(Onlyinitial)
ASSY,PWB,AMP-TU(PA)(Onlyinitial)
POLYESTER 10OOPJ50V(PA,XE)
POLYESTER 10OOPJ50V(PA,XE)
POLYESTER 0.1UJ50V(PA,XE)
POLYESTER 0.1UJ50V(PA,XE)
POLYESTER 0.15U J50V(PA,XE)
POLYESTER 0.15U J50V(PA)
POLYESTER 3300P J50V(PA,XE)
POLYESTER 0.01UJ50V
POLYESTER 0.047U J50V(PA,XE)
POLYESTER 0.047U J50V(PA,XE)
POLYESTER 0.068U J50V
POLYESTER 0.068U J50V
POLYESTER 0.01UJ50V
POLYESTER0.01UJ50V
POLYESTER 0.082U J50V(PA,XE)
POLYESTER 0.082U J50V(PA)
SOCKET4P,T0 R/P SW
SOCKET4P,T0 R/P HEAD
SOCKET 3P,T0 CASS MOTOR
SOCKET 2P,T0 PT
7P CONNECTOR WIRE,TO CD
SOCKET 2P,L SP(AU)
SOCKET 2P,R SP(AU)
DIODE 1SS133
DIODE 1SS133
DIODE 1S2638(PA,XE)
DIODE 1N4001
DIODE 1SS133
REF.NO.
DO11O
DO111
D0112
D0304
D0304
D0304
Iclol
IC102
IC103
JK101
JK102
LO1O1
LO103
LO1O4
LO1O5
LO106
LO109
LO11O
LO111
QO1O1
QO102
QO103
QO1O4
QO1O8
R0154
R0155
Solol
sol 02
SO1O3
SO1O4
sol 07
XF101
PART NO.
6450382932
6450368745
6450369711
6450382932
6450382932
8450382932
6450368905
6450368912
6450368899
6450368998
6450383014
6450382963
6450368844
6450368806
6450368790
8450368837
6450368783
6450388813
6450368820
6450368868
6450368882
6450382987
8450368882
6450368882
4020719508
4020710208
6450367106
6450367106
6450368448
6450368448
6450367113
6450369032
8450368592
6450369018
6450369025
6450369339
6450382680
DESCRIPTION
DIODE 1SS133
ZENER DIODE
ZENER DIODE
DIODE 1SS133(AU)
DIODE 1SS133(PA)
DIODE 1SS133(XE)
IC LA1828,417-MDS900US-0319
IC TA2068N,417-MDS900 US-0323
IC TA8229K,417-CS7021 A-5173
HEADPHONE JACK, HTJ-035-1 OABT
MIC JACK, HTJ-036-1 OEBT(PA)
BAR ANTENNA,415-MDS900 US-OI OIA
FM RF COIL, CS48-843260
FM OSC COIL, BH07-843261
AM IH,AH07-842422
TAPE OSC COIL, LOD8-643262
MW OSC COIL,415-MDS9OOUS-O1O3
FM IFT,FH07+40960
FM DET COIL, FH074M0961
TR 2SA1015 Y
TR 2SC1815 Y
TR 2SB1 185 E,416-PMSE1-052
TR 2SC1815 Y
TR2SC1815Y
FUSIBLE RES 1JA l/4W
FUSIBLE RES 27 JA 114W
SW SLIDE, FUNCTION SW
SW SLIDE,BAND SW
SW PUSH,BASS SW
SW PUSH,SURROUND SW
SW SLIDE,BEAT CUT SW
FM ANT FILTER, GFWB7
SOCKET 2P,L SP(XE,PA)
HEAT SINK, FOR IC103 AL
HEAT SINK, FOR Q103 SECC
SCR 3X8, FOR IC103
ASSY BAR ANT
R/P SW P.W.BOARD ASSY
REF. NO. PART NO. DESCRIPTION
73 6143076001 ASSY,PWB,IVP SW(Only initial)
CN201 6450368547 4P CONNECTOR WIRE,
404-MDS900US-0854
S0115 6450368455 SWITCH PUSH,
R/P SW 403-MDS900US-O098
6450369438 SCR 2X5, FOR FUP PCB
CD LID P.W.BOARD ASSY
REF. NO. PART NO. DESCRIPTION
74 6143075998 ASSY,PWB,CD LID SW,
704-M DS900US-1902(Only initial)
CN403 8450368554 2P CONNECTOR WIRE,
404-M DS900US-0855
S0301 6450368479 CD LID SW,403-MDS9OOUS-O1OO
CD MAIN P.W.BOARD ASSY
REF. NO. PART NO. DESCRIPTION
75 6143075950 ASSY,PWB,CD MAIN(Only initial)
C0302 4030571905 POLYESTER 0.1 UJ50V
C0308 4030571905 POLYESTER 0.1 UJ50V
C0307 4030571905 POLYESTER 0.1 UJ50V
C0314 4030569506 POLYESTER 0.01 UJ50V
C0316 4030597509 POLYESTER 0.22U J50V
C0319 4030571905 POLYESTER 0.1 UJ50V
C0320 4030595000 POLYESTER 0.022U J50V
C0321 4030584608 POLYESTER 0.15U J50V
C0324 4030807406 POLYESTER 0.033U J50V
-5-

PARTS LIST
REF.NO.
.- CN301 PART NO.
6450367014 DESCRIPTION
16P FFC CONNECTOR WIRE,
PICK UP ASSY
SOCKET 6P,
TO CD MOTOR 404-3113-052
SOCKET 2P,
TO CD LID SW 404-HP1O1OK
14P CONNECTOR WIRE,TO DISPLAY
SOCKET 7P
DIODE 1SS133
IC LA9250M,417-MDS900US-0321
IC LA6541 D,417-MDS900US-0322
IC LC78602NE,417-MDS900US-0320
CHOKE COIL 10UH,CNC24-1 00K
TR 2SB808 F
TR 2SB764E E
TR 2SA1346
TR 2SD2144S V,MUTE
TR 2SD2144S V,MUTE
CD MECHANISM
REF.NO. PART NO.
CM1 6450367656
CM2 6450369445
CM3 6450368295
CM5 6450369537
CM6 6450368288
CM7 6450368417
CM8 6450368271
CM9 6450368257
CM1O 6450368356
CM1l 6450368325
CM12 6450368363
CM13 6450368318
CM14 6450369582
CYO1 6450369513
CY02 6450369346
CY03 6450369421
CY04 6450369339
DESCRIPTION
ASSY CD LID
CD EJECT SPRING,CD EJECT KNOB
CD SLIDE PANEL,1AD2SLMO016-AB
RUBBER CUSHION,CD MECHA
CD COVER,1AD2CRM01 17-A
CD JOlNT,lAD2JTFOO15-
DAMPER GEAR,CD
ADAPTOR LEVER
CD HOLDER L
CD CHASSIS
CD HOLDER R
CD LEVER,lAD2LEMO079A-
CD DECK MECHANISM, KSM-213CJM
CD SPACE MECHA
SCR 2.6X1 O,CD MECHA
SCR 2.2X6,CD JOINT
SCR 3X8,CD DAMPER GEAR
SCR 3X12,CD HOLDER L/R
SCR 2X5,ADAPTOR LEVER
CN302 6450382802
CN303 6450367007
CN304
CN305
D0303
IC301
IC302
IC303
L0301
Q0301
Q0302
Q0304
Q0305
Q0306
6450367021
6450367038
6450382932
A6450366963
A6450366970
A6450366956
6450367090
6450376917
6450366925
6450382970
6450366932
6450366932 CY05 6450369377
POWER SUPPLAY P.W.BOARD ASSY CY06 6450369438
REF.NO.
76
L76
PART NO.
6143076056 DESCRIPTION
ASSY,PWB,POWER SUPPL(XE)
(Only initial)
ASSY,PWB,POWER SUPPL(AU)
(Only initial)
ASSY}PWB,POWER SUPPL(PA)
(Only initial)
2P CONNECTOR WIRE,TO BAITERY
2P CONNECTOR WIRE,
TO MAIN PCB CN104
DIODE 1N5393
DIODE 1N5393
DIODE 1N5393
DIODE 1N5393
AC SOCKET
AC LINE FITER(XE)
FUSE HOLDER,FOR FU101
DECK MECHANISM (704-MDS900US-1765)
REF.NO. PART NO.-
6450367670 DESCRIPTION -
ASSY CASS DECK MECHA
(Onlyinitial)
SWITCH,MSW-1541T
PINCH ROLLERARM ASSY
RF BELT
ASSY,FLYWHEEL
MAIN BELT
RP HEADAP4211 FS3
EHEAD6PA
MOTOR ASSY
6143076070
76 6143076087 TM23
TM32
TM41
TM43
TM55
TM62
TM63
TM64
6450115844
6450091612
6450091766
6450329807
6450333415
6450369568
6450338625
6450367663
CN109
CN112 6450368516 6450368523
DO1O5
DO1O6
DO1O7
DO1O8
JP101
TO1O2
6450368738
6450368738
6450368738
6450368738
6450383021
6450382956
6450368974
BAITERY AP.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
77 6143076063 ASSY,PWB,BAITERY A,
704-MDS900US-1907(Onlyinitial)
CONO1 6450368493 SOCKET 2P
6450369469 BAITERY SPRING,SWP
L
BATTERY BP.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
78 6143049470 ASSY,PWB,BAITERY B,
704-MDS900US-1908(Only initial)
6450369469 BAITERY SPRING,SWP
-6-

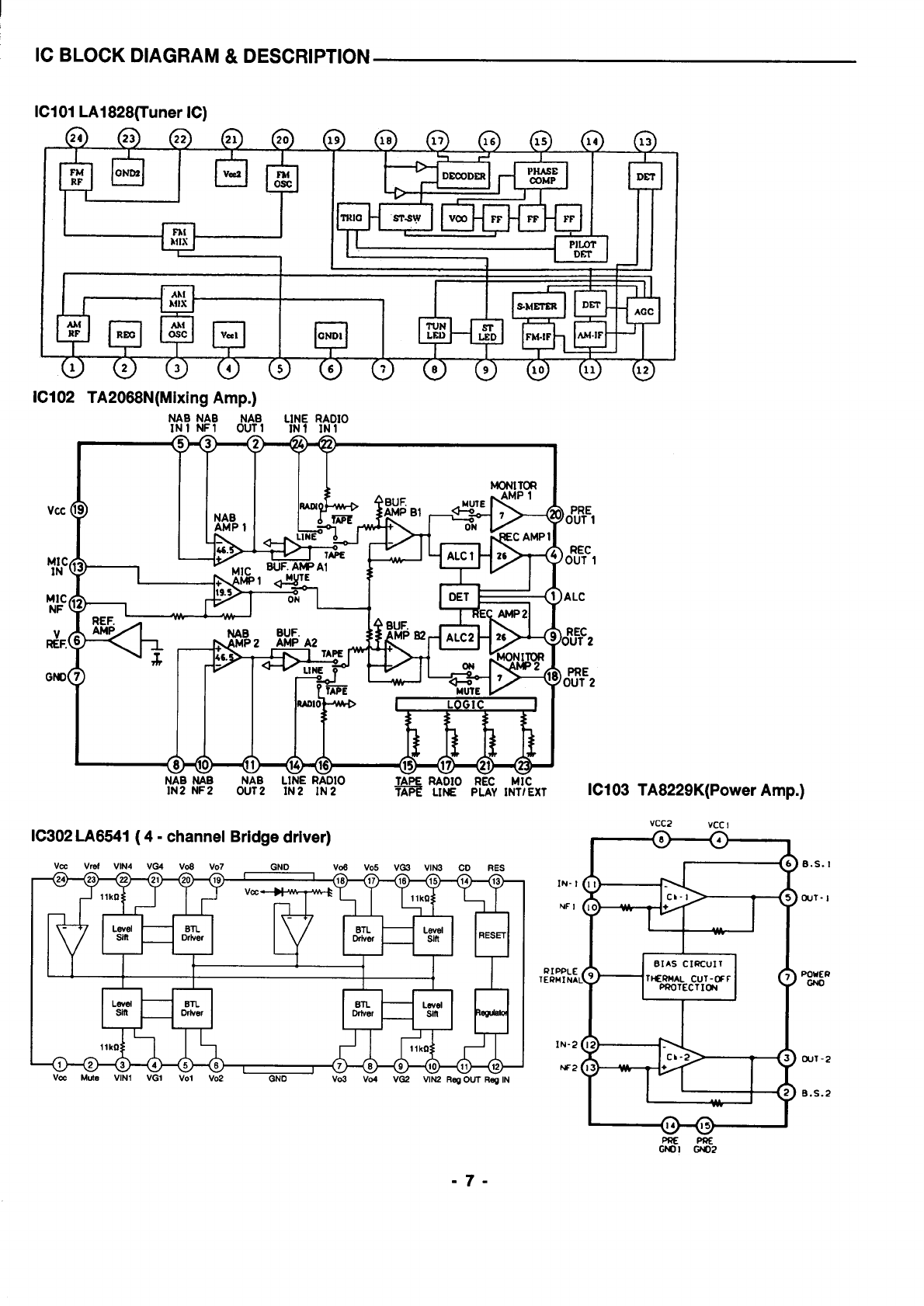

IC BLOCK DIAGRAM& DESCRIPTION
IC101 LA1828(Tuner lC)
IC102 TA2068N(Mixing Amp.)
Iyly y: NAB u{; W&lo
OUT1
I
,,.. AIll lhAoloL’wrO ‘L’
-“Y W* +x’-” r
toupyi
-u
MUTE
+37
w
ON CAMI
ALC 1 26
,-
.1I
IbIDET }=
I I u-
..-.
b
RADIO
I-“ ...-.
J(
N,
11
I I II THHJ
1
I~p; NAB LINE RAOIO
OUT2 IN2 1N2
IC302 LA6541 (4- channel Bridge driver)
WC Vref VIN4 VG4 VC@ V07 GND V@ V05 VG3 VIN3 CO RES
24 23 22 21 20 !9 I(18 17 16 15 14 13
llkO VW
F-=,F w-1
llkQ
Levd ml BTL
Drber Level
Olhel sin RESET
,1~
Level
Smf OBtiner fin Lu&l
Driver ReLUIW
llkO
VCX2 Mule VINt vG1 Vol V02 GNO V03 V04 VG2 VIN2 Rq OUT Rq IN
PRE
OUT 1
REC
OUT 1
ALC
REC
WT 2
07:2
IC103 TA8229K(Power Amp.)
VCC2 Vcc I
I~91
6B.S. I
1$
5OUT- I
BIAS CIRCUIT
RIPPLE ~
TERMINAL TWR14AL CUT -cfr ,Poo
WfOTECTI~
I
PREPRE
GM 1GN02
-7-

IC BLOCK DIAGRAM& DESCRIPTION
%.- IC301 LA9250M (Analog Signal Processor)
L
1
2
3
4
5
6
7
8
9
la
11
1:
13
14
1!
18
4s
47
44
4s
u
4s
42
41
40
. .
L-II
aw’na
Swb mas
42
Smw?w w
Ss
I17 18 19 20 21222s242s2s 27 ‘a~~ 31w
No. Pln Nerna Function
1FTN2 Pick+p phofadada Wrme@m @n.Addedto HN!Pintaganerafetha
RF eianef. SUMra3ed frcm FTN1 tin toaenerata the FE sand.
-. ,-
2FTN1 f%ck+ippfmta-dadecannecrkx pin.
3EWW@lw-ww”m” ‘~ ’m’dn’og-e
4FPick-fJpphatadicda connectionpin.
5TB TE signalIX rxs?pcmentinputpin.
6TE- PIN whii cmrmectthe TE signalgain settingreeiatw bafwea ftsiipin
and TE dn.
7TE TE signalcutpuf@n.
6TSEI TES(Treck ErTw Senee)ccmparetor inputpin.The TE signalis input
tharcugh abacd@aa filtw.
1J
9Scl SImck rktdfm irmuftin.
10 TH Trddng gaintime candent setting@n.
11 TA TA ampfiier outputpin.
12 TD- Pinfw crmf wing the traddrg phase carqwsaticm constantbatwem
v
the TDand Rpm.
13 TD Traddrg phasecarnpsnsatkmsetting@n.
14 JP Tra%ng ju~ eignal(kkkpulse)ampWudesettingph.
15 TO Trddg wntrd aQnalauSpufpin.
16 INC lNoccmadim
17 FD lFocueingrmtrd signalwtpul pin.
I I
11
19 FA Pinfw canf@hg the focustig phase carnpenaaticmccmtant the FB
and FA- dns.
21 FE FEsignaloutput@n.
2? FE- Pin whii c.wmede the FE signalsettingrmietarbatwaaI thispinand
FE ph.
a‘p Invtiad outputof CLV pinaignd.
24 SFG 12-cM sdtie rrwda aain aeWIO resistc4cmnnacticmoin.
131 sP- Isdde dlaaemrfmanaalicmcnnstantdn.akmawith
SPD tin. I
1231 SPD lS4-indlecmlrd aianaiauimt oin. I
.,.,-,.-=.- .... ....-.
7---—-.
,~
—,,”., wfrequency.
$.-s, ~. 1
No. [PIN NAME IFunction
23 ISLOF ISM servooffccatid infxslpin.
?3 NC Nocamacfb.
43 TJP Inpd pinfar trackingjump signalfrcm DSP.
41 TGL In UIpin{w trackinggain mntid dgnal frcm DSP. Gain is law where
TgL ishgh.
aTOFF In @nfw fmddng offcontrolsignal from DSP. Trecldrg servo is off
P
wan TOFF is hgh.
43 TES w@nfar TES signalto DSP.
44 HFL The Hgh Fraquwy Levaf isussd to dstsrmine wtwfhw the main beam
ispaaibanad over api of aver the mirrmd surface.
eCLV Input@fw CLV errw signalfrom DSP.
6GND GND
47 RF RF output@n.
46 RF- S%I%%%%:’”*”3T-*” ‘Mmwpn’
~I.qC l~~iLevef-d isan cuw @nthstcantid thedatedii ISVaIused
vthe DSP fw the RF wava-fwm.
1I.,. –
50 SLf Ilrput pinusedby DSP farcontrollingthedate alii level.
51 DEF Discdefectdefectionoutfxltpin.
S? DRF RF leveldatacticawfput(flefect RF)
S3 ‘SC FOCUSsearchamaofhirwcapsdtoroutputpin.
I1-. -.
5‘SS Focue Search Sal@ frxue eaamh mada(+-seerch /+search vs. the
refererwe voltage) switchingpin.
~Vcc kc
,... ....~,..
mhdd capacitormnecfkm pin.
~,t -put pin.
.,,h;-, #.&”
[64 INC lNomnrWian. I
-8-

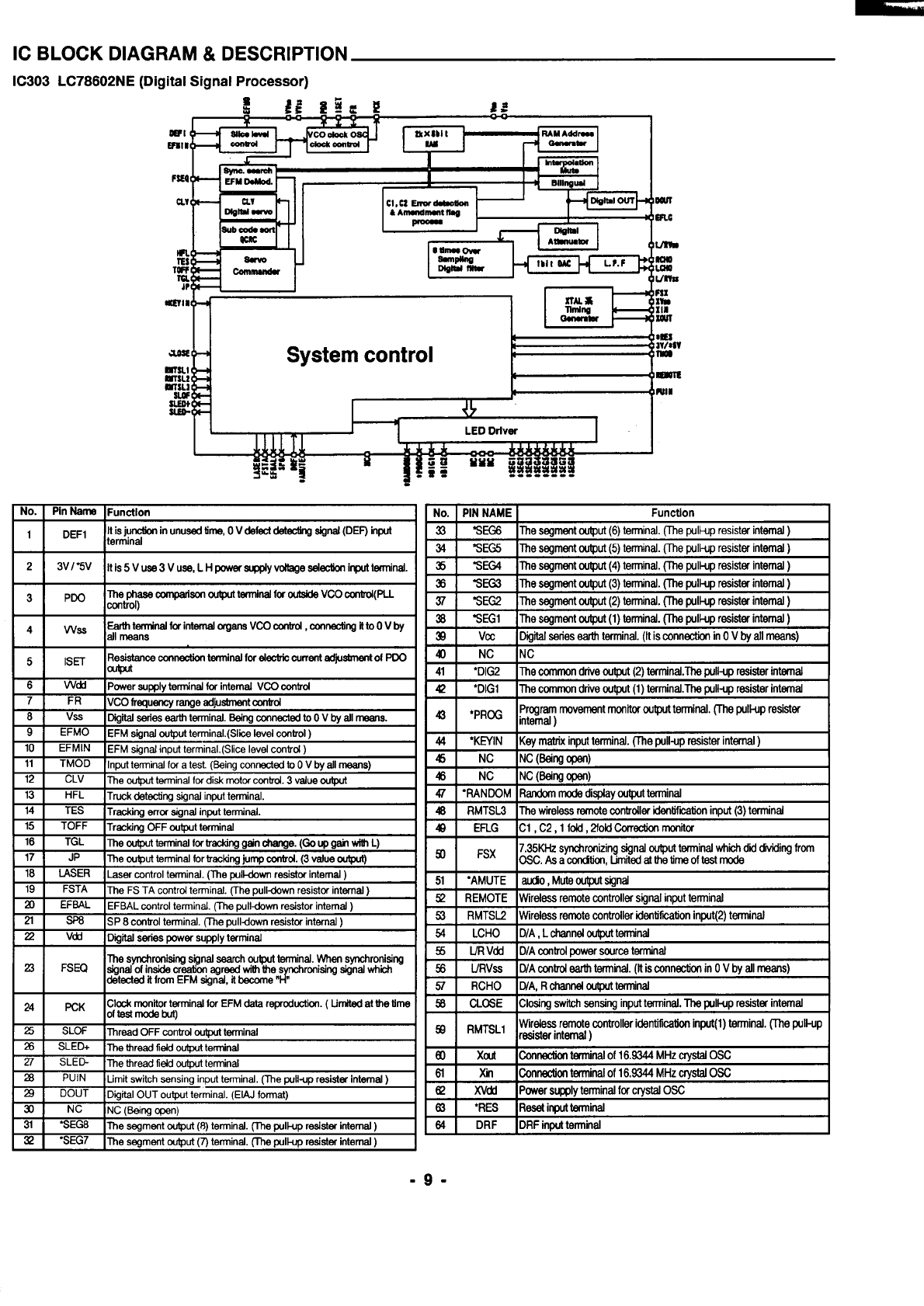

IC BLOCK DIAGRAM& DESCRIPTION
IC303 LC78602NE (Digital Signal Processor)
MrJT
sue
rfsw
son
L/ml
Fsx
XW
XIH
8ES
3v/ssv
EmTE
mm
INo.IPin Name lFunctlon I
I1IDEF1 Itisjumtian in unuad time, OVdefect ddacUng signal(DEFI input
terminal I
23V I“5V ltis5Vuw3V uS, LHp@yv@e~~i@Wnd.
3PDO The phase compakm ou@utterminalfor outsideVCO ccmfrol(PLL
ccmfroq
1
Ii5Ism Resistance cmwcbon“twminal fordacfrfc cummt ed@bvranf of POO
6WIM Pmvar supplyterminal for infernal VCO ccotrol
7FR VCO frequency range adjutit ccmfrd
6Vas D40MIIaarfea earth terminal. Beirm connectedtoOVbvaflmaana.
9IEFMO 1-
EFMsianal cutwt terminal.C3ii levelccmfrol)
13 IHFL ITmck datdica skmalincutterminal.
14 TES Trackicg error signal inputterminal.
15 TOFF Tracking OFF w@ut terminal
16 TGL The outputtarrrinal fcf trackinggdn change. (Go upgain withL)
17 JP The cu@utterminal fortreddng jump -d. (3 vafue wtput)
18 IASER Laser controlterminal.(The pull-downresistorinternal)
19 FSTA The FS TA controlterminal.(The pull-downresistorinternal)
23 EFSAL EFBALwntrol terminal.fThe oull-downresistorinternal)
.,
21 I96 ISP 6ccmtrolterminal.(The pulldown resistorinternal)
zw/DgM seriespowersupplyterminal
The syndvoniaicgsignalsearchoutpl terminal.W?Iansynchronizing
23 FSEO signal.{ inddecraafkx agraadwiththes~~idrvg dgnalwhii
detectedil fromEFM signal,itbaccme” “
24 PCK ClockmonitortwrninalforEFM data refxxfuctkm. (LimitedatLhetime
Oftaetmodabut)
25 SLOF ThreadOFF mntrd @uf terminal
%SLED+ The thread fieldoulpufterminal
27 SLED- The thread fidd outpulterminal
2S PUIN Limitswitch eensina inoul terminal, (The IX&W resisterinternal)
., . .
29 IDOUT IDnital OUT oufnutterminal.(EIA.Iformat)
33 NC NC (Being open)
31 %EG6 The segment OU@ut (8) terminal. (Tne pul@ raastar internal )
Q“SEG7 The seamant oulwt [7) terminal. flfw ml!+m resister internal)
No. PINNAME Function
3‘SE@ Thesegmentw@ut (6)tenninel.(Thepull+p resisterintamd )
34 ‘SE(35 Thesqmant output(5)terminal.(Thepull-upresisterinternal)
35 ‘sEG4 Thesaomentoubut [4)terminal.(Thecull-m resisterinternal)
I33 IW&3 hhe aeumantoutout[3)tarrdnd. flhe DUII-UD resisterinternal)I
37 %KG2 Thessgmemtwtpuf (2)terminal.(the pull-upresiaw intemd )
3s TEGl Theaagmadwtput (1)terminal.(lfvepiJIHIpraaistwinternal)
29 Vcc Digii seriesearthterminal.(ItisconmxticminOVbyall means)
40 NC NC
41 ●DIG2 The ccmnwn drive WI&M(2) terminal.llw IXIlliJp rmister intssvval
Q●DIG1 The ccsnmondriie o@at (1) tarminef.Tha pull-up resister intat’nei
43 ●PROG pr%m~ movement monikwcutput terminal. (The pulkup resistaf
I44 I‘KNIN IKSVmatrixirmufterminal.flhe DUII-UDresister internal) I
6NC NC(Se@ cfws)
4NC NC(Ekingqwn)
4●RANDOM Randcsnmode displaywf$wf terminal
mRMTSL3 The wireless remote contrdk kiantifiition inwt (3)terminal
~-~ ]EFLG IC1.C2.1fdd .2fold Wwcfionrncmitor I
9) FSX 7.35KHzsynchrcmizingsignalo@f terminalwhii dd dtitng frofn
OSC.Asacav3ticm,lJnkde tfhetimaoffastr rwda
51 “AMUTE w310,Muteout@ dgnsl
S? REMOTE Wirafassremotecontrollersgnal inputterminal
53 RMTSL2 Wirelessremotecontrolleridantifcationinput(2)terminal
54 LCHO DIA,Lchmnd @xl tsufninal
55 URVdd DIAccatrol~wer swrca terminaJ
[5S IURVSS IEYAcontrolMterminal.Misconnwtionin OVbveflmeans) I
I57 IRCHO lD/A.Rchannelo@uttswninal I
56 ICL~E lClosirg switchsensinginputterminal.Thepull-upresisterinternal I
mWirelessremotecontrolleridentiricafkninput(1)terminal.(Thepull-up
‘MnL’ rasisferinternal)
6) Xwt Connadfm
taminalof169344MHzcrydaiOSC
6f Xm Conn@kxfterminalof16.9344MHzcryslalOSC
5? X-W Proversu@y terminalforcrystalOSC
63 ●RES Raaetirpul tamninal
64 DRF DRFinputterminal
.9-

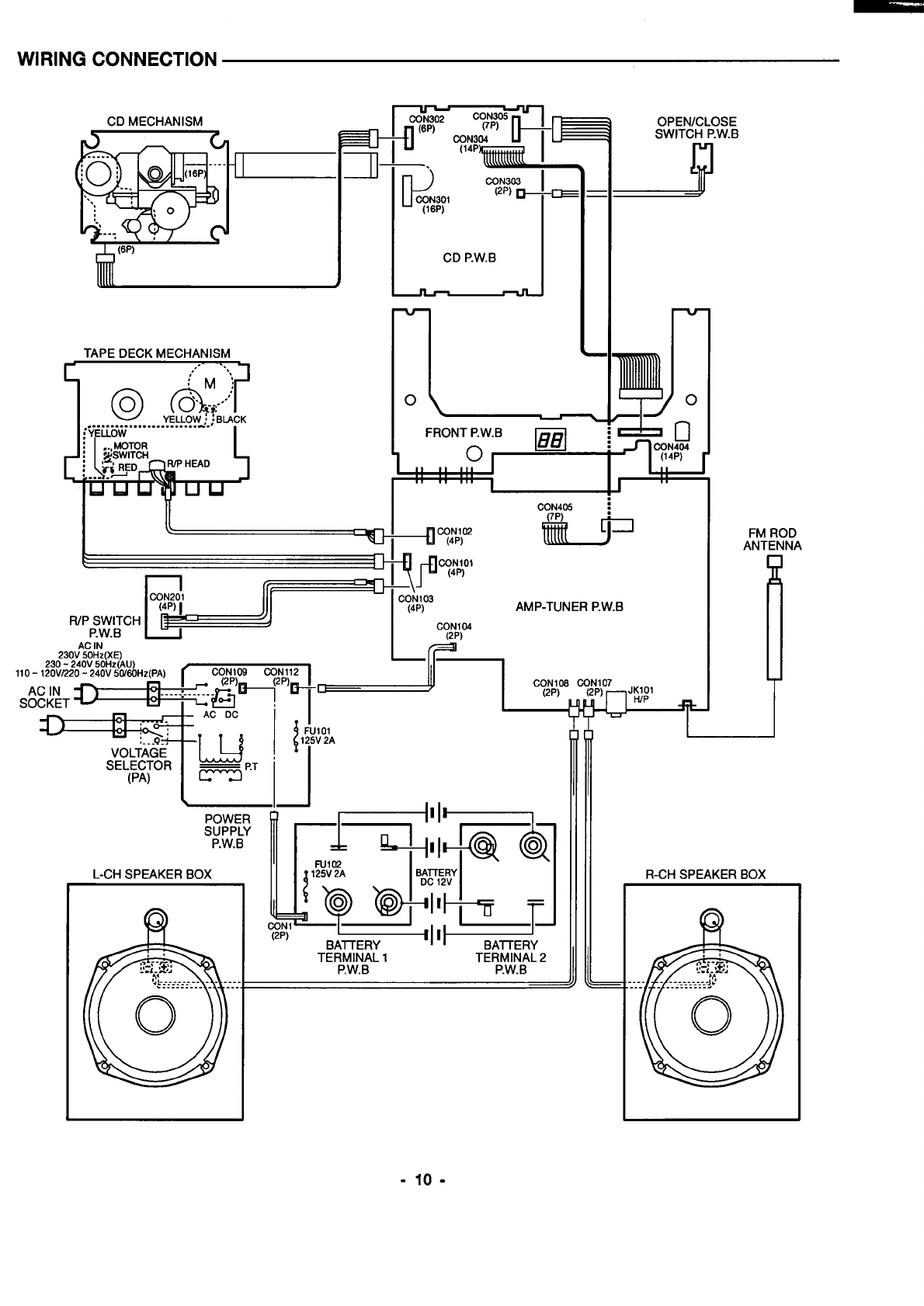

WIRING CONNECTION
TAPE DECK MECHANISM
@.(;; ;
.............................
al-
n—u
CON302
fl
(6P)
—.
P
CON303
CWl (2P) ~
LJ
m
c=
FRONT P.W.B m
o~
11
L-CH SPEAKER BOX
Cmy
mii-!
.P,,gc.pu-$$’:‘MP-TUNER
AC IN
230V 50Hz(XE)
230- 240V 50Hz(AU)
110- 120V/220 -240V 5LY60Hz(PA)
AC IN c~~;~g “Njs
=----(-z##qp)J
3
Cm;)ocl c
SOCKET
?
AC DC
‘---’~ ~,@~A
VOLTAGE
SELECTOR -
(PA) =P.T
P/
0,,
~?:f~;;
lye............... . . ...
.......... . ...
0
.~+!!/L~
(2P) BAITERY BAITERY
TERMINAL 1TERIMJN;L 2
P.W.B . .
OPEN/CLOSE
SWITCH P.W.B
2
P.W.B
I07
-
FM ROD
ANTENNA
R-CH SPEAKER BOX
PI
0,,
%::$z;;
J
. . . . . . .............’..
.- . ..........
0
-1o-

VOLTAGE OF IC &TRANSISTOR
IC301 LA9250M CD MODE (v)
12 3 456 7 8 9 10 11 12 13 14 15
2.84 2.84 2.76 2.79 2.71 2.45 2.71 2.71 2.45 2.71 02.7 2.71 2.72 2.7
18 17 18 19 20 21 22 23 24 25 26 27 28 29 30
02.77 2.77 2.71 2.69 2.72 2.72 2.75 02.6 2.72 002.49 2.72
31 32 33 34 35 36 37 38 39 40 4f 42 43 44 45
2.71 0 0 00005.3 02.71 00000
46 47 48 49 50 51 52 53 54 55 58 57 58 59 60
02.43 2.72 2.68 2.75 0.02 5.31 2.71 2.71 05.31 2.71 2.71 2.52 2.5
81 62 63 64
2.45 4.22 0.03 0
IC303 LA78802NE CD MODI iv)
12 3 45678 9 10 11 12 13 14 15
0.02 03.58 01.79 5.4 1.23 02.74 2.68 00.05 00 0
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
02.69 5.3 0 0 05.3 0 0 00.03 0.03 5.33 2.66 0
31 32 33 34 35 36 37 38 39 40 47 42 43 44 45
05.32 0305.32 02.76 0 0 3.05 3.05 05.33 0
46 47 48 49 50 51 52 53 54 55 56 57 58 59 80
00 0 0.03 0.03 5.3 5.39 0 0 4.66 00002.1
61 62 63 64
2.23 5.3 5.31 0
IC101 LA1626 RADIO MODE (No signsl AM/FM iv)
12 3 45678 9 10 11 12 13 14 15
1.25 1.3 4.6 4.6 4.6 04.6 4.6 4.6 1.3 1.3 0.710.2 4.6 2.9/3.8 0/3.8
16 17 18 19 20 21 22 23 24
1.4 1.4 1.3 0.5/1 .5 4.614.4 4.614.4 4.614.4 00/1
IC102 TA2068N TAPR MODE (PLAY/REC) (v)
12345676 9 10 11 12 13 14 15
0.1/1.2 2.1 2.1 2.1 2.1 2.1 02.1 2.1 2.1 2.1 2.1 2.1 2.1 0/4.5
16 17 18 19 20 21 22 23 24
2.1 014.7 2.1 7.5 2.1 0/4.2 2.1 0.7 2.1
IC302 LA6541 D CD MODE (v)
1 2 345 6 7 8 9 10 11 12 13 14 15
8.6 52.51 2.6 4.2 4.2 0 0 03.6 3.6 2.6 2.5 5.3 4.7
16 17 16 19 20 21 22 23 24 25 26 27 26 29 30
5 5 2.6 2.5 3.91 3.9 .0 0 0 4.02 3.97 2.7 2.79 2.72 8.6
IC103 TA8229K POWER-AMP. MODE (v) -
1 2 345678 9
Trsnslstors Q101 2SCI015-Y RADIO MODE (V) Transistors Q108 2SC1815-Y TAPE MODE (V)
&“ii ;: i6““7 *Ii! i5:: ‘:‘;‘;‘ ‘
Transistor (CD MODE (v)
Q103 (2SB1 165-E) Q11O (2SA1317) Q112 (2SC1615-Y) Q301 (2SB808-F)
Pin Nsme BcEBcEBcEBcE
ON 5.13 2.99 5.47 5.12 2.94 5.45 1.2 0.05 04.2 24.8
OFF 5.1 3.24 5.49 5.1 3.24 5.49 0.05 5.5 03 0 4.8
Trsnslstor (CD MODE) (v)
Q302 (2SB764E) Q304 (2SA1346) Q305 (2SD2144S) Q305 (2SD2144S)
Pin Nsme BcE B cEBcEBcE
ON 7.4 5.3 8.6 55.3 3320320
OFF o000 0 0 0 00000
-11-

,.,,., .,,
.::
..:

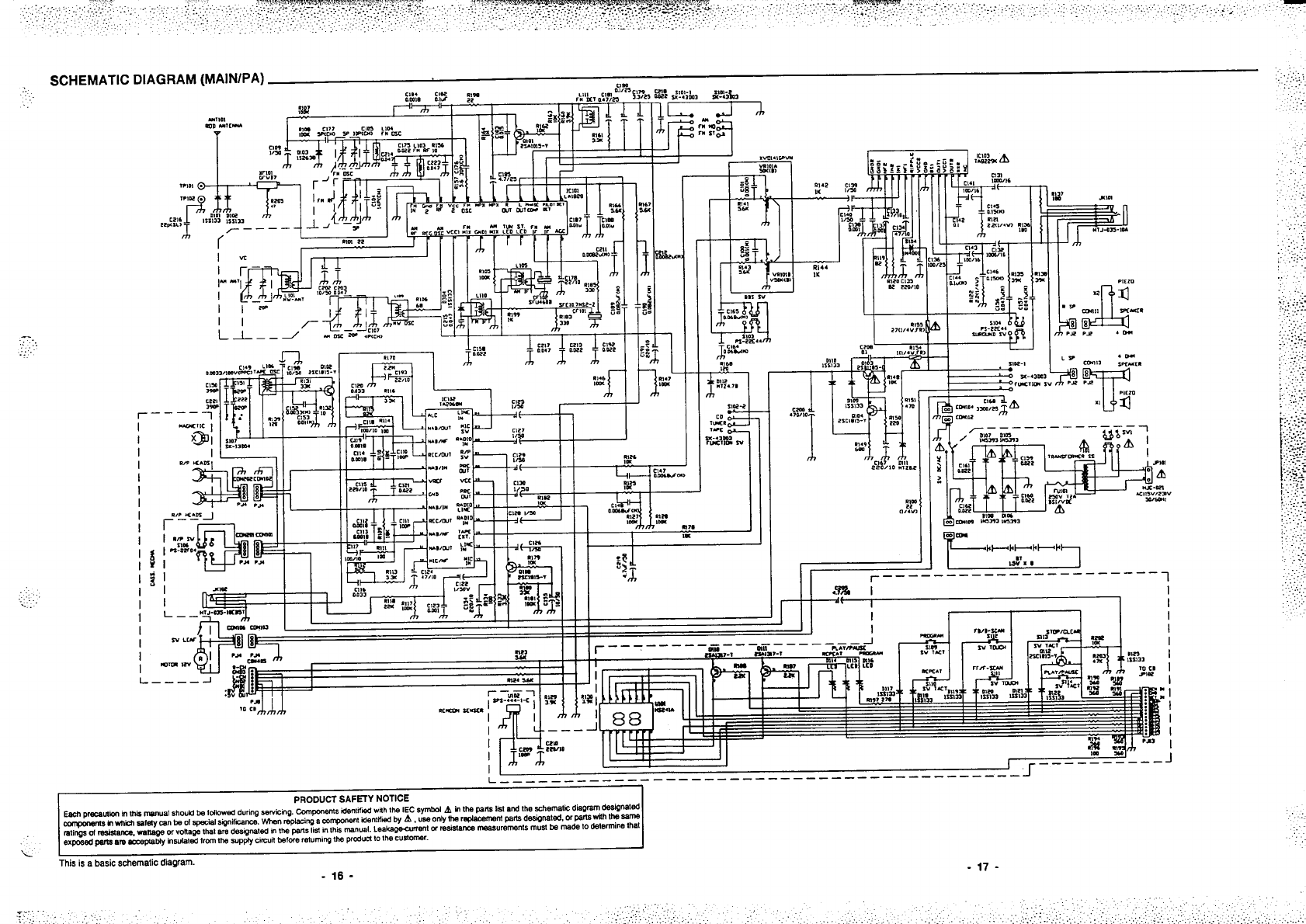

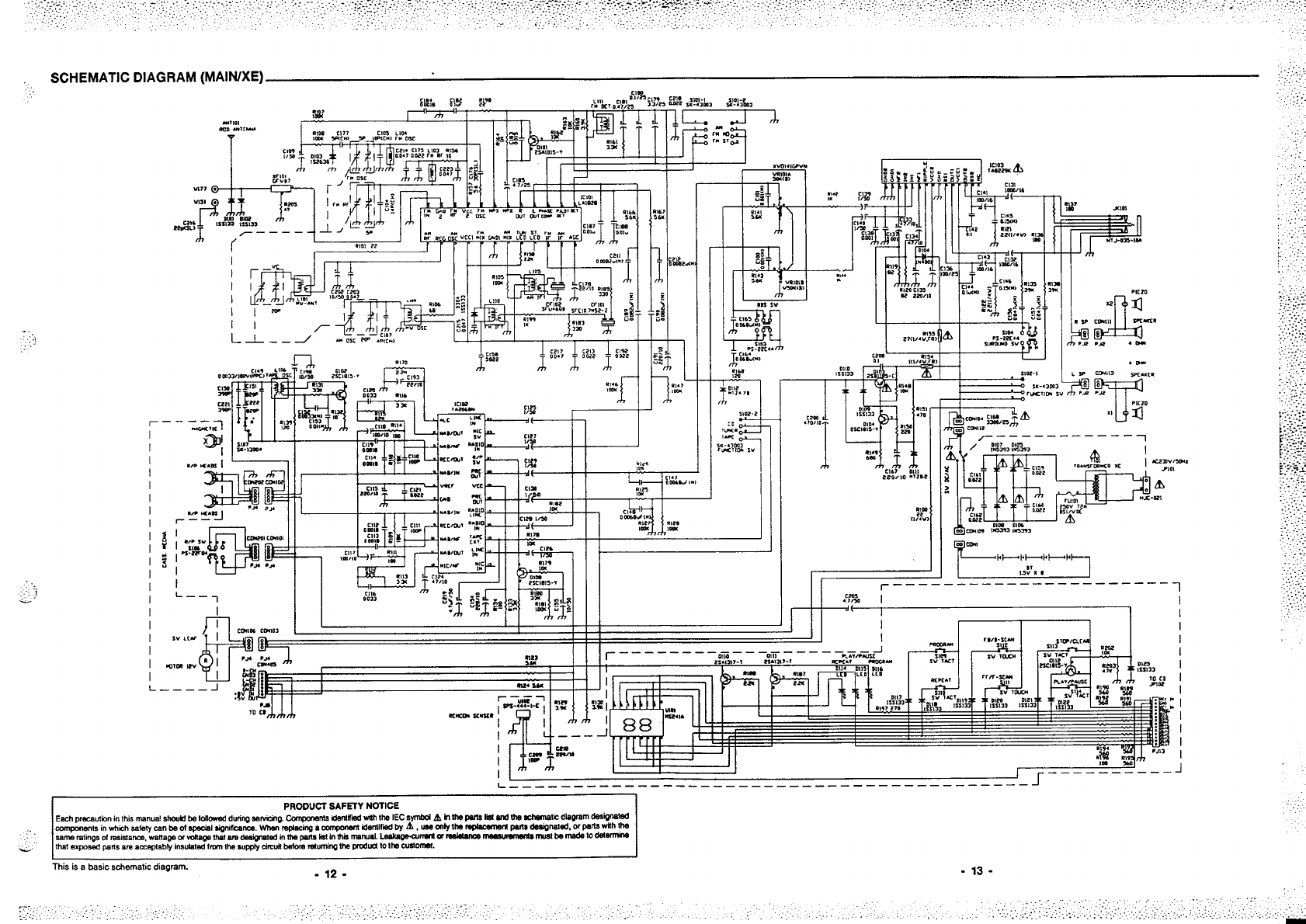

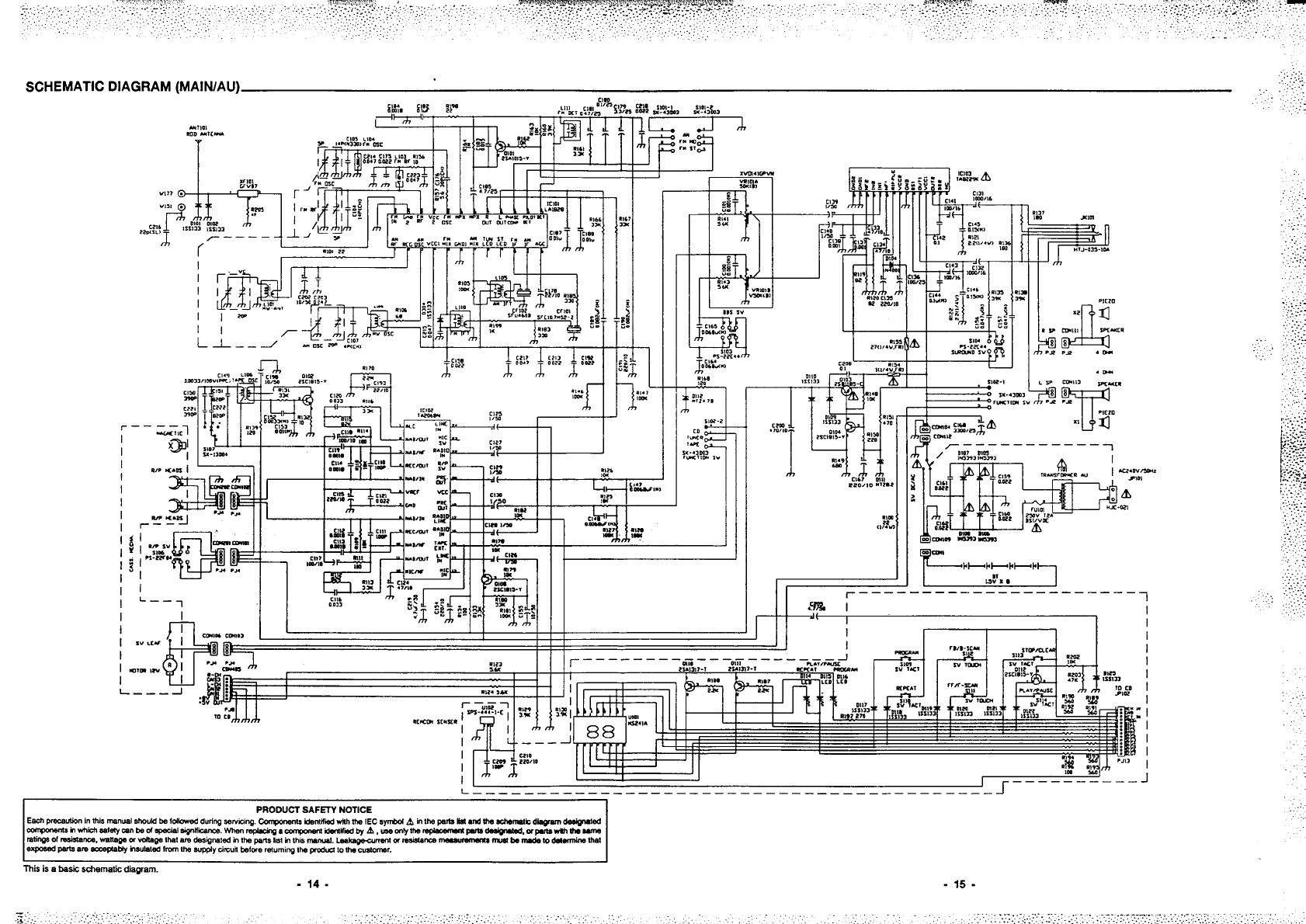

—————————————-’l
I I I
I I I I
7
LI
I
I I I
I I I I I
L-a
.1, 1- !IG. II1{[) I
,,,,. aI
I I L_ .——.
J---Lzl LI
I I 1
I
I
I
J
— .r0s,01
Id-tt At, 4-=-”,‘9
b!+--+
u——______l
!L––’–––J ~~1
IUull n“, P
L–––_; ––––––––––––––_;
,,-.
‘“)
.:,
...
,..,.
,. D.

..
;.,
,.,,
.——————- --—— _— -
1
I I I I I I I
I I
I I I I I
I
I I I
I I
I I I
I I L–
1’ I 1: I:! 1’ I 1: l:; I
I
I I I L
— — — —
IIII 11
II
— — —
.!+ “.
u
‘=--i I
.,,.
,[
~—–
I
L__-___J
Iwell S*”> L—— —________ _____ —

1,
am r- 1IG. II1 1 11+
7———..——— —_____n 1 I
I
I
gIl—___—__J
Imom .1$”3
I
G–1 E--.&l
I I I I I
I I
I
I
1
I
I
I
I
L–––__–__– –__––__–––– J
,,:
(:,:;: ..:,/
.,, .
,.,.,
,,

SCHEMATIC DIAGRAM (CD)
PICK UP
C334
100/6.3 C332 C333
0.1 100/6.3
/1 I1f
C301 C331 1C352
C335 +- - .-. R342
10/16 +0.01 1, 0.01
R301 11
..
MOTOR
SP(+)
SP(-)
SLD(+)
SLD(-)
w
w
1’ 1
IC302
LA6541 D
I
I
lw----nlld~lll f-l ICz...l
-1 3...- ,. .”. 1I1~ ?FYY+KI!4M!XE!%19.!’ EIEI I I
I
L301
Ioul+ C345L *-C344
0.022 T~100/10
J0302 I
2SB764E-C
i .
C339
0.022” 4%:Y1O C341
0.022U
J
II
,[337
;470”/10 I
This is abasic schematic diagram. -18. -19-
-J 14LI ----
CON304
TO DISPLAY
/KCY IN
—

:rr/f SCM Cl
6
3111
LI
We w! (-J
0
——
..
,,,,.)
0
N

WIRING DIAGRAM (CD MAIN )
W.!lo
\/C350 —v
R309 .lAn
wwo,~ ‘
Iw
IC.U)9
d
0302 SW
~u Sw
C341
-
wM6
-22-

.
sYl#llhf
o
SANYO Technosound Co., Ltd.
Osaka, Japan w
Jul./ ’99 /2700 NS PrintedinJapan
