INSTRUCTION MANUAL
CD Portable FM Stereo/AM
Cassette Recorder
si#yplmlo
-
MCD-S665F

CAUTION
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE O
PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OPERATIO
INSTRUCTIONS MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED B
ANYONE EXCEPT PROPERLY QUALIFIED PERSONNEL.
o0
)o4
0
CAUTION INVISIBLE L4SER RAD1ATIONWHEN OPEN AND
INTERLOCKS DEFEATED AVOID EXPOSURE TO BEAM
ADVARSEL. USYNLIG LASERSTRABNING VED ABNING NAR
SIKKERHEDSABRYDERE ER UDE AF FUNKVON UNDG~
UDS ETTELSE FOR STR~LING
VARNING OSYNLING LASER STRALNING NAR DENNA DEL
AR OPPNAD OCH SPARR AR uRKOPPL4D STRALEN AR
FARLIG
VORSICHT uNSICHTBARE LASERSTRAHLUNG TRITT AUS
WENN DECKEL GEOFFNET UND WENN SICHERHEIT5VERRI
EGELUNG UBERBRUCKT 1ST NICHT, DEM STRAHL
AUSSETZEN
VARO \Avaltaessa I. s.uo,al”k,tusoh,tenaessa olet .It,!na
nakymattmlalle lase,sate,lyll. Ala katsos.1..s...
-The rating label is located on the bottom of the unit.
FOR SAFE AND EFFICIENT OPERATION
The apparatus shall not be exposed to dripping or splashing.
Do not damage the mains lead.
When not in use, disconnect the mains lead from the outlet. Grasp the plug, not the
cord, when disconnecting the unit.
If water should enter the unit, electrical shock or amalfunction may result.
Use in an area where there is low humidity and little dust.
Do not disassemble or alter the unit in any way.
Do not use the unit in areas where extremes in temperature occur (below 5°C or
exceeding 35”C), or where it may be exposed to direct sunlight.
Because of the CD player’s extremely low noise and wide dynamic range, there is a
tendency to turn the volume on the amplifier higher than necessary. Doing so may
produce an excessively high output from the amplifier which can cause damage to
your speakers, Please be careful in this regard.
Sudden changes in the surrounding temperature can cause dew to form on the
orXical ~ickup lens inside the unit. Under this condition the unit may be unable to
operate” properly. If this should occur, remove the disc and allow the player to adjust
to the surrounding temperature.
Do not install this equipment in aconfined space, such as abook case or built in
cabinet.
-1-

SPEAKER SYSTEM CONNECTIONS
To attach the speaker enclosures
-2-

m
POWER SUPPLY
~.–—. -.. —””_.. “.—“--.
.{ 1
+-m
________ L_--------l
IBattery power operation ,
l_________________ _
Install batteries.
Observe +and -signs.
U
*&
cries
ReDlaCe lid
CAUTION:
WHEN INSTALLING THE BATTERIES
To prevent leakage from the batteries, which is
corrosive and can cause personal injury and
damage to the unit, observe the following
precautions:
i,
2.
3.
4.
5.
6.
The batteries must be installed correctly.
Match the polarities (+ and -signs) on the
batteries, to the polarities shown on the
back of the unit.
Do not mix new batteries with old or used
batteries.
Only use batteries of the same type and
brand.
If the unit will not be used for an extended
period of time, remove the batteries and
store them in acool place.
Carefully follow the battery manufacturer’s
instructions for proper use and disposal.
DO NOT ALLOW YOUNG CHILDREN TO
HANDLE BATTERIES.
IMPORTANT NOTE:
When the batteries have become
discharged, they must be disposed of in a
safe manner which complies with all
applicable laws.
-------––l–_–––.
jAC power operation I
----- -- ——-— -——— J
Take out the cord and connect it.
AC INPUT
0.
%’ AC 230- 240V,
L>
50Hz
#
\
,3
NOTES:
-When the AC mains lead is connected to
the unit, the installed batteries will be
automatically disconnected.
-The FUNCTION switch is mounted on the
secondary side. The unit is not discon-
nected from AC power, even switched off.
3-

GENERAL OPERATION
To control the sound
VOLUME
0
0
MIN ..MAx
Bass expander switch
(BASSXPANDER)
BOOST (Button ln)-lncreases the
bass output level.
NORMAL: (Button Out) -For normal
bass output level.
TOONE
Q
LOW-.HIGH
BASSXPANDER
NORMAL= -BOOST
Using headphones
b
e-
~
PHONES
L—________—_ ———
Stereo headphone +9
(not supplied) (Back of unit)
-4-

m
COMPACT DISC OPERATION
-5-

CD DISPLAY
m
oPIAY
1- 0REPEAT
oMEMORY
The CD DISPLAY will show the total
number of tracks on the disc as shown
below.
EEl
TRACKS CD
DISPLAY
1-19 1-19
More than 19 “O”Flashes
Table
NOTES:
If adisc is loaded upside down, or if
no disc is loaded, the CD player will
not operate.
Opening the CD compartment lid
while aCD is playing could scratch
the disc. Always press the STOP
button and wait for the disc to stop
rotating before opening the CD
compartment lid.
:ompact discs
Both 8cm and 12 cm discs can be
played in this unit.
NOTE: Place only one disc at atime in
the CD compartment.
Only discs bearing the logo as shown
can be played in this unit.
~THR
DIGITAL AUDIO
Always place the compact disc in the
CD compartment with the label facing
up. Compact discs can be played on
only one side.
Fingerprints and dust should be
carefully wiped off the disc’s signal
surface (opposite the label side) with a
soft cloth. Gently wipe in astraight
motion from the inside to the outside of
the disc.
Discs should be returned to their cases
after use to avoid serious scratches
which could cause the player to skip,
Do not expose adisc to direct sunlight,
high humidity, or high temperatures for
extended periods of time to prevent
warping the disc.
Do not apply paper or write anything on
either side of the compact disc. Sharp
writing instruments, or the inks used in
some felt-tip pens, may damage the
surfaces of the disc.
Do not use cleaners or antistatic sprays
on discs, such as those used for
phonograph records.
IMPORTANT NOTE
If an abnormal display indication, or an
operating problem occurs, disconnect the
AC mains lead. Remove the Dbatteries (see
page 3).
Wait at least 5seconds, then reconnect the
AC mains lead, Reinstall the Dbatteries.
-6-

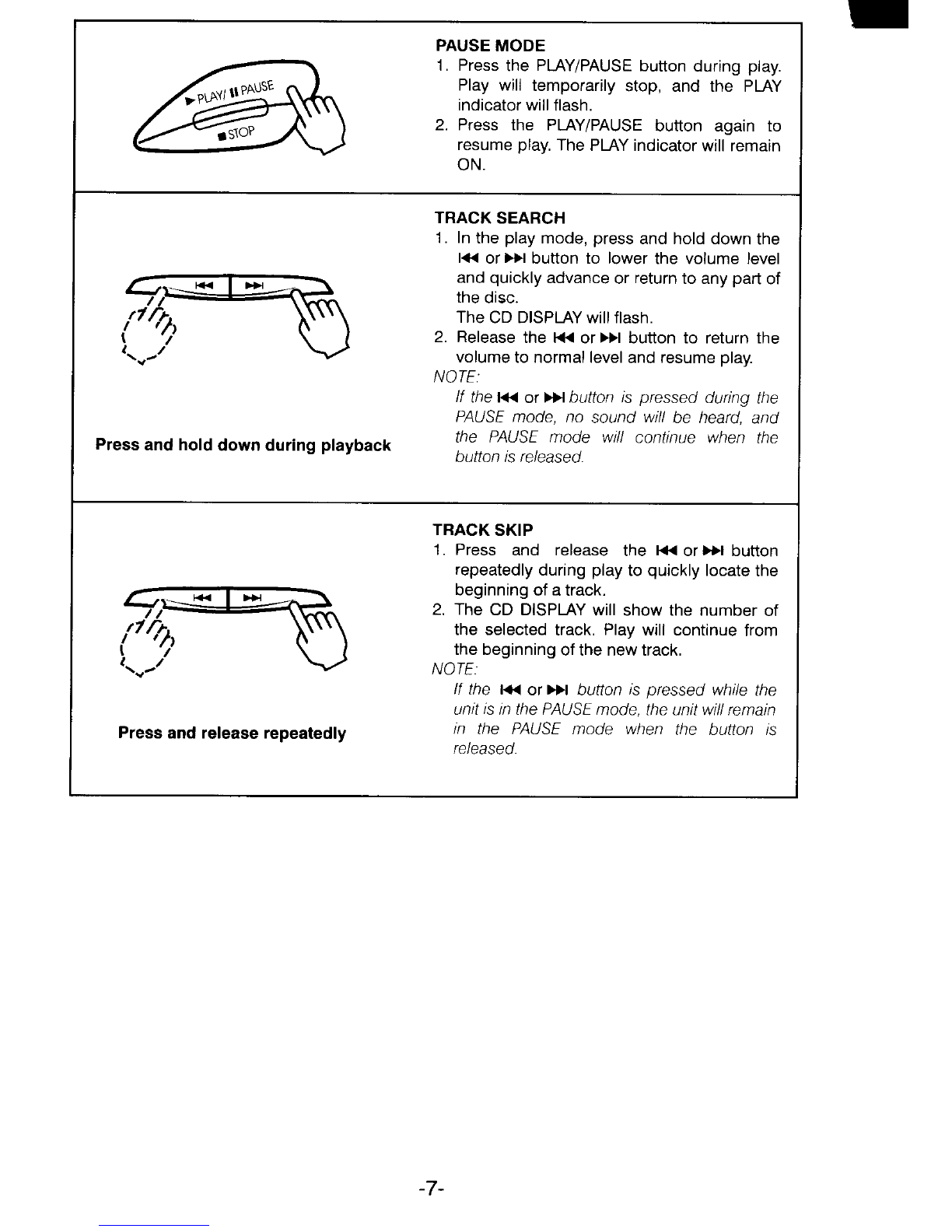

PAUSE MODE
m
1, Press the PLAY/PAUSE button during play.
Play will temporarily stop, and the PLAY
indicator will flash,
2. Press the PLAY/PAUSE button again to
resume play, The P14Y indicator will remain
ON.
TRACK SEARCH
1. Intheplay mode, press andhold down the
1440r Pbl button to lower the volume level
{n
and quickly advance or return to any part of
the disc.
The CD DISPIAY will flash.
2, Release the 1440rhl button to return the
uvolume to normal level and resume play.
NOTE
/f fhel<or~butfori is pressed during the
PAUSE mode, no sound will be heard, and
Press and hold down during playback the PAUSE mode will continue when the
button is released
?r’n)
w
Press and release repeatedly
TRACK SKIP
1. Press and release the 144 or Wbutton
repeatedly during play to quickly locate the
beginning of atrack.
2, The CD DISPLAY will show the number of
the selected track, Play will continue from
the beginning of the new track,
NOTE:
/f the i< or wbutton LSpressed whl/e the
unit is mthe PAUSE mode, the unit wi// remain
mthe PAUSE mode when the button IS
re/eased.
-7-

PROGRAMMED PLAY With programmed play, up to 16 tracks on
adisc can be memorized and played in
any order.
TO PROGRAM @) Press MEMORY
%
MEMORY
CD DISPIAY
m
oPLAY
oREPEAT
&MEMORY
-The MEMORY indicator will light on the
unit.
@Press STOF? @Repeat 2and 3to memorize additional
tracks.
Checking the program
Press MEMORY.
=!3
MEMORY
@Press 144or *I. To view the memorized track numbers,
3-!)
in the order they were entered.
TO BEGIN PROGRAM PLAY
v@Press PLAY/PAUSE.
CD DISPLAY
ml
oPLAY
oREPEAT
oMEMORY &
-The selected track number flashes.
Programmed play will begin.
To cancel programmed play, press STOP
twice.
The MEMORY indicator will go off,
-8-

REPEAT
Press REPEAT before or dur-
ing play (or programmed
play).
To cancel repeat play
Press REPEAT again.
=!3
REPEAT
-The REPEAT indicator will go off.
CD DISPLAY
m
oPIAY
-ef~REPEAT
oMEMORY
-The REPEAT indicator will light on the
-9-

IRADIO OPERATION I
To TAPE.
FUNCTION RADIO
TAPE~ 1=CD
Iu+
@To RADIO.
FUNCTION RADIO
TAPE= 1=CD
---
@To AM or FM.
AM ● ● FM
m
@Tune in astation.
TUNING
@To control the sound.
Oo
VOLUME
TO,.,
).w.~..l=
MI. ‘.MAx
FM MHz
(IHI)
AM kHz
Dial pointer
ITO IMPROVE RECEPTION I
FM -Extend and change position. AM -Rotate unit.
-1o-

CASSETTE TAPE OPERATION
@) To TAPE.
FUNCTION RADIO
TAPE q 1 ~CD
@Press STOP/EJECT.
Insert cassette.
■STOP
:EJECT !QA
@
@l Press PLAY.
I
Press to temporarily stop the tape
during playback or recording. Press
it again to continue.
To quickly wind the tape
forward I
IJSE
To quickly wind the tape
backward
Full automatic stop
This unit has afull-release stop system to
protect the tape and prevent pinch roller
damage. When the end of the tape is reached
in Playback, Recording. Fast forward or
Rewind, the tape mechanism will automatically
stolJ
■STOP
:EJECT
Q
Press STOP/EJECT once to stop the tape.
Press again to remove cassette.
@To control the sound.
Oo
VOLUME
Tqe
o
LOW “l.,
Ml. .Wx
.11.

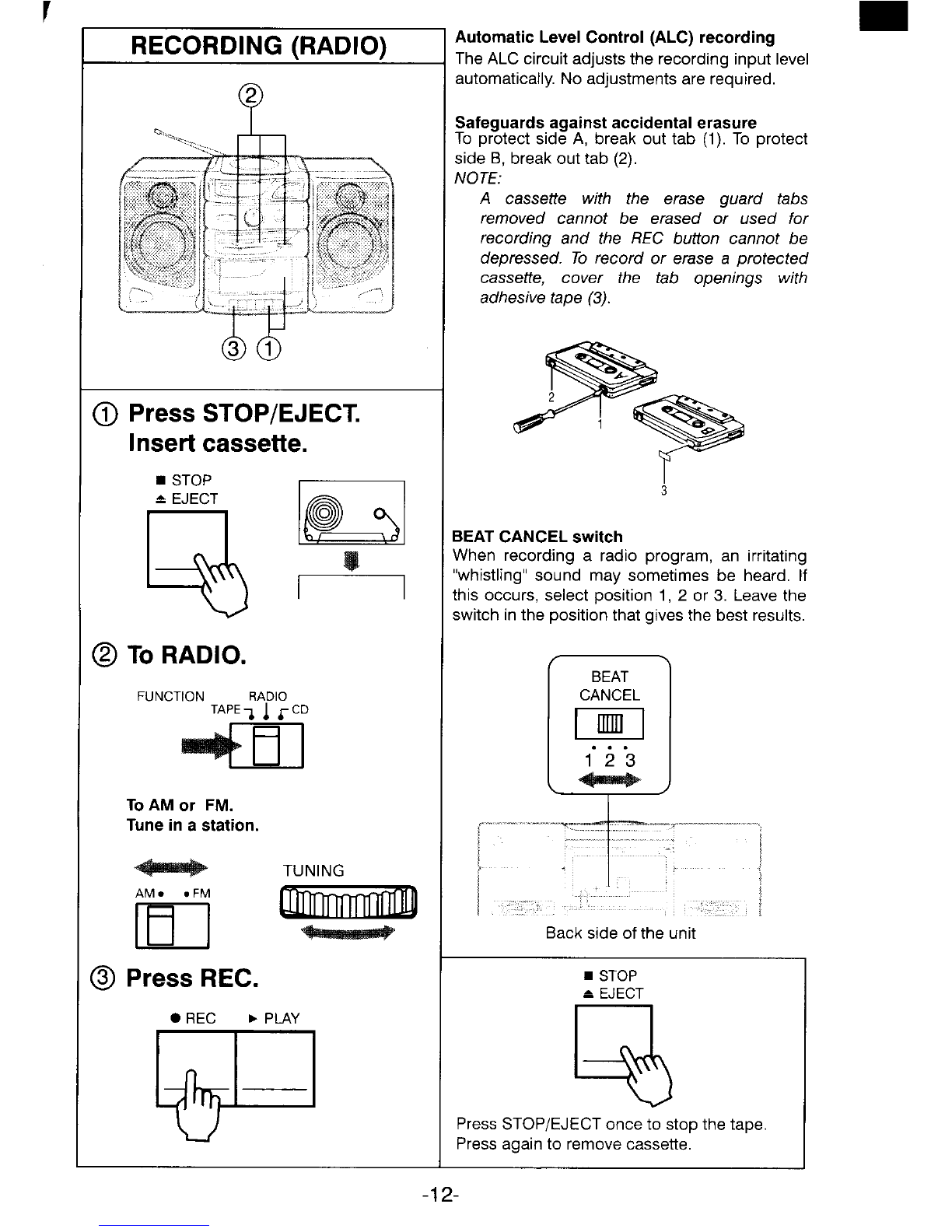

RECORDING (RADIO)
Press STOP/EJECT.
Insert cassette.
■STOP
To RADIO.
FUNCTION RADIO
TAPE=1=CD
I
To AM or FM.
Tune in astation.
TUNING
AM●.FM
m*P
Press REC.
●REC bPLAY
F
Automatic Level Control (ALC) recording
The ALC circuit adjusts the recording input level
automatically. No adjustments are required,
Safeguards against accidental erasure
To protect side A, break out tab (1). To protect
side B, break out tab (2).
NOTE:
Acassette with the erase guard tabs
removed cannot be erased or used for
recording and the REC button cannot be
depressed. To record or erase aprotected
cassette, cover the tab openings with
adhesive tape (3).
P-%;
2
1
P
%$
3
BEAT CANCEL switch
When recording aradio program, an irritating
“whistling” sound may sometimes be heard. If
this occurs, select position 1, 2or 3. Leave the
switch in the position that gives the best results.
CANCEL
m
u
Back side of the unit
,STOP
:EJECT
Press STOP/EJECT once to stop the tape
Press again to remove cassette.
-12-

RECORDING (CD)
Q
2
@Press STOP/EJECT.
Insert cassette.
@To CD.
FUNCTION RADIO
TAPE-j 1~CD
+Ul
WARNING
UNAUTHORIZED RECORDING OF
COPYRIGHTED MATERIAL MAY
VIOIATE APPLICABLE COPYRIGHT
LAWS. SANYO ASSUMES NO RESPON-
SIBILITY FOR UNAUTHORIZED DUPLI-
CATION, USE OR OTHER ACTS WHICH
INFRINGE UPON THE RIGHTS OF
COPYRIGHT OWNERS.
Label facing up ‘\
@) Press REC.
●REC bPLAY
W(
Synchronous recording
(CD-to-TAPE SYNCHRO DUBBING)
This recording system starts disc play and
cassette recording at the same time.
When the REC button is pressed,
recording will start at the beginning of
track number 1of the disc.
If aprogram has been entered, recording
will start from the beginning of the first
programmed track.
-13-

I
MAINTENANCE
Cleaning the unit
Clean the outside of the unit with aclean
soft cloth, moistened with lukewarm water,
Do not use solvents such as benzene or
thinner. These will permanently damage
the units finish.
Cleaning the CD player lens
The lens should never be touched.
If dust is on the lens, blow it off using a
camera lens blower. (Please consult your
dealer,)
Cleaning the tape heads
When dust or reddish-brown oxide builds
up on the tape deck heads, pinch roller
and capstan, the following problems may
result:
Poor sound quality during playback
Distorted, poor quality recordings
Erratic tape speed during recording or
playback.
1. Press the STOP/EJECT button to open the
cassette compartment lid.
■STOP
:EJECT
2. Moisten acotton swab (1) with Isopropyl
alcohol or special head cleaning fluid. Gently
rub the face of each head (4,5) with alcohol.
Also clean the capstan (2) and pinch roller
(3).
If trouble occurs...
To avoid the hazard of electric shock and
damage to the unit, have the unit bench
tested by an authorized SANYO service
station. Do not remove the unit from
cabinet to attempt repairs yourself, its
543
-14-

SPECIFICATIONS
(CASSETTE SECTION) (RADIO SECTION)
Recording system: AC bias 4-track stereo Tuning ranges: AM: 525 – 1,710 kHz
Erasing system: Magnet Erase FM: 88 – I08MHz
Tape speed: 4.75cm/sec. Aerials: Built-in ferrite bar and
Fast forward and rewind time: telescopic aerials
11Osec,(C-60 tape)
Frequency response: 80 – 12,000 Hz (GENERAL)
(Normal tape) Output power: 4.o Wx2(DC max.)
Speaker: 12cmx2,40hms
(CD SECTION) PIEZO X2
Channels: 2channels Terminal impedance: PHONES: 8 – 32 ohms
S/N ratio: 70dB Power source: AC: 230-240 Y50 HZ
Wow &Flutter: undetectable DC: 12 V(8’’D’’size bat-
Sampling frequency: 44,1kHz teries)
Quantization: 16 bits linear/ch Dimensions: 541 x274x 215 mm
Pick up light source: Semi-conductor laser (W XHXD)
Pick up wave length: 790nm Weight (approx.): 6.0 kg including batte-
Laser output: Continuous wave max. ries
0.6 mW
Specifications subject change without notice.
Sqfhmo
1AD6P1 P0351 -c
(AU) SANYO Electric Co., Ltd.
Printed in Hong Kong
