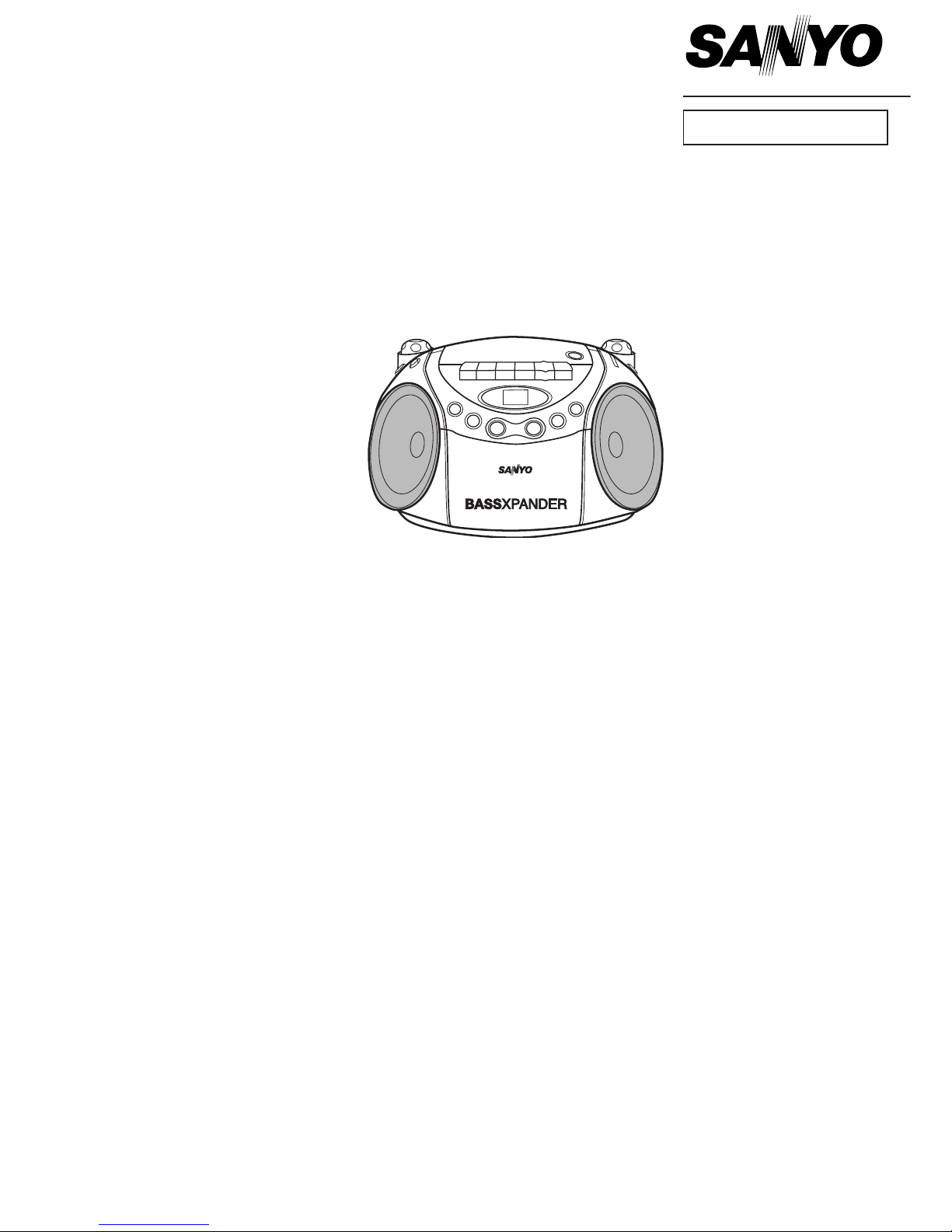

Sanyo MCD-ZX100F User manual

Service Manual
FILE NO.
REFERENCE No. SM5810664
PRODUCT CODE No.
164 137 00 AU
164 137 01 XE
CD Portable Radio
Cassette Recorder
MCD-ZX100F (AU)
(XE)
CONTENTS
Laser beam safety precaution .......................................... 1
IC Block Diagram & Description ....................................... 1,6
Tuner Adjustments ........................................................... 2
Exploded View (Cabinet & Chassis) ................................ 3
Parts List .......................................................................... 4
Schematic Diagram .......................................................... 8
Wiring Diagram ............................................................... 10

- 1 -
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm
• Pickup that emits a laser beam is used on this CD section.
LASER BEAM SAFETY PRECAUTION
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL-USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ
UDS ÆTTELSE FOR STRÅLING.
VARNING-OSYNLIG LASER STRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR
FARLIG.
VORSICHT! -UNSICHTBARE LASERSTRAHLUNG TRITT
AUS, WENN DECKEL GEÖFFNET UND ENN
SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT,
DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
ÄLÄ KATSO SÄTEESEEN.

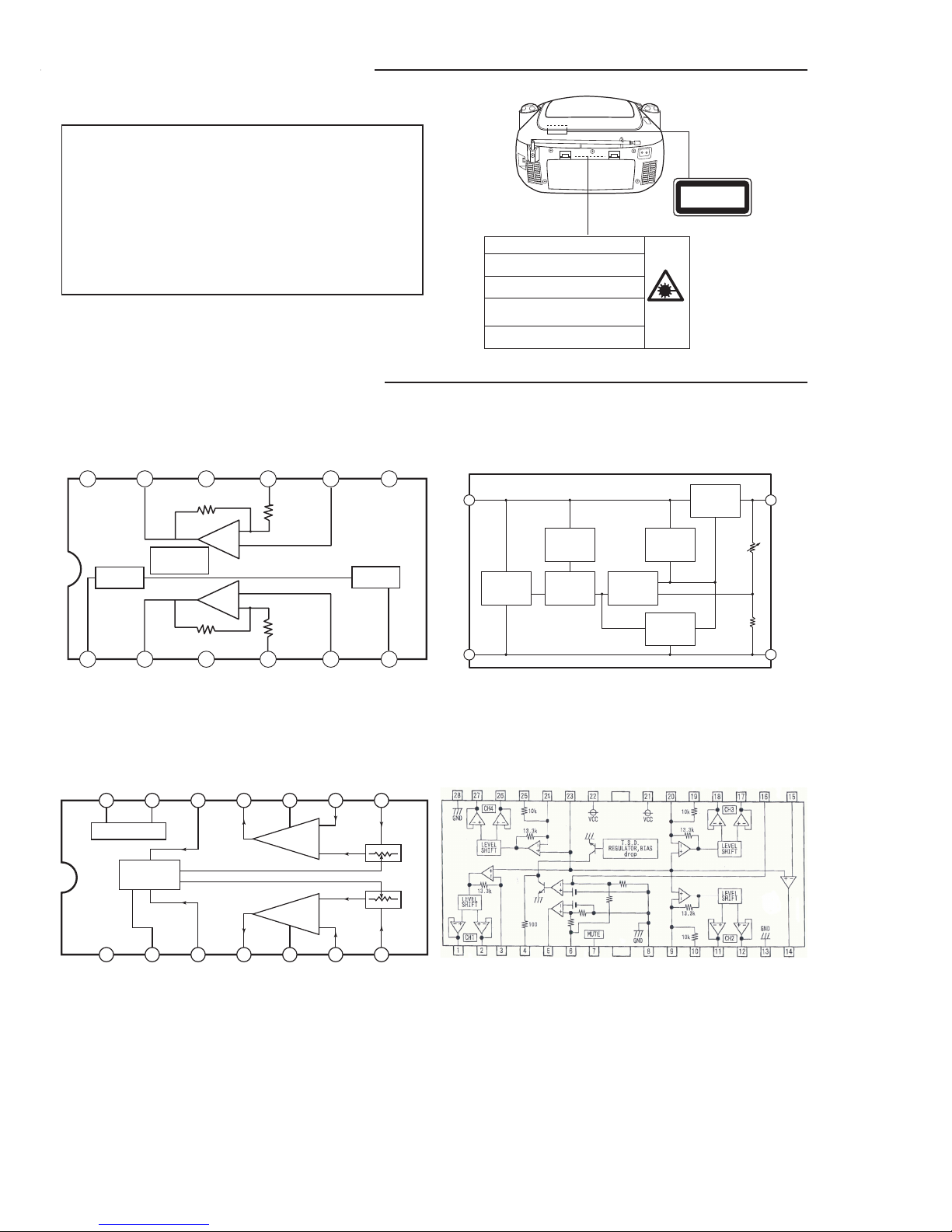

IC BLOCK DIAGRAM & DESCRIPTION
IC201 LA4227 (Power-Amp.) IC202 ka7808 (Voltage Regulator)
+
STANDBY
SW
BIAS
CIRCUIT
Ch1
Ch2
THERMAL
SHUT DOWN
PROTECTION
-
+
-
123456
78
9
101112
STANDBY OUT2 BS2 NF2 IN2 DC
(FILTER)
VCC OUT1 BS1 NF1 IN1 PRE GND
CURRENT
GENERATOR
REFERENCE
VOLTAGE
STARTING
CIRCUIT ERROR AMPLIFIER
SOA
PROTECTION
THERMAL
PROTECTION
SERIES
PASS
ELEMENT
1INPUT 3OUTPUT
2GND
IC301 AN7312
1 2 3
89
10
111213
14
Amp. Ch2
4 5 6 7
Amp. Ch1
GND ALC Const. ALC IN1 OUT1 PC1 NF1 IN1
ALC IN2 OUT2 PC2 NF2 IN2RFV
CC
ALC
Ripple Filter
SIC601 BA5826FP

Set of unit
Supply voltage :DC 12.0V
Speaker impedance:8 ohms
Standard output :50mW
Function switch :RADIO
a.Parts Location
CF103 460khz
OUT
T103 L102
CF102 T101
CF101
T102 FM ANT
L101
a.AM Adjustment Band switch:MW
Input Output
1IF
Closed the output
terminal by sweep
generator,it place
to AM ANT
Connect sweep
genneratorto(19)IC101
(H) Oand T103 460 KHz Low T103
2515 KHz Low end T101
31640 KHz High end PVC
4610 KHz 610 KHz MW ANT
51404 KHz 1404 KHz PVC
b.FM Adjustment Band switch:FM FM Dummy antenna:75 ohms unbalance
Input Output
1IF Connect sweep
generator
Connect VTVM to (19)
IC101(H) and T102 10.7MHz Low
287.5 MHz Low end L101
3108.5 MHz High end PVC
490.0 MHz 90.0 MHz L101
5106.0 MHz 106.0 MHz PVC
Step Adjustin
g Circuit
SG
Frequency Position of
Tuning dial
Adjustment VTVM
Oscilloscope
Connections
Tuning
coverage
Connet AM SG to
test loop
Connect VTVM to
speaker terminals.
Connect VTVM to
speaker terminals.
Connect AM SG to
test loop
Tracking Max.
Step Adjustin
g Circuit
Connections SG
Frequency
Position of
Tuning
dial
Adjustment VTVM
Oscilloscope
Tuning
coverage
Connect FM SG to
FM ANT(H) D101
Connect VTVM to
speaker terminals.
Connect VTVM to
speaker terminals.
Connect FM SG to
FM ANT(H) D101
Tracking Max
- 2 -
- 2 -
TUNER ADJUSTMENTS

- 3 -

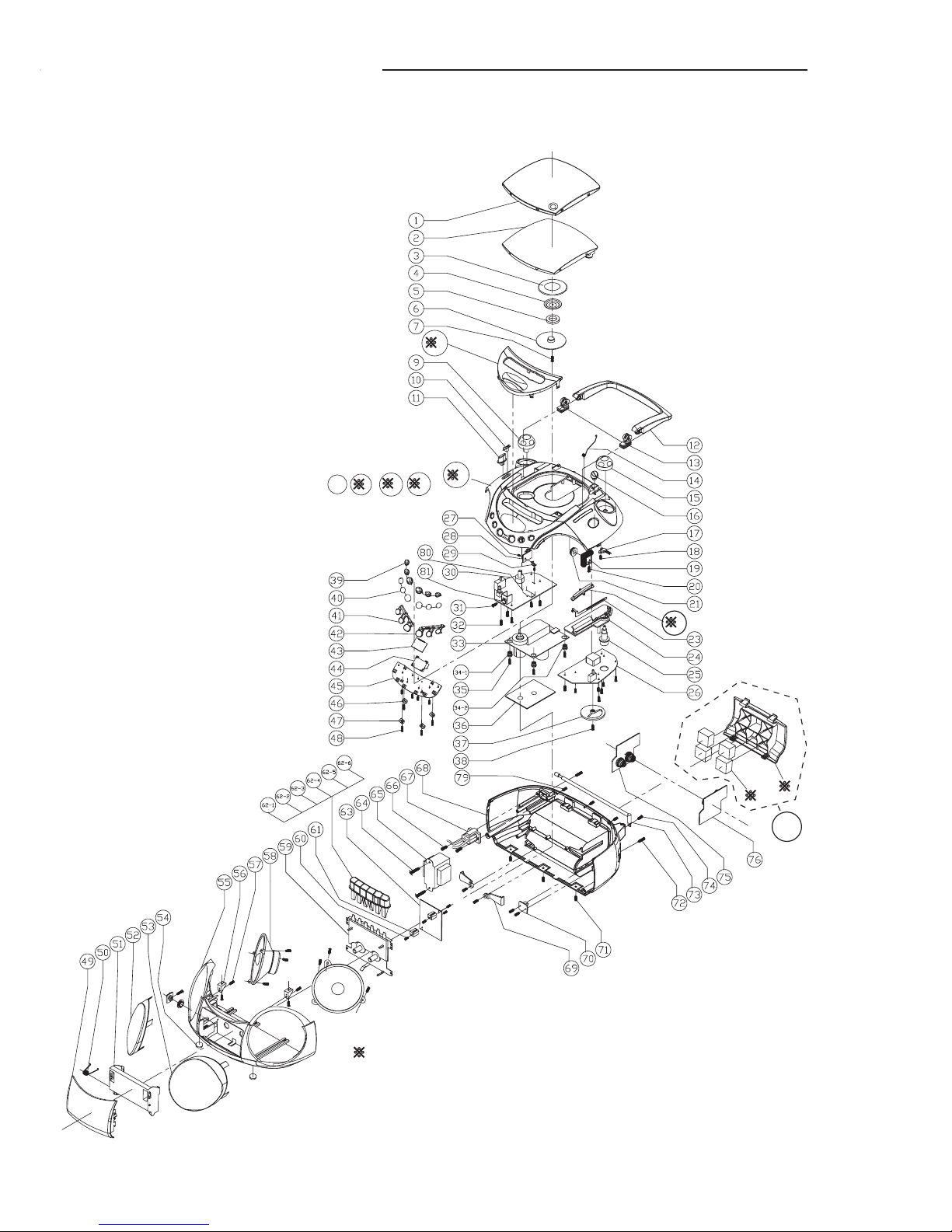

EXPLODED VIEW(CABINET & CHASSIS)
: Not available as service parts.
77A
3
2
1
8A:
1+ 2+ 3

- 4 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
REF.NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
645 075 0373 GIFT BOX(AU)
645 075 0380 GIFT BOX(XE)
645 071 6744 INSTRUCTION MANUAL(AU)
645 075 0397 INSTRUCTION MANUAL(XE)
645 075 0366 POLY BAG,AC CORD
645 075 0359 POLY BAG,I/B
645 075 0342 POLY BAG,UNIT
645 075 0328 POLY FOAM,LEFT
645 075 0335 POLY FOAM,RIGHT
!
!! 645 074 9339 POWER CORD,SAA(AU)
!
!! 645 074 9322 POWER CORD,VDE(XE)
645 075 0403 QUICK GUIDE,804-7611000-04A(XE)
CABINET , CHASSIS & FIXING PARTS
REF.NO. PART NO. DESCRIPTION
1645 074 9612 CD DOOR
2 645 074 9803 CD DOOR BRACKET
3645 074 9957 CD CLAMPER
4645 075 0311 CD CLAMPER PLATE
5645 074 9025 CD CLAMPER MAGNET
6645 074 9896 CLAMPER BRACKET
7645 075 0151 SCREW 2X4,CD CLAMPER HOLDER
8A 645 074 6833 ASSY TOP CABINET
9645 074 9711 KNOB VOLUME,ROTARY
10 645 074 9766 KNOB BASS
11 645 074 9728 KNOB FUNCTION
12 645 074 9643 HANDLE
13 645 074 9858 HANDLE BRACKET
14 645 075 0267 CD DOOR SPRING
15 645 074 9735 KNOB TUNING
16 645 074 9773 KNOB BAND
18 645 032 4130 SCR 2X8,LEAF SWITCH
19 645 075 0021 DAMPING GEAR STAND
20 645 075 0175 SCREW 3X10,
DAMPING GEAR STAND
21 645 075 0014 GEAR
23 645 074 9650 DAIL POINTER
24 645 074 9810 TUNING BRACKET
25 645 074 9995 TUNING GEAR 1
27 645 075 0083 SCREW 2.6X8,
HEADPHONE PCB BKT.
29 645 074 9827 HEADPHONE BRACKET
31 645 075 0113 SCREW 3X8,HEAT SINK
32 645 075 0120 SCREW 3X10,MAIN PCB
33 645 074 9452 CD DECK MECHANISM
34-1 645 074 9933 CD RUBBER CUSHION RED,
FOR CD MECH
34-2 645 074 9940 CD RUBBER CUSHION GREEN,
FOR CD MECH
35 645 075 0168 SCREW 2.6X12,CD MECK
37 645 075 0007 TUNING GEAR 2
38 645 075 0038 SCREW 2.5X5,TUNING GEAR 2
39 645 074 9742 KNOB CD
40 645 075 0458 SILVER LABEL,FOR CD KNOB
41 645 074 9780 CD KNOB BRACKET L
42 645 074 9797 CD KNOB BRACKET R
43 645 074 9049 LCD DISPLAY
44 645 074 9834 LCD BRACKET
46 645 074 9872 CONTROL PCB BRACKET 1
47 645 074 9889 CONTROL PCB BRACKET 2
48 645 075 0090 SCREW 2.6X12,CONTROL PCB
49 645 074 9629 CASS DOOR
50 645 075 0250 CASS DOOR SPRING
51 645 074 9636 CASS DOOR BRACKET
52 645 075 0212 SPEAKER GRILL LEFT
53 645 075 0229 SPEAKER GRILL RIGHT
54 645 074 9926 RUBBER FOOT,FOR UNIT
55 645 074 9551 CABINET FRONT
56 645 074 9865 TOP.FRONT CAB BRACKET
57 645 075 0137 SCREW 3X12
59 645 074 9445 CASS DECK MECHANISM
60 645 032 4130 SCR 2X8,CASSETTE BD
61 645 074 9841 CASSETTE PCB BRACKET
62-1 645 074 9759 KNOB CASS PAUSE
62-2 645 074 9667 KNOB CASS STOP/EJECT
62-3 645 074 9698 KNOB CASS F.FWD
62-4 645 074 9704 KNOB CASS REWIND
62-5 645 074 9674 KNOB CASS PLAY
62-6 645 074 9681 KNOB CASS RECORD
64 645 075 0182 SCREW 3X15,TRANSFORMER
66 645 075 0137 SCREW 3X12,AC SOCKET
68 645 074 9575 CABINET BACK
69 645 074 9919 BATTERY COVER
71 645 075 0076 SCREW 3X8,
BACK CAB TO FRONT CAB
72 645 075 0106 SCREW 3X20,
BACK CAB TO FRONT CAB
74 645 075 0045 SCREW 3X6,ANTENNA
77A 645 074 6826 ASSY BATTERY DOOR
79 645 075 0052 SCREW 3X10,
BACK CAB. TO TO CAB.
80 645 075 0281 HEAT SINK,FOR IC201
81 645 075 0274 HEAT SINK,FOR IC202
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
17 645 074 9520 LEAF SWITCH
58 645 074 9292 SPEAKER 4
65 !
!! 645 074 9032 POWER TRANSFORMER
67 645 074 9964 AC SOCKET COVER
73 645 074 9261 ROD ANTENNA
645 074 9544 CD DOOR LOCK
645 074 9971 CD PICK UP DUSTCOVER
645 074 9278 AC SOCKET,VDE
645 074 9469 FFC CABLE 16P,
CD CN101 TO CD MECK
645 074 9056 CONNECTOR UL1007 AWG 26,
CD SW508 TO LEAF SW
645 074 9094 CONNECTOR UL1007 AWG 22,
MAIN CN201 TO SPK
645 074 9070 HOUSING AWG30 3P,
CASS CN301 TO CASS MECK

- 5 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
REF.NO. PART NO. DESCRIPTION
645 074 9087 HOUSING AWG22 3P,
MAIN CN2 TO BATT
645 075 0298 SPEAKER CLIP,FOR SPEAKER
645 075 0304 SHIELD PLATE,FOR CASS DECK
645 075 0236 ANT CONNECTOR PLATE
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
26 614 332 8582 ASSY,PWB,TUNER(Only initial)
BPF101 645 074 9247 BAND PASS FILTER
C0133 645 074 8868 POLYESTER 120P 100V
CF101 645 074 9230 FILTER 10.7MHZ
CF102 645 074 9230 FILTER 10.7MHZ
CF103 645 074 9223 FILTER 460BKHZ
CN101 645 074 9100 CONNECTOR 4P
D0101 645 029 7793 DIODE 1N-4148
D0102 645 029 7793 DIODE 1N-4148
D0105 645 032 3522 DIODE FV1043
DZ101 645 074 7663 ZENER 4.7V
IC101 645 074 7526 IC LA1824
L0101 645 074 8981 COIL
L0102 645 074 8998 COIL
L0105 645 074 8974 IFT,AM ANT
PVC01 645 074 8912 PVC,AM/FM
Q0101 645 074 7588 TRANSISTOR 9018H
SW101 645 074 9483 SLIDE SWITCH,BAND
T0102 645 074 8936 FM IFT,0070
T0103 645 074 8929 AM IFT,2070
T0104 645 074 8943 FM IFT,0380
645 074 9063 CONNECTOR UL1007 AWG22 2,
ST TO BATTCUT BD STSW
645 029 8585 TIN PLATED WIRE
645 074 6819 ASSY BAR ANT
HEADPHONE P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
28 614 332 8612 ASSY,PWB,HEADPHONE(Only initial)
JK002 645 074 9285 ST PHONE JACK
645 074 9438 FLAT CABLE UL1007 AWG24 5,
CNJK TO MAIN CNJK1
MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
30 614 332 8575 ASSY,PWB,MAIN(Only initial)
C0206 645 074 8707 ELECT 1000U 25V
C0606 645 074 8714 ELECT 3300U 25V
CDW301 645 074 9186 HONSING WAFER 6P
CN002 645 074 9148 CXH WAFER 3P
CN201 645 074 9155 CXH WAFER 4P
CN202 645 074 9193 HONSING WAFER 8P
D0205 645 029 8431 DIODE 1N-4001
D0601 645 029 8431 DIODE 1N-4001
D0602 645 029 8431 DIODE 1N-4001
D0603 645 029 8431 DIODE 1N-4001
D0604 645 029 8431 DIODE 1N-4001
F0601 645 074 9308 FUSE GLASS
IC201 645 074 7519 IC LA4227
IC202 645 074 7557 IC KA7808
Q0201 645 029 8424 TR NPN 9014C
Q0202 645 074 7656 TRANSISTOR KRC103M
RAW201 645 074 9155 CXH WAFER 4P
SW201 645 074 9490 SLIDE SWITCH
SW202 645 074 9537 PUSH SWITCH
VR001 645 074 8257 ROT VOL
645 074 9315 FUSE HOLDER,FOR F601
645 075 0281 HEAT SINK,FOR IC201
645 075 0274 HEAT SINK,FOR IC202
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
36 614 332 8599 ASSY,PWB,CD(Only initial)
CN101 645 074 9216 FFC CONNECTOR 16P
JM001 645 029 8585 TIN PLATED WIRE
JM002 645 029 8585 TIN PLATED WIRE
JM003 645 029 8585 TIN PLATED WIRE
JM004 645 029 8585 TIN PLATED WIRE
JM005 645 029 8585 TIN PLATED WIRE
JM006 645 029 8585 TIN PLATED WIRE
JM007 645 029 8585 TIN PLATED WIRE
JM008 645 029 8585 TIN PLATED WIRE
JM009 645 029 8585 TIN PLATED WIRE
JM010 645 029 8585 TIN PLATED WIRE
JM011 645 029 8585 TIN PLATED WIRE
JM012 645 029 8585 TIN PLATED WIRE
JM013 645 029 8585 TIN PLATED WIRE
JM014 645 029 8585 TIN PLATED WIRE
JM015 645 029 8585 TIN PLATED WIRE
JM016 645 029 8585 TIN PLATED WIRE
SD601 645 044 1516 DIODE 1SS133
SIC201 645 074 7533 IC BU24530-9A
SIC601 645 074 7540 IC BA5826FP-E2
SL101 645 074 8875 CHOKE COIL 10UH
SL201 645 074 8899 INDUCTOR 10UH
SL301 645 074 8875 CHOKE COIL 10UH
SL302 645 074 8875 CHOKE COIL 10UH
SQ101 645 074 7632 TRANSISTOR 2SA1576AT106R
SQ102 645 074 7564 TRANSISTOR MMBT9014C
SQ103 645 074 7571 TRANSISTOR MMBT9015C
SQ301 645 074 7618 TRANSISTOR DTA124EUA
SQ303 645 074 7601 TRANSISTOR DTC114TUAT106
SQ304 645 074 7601 TRANSISTOR DTC114TUAT106
SQ501 645 074 7649 TRANSISTOR DTA144TKA
SQ601 645 074 7625 TRANSISTOR KTA1271Y
SQ602 645 074 7601 TRANSISTOR DTC114TUAT106
SW508 645 074 9162 HOUSING WAFER 2P
SX101 645 074 9254 CRYSTAL 16.93MHZ
645 074 9179 HOUSING WAFER 5P,REW
645 074 9209 HOUSING WAFER 9P,LCD
645 074 9018 FERRITE FING,
FOR CDW301-CDW501
CONTROL P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
45 614 332 8605 ASSY,PWB,CONTROL(Only initial)
SW001 645 074 9506 SWITCH TACT,PLAY
SW003 645 074 9506 SWITCH TACT,REPEAT
SW004 645 074 9506 SWITCH TACT,STOP
SW005 645 074 9506 SWITCH TACT,SKIP/UP
SW006 645 074 9506 SWITCH TACT,SKIP/DOWN
SW007 645 074 9506 SWITCH TACT,MEMORY
645 074 9421 FLAT CABLE UL2651 AWG28 9,
CN701 TO MAIN LCD
645 074 9407 FLAT CABLE UL2651 AWG28 5,
CN702 TO MAIN REW
645 074 9834 LCD BRACKET
645 074 9049 LCD DISPLAY
CASSETTE P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
63 614 332 8643 ASSY,PWB,CASSETTE(Only initial)
CN301 645 074 9124 CXH WAFER 3P
D0301 645 074 7670 ZENER 5.6V
D0302 645 074 7687 ZENER 7.5V
IC301 645 074 7502 IC AN7312
L0301 645 074 8882 CHOKE COIL 10MH
L0302 645 074 8882 CHOKE COIL 10MH
L0303 645 074 8950 IFT
L0304 645 074 8905 INDUCTOR 22UH
L0305 645 074 8899 INDUCTOR 10UH
Q0304 645 074 7595 TRANSISTOR 9013G
SW301 645 074 9513 SWITCH,REC/PLAY
645 074 9391 CONNECTOR UL1365 AWG30 2P,
BATTCUT TO BATTCUT BD B
645 074 9414 FLAT CABLE AWG28/30 8P,
CN302 TO MAIN CN202
645 029 8585 TIN PLATED WIRE
645 075 0199 EYELET

- 6 -

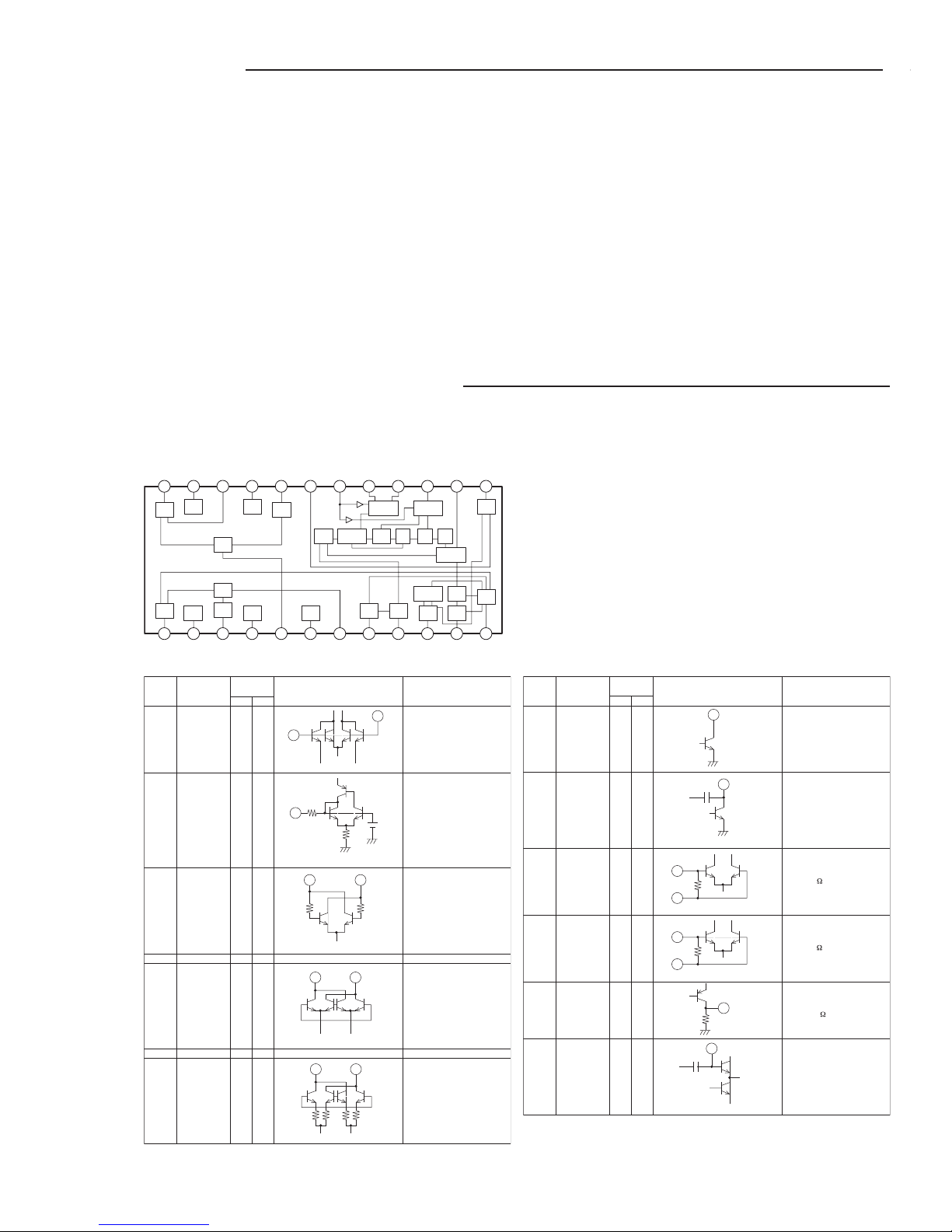

IC101 LA1824 (Tuner)
PARTS LIST
BATTCUT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
70 614 332 8650 ASSY,PWB,BATTCUT(Only initial)
SW102 645 074 9476 SLIDE SWITCH,ST.MONO
645 074 9131 CXH WAFER 2P,STSW
645 074 9162 HOUSING WAFER 2P,BATTCUT
BATTERY A P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 332 8629 ASSY,PWB,BATTERY A(Only initial)
645 075 0243 BATTERY SPRING -
BATTERY B P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 332 8636 ASSY,PWB,BATTERY B(Only initial)
645 075 0243 BATTERY SPRING -
12345678910 11 12
24 23 22 21 20 19 18 17 16 15 14 13
FM
RF
AM
RF
AM
MIX
FM
MIX
FM
OSC
AM
OSCREG Vcc1
Vcc2GND2
GND1
DECODER PHASE
COMP
PILOT
DET
TRIG ST-SW VCO
DET
DET
AM-IF
S-METER
FM-IF
AGC
FF FF FF
ST
LED
TUN
LED
Pin Descriptions and Quiescent Voltage at VCC = 4.5V
Pin Quiescent
number Function voltage (V) Equivalent circuit Remarks
AM FM
1AM-RF input 1.3 1.3
Connect the AM antenna coil
between this pin and pin 2 (Reg)
2Reg 1.31.3
Connect theAM oscilla tor coil
3AM-OSC 4.5 4.5 between this pin and pin 4
(VCC1)
4V
CC14.5 4.5 AM/FM-IF/MPX block VCC
Connect the FM mixer coil
5FM-MIX output 4.5 4.5 between this pin and pin 4
(VCC1)
6GND1 0 0 AM/FM-IF/MPX block GND
Connect the AM mixer coil
7AM-MIX output 4.5 4.5 between this pin and pin 4
(VCC1)
ILA00307
1
2
ILA00308
2
ILA00309
3 4
ILA00385
45
ILA00386
74
IC BLOCK DIAGRAM & DESCRIPTION
Pin Quiescent
number Function voltage (V) Equivalent circuit Remarks
AM FM
Acti ve-low
8Tuningindicator 4.5 4.5
Open-collector output can directly
drive LED (I Cmax = 20 mA)
Acti ve-low
Stereo
9indicator and 4.5 4.5
Open-collector output can directly
AM IF output
drive LED (I Cmax = 20 mA)
AM-IF signal is output in
AM mode
10 FM-IF input 1.3 1.3 Rin = 330
11 AM-IF input 1.3 1.3 Rin = 2 k
AM-AGC
12 output and 0.7 0.2 Internal load resistance
FM signal R = 16.6 k
meter output
Connect the FM detector coil
13 FM-DET 4.5 4.5 between this pin and pin 4
(VCC1)
ILA00387
ILA00388
8
ILA00314
10
2
Rin
ILA00315
11
2
Rin
ILA00317
ILA00316
12
R
9
13

- 7 -
IC BLOCK DIAGRAM & DESCRIPTION
IC101 LA1824 (Tuner)
Pin Quiescent
number Function voltage (V) Equivalent circuit Remarks
AM FM
Pilot detector
Forced monaural mode w hen pin
14 filter 2.9 3.8
14 is connected to ground
(forced mono)
Phase FM mode is when pin 15 is open,
15 compara tor filter 0 3.8 and AM mode is w hen pin 15 is
(AM/FM switch) connected to ground
16 L output
1.4 1.4 Rout = 7.5 k
17 R output
18 MPX input 1.3 1.3 Rin = 50 k
Output impedance
AM : Rout = 50 k
FM : Rout = 500
AM/FM
19 detector 0.5 1.5
The channel separation can be
output
adjusted with an external
capacitor connected between this
pin and ground
Connect the FM oscillator coil
20 FM-OSC 4.5 4.4 between this pin and pin 21
(VCC2)
ILA00318
14
15
ILA00319
ILA00320
16
17
Rout
ILA00321
18
Rin
ILA00322
19
Rout(FM)
Rout(AM)
ILA00323
21 20
( )
Pin Quiescent
number Function voltage (V) Equivalent circuit Remarks
AM FM
FM-FE block V CC
21 VCC2 4.5 4.4
Power is supplied pin 4 (VCC1)
via external resistor (10 )
Connect the FM-RF coil between
22 FM-RF output 4.5 4.4
this pin and pin 21 (VCC 2)
24 FM-RF input 0 1.0 Rin = 500
23 GND2 0 0 FM-FE block ground
ILA00324
R
421
ILA00325
Rin
24
22 21

SANYO Electric Co., Ltd.
Osaka, Japan
Oct./ '04 BB Printed in Japan
