Sanyo DVD-HP42 User manual

Service Manual
FILE NO.
REFERENCE No. SM2810018
PRODUCT CODE No.
137 135 00
Portable DVD Player DVD-HP42 (XE)
CONTENTS
Laser Beam Safety Precaution ........................................ 1
Warning ............................................................................ 1
Exploded View (Packing & Accessory) ............................ 2
Parts List .......................................................................... 2
Exploded View (Cabinet & Chassis) ................................ 3
Parts List .......................................................................... 4
Wiring Connection ............................................................ 7
Schematic Diagram .......................................................... 8
Wiring Diagram ................................................................ 24
RoHS
•This product does not contain any hazardous substances prohibited by the RoHS Directive.
(You will find “R” or “Z” at the last digit of serial number or a “RSF” label near the rating plate on
the RoHS compliant product.)
WARNING
•You are requested to use RoHS compliant parts for maintenance or repair.
•You are requested to use lead-free solder.
(As to detail, please see page 1.)

- 1 -
• Pickup that emits a laser beam is used on this CD section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm

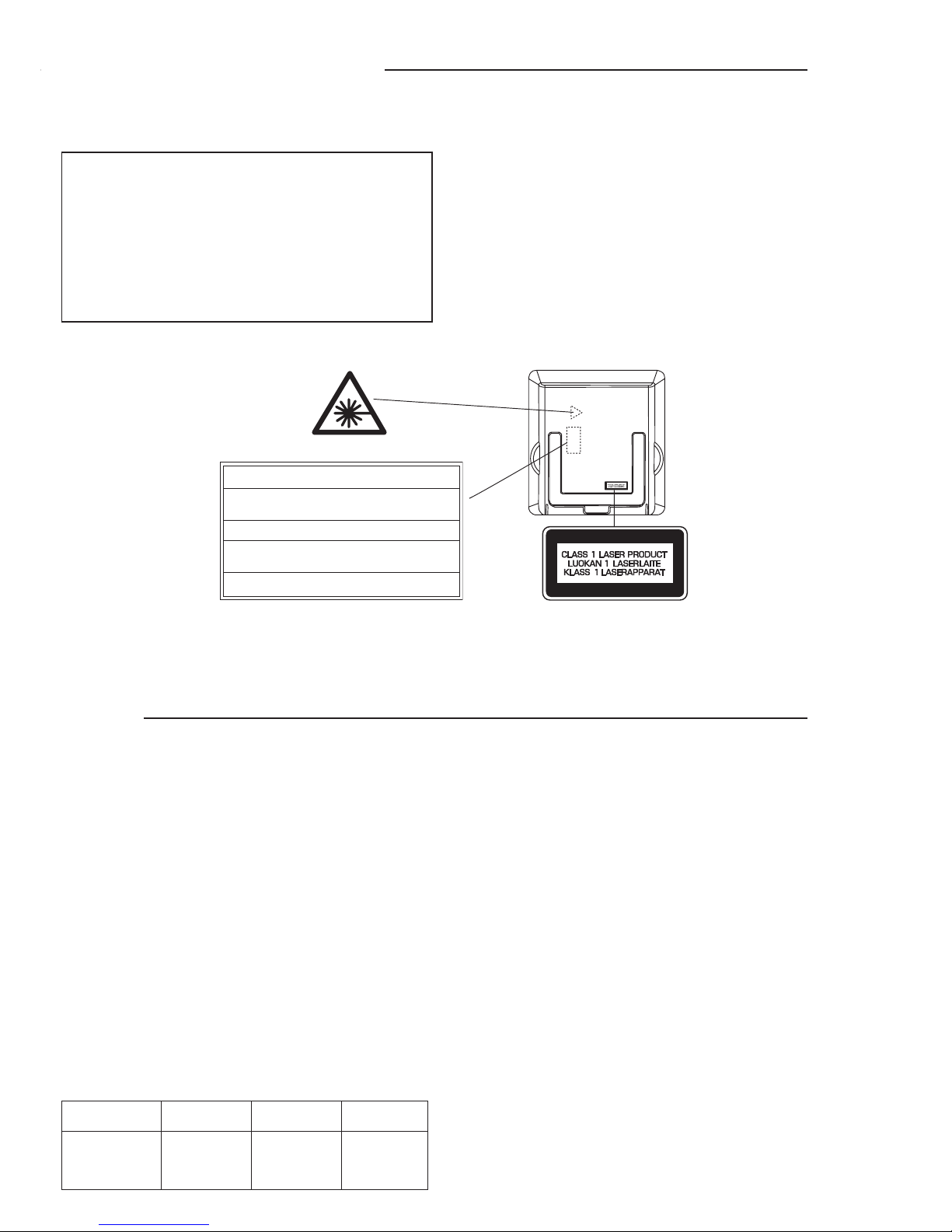

LASER BEAM SAFETY PRECAUTION
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
WARNING
Do not use solder containing lead.
This product has been manufactured using lead-free solder in
order to help preserve the environment.
Because of this, be sure to use lead-free solder when carrying
out repair work, and never use solder containing lead.
Lead-free solder has a melting point that is 30 - 40°C (86 -
104°F) higher than solder containing lead, and moreover it
does not contain lead which attaches easily to other metals.
As a result, it does not melt as easily as solder containing
lead, and soldering will be more difficult even if the tempera-
ture of the soldering iron is increased.
The extra difficulty in soldering means that soldering time will
increase and damage to the components or the circuit board
may easily occur.
Because of this, you should use a soldering iron and solder
that satisfy the following conditions when carrying out repair
work.
Soldering iron
Use a soldering iron which is 70 W or equivalent, and which
lets you adjust the tip temperature up to 450°C (842°F). It
should also have as good temperature recovery characteris-
tics as possible.
Set the temperature to 350°C (662°F) or less for chip compo-
nents, to 380°C (716°F) for lead wires and similar, and to
420°C (788°F) when installing and removing shield plates.
The tip of the soldering iron should have a C-cut shape or a
driver shape so that it can contact the circuit board as flat or
in a line as much as possible.
Solder
Use solder with the metal content and composition ratio by
weight given in the table below. Do not use solders which do
not meet these conditions.
Note:
If replacing existing solder containing lead with lead-free solder
in the soldered parts of products that have been manufactured
up until now, remove all of the existing solder at those parts
before applying the lead-free solder.
Metal content Tin(Sn) Silver(Ag) Copper(Cu)
Composition
ratio by weight 96.5% 3.0% 0.5%

- 2 -
EXPLODED VIEW (PACKING & ACCESSORY)
1
2
2
3456
7
8
9
10
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1!
!! 645 088 9967 AC ADAPTOR
2 645 084 0043 POLYBAG,AV CABLE,AC ADAPTOR
3645 081 9025 AV CORD
4645 085 6679 EAR PHONE
5645 088 9974 REMOTE CONTROL
6 645 089 0451 EPE BAG,UNIT
7645 086 4032 INSTRUCTION MANUAL
8 645 080 1624 POLYBAG,IB&WARRANTY CARD
9645 089 0444 PAPER TRAY
10 645 089 0420 GIFT BOX
645 089 0437 CARTON OUTER

- 3 -

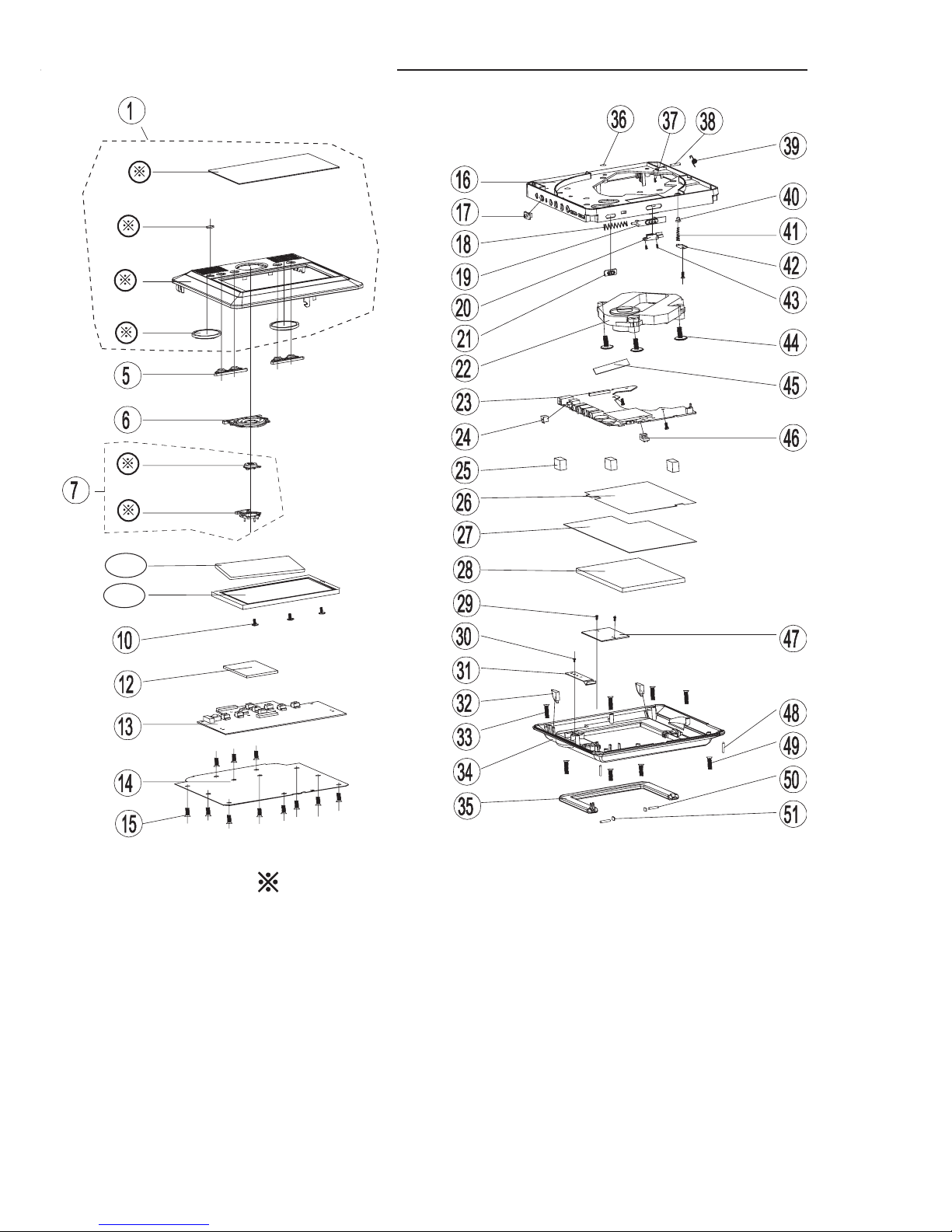

EXPLODED VIEW(CABINET & CHASSIS)
: Not available as service parts.
9-2
9-1

- 4 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 645 089 0468 ASSY MONITOR FRONT CABINE
5 645 089 0277 KNOB 2INI
6645 089 0291 KNOB 42N1
7645 089 0475 KNOB PLAY ASSY
9-1 645 088 9486 LCD PANEL
9-2 645 088 9912 BACK LIGHT4.2"
10 645 089 0208 SCREW 2X5,4.2’PANEL
12 645 080 1075 SPONGE
14 645 089 0024 PET PLATE
15 645 083 9788 SCREW 2.0X4,MONITOR PCB
16 645 089 0253 DVD TOP CABINET
17 645 089 0321 KNOB POWER
18 645 089 0079 SPRING OPEN
19 645 089 0307 KNOB OPEN
20 645 089 0352 KNOB OPEN COVER
21 645 089 0383 KNOB HOLD
22 645 083 9603 DVD DECK
24 645 089 0338 CHARGE LER BRACKET
25 645 089 0130 COPPER SPONGE
26 645 089 0031 BATTERY COVER PLATE
27 645 089 0123 COPPER FOIL PAPER
29 645 083 9757 SCREW 2X4,BATTERY PCB,
DVD MAIN PCB,SPRING
30 645 089 0192 SCREW 2.0X4,SPRING PLATE
31 645 089 0222 SPRING PLATE
32 645 089 0154 SICICON FOOT
33 645 089 0185 SCREW 2.0X13,
DVD TOP CAB TO DVD BOTT
34 645 089 0260 DVD BOTTOM CABINET
35 645 089 0369 MODEL BRACKET
36 645 089 0147 SPONGE
37 645 089 0161 SCREW 1.7X4,SPRING OPEN
38 645 089 0116 FIX SHAFT
39 645 089 0062 SPRING MONITOR
40 645 089 0314 LIFT PIN
41 645 089 0086 PRESS SPRING
42 645 089 0239 SPRING COVER
43 645 081 9353 SCREW 1.7X4,KNOB OPEN COVER
44 645 089 0215 SCREW 2.0X6,DVD DECK
45 645 089 0055 PC PLATE
46 645 089 0345 POWER LED BRACKET
48 645 089 0093 SHAFT
49 645 089 0178 SCREW 2.0X12,
DVD TOP CAB TO DVD BOTT
50 645 089 0109 SHAFT BRACKET
51 645 089 0048 BRACKET FIXSHEFT SIDE COV
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
28 645 088 9950 POLMER L10N
645 088 9820 FFC 24P,
MONITOR CON1 TO DVD MAIN
645 088 9981 FFC 24P,
MAIN CON1 TO DVD LOADER
MONITOR MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
13 645 088 9448 ASSY PWB MONITOR MAIN
(Only initial)
CON01 645 088 9837 24P WAFER
CON03 645 088 9844 26P WAFER
DB002 645 079 9891 DIODE ISV215
DP001 645 081 8820 DIODE BAS85
DP002 645 079 9952 DIODE DA204UT106
IC002 645 083 8101 IC D3031
IC003 645 079 9761 IC 8D02
ICP03 645 088 9455 IC AT1380AP
ICP04 645 083 8071 IC M5237ML
IR001 645 087 2259 SENSOR
L0001 645 080 0429 CHOKE 18UH 10%
LA001 645 080 0429 CHOKE 18UH 10%
LB001 645 080 0429 CHOKE 18UH 10%
LB002 645 088 9769 CHOKE 2.2UH 10%
LP006 645 080 0429 CHOKE 18UH 10%
LP010 645 083 5414 CHOKE 47UH 500MA
LP012 645 081 8950 CHOKE 22UH 10%
LP013 645 080 0429 CHOKE 18UH 10%
LP014 645 080 0429 CHOKE 18UH 10%
Q0001 645 079 9884 TRANSISTOR IMZ1
Q0002 645 079 9884 TRANSISTOR IMZ1
QP001 645 079 9839 TRANSISTOR FDN337N
QP004 645 087 2228 TRANSISTOR 2SC2412K
QP005 645 079 9815 TRANSISTOR 2SB1184,PNP
RB021 645 080 0412 CHIP BEAD 600OHM
SW001 645 087 3089 SWITCH TACT,MENU
SW002 645 087 3089 SWITCH TACT,UP
SW003 645 087 3089 SWITCH TACT,SKIP-
SW004 645 087 3089 SWITCH TACT,LEFT
SW005 645 088 9806 SWITCH TACT,OK
SW006 645 087 3089 SWITCH TACT,RIGHT
SW007 645 087 3089 SWITCH TACT,SETUP
SW008 645 087 3089 SWITCH TACT,DOWN
SW009 645 087 3089 SWITCH TACT,SKIP+
TVR01 645 080 0474 CHIP SEMI VR 50K OHM B
U0001 645 079 9785 IC NJM2107F
VR001 645 088 9776 CHIP SEMI VR 4.7K B
VR002 645 080 0474 CHIP SEMI VR 50K OHM B
VRB02 645 088 9776 CHIP SEMI VR 4.7K B
Y0001 645 079 9822 CRYSTAL 3.579545MHZ
MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
23 645 088 9431 ASSY PWB DVD MAIN(Only initial)
CON01 645 088 9813 SOCKET 24P
CON02 645 083 9351 SOCKET 24P
D0001 645 083 9078 DIODE 1N5819
D0002 645 083 9078 DIODE 1N5819
D0003 645 083 9078 DIODE 1N5819
D0004 645 083 9054 DIODE 1N4148
D0005 645 083 9054 DIODE 1N4148
D0008 645 083 9078 DIODE 1N5819
D0012 645 083 9047 DIODE ZENER 4.3V
D0013 645 083 9030 DIODE ZENER 15V

- 5 -
PARTS LIST
REF.NO. PART NO. DESCRIPTIONREF.NO. PART NO. DESCRIPTION
F0001 645 083 9085 FUSE
J0001 645 088 9783 SOCKET 4P
J0005 645 083 9290 SOCKET 4P
J0009 645 083 9269 SOCKET 2P
J0011 645 088 9790 PHONE 1 JACK
J0012 645 083 9283 DC POWER JACK
J0015 645 083 9399 VIDEO IN OUT JACK
J0022 645 085 6617 PHONE JACK
J0028 645 088 9738 HOLD
J0030 645 085 6587 DIGITAL OUT JACK
L0001 645 083 8811 BEAD INDUCTOR
L0002 645 083 8842 BEAD INDUCTOR 33 OHM
L0003 645 088 9684 INDUCTOR COIL 100UH
L0004 645 083 8842 BEAD INDUCTOR 33 OHM
L0005 645 083 8842 BEAD INDUCTOR 33 OHM
L0006 645 083 8842 BEAD INDUCTOR 33 OHM
L0007 645 083 8842 BEAD INDUCTOR 33 OHM
L0008 645 083 8842 BEAD INDUCTOR 33 OHM
L0010 645 083 8842 BEAD INDUCTOR 33 OHM
L0011 645 083 8842 BEAD INDUCTOR 33 OHM
L0013 645 083 8828 CHOKE 1.8UH
L0014 645 083 8842 BEAD INDUCTOR 33 OHM
L0015 645 083 8842 BEAD INDUCTOR 33 OHM
L0017 645 083 8842 BEAD INDUCTOR 33 OHM
L0019 645 083 8828 CHOKE 1.8UH
L0021 645 083 9023 COIL 100UH
L0023 645 083 8828 CHOKE 1.8UH
L0026 645 083 8842 BEAD INDUCTOR 33 OHM
L0027 645 083 8842 BEAD INDUCTOR 33 OHM
L0028 645 083 8835 CHOKE 10UH
L0035 645 083 8835 CHOKE 10UH
L0036 645 083 8835 CHOKE 10UH
LED01 645 088 9677 LED
LED02 645 088 9660 LED
Q0001 645 083 8989 TRANSISTOR 3906
Q0002 645 083 8972 TRANSISTOR 3904
Q0003 645 083 8965 TRANSISTOR AO3407
Q0004 645 083 8965 TRANSISTOR AO3407
Q0005 645 083 8972 TRANSISTOR 3904
Q0007 645 083 8972 TRANSISTOR 3904
Q0008 645 083 8965 TRANSISTOR AO3407
Q0009 645 083 8965 TRANSISTOR AO3407
Q0010 645 083 8989 TRANSISTOR 3906
Q0016 645 083 8972 TRANSISTOR 3904
Q0017 645 083 8972 TRANSISTOR 3904
Q0019 645 083 8972 TRANSISTOR 3904
Q0022 645 083 8972 TRANSISTOR 3904
Q0026 645 083 8996 TRANSISTOR 8550
Q0027 645 083 8996 TRANSISTOR 8550
RP001 645 088 9479 ROTATION POTENTIOMETER
RP002 645 088 9462 ROTATION POTENTIOMETER
SW001 645 083 9177 SWITCH DETECTOR
SW017 645 083 9160 SWITCH VERTICAL SLIDE,POWER
U0001 645 083 8910 IC WM8725
U0002 645 085 6433 IC TDA2822
U0004 645 083 8866 IC CX1117-ADJ
U0005 645 083 8958 IC K4S641632H-TC60
U0006 645 088 9653 IC MT1389DE-E
U0007 645 088 9622 IC CM3406
U0008 645 088 9646 IC EN29LV800AB-70TCC
U0010 645 083 8880 IC AT24C02N
U0014 645 083 8897 IC C4558
U0018 645 088 9639 IC CD5964CB
Y0001 645 083 9108 CRYSTAL 27MHZ
645 088 9868 LED SOCKET,FOR LED01
645 088 9875 LED SOCKET,FOR LED02
BATTERY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
47 645 088 9424 ASSY PWB BATTERY(Only initial)
D0001 645 079 9945 DIODE RLS4148
D0002 645 083 5261 DIODE BAT42W
D0004 645 081 8813 DIODE SK34
F0001 645 088 9851 FUSE
IC004 645 088 9561 TRANSISTOR CEM9435A
IC005 645 088 9561 TRANSISTOR CEM9435A
K0012 645 081 8981 3P WAFER
Q0001 645 079 9860 TRANSISTOR DTC144EKA
Q0002 645 079 9860 TRANSISTOR DTC144EKA
U0002 645 081 8769 IC BQ2057C
U0003 645 081 8790 TRANSISTOR FDS9926F
U0005 645 081 8776 IC S8232B
W103 645 088 9998 HOUSING 4P,
BATT. (K4-K7) TO MAIN J1
Z0001 645 079 9938 DIODE ZENER 9.1V
Z0003 645 079 9938 DIODE ZENER 9.1V

- 6 -
NOTE

- 7 -
WIRING CONNECTION
DVD MAIN PCB
82M6011AAG
BATTERY Li -ION
3PIN
02M611100G
(85-M1-11100G)
BATTERY CHARGE BOARD PCB
DVD LOADER
K12
K4-K7
4 PIN 2 PIN
J1
J9
24 PIN 4 PIN
CON1
J5
LED BACKLIGHT
MONITOR MAIN PCB
(85-M6-11010G)
02M6111AAG
CON2
4.2" PANEL &
CON3
26 PIN
CON1
26 PIN
24 PIN
24 PIN
2PIN
24 PIN
2PIN
L-
R-
L+
R+
LED+ LED-
LEFT
SPEAKER
SPEAKER
RIGHT

- 9 -- 8 -
SCHEMATIC DIAGRAM (DVD-1)
U2
24P-0.5mm-TOP
EVM3ES/EVM3YS
MONITOR_CONTROL
MONITOR_Y(VIDEO)
KEYSCAN_Y3
AVCM
VIDEO_+5V
SY
AIN/OUT_R
ON/OFF_DCIN
KEYSCAN_Y1
KEYSCAN_Y2
MUTE_ON
ON-DCIN
KEYSCAN_X1
KEYSCAN_X4
HEAD_L
HEAD_R
KEYSCAN_X2
YC_CON
KEYSCAN_X3
AIN/OUT_L
+5V
SC
SC-A
ADCIN
ON/OFF_+9V
AV-IN/OUT_SW
AMX_L
AMX_R
SP_R
SP_L
ON/OFF_+9V
REMOTE
REMOTE__VCC
MONITOR_CONTROL
SY
SCA
KEY_X2
KEY_X1
KEY_X3
KEY_Y1
KEY_Y2
KEY_Y3
SP_R
SP_L
KEY_XX2
KEY_XX1
KEY_XX3
KEY_YY1
KEY_YY2
KEY_YY3
KEYSCAN_X1 [ 3 ]
HEAD_L [ 6 ]
KEYSCAN_Y3 [ 3 ]
AVCM[ 6 ]
ON-DCIN[ 1,6 ]
SC[ 6 ]
MONITOR_Y(VIDEO) [ 6 ]
+5V [ 1,2,3,4,5,6 ]
YC_CON[ 6 ]
KEYSCAN_X4 [ 3 ]
KEYSCAN_X2 [ 3 ]
VIDEO_+5V [ 6 ]
SY[ 6 ]
HEAD_R [ 6 ]
AIN/OUT_L [ 6 ]
KEYSCAN_X3 [ 3 ]
AIN/OUT_R [ 6 ]
MUTE_ON [ 5 ]
KEYSCAN_Y1 [ 3 ]
KEYSCAN_Y2 [ 3 ]
SC-A[ 6 ]
ADCIN [ 6 ]
ON/OFF_+9V [ 6 ]
AV-IN/OUT_SW [ 1,6 ]
ON/OFF_DCIN
DV33_V
ON/OFF_DCIN
C93
0.1uF
R10
47
+
C91
220uF/16V
C22
220pF
R136
270
R30 51
R13
270
+
C53
100uF/16V
+
C51
100uF/16V
+
C90
47uF/16V
R46
10k
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
19
CON2
+
C86
47uF/16V
C19
220pF
R99
2.2/1206
R69A
C123
0.01uF
R44
200k
C122
0.01uF
-
+
+
-
TDA2822
1
2
4
3
6
7
8
5
C4
220pF
C32
0.1uF
C25
220pF
R125
4.7
C24
0.1uF
J11
ST222(BLACK)
1
3
5
2
4
RN1 51x4
12
34
56
78
J22
1
3
4
2
5
6
7
8
9
10
11
C23
220pF
R98
4.7
R20
270
R17
270
R78
6.8k
C26
0.01uF
+
C69
10uF/16V
R40
200k
RP2
WHE1022-C10k-14*1.0B
R29 51
R71
1k
R45
10k
L4
FB
C21
220pF
RP1
WHE1012-B10k-14*1.0B
This is a basic schematic diagram.

- 11 -- 10 -
SCHEMATIC DIAGRAM (DVD-2)
L
DAC_L
AVCM
ADCIN
R
DAC_R
AVCM
ASPDIF
SC
HEAD_R
Y[1..3]
DAC_MR
HEAD_L
SY
DAC_ML
AV-IN/OUT_SW
YC_CON
AVCM
+5V
VIDEO_+5V
AIN/OUT_L
AIN/OUT_R
VOUT
Y1
Y3
SYY2
SC
AVCM
ON-DCIN
SC-A
LCD_ON/OFF
ADCIN
ON/OFF_+9V
LCD_ON/OFF
I/O_L I/O_L
I/O_R I/O_R
COAXIAL
AIN/OUT_L
VOUT
ASPDIF
MUTE_ON
AMX_L
AMX_R
SCA
AIN/OUT_R
VOUT
HEAD_L[ 7 ]
ASPDIF[ 3 ]
SY[ 7 ]
DAC_ML[ 5 ]
DAC_MR[ 5 ]
HEAD_R[ 7 ]
Y[1..3][ 3 ]
SC[ 7 ]
AV-IN/OUT_SW
[ 1,7 ]
YC_CON[ 7 ]
AVCM[ 7 ]
+5V [ 1,2,3,4,5,7 ]
VIDEO_+5V [ 7 ]
AIN/OUT_R[ 7 ]
AIN/OUT_L[ 7 ]
ON-DCIN[ 1,7 ]
SC-A[ 7 ]
LCD_ON/OFF[ 1 ]
ADCIN[ 7 ]
ON/OFF_+9V[ 1 ]
DCIN
ON/OFF_+9V
ON_DCIN
ON/OFF_DCIN
L8
FB
R127
10k
R49
1k
C98
47pF
R6
100
R53
1k
C66
47pF
+
-
U14B
C4558
5
6
7
84
R70
24k
C65
47pF
C73
180pF
R72
6.8k
J15
1
3
2
4
5
+
C12
10uF/16V
R73
1.5k
R55
24k
+
-
U14A
C4558
3
2
1
84
J30
1
3
2
4
C80
2200pF
C3
0.1uF
R60
6.8k
L3
100uH-0.8A
C2
560pF
R129
20k
C60
180pF
R74
330
Q8
AO3407
L23
1.8uH/0805
+
C62
10uF/16V
R97
39
R128
10k
+
C75
10uF/16V
+
C54
100uF/16V
R66
330 Q7
3904
C74
0.1uF
R67
75
Q5
3904
Q17
3904
+
C72
47uF/16V
L19
1.8uH/0805
R61
1.5k
L13
1.8uH/0805
C68
OPEN
C81
OPEN
C88
47pF
R50
100
R115
100
C11
0.1uF/0805
R126
1k
+
C50
100uF/16V
R80
10k
R58
10k
C87
47pF
R62
100
R7
75
C64
2200pF
R85
39
L6
FB
C96
47pF
+
C9
10uF/16V
This is a basic schematic diagram.

- 13 -- 12 -
SCHEMATIC DIAGRAM (DVD-3)
ABCK
DAC_MR
ALRCK
ASDAT0
DAC_ML
MUTE_ON
ACLK
ON/OFF_DCIN
+5V
MUTE_ON
ABCK
ACLK
ALRCK
ASDAT0
SLRCK
SDAT0
SBCLK
SACLK
SBCLK
SDAT0
SLRCK
DAC_R
SACLK
DAC_L
ASDAT0[ 3 ]
MUTE_ON [ 7 ]
DAC_MR [ 6 ]
DAC_ML [ 6 ]
ACLK[ 3 ]
ALRCK[ 3 ]
ABCK[ 3 ]
+5V [1,2,3,4,6,7 ]
ON/OFF_DCIN
ON/OFF_DC
DV33
R14
10k
R36
1M
Q10
3906
Q2
3904
L5
FB/0805
+
C10
100uF/16V
CB6
0.1uF
+
C48
100uF/16V
D12
4.3V
CB2
0.1uF
C18
100P
+
C8
100uF/16V
RN2 33x4
12
34
56
78
R38
43K
U1
WM8725
1
2
3
4
5
6
78
9
10
11
12
13
14
LRCIN
DIN
BCKIN
NC1
CAP
VOUTR
GND VDD
VOUTL
MUTE
NC2
D-EMP
FMT
SCKI
R41
1K/0805
D4
1N4148
12
D5
1N4148
12
R37
10k
Q1
3906
+
C49
10uF/16V
R11
10k
This is a basic schematic diagram.

- 15 -- 14 -
SCHEMATIC DIAGRAM (DVD-4)
URST
ON-DCIN
AV-IN/OUT_SW
ON-DCIN
V25
+5V
DV33
ON-DCIN
LCD_ON/OFF
COVER_SWITCH
ON/OFF_DCIN
ON/OFF_DCIN
ON-DCIN
RES
GND
ON/OFF_DC
+9V
URST#
LCD_ ON/OFF
RES
GND
ON/OFF_DC
URST [ 2,3 ]
AV-IN/OUT_SW [ 6,7 ]
ON-DCIN [ 6,7 ]
V25 [ 3 ]
+5V [ 2,3,4,5,6,7 ]
DV33 [2,3,4 ]
LCD_ON/OFF [ 6 ]
COVER_SWITCH [ 2 ]
3V3
3V3
+9V
DCIN
ON/OFF_DCIN
V33
ON/OFF_DC
V18
DV33
+5V
RFV33
DV33
DV33
L26
FB
R15
10k
+
C57
100uF/10V
CB18
0.1uF
C31
220uF/10V
R26
1K
R87
1k
R124
1k
CB98
0.01uF
D8
1N5819(SMD)
12
LED2
LED2
C40
220uF/10V
+
C63
10uF/10V
R1
3k
R137
20k
C17
1000pF
R114
750
D1
1N5819
1
2
R133
10K
R130
390
+
C5
220uF/10V
D3
1N5819
12
C55
0.1uF
F1
P200/W200
R117
7.5K
R119
10k
+
C1
100uF/16V
R134
10k
CB36
0.1uF
R122
15k
Q9
AO3407
L1
FB(DIP)
U4
1117-ADJ
SOT223
1
2
3
GND
OUTIN R104
1k
Q22
3904
R39
200k
R102
10k
Q3
A03407
1
3
4
2
5
6
L21
100uH-1.7A
R101
10k
C70
0.01uF
CB102
0.1uF
Q16
3904
R35
200k
U7
CM3406
1
2
3
4
5
6
7
8NC
BS
VIN
SWGND
FB
COMP
EN
J1
5x1 W/HOUSING
DIP5/W/H/P1.25
1
2
3
4
5
R9
1K
R12
10k
CB31
0.1uF
R79
1K
D2
1N5819
12
Q19
3904
CB72
4700pF
CB14
0.1uF
R8
1k
CB73
OPEN
R123
OPEN
Q4
A03407
D13
15V-2
J12
DC-INPUT
1
2
3
This is a basic schematic diagram.

- 17 -- 16 -
SCHEMATIC DIAGRAM (DVD-5)
5
RS-232
HOP1200/1200W
AUDIO INTERFACE
MEMORY
FLASH
IIC
VIDEO INTERFACE
V1.7
F-
C
FOSO
T-
DMO
TxD
F+
D
TRO
V1P4
RxD
FOO
SL+
V1P4
TRSO
RFO
STBY
A
V1P4
LD-DVD
AVCC2
FMSO
LDO2
B
E
FMSO
F
SL-
MDI2
LD-CD
SP-
MDI1
LDO1
DMSO
V20
FOSO
AVCC1
SP+
T+
TRSO
DMSO
FMO
DCKE
CS#
SCL
FS0
PRD#
SDA
DQM[0..1]
ASPDIF
AL
A[0..21]
PCE#
ALRCK
AD[0..7]
PWR#
URST#
ABCK
CAS#
BA[0..1]
DQ[0..15]
RGB_SWITCH
VSCK
ASDAT[0..2]
VSDA
PWR#
MUTE_DAC
PCE#
WE#
Y[3..6]
DCLK
ACLK
AR
RAS#
MA[0..11]
VSYNC#
HSYNC#
RESET#
MDI1
DQ7
FOO
RFVDD3
DQ9
AD2
TRO
A11
PLLVDD3
AD0
F
DQ4
DQ5
DQ8
MA4
DQM0
PCE#
AR
JITFN
D
A5
DQ1
A15
RFO
FMO
DQ2
V1P4
DQ10
MA11
A9
C
AD7
B
OP+
TXD
SDA
DACVDD3
DQ3
TROUT
MA8
D
KEY_YY3
Y5/SC
MA1
KEY_XX3
OPO
XOAD6
ADIN
AL
DQM1
LIMIT
IR
JITFO
AD1
PWR#
BA0
RXD
CAS#
OP-
A10
WE#
DACVDD3
MA7
A
APLLVDD3
C
DMO
XI
KEY_YY2
KEY_YY1
V2P8
DQ15
BA1
A1
JITFO
MA10
TRIN
DACVDD3
V20
DQ14
DQ13
AD4
CS#
MA0
PRD#
Y6/SY
A12
RFVDD3
IOA
AD3
FS
V1P4
JITFN
A6
STBY
E
V18
URST#
A2
DIDE/NOR
A3
LDO2
A14
AADVDD3
RAS#
B
A17
AD5
DQ11
DCLK
RFV18
RFVDD3
ADACVDD3
LDO1
MA3
AADVDD3
MDI2
A18
Y3/CVBS
A16
DQ0
MA9
TEZISLV
DCKE
RFVDD3
MA6
MA5
KEY_XX2
A8
A13
A4
A7
MA2
A0
DQ12
SCL
DQ6
A
DACVDD3 APLLVDD3
XOXI
COVER_SWITCH
SL+
SL-
V1P4V2P8 V20
RFV33
SP-
V1P4
OP-
ADACVDD3
RFVDD3
RFV18
ADIN
PLLVDD3
SP+
OP+
V18
OPO
KEY_XX1
REMOTE
IR
GND
GND
GND
A19
ASPDIF
REMOTE_VCC
ALRCK
ABCK
ASDAT0
ALRCK
ACLK
ABCK
LIMIT
AVCC2
IOA
HOLD
VSDA
ACLK [5]
PWR# [3]
URST# [1]
PCE# [3]
CAS# [3]
MA[0..11] [3]
FS0 [4]
ABCK [5]
RGB_SWITCH [5]
A[0..21] [3]
MUTE_DAC [5]
PWR# [3]
SDA [3]
AD[0..7] [3]
BA[0..1] [3]
DQM[0..1] [3]
ALRCK [5]
PRD# [3]
AR [5]
PCE# [3]
DCLK [3]
WE# [3]
Y[3..6] [ 5 ]
ASPDIF [4]
CS# [3]
RAS# [3]
DCKE [3]
VSCK
AL [5]
ASDAT[0..2] [5]
SCL [3]
AVCC [1 ]
DQ[0..15] [3]
HSYNC# [ 4 ]
VSYNC# [ 4 ]
RESET# [5]
DV33
DV33_V
DV33
VCC MO_VCC
V18
MO_VCC
MO_VCC
LDO_AV33
DV33
DV33
DV33
V18
V18
DV33
V18
DV33
DV33
DV33 DV33
DV33
DV33_V
V18
RFV33
ADACVDD3
VCC
VCC
DV33
DV33
DV33
L14
FB
TP50
R161
1
L28
10uH
R163
1
R21 10k
C36
330pF
C59 2200pF
CB13
0.1uF
R148
4.7k
+
C94
47uF/16v
R141 0
TP5
C150
150pF
L36
10uH
C102 390pF
C7
0.1uF
J5
PH-4W
1
2
3
4
R160 4.7
R76
10k
L2
FB
TP13
TP4
CB5
0.1uF
CB35
0.1uF
CB11
0.1uF
TP22
CB17
0.1uF
C71 1uF
R148
560
+
C95
220uF/6.3v
TP15
C111
1000pF
C112
0.1uF
R5
1k
J9
2.0mm-2pin
1
2
U18
CD5964
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
29
30
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
TP31
R75
20k
CB59
0.1uF
+
C84
10uF/10v-0805
TP16
C13
27p
R173 10k
R164
1
R59 10
+
C56
47uF/16V
CB15
0.1uF
TP49
C114 0.1uF
+
C6
10uF/16V,0805
CB52
0.1uF
R113 OPEN
CB63
0.1uF
CB56
0.1uF
Q26
8550(SMD)
1
32
R22 15k
C15
1uF
C113 0.033uF
L27
FB
C79
0.1uF
C67 1uF
L17
FB
C106
1500pF
CB4
0.1uF
TP48
R162
1
R169 20k
C14
27p
TP30
1
3
4
2
R166 20k
R150
10k
R19 33k
R146 0
C38 1uF
R3 10k
CB53
0.1uF
L15
FB
+
C82
10uF/16V
R174 1
J28
MK-12C02-PB
1
3
2
R63
10
L41
FB
TP35
C115 0.1uF
CB9
0.1uF
CB12
0.1uF
TP2
C77 1uF
R18 33k
TP24
C41
0.1uF
Q27
8550
1
3
2
C20 1uF
R28 10
C110
20pF
TP26
+
C136
47uF/16v
R27
1K
C116
2200pF
TP23
CB22
0.1uF
+
C140
47uF/16v
R103
680k
R81 680k
C35
330pF
C108 0.047uF
TP25
TP47
R15
10k
R159 4.7
+
C103
10uF/16V
CB47
0.1uF
C34
0.015uF
CB39
0.1uF
+
C16
47uF/10V
R23
10k
+
C97
100uF/16v
R157
0
R4 100k
R34
10k
R170 15k
TP12
CB57
0.1uF
C107 0.047uF
R42
1k
CB61
1uF
C0603/SMD
C61 1uF
C99
0.1uF
TOP
CON1
HEADER 24 SMD0.5 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CB21
0.1uF
C58
0.1uF
CB3
0.1uF
+
C104
10uF/16V
CB55
0.1uF
R93
150k
TP51 TP52
R167 750k
C149
150pF
+
C85
220uF/10v
CB60
0.1uF
Y1 S27MHz
12
L35
10uH
TP27
R88 R
R140 150
R168 100k
CB62
0.1uF
CB54
0.1uF
R96
150k
C76 C
Q15
3906
CB23
0.1uF
TP17

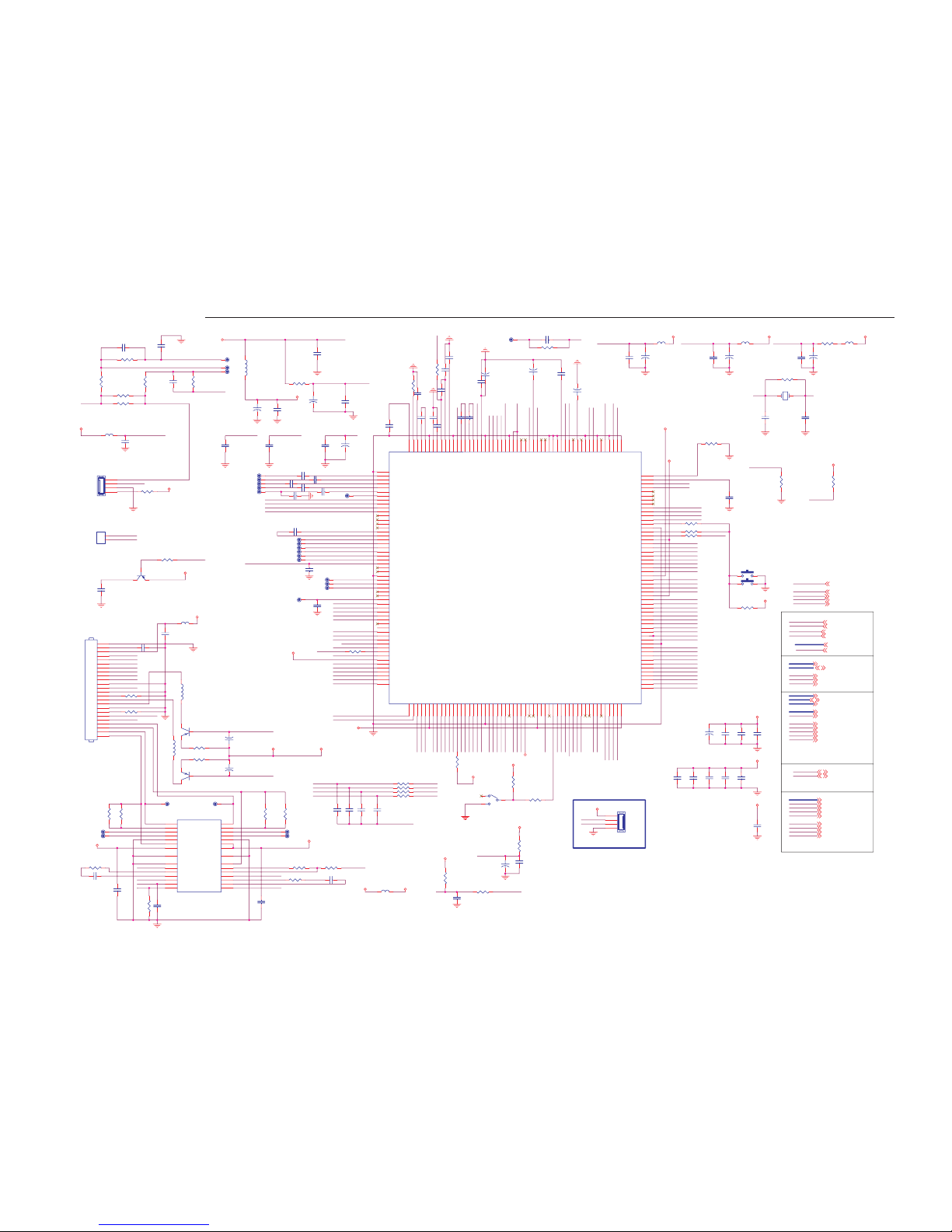

MT1389E
Pin Assignment v1.4
U6
MT1389E
LQFP216/SMD
2
210
3
4
5
1
212
213
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
216
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
65
64
62
61
60 59
58
52
81
77 76
55
74
73
72
71
63
83
53
54
70
57
82
75
66
68
80
69
56
67
84 85
86 87
88
89
90
91 92
93
94
95
106
96
97
204
205
98
99 100
101
102
103 104
105
107 108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
137
138
136
135
134
133
132
131
130
129
128
126
127
125
124
123
122
121
120
118
119
117
116
115
114
113
111
112
110
109
209
215
24
214
191
189
198
197
208 207
196
211
206
203
201
202
200
199
194
195
192
184
185
182
181
180
179
186
178
177
175
173
174
164
171
170
169
168
172
167 166
165
163
193
44
47
48
49
50
51
78
79
176
183
188
190
187
DVDA
CRTPLP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
FG/ADIN1
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
GPIO1/HSYNC#
TROPENPWM
PWMOUT1/ADIN0
GPIO2
FMO
DMO
HIGHA2
HIGHA3
HIGHA5
HIGHA6
DVDD3
HIGHA7
A16
IOA6
AD7
AD5
AD4
IOA18
DVSS
AD2
AD1
AD0
HIGHA4
IOA0
IOA7
HIGHA0
IOOE#
IOWR#
A17
AD3
HIGHA1
IOCS#
ALE
IOA1
IOA19
IOA20
DVDD18
UWR#
URD#
DVDD3
UP1_2
UP1_3
GPIO6
UP1_4
UP1_5
UP1_6
UP1_7
UP3_0
RD6
UP3_1
UP3_4
ADCVDD3
ADCVSS
UP3_5
GPIO7
ICE
PRST#
IR
INT0#
DQM0#
RD7
RD5
DVDD3
FS
VREF
DACVDDC
SPDIF
MC_DATA
ASDATA3
ASDATA2
ASDATA1
ASDATA0
ALRCK
ACLK
ABCK
GPIO5
DVSS
GPIO4
GPIO3
DVDD18
RA4
RA5
RA6
RA7
RA8
RA9
RA11
DVDD3
CKE
RCLK
RA3
RA2
RA1
DVDD18
RA0
RA10
BA1
BA0
RAS#
RCS#
CAS#
RWE#
DQM1
RD8
RD9
DVSS
RD11
RD10
RD12
RD13
RD14
RD15
RD0
RD2
RD1
RD3
RD4
HRFZC
IREF
SVDD3
RFGC
RFGND18
ADACVDD1
IDACEXLP
PLLVSS
RFRPAC
RFRPDC
JITFN
RFGND
RFVDD3
LPFOP
LPFIP
LPFIN
LPFON
PLLVDD3
XTALI
JITFO
RFVDD18
AR/SDATA1
AVCM
ARF(SW)
ADACVSS2
ADACVSS1
APLLVSS
AL/SDATA2
APLLCAP
APLLVDD
AKIN1
AKIN2
ADVCM
CVBS
R/Cr/CVBS/SY
B/Cb/SC
DACVSSA
G/Y/SY/CVBS
AADVSS
DACVDDA
DACVSSB
DACVDDB
DACVSSC
XTALO
GPIO0/VSYNC#
IOA2
DVDD18
IOA3
IOA4
IOA5
AD6
IOA21
AADVDD
ARS
ALF(CTR)
ADACVDD2
ALS/SDATA0
R158
6.8
J6
4x1 W/HOUSING
1
2
3
4
CB1
0.1uF/N.C
C109 0.1uF
C105 0.47uF/N.C
TP6
TP14
R64 10
TP32
This is a basic schematic diagram.

- 19 -- 18 -

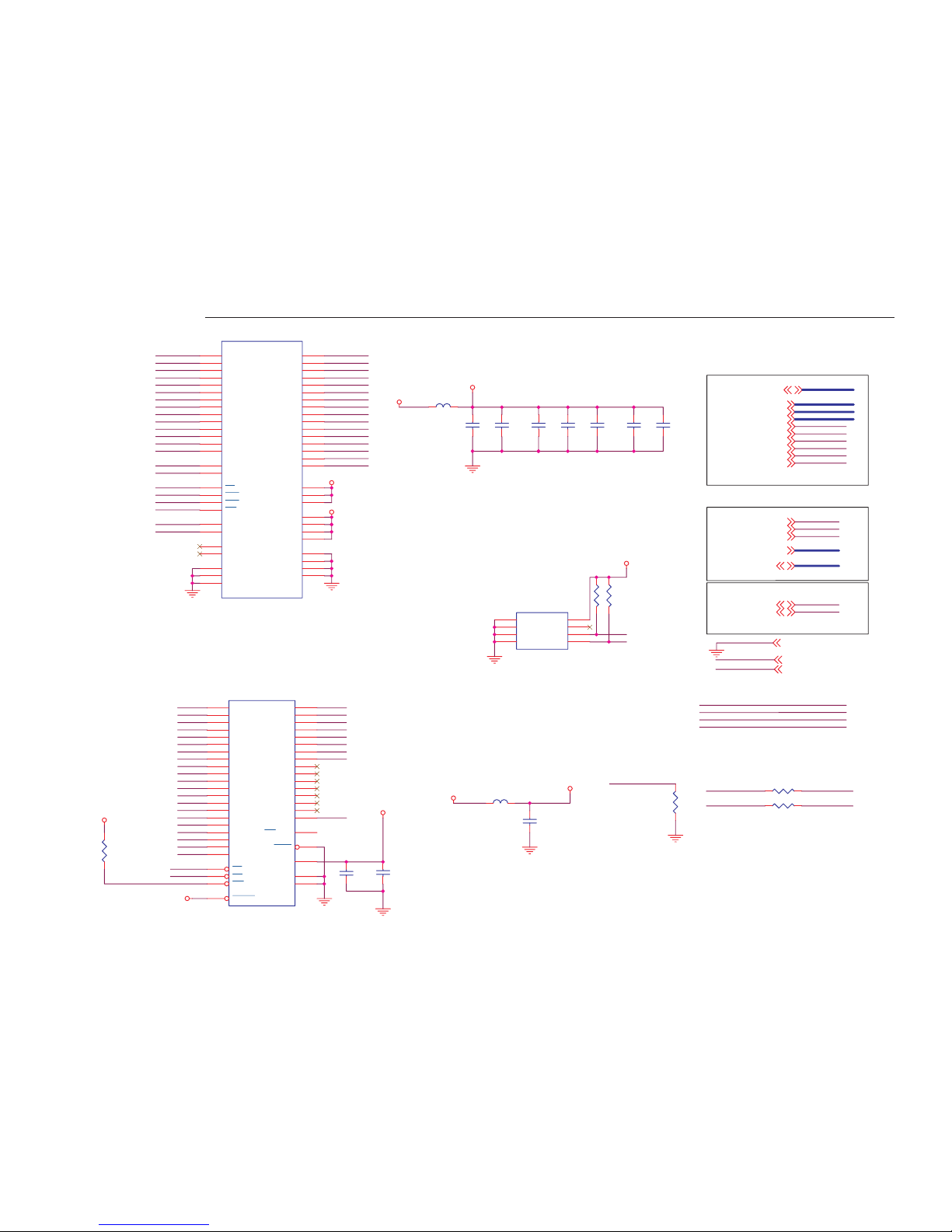

SCHEMATIC DIAGRAM (DVD-6)
TSOP 48 pin
IIC
DRAM
FLASH
A9
A3
AD3
A1
A19
A4
AD6
AD1
A17
A16
A13
A14
AD0
A2
A6
A8
A18
AD7
A7
AD5
A12
A15
A10
AD2
AD4
A11
A5
A0
DQ[0..15]
RAS#
AD[0..7]
PCE#
CAS#
PRD#
BA[0..1]
DCKE
SDA
DQM[0..1]
MA[0..11]
DCLK
SCL
PWR#
CS#
WE#
DCS# CS#
DCAS# CAS#
DWE# WE#
RAS#DRAS#
DCKE
DCLK
SDCKE
SDCLK
PCE#
PRD#
PWR#
AA20
A[0..21]
SCL
SDA
VCC
DV33
DQ0
MA6
DCAS#
DQ5
SDCLK
DQ10
DRAS#
DBA0
DWE#
DQ1
MA9
MA4
DBA1
DQ7
MA1
MA2
DQM0
DQM1
MA10
DQ6
DQ11
DQ15
MA7
DCS#
DQ13
DQ8
SDCKE
DQ4
DQ14
DQ2
DQ3
MA3
MA5
MA0
DQ9
MA8
MA11
DQ12
GND
AA21
DV33_V
SDA[ 2 ]
DQM[0..1][ 2 ]
BA[0..1]
[ 2 ]
WE#
[ 2 ]
PCE#
[ 2 ]
CAS#
[ 2 ]
AD[0..7][ 2 ]
CS#[ 2 ]
DCKE
[ 2 ]
PRD#[ 2 ]
SCL[ 2 ]
DCLK
[ 2 ]
PWR#[ 2 ]
MA[0..11][ 2 ]
DQ[0..15][ 2 ]
RAS#
[ 2 ]
A[0..21][ 2 ]
VCC [ 1 ]
GND [ 1,2,3,4,5 ]
DV33 [ 1 ]
DV33
SD33
DV33
FLASH_VCC
FLASH_VCC
FLASH_VCC
FLASH_VCC
DV33
SD33
SD33
C44
0.1uF
R32 33
CB27
0.1uF
R24
680
L11 FB
C78
0.1uF
C137
0.1uF
CB37
0.1uF
CB46
0.1uF
CB40
0.1uF
R31 33
C42
0.1uF
R25
680
CB49
0.1uF
R95
NC
U5
K4S641632F
TSOP(II)-54/SMD
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
U10
AT24C02
SOP8
1
2
3
45
6
7
8
NC
NC
NC
GND SDA
SCL
WP
VCC
CB33
0.1uF
L10 FB
R33
10k
U8
EN29LV800
25
24
23
22
21
20
19
18
8
10
28
47
16
29
31
33
35
7
26
38
40
42
44
30
32
14
36
39
41
43
45
37
27
11
9
34
46
6
4
5
3
2
1
48
17
12
A0
A1
A2
A3
A4
A5
A6
A7
A8
A20
OE
BYTE
A18
D0
D1
D2
D3
A9
CE
D4
D5
D6
D7
D8
D9
WP/ACC
D11
D12
D13
D14
D15
VCC
GND1
WE
A19
D10
GND2
A10
A12
A11
A13
A14
A15
A16
A17
RESET
This is a basic schematic diagram.

- 21 -- 20 -

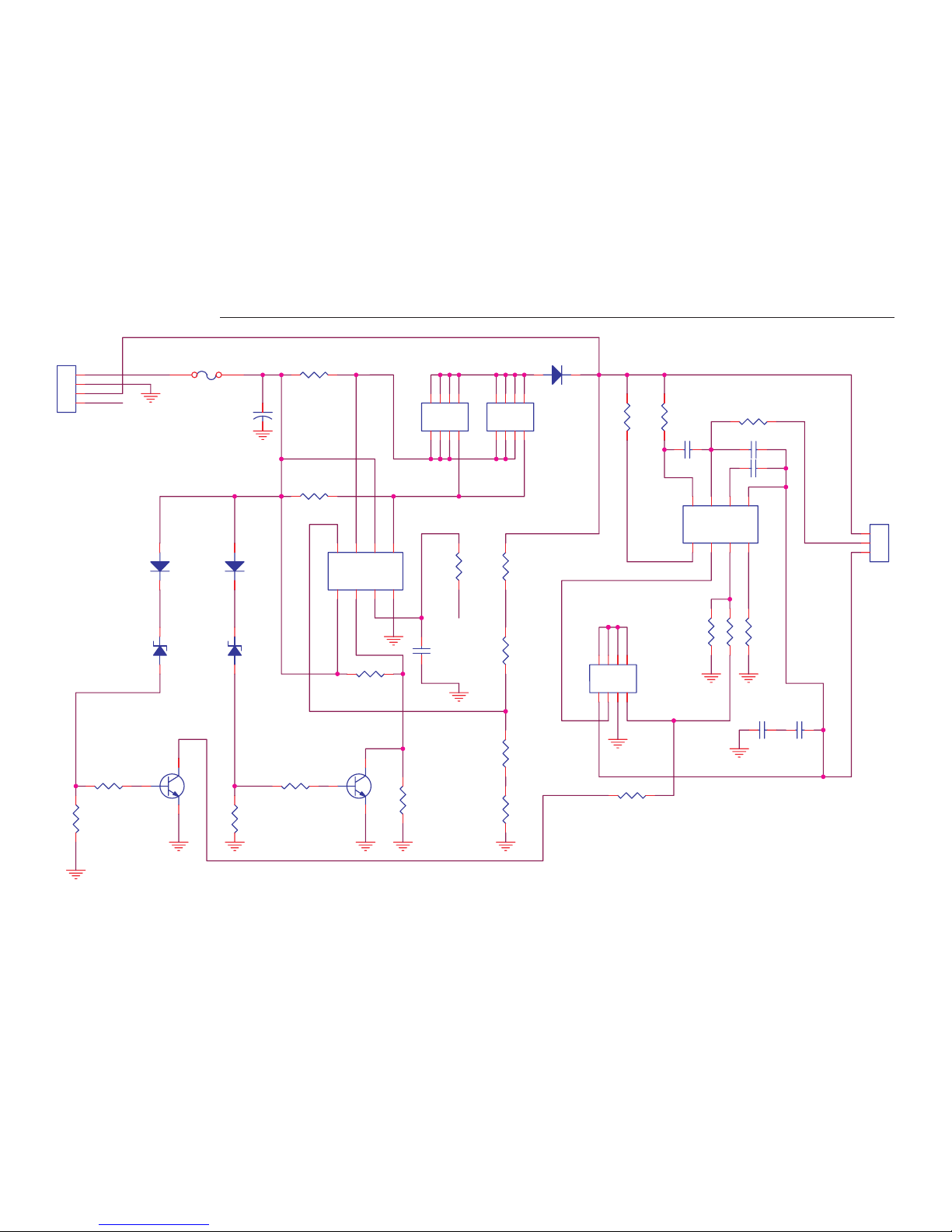

SCHEMATIC DIAGRAM (BATTERY)
K7
K4
K6
K7
B-
K5
R13
1M
IC4
SI9435A
1
2
3
45
6
7
8
IC5
SI9435A
1
2
3
45
6
7
8
U5
S8232B
1
2
3
45
6
7
8
Q1
DTC14
1
2
3
U2
QB2057C
1
2
3
45
6
7
8
R11
1K
U3
9926
1
2
3
45
6
7
8
R14
100K
K12
3PIN
1
2
3
R7
1K
F1
FUSE
12
R19
1K
C11
10UF/25V
R17 1K
R18
4.7K
R2
1K
R3
1K
Q2
DTC14
1
2
3
R1
4.7M
R15
1K
R16 100R
R10
100K
C3
0.22UF
D2
BAT42W
1
2
Z1
9V1
D1
RLS4148
1
2
R8
1K
C1 0.22UF
D3
9V1
C10
0.1R
C8
0.1UF
D4
SK34
12
C2 0.1uF
1
2
3
4
R4
0R
R5
150K
C4
0.01U
R6
1K
C5
0.01U
R9
150K
R12 1M
This is a basic schematic diagram.

- 23 -- 22 -
SCHEMATIC DIAGRAM (MONITOR )
TRAP
1
H FILTER DUT
2
VIDEO IN
3
IDENT FIL TER
4
CI N
5
CDL O R
6
SW
7
CI L L ER FI L TER
8
PEAK LIMIT
9
RGB AM P
10
ACC F I L TER
11
R-Y / B- Y PHASE
12
TINT 13
VCD IN 14
APC FILTER 15
VCD OUT 16
GND 17
VEE 18
R DC 19
RD 20
G DC 21
GD 22
B DC 23
BO 24
VCC2 25
BLK 26
SU B R 27 SU B B 28
FRP 29
GN1 30 GN2 31
BRIGHT 32
S/ H -R 33
S/ H -G 34
S/ H -B 35
SY N N 36
SYNC
37
SYN SEP
38
B IN
39
G IN
40
R IN
41
CONTRAST
42
VCC
43
F ADJ
44
CLAMP
45
AGC FILT ER
46
AGC D
47
PIC TUR E
48
IC2
D3031
RA3
15K
RA13
51K
RA16
33K RA19
24K
RA20
22K
RA22
22K
R2
330K
RA25
39K
RA17
33K
RA1
10K
RA5
8K2
RA14
18K
RA18
22K
RA2
10K
R1
20K
RA23
270K RA4
18K RA26
OPEN
CA1
104
CA2
104 CA3
104 C1
104
CA4
104
C2
104
C3
104
CA7
104 CA8
104
CA9
104
RA31 1K
RA27
OPEN
RA 36 10M
RA 12 100R
RA33
1M
CA28
0.1U
CA 27 473
CA 26 680P
CA24
10uF/16V
CA10 105
RA9 1K
RA10 1K
RA11 1K
CA18 105
CA19 105
CA20 105
Y1
3.58MH Z
CA22
103
CA23
474
RA6
8K2
RA35
5K6
RA34 220R
RA7
100R
RA30 1K
RA8
100R
RA29 680K
RA24 330K
RA32
1M
CA21 102
CA17
105
CA16
105
CA 5 104
CA 13 47 uF/10V
RA15 18K
TIN
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
VCC CSY RS4 RS3 RS2 RS1 DM4 DM3 DM2 DM1 SD C DLT HPO HPI PD A CK C
OSO
OSI
FD2
NC1
ZMI
ZMO
CBG
SAM
RLC
OE H
SH2
SH1
CP3
CP2
CP1
GND
GND
VIY
NC6
FRP
COM
ESY
BLK
HSY
VSY
NC5
3OE
G24
NC4
NPC
NC3
POD
POI VP4 VP3 VP2 VP1 UDC SV 2 SV 1 NC2 OE3 OE2 OE1 CPV RST Q1H
VCC
IC3
8D02
1 2
RB30 51K
12
CB4
0.47uF
1 2
RB19 100
1 2
RB18 100
1 2
RB17 100
1 2
RB21 LB1
1 2
RB22 39
1 2
RB24 39
LB2
2.2UH
1 2
RB23 39
12
CB13
1000P
1 2
CB16
100P
1 2
RB25 39
12
CB17
1800P
VRB2
4.7K TWO-ADJ
12
CB23
0.1uF
1 2
RB40
39K
1 2
RB41
0
VR2
50KB
12
C4
0.1uF
1 2
RB39
0
RB15 100
RB14 100
CB12 1U
RB4
100
RB12 100 CB5
680P
CB7
680P
CB6
680P
CB14
56P
CB15
56P
CB8
680P
RC3
2K CC2
10uF/20V
RC4
4K7
RC6
10
RC5
4K7
RC7
10
CC3
10uF/16V
RC1
2K
VR1
4.7K TWO-ADJ
RB31 5K6
RB13 100
5
16
2
4 3
Q1
IMZ1
5
16
2
4 3
Q2
IMZ1
(12TB2509)
RB9 OPEN
+15V
CC1
1U
RC2
10K
CB2
0.1U
CSY
FRP
-15V
TVR 1
10KB
RB10
OPEN
VB
VG
VR
BRIGHT GM2 GM1
CA 12 0.1U CA 11 0.1U
+5V
COL OR RGB- A M P TIN
PEAK-LIMIT
GM1 GM2
BRI
CONTRAST PICT UR E
+5V
CONTRAST
+5V
BRIGHT
COL OR
PIC TUR E
Y
CSY
FRP
BLK
TIN
PEAK-LIMIT
RGB- A M P
RA37
22K RA28
OPEN
C
COL OR
LA1
18uH
CA25
100P
CB1
0.1U
LP6 18uH
CP33
OPEN CP25
0.1U
RB27
100K
CB20
1000P
DB2
ISV21 5
+5V
I
G
O
ICP4
M5237
QP5
2SB1184
RP24
470
RP23
220
CP30
100P
RP15
10K
RP25
3K3
CP31
0.1U
CP42
OPEN
CP27
0.1U
CP38
10uF/16V
LP12 22UH
CP3
0.1uF
CP11
0.01U
CP5
0.1U
CP6
OPEN
LP13
18uH
DP1
S8 5
CP4
0.1U
RP4
270K
RP3
9K1
CP8
10uF/35V
-15V
+15V
+5V
CA15
47u/10V
CA14
0.1U
L1
18uH
LB1
18uH CB3
47U/10V
RB5 OPEN RB11 560
RB20
1K
+5V
LP14
18uH
+9V
CB9
56P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
CON3
PIN 26
3.3V
RP1
10
V
1
G
2
S
3
IR1
SENSOR
SW9
SK I P +
SW1
MENU
SW7
SE TUP
SW3
SKIP-
SW8
DOWN
SW6
RIGHT
SW4
LEFT
SW2
UP
SW5
OK
VCOM
RB32
39
RB33
39
RB29
0
RP20
0
CP26
0.1U
AVDD
VCC
U/D
STVR
STVL
OEV
CKV
CPH1
STHL
STHR
OEH
L/R
RP18 0R
CP24
0.1U
+15V VGH
RP17 0R
CP23
0.1U
-15V VGL
HSY
HSY
TO: 4.2'LCD SCQEEN
VCC
VGL
VGH
STVR
STVL
CKV
U/D
OEV
VCOM
VCOM
L/R
GND
VCC
OEH
STHL
STHR
CPH3
CPH2
CPH1
VCC
GND
VR
VG
VB
AVDD
AVSS
LP10
47uH
RA21 10K
RB7 OPEN
1
2
3 4
5
U1
NJM2107F
RB28
0
CB21
OPENCB22 24P
RB3
10K
RB38 1M
RB36 51K
RB37 20K
RB26 68K
RB35
51K
RB2
100K
RB34 100K
CB18
0.1UF
CB10 0.1U
CB19 680K
CB11
0.1U
RB16 OPEN
BLK
RB8 OPEN
RP16
OPEN
VCC
AVDD
VGH
VGL
+15V
-15V
+5V
U/D
STVL
STVR
OEV
CKV
CPH1
STHL
STHR
OEH
L/R
-15V
+15V
-15V
VCOM
+9V
+5V
+15V
CSY
3.3V
C COL OR
PEAK-LIMIT RGB- A M P
PI C
Y
COL OR
BRIGHT
+5V
CONTRAST
+5V
BRIGHT
GM2 GM1
VR
VG
VB
HSY
BLK
FRP
+5V
BLK
FRP
HSY
CSY
COLOR RGB-AMP
TIN
PEAK -LIMI T GM1 GM2
BRI
CONTRAST PIC
LP11
OPEN
CR1
0.1U
VDD
9V
CP10
0.1U
CP9
OPEN
VDD
IR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CON1
PIN 24
R+
R-
L+
L-
DP2
DA204UT
CP7
0.1U
9V
IR
3.3V
Y
BRI
C
RP26
390
CP43
1U
+5V
RP40
22K
RP41
OPEN
RP42
150
QP4
2412
+15V
E1
1
P4
1
P3
1
P2
1
P1
E2
VDD
1
2
3
4
8
7
6
5
ICP3
AT1380AP
QP1
FDN337
CP36
0.1U
RP21
3K CP35
0.1uF
CP39
330pF
CK4
open
CK5
open
CK6
open
CK3
open
CK2
open
CK1
open
D1
ESD
D2
ESD
D3
ESD
D4
ESD
D5
ESD
D6
ESD
This is a basic schematic diagram.

- 25 -- 24 -
WIRING DIAGRAM (DVD MAIN A SIDE & BATTERY)
BATTERY
This is a basic wiring connection.
MAIN A SIDE

- 27 -- 26 -
WIRING DIAGRAM (DVD MAIN B SIDE)
This is a basic wiring connection.

- 29 -- 28 -

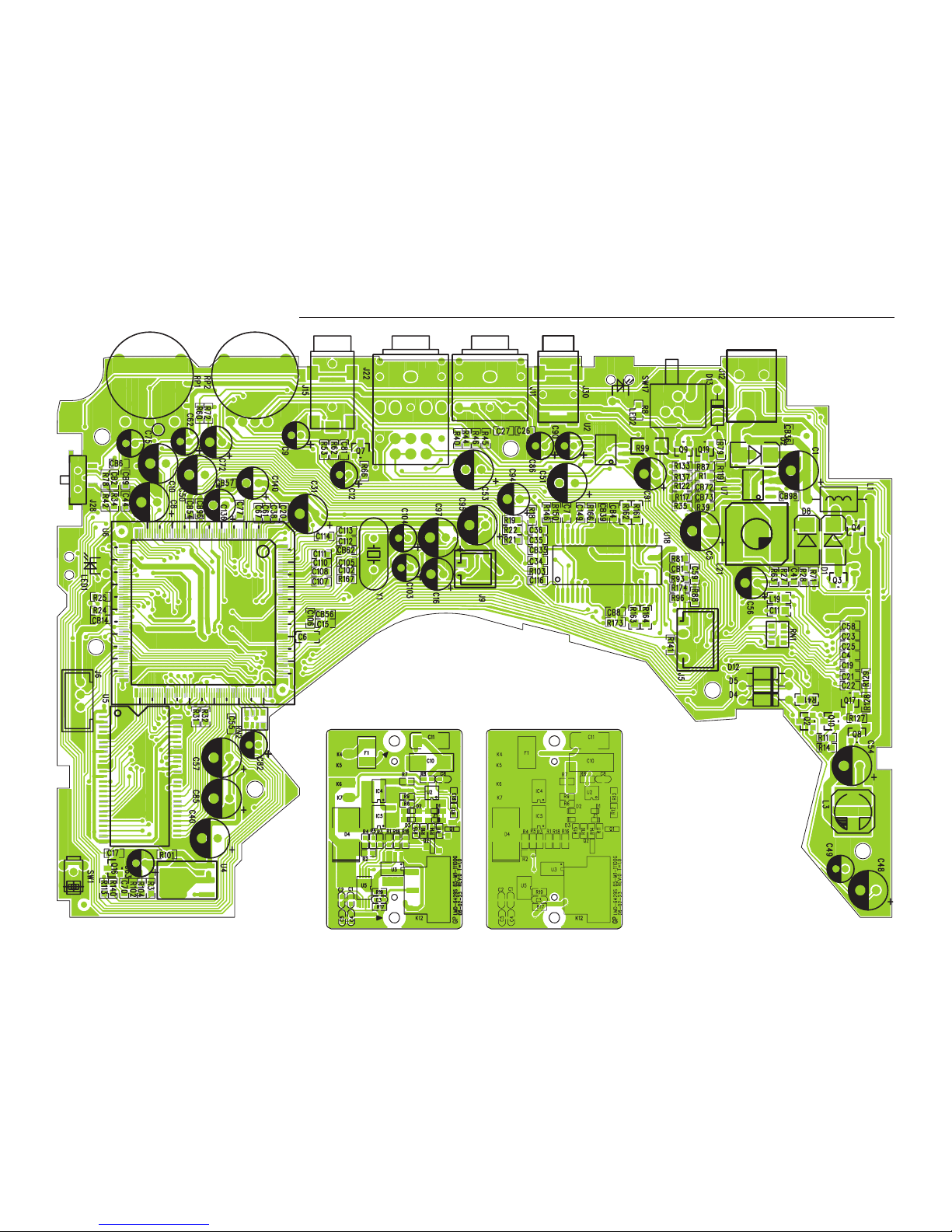

WIRING DIAGRAM (MONITOR MAIN A SIDE)
This is a basic wiring connection.
SANYO Electric Co., Ltd.
Osaka, Japan
Apr./ '06 / BB Printed in Japan
WIRING DIAGRAM (MONITOR MAIN B SIDE)
