Sanyo DVD-HP42 User manual

Service Manual
FILE NO.
REFERENCE No. SM2810018
PRODUCT CODE No.
137 135 00
Portable DVD Player DVD-HP42 (XE)
CONTENTS
Laser Beam Safety Precaution ........................................ 1
Warning ............................................................................ 1
Exploded View (Packing & Accessory) ............................ 2
Parts List .......................................................................... 2
Exploded View (Cabinet & Chassis) ................................ 3
Parts List .......................................................................... 4
Wiring Connection ............................................................ 7
Schematic Diagram .......................................................... 8
Wiring Diagram ................................................................ 24
RoHS
•This product does not contain any hazardous substances prohibited by the RoHS Directive.
(You will find “R” or “Z” at the last digit of serial number or a “RSF” label near the rating plate on
the RoHS compliant product.)
WARNING
•You are requested to use RoHS compliant parts for maintenance or repair.
•You are requested to use lead-free solder.
(As to detail, please see page 1.)

- 1 -
• Pickup that emits a laser beam is used on this CD section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm
LASER BEAM SAFETY PRECAUTION
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
WARNING
Do not use solder containing lead.
This product has been manufactured using lead-free solder in
order to help preserve the environment.
Because of this, be sure to use lead-free solder when carrying
out repair work, and never use solder containing lead.
Lead-free solder has a melting point that is 30 - 40°C (86 -
104°F) higher than solder containing lead, and moreover it
does not contain lead which attaches easily to other metals.
As a result, it does not melt as easily as solder containing
lead, and soldering will be more difficult even if the tempera-
ture of the soldering iron is increased.
The extra difficulty in soldering means that soldering time will
increase and damage to the components or the circuit board
may easily occur.
Because of this, you should use a soldering iron and solder
that satisfy the following conditions when carrying out repair
work.
Soldering iron
Use a soldering iron which is 70 W or equivalent, and which
lets you adjust the tip temperature up to 450°C (842°F). It
should also have as good temperature recovery characteris-
tics as possible.
Set the temperature to 350°C (662°F) or less for chip compo-
nents, to 380°C (716°F) for lead wires and similar, and to
420°C (788°F) when installing and removing shield plates.
The tip of the soldering iron should have a C-cut shape or a
driver shape so that it can contact the circuit board as flat or
in a line as much as possible.
Solder
Use solder with the metal content and composition ratio by
weight given in the table below. Do not use solders which do
not meet these conditions.
Note:
If replacing existing solder containing lead with lead-free solder
in the soldered parts of products that have been manufactured
up until now, remove all of the existing solder at those parts
before applying the lead-free solder.
Metal content Tin(Sn) Silver(Ag) Copper(Cu)
Composition
ratio by weight 96.5% 3.0% 0.5%

- 2 -
EXPLODED VIEW (PACKING & ACCESSORY)
1
2
2
3456
7
8
9
10
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
1!
!! 645 088 9967 AC ADAPTOR
2 645 084 0043 POLYBAG,AV CABLE,AC ADAPTOR
3645 081 9025 AV CORD
4645 085 6679 EAR PHONE
5645 088 9974 REMOTE CONTROL
6 645 089 0451 EPE BAG,UNIT
7645 086 4032 INSTRUCTION MANUAL
8 645 080 1624 POLYBAG,IB&WARRANTY CARD
9645 089 0444 PAPER TRAY
10 645 089 0420 GIFT BOX
645 089 0437 CARTON OUTER

- 3 -

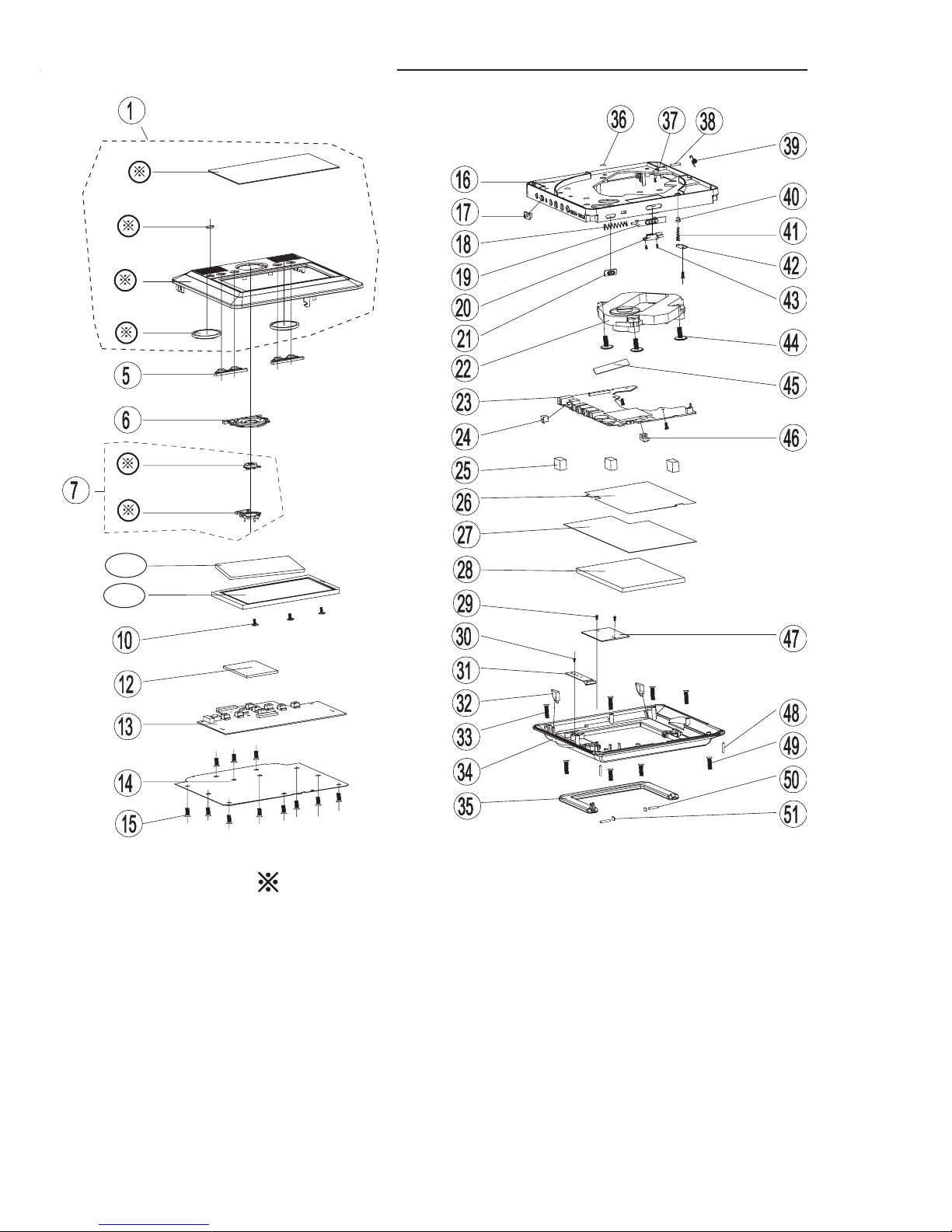

EXPLODED VIEW(CABINET & CHASSIS)
: Not available as service parts.
9-2
9-1

- 4 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT
PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST
BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 645 089 0468 ASSY MONITOR FRONT CABINE
5 645 089 0277 KNOB 2INI
6645 089 0291 KNOB 42N1
7645 089 0475 KNOB PLAY ASSY
9-1 645 088 9486 LCD PANEL
9-2 645 088 9912 BACK LIGHT4.2"
10 645 089 0208 SCREW 2X5,4.2’PANEL
12 645 080 1075 SPONGE
14 645 089 0024 PET PLATE
15 645 083 9788 SCREW 2.0X4,MONITOR PCB
16 645 089 0253 DVD TOP CABINET
17 645 089 0321 KNOB POWER
18 645 089 0079 SPRING OPEN
19 645 089 0307 KNOB OPEN
20 645 089 0352 KNOB OPEN COVER
21 645 089 0383 KNOB HOLD
22 645 083 9603 DVD DECK
24 645 089 0338 CHARGE LER BRACKET
25 645 089 0130 COPPER SPONGE
26 645 089 0031 BATTERY COVER PLATE
27 645 089 0123 COPPER FOIL PAPER
29 645 083 9757 SCREW 2X4,BATTERY PCB,
DVD MAIN PCB,SPRING
30 645 089 0192 SCREW 2.0X4,SPRING PLATE
31 645 089 0222 SPRING PLATE
32 645 089 0154 SICICON FOOT
33 645 089 0185 SCREW 2.0X13,
DVD TOP CAB TO DVD BOTT
34 645 089 0260 DVD BOTTOM CABINET
35 645 089 0369 MODEL BRACKET
36 645 089 0147 SPONGE
37 645 089 0161 SCREW 1.7X4,SPRING OPEN
38 645 089 0116 FIX SHAFT
39 645 089 0062 SPRING MONITOR
40 645 089 0314 LIFT PIN
41 645 089 0086 PRESS SPRING
42 645 089 0239 SPRING COVER
43 645 081 9353 SCREW 1.7X4,KNOB OPEN COVER
44 645 089 0215 SCREW 2.0X6,DVD DECK
45 645 089 0055 PC PLATE
46 645 089 0345 POWER LED BRACKET
48 645 089 0093 SHAFT
49 645 089 0178 SCREW 2.0X12,
DVD TOP CAB TO DVD BOTT
50 645 089 0109 SHAFT BRACKET
51 645 089 0048 BRACKET FIXSHEFT SIDE COV
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
28 645 088 9950 POLMER L10N
645 088 9820 FFC 24P,
MONITOR CON1 TO DVD MAIN
645 088 9981 FFC 24P,
MAIN CON1 TO DVD LOADER
MONITOR MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
13 645 088 9448 ASSY PWB MONITOR MAIN
(Only initial)
CON01 645 088 9837 24P WAFER
CON03 645 088 9844 26P WAFER
DB002 645 079 9891 DIODE ISV215
DP001 645 081 8820 DIODE BAS85
DP002 645 079 9952 DIODE DA204UT106
IC002 645 083 8101 IC D3031
IC003 645 079 9761 IC 8D02
ICP03 645 088 9455 IC AT1380AP
ICP04 645 083 8071 IC M5237ML
IR001 645 087 2259 SENSOR
L0001 645 080 0429 CHOKE 18UH 10%
LA001 645 080 0429 CHOKE 18UH 10%
LB001 645 080 0429 CHOKE 18UH 10%
LB002 645 088 9769 CHOKE 2.2UH 10%
LP006 645 080 0429 CHOKE 18UH 10%
LP010 645 083 5414 CHOKE 47UH 500MA
LP012 645 081 8950 CHOKE 22UH 10%
LP013 645 080 0429 CHOKE 18UH 10%
LP014 645 080 0429 CHOKE 18UH 10%
Q0001 645 079 9884 TRANSISTOR IMZ1
Q0002 645 079 9884 TRANSISTOR IMZ1
QP001 645 079 9839 TRANSISTOR FDN337N
QP004 645 087 2228 TRANSISTOR 2SC2412K
QP005 645 079 9815 TRANSISTOR 2SB1184,PNP
RB021 645 080 0412 CHIP BEAD 600OHM
SW001 645 087 3089 SWITCH TACT,MENU
SW002 645 087 3089 SWITCH TACT,UP
SW003 645 087 3089 SWITCH TACT,SKIP-
SW004 645 087 3089 SWITCH TACT,LEFT
SW005 645 088 9806 SWITCH TACT,OK
SW006 645 087 3089 SWITCH TACT,RIGHT
SW007 645 087 3089 SWITCH TACT,SETUP
SW008 645 087 3089 SWITCH TACT,DOWN
SW009 645 087 3089 SWITCH TACT,SKIP+
TVR01 645 080 0474 CHIP SEMI VR 50K OHM B
U0001 645 079 9785 IC NJM2107F
VR001 645 088 9776 CHIP SEMI VR 4.7K B
VR002 645 080 0474 CHIP SEMI VR 50K OHM B
VRB02 645 088 9776 CHIP SEMI VR 4.7K B
Y0001 645 079 9822 CRYSTAL 3.579545MHZ
MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
23 645 088 9431 ASSY PWB DVD MAIN(Only initial)
CON01 645 088 9813 SOCKET 24P
CON02 645 083 9351 SOCKET 24P
D0001 645 083 9078 DIODE 1N5819
D0002 645 083 9078 DIODE 1N5819
D0003 645 083 9078 DIODE 1N5819
D0004 645 083 9054 DIODE 1N4148
D0005 645 083 9054 DIODE 1N4148
D0008 645 083 9078 DIODE 1N5819
D0012 645 083 9047 DIODE ZENER 4.3V
D0013 645 083 9030 DIODE ZENER 15V
