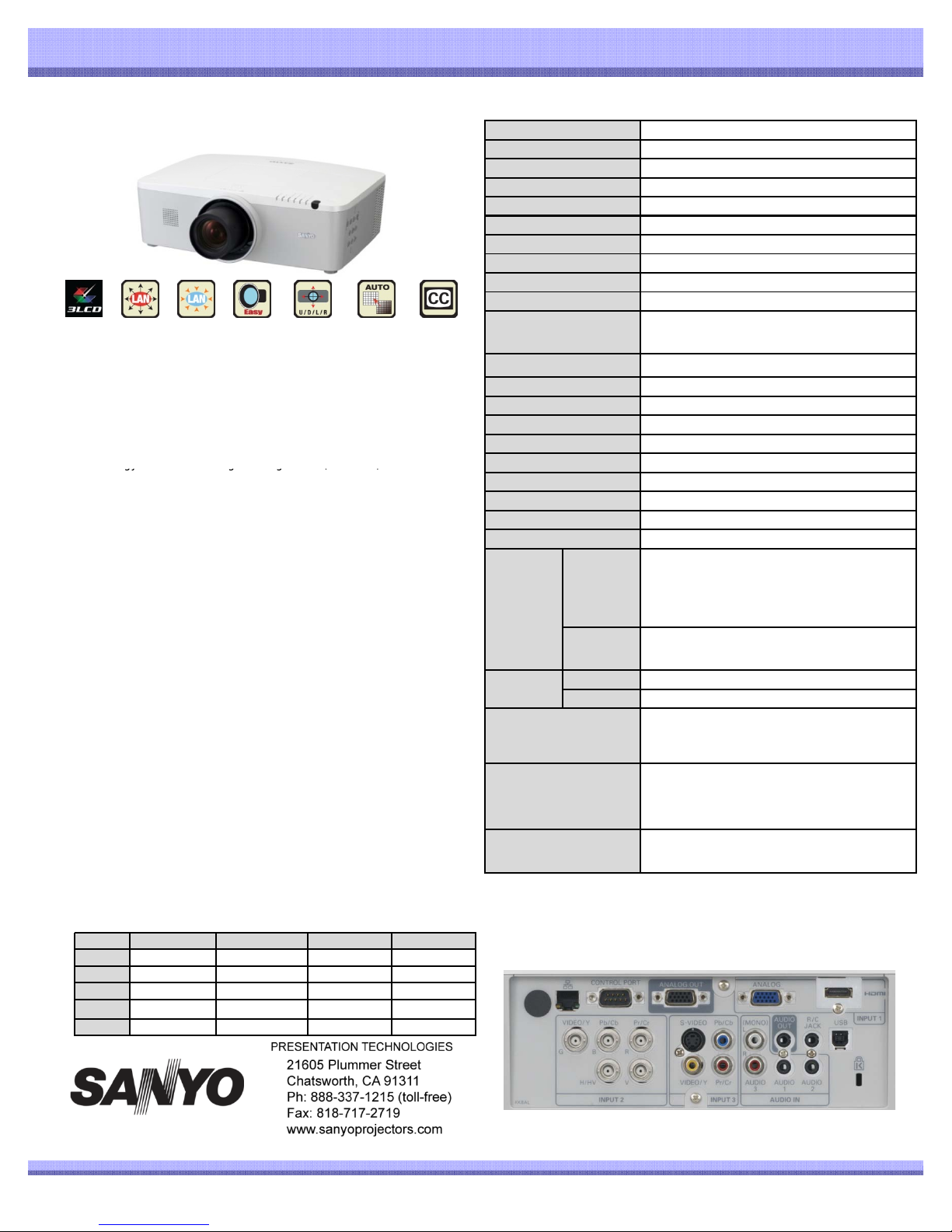

PLCPLC--WM5500 / 5500LWM5500 / 5500L Resolution WXGA (1280 x 800)
Brightness(typical) 5500Lm
Contrast Ratio 800:1
5500 LUMENS zWXGA zMULTI-FUNCTION PROJECTOR
WXGA MULTI-FUNCTION PROJECTOR
Image Size 40"- 400"
Aspect Ratio 16:10
Projection Lamp 330W
Scanning Frequency H:15-100kHz, V:48-100Hz
Fan Noise 31 dBA (eco)
Voltage 100-240V
Power Consumption 490W(Normal), 406W (Eco)
WUXGA UXGA WXGA SXGA+ SXGA XGA
WIDE ASPECT AND HIGHEST BRIGHTNESS
Wide XGA resolution makes it possible to project both HD video
contents and wide aspect PC without any setting adjustment. PLC-
WM5500/L has an HDMI terminal which is the most popular terminal
for video sources. Its higher light efficiency and superior cooling
technolo
gy
allows for the hi
g
hest bri
g
htness
(
5500 Lm
)
in its class.
Input signal compatibility
WUXGA
,
UXGA
,
WXGA
,
SXGA+
,
SXGA
,
XGA
,
SVGA, VGA, MAC, 1080p(50/60),1080i(50/60),
1080-24/25/30psf ,720p(50/60), 575p/i, 480p/i
Color System NTSC, PAL, SECAM, NTSC4.43, PAL-M/N
Up / Down Ratio U/D :+/- 60%, L/R +/- 10%
Digital KeystoneCorrection V +/- 40°, H+/- 20°
Speaker Output 7W
Weight (lbs) 21.3 lbs / 19.6 lbs (without Lens)
Dimensions (inch) W,H,D 19.3"x6.5"x14.6“ (without Lens)
3LCD PJ-Net
Organizer
Plus
Optional
Lens System X-Y Power Len Shift
Active
Maintenance
Filter System
Built-in
Network Closed
Caption
gy g g ( )
FLEXIBLE INSTALLATION
This units is Equipped with power vertical and horizontal lens
shift/keystone correction. Also 5 lens options* along with the standard
lens make this a very flexible projector.
*PLC-WM5500 includes a standard lens (LNS-S20)
EASY MAINTENANCE - ACTIVE MAINTENANCE FILTER
The well-known AMF system detects air blockage or clogs, then
advances the filter reel to the next clean filter on the cartridge Each
Replacement Lamp # 610 346 9607
Replacement Remote # 645 103 0191
Replacement AMF Cartridge POA-FIL080
Lamp Life * (hour) 3000h (Eco)
Input
PC/Video
HDMI(1.3b) x 1 (Digital RGB)
D-sub 15 x 1 (RGB, Scart RGB)
5BNC x1 (G B R H/V V) (Video/Y Pb/Cb Pr/Cr)
Mini DIN 4pin x 1 (S-Video)
RCA x 1 (Composite Video, Y)
RCA x 2 ( Pb/Cb Pr/Cr)
advances
the
filter
reel
to
the
next
clean
filter
on
the
cartridge
.
Each
cartridge carries 10 filter slides which dramatically lowers maintenance.
DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable
projector to handle many applications for high-quality, high contrast
image presentations.
PICTURE IN PICTURE (P in P), PICTURE BY PICTURE (P by P)
This function make it possible to project two different sources with one
projector
Video
conference
satellite
lecture
type
of
application
should
RCA x 2 ( Pb/Cb
,
Pr/Cr)
Audio (HDMI x1) Stereo mini jack x 2
RCA x 2 (R/L-mono)
Output PC/Video D-sub 15 x 1 (Monitor out)
Audio Stereo mini jack x 1 (Audio out, variable)
Other Feature D-sub 9-pin x 1 (Control port)
RJ-45 x 1 (Wired LAN)
Mini jack x 1 (Wired R/C)
USB (type B) x 1
projector
.
Video
conference
,
satellite
lecture
type
of
application
should
be suitable with using this function.
MECHANICAL SHUTTER SYSTEM
The amazing PLC-WM5500/L fills the needs of a host of demanding
business venues including meeting, entertainment and promotional
applications with a Mechanical Shutter System.
CLOSED CAPTION
The PLC-WM5500/L is Closed Caption compatible.
Included Accessories
Power cord
VGA cable
Lens mount cover
Remote control
AAA battery x2
Quick reference guide
Owner’s Manual (CD-Rom)
PIN codelabel
Warranty Three yearsparts and labor; 90 days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
LENS OPTIONS
Model Type (Zoom) U/D Ratio Throw Ratio F Stop
LNS-W21 Short (Fixed) 1:1
+/-0% 0.8:1 2.0
LNS-W20 Short (x1.3) 11:-1--1:11+/-60% 1.3-1.7:1 1.8-2.3
LNS-S20 Standard (x1.7) 11:-1--1:11+/-60% 1.7-2.8:1 1.7-2.3
LNS-T20 Long (x1.6) 11:-1--1:11+/-60% 2.8-4.6:1 1.8-2.3
LNS-T21 Ultra Long (x1.6) 11:-1- -1:11+/-60% 4.6-7.2:1 1.8-2.3
©2010 SANYO
Back Panel
