5000 ANSI LUMENS zTRUE WXGA zMULTIMEDIA PROJECTOR
©2010 SANYO

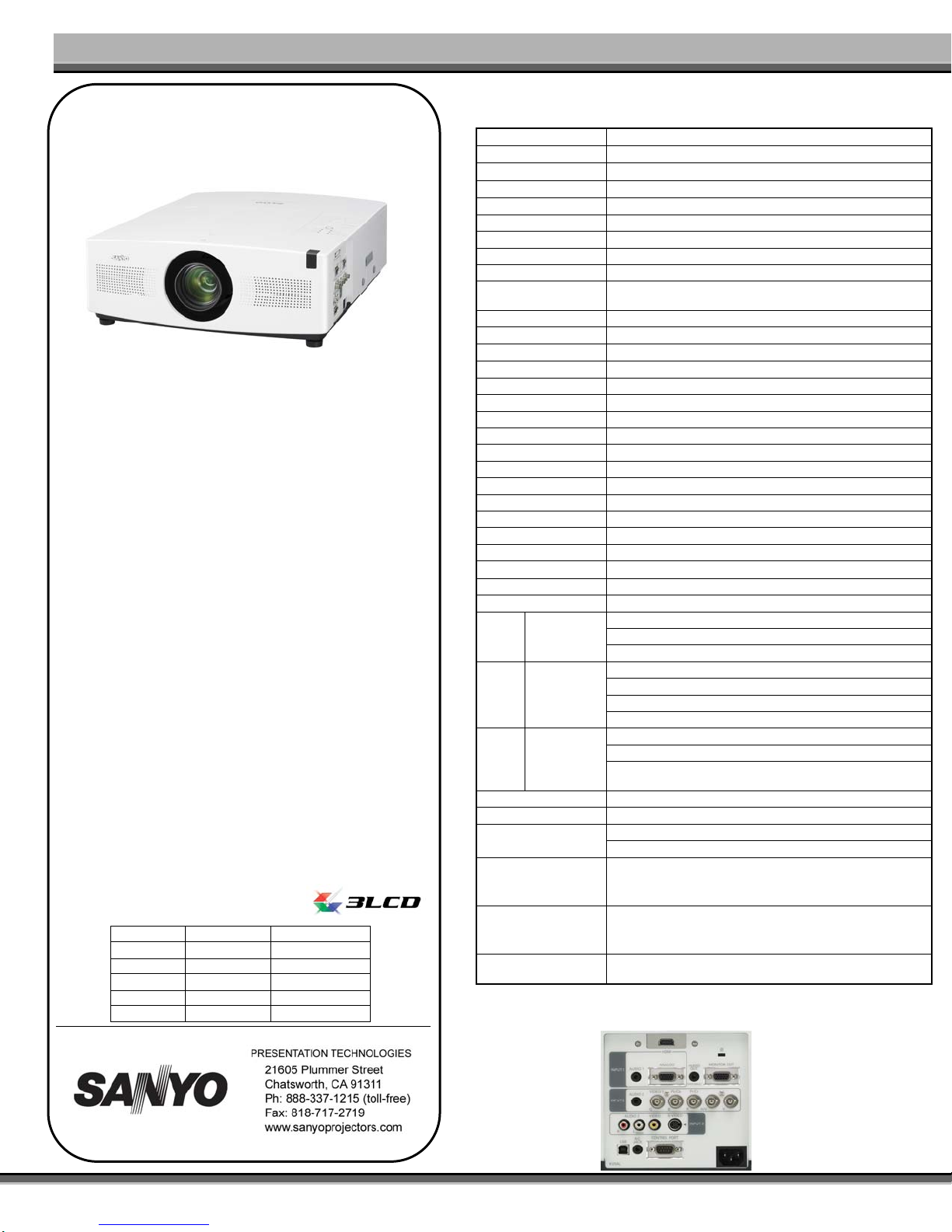

PLC-WTC500AL
Featuring the Industry’s First “Lamp Selection System”
Portable WIDE Projector
True WXGA Resolution
Compatible with wide screen laptops for a true wide screen WXGA (16:10)
presentation. It has a HDMI input terminal which is the most popular port for wide
aspect ratio projector.
The Industry’s First Auto Lamp Selection System
Incorporates industry’s first lamp selection system. Lamp selection system makes
it possible for approximately 6,000 hours of projection. This eliminates the need
to stock up on spare lamps far in advance, which makes it easy on limited budgets.
The Alternating Mode allows a rotating pattern alternating the two lamps’ use time
by selecting the lamp with the lower amount of use. This mode creates the
balance between the lamps resulting in a combined lamp operation which is twice
as long as conventional one-lamp models. The Relay Mode uses one lamp up to
the recommended lamp replacement time, then it automatically switches to the
second lamp. If the first lamp’s life is fully used, the next lamp automatically takes
over, allowing for uninterrupted presentations. Another optional lamp extension
method utilizes “lamp switch function” which you can set the timer to rotate each
lamp every one to 24 hours, and Sanyo’s “PJ Net Organizer” can schedule the
lamp rotation date and time. In order to use the projector for 24/7 continuous
operation, the timer must be set to switch lamps every 24 hours. 24/7 continuous
operation is useful for signage, advertising and information boards.
Easy Maintenance -Active Maintenance Filter
The Well-known AMF system detects air blockage or clogs, then scrolls the filter
reel to the next clean filter. Ten (10) filters included in every cartridge, dramatically
lowering maintenance.
Picture in Picture (P in P) and Picture by Picture (P by P) function
Capable of projecting two images simultaneously by using eighter “P in P” and “P
by P” functions. These functions are useful in video conference and educational
systems.
Lens shifting and keystone correction permit advanced installation
versatility
Vertical/Horizontal Lens Shifting (max. +50% vertically and ±15% horizontally).
Vertical/Horizontal Keystone Correction (±40 degrees vertically and ±20 degrees
horizontally) Keystone correction for vertical and horizontal lines means projector
can be installed at an angle in relation to the screen. Projector can also be
installed at 360-degree angles, while still being able to function properly
Optional Lens
Type Model Throw Ratio
Standard LNS-S11 1.6 - 2.1 :1
W. Zoom LNS-W10 1.2 - 1.6 :1
W. Zoom LNS-W11 0.8 :1
L. Zoom LNS-T10 2.1 : 3.4 :1
L. Zoom LNS-T11 3.4 - 5.4 :1
Specifications
Resolution WXGA (1280 x 800)
Brightness (typical) 5000 ANSI Lumens
Contrast Ratio 3000:1
Panel System 0.95” TFT P-Si x 3
Number of Pixels 3,072,000 (1,024,000 x 3)
Aspect Ratio 16 : 10
Uniformity 90% (corner to center)
Scanning Frequency H Sync : 15-100kHz, V Sync : 50-100Hz
Dot Clock 140 MHz (Analog)
Computer
Compatibility UXGA / WXGA / SXGA / SXGA+ / XGA / SVGA / VGA / MAC
HDTV Signals 480i, 480p, 575i, 575p, 720p, 1035i and 1080i
Color System PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
Projection Lens Option (LNS-S11(STD), LNS-W11, LNS-W10, LNS-T10, LNS-T11)
Zoom / Focus Depend on The Lens
Image Size (diagonal) 30” – 300”
Throw Distance Dependent on The Lens
Throw Ratio Dependent on The Lens
Up/Down Ratio U/D 10 : 0 – 1 : 1 , L/R 13 : 7 – 7 : 13
Digital Keystone Vertical : +/- 40°, Horizontal:+/- 20°
Digital Zoom 49x - 1/4x
Projection Lamp(s) 330W NSHA
Voltage 100 – 240V
Power Consumption 420W(Eco1)
Fan Noise 31dB (Eco1)
BTU Rating 1,433(Eco1)
Speaker Output 3W +3 W Stereo Speakers
Weight 32.4 lbs
Dimensions 17.76” x 6.89” x 21.66”(not including protrusion)
RGB : D-Sub 15 (Analog) x1
Digital : HDMI x1
Input1 PC or Video
Audio : Stereo Mini-jack x1
RGB : BNC x5
Component: BNC x3 (Common)
Composite : BNC x1(Common)
Input2
PC or Video
Audio : Stereo Mini-jack x1
Composite : RCA x 1
S-Video : Mini DIN x 1
Input3
Video
Audio : RCA x 2 ( L ( Mono) / R),
R/C Jack : Stereo Mini Jack
Monitor Out D-Sub15 (Monitor Out from Input 1 or 2)
Variable Audio Out Stereo Mini-jack (Audio Out from Audio In 1 or 2)
Service Port : USB -B
Communication
Terminals Control Port : D-Sub 9 ( RS232C)
Included Accessories 1) Owner's Manual (CD-ROM) 2) AC code UL 3P Plug Type 3) PC Cable (Dsub15-Dsub 15) 4) USB Cable 5)Wireless/ Wired Remote
Control 6) AAA Battery x 2 7) Pin Code label
Optional Accessories Lamp: 610 342 2626 : Remote: 645 099 9031 Filter : POA-FIL-100:
POA-PN03C (PJ Net Organizer Plus2)
Warranty Three years parts and labor; 90 days original lamp; Quick repair
program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
Terminals
Lens sold separately
