Sanyo VCC-4110P User manual

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
VCC-4110P
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
A propos de ce manuel
Avant d’installer et d’utiliser la caméra, veuillez lire ce
manuel attentivement. Gardez-le à portée de main pour
toute référence ultérieure.
L5AH5/XE GB 2002, 12, 24

Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments. If you
need help with installation and/or settings, please consult your dealer.
CONTENTS
PRECAUTIONS........................................................................................ 2
PARTS NAMES ....................................................................................... 3
CONCERNING AUTO-IRIS LENSES ........................................................ 5
MOUNTING THE LENS........................................................................... 6
CONNECTIONS....................................................................................... 8
SETTINGS................................................................................................ 9
TROUBLESHOOTING .............................................................................13
SPECIFICATIONS....................................................................................14

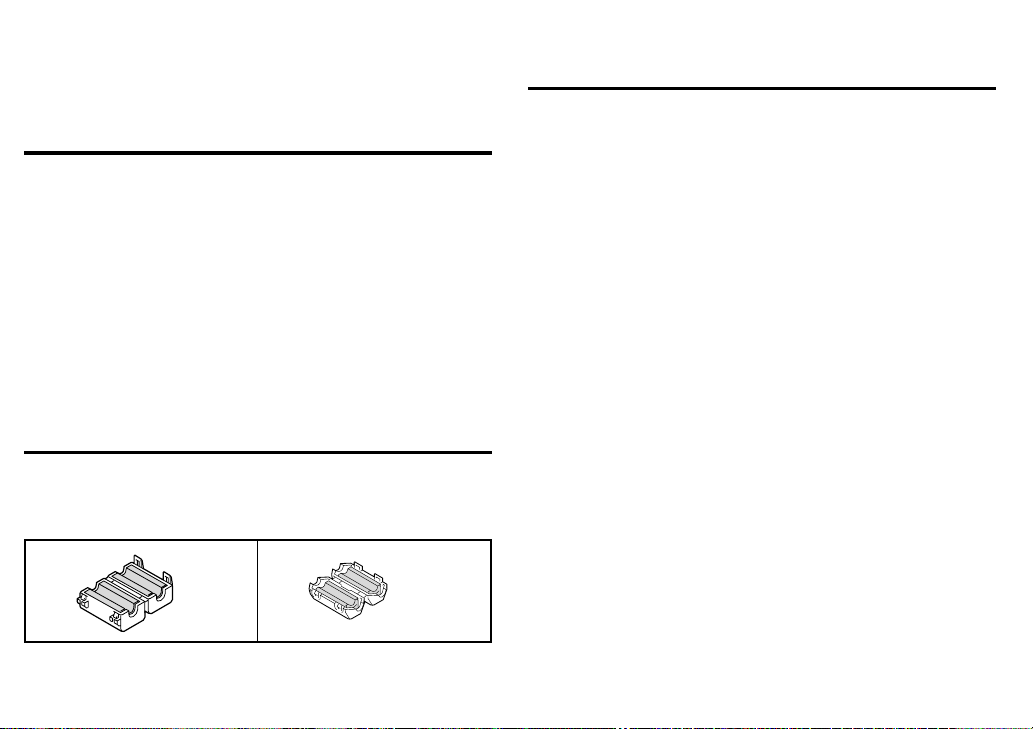

ACCESSORIES
1Clamping core A ....................................................................... pc.
2Clamping core B........................................................................ pc.
12
FEATURES
•Built-in interline transfer method /4" CCD, approx. 320,000
picture elements
•Equipped with a DSP (Digital Signal Processor) function
•Horizontal resolution, more than 350 TV lines
•High sensitivity, minimum required illumination is 0.3 lux
(Gain up: HI position, F .2)

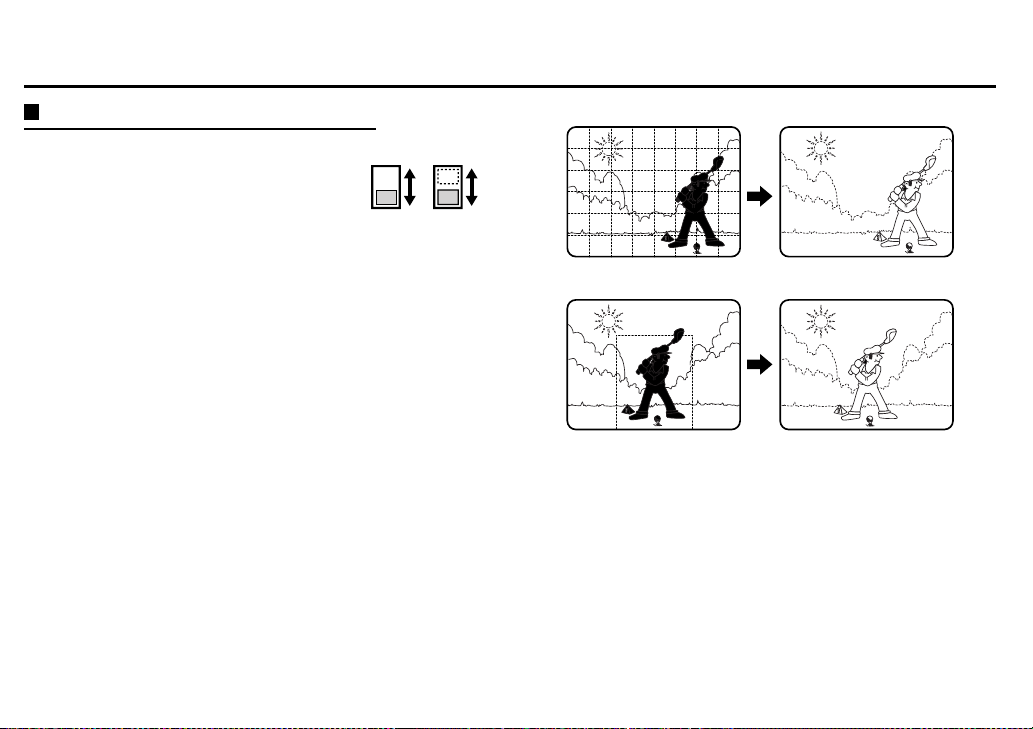

•Two types of backlight compensation functions (multi-spot
photometry and center focus photometry)
•Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device.
•00% solid state components giving excellent immunity to shock
and vibration
•Not subject to interference from magnetic or electrostatic fields
•Power supply: 220 – 230 V AC operation
L5AH5/XE GB 2002, 2, 24
English 1

PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from the
unit, or if it seems not to function correctly. Disconnect the power
cord immediately, and consult your dealer (or a Sanyo Authorized
Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For internal settings and repairs, consult your dealer (or a
Sanyo Authorized Service Centre).
Do not put ob ects inside the unit
Make sure that no metal objects or flammable substance get inside
the camera. If used with a foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power cord
immediately, and consult your dealer (or a Sanyo Authorized Service
Centre). Be careful to protect the camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to strong
shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, audio speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there is
greasy smoke or steam, where the dampness may get too high, or
where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices, such
as spotlights, etc., or where it could be subject to direct sunlight, as
that could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may raise to high levels.
Install where the temperature range will stay between – 0°C and
50°C. (no condensation)
Cleaning
•Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with a
soft detergent solution and wrung dry, then wipe dry with dry soft
cloth.
•Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling.
Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or rubber
material comes in contact with the cabinet for a long period of
time, as that may cause damage or paint peeling.
ENGLISH
L5AH5/XE GB 2002, 2, 24
2 English

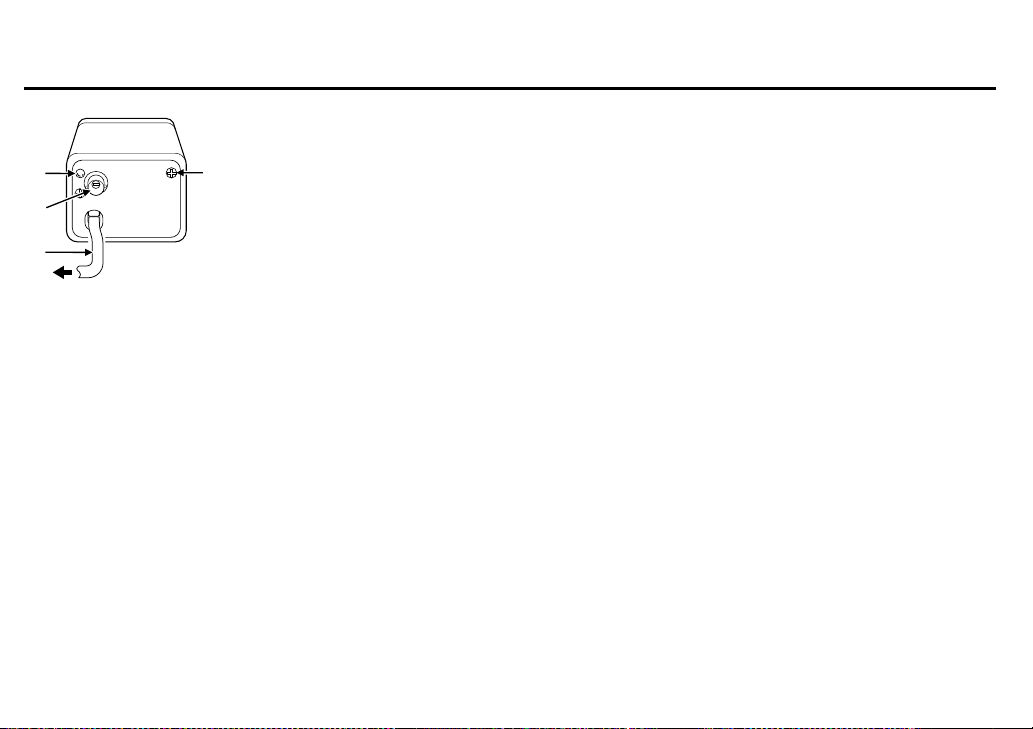

PARTS NAMES
1Power indicator (POWER)
Comes on when the power to the camera is on.
2Video output connector (VIDEO OUT: BNC type)
Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
3AC power cord
4Line phase ad ustment volume (LINE PHASE)
When using two cameras or more, the image on the monitor may roll vertically when switching sources. This
rolling can be minimized by turning this volume.
1
3
2
4
L5AH5/XE GB 2002, 2, 24
English 3

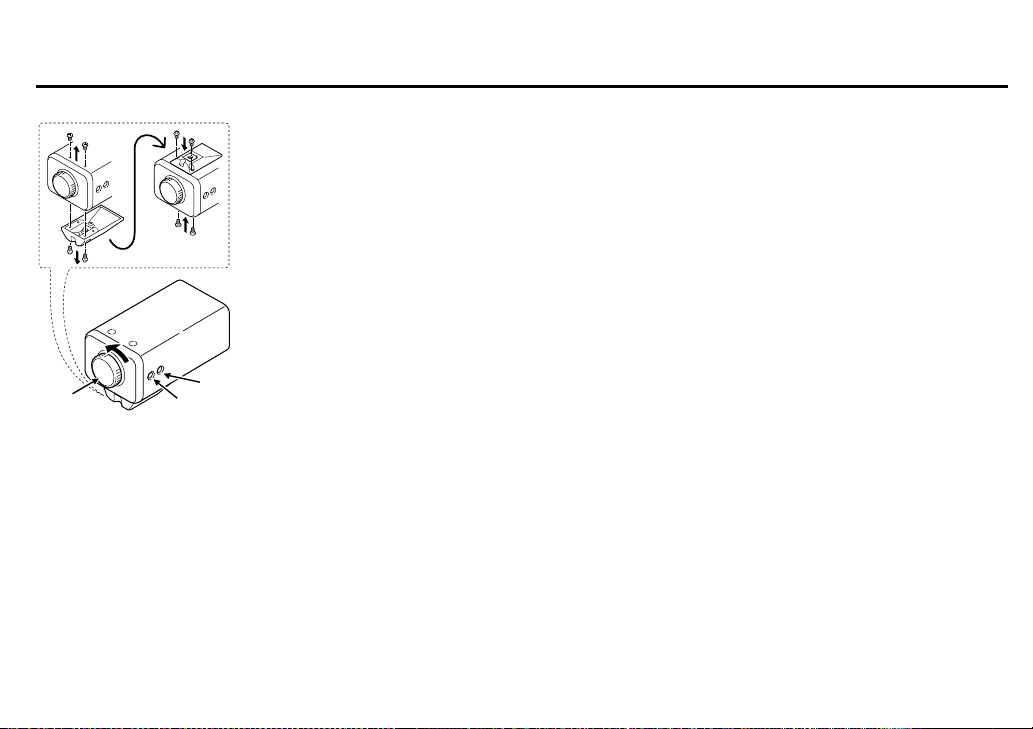

PARTS NAMES
5Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold separately).
6Flange-back ad ustment screw (FLANGE BACK ADJ.)
7Flange-back lock screw (FLANGE BACK LOCK)
8Camera mounting bracket
This bracket can be installed to either the top or bottom of the camera as desired. When changing the position
of the camera mounting bracket, you should always reuse the screws that have been removed.
NOTE: If using a camera mounting bracket (sold separately), select a location that is strong enough to bear
the full weight of the camera and the mounting bracket for long periods, and install the camera and
mounting bracket securely.
8
56
7
L5AH5/XE GB 2002, 2, 24
4 English

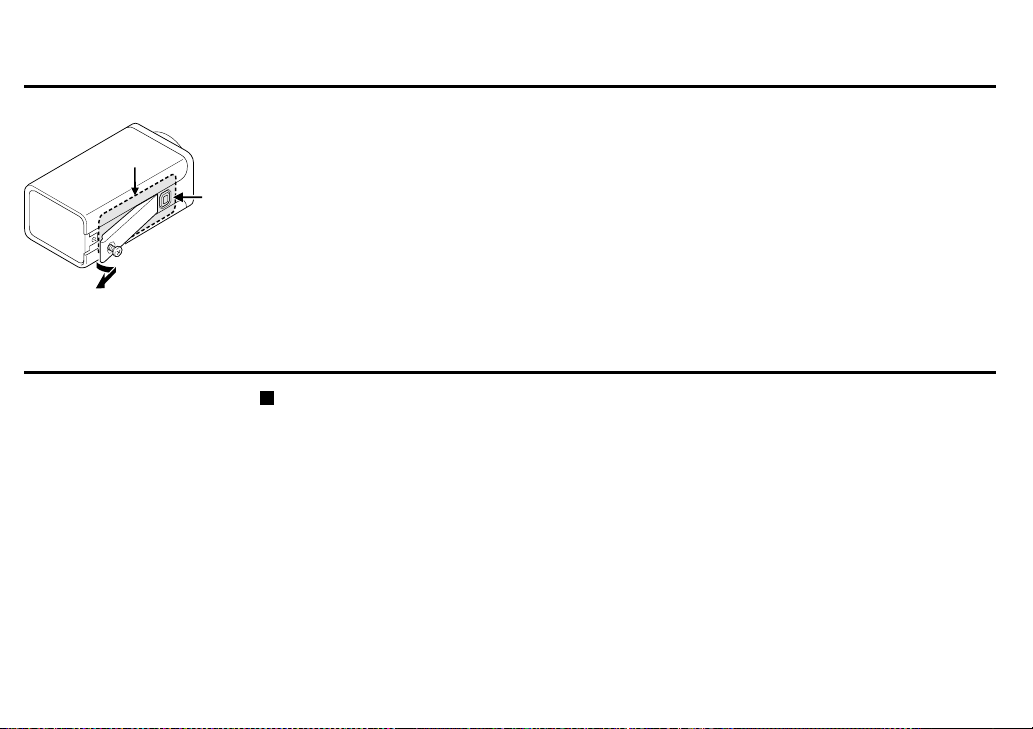

PARTS NAMES
9Lens iris output connector (LENS)
This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type lens.
FCamera setup section (under the cover)
These settings are for when using a /4 inch CS mount DC (without EE internal amplifier) type lens. However,
if due to installation conditions or environment the settings may need to be modified for best results (see
"SETTINGS"). To access the controls, remove the cover fixing screw, then remove the cover.
F
9
CONCERNING AUTO-IRIS LENSES
DC type auto-iris lens
A lens without amplifier circuit that operates only on a DC power source. In general, this type of lens is
referred to as DC type coil lens or DC type non-amplifier lens.
(Set the IRIS switch to the AI position.)
L5AH5/XE GB 2002, 2, 24
English 5

MOUNTING THE LENS
Plea e u e a DC type auto-iri len ( old eparately).
Check the lens mount
Do not use a lens if the length “L” is more than 5 mm. That may damage the
camera and prevent proper installation.
1Remove the lens mount cap from the camera.
2Install the auto-iris lens.
CS mount type lens
Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
C mount type lens
To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount, then carefully
align the lens mount with the camera opening and turn the lens slowly to install it.
3Connect the lens plug to the lens iris output connector (LENS) on the side of the camera.
NOTE: When using an auto-iris lens, the supplied clamping core B must be installed on the lens wire, in
order to prevent electromagnetic interference to the other devices connected.
L
C mount type lens 2
2
3
CS mount
type lens
1
B
L5AH5/XE GB 2002, 2, 24
6 English

MOUNTING THE LENS
Pin layout
DC type lenses
1Brake coil (–)
2Brake coil (+)
3Drive coil (+)
4Drive coil (–)
Flange-back adju tment
If the pick-up surface is not correctly positioned with relation to the lens focal point, the picture will be out of
focus (in particular when using auto-iris power zoom lenses, sold separately). If that is the case, adjust the
flange-back position as described below.
1Using a + screwdriver, loosen the FLANGE BACK LOCK screw (M2:+).
2Set the zoom lens to the maximum telephoto position, set the focus using the focus ring on the lens.
3Set the zoom lens to the maximum wide angle position, set the focus using the FLANGE BACK ADJ. screw.
4Repeat steps 2 and 3, until the image stays in focus when changing from a telephoto shot to a wide angle shot.
When the setting is complete, tighten the FLANGE BACK LOCK screw.
43
1
2
2, 3
1
4
LOCK
3
ADJ.
L5AH5/XE GB 2002, 2, 24
English 7

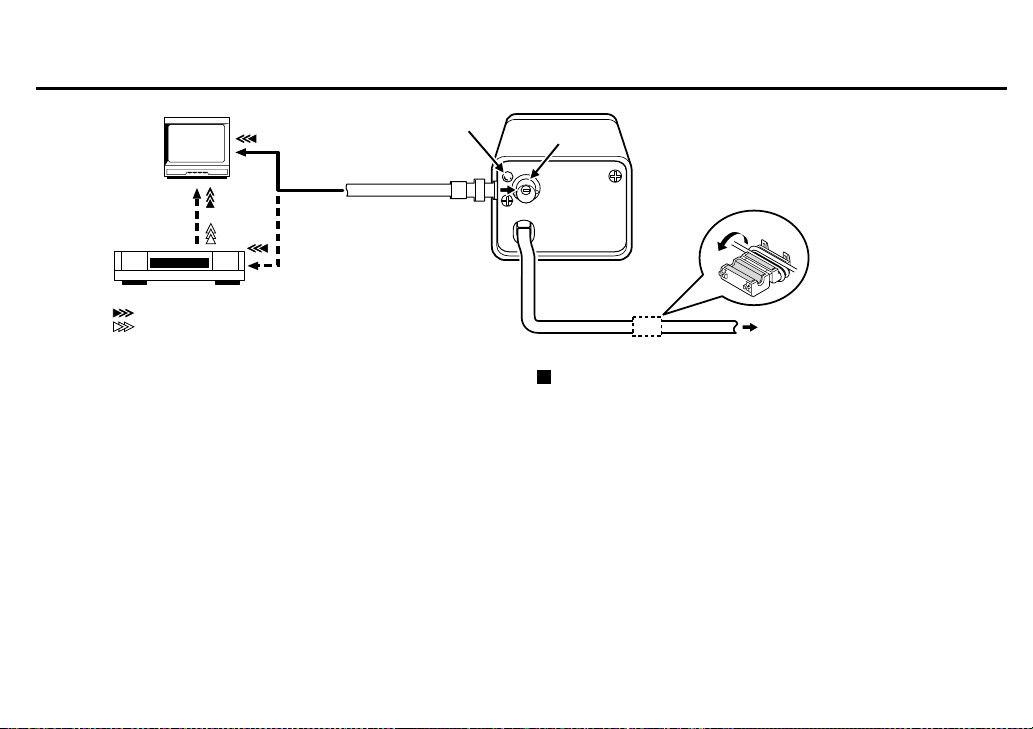

CONNECTIONS
Ba ic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and cables are
sold separately.
1Make the video signal connection between the camera and
the monitor or time lapse VCR.
2When using this unit, the supplied clamping core A must be
installed on the power cord, in order to prevent electromagnetic
interference to the other devices connected.
3Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on the
monitor using the Brightness and Contrast controls etc.
Coaxial cable type and maximum length
•Cable type RG-59U (3C-2V), 250 m maximum.
•Cable type RG-6U (5C-2V), 500 m maximum.
•Cable type RG- U (7C-2V), 600 m maximum.
CAUTION:
•The RG-59U type cable should not be run through electrical
conduits or through the air.
•Using CCTV/Video-grade coaxial cable.
(Video signal connections)
: VIDEO IN
: VIDEO OUT
(A)
1
23
A
L5AH5/XE GB 2002, 2, 24
8 English

SETTINGS
The illustration shows the factory default settings for the switches in the camera setup section.
The camera settings are described on the assumption that a DC type auto iris lens is being used.
Control name Position
1Electronic Iris (EI)/Auto iris (AI) setting AI
2Aperture compensation setting
(SHRP: Sharp/NOR: Normal)
SHRP
3Gain up setting (HI: High/NOR: Normal) NOR
4Backlight compensation setting (BLC)
(MULT/OFF)
OFF
5Backlight compensation setting (BLC)
(CENT/OFF)
OFF
6White balance switch (M/ATW) and colour
(RED or BLUE) ad ustment volume
ATW
7External sync setting (SYNC: LL/INT) INT
8No use –
9Lens iris level ad ustment (LEVEL) ad ustable
ON
5 6 7 84
VR303VR302
RED BLUE
SHRP MC MLLEI
IRIS SYNC
LEVEL
LH
AP
HI
GAIN BLC WB
NOR NOR OFF ATW INTAI
321
VR301
6
12 6745 8 93
L5AH5/XE GB 2002, 2, 24
English 9

SETTINGS
Iris function setting 1
This should normally be set to the down (AI) position.
Use a manual or fixed iris lens and set the lens aperture
to the shortest F stop. Set the switch 1 (IRIS) to the up
(EI) position.
☞When using an auto-iris lens (for indoor/outdoor use)
Set the switch 1 (IRIS) to the down (AI) position.
Note:
•The electronic iris is suitable for normal indoor use. When the switch
1 (IRIS) is set to the up (EI) position, do not use an auto-iris lens.
•If used under fluorescent light, the image may flicker. In such a
case, change to incandescent lighting or set the switch 1 (IRIS) to
the down (AI) position and use an auto-iris lens.
•When shooting bright subjects, pay attention to the light angle in
order to avoid or minimize the smear phenomenon effect.
•If conditions are outside the electronic iris operation range or
more than the maximum illumination, it will cause saturation of
the CCD. In that case, use a manual iris lens.
Aperture 2
The initial setting for switch 2 is up (SHRP) so that the
contours of the object are emphasized. However, if the
contours of the object are already emphasized more
than required, set switch 2 to the down (NOR) position.
Gain up setting 3
Switch 3 should normally be set to “NOR”. If the monitoring location
is dark and you would like to increase the luminance (brightness), set
switch 3 to “HI”.
Note: If switch 3 is set to “HI”, the images from the
monitoring location will become brighter, but
interference may become more noticeable
12
3
L5AH5/XE GB 2002, 2, 24
10 English

SETTINGS
Backlight compensation setting 45
This camera has two different backlight
compensation functions: Normally backlight
compensation switch 4 (MULT) and 5 (CENT)
are set to the down (OFF) position. Change
the backlight compensation switch settings
depending on the conditions.
•MULT mode: Use this position when applying backlight
compensation to the whole of the screen.
•CENT mode: Use this position when applying backlight
compensation to only the central portion of the
screen.
Note:
•When using the backlight compensation function, set the switch 4
or 5 to the up position. When not using the function, set the
switch 4 and 5 to the down (OFF) position.
•When MULTI mode is set, scenes with no backlighting may
appear extremely dark and the object may appear over-exposed. If
this happens, move the switch 5 to the up (CENT) position.
4 5
(MULTI mode: 48 sections)
(CENT mode)
L5AH5/XE GB 2002, 2, 24
English 11

SETTINGS
White balance ad ustment 6
Normally the switch 6 (WB) is set to the down (ATW: auto white
balance) position and the white balance is adjusted automatically. If a
manual white balance adjustment is necessary, follow the steps below.
Set the switch 6 (WB) to the up (M: manual) position, then adjust the
colour.
•Turn RED (VR302) to set the red ratio and/or BLUE (VR303) to set
the blue ratio.
Synchronization settings
The default setting is internal synchronization (INT). You can
change the power supply synchronization by moving switch 7
to the up (LL) position. Refer to “Line phase ad ustment”
for details.
Line phase ad ustment 7
When using a camera switcher to connect 2 cameras or more to one
monitor, there may be a vertical roll of the images when switched. In
such a case, set as described below.
1Set the switch 7 (SYNC) to the up (LL) position.
2Switch the display on the monitor from camera to camera 2.
Adjust the LINE PHASE volume on camera 2 until the vertical roll
of the image stops.
If more than two cameras are used, please repeat this procedure
for all the cameras.
CAUTION:
If the vertical roll cannot be corrected by setting the LINE PHASE
volume on camera 2, try setting the LINE PHASE volume on camera
. If it still cannot be corrected, please check that the polarity of the
power cords of all connected devices is correct.
6
VR303VR302
RED BLUE
7
L5AH5/XE GB 2002, 2, 24
12 English

SETTINGS
Lens iris ad ustment 9
If using a DC type auto-iris lens, you will need to set the LEVEL
(VR30 ) volume when shooting in the conditions described below.
L (counterclockwise): To decrease the contrast
H (clockwise): To increase the contrast
•If shooting simultaneously in a dark room and through a bright
window.
•If the subject background is extremely bright or dark.
•If the brightness of the picture on the monitor is not correct.
TROUBLESHOOTING
Before taking the camera for repairs, please check below to make sure
that the camera is used correctly. If it still does not perform correctly,
please consult your dealer or a Sanyo Authorized Service Centre.
No picture on the monitor screen
•Is the power turned on to all connected devices? Is the voltage correct?
•Are all the signal connecting cables correctly connected?
•Is the lighting sufficient?
•Has the lens cap been removed?
•Is the iris control correctly set?
The picture is not clear
•Is the monitor correctly adjusted?
•Is the flange-back position correctly set?
•Is the lens focus correctly adjusted?
•Are the lens surfaces clean?
If there is dust or finger prints on the lens, the image quality will
deteriorate. To clean the lens use a soft cloth or a commercially
available lens cleaning set.
SERVICE
This camera is a precision instruments and if treated with care, will
provide years of satisfactory performance. However, in the event of a
problem, the owner is advised not to attempt to make repairs or open
the cabinet. Servicing should always be referred to your dealer or
Sanyo Authorized Service Centre.
LEVEL
LH
VR301
L5AH5/XE GB 2002, 2, 24
English 13

SPECIFICATIONS
Camera:
Scanning system :PAL standard
(625 TV lines, 25 frames/sec.)
Interlace :PLL 2: interlace
Image device :/4 inch solid state image device CCD
Picture elements :537 (H) x 597 (V)
Effective picture elements :500 (H) x 582 (V)
Synchronizing system :Internal sync, Line lock manually switchable
Resolution :350 TV lines horizontally, 400 TV lines vertically
Video output level :.0 Vp-p/75 ohms, composite
Video S/N ratio :More than 48 dB
Minimum required
illumination
(incandescent lighting)
:Approx. 0.9 lux with a F .2 lens
Approx. 0.3 lux (Gain up: HI position, F .2)
Backlight compensation :MULTI/OFF switching, CENT/OFF switching
Iris function :Manual EI/AI switching
Electronic iris range :0.9 lux to 45,000 lux (F .2 lens)
Flange-back :2.5 mm ± 0.5 mm
White balance :ATW/Manual switching
Gain up :HI (High)/NOR (Normal) switching
Lens mount :CS mount
Environmental conditions :Temperature: – 0°C ~ +50°C
Humidity: less than 90% (no condensation)
Power supply :220 – 230 V AC ± 0% 50 Hz
Power consumption :Approx. 3.0 W (with auto iris lens)
Approx. 2.2 W (without auto iris lens)
Weight :Approx. 620 g (without lens)

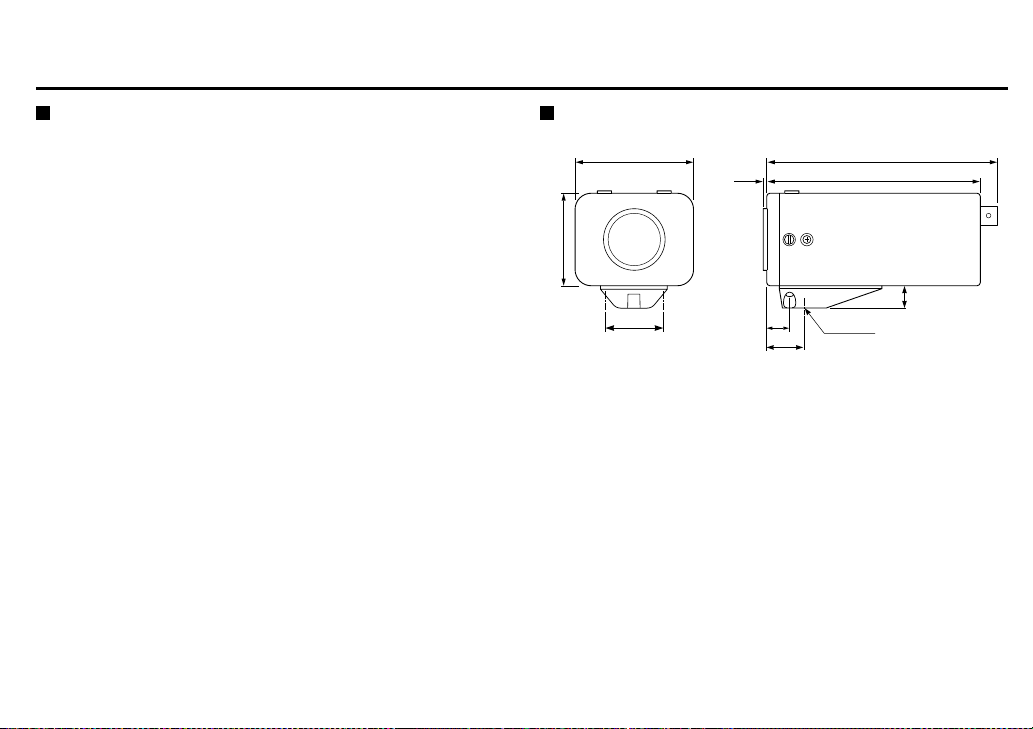

Dimensions
Features and specifications are sub ect to change without prior
notice or obligations.
1.3
136
128
12
22
11
67
64
28 1/4”–20 UNC
L5AH5/XE GB 2002, 2, 24
14 English

Printed on recycled paper
Gedruckt auf recyceltem Papier
Imprimésur du papier recyclé
1AC6P1P2634--
L5AH5/XE (0103KP-CZ)
Sanyo Electric Co, Ltd.
Printed in Japan
L5AH5/XE GB 2002, 12, 24
