Sanyo VCC-5972P User manual

INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
COLOUR CCD Camera
CCD-Farbkamera
Caméra CCD COULEUR
VCC-5972P
About this manual
•Before installing and using the
camera, please read this manual
carefully. Be sure to keep it handy for
later reference.
À propos de ce manuel
•Avant d’installer et d’utiliser la caméra,
veuillez lire ce manuel attentivement.
Gardez-le à portée de main pour toute
référence ultérieure.
Über diese Bedienungsanleitung
•esen Sie bitte vor der Montage und
dem Inbetriebnehmen der Kamera
zuerst diese Bedienungsanleitung
sorgfältig durch und bewahren Sie sie
zum späteren Nachschlagen auf.
L53P2/EX GB 1998, 3, 11

Depending on the conditions of use,
installation and environment, please be sure
to make the appropriate settings and
adjustments. If you need help with installation
and/or settings, please consult your dealer.
CONTENTS
PRECAUTIONS...................................................2
PARTS NAMES...................................................3
MOUNTING THE LENS......................................6
CONNECTIONS..................................................8
SETTINGS...........................................................9
USING THE ON-SCREEN MENUS....................12
ADJUSTMENTS................................................13
TROUBLESHOOTING.......................................24
MENU DISPLAY...............................................25
SPECIFICATIONS .............................................2
ACCESSORIES
1C mount adaptor (5 mm).....................1 pc.
The C mount adaptor must be used to be
able to install a C mount lens on the
camera.
2ens iris plug (4-pin).............................1 pc.
3AC adaptor ..........................................1 pc.
4AC adaptor mounting plate .................1 pc.
: With 3 fixing screws
12
34
FEAT RES
•Built-in interline transfer method 1/3" CCD,
approx. 470,000 picture elements
•ow smear, anti-blooming, low lag, no
burning and no geometric distortion using
the CCD solid state image device.
•100% solid state components giving
excellent immunity to shock and vibration
•Not subject to interference from magnetic
or electrostatic fields
•High sensitivity, minimum required
illumination is 0.9 lux (F1.2, AGC Gain:
High, incandescent lighting)
•Horizontal resolution, more than 460 TV
lines
•Power supply: 12 V DC operation (supplied
AC adaptor)
53P2/EX GB 1998, 3, 11
English 1

PRECA TIONS
In case of problem
Do not use the camera if smoke or a strange
odour comes from the unit, or if it seems not
to function correctly. Disconnect the power
cord immediately, and consult your dealer (or
a Sanyo Authorized Service Centre).
Do not open or modify
Do not open the cabinet, as it may be
dangerous and cause damage to the unit. For
internal settings and repairs, consult your
dealer (or a Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable
substance get inside the camera. If used with
a foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera,
disconnect the power cord immediately, and
consult your dealer (or a Sanyo Authorized
Service Centre). Be careful to protect the
camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera
or subject it to strong shock or vibration.
Install away from electric or magnetic
fields
If installed close to a TV, radio transmitter,
magnet, electric motor, transformer, audio
speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not
install it where there is greasy smoke or
steam, where the dampness may get too
high, or where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat
generating devices, such as spotlights, etc., or
where it could be subject to direct sunlight, as
that could cause deformation, discoloration or
other damages.
Be careful when installing close to the ceiling,
in a kitchen or boiler room, as the
temperature may raise to high levels.
Install where the temperature range will stay
between –10˚C and 50˚C.
(no condensation)
Cleaning
•Dirt can be removed from the cabinet by
wiping it with a soft cloth. To remove
stains, wipe with a soft cloth moistened
with a soft detergent solution and wrung
dry, then wipe dry with dry soft cloth.
•Do not use benzine, thinner or other
chemical product on the cabinet, as that
may cause deformation and paint peeling.
Before using a chemical cloth, make sure
to read all accompanying instructions.
Make sure that no plastic or rubber
material comes in contact with the cabinet
for a long period of time, as that may
cause damage or paint peeling.
ENGLISH
53P2/EX GB 1998, 3, 11
2 English

PARTS NAMES
1Lens iris output connector (4 pin)
This 4-pin connector is used to send the DC control signal and
power supply to an auto-iris type lens.
2Auto white balance push lock button (AWB LOCK)
3Menu setting button (SET)
Connect the camera to the monitor, then press the SET button
for about 3 seconds to display the on-screen menu.
4Cursor button (C RSOR)
j: Press this button to move the cursor up.
c: Press this button to move the cursor to the right, or to
turn the settings ON/OFF etc.
d: Press this button to move the cursor to the left, or to
turn the settings ON/OFF.
l: Press this button to move the cursor down.
5Flange-back lock screw (FLANGE BACK LOCK)
6Flange-back adjustment screw (FLANGE BACK ADJ.)
7Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold
separately).
8Camera installation bracket
The bracket can be fixed at the top or bottom of the camera.
When fixing the bracket, be sure to use the longer screws and
install the shorter screws on the opposite side to seal the
openings.
CA TION:
When installing the camera support, select a location
that can support the total weight of the camera and
accessories.
1232
1
8
74
32
1
4
1
2
3
5
6
1Shorter screws: M3 x 4
2Longer screws: M3 x 6
3Camera mounting
screw hole:
1/4"-20 NC
53P2/EX GB 1998, 3, 11
English 3

9Camera setup section (under the cover)
This unit factory settings are as indicated below. These settings
are for when using a 1/3 inch CS mount DC (without EE internal
amplifier) type lens. However, if due to installation conditions or
environment the settings may need to be modified for best
results (see "SETTINGS"). To access the controls, remove the
cover fixing screw, then remove the cover.
Control name Position
aHigh speed electronic shutter
switches (ES)
All OFF: 1/50 sec
bInternal INT only
cAuto gain control switch (AGC) ON
dWhite balance switch (WB) all ON: ATW
eBacklight compensation switch
(BLC)
ON
fElectronic iris (EI)/
Auto iris (AI) switch
AI
gAuto-iris lens switch (A.I. LENS) DC
Notes:
•When using a 1/2 or 2/3 inch C mount VIDEO (with EE
internal amplifier) auto-iris type lens, set the A.I. LENS switch
to the VIDEO position.
•The settings entered in the camera setup section can be
displayed using the on-screen menu.
•If not using an auto-iris lens, make sure the BLC switch is set
to OFF.
9
2341
a
ON
6785910
23 INT 1 OFF 78 OFF OFF EI
I
R
I
S
AIONES LL ON ON WB
BLCSYNC FL
AGC
b
c
d
e
f
g
53P2/EX GB 1998, 3, 11
4 English

PARTS NAMES
FVideo output connector (VIDEO O T: BNC type)
Connect this connector to a device such as a VCR or monitor
with a VIDEO IN connector.
GY/C O T connector
Using a coaxial cable (twin type, 75 ohms), connect the Y/C
O T connector from the camera to the S-VIDEO input terminal
on the monitor or time lapse VCR.
1Y signal ground
2C signal ground
3Y signal: 1.0 Vp-p, 75 ohms, unbalanced,
negative sync
4C signal: 0.3 Vp-p, 75 ohms, unbalanced
HPower indicator (POWER)
Comes on when the power to the camera is on.
IExternal sync composite video signal input connector
(VBS IN: BNC type)
Connect to this connector the synchronizing signal output from
a synchronizing signal device or the composite signal of a video
distributor.
J12 V DC input terminal (12 V DC IN)
Connect DC connecting cord from the AC adaptor to the
12V DC IN terminal on the camera.
Then, plug the AC adaptor into an AC outlet.
WARNING:
•This AC adaptor is specially conceived for this camera.
Never use another type of AC adaptor with this camera,
and do not use this AC adaptor to power other types of
cameras.
•Not for use with toys.
•Never try to disassemble or modify the AC adaptor.
12
43
H
I
G
F
J
53P2/EX GB 1998, 3, 11
English 5

1
1
3
LOCK
2
ADJ.
Flange-back adjustment
If the pick-up surface is not correctly positioned with relation to
the lens focal point, the picture will be out of focus (in particular
when using auto-iris power zoom lenses, sold separately). If that
is the case, adjust the flange-back position as described below.
1Using a + screwdriver, loosen the FLANGE BACK LOCK
screw (M2:+).
Set the zoom lens to the maximum telephoto position, set
the focus using the focus ring on the lens.
2Set the zoom lens to the maximum wide angle position, set
the focus using the FLANGE BACK ADJ. screw.
3Repeat steps 2 and 3, until the image stays in focus when
changing from a telephoto shot to a wide angle shot.
When the setting is complete, tighten the FLANGE BACK
LOCK screw.
MO NTING THE LENS
Check the lens mount
Do not use a lens if the length “L” is more than 5 mm. That
may damage the camera and prevent proper installation.
Installation of a DC type auto-iris lens (sold
separately)
A 1/3 inch CS mount type lens without EE amplifier circuit that
only uses a DC power source. This camera can receive (the A.I.
LENS switch to the DC type) a CS mount type lens without the
need of an adaptor.
If the lens plug shape or wiring does not correspond, please
install the supplied plug as indicated in the pin layout table.
L
53P2/EX GB 1998, 3, 11
6 English

MO NTING THE LENS
Installation of a VIDEO type auto-iris lens
(sold separately)
A 1/2 or 2/3 inch C mount type lens with EE amplifier circuit
that uses the video signal and a DC power source.
1Remove the lens mount cap.
2Attach the supplied C mount adaptor (A) to the auto-iris
lens (B), then install the assembly on the camera.
3Connect the lens plug to the LENS connector on the side of
the camera.
If the lens plug shape or wiring does not correspond to the
specifications below, connect the supplied plug as indicated.
•When using lenses from other makers, make sure that the
pins connections in the plug correspond to the ones of
the camera.
Refer to the lens specifications to check the pins
connections in the plug.
•If they are different than indicated, remove the original
plug and connect the supplied plug according to the
diagram.
4Set the A.I. LENS switch in the camera setup section to the
VIDEO position.
Pin layout
DC type lenses VIDEO type lenses
1Brake coil (–) +12 V DC (50 mA max.)
2Brake coil (+) Not used
3Drive coil (+) Video output (1.0 Vp-p, high
impedance)
4Drive coil (–) Ground (for video signal and DC
power)
DC
VIDEO
4
2 (A) (B)
3
31
2
4
4
1
2
3
53P2/EX GB 1998, 3, 11
English 7

Compatible auto-iris lenses
1/3 inch Sanyo DC type lens 1/2 or 2/3 inch VIDEO type lens
VC -CS8 Y: Standard angle, f= 8 mm Standard angle, f= 9 mm
VC -CS4 Y: Wide angle, f= 4 mm Telephoto angle, f= 12 mm
VC -CS2 Y: Ultra-wide angle, f= 2.8 mm More telephoto angle, f= 16 mm
If using a VIDEO type auto-iris lens
•Set the ALC and LEVEL controls on the lens to adjust the iris. Normally the ALC volume should
be turned all the way to Av (Average).
•Depending on the type of lens used, the lens may not perform properly. In such a case, adjust
the LEVEL volume on the lens casing to correct.
CONNECTIONS
Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and cables
are sold separately.
1Make the video signal connection between the camera and
the monitor or time lapse VCR.
2Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on the
monitor using the Brightness and Contrast controls.
Coaxial cable type and maximum length
•Cable type RG-59U (3C-2V), 250 m maximum.
•Cable type RG-6U (5C-2V), 500 m maximum.
•Cable type RG-11U (7C-2V), 600 m maximum.
CA TION:
•The RG-59U type cable should not be run through electrical
conduits or through the air.
•Using CCTV/Video-grade coaxial cable.
(Video signal connections)
: VIDEO IN
: VIDEO OUT
(A)
1
2
53P2/EX GB 1998, 3, 11
8 English

SETTINGS
The illustration shows the factory default settings for the switches in the camera setup section.
Depending on the camera installation location and conditions of use, it may be necessary to select
other settings, without having to make adjustments. The selected settings can be confirmed using
the on-screen menu. If adjustments are required, they can be entered using on-screen adjustment
sub-menus (see ADJ STMENTS, page 13).
2341
ON
6785910
23 INT 1 OFF 78 OFF OFF EI
I
R
I
S
AIONES LL ON ON WB
BLCSYNC FL
AGC
High speed electronic shutter (ES) setting
Normally, the three speed setting switches (1, 2 and 3) for the
high speed electronic shutter are all set to the OFF position. This
sets the electronic shutter speed to 1/50 sec. The three switches
in the camera setup section can be set as indicated in table A to
select one of the 8 speeds available.
Notes:
•When using the high speed electronic shutter, the BLC switch
must be set to the OFF position.
•Using the high speed electronic shutter indoors with low
lighting, will give darker pictures. In such a case, add some
lights to make sure the lighting is sufficient. If the lighting is
very bright, pay attention to the light angle in order to avoid
or minimize the smear phenomenon effect.
•If IRIS is set to EI (electronic iris mode), then the high speed
electronic shutter speed will not correspond to the set speed.
Synchronisation (SYNC) setting
•The internal synchronisation is set using the SYNC switch (4)
in the camera setup section.
INT: Initial setting. The initial value cannot be changed.
•The external synchronisation (VBS, VS) cannot be set in the
camera setup section. When a VBS or VS sync signal is
entered at the camera VBS IN terminal, the camera will
automatically detect the signal type and VBS or VS will be
displayed on the on-screen menu. If necessary, the settings
can then be entered in the adjustment sub-menu (see page
14).
Table A
11/50 sec.
21/120 sec.
31/250 sec.
41/500 sec.
51/1000 sec.
61/2000 sec.
71/4000 sec.
81/10000 sec.
123
123
123
123
123
123
123
123
53P2/EX GB 1998, 3, 11
English 9

Automatic Gain Control (AGC) setting
The automatic gain control can be turned ON or OFF using the
AGC ON/OFF switch (6) in the camera setup section.
ON: Auto gain control function on (setting used under
normal conditions) (see page 21).
GAMMA: ON (0.45), OFF (1)
AGC GAIN: NORMA (30 dB), HIGH (36 dB)
OFF: Fixed gain
Note:
When the AGC switch is set to OFF, the GAMMA and backlight
compensation are automatically set to OFF, and the IRIS is set to
AI.
White balance (WB) setting
Under normal conditions, the white balance is set to ATW (Auto
Tracing White-Balance). However, depending on the camera
installation location and conditions of use, the white balance
mode can be set using the two WB switches (7 and 8) in the
camera setup section (see table B).
•ATW: Initial setting. The initial value cannot be changed.
•LOCK: The white balance is done automatically while the
AWB OCK button is pressed, then it is locked when
the button is released.
•PRESET: The white balance is done according to one of the
three preset modes. The preset modes can be
adjusted manually in the adjustment sub-menu (see
page 19).
MODE 1: Setting for incandescent lighting (2660 ˚K).
MODE 2: Setting for indoors, fluorescent lighting (5100 ˚K).
MODE 3: Can be set for outdoors, sunlight (5100 ˚K).
•MAN AL: Set to the initial value. The value can be changed
manually in the adjustment sub-menu (see page 20).
ON
OFF
Table B
7 8
7 8
7 8
7 8
ATW
LOCK
PRESET
MANUAL
AWB LOCK
53P2/EX GB 1998, 3, 11
10 English

ON
OFF
AI
EI
WINDOW WEIGHTING
W0 1
W1 1
W2 3
W3 3
W4(FIX) 15
PRESET OFF
MENU END END
W0=1
W2=10 W4=15 W3=10
W1=5
W2=0 W4=15 W3=0
W1=15
W0=0
Fig. 1
Fig. 2
Fig. 3
SETTINGS
Backlight compensation (BLC) setting
The backlight compensation ON/OFF is set using the BLC
ON/OFF switch (9) in the camera setup section.
ON: Default setting, backlight compensation function on.
However, depending on the camera installation location
and conditions of use, if the backlight compensation
function need to be set, with the BLC switch set to ON,
press the SET button to select one of PRESET (1, 2) or
MANUA (1, 2) modes indicated below.
•PRESET 1 (Basic setting, see Fig. 1)
When the subject is dark and moving within the image, the
brightness control is done independently for the 5 windows
(W 0-4). This setting is recommended when the subject will
be moving across or within the image.
•PRESET 2 (Basic setting, see Fig. 2)
The windows are regrouped in 2 sections (W 1 and 4; and W
0, 2 and 3) and the lens iris is set automatically so that the
backlight correction is optimum for the section composed of
windows W 1 and 2. This setting is recommended when the
subject will be centred in the image.
•MAN AL 1 (or MAN AL 2) (Fig. 1, 3)
The size and position of window W 4, and the windows (W
0 - 4) distribution (WINDOW WEIGHTING) can be set
manually to control a bigger area of the screen (e.g. when
the subject will be moving in the screen area) and stored
under one of the two manual settings.
OFF: Fixed backlight compensation
Notes:
•The backlight compensation will operate when using an
auto-iris lens (DC or VIDEO type).
•If in the “MEN FOR ADJ STMENT”, AGC is set to OFF, the
backlight compensation will not operate.
Iris level setting
The iris is set using the IRIS AI (Auto-Iris)/EI (Electronic Iris)
switch (10) in the camera setup section.
AI: Initial setting. When using a DC type auto-iris lens, the iris
level settings can then be entered in the adjustment
sub-menu (see page 15).
EI: Electronic iris mode setting.
Note: If the AGC switch is set to OFF, setting the IRIS switch to
EI will not set the electronic iris mode.
53P2/EX GB 1998, 3, 11
English 11

SING THE ON-SCREEN MEN S
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
WHITE BA ANCE ATW
AGC ON
SHUTTER 50
WRITE PROTECT ON
NEXT PAGE END
MENU FOR ADJUSTMENT
CAMERA ID OFF
APERTURE
WRITE PROTECT ON
PREVIOUS PAGE END
(Menu 1) (Menu 2)
5
3
2
46
87
SET
INT
SET
CURSOR
SET
CURSOR
CURSOR
SET
CURSOR
(or j)
1To display the menu
Press the SET button for about 3 seconds. The “MEN FOR
ADJ STMENT” is displayed.
2To switch between menus and selection
When the setting of a switch in the camera setup section is
changed, the corresponding sub-menu is displayed. To adjust
the values or settings, press the C RSOR (d or c) button to
select the desired value or setting, then press the SET button.
3Initial values protection (WRITE PROTECT)
ON: Default setting. The initial values cannot be modified.
OFF: Press the C RSOR (d or c) button to select OFF, then
press the SET button. The write protection is cancelled
and the initial values can then be changed.
4To exit the menu
Press the C RSOR (j or l) button to select END (get it
flashing), then press the SET button.
5To switch to the second page of the “MEN FOR ADJ STMENT”
Press the C RSOR (j or l) button to select NEXT PAGE
(get it flashing), then press the SET button.
6To switch back to the first page of the “MEN FOR
ADJ STMENT”
Press the C RSOR (j or l) button to select PREVIO S
PAGE (get it flashing), then press the SET button.
To enter a camera ID (CAMERA ID)
(See page 22).
8Aperture display (APERT RE)
(See page 23).
53P2/EX GB 1998, 3, 11
12 English

ADJ STMENTS
To enter settings or adjustments for the camera it must be
connected to a monitor. The settings and adjustments are made
by ways of on-screen displays.
Concerning the WRITE PROTECT function
In order to protect the settings and adjustments the WRITE
PROTECT function is set to ON. If it is necessary to enter new
settings or adjustments, press the C RSOR (j or l) button to
select the WRITE PROTECT function setting, then press the
C RSOR (d or c) button to select OFF, then press the SET
button.
CONTENTS OF ADJ STMENTS
1. SYNC
1-1. VBS phase adjustment ...............................................14
2. IRIS
2-1. Auto-iris level adjustment..........................................15
3. BLC
3-1. Setting the light measuring area characteristics (size,
position and distribution) for the MAN AL 1 setting....16
3-2. BLC level adjustment for the PRESET 1 setting........18
4. WHITE BALANCE
4-1. PRESET MODE 2 (indoors, fluorescent lighting)
setting adjustment .....................................................19
4-2. MAN AL setting adjustment ....................................20
5. AGC ...................................................................21
6. CAMERA ID.......................................................22
7. APERT RE.........................................................23
SET
CURSOR
CURSOR
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
WHITE BA ANCE ATW
AGC ON
SHUTTER 50
WRITE PROTECT OFF
NEXT PAGE END
(Menu 1)
53P2/EX GB 1998, 3, 11
English 13

1. SYNC
1-1. VBS phase adjustment
1Connect a VBS signal source to the VBS IN connector on the
camera.
The on-screen setting will automatically switch to VBS. Press the
C RSOR (j or l) button to select the on-screen VBS setting
(get it flashing), then press the SET button. The adjustment
sub-menu “ADJ STMENT FOR VBS” will be displayed.

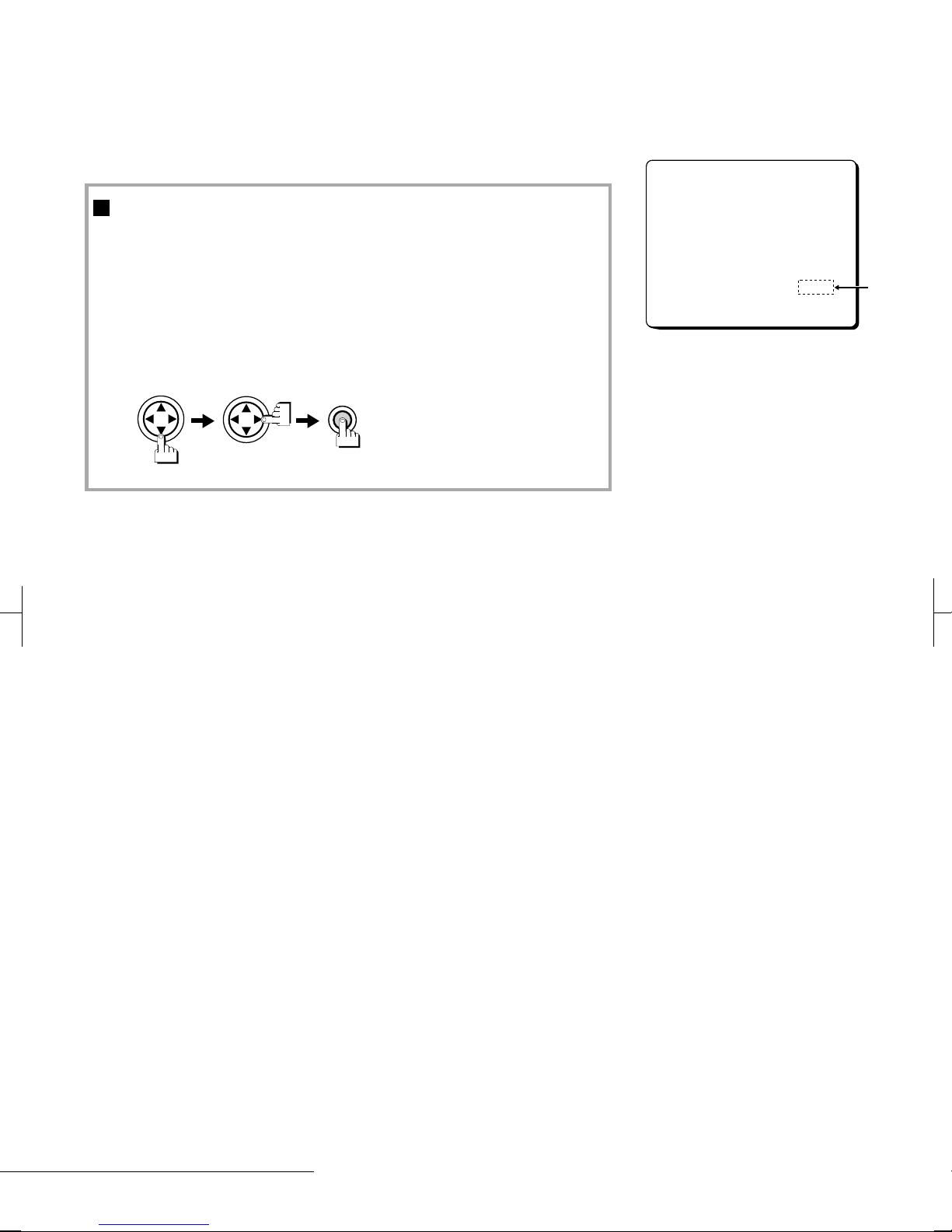

2Press the C RSOR (d or c) button to adjust the horizontal phase
(H). The on-screen marker (b) will move and the adjustment value
will flash according to the horizontal phase setting.
When finished setting the horizontal phase (H), press the
C RSOR (l) button to select the sub-carrier (SC) phase.
3Press the C RSOR (d or c) button to adjust the sub-carrier (SC)
phase. The on-screen marker (b) will move and the adjustment
value will flash according to the sub-carrier phase setting.
Note:
When an adjustment is made, the PRESET setting will
automatically switch to OFF. To return to the initial values, just
return the PRESET setting to ON, then press the SET button.
4When finished.
1Press the C RSOR (j or l) button to select END (get it
flashing), then press the SET button to return to the
normal camera display, or
2Press the C RSOR (j or l) button to select MEN (get
it flashing), then press the SET button to return to the
“MEN FOR ADJ STMENT” display.
Note:
If using a VS sync signal, the H sync phase adjustment is made by
following the same method as described for the “VBS phase
adjustment”.
MENU FOR ADJUSTMENT
SYNC VBS
IRIS AI
B C ON
SET
CURSOR
ADJUSTMENT FOR VBS
(PHASE)
H o------z------p 280
SC o------z------p 22
ADJUSTMENT FOR VBS
(PHASE)
H o------z------p 415
SC o------z------p 65
PRESET OFF
END MENU
53P2/EX GB 1998, 3, 11
14 English

ADJ STMENTS
2. IRIS
2-1. Auto-iris level adjustment
1Set the IRIS switch (10) to AI.
The on-screen setting will automatically switch to AI. Press the
C RSOR (j or l) button to select the on-screen AI setting
(get it flashing), then press the SET button. The adjustment
sub-menu “ADJ STMENT FOR AI” will be displayed.
2Press the C RSOR (d or c) button until the desired iris level
is obtained. The on-screen marker (b) will move and the
adjustment value will flash according to the iris level setting.
Note:
When an adjustment is made, the PRESET setting will
automatically switch to OFF. To return to the initial value, just
return the PRESET setting to ON, then press the SET button.
3When finished.
(Refer to step 4 on page 14.)
Notes:
•If IRIS is set to EI (electronic iris mode), the SHUTTER setting
function will not operate.
•When the AGC switch is set to OFF the IRIS cannot be set to
EI.
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
AI
EI
SET
CURSOR
ADJUSTMENT FOR AI
(IRIS EVE )
o------z------p 23
ADJUSTMENT FOR AI
(IRIS EVE )
o------z------p 35
PRESET OFF
END MENU
Example:
When the image is dark,
press the C RSOR (d or
c) button to move the
on-screen marker close to
the position indicated above.
53P2/EX GB 1998, 3, 11
English 15

ADJUSTMENT FOR B C
B C MODE PRESET1
ADJUSTMENT FOR B C
(SIZE)
ADJUSTMENT FOR B C
(POSITION)
WINDOW WEIGHTING
W0 1
W1 1
W2 3
W3 3
W4(FIX) 15
PRESET OFF
END MENU
3. BLC
3-1. Setting the light measuring area characteristics (size,
position and distribution) for the MAN AL 1 setting
1Set the BLC switch (9) to ON. The on-screen setting for BLC will
automatically switch to ON. Press the C RSOR (j or l) button
to select the on-screen ON setting (get it flashing), then press the
SET button. The adjustment sub-menu “ADJ STMENT FOR BLC”
will be displayed.
2Press the C RSOR (d or c) button until MAN AL 1 is
selected, then press the SET button. The adjustment
sub-menu “SIZE” will be displayed.
3Press the C RSOR buttons to set the size of the area, then
press the SET button. The adjustment sub-menu “POSITION”
will be displayed.
4Press the C RSOR buttons to move (up, down, right, left) the area
to the desired position, then press the SET button. The adjustment
sub-menu “WINDOW WEIGHTING” will be displayed.
Note:
The WINDOW WEIGHTING default values are W0 : 1, W1 : 1, W2
: 3, W3 : 3, W4 : 15 (the value for W4 is fixed to 15 and cannot
be modified).
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
ON
OFF
SET
CURSOR
ADJUSTMENT FOR B C
B C MODE MANUA 1
PRESET1_PRESET2_MANUA 1_MANUA 2
SET
CURSOR
ADJUSTMENT FOR B C
(SIZE)
ADJUSTMENT FOR B C
(SIZE)
CURSOR
CURSOR
CURSOR
(p)
(o)
(l)
(j)
ADJUSTMENT FOR B C
(POSITION)
53P2/EX GB 1998, 3, 11
16 English

ADJ STMENTS
5Press the C RSOR (j or l) button to select the desired
window (get its value flashing), then press the C RSOR (d
or c) button to set the desired value (maximum 15) for each
of the 4 windows 0, 1, 2 and 3.
Example: W0 : 5, W1 : 5, W2 : 10 and W3 : 10
Note:
When an adjustment is made, the PRESET setting will
automatically switch to OFF. To return to the initial value, just
return the PRESET setting to ON, then press the SET button.
6When finished.
(Refer to step 4 on page 14.)
WINDOW WEIGHTING
W0 5
W1 1
W2 3
W3 3
W4(FIX) 15
PRESET OFF
END MENU
CURSOR CURSOR CURSOR CURSOR CURSOR
1_2_3_4_5... 3_4_5... 6_7_8_9_10...
WINDOW WEIGHTING
W0 5
W1 5
W2 10
W3 3
W4(FIX) 15
PRESET OFF
END MENU
CURSOR CURSOR
8_9_10...
WINDOW WEIGHTING
W0 5
W1 5
W2 10
W3 10
W4(FIX) 15
PRESET OFF
END MENU
WINDOW WEIGHTING
W0 5
W1 5
W2 3
W3 3
W4(FIX) 15
PRESET OFF
END MENU
53P2/EX GB 1998, 3, 11
English 17

3-2. BLC level adjustment for the PRESET 1
setting
1Set the BLC switch (9) to ON. The on-screen setting for BLC
will automatically switch to ON. Press the C RSOR (j or l)
button to select the on-screen ON setting (get it flashing),
then press the SET button. The adjustment sub-menu
“ADJ STMENT FOR BLC” will be displayed.
2Press the C RSOR (d or c) button until PRESET 1 is selected.
3Press the C RSOR (l) button to select BLC LEVEL (get it
flashing), then press the SET button. The adjustment
sub-menu “BLC LEVEL” will be displayed.
4While looking at the image on the monitor, press the
C RSOR (d or c) button until the BLC level is obtained. The
on-screen marker (b) will move and the adjustment value will
flash according to the BLC level setting.
Note:
When an adjustment is made, the PRESET setting will
automatically switch to OFF. To return to the initial value, just
return the PRESET setting to ON, then press the SET button.
5When finished.
(Refer to step 4 on page 14.)
Note:
The BLC level adjustments should be entered under the PRESET 1
or MAN AL 1 settings. The BLC level adjustments entered under
the PRESET 2 or MAN AL 2 settings will not be effective.
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
ON
OFF
SET
CURSOR
ADJUSTMENT FOR B C
B C MODE PRESET1
B C EVE
ADJUSTMENT FOR B C
(B C EVE )
o------z------p 15
ADJUSTMENT FOR B C
(B C EVE )
o------z------p 20
PRESET OFF
END MENU
ADJUSTMENT FOR B C
B C MODE PRESET1
Example:
If the backlight
compensation (B C)
correction is insufficient,
press the C RSOR (d or
c) button to move the
on-screen marker close to
the position indicated above.
53P2/EX GB 1998, 3, 11
18 English

ADJ STMENTS
4. WHITE BALANCE
4-1. PRESET MODE 2 (indoors, fluorescent
lighting) setting adjustment
1Set the WB switches to the PRESET mode (switch 7 to OFF
and switch 8 to ON).
The on-screen setting for WHITE BALANCE will automatically
switch to PRESET. Press the C RSOR (j or l) button to
select the on-screen PRESET setting (get it flashing), then press
the SET button. The adjustment sub-menu “ADJ STMENT
FOR WB” will be displayed.
2Press the C RSOR (d or c) button until MODE 2 is
selected, then press the SET button. The adjustment
sub-menu “OFFSET” will be displayed.
3Press the C RSOR (d or c) button to adjust the R (red)
offset. The on-screen marker (b) will move and the
adjustment value will flash according to the red offset setting.
When finished setting the red offset, press the C RSOR (l)
button to select B (blue).
Press the C RSOR (d or c) button to adjust the B (blue)
offset. The on-screen marker (b) will move and the
adjustment value will flash according to the blue offset setting.
Note:
When an adjustment is made, the PRESET setting will
automatically switch to OFF. To return to the initial values, just
return the PRESET setting to ON, then press the SET button.
4When finished.
(Refer to step 4 on page 14.)
Note:
The OFFSET settings for MODE 1 and MODE 3 are made by
following the same method as described for MODE 2.
MENU FOR ADJUSTMENT
SYNC INT
IRIS AI
B C ON
WHITE BA ANCE PRESET
AGC ON
7
SET
CURSOR
8
WB
ADJUSTMENT FOR WB
WB PRESET MODE 2
ADJUSTMENT FOR WB
WB PRESET MODE1
ADJUSTMENT FOR WB
(OFFSET)
R o------z------p 31
B o------z------p200
PRESET OFF
END MENU
ADJUSTMENT FOR WB
(OFFSET)
R o------z------p 90
B o------z------p110
PRESET OFF
END MENU
53P2/EX GB 1998, 3, 11
English 19
