Sanyo DC-F430AV User manual

Service Manual
I
FILE NO.
I
Mini Component System
DGF430AV (UK)
(W
CONTENTS
SPECIFICATION......................................................................
1
WHATTO DO IF.......................................................................
1
LASER BEAM SAFETY PRECAUTIONS
................................
2
REMOVAL 81 INSTALLATION
.................................................
2
TUNERADJUSTMENT ............................................................
4
CD
CHANGEROPERATIONDESCRIPTION
..........................
5
CDCHANGERREPLACEMENT.............................................
7
CDMECHANISMADJUSTMENT
............................................
9
CD
PLAYERADJUSTMENTS
...............................................
11
TAPE DECK ADJUSTMENTS
...............................................
13

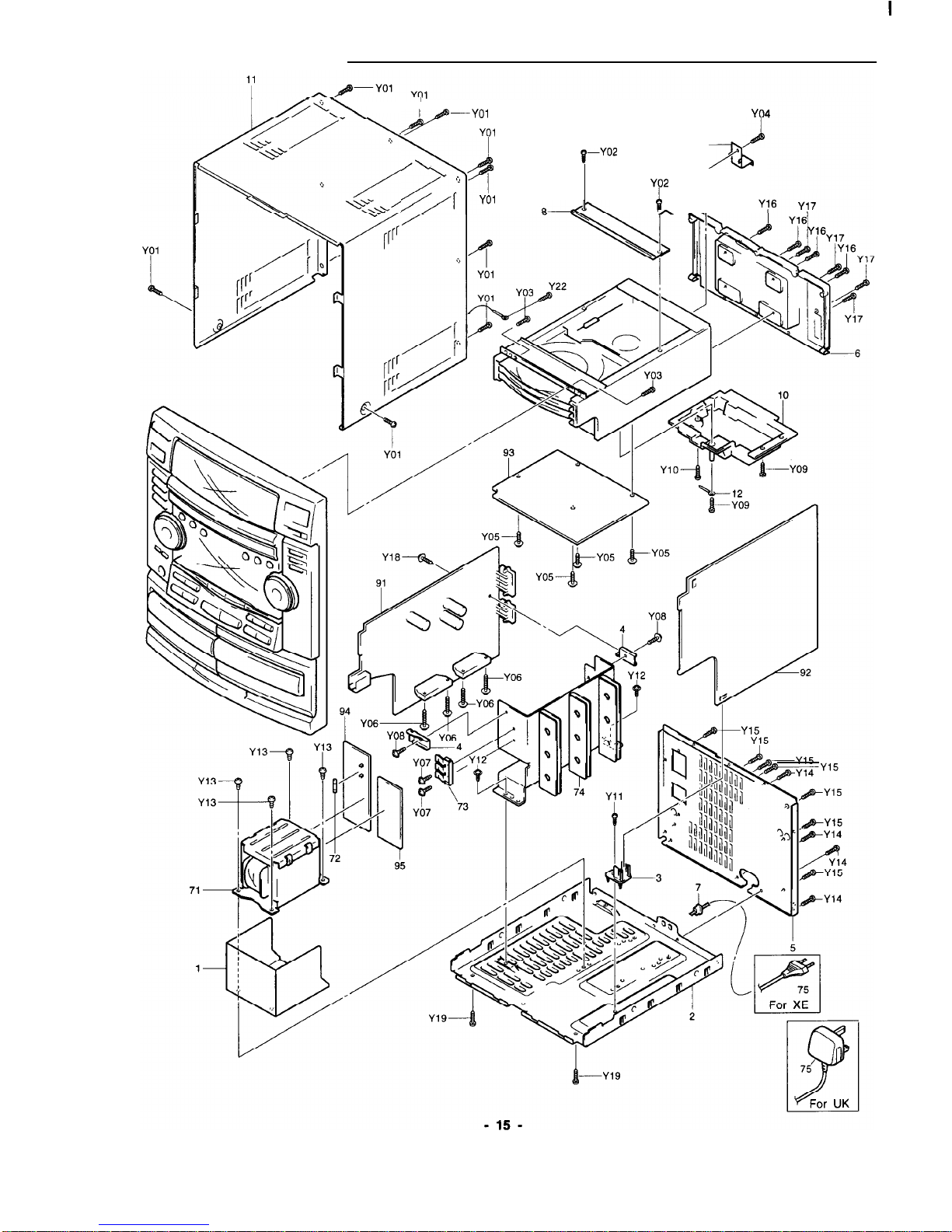

EXPLODEDVIEW(CABINET
81 CHASSIS) ..........................
15
r~------_------
_---
I
This service manual consists of “DC-F43OAVU”(Main unit), 1
“RB-F43ORD”(Remote control) and “SX-F430”(FrontSpeaker
I
II
I
system) and “SX-CE43O”(Center Speaker system) and “SX-
LSR430”(Surround Speaker system).
I
------------------
-l
PRODUCT CODE No.
129 530 06(UK)
129 530 07(XE)
PARTS LIST
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
EXPLODEDVIEW(TAPEMECHANISM)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
EXPLODED VIEW (CD CHANGER & BASE MECHANISM). 27
EXPLODED VIEW (CD CHANGERMECHANISM)
. . . . . . . . . . . . . . . 28
IC BLOCK DIAGRAM 81 DESCRIPTION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
IC & TRANSISTOR
VOLTAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
SCHEMATICDIAGRAM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
WIRING DIAGRAM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53
WIRING CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
63
IC
& TRANSISTOR
VOLTAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
64
REFERENCE No. SM580901

SPECIFICATIONS
Note:
The below mentioned specifications are mainly based on the IHF measurements Standard. They tan therefore not directly be
compared with specifications based on the DIN Standard or other Standards.
Tuner section
Ffv&. . :. : . : . : : ..........................
LW ..:.:.:..::::::::::::::::::::::::::
CD changer section
Type .................................
Channels ..........................
Sampling frequency .........
Pick-up
.............................
Laser output .....................
Wave length .....................
Frequency response ........
Wow and flutter ................
Cassette deck section
Track System: ..................
Frequency response ........
Signal-to-noise ratio .........
Wow and flutter ................
Fast forward and
rewind time ......................
Amplifier section
Output power
Main amplifier .................
Center amplifier ..............
Surround amplifier ..........
87.5 MHz - 108 MHz
522 kHz - 1611 kHz
144 - 288 kHz
Changer, 3-disc
2-channel stereo
44.1 kHz
Optical 3-beam semiconductor laser
O.GmW(Continuous wave max.)
790 nm
20 Hz to 20 kHz
Below measurable limits
4-track, 2-channel stereo
50 Hz to 15 kHz (Cr02 tape)
50 Hz to 14kHz(Normal tape)
60 dB(Doiby NR ON)
0.12% (WRMS)
Approx. 110 sec. (C-60)
40 W x 2 (at 1 kHz 6ohm.s 10%
distortion)
40 W (at 1 kHz 8 Ohms, 10%
distortion)
30Wx2(atlkHz16ohms,lO%
distortion)
Input level and impedance
VIDEO/DVD . . . . . . . . . . . . . . . . . . . . . 400 mV/50 kohm
Outputs: . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT SPEAKERS :6 ohm
CENTER SPEAKER :8 ohm
SURROUND SPEAKERS :16 ohm
PHONES :8 - 32 ohm
SUB WOOFER :lO kohm
Speaker Systems
FRONT SPEAKER SYSTEM(SX-F430)
Type ................................. 3 way bass reflex
Drivers ............................. Woofer
:
13 cm cone type
Midrange : 5 cm cone type
Tweeter : piezoelectric
Maximum power-handling
capacity ............................
80 Watts (peak)
Nominal impedance ......... 6 ohms
Dimensions (W x H x D) 210 x 330 x 240 (mm)
Weight .............................. 3.6 kg
CENTER SPEAKER SYSTEM(SX-CE430)
Type .................................
Bass reflex
Driver ............................... Full range, 10 cm
cone type
Maximum power-handling
capacity ............................
80 Watts (peak)
Nominal impedance ......... 8 ohms
Dimensions (W x H x D) . . 270 x 130 x 184 (mm)
Weight .............................. 1.4 kg
SURROUND SPEAKER SYSTEM(SXSR430)
Type ................................. Bass reflex
Driver ...............................
Full range,
10 cm cone type
Maximum power-handling
capacity ............................
40 Watts (peak)
Nominal impedance ......... 16 ohms
Dimensions (W x H x D) 210 x 130 x 162 (mm)
Weight .............................. 0.9 kg
General
Power requirements.. ....... 230 V AC, 50 Hz
Power consumption ......... 130 Watts
Dimensions (W x H x D) . . 27O(W) x 330(H) x 333(D) (mm)
Weight .............................. 9.8 kg
Specifications subject to Change without notice.
To achieve the best Sound Performance, select music sources which have
the 001 DOW SURROUND~~ mark.
Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D Symbol 00 and “PRO LOGIC” are trademarks of
Dolby Laboratories Licensing Corporation.
WHAT TO DO IF
lIf the Operation of the unit or display is not normal,or you
wish to clear the contents of the memory.
1. Disconnect the power cord’s plug from the electrical outlet.
2. Press the RESET button for at least 20 second.
3. Connect the power Cord.
4. Press the POWER button to turn the power on.
-1 -

LASER BEAM SAFETY PRECAUTION
l Pick-up that emits a laser beam is used in this CD player section.
DO not look directry at the laser beam coming from the pick-up
or allow it to Strike against your fingers, skin, etc. This model has a disc
chuck lever and top lid. This disc check
the laser beam for users.
INVISIBLE LASER RADIATION EXPOSURE TO BEAM IS DANGEROUS CLASS 1 LASER PRODUCT
OUTPUT POWER : 0.6 mW MAX
WAVELENGTH : 790 nm
CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
4
ADVARSEL- USYNLIG LASER STRALING VED ABNING NAR
SIKKERHEDSAFBRYDERE ER VDE AF FUNKTION, UNDGA UDS AllELSE
(XE)
VARNING - OSYNLIG LASER STRALNING NÄR DENNA DEL ÄR ÖPPNAD
-
OCH SPÄRR ÄR URKOPPLAD. STRALEN ÄR FARLIG.
DECKEL GEOFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. I
LUOKAN 1 LASERLAtTE
KIASS 1 LLISERAPPARPT
(XE)
4
REMOVAL & INSTALLATION
Press the “POWER” button and check that the STANDBY LED liohts.
Disconnect the power cord’s plug from the electrical outlet.
1. CABINET ASSEMBLY
1. Remove the 7 rear section mounting screws and 2 side
section mounting screws.(@)
2. Remove the CABINET ASSEMBLY in the direction of arrow.
(0)
2. CD MECHANISM BLOCK
1. Remove the 2 CD MECHANISM mounting screws.(a)
2. Remove the ANTENNA TERMINAL mounting screw.(@
3. Remove the 3 CD BACK PANEL mounting screws.(@)
4. Remove the rear Panel leck and CD P.W.board.(@,@)
All wiring should be returned to the original Position after work is completed.
First have ready may the new FIXERS(614 129 2496) for replaced.
Arrange the lead wires so that they are not near the heat sink.
-2-

REMOVAL & INSTALLATION
3. FRONT PANEL BLOCK
1. Remove the 2 FRONT PANEL mounting screws.@)
2. Remove the claw of PRE-AMPLIFIERP.W.Board.@)
4. CD MECHANISM
1. Remove the 4 CD MECHANISM mounting screws.@)
5. PRE-AMPLIFIER & POWER P.W.BOARDS
1. Remove the 2 REAR-SOCKET mounting screws.@)
2. Remove the PRE-AMPLIFIER P.W.board.(@)
3. Remove the 4 REAR-SOCKET mounting screws.(@)
4. Remove the 2 HEAT SINK mounting screws.(@)
5. Remove the POWER P.W.board.(@)
7. TAPE MECHANISM BLOCK
1. Open the 2 CASSETTE LIDS.(O)
2. Remove the 6 TAPE MECHANISM mounting screws.(@)
6. POWER TRANSFORMER
1. Remove the 4 POWER TRANSFORMER mounting screws.
(0)
2. Remove the POWER TRANSFORMER.(@)
8. WIRING LAYOUT
l Arrange the lead wires so that they are not near the
heat sink of the POEWR P.W.board.
POWER P.W.B
-3-

TUNER ADJUSTMENTS
l Use a plastic screw driver for adjustments.
l MODE : STEREO
l Speaker impedance : 6 ohm
l TUNING
FM : 87.5 - 108.0 MHz (50kHz step)
MW : 522 - 1710 kHz (9kHz step)
LW : 144 - 288 kHz (9kHz step)
L2154 L2153
pJ#
CT251 CT252
(&yF’l& ,/+J2104
+J2105
TPlP(E)’
C2805
rTp14(Tu R)
C2705
ITPI 3(TU L)
TP15(E)
SG RF Level : 75 open Voltage df3pV
Antenna : 75 unbalanced , Modulation : 1 kHz
Dev.
: -t22,5kHz(MONO) +22,5KHz(STEREO) +6.75KHz(PILOT)
l.FM
Step Adjusting Connection SG Set Adjustment Remark
Circuit Input Output Frequency Position
1 Cover
_-_
Connect Digital DC voltmeter to 87.5MHZ Low ---
more than 0.8 V
Voltage _-- TPl l(H), TP12(E). 108.0MHZ High --- less than 9.OV
2Tracking Connect FM SG to FM Antenna Connect to VTVM 90.1 MHZ Low ---
Max.
(SG=8dB p V) TPl3(L) orTP14(R), TPl5(E) lOG.lMHZ High ---
SG Modulation : 1 kHz, 30%
2.MW
Step Adjusting Connection
Circuit Input Output
An
Frequency
522kHZ
17lOkHZ
603KHZ
1404kHZ
enna, IRE Loop, Distance : 60 cm
Set Adjustment Remark
Position
Low L2153
vt=1.ov
High --- less than 9. OV
II
z+E-i Max’ I
Connect Digital DC voltmeter to
~
3.LW
Connect Digital DC voltmeter to

CD CHANGER OPERATION DESCRIPTION
l This set is capable of stocking and playing up to 3 CDs.
l While playing a CD, other discs can be replaced.
In this case, press the button for the disc No. you wish to remove, and then press the OPEN/CLOSE button.
l When the “POWER” button is turned off, the power turns off after the discs are loaded in the discs trays.
1. MOTOR &MECHANISM SWITCHES LAYOUT
r LOADlUNLOAD MOTOR
2. FUNCTION
(l)OPEN/CLOSE
1. The rotation of the OPEN/CLOSE MOTOR rotates the
OPEN/CLOSE IDLER GEAR via the BELT and PULLEY,
and the RACK GEAR which is intermeshed with the OPEN/
CLOSE IDLER GEAR moves forward during “OPEN”,
backwards during “CLOSE”.
l The HOME POSITION is reached when the largest square
hole in the UP/DOWN CAM GEAR is between the
SENSORS.
2. Rotate the UP/DOWN CAM GEAR counter-clockwise (with
OPEN/CLOSE during PLAY) or clockwise (with normal
OPEN/CLOSE), raise the GEAR-BLOCK BRACKET, stop
at the selected TRAY, hold the TRAY GUIDE by means of
the OPEN/CLOSE RACK and save the other TRAY
GUIDES.
3. The OPEN/CLOSE motor start running, the OPEN/CLOSE
RACK moves forward, the TRAY LOCK LEVER is raised to
lock the TRAY, and the OPEN operation commences.
GEAR-BLOCK
GEAR BLOCK BY
-UP/ DOWN
CAM GEAR 2
DRIVE GEAR 2
SLIDE

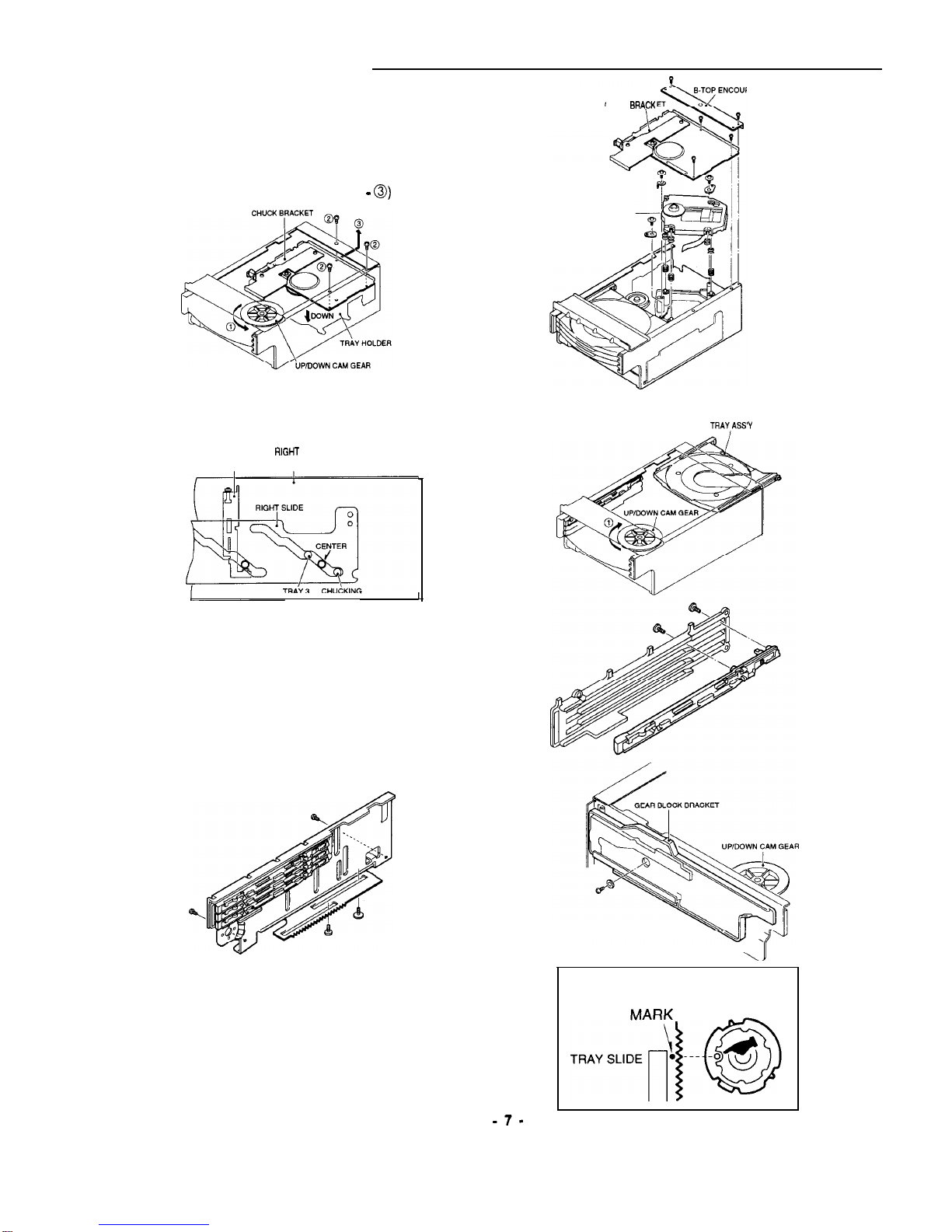

CD CAHNGER OPERATION DESCRIPTION
4. When the TRAY closes and it reaches the tip of RIB part of
LEFT TRAY GUIDE, the LOCK LEVER is lowered to release
the TRAY, and loading proceeds.
TRAY GUIDE HOLDER
LOCK LEVER IOPEN- CLOSE
(2)LOADING TRAY LOCK TRAYRELEASE

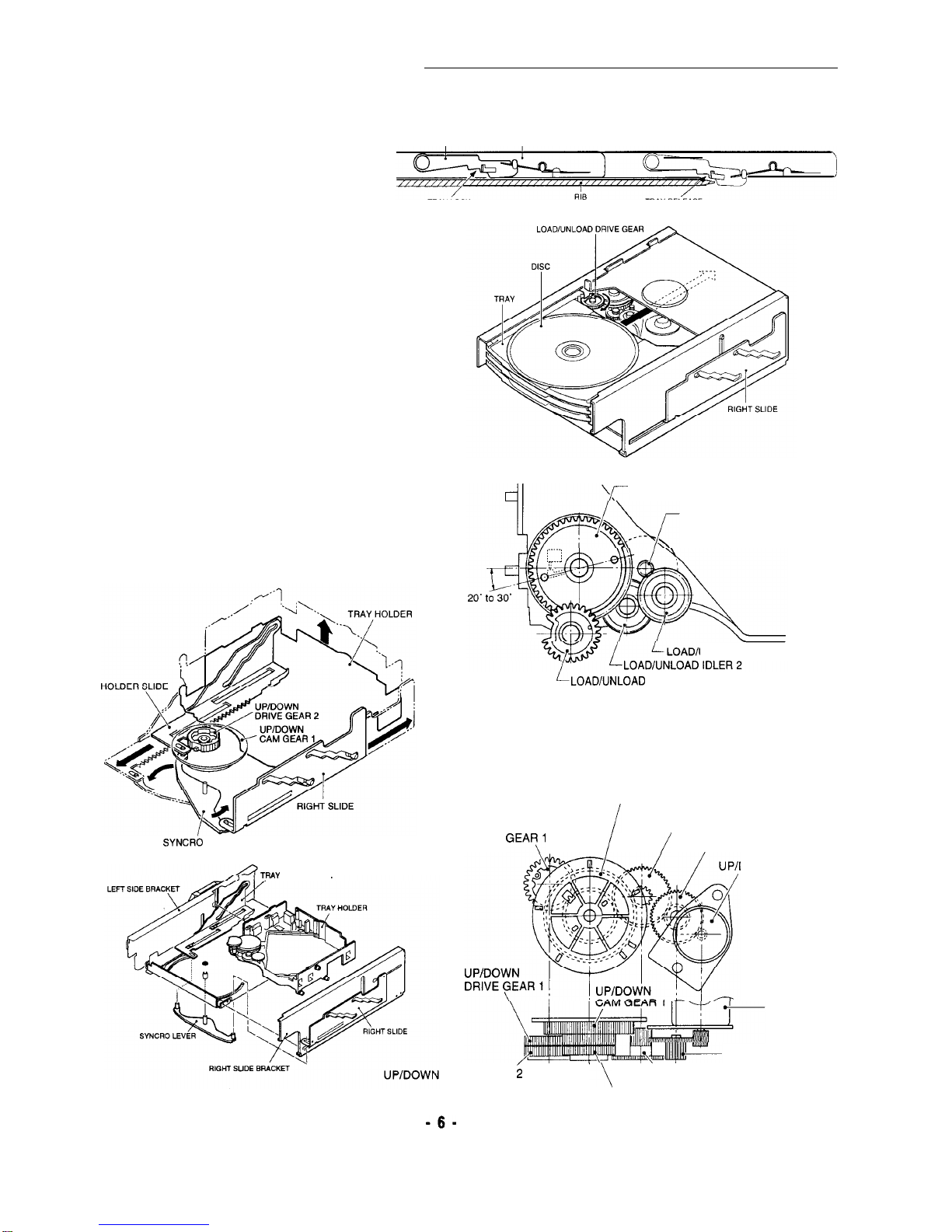

1. The rotation of the LOAD/UNLOAD MOTOR rotates the
LOAD/UNLOAD DRIVE GEAR in the clockwise direction.
2. The DRIVE GEAR and the gear portion of the TRAY
meshtogether and the TRAY movers backward.
3. The completion of TRAY movement causes the UP/DOWN
MOTOR to operate and lower the TRAY HOLDER putting
the until to chucking status.
4. The rotation of the UP/DOWN MOTOR rotates the UP/
DOWN GEAR in the counter-clockwise direction. In
connection with this, the TRAY HOLDER SLIDE moves
forward, and at the same time, the RIGHT SLIDE is moved
backwards by the SYNCHRO LEVER.
TRAY
SYNC& LEVER
TRAY HOLDER SLIDE
LOAD/UNLOAD CAM GEAR
LOAD/UNLOAD MOTOR
UNLOAD IDLER 1
lLOAD/UNLOAD DRIVE GEAR
UP/DOWN CAM GEAR 1
U/P/DOWN IDLER 2
UP/DOWN DRIVE GEAR,1
/ /
UP/DOWN IDLER 1
DOWN MOTOR
UP/DOWN
MOTOR
UP/DOWN IDLER 1
DRIVE GEAR i
‘\
\UP/DOWN IDLER 2
UP/DOWN CAM GEAR 2
-6-

CDCHANGERREPLACEMENT
1. LOAD/UNLOAD FUNCTION
1. Remove the B TOP ENCOURAGE.
2. Remove the CD MECHANISM.
2. HOW TO REMOVE THE TRAYS
1. Remove the CHUCK BRACKET.@ - 0)
2. Rotate the UP/DOWN CAM GEAR and position the collar
part of the TRAY HOLDER visible from the RIGHT SLIDE
at the midpoint between the CHUCKING and TRAY.
RIGKT SIDE
DISC STOPPER BRACKET
TRAY 3 CHUCKING
3. REPLACING THE TRAY GUIDE
l Have the LEFT TRAY GUIDE HOLDER and TRAY GUIDE
ready before proceeding.
1. Turn the UP/DOWN CAM GEAR and remove the setscrew
of the TRAY HOLDER from the hole in the GEAR BLOCK
BRACKET.
2. Turn the UP/DOWN CAM GEAR counter-clockwise as far
as it will go, and remove the SCREWS.
3. Remove the five setscrews of the LEFT TRAY
GUIDEHOLDER, and remove it in the direction of the arrow.
4. When assembling the parts, align the TRAY SLIDE and UP/
DOWN DRIVE GEAR.
RAGE
CHUCK SRACK
CD MECHANISM
3. Remove the three TRAYS through the gap at the back.
TRAY,ASSY
UP/DOWN
DRIVE GEAR
-7-

CD CHANGER REPLACEMENT
4. LEFT SLIDE BRACKET r---
-I OF THE LUBRICATION
L---J
__---------------
r Note: 1
I
I
EM-50L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MOLYKOTE,
EM-50L
I
SG-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAN SG-7
I
,
GREASE,
I
5. UP/DOWN CAM GEAR
6. SETTING UP THE LOAD/UNLOAD GEAR
7.
EM-SOL
P
LOAD/UNLOAD CAM GEAR
-LOAD/UNLOAD MOTOR
LOAD/UNLOAD IDLER 1
D/UNLOAD IDLER 2
LLOADIUNLOAD DRIVE GEAR
SETTING UP THE TRAY SLIDE AND UP/DOWN
DRIVE GEAR 2
1. Slide the TRAY SLIDE forward until it goes no further.
2. Align the round mark on the UP/DOWN DRIVE GEAR
2. with the mark area on the TRAY SLIDE, and install.
3. Align the shorter flat part of the UP/DOWN CAM GEAR
2, and install.
l Set the parts in such a way that the round marks on
the two GEARS are horizontal.
9. TRAY HOLDER
UP/DOWN DRIVE GEA
UP/DOWN CAM
LONG
GEAR 2
-8-

CDCHANGERREPLACEMENT
10. SETTING UP THE TRAY HOLDER AND UP/DOWN DRIVE GEAR
1. Loosen and install the SET SCREW of the SENSOR P.W.B.
2. Slide the TRAY HOLDER SLIDE forward until it goes no
further.
UP/DOWN DRIVE GEAR 1
3. Align the round mark on the UP/DOWN DRIVE GEAR 1
with the mark area on the TRAY HOLDER SLIDE, and install.
UP/DOWN CAM GEAR 2
4. Secure the screw.
l Set the parts in such a way that the round marks on the two
5. As shown in the figure, place the UP/DOWN DRIVE GEAR GEARS are horizontal.
2 and UP/DOWN CAM GEAR 2 insuch a way that they are
horizontal.
6. Align with the triangular mark through the hole through which
the UP/DOWN CAM GEAR 2 teeth are visible.
7. Secure the SCREW of the SENSOR and GEAR.
11. TRAY HOLDER SLIDE
UP/DOWN MOTOR ASSY-
10.5mm
Liii
--I-
(6142870440)
CD MECHANISM ADJUSTMENTS
1. REPLACEMENT AND LUBRICATION OF THE CD MECHANISM
----------------7
rNote:
I
EMdOL MOLYKOTE, EMdOL
I
I
SG-7 SAN GREASE, SG-7
I
CONNECTOR
I
G-4748 FLOIL OIL, G-4748
SPINDLE MOTOR
SLED RETARD GEAR 2
+L”
SLED MOTOR
-PICK RACK GEAR
MOTOR &LIMIT SW P.W.6
BASE MECHANISM
SLED
+PLUS MARK +PLUS MARK
