Sanyo DC-MV20 User manual

FILE .NO
DC-MV20 /SS
Service Manual Micro Component System
PRODUCT CODE No.
1 164 030 56 DC-MV20/SS
REFERENCE No. SM3700001
DC-AX20 /AU
1 164 030 57 DC-AX20/AU
DC-MV20/SS
DC-AX20/AU
All manuals and user guides at all-guides.com
all-guides.com

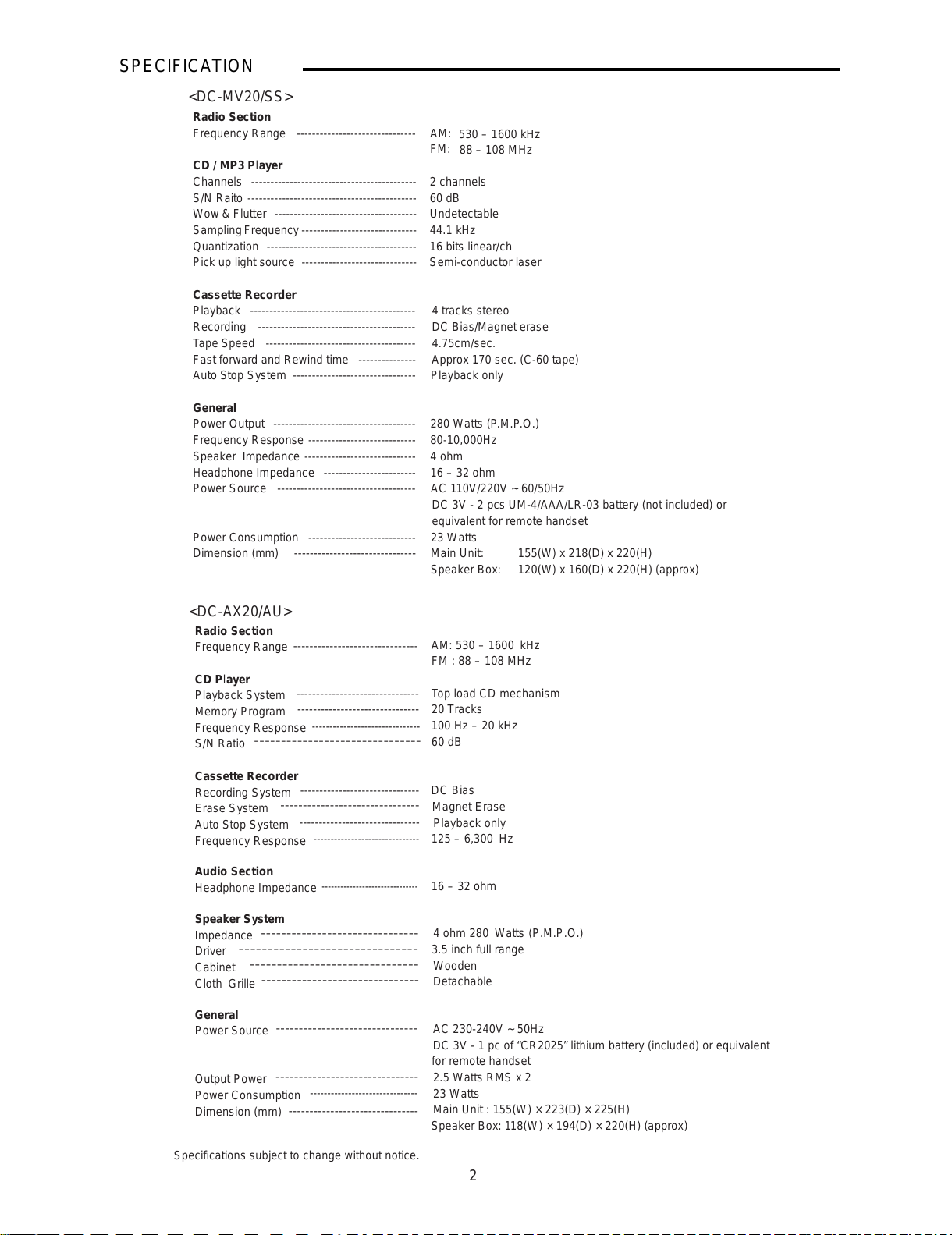

SPECIFICATION
2
Radio Section
Frequency Range ------------------------------- AM: 530 – 1600 kHz
FM: 88 – 108 MHz
CD / MP3 Player
Channels ------------------------------------------- 2 channels
S/N Raito -------------------------------------------- 60 dB
Wow & Flutter ------------------------------------- Undetectable
SamplingFrequency ------------------------------ 44.1 kHz
Quantization --------------------------------------- 16 bits linear/ch
Pick up light source ------------------------------ Semi-conductor laser
Cassette Recorder
Playback ------------------------------------------- 4 tracks stereo
Recording ----------------------------------------- DC Bias/Magnet erase
Tape Speed --------------------------------------- 4.75cm/sec.
Fast forward and Rewind time --------------- Approx 170 sec. (C-60 tape)
Auto Stop System -------------------------------- Playback only
General
Power Output ------------------------------------- 280 Watts (P.M.P.O.)
Frequency Response ---------------------------- 80-10,000Hz
Speaker Impedance ----------------------------- 4 ohm
Headphone Impedance ------------------------ 16 – 32 ohm
Power Source ------------------------------------ AC 110V/220V ~ 60/50Hz
DC 3V - 2 pcs UM-4/AAA/LR-03 battery (not included) or
equivalent for remote handset
Power Consumption ---------------------------- 23 Watts
Dimension (mm) Main Unit: 155(W) x 218(D) x 220(H)
Speaker Box: 120(W) x 160(D) x 220(H) (approx)
Radio Section
Frequency Range AM: 530 – 1600 kHz
FM : 88 – 108 MHz
CD Player
Playback System Top load CD mechanism
Memory Program 20 Tracks
Frequency Response 100 Hz – 20 kHz
S/NRatio 60dB
Cassette Recorder
RecordingSystem DCBias
Erase System Magnet Erase
AutoStopSystem Playbackonly
Frequency Response 125 – 6,300 Hz
Audio Section
Headphone Impedance 16 – 32 ohm
Speaker System
Impedance 4 ohm 280 Watts (P.M.P.O.)
Driver 3.5 inch full range
Cabinet Wooden
Cloth Grille Detachable
General
PowerSource AC230-240V ~ 50Hz
DC 3V - 1 pc of “CR2025” lithium battery (included) or equivalent
for remote handset
Output Power 2.5 Watts RMS x 2
Power Consumption 23 Watts
Dimension (mm) Main Unit : 155(W) × 223(D) × 225(H)
Speaker Box: 118(W) × 194(D) × 220(H) (approx)
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
-------------------------------
<DC-AX20/AU>
<DC-MV20/SS>
Specifications subject to change without notice.
-------------------------------
-------------------------------
-------------------------------
All manuals and user guides at all-guides.com

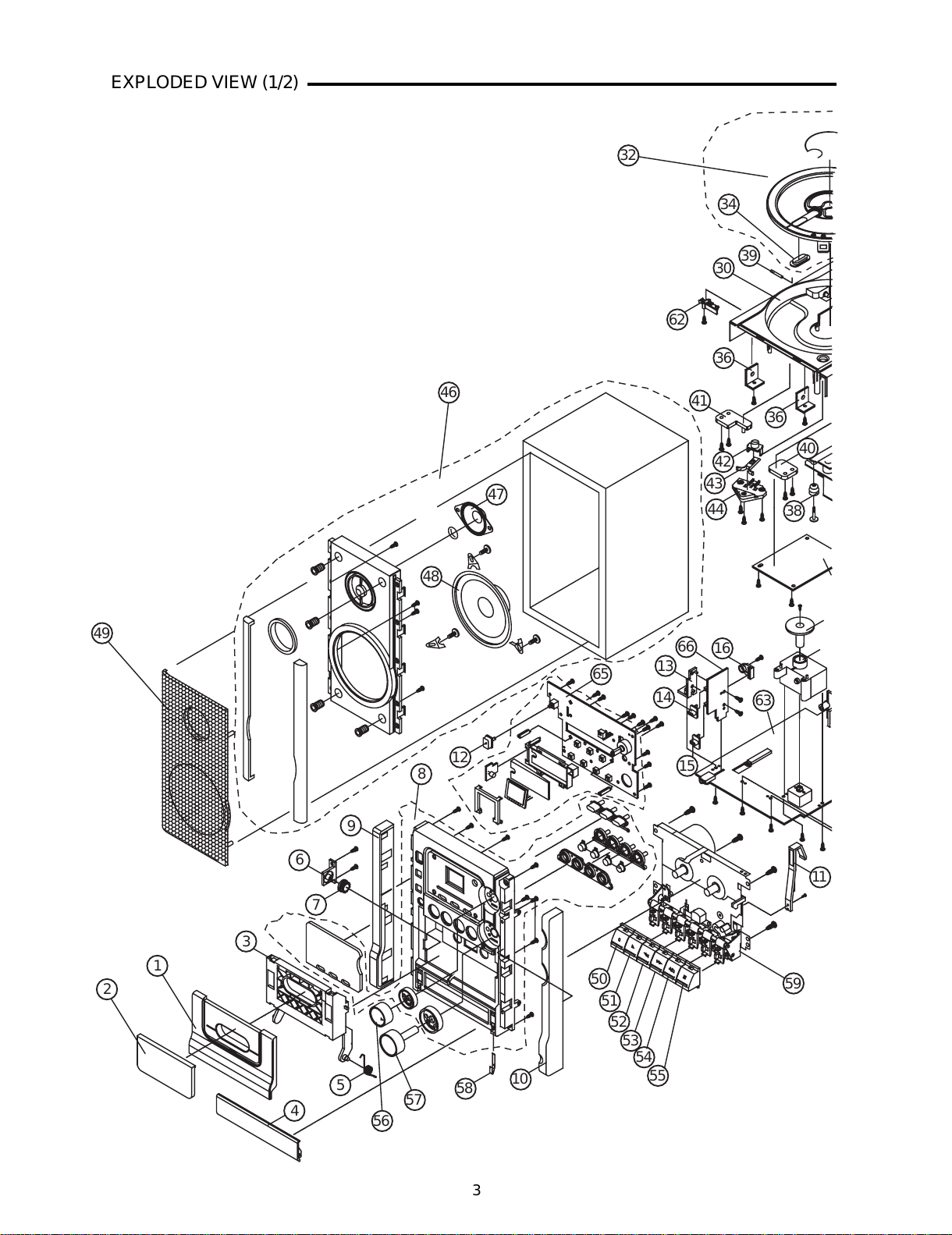

EXPLODED VIEW (1/2)
3
1
10
3
2
4
5
6
7
8
9
11
12
13
14
15
16
42
34
43
46
47
48
44
30
32
41
40
51
52
535455
59
62
63
65
66
36
36
38
39
50
49
58
57
56
All manuals and user guides at all-guides.com

EXPLODED VIEW (2/2)
4
11
13
14
15
17
18
19
20
16
23
24
25
26
27 28
29
731
42
33
34 35
36
37
38
39
43
45
21
22
44
30
32
41
40
51
52
535455
59
60
61
62
63
64
65
66
25
25
36
36
36
38
39
50
All manuals and user guides at all-guides.com

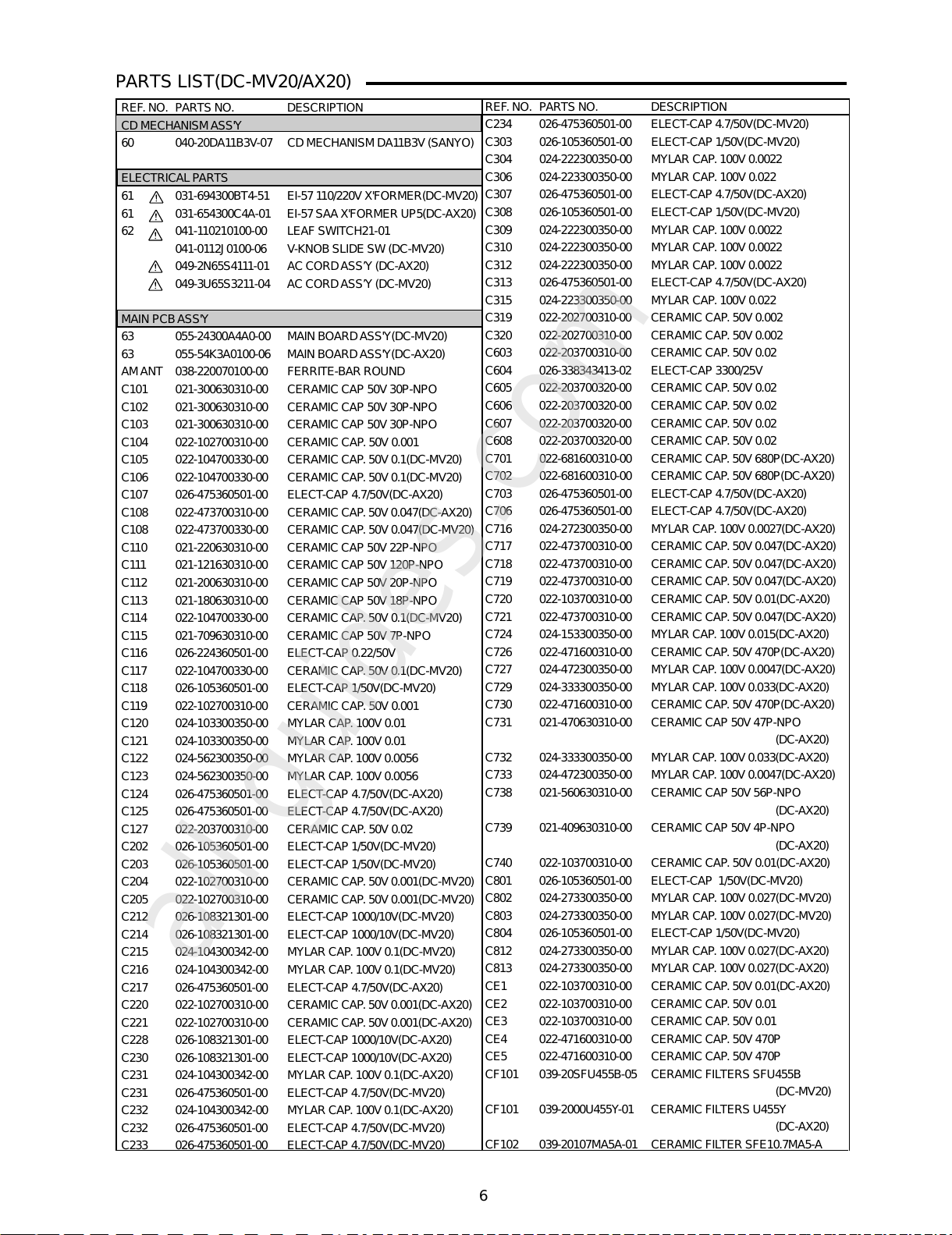

PARTS LIST(DC-MV20/AX20)
5
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL IN THE PARTS LISTAND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICE SAFETY CAN BE OF
SPECIAL SIGNIFICANCE. WHEN REPLACINGACOMPONENT IDENTIFIED BY , USE ONLY THE REPLACEMENT PARTS DESIG-
NATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THATARE DESIGNATED IN THE PARTS
LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EX-
POSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUS-
TOMER.
Regular type resistors and capacitors are not listed.To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
REF. NO. PARTS NO. DESCRIPTION
PACKING & ACCESSORIES
044-201415010-09 3C 3Px1500 RCACONNECTOR
(DC-MV20)
170-114300820-00 CD PROTECTIVE CARD
172-1004K3A50-SY GIFT BOX (DC-AX20)
172-100043000-SY GIFT BOX (DC-MV20)
172-4074K3A50-SY INSTRUCTION BOOK (DC-AX20)
172-4074300V0-SY INSTRUCTION BOOK (DC-MV20)
060-120508700-01 REMOTE CONTROL (DC-AX20)
060-104657U01-04 REMOTE CONTROL (DC-MV20)
152-304300A00-00 REMOCON BATT LID (DC-AX20)
152-304300V00-00 REMOCON BATT LID (DC-MV20)
FRONT PANEL& CABINET
1 152-204300A00-00 CASSETTE DOOR (DC-AX20)
1 152-204300V00-00 CASSETTE DOOR (DC-MV20)
2 160-204300A00-00 CASSETTE LENS
3 154-074300A00-00 CASSETTE DOOR BRACKET
4 152-B04300A00-00 CASSETTE KNOB DOOR
5 102-04300A001-LC CASSETTE DOOR SPRING
6 154-084300A01-00 CASSETTE DOOR GEAR BRACKET
7 162-004300A00-00 GEAR
8 150-F00430000-00 FRONT CABINETASS’Y
9 152-404300A02-00 MAIN UNIT DECORATION BAR-L
10 152-404300A04-00 MAIN UNIT DECORATION BAR-R
11 152-504300A01-00 RECORDARM
12 156-514300A00-00 POWER KNOB
13 154-044300A00-00 PCB BRACKET
14 156-174300A00-00 SLIDE KNOB - FUNCTION
15 156-154300A00-00 SLIDE KNOB - BAND
16 154-044300A01-00 PCB PRESSING BRACKET
17 154-084300A02-00 PVC GEAR BRACKET
18 162-004300A03-00 PVC GEAR
19 154-164300A00-00 DIAL POINTER BRACKET
20 162-014300A00-00 DIAL POINTER
21 162-004300A01-00 CONNECTING GEAR
22 162-004300A02-00 DIAL DRUM
23 150-0304300A0-00 REAR CABINET
24 152-504300A00-00 AC CORD FIXING PLATE
25 166-030900030-01 HEAD RUBBER FOOT D9.5
26 166-410190123-00 VOLTAGE SELECTOR PLATE
(DC-AX20)
26 170-41430V110-00 VOLTAGE SELECTION LABEL
(DC-MV20)
27 171-124300A00-SY RATING PLATE (DC-AX20)
REF. NO. PARTS NO. DESCRIPTION
27 171-124300V00-SY RATING LABEL (DC-MV20)
28 166-410420203-00 PVC PLATE (DC-AX20)
28 166-410420203-01 PVC PLATE (DC-MV20)
29 166-41285A000-01 PVC PLATE - FM ANT
30 150-0204300A0-00 TOP CABINET
31 102-04300A000-LC CD DOOR SPRING
32 152-D00430000-00 CD DOOR ASS’Y
33 N.S.P. CD DOOR DECORATION PLATE
34 N.S.P. CD DOOR LENS
35 154-084300A00-00 CD GEAR BRACKET
36 156-704300A00-00 TOP CABINETADAPTER
37 040-023100600-11 CD CUSHION RUBBER 30C RED
38 040-023200700-11 CD CUSHION RUBBER 40C GREEN
39 116-1009K1301-00 SHAFT -210 CD9K1
40 154-044300A02-00 MP3 PCB BRACKET - 1 (DC-MV20)
41 154-044300A03-00 MP3 PCB BRACKET - 2 (DC-MV20)
42 156-164300A00-00 CD OPEN DOOR KNOB
43 154-134300A00-00 CD DOOR LOCK PLATE
44 154-104300A00-00 CD DOOR LOCK BRACKET
45 162-020003031-00 CD MECHANISM DUST COVER
46 150-804300A00-00 SPEAKER BOXASS'Y(DC-AX20)
46 150-804300V00-00 SPEAKER BOXASS'Y (DC-MV20)
47 N.S.P. FAKE SPEAKER
48 N.S.P. SPEAKER 4 OHM 3.5' 8W
49 150-B04300A01-00 SPEAKER NETASS’Y-L(DC-AX20)
49 150-B04300A02-00 SPEAKER NETASS’Y-R(DC-AX20)
49 150-B04300V01-00 SPEAKER NETASS’Y-L(DC-MV20)
49 150-B04300V02-00 SPEAKER NETASS’Y-R(DC-MV20)
50 156-314300A00-00 CASSETTE KEY RECORD
51 156-324300A00-00 CASSETTE KEY PLAY
52 156-334300A00-00 CASSETTE KEY REWIND
53 156-344300A00-00 CASSETTE KEY FAST FORWORD
54 156-354300A00-00 CASSETTE KEY STOP/EJECT
55 156-364300A00-00 CASSETTE KEY PAUSE
56 156-124300A00-00 VOL KNOB
57 156-114300A00-00 TUNING KNOB
58 102-804300000-YJ CASS.KNOB DOOR SP PLATE
032-040080040-00 FERRITE RING
CASSETTE MECHANISMASS'Y
59 040-11SC3045P-02 DECK MECHANISM THL-21SC-3045P
RPH HEAD RPH HEAD
EH HEAD EH HEAD
DECK MOTOR DECK MOTOR
MOTOR BELT MOTOR BELT
All manuals and user guides at all-guides.com

PARTS LIST(DC-MV20/AX20)
6
REF. NO. PARTS NO. DESCRIPTION
C234 026-475360501-00 ELECT-CAP 4.7/50V(DC-MV20)
C303 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C304 024-222300350-00 MYLAR CAP. 100V 0.0022
C306 024-223300350-00 MYLAR CAP. 100V 0.022
C307 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C308 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C309 024-222300350-00 MYLAR CAP. 100V 0.0022
C310 024-222300350-00 MYLAR CAP. 100V 0.0022
C312 024-222300350-00 MYLAR CAP. 100V 0.0022
C313 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C315 024-223300350-00 MYLAR CAP. 100V 0.022
C319 022-202700310-00 CERAMIC CAP. 50V 0.002
C320 022-202700310-00 CERAMIC CAP. 50V 0.002
C603 022-203700310-00 CERAMIC CAP. 50V 0.02
C604 026-338343413-02 ELECT-CAP 3300/25V
C605 022-203700320-00 CERAMIC CAP. 50V 0.02
C606 022-203700320-00 CERAMIC CAP. 50V 0.02
C607 022-203700320-00 CERAMIC CAP. 50V 0.02
C608 022-203700320-00 CERAMIC CAP. 50V 0.02
C701 022-681600310-00 CERAMIC CAP. 50V 680P(DC-AX20)
C702 022-681600310-00 CERAMIC CAP. 50V 680P(DC-AX20)
C703 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C706 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C716 024-272300350-00 MYLAR CAP. 100V 0.0027(DC-AX20)
C717 022-473700310-00 CERAMIC CAP. 50V 0.047(DC-AX20)
C718 022-473700310-00 CERAMIC CAP. 50V 0.047(DC-AX20)
C719 022-473700310-00 CERAMIC CAP. 50V 0.047(DC-AX20)
C720 022-103700310-00 CERAMIC CAP. 50V 0.01(DC-AX20)
C721 022-473700310-00 CERAMIC CAP. 50V 0.047(DC-AX20)
C724 024-153300350-00 MYLAR CAP. 100V 0.015(DC-AX20)
C726 022-471600310-00 CERAMIC CAP. 50V 470P(DC-AX20)
C727 024-472300350-00 MYLAR CAP. 100V 0.0047(DC-AX20)
C729 024-333300350-00 MYLAR CAP. 100V 0.033(DC-AX20)
C730 022-471600310-00 CERAMIC CAP. 50V 470P(DC-AX20)
C731 021-470630310-00 CERAMIC CAP 50V 47P-NPO
(DC-AX20)
C732 024-333300350-00 MYLAR CAP. 100V 0.033(DC-AX20)
C733 024-472300350-00 MYLAR CAP. 100V 0.0047(DC-AX20)
C738 021-560630310-00 CERAMIC CAP 50V 56P-NPO
(DC-AX20)
C739 021-409630310-00 CERAMIC CAP 50V 4P-NPO
(DC-AX20)
C740 022-103700310-00 CERAMIC CAP. 50V 0.01(DC-AX20)
C801 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C802 024-273300350-00 MYLAR CAP. 100V 0.027(DC-MV20)
C803 024-273300350-00 MYLAR CAP. 100V 0.027(DC-MV20)
C804 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C812 024-273300350-00 MYLAR CAP. 100V 0.027(DC-AX20)
C813 024-273300350-00 MYLAR CAP. 100V 0.027(DC-AX20)
CE1 022-103700310-00 CERAMIC CAP. 50V 0.01(DC-AX20)
CE2 022-103700310-00 CERAMIC CAP. 50V 0.01
CE3 022-103700310-00 CERAMIC CAP. 50V 0.01
CE4 022-471600310-00 CERAMIC CAP. 50V 470P
CE5 022-471600310-00 CERAMIC CAP. 50V 470P
CF101 039-20SFU455B-05 CERAMIC FILTERS SFU455B
(DC-MV20)
CF101 039-2000U455Y-01 CERAMIC FILTERS U455Y
(DC-AX20)
CF102 039-20107MA5A-01 CERAMIC FILTER SFE10.7MA5-A
REF. NO. PARTS NO. DESCRIPTION
CD MECHANISMASS'Y
60 040-20DA11B3V-07 CD MECHANISM DA11B3V (SANYO)
ELECTRICAL PARTS
61 031-694300BT4-51 EI-57 110/220V X'FORMER(DC-MV20)
61 031-654300C4A-01 EI-57 SAA X'FORMER UP5(DC-AX20)
62 041-110210100-00 LEAF SWITCH21-01
041-0112J0100-06 V-KNOB SLIDE SW (DC-MV20)
049-2N65S4111-01 AC CORD ASS’Y (DC-AX20)
049-3U65S3211-04 AC CORD ASS’Y (DC-MV20)
MAIN PCBASS'Y
63 055-24300A4A0-00 MAIN BOARDASS'Y(DC-MV20)
63 055-54K3A0100-06 MAIN BOARD ASS'Y(DC-AX20)
AMANT 038-220070100-00 FERRITE-BAR ROUND
C101 021-300630310-00 CERAMIC CAP 50V 30P-NPO
C102 021-300630310-00 CERAMIC CAP 50V 30P-NPO
C103 021-300630310-00 CERAMIC CAP 50V 30P-NPO
C104 022-102700310-00 CERAMIC CAP. 50V 0.001
C105 022-104700330-00 CERAMIC CAP. 50V 0.1(DC-MV20)
C106 022-104700330-00 CERAMIC CAP. 50V 0.1(DC-MV20)
C107 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C108 022-473700310-00 CERAMIC CAP. 50V 0.047(DC-AX20)
C108 022-473700330-00 CERAMIC CAP. 50V 0.047(DC-MV20)
C110 021-220630310-00 CERAMIC CAP 50V 22P-NPO
C111 021-121630310-00 CERAMIC CAP 50V 120P-NPO
C112 021-200630310-00 CERAMIC CAP 50V 20P-NPO
C113 021-180630310-00 CERAMIC CAP 50V 18P-NPO
C114 022-104700330-00 CERAMIC CAP. 50V 0.1(DC-MV20)
C115 021-709630310-00 CERAMIC CAP 50V 7P-NPO
C116 026-224360501-00 ELECT-CAP 0.22/50V
C117 022-104700330-00 CERAMIC CAP. 50V 0.1(DC-MV20)
C118 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C119 022-102700310-00 CERAMIC CAP. 50V 0.001
C120 024-103300350-00 MYLAR CAP. 100V 0.01
C121 024-103300350-00 MYLAR CAP. 100V 0.01
C122 024-562300350-00 MYLAR CAP. 100V 0.0056
C123 024-562300350-00 MYLAR CAP. 100V 0.0056
C124 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C125 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C127 022-203700310-00 CERAMIC CAP. 50V 0.02
C202 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C203 026-105360501-00 ELECT-CAP 1/50V(DC-MV20)
C204 022-102700310-00 CERAMIC CAP. 50V 0.001(DC-MV20)
C205 022-102700310-00 CERAMIC CAP. 50V 0.001(DC-MV20)
C212 026-108321301-00 ELECT-CAP 1000/10V(DC-MV20)
C214 026-108321301-00 ELECT-CAP 1000/10V(DC-MV20)
C215 024-104300342-00 MYLAR CAP. 100V 0.1(DC-MV20)
C216 024-104300342-00 MYLAR CAP. 100V 0.1(DC-MV20)
C217 026-475360501-00 ELECT-CAP 4.7/50V(DC-AX20)
C220 022-102700310-00 CERAMIC CAP. 50V 0.001(DC-AX20)
C221 022-102700310-00 CERAMIC CAP. 50V 0.001(DC-AX20)
C228 026-108321301-00 ELECT-CAP 1000/10V(DC-AX20)
C230 026-108321301-00 ELECT-CAP 1000/10V(DC-AX20)
C231 024-104300342-00 MYLAR CAP. 100V 0.1(DC-AX20)
C231 026-475360501-00 ELECT-CAP 4.7/50V(DC-MV20)
C232 024-104300342-00 MYLAR CAP. 100V 0.1(DC-AX20)
C232 026-475360501-00 ELECT-CAP 4.7/50V(DC-MV20)
C233 026-475360501-00 ELECT-CAP 4.7/50V(DC-MV20)
All manuals and user guides at all-guides.com
all-guides.com

PARTS LIST(DC-MV20/AX20)
7
REF. NO. PARTS NO. DESCRIPTION
CN102 043-560233001-00 WAFER 2PX2MM CN2-2-V
CN302 043-560333001-00 WAFER 3PX2MM CN3-2-V
CN303 043-560443002-00 WAFER 4PX2.5MM CN4-2.5-V
CN601 043-560243002-00 WAFER 2PX2.5MM CN2-2.5-V
(DC-MV20)
CN602 043-560243002-00 WAFER 2PX2.5MM CN2-2.5-V
(DC-AX20)
CN702 043-560933001-00 WAFER 9PX2MM CN9-2-V(DC-AX20)
CN703 043-560233001-00 WAFER 2PX2MM CN2-2-V(DC-AX20)
CN704 043-560733001-00 WAFER 7PX2MM CN7-2-V
CN705 043-560633001-00 WAFER 6PX2MM CN6-2-V(DC-AX20)
CN706 043-561613005-00 WAFER 16PX1MM CN16-1-V
(DC-AX20)
CN801 043-560533001-00 WAFER 5PX2MM CN5-2-V
CN802 043-560533001-00 WAFER 5PX2MM CN5-2-V(DC-AX20)
CNP1 043-560233001-00 WAFER 2PX2MM CN2-2-V(DC-MV20)
CNP3 043-560633001-00 WAFER 6PX2MM CN6-2-V(DC-MV20)
D101 001-100IN4148-00 DIODE IN4148
D202 001-100IN4148-00 DIODE IN4148(DC-MV20)
D203 001-100IN4148-00 DIODE IN4148(DC-MV20)
D204 001-100IN4148-00 DIODE IN4148(DC-AX20)
D302 001-100IN4148-00 DIODE IN4148(DC-AX20)
D303 001-100IN4148-00 DIODE IN4148
D601 002-100IN5392-00 RECRIFIER IN5392
D602 002-100IN5392-00 RECRIFIER IN5392
D603 002-100IN5392-00 RECRIFIER IN5392
D604 002-100IN5392-00 RECRIFIER IN5392
D802 001-100IN4148-00 DIODE IN4148
D803 001-100IN4148-00 DIODE IN4148
FS601 053-240131231-01 GLASS FUSE T3.15A/250V
IC101 009-000SA2111-64 IC 24-DIP SA2111
IC201 009-000BA5417-05 IC 15-SIP BA5417
IC301 009-00LS22241-46 IC 9-SIP LS22241
IC701 009-4A29FB008-14 IC TC94A29FB-008(DC-AX20)
IC702 009-0SA1469PH-64 IC SA1469PH SOP-28 3V3(DC-AX20)
IC703 009-0TA2157FN-02 IC QFP TA2157FN(DC-AX20)
JK201 043-50KX35332-15 HEAD-PHONE SOCKET 7P
JK202 043-57022V320-01 SPEAKER TERMINAL
JK230 043-5310V1040-15 RCA SOCKET RCA-310V(DC-MV20)
L101 036-015004108-00 AIR COILS CLOCKWISE-V 5.0X4.5T
L102 036-015002108-00 AIR COILS CLOCKWISE-V 5.0X2.5T
L103 036-014503108-00 AIR COILS CLOCKWISE-V 4.5X3.5T
L104 038-021152077-20 L115-20-M3 MW COIL100x4
(DC-MV20)
L201 032-110330031-00 FERRITE W/WIRE 3.5T-BEAD
(DC-AX20)
L202 032-110330031-00 FERRITE W/WIRE 3.5T-BEAD
(DC-AX20)
L203 032-146015202-04 FERRITE CORE 5T 46uH(DC-MV20)
L203 032-110330031-00 FERRITE W/WIRE 3.5T-BEAD
(DC-AX20)
L204 037-90DRWW512-04 AXIALTYPE COIL 8uH(DC-AX20)
L206 037-90DRWW512-04 AXIALTYPE COIL 8uH(DC-AX20)
L233 032-146015202-04 FERRITE CORE 5T 46uH(DC-MV20)
L234 032-146015202-04 FERRITE CORE 5T 46uH(DC-MV20)
L701 037-010000001-00 FIXED INDUCTANCE 10uH(DC-AX20)
L702 037-115000002-00 COIL 15uH-CHOKE(DC-AX20)
Q201 005-100090143-00 NPN TRANSISTOR C9014C
Q202 005-100090143-00 NPN TRANSISTOR C9014C
REF. NO. PARTS NO. DESCRIPTION
Q203 005-100090143-00 NPN TRANSISTOR C9014C
Q204 005-100008822-02 NPN TRANSISTOR SECD882P
(DC-MV20)
Q204 005-100090143-00 NPN TRANSISTOR C9014C
(DC-AX20)
Q205 005-100090143-00 NPN TRANSISTOR C9014C
Q206 005-100090143-00 NPN TRANSISTOR C9014C
Q207 005-100008822-02 NPN TRANSISTOR SECD882P
(DC-AX20)
Q231 005-100090143-00 NPN TRANSISTOR C9014C
(DC-MV20)
Q232 005-100090143-00 NPN TRANSISTOR C9014C
(DC-MV20)
Q233 005-100090143-00 NPN TRANSISTOR C9014C
(DC-MV20)
Q234 005-100090143-00 NPN TRANSISTOR C9014C
(DC-MV20)
Q301 005-100090143-00 NPN TRANSISTOR C9014C
Q302 005-100090143-00 NPN TRANSISTOR C9014C
Q303 005-100090143-00 NPN TRANSISTOR C9014C
Q701 005-200007645-00 PNPTRANSISTOR B764E (DC-AX20)
Q702 005-200090153-00 PNP TRANSISTOR C9015C(DC-AX20)
Q801 005-100090143-00 NPN TRANSISTOR C9014C
Q802 005-100090143-00 NPN TRANSISTOR C9014C
Q803 005-100090143-00 NPN TRANSISTOR C9014C
Q807 005-100090143-00 NPN TRANSISTOR C9014C
SW301 041-0302D0190-01 PUSH SLIDE SW 10P2T
T101 035-24000012R-04 AM RED OSC 10MM 12R
T102 034-34000CR2Y-04 AM IFT YELLOW 10MM CR2Y
T103 034-54000CR2P-04 FM IFT PINK 10MM CR2P
VC101 029-1020ST203-01 PVC 20X2/126X2 ST-203
X701 039-5TT1693MX-57 RESONATOR ZTT16.93MX3PIN
(DC-AX20)
ZD201 001-000000082-00 ZENER DIODE 1/2W 8V2
ZD301 001-000000062-00 ZENER DIODE 1/2W 6V2
190-602200587-06 UL2547 3P SHIELD L=200
185-L46230020-66 UL2651 2P FLAT CABLE L=230
(DC-MV20)
185-K46220060-66 UL2651 6P FLAT CABLE L=220
(DC-MV20)
185-947120060-46 UL1571 6P W/D-HSNG L=130
185-K46180090-66 UL2651 FLAT CABLE 9P L=180
(DC-AX20)
VCD PCBASS'Y(DC-MV20)
64 055-54300A400-00 VCD BOARDASS'Y
C705 025-6836003D2-00 CHIP CAP. 50V 0.068
C706 025-2236003D2-00 CHIP CAP. 50V 0.022
C710 025-4714003D2-00 CHIP CAP. 50V 470P
C712 025-4714003D2-00 CHIP CAP. 50V 470P
C720 025-68160002D-20 CHIP CAP. 50V 680P
C721 025-1014003D2-00 CHIP CAP. 50V 100P
C722 025-1024003D2-00 CHIP CAP. 50V 0.001
C723 025-1536003D2-00 CHIP CAP. 50V 0.015
C724 025-1024003D2-00 CHIP CAP. 50V 0.001
C725 025-1524003D2-00 CHIP CAP. 50V 0.0015
C730 025-1034003D2-00 CHIP CAP. 50V 0.01
C762 025-5116002D2-00 CHIP CAP. 50V 510P
C766 025-6836003D2-00 CHIP CAP. 50V 0.068
All manuals and user guides at all-guides.com

PARTS LIST(DC-MV20/AX20)
8
REF. NO. PARTS NO. DESCRIPTION
C778 025-1006002D2-00 CHIP CAP. 50V 10P
C788 025-4714003D2-00 CHIP CAP. 50V 470P
C789 025-3304003D2-00 CHIP CAP. 50V 33P
C790 025-3304003D2-00 CHIP CAP. 50V 33P
C791 025-1006002D2-00 CHIP CAP. 50V10P
C794 025-1024003D2-00 CHIP CAP. 50V 0.001
C797 025-1024003D2-00 CHIP CAP. 50V 0.001
CN701 043-561613005-00 WAFER 16PX1MM CN16-1-V
CN702 043-560634003-00 WAFER 6PX2MM CN6-2-H
CN703 043-560234003-00 WAFER 2PX2MM CN2-2-H
CN705 043-560633001-00 WAFER 6PX2MM CN6-2-V
CN706 043-560534003-00 WAFER 5PX2MM CN5-2-H
CN708 043-560234003-00 WAFER 2PX2MM CN2-2-H
CN710 043-560634003-00 WAFER 6PX2MM CN6-2-H
D701 001-100IN4148-00 DIODE IN4148
D703 002-100IN4001-00 RECTIFIER IN4001
D705 001-100IN4148-00 DIODE IN4148
IC701 009-00C7D3059-19 IC QFP120-0.5 CXD3059
IC702 009-000AD6392-61 IC 28-QFPAD6392
IC703 009-0UTC11170-18 IC SOT UTC1117
IC704 009-000KA7805-00 IC 3-SIP KA7805
IC705 009-PCA718128-50 IC QFP-128 SPCA718-128
IC707 009-0SPCA711A-50 IC SPCA711A
IC708 009-HT27LC020-45 IC LEAD PLCC HT27LC020
IC709 009-HY57V1616-63 IC TSOP HY57V161610DTC-10
L701 037-110000002-00 COIL 10uH-CHOKE
L702 037-110000002-00 COIL 10uH-CHOKE
L703 037-110000002-00 COIL 10uH-CHOKE
L704 037-110000002-00 COIL 10uH-CHOKE
L705 037-110000002-00 COIL 10uH-CHOKE
L706 037-110000002-00 COIL 10uH-CHOKE
Q701 005-200085503-08 PNP TRANSISTOR PSS8550C
Q702 005-1193875SG-01 NPN TRANSISTOR KTC 3875S
Q703 005-1193875SG-01 NPN TRANSISTOR KTC 3875S
Q704 005-1193875SG-01 NPN TRANSISTOR KTC 3875S
Q705 005-1193875SG-01 NPN TRANSISTOR KTC 3875S
Q706 005-1193875SG-01 NPN TRANSISTOR KTC 3875S
X702 039-18Q911490-7E QUARTZ CRYSTAL27MHZ
185-7100600G9-B4 UL PH=1 16PIN(TECH CABLE)
185-856200045-16 UL1007 4PIN W/HSNG L=200
185-847170025-16 UL1007 2PIN W/HSNG L=170
185-947060060-46 UL1571 6PIN W/HSNG L=60
185-K46090060-66 UL2651 6PIN FLAT CABLE L=90
CD KEY PCB ASS'Y(DC-MV20)
65 055-54K3P2403-00 CD KEY BOARD ASS'Y
C401 022-104700310-00 CERAMIC CAP. 50V 0.1
C403 022-104700310-00 CERAMIC CAP. 50V 0.1
C404 022-104700310-00 CERAMIC CAP. 50V 0.1
C805 024-473300350-00 MYLAR CAP. 100V 0.047
C806 022-104700310-00 CERAMIC CAP. 50V 0.1
C807 022-104700310-00 CERAMIC CAP. 50V 0.1
CN401 043-560634003-00 WAFER 6PX2MM CN6-2-H
CN402 185-J46110045-66 UL2651 4PIN FLAT CABLE L=110
CN403 185-J56200025-66 UL2651 2PIN FLATCABLE L=200
CN404 185-J46080025-66 UL2651 2PIN FLATCABLE L=80
CN405 190-74A280087-06 UL2791 5PIN SHIELD L=280
CN406 185-J46250055-66 UL2651 5PIN FLATCABLE L=250
REF. NO. PARTS NO. DESCRIPTION
D102 004-127300020-0N LED GREEN 3MM ULL-3036D
D401 004-127300020-0N LED GREEN 3MM ULL-3036D
D801 004-127300020-0N LED GREEN 3MM ULL-3036D
IC401 009-000HT1621-45 IC 48-PIN HT1621
LCD401 004-781004TTP-0J LCD DISPLAY 81004TT-P
Q804 005-100090143-00 NPN TRANSISTOR C9014C
Q805 005-100090143-00 NPN TRANSISTOR C9014C
Q806 005-200090153-00 PNPTRANSISTOR C9015C
REM401 009-038TM25AN-01 SENSOR FM-6038TM2-5AN
SW401 041-141102A00-01 TACT SW-V IT-1102A
SW402 041-141102A00-01 TACT SW-V IT-1102A
SW403 041-141102A00-01 TACT SW-V IT-1102A
SW404 041-141102A00-01 TACT SW-V IT-1102A
SW405 041-141102A00-01 TACT SW-V IT-1102A
SW407 041-141102A00-01 TACT SW-V IT-1102A
SW601 041-092283SL0-01 PUSH SW
SW802 041-141102A00-01 TACT SW-V IT-1102A
VR801 015-342511240-02 ROTARY VOL DUAL L=25
ZD401 001-000000056-00 ZENER DIODE 1/2W 5V6
ZD801 001-000000062-00 ZENER DIODE 1/2W 6V2
KEY PCB ASS'Y(DC-AX20)
65 055-54K3A2401-00 KEY BOARDASS'Y
C401 022-104700310-00 CERAMIC CAP. 50V 0.1
C403 022-104700310-00 CERAMIC CAP. 50V 0.1
C806 022-104700310-00 CERAMIC CAP. 50V 0.1
C807 022-104700310-00 CERAMIC CAP. 50V 0.1
CN401 043-560934003-00 WAFER 9PX2MM CN9-2-H
CN402 185-J46110075-66 UL2651 FLAT CABLE 7PIN L=110
CN403 185-J56200025-66 UL2651 2PIN FLATCABLE L=200
CN404 185-J46080025-66 UL2651 2PIN FLATCABLE L=80
CN405 190-74A430087-06 UL2791 4PIN SHIELD L=430
D102 004-127300020-0N LED GREEN 3MM ULL-3036D
D401 004-127300020-0N LED GREEN 3MM ULL-3036D
D801 004-127300020-0N LED GREEN 3MM ULL-3036D
LCD401 004-30A946700-0M LCD DISPLAYA94670
Q804 005-100090143-00 NPN TRANSISTOR C9014C
Q805 005-100090143-00 NPN TRANSISTOR C9014C
Q806 005-200090153-00 PNPTRANSISTOR C9015C
REM401 009-038TM25AN-01 SENSOR FM-6038TM2-5AN
SW401 041-141102A00-01 TACT SW-V IT-1102A
SW402 041-141102A00-01 TACT SW-V IT-1102A
SW403 041-141102A00-01 TACT SW-V IT-1102A
SW404 041-141102A00-01 TACT SW-V IT-1102A
SW405 041-141102A00-01 TACT SW-V IT-1102A
SW407 041-141102A00-01 TACT SW-V IT-1102A
SW601 041-092283SL0-01 PUSH SW
SW801 041-141102A00-01 TACT SW-V IT-1102A
VR801 015-342511240-02 ROTARY VOL DUAL L=25
ZD401 001-000000056-00 ZENER DIODE 1/2W 5V6
ZD801 001-000000062-00 ZENER DIODE 1/2W 6V2
LED PCBASS'Y
D402 004-127500020-0C LED SUPER BRIGHT GREEN
SWITCH PCBASS'Y
66 055-54K3A6300-00 SWITCH BOARDASS'Y
SW101 041-0223D0110-02 H-KNOB SLIDE SW
SW802 041-02D05G510-01 H-KNOB SLIDE SW
All manuals and user guides at all-guides.com

SHEMATIC DIAGRAM <DC-MV20/AX20>
9
1. MAIN PCB (TUNER)
SWITCH BD
All manuals and user guides at all-guides.com

SCHEMATIC DIADRAM <DC-MV20/AX20>
10

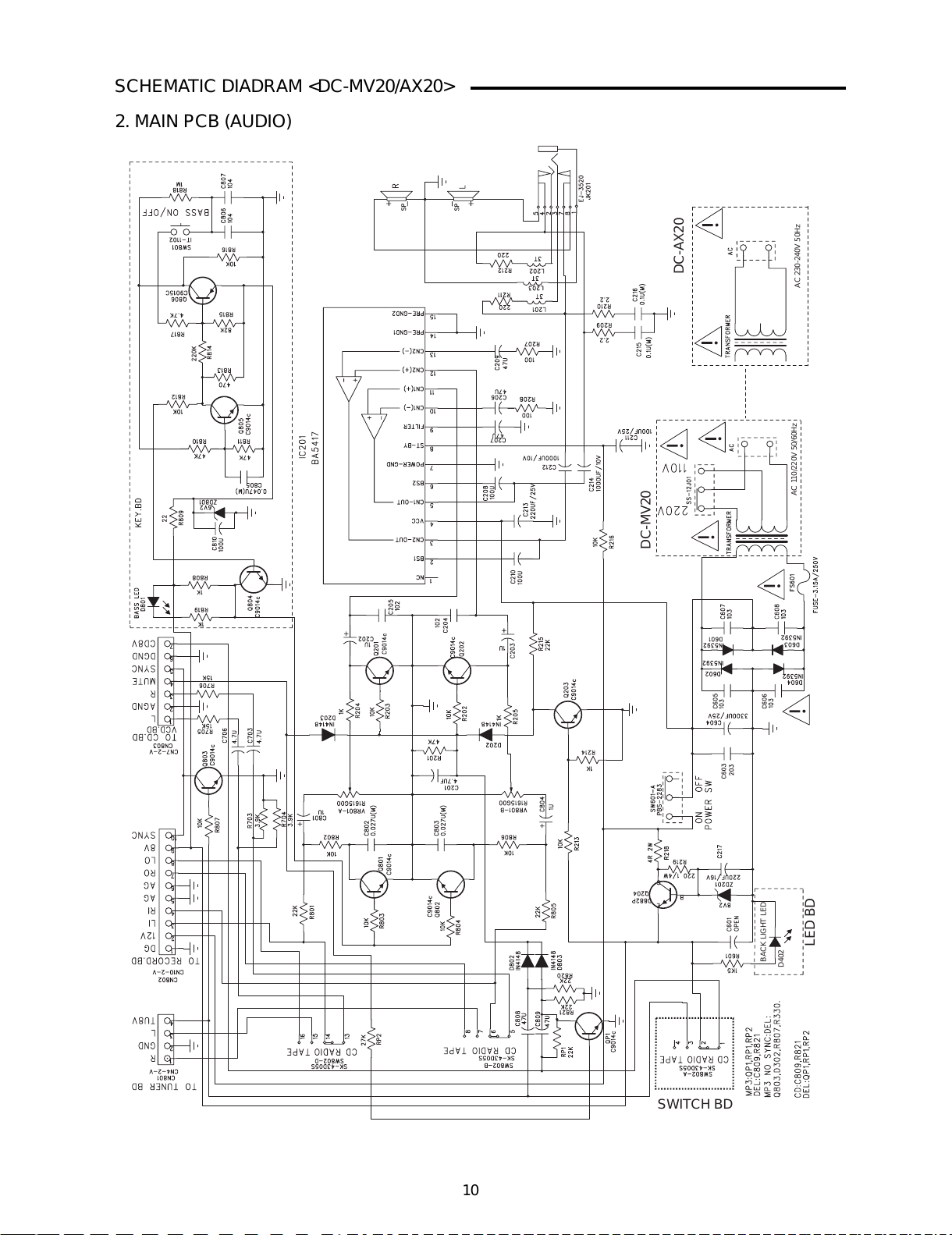

2. MAIN PCB (AUDIO)
DC-MV20
SWITCH BD
LED BD
D402
BACK LIGHT LED
AC 110/220V 50/60Hz AC 230-240V 50Hz
DC-AX20
All manuals and user guides at all-guides.com

SHEMATIC DIAGRAM <DC-MV20/AX20>

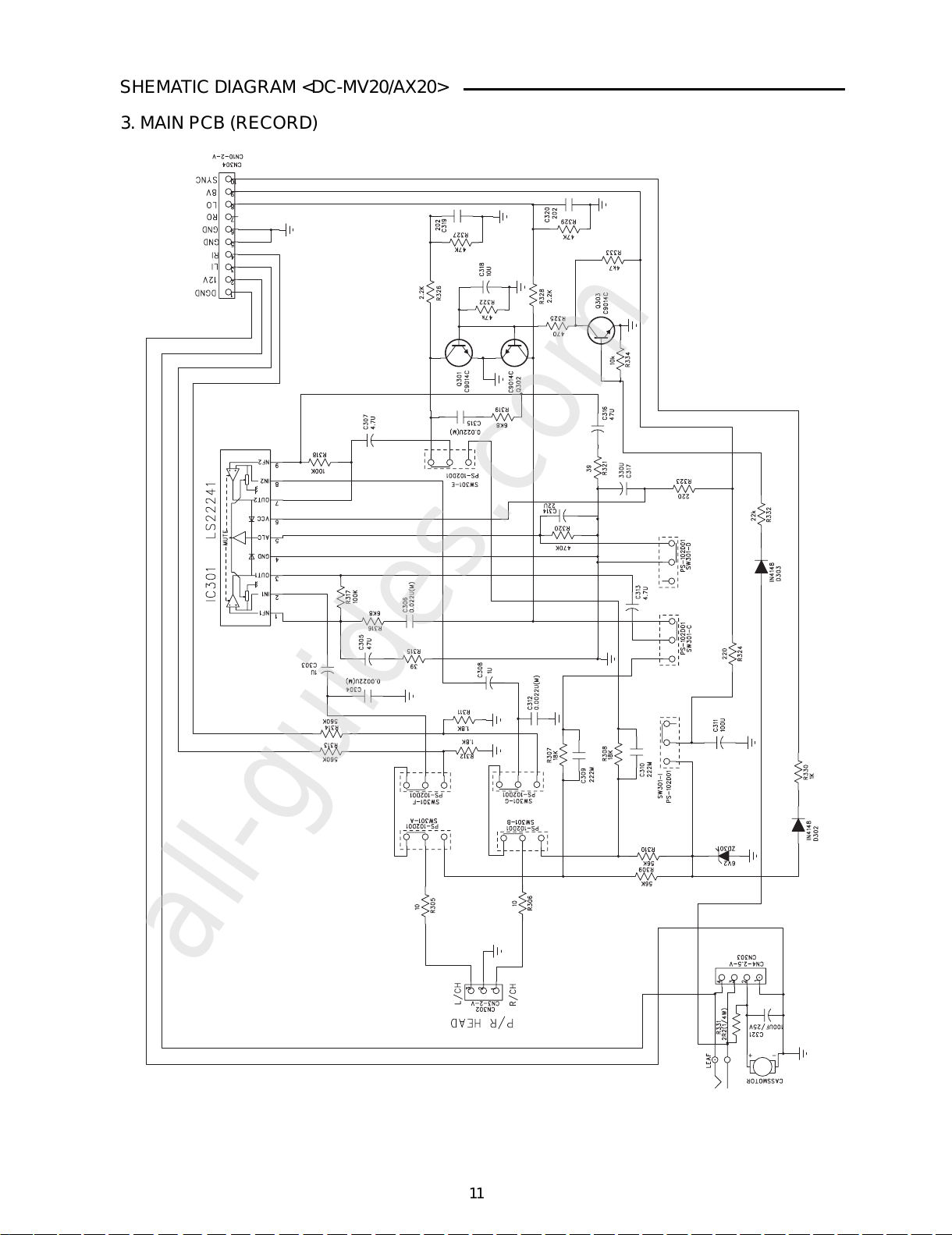

3. MAIN PCB (RECORD)
11
All manuals and user guides at all-guides.com
all-guides.com

SCHEMATIC DIADRAM <DC-MV20>

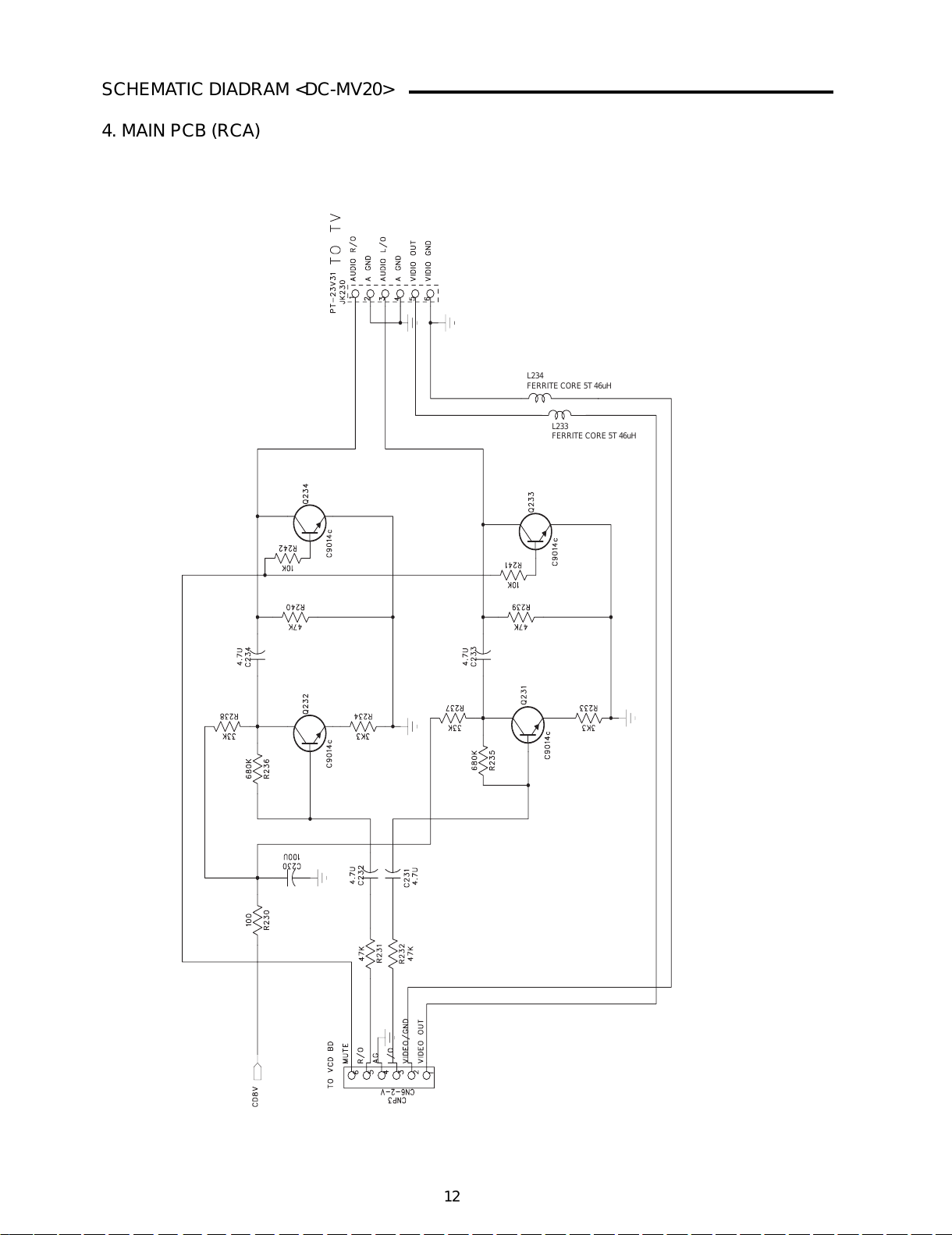

4. MAIN PCB (RCA)
12
L234
FERRITE CORE 5T 46uH
L233
FERRITE CORE 5T 46uH
All manuals and user guides at all-guides.com

SCHEMATIC DIADRAM <DC-MV20>

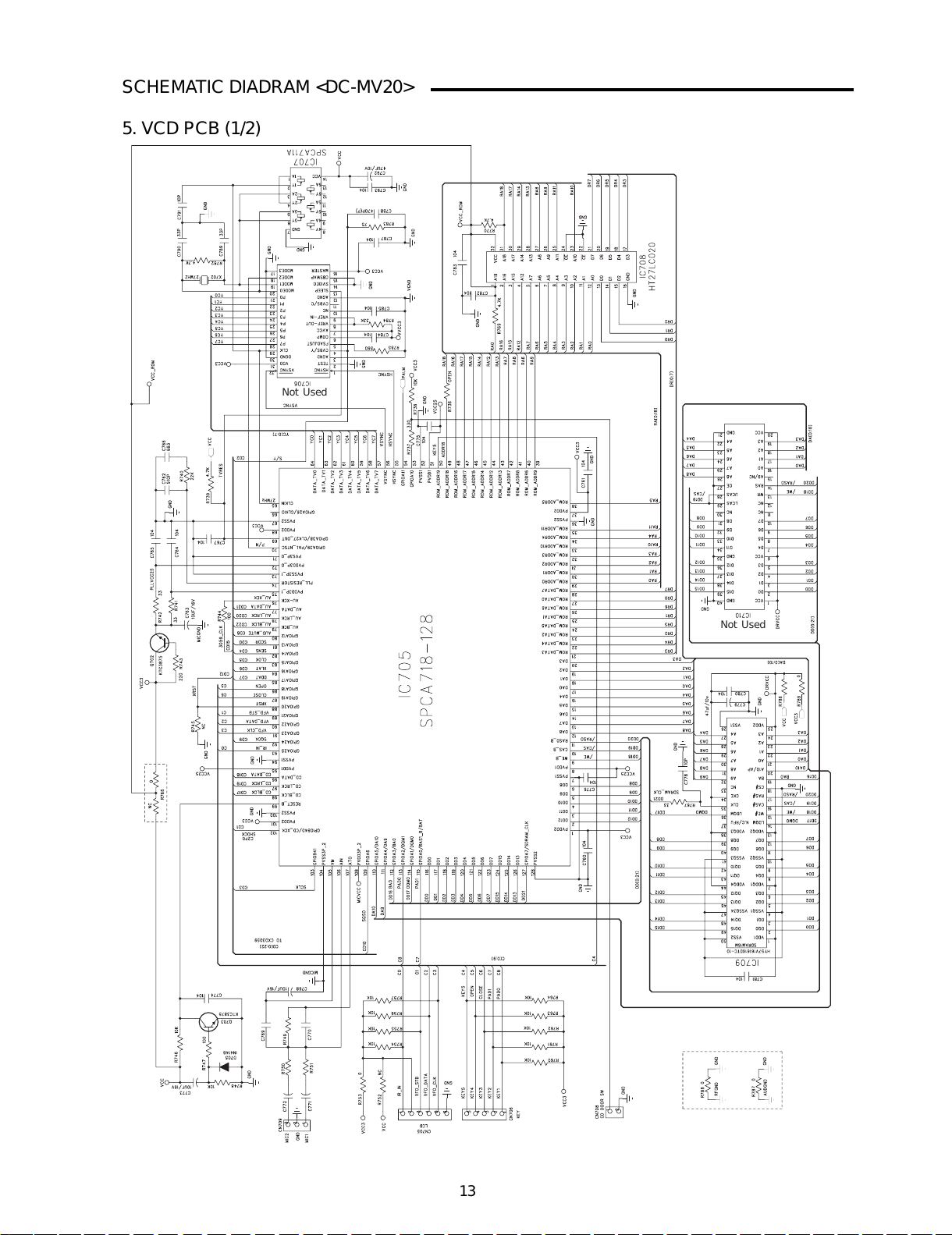

5. VCD PCB (1/2)
13
Not Used
Not Used
All manuals and user guides at all-guides.com

SHEMATIC DIAGRAM <DC-MV20>
6. VCD PCB (2/2)
14
UTC1117
All manuals and user guides at all-guides.com

SHEMATIC DIAGRAM <DC-MV20>

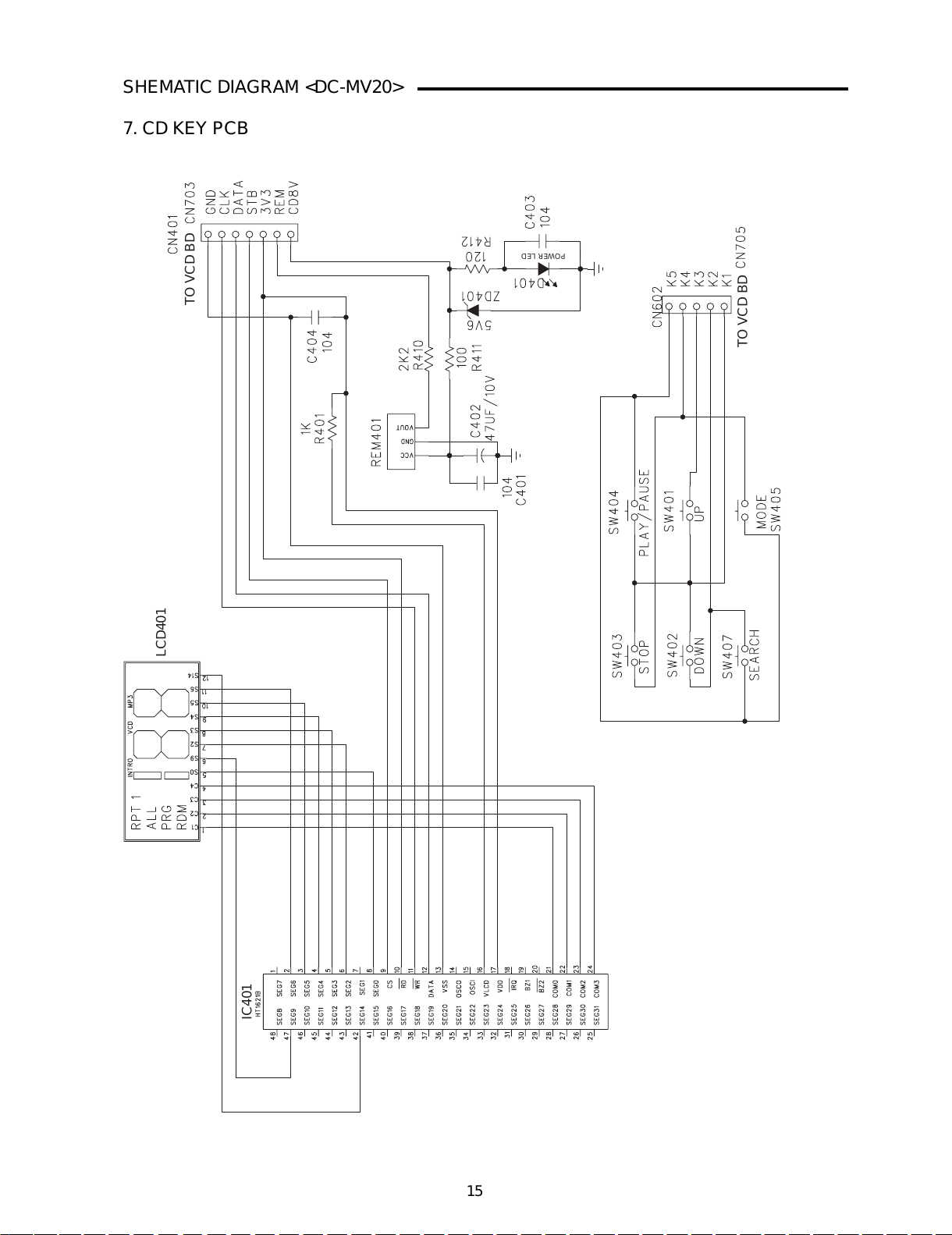

7. CD KEY PCB
15
LCD401
IC401
TO VCD BD
TO VCD BD
POWER LED
All manuals and user guides at all-guides.com

SHEMATIC DIAGRAM <DC-AX20>
8. MAIN PCB (CD) / KEY PCB
16
SA1469PH SOP-28 3V3
Power LED
All manuals and user guides at all-guides.com
all-guides.com

WIRING DIAGRAM <DC-MV20>
17
1. MAIN PCB
All manuals and user guides at all-guides.com

WIRING DIADRAM <DC-MV20>
18
2. CD KEY PCB
D401
IC401
SWITCH PCB
LED PCB
All manuals and user guides at all-guides.com

WIRING DIAGRAM <DC-MV20>

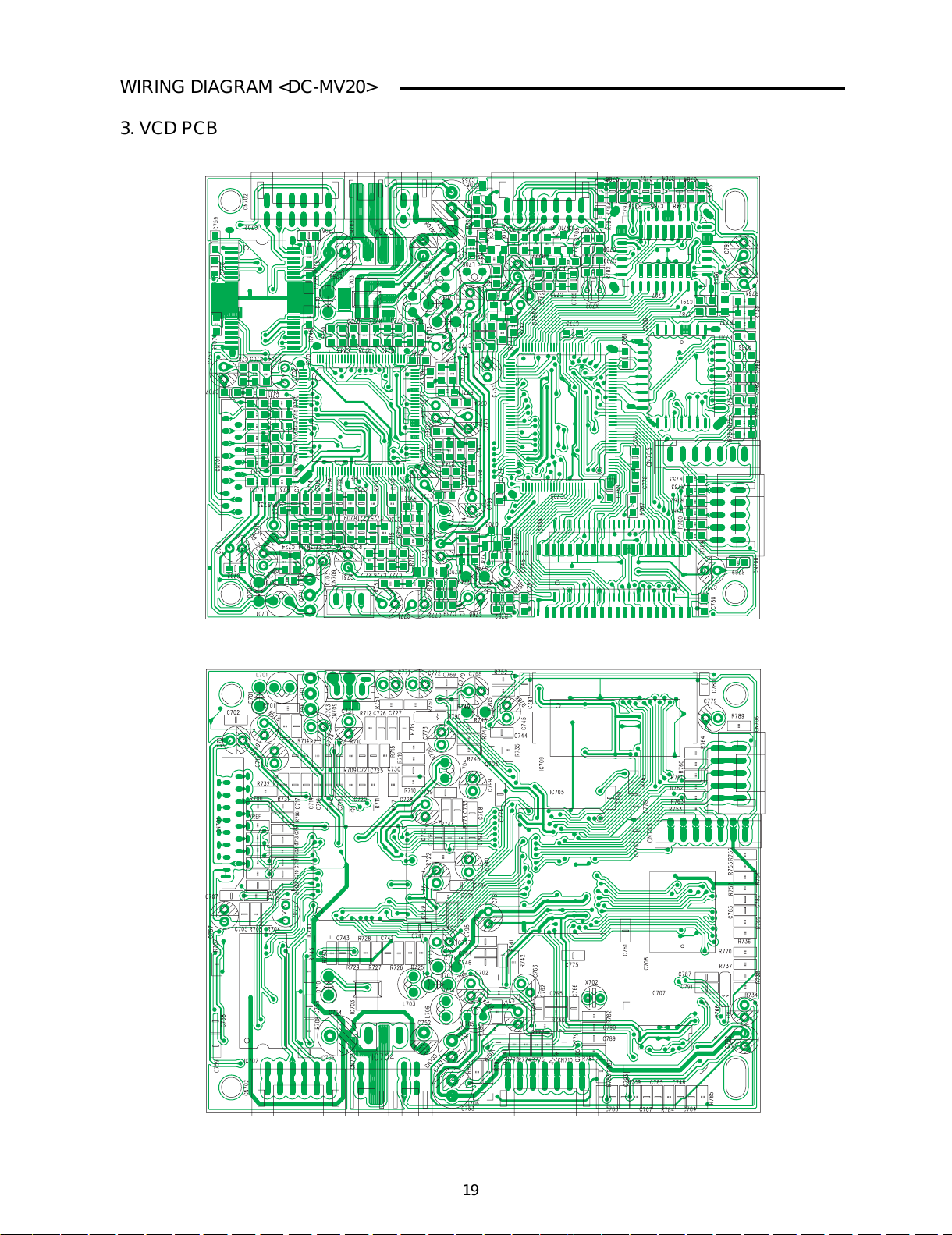

3. VCD PCB
19
All manuals and user guides at all-guides.com

WIRING DIADRAM <DC-AX20>

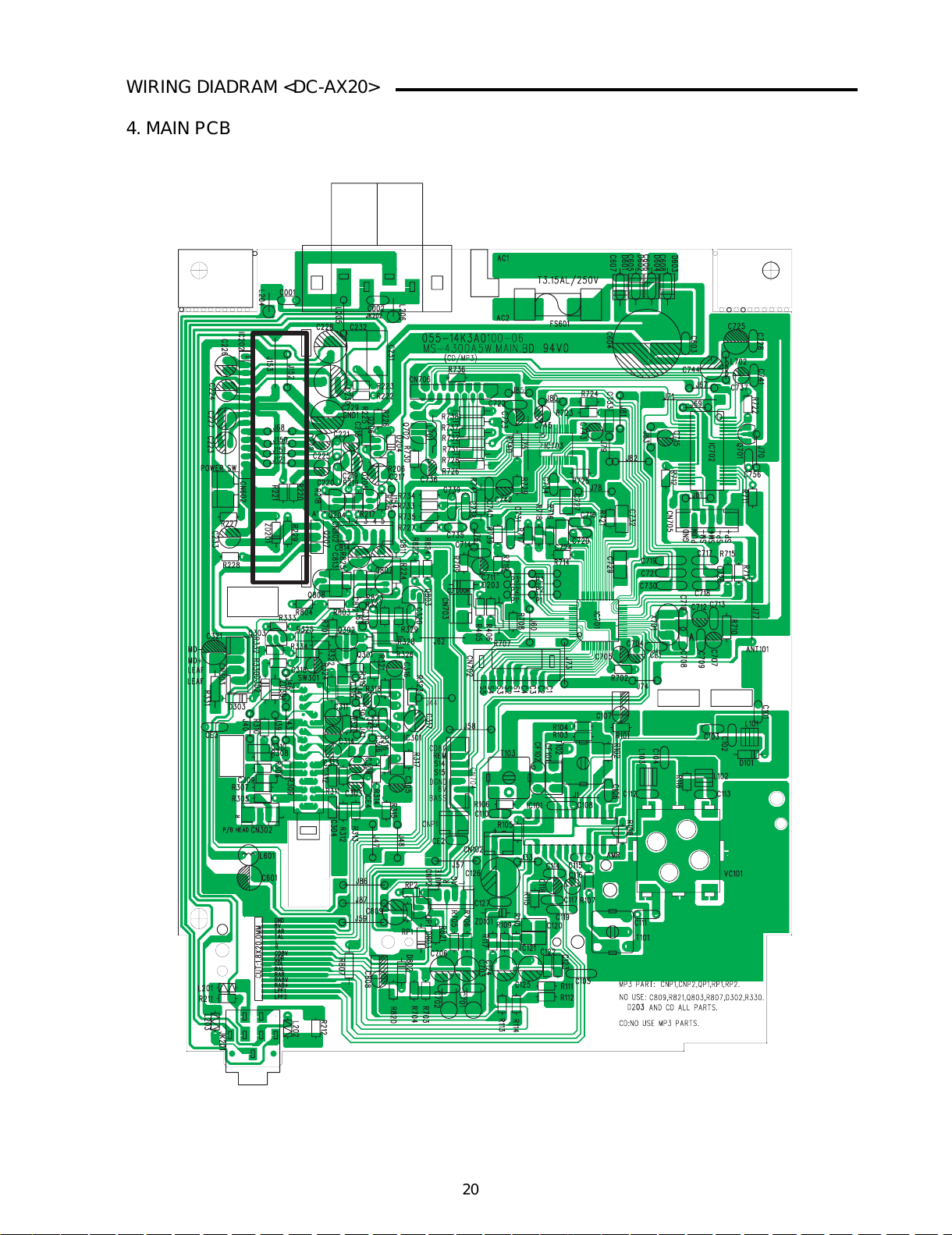

4. MAIN PCB
20
All manuals and user guides at all-guides.com
