Sanyo CE30LC3-C User manual

Part No. SKSM0726 N2DL/N2DW JULY 2004
Colour Television
Service Manual
Model CE30LC3-C
CE30LC3BK-C
Service Ref. No. CE30LC3-C-00
CE30LC3BK-C-00
PRODUCT CODE: 111369510 (CE30LC3-C)
111369517 (CE30LC3BK-C)
ORIGINAL VERSION: Chassis No. UB4-B
Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission
system and power source differ from the design
specifications. Refer to the specifications for the
design specifications
CE30LC3-C
CE30LC3BK-C
Contents
Safety precautions/Specifications ..................................................................................................................2
Block diagrams ..............................................................................................................................................3
Cabinet Disassembly......................................................................................................................................4
Adjustment and Repair Procedures............................................................................................................5~9
CPU Port Functions......................................................................................................................................10
IC Block Diagrams ..................................................................................................................................11~13
Pin description of semiconductors................................................................................................................14
Part Description and reading of schematic diagram ....................................................................................15
Cabinet Parts List ........................................................................................................................................16
Electric Parts List....................................................................................................................................17~26
Please use Schematic Diagram SKP20450 with
this Service Manual.

-2-
N2DL/N2DW
SAFETY PRECAUTION
PRODUCT SAFETY NOTICE
SPECIFICATIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the LCD display .
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor networks
etc. Before returning any television to the customer,
the service technician must be sure that it is completely
safe to operate without danger of electrical shock.
SPECIFICATIONS ARE COMMON FOR BOTH MODELS CE30LC3-C AND CE30LC3BK-C
Power source AC 220~240V, 50Hz
Television system System B/G, D/K, L/L’, I
Colour system PAL/NTSC4.43 (PAL/NTSC4.43/NTSC3.58 IN AV MODE)
Receiving channel UHF: 21~69
VHF: E2-E12, F2-F10, R1-R12
CATV: X, Y, Z, S1-S41, B-Q
Aerial input impedance 75ohm
Rear AV terminal
AV1: CENELEC standard
INPUT: Composite video, RGB and Audio L/R
OUTPUT: TV-output with composite video and audio L/R
AV2: CENELEC standard
INPUT: Composite video, RGB, S-VHS and Audio L/R
OUTPUT: Monitor output with composite video and Audio L/R
Front AV terminal
AV3: RCA jacks
INPUT: Composite video and Audio L/R
Headphone socket Mini Jack
Display Panel Resolution 1280 x 768 (WXGA)
Sound output(Music) 12 x 2W
Dimensions (WxHxD) 915 x 558 x 220mm
Weight 20.5 Kg
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which safe-
ty can be of special signifigance. It is particularly recommended that only parts designated on the parts list in this
manual be used for component replacement designated by mark . No deviations from resistance wattage or volt-
age ratings may be made for replacement items designated by mark .
!
!
!

-3- N2DL/N2DW

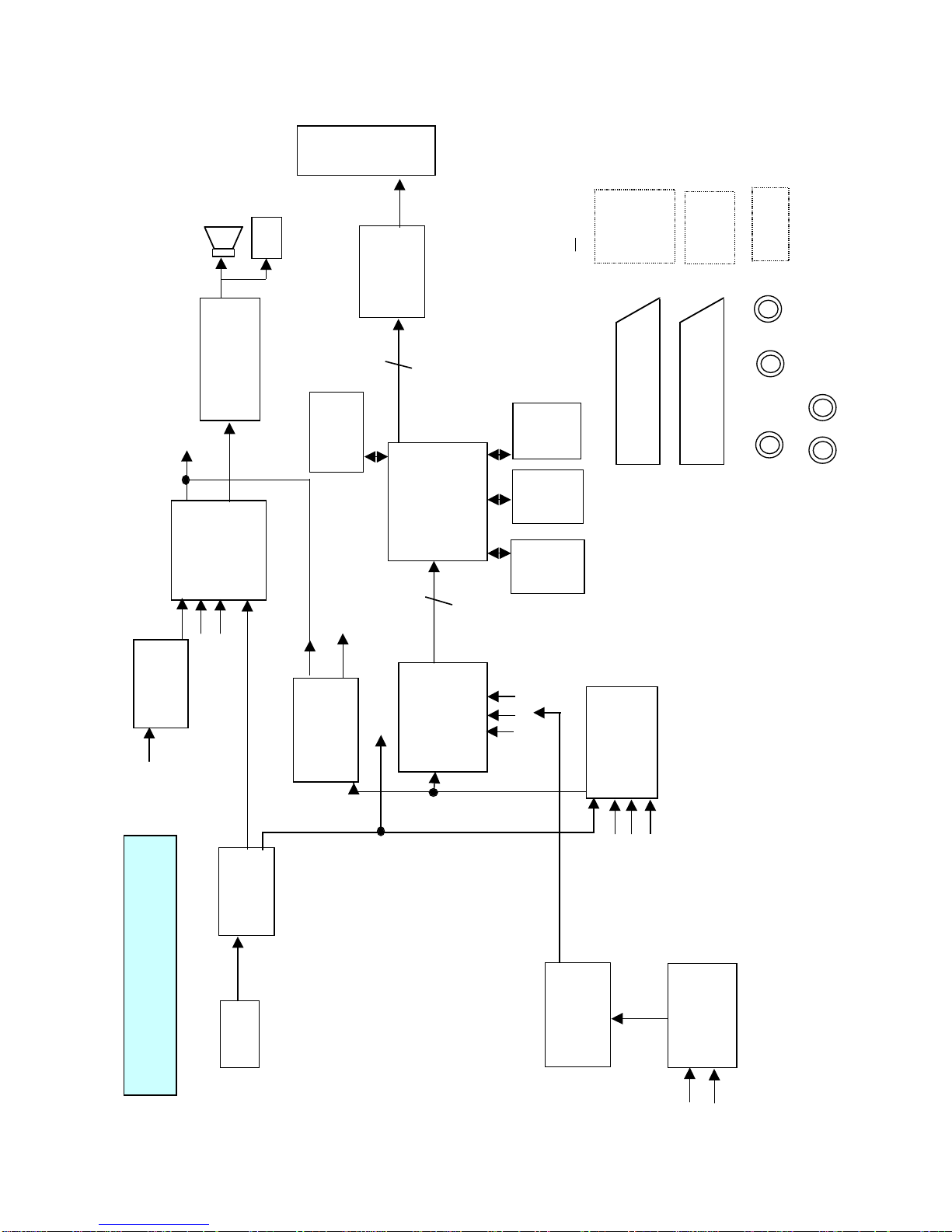

BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
TU TDA9886 STV8216
IF
AUDIO DEC.
LA4919
AUDIO AMP
STV2310
VIDEO DEC.
STV3550
VIDEO DEC. THC63
LVDM83R
LVDS
LA7956
VIDEO SW
30" PANEL
SACRT 1
RGB V-I/O A-I/O RC-IN AV-LINK
V-IN A-L/R-IN
AV_1
AV_3
SD RAM
128 MB
SD RAM
128 MB
FLA SH
16 MB
HP
AV1-L/R IN
AV2-L/R IN
MON-A-OUT
SP X 2
30"-10WX2
AV1-V- IN AV2-V- IN
R/CR,G,B/CB- IN
Y/CR/CB:8
RGB : 8bit
AV1-TV-OUT
AUDIO MONITOR
TV
LCD-TV BLOCK DIAGRAM
SCALER
BA7603F Y/U/V SW
TC4053
RGBSW
AV3/DIG AUD
TC4066
SACRT 2 RGB(Y/C)
V-I/O A-I/O
BA7609F
AV3-V- IN
AV3-L/R IN
AV1-RGB
AV2-RGB
R/G/B
MON-V-OUT SUBCPU
M16C/26
AV_2

-4-
N2DL/N2DW

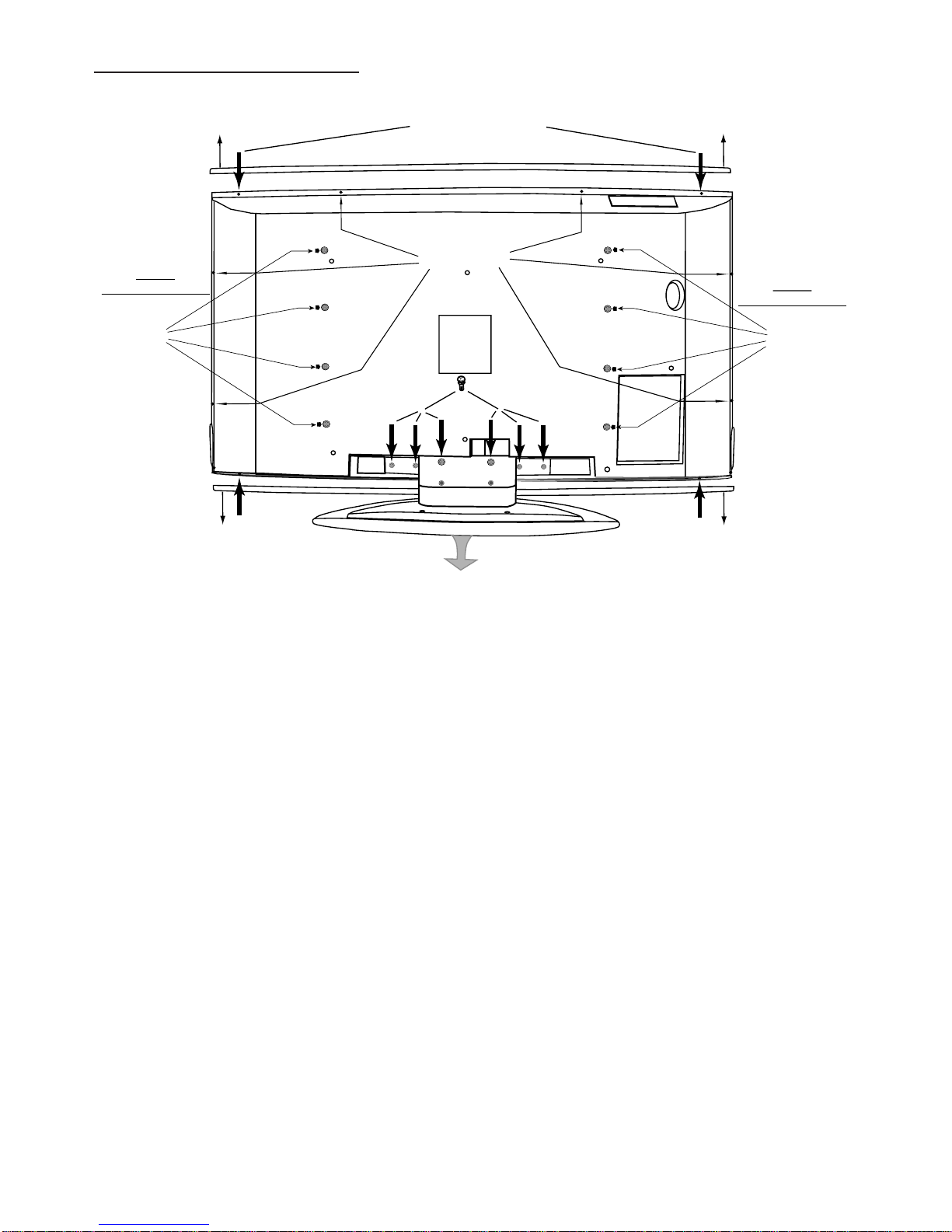

CABINET BACK DISASSEMBLY
REMOVE SCREWS
LIFT/PULL TO REMOVE STAND
Bracket locating screws
Remove
REMOVE DECOR STRIP SCREWS
BACK COVER SCREWS
REMOVE
AA
AA
BB
DD
CC
Bracket locating screws
Remove
To remove the backcover:-
1. Remove decor strips by removing 4 screws marked A.
2. Lay set on soft surface face down and remove 6 screws marked B then remove stand as indicated.
3. Remove 8 bracket locating screws marked C.
4. Remove back cover by removing 6 screws marked D.

-5- N2DL/N2DW
OPTION SETTING
[After replacing the Memory IC (IC803)]
The memory IC, IC803, stores the option data of TV set and service adjustments data for each circuit, therefore,
when the memory IC is replaced, it should be performed following setting and “SERVICE ADJUSTMENT” on next
page.
To enter to the Option Mode
+ Press and hold the F/OK button on the remote control and P▼button on the front panel of the TV. The option
window will appear on the screen.
To set the option mode
+ Highlight the desired option item by using the P▲or P▼ button .
+ To switch the option mode, use the Volume - (LEFT) or Volume + (RIGHT) button.
+ The data which is set in the option mode is stored into the memory IC automatically.
Following table shows the available option items and default setting mode.
Exit from the Service Mode
+ Press the MENU button.
Option Mode Mode Description & Note
ON-TIMER ON or OFF On-timer available, default “ON”
PLUG AND PLAY ON or OFF Plug and Play mode, default “ON”
WELCOME TEXT ON or OFF Display message when first set up, default “ON”
BBE ON or OFF BBE sound mode, default “OFF”
AUTO VOLUME OFF or ON Default “OFF”
HEADPHONE ON or OFF Headphone control , default “OFF”
CRT 16:9 MODE ON or OFF Default “ON”
NOISE REDUCTION ON or OFF Default “OFF”
COUNTRY UK, IRE TV system, default “BG/DK / I / LL”
BG/DK / I / LL’
RASTER ROTATION ON or OFF Default “OFF”
SESA ON or OFF Default “OFF”
DIGITAL RC ON or OFF Digital option, default “ON”
LIGHT MONITORING ON or OFF Ambient light control of LCD brightness, default “ON”
ON-TIMER OFF
PLUG AND PLAY ON
WELCOME TEXT ON
BBE OFF
AUTO VOLUME OFF
HEADPHONE OFF
CRT 16:9 MODE ON
NOISE REDUCTION ON
COUNTRY EU
RASTER ROTATION OFF
SESA OFF
DIGITAL RC ON
LIGHT MONITORING ON
VIDEO MUTE OFF
OPTION MODE FOR CE30LC3-C-00 / CE30LC3BK-C-00

-6-
N2DL/N2DW
SERVICE ADJUSTMENTS
INITIALISATION OF MEMORY IC
To initialise the memory IC (IC803), press and hold the NORMAL button on the remote control, then press the
P▼button on the front panel of the TV set and then turn the Mains switch Off and On. The initialisation is now
completed.
When initialised the memory IC and all of the setting data (option data and service adjustment data) stored in the IC
are reset to the default value. It is necessary to set the option settings and readjust the service adjustments listed on
page 6 and to re-tune all the channels.
The available adjustment items are as follows;
TDA9885 : This can be adjusted for AGC.
Video : This can be adjusted for the service adjustment.
DO NOT ADJUST OTHER SETTINGS
[After replacing the Memory IC (IC803)]
The memory IC, IC803, stores the service adjustments data for each circuit, therefore, when the memory IC is
replaced, it should be programmed by using “OPTION SETTING” on previous page and the following adjustments.
While pressing the green button on the remote control press the P▼ on the cabinet front.
The service menu appears.
Use the 6or 5 to highlight the service menu you require and press the F/OK button to enter.
Press the Menu button to navigate ackwards through the service menus until menus disappear.
Note: Some items of the service adjustments for this chassis are controlled by the CPU, IC801, and the
adjustments are carried out by using the RC handset.
TO ENTER SERVICE ADJUSTMENTS
TO EXIT SERVICE ADJUSTMENTS
Service
SV Vers 042
Video
Sound
STV2310
TDA9885
STV8206
Median Filter ON
Other
ColourTemperature
WSS
LCD Parameters
Fan control
IMPORTANT NOTICE
Do not attempt to adjust service adjustments not listed on the above otherwise it may cause
loss of performance and product safety.

-7- N2DL/N2DW
Service menu: Video
Enter the service adjustment menu as described on the previous page and select “Video” using
the P▼or P▲buttons and then press the F/OK button to enter.
Use the P▼ or P▲ buttons to select the option, then press
the F/OK button on the remote control to enter.
Service menu: Sound
Enter the service adjustment menu as described on the previous page and select “Sound” using
the P▼ or P▲ buttons and then press the F/OK button to enter.
Use the P▼or P▲buttons to select the option, then
press the F/OK button on the remote control to enter.
Service menu: TDA9885
Enter the service adjustment menu as described on the previous page and select “TDA9885”
using the P▼ or P▲ buttons and then press the F/OK button to enter
Use the P▼ or P▲ buttons to select the option,
then press the F/OK button on the remote
control to enter.
VIDEO
G2 Alignment Config.
White Point R 41
White Point G 32
White Point B 36
Peak White Limiter 0
Black Level offset R 8
Black Level offset G 8
Gain pre-scale RGB 0
Fast blanking delay 0
Luma/Chroma delay 0
Restore default
Audio Menu
Audio Type
Volume
Balance
Loudness
Spatial effect
3
0
6
13
0
TDA9885
Write 1 70

-8-
N2DL/N2DW
ADJUSTMENTS
IMPORTANT NOTICE
Do not attempt to adjust the following service adjustments except when adjustments are required in servicing
otherwise it may cause loss of performance and product safety.
1. Select the clearest VHF station
2. Connect a digital voltmeter to test point TP-A and GND
3. Enter service menu : TDA9885
4. With the P▼ or P▲ buttons select “Write 1”
5. Adjust using the or buttons until the read-
out from the voltmeter is 3.2 Vdc.
SCREEN ADJUSTMENT
1. Make sure the set is warm (20 mins)
2. Receive Black and White picture/pattern
3. Enter service menu “Video”
4. Select item “White Point R” or “White Point B”
5. Using the or buttons adjust to make the
white, white.
HORIZONTAL CENTRING ADJUSTMENT
1. Set wide screen mode to “FULL”.
2. Preferably receive a circular pattern
3. Enter service menu “LCD Parameters”
4. Use the P▼ or P▲ buttons to highlight “H Display
start”.
5. Press the or buttons to adjust horizontal
centre.
VERTICAL CENTRING ADJUSTMENT
1. Set wide screen mode to “FULL”.
2. Preferably receive a circular pattern
3. Enter service menu “LCD Parameters”
4. Use the P▼ or P▲ buttons to highlight “V Display start”
5. Press the or buttons to adjust the
vertical centre.
VERTICAL ADJUSTMENT
HORIZONTAL ADJUSTMENT
GREY SCALE ADJUSTMENT
AGC ADJUSTMENT

-9- N2DL/N2DW

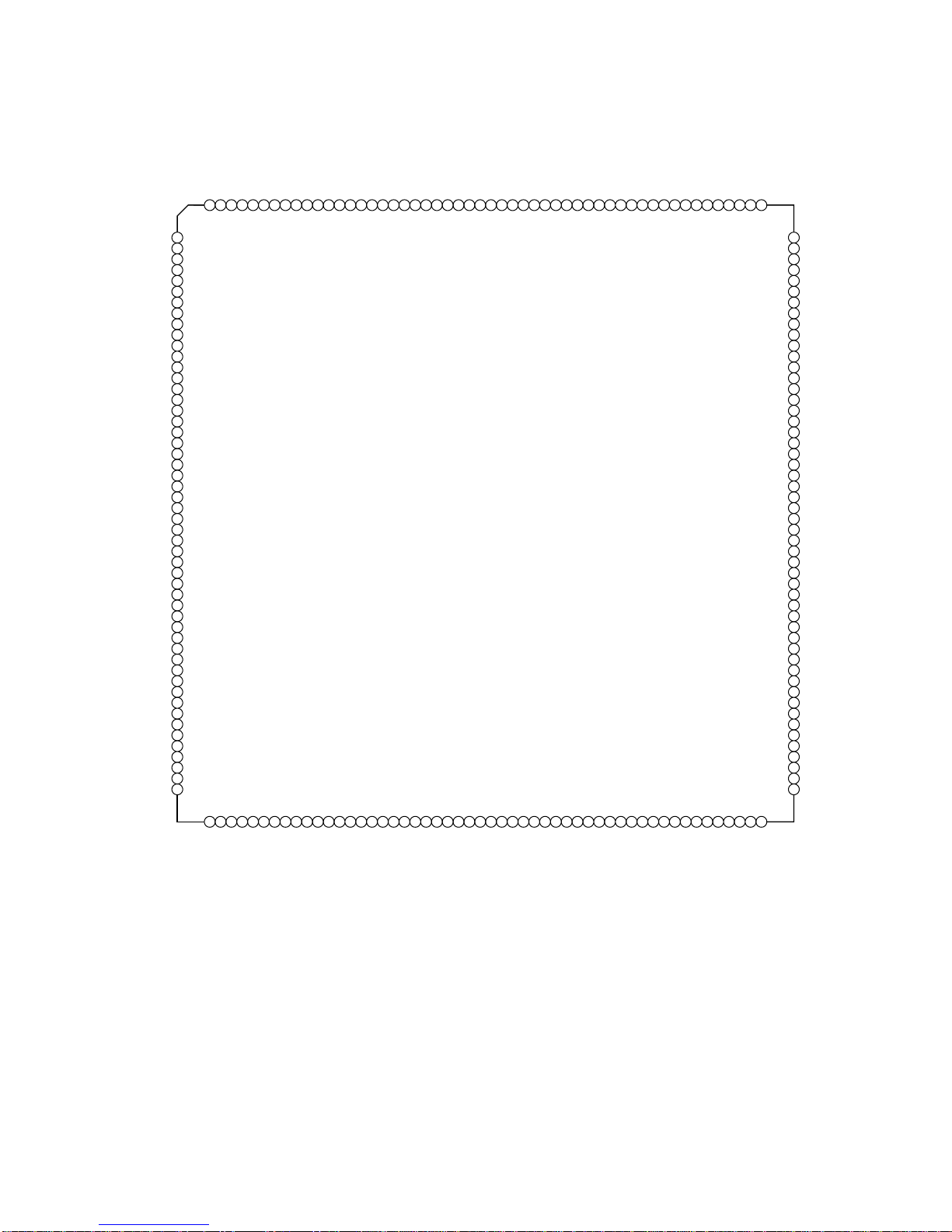

CPU PORT FUNCTIONS
STV3550M
IC801
PORT_B0 PORT_B1 PORT_B2 PORT_B3 PORT_B4 PORT_B5 PORT_A3 PORT_A2
PORT_D0 PORT_C4 PORT_C5 PORT_C6 PORT_C7
PORT_A7 PORT_A6 PORT_A5 PORT_A4 PORT_A1
PORT_D7 PORT_D6 PORT_D5 PORT_D3 PORT_D2 PORT_D1
VSS_IO
VDD33_IO VDD33_IO VDD33_IO
VSS_IO
PORT_D4
PORT_A0
_C0
PORT
PORT_C1
PORT_C2
PORT_C3
VSS_IO
VDD18_CORE
VDD33_IO
VCC18_IO
VDD18_CORE
VSS_IO
VDD33_IO
VSS_IO
VDD33_IO
VDD33_IO
VSS_IO
NC
NC
VDD33_IO VDD18_CORE VSS_IO VDD33_IO CKIN_SDRAM NC
VDD33_IO
VSS_IO
CLK_DFL
DCLK
DE
VSS_IO
_IO
VDD33
P_VIDEO0 P_VIDEO1 P_VIDEO2 P_VIDEO3 P_VIDEO4
EO5
P_VID
VDD18_CORE
VSS
VDD33_IO
VSS_IO
P_VIDEO29
P_VIDEO28
P_VIDEO27
P_VIDEO26
P_VIDEO25
P_VIDEO24
P_VIDEO23
P_VIDEO22
P_VIDEO21
P_VIDEO20
P_VIDEO19
P_VIDEO18
P_VIDEO17
P_VIDEO16
P_VIDEO15
P_VIDEO14
P_VIDEO13
P_VIDEO12
P_VIDEO11
P_VIDEO10
P_VIDEO9
P_VIDEO8
P_VIDEO7
P_VIDEO6
<STV3550>
VSS_IO
VDD33_IO
VDD18_CORE
SDRAM_D7
SDRAM_D6
SDRAM_D5
SDRAM_D4
SDRAM_D3
SDRAM_D2
SDRAM_D1
SDRAM_D0
VSS_IO VDD33_IO
SDRAM_D15
SDRAM_D14
SDRAM_D13
SDRAM_D12
SDRAM_D11
SDRAM_D10
SDRAM_D9
SDRAM_D8
VDD33_IO
ADDR_13 NOT_BE1 ADDR_12 ADDR_11 ADDR_9 ADDR_8 ADDR_7 ADDR_6 ADDR_5 ADDR_4 CKOUT_SDRAM
VDD33_IO
VSS_IO
ADDR_3 ADDR_2 ADDR_1 ADDR_0 ADDR_10 ADDR_16 ADDR_15 NOT_CS_SDRAM NOT_RAS NOT_CAS RD_NOTWR NOT_BE0 VDD18_CORE VSS
VDD33_IO
VSS_IO
NOT_CS_FLASH ADDR_17 ADDR_18 ADDR_19 ADDR_14
VDD18_CORE
VSS
FLASH_D15 FLASH_D7 FLASH_D14 FLASH_D6 FLASH_D13 FLASH_D5 FLASH_D12 _D4 FLASH VSS_IO _IO VDD33
FLASH_D11
FLASH_D3
FLASH_D10
FLASH_D2
FLASH_D9
FLASH_D1
FLASH_D8
FLASH_D0
TMS
TCK
TDO
TDI
TRST
NRESET
VSS
GND_IO
VDD18_PLL3
GND_PLL3
XTALIN
XTALOUT
VCC18_PLL1
GND_PLL1
CLKXTM
CLKXTP
VSS_PLL
VDD18_PLL
SHIELD_PLL
VSYNC
HSYNC
CLK_DATA
YCRCB0
YCRCB1
YCRCB2
YCRCB3
YCRCB4
YCRCB5
YCRCB6
YCRCB7
VDD18_CORE
VDD33_IO
VCC33_ADC
GND_ADC
SHIELD_ADCDAC
V100
H100
1
208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
1041031021011009998979695949392919089888786858483828180797877767574737271706968676665646362616059585756555453
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
IC801

-10-
N2DL/N2DW
IC801
IC BLOCK DIAGRAMS
H100
V100
Output
4- to
YCRCB[7:0]
VSYNC
Clock
Generator
2D Block
OSD
STV3550
Move
HSYNC
27 MHz
CLK_DATA
CLKXTM
CLKXTP
Clock
External
Memory
Interface
Flash
SDRAM
Video
Display
Pipeline
PSI/CTI
Standard Definition
Input (SDIN)
H/V Filter
Temporal Noise Reduction
Film Mode Detection
Compositor
Cursor Plane
Background Plane Gamma Correction
Digital
Video
Output
Perfect Color
Engine
TV Peripherals
RTC, ADC, I†C Bus,
I/O Ports, 4 Timers,
UART, WDT, PWM
and Infrared Digital
Preprocessor
DCLK
DE
Timebase Generator
RGB
Video
Outputs
Reset
10-bit
ST20 32-bit CPU Core
4 kB I-Cache 4 kB D-Cache
Interrupt Controller
Diagnostic Controller
100 MHz, 8 kB SRAM
Build-Up
YSI
Video
ST20 Core
H100
SDRAM
SDIN
TNR
HV Filter
8
YCRCB[7:0]
CLK_DATA
CTI
HSYNC
VSYNC 16/32
TV Peripherals
30
I/Os
Flash
Counter
NRESET
CLKXTM
Clock
Generator
2D
Block Move
OSD
Pipeline
Pipeline
Block
Time Base
Generator
TV Chassis Control
CSA
Comp.
Cursor
BG
Plane
Fast Blanking
EMI4
CLKXTP
Compositor
V100
CLK_DFL
27 MHz
Crystal
Gamma Correction
Digital
Video
Output
Perfect Color
Engine
R
G
B
STV3550

-11- N2DL/N2DW
IC001 LA4919NE <Audio Output>













 

Multi-Standard
Demodulator
Diital
udio
Matri

 
  
 
oudeaer udio roein
         
eadone udio roein
  
   
  
 
 
 
 

 
   
  
   


  


  
 
 
 
 
 





 
 
 
   
 
udio Matriin
udio roein
Demodulation

oer Sul Manaement
   
   
nut S
Sound 
utut Sart
eadone
Suooer
oudeaer
 
Mono n


S
Diital Stereo

  



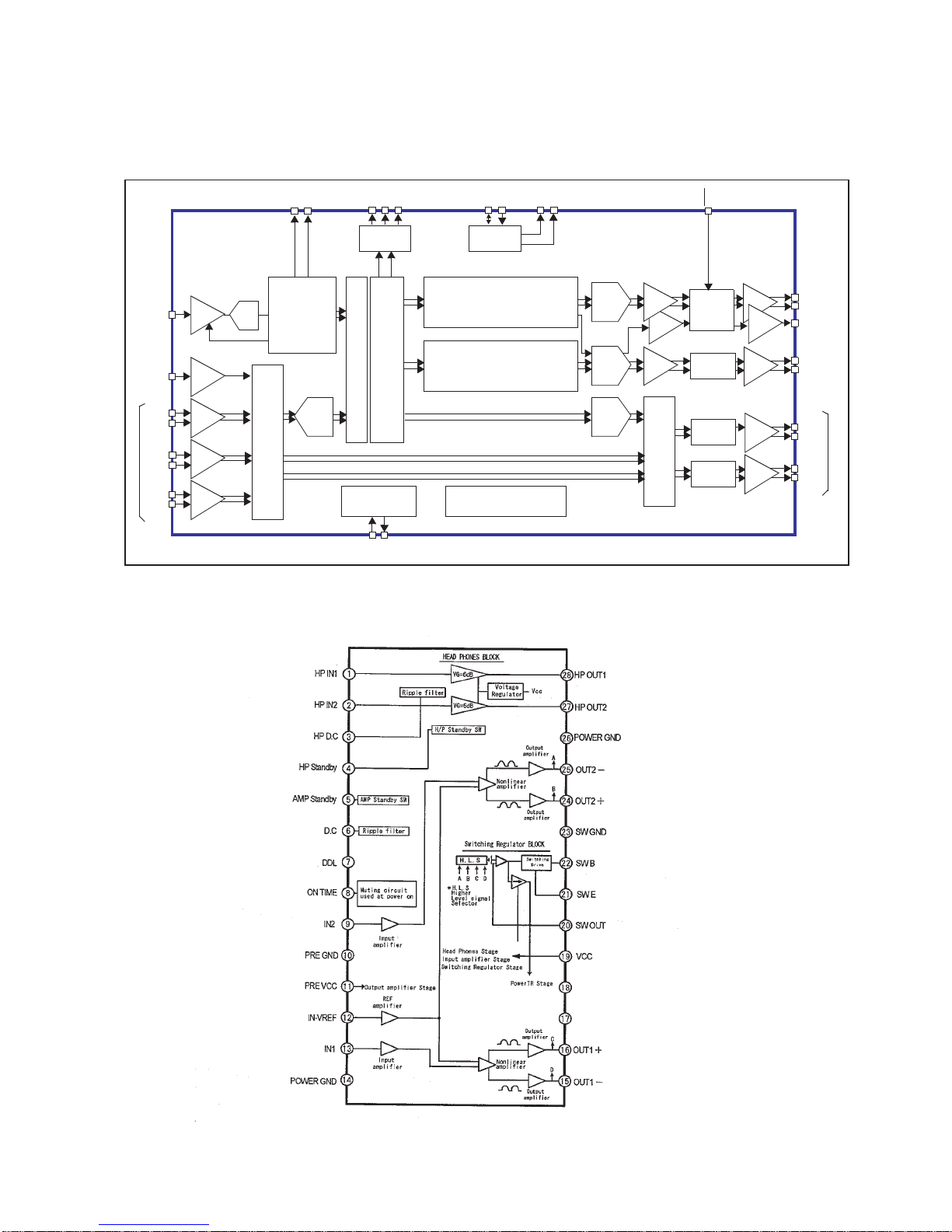

IC BLOCK DIAGRAMS
IC3451 STV8216T <NICAM & Stereo Sound Decoder>

-12-
N2DL/N2DW
BLOCK DIAGRAMS
IC2001

-13- N2DL/N2DW
PIN DESCRIPTION OF SEMICONDUCTORS
A
K
C
BE
C2
C1
B1 B2
E
C
CBE
KA
C
B
E
B2
B1
C1 C2
E
E
B
C
B2
B1
C1 C2
E
B2
B1 C1
C2
E1
E2
K
AA
A
KK
K
A
K
A
C
BECBEC
B
E
1
2
3
4
5
6
Index
12N
Index Index
12N
2
13
(IN) (OUT)
(GND)
21 4
2
1
3
Index
1
N
Index 1
N
Index 1
N
Index 1
N
Index 1
N
Index
1N
2
131
232
1
3
RESET GND
Vdd
5
3
D
GSD
G
S
K: Cathode
A: Anode
C: Collector
B: Base
E: Emitter
D: Drain
G: Gate
S: Source
●Diode
●Transistor/FET
●IC
E1
C2
E2 C1
B2
B1
Index
●Diode
●Transistor/FET
●IC
FET

-14-
9
N2DL/N2DW
PARTS DESCRIPTION AND READING IN SCHEMATIC DIAGRAM
1. The parts specification of resistors, capacitors and
coils are expressed in designated code. Please
check the parts description by the following code
table.
2. Some of transistors and diodes are indicated in
mark for the substitution of parts name. Please
check the parts name by the following code table.
3. Voltages and waveforms were taken with a video
colour bar signal(1Vp-p at 75 ohms terminated) and
controls to normal.
4. Voltages were taken with a high-impedance digital
voltmetre.
Example 2000 K K 1000 BG
Characteristic
Example 160 E M 10
Capacitance value
Tolerance
Type
Rated voltage
Excepting electric capacitors, all
capacitance values of less than 1
are expressed in µF and more
than 1 are in pF.
Example L2 C1 4R7 K N
Tolerance
Inductance value
Manufacture code
Unique code
Mark Material
E Electrolytic
P Electrolytic (non-Polarised)
C Ceramic (temperature compensation)
K Ceramic
F Polyester
N Polypropylene
M Metalised polypropylene
H Metalised polypromylar
B Ceramic (semiconductor)
G Metalised polyester
Y Composite film
S Styrol
T Tantalum oxide solid electrolytic
U Organic semiconductive electrolyte
D Electric double layer electrolytic
Mark Tolerance
A not specified
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
E ±2.5
H±3
J±5
K±0
M±20
N±30
P +100 -0
Q +30 -10
T +50 -10
U +75 -10
V +20 -10
W +100 -10
X +40 -20
Y +150 -10
Z +80 -20
Mark Tolerance (nH) Mark Tolerance (%)
C ±0.25 G ±2
D ±0.5 J ±5
S ±0.3 K ±10
A ±0.2 L ±15
M±20
Coil Reading
Capacitor Reading
Example 1/2 D J 10K B
Example 6 W K 8.2
Example 1/2 C K 1M
Resistor Reading
Characteristic
Z (Carbon fuse)
B (Non-burnable)
Resistance value
Tolerance (see below table)
Material (see below table)
Rated wattage (W)
K indicates in KΩ
M indicate in MΩ
Note: Resistor which is indicated with resistance value only are
1/6W carbon resistor. Resistor which is indicated with materi-
al, tolerance and value are 1/4W rated wattage.
Mark Material
D Carbon
N Metal film
S Oxide metal film
C Solid
G Metal glaze
W Wire wounding or cement
H Ceramic
F Fusible
Mark Tolerance
A ±0.05
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
J±5
K±10
M±20
P +5 -15
Z used in 0 ohm
●Material table ●Tolerance table
●Material table ●Tolerance table
Mark Type number
-- 1S1555,1S2473,1S2076,1SS133,DS442,1SS176
K 1S1555,1S2473,1S2076,DS442
L 1S1555,1S2076A,1S2471
M 1SS133,1SS176,GMA01
N 1S1555,1S2473,1S2076,1SS133,DS442,1SS176,1N4148
P 1S1555,1S2076A,1S2471,1N4148
R 1S1555,1S2076,1S2473,DS442,1N4148
AA 1S1555,1S2076,1S2473,1SS133,DS442,1SS176,1N4148,GMA01
●Diode
Mark Type number
-- 2SC536 2SC945A 2SC1815 2SC1740 2SC1740S KSC945C
A E, F, G P, Q, R O, Y, G Q, R, S Q, R, S
B E, F, G P, Q, R O, Y, G Q, R, S
D F, G P, Q Y, G Q, R, S
F F, G P G R, S
H F, G P, Q Y, G Q, R, S Y, G
I E, F, G P, Q, R O, Y, G Q, R, S Y, G
G F, G P G R, S G
AD F, G Q, R Y, GR Q, R, S
AE E, F, G Q, R O, Y, GR Q, R, S
●Transistor (NPN type)
Mark Type number
-- 2SA608 2SA564A 2SA1015 2SA933 2SA933S KSA733C
Y E, F Q, R O, Y, G Q, R
WF R Y,GR
V E, F Q, R O, Y, G Q, R Y, G
U F R Y, G R G
Z E, F Q, R O, Y, G Q, R Q, R
AB F R Y Q, R
AE E, F Q, R O, Y R
●Transistor (PNP type)
Diode/Transistor Type Reading

-15- N2DL/N2DW

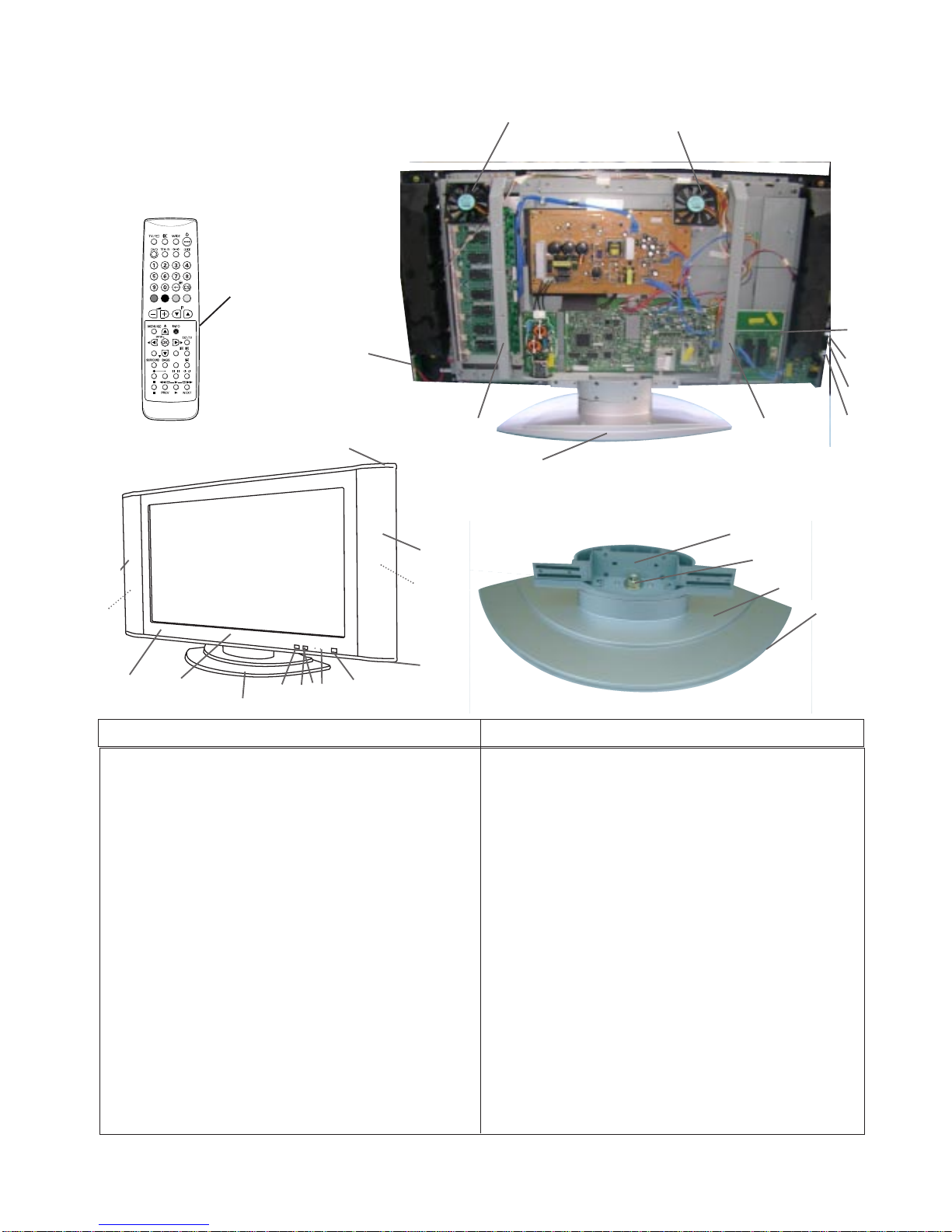

CABINET PARTS LIST FOR MODEL CE30LC3-C-00 / CE30LC3BK-C-00
CE30LC3-C-00
CABINET PARTS
1 610 314 1602 ASSY,BUTTON POWER-N2DJ
2610 313 8923 ASSY,CABINET FR -N2DJ
3 665 000 2616 MESH-SPK-SPRAYED SILVER
4 610 315 2738 30"LCD STAND SILVER-N2DJ
5 610 313 8404 DEC APC LENS-N2DJ
6 610 313 8381 DEC RC LENS-N2DJ
7 610 313 8398 DEC LED LENS-N2DJ
8 610 313 8329 BUTTON UNITED-N2DJ
9 610 313 8374 DEC SASH-N2DJ
10 610 313 8480 HOLDER SIDE AV
11 610 313 8497 FRAME KEY-N2DJ
12 610 314 0612 FABRIC BEZEL-MESH S30VJP
13 645 067 1333 BADGE,SANYO*53.5X12L53.5
14 610 313 8961 HOLDER FAN -N2DJ
15 610 313 8596 HOLDER DM-1-N2DJ
16 610 313 8619 MOUNTING BRKT WALL-N2DJ
17 610 313 8541 SHIELD AV (SPTE)
18 610 314 1459 ASSY,STAND BASE -N2DJ
19 610 314 1961 STAND COVER-N2DJ
20 610 314 1893 STAND HINGE UP-N2DJ
21 411 034 6409 SCRW MACH PH W/FL M3*6L
22 610 314 0551 ASSY,CABINET BACK-N2DJ
Item Part No. Description Item Part No. Description
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
56 7
23
RETURN
SUBTITLE
GUIDE
1 / 24
12
12
14 14
10/27
15
11/28
17
4
16 16
8
9
9
3/29
4
2 / 25 7
ACCESSORIES
23 JXMSD RC TRANSMITTER
645 054 9533 BATTERY ENERGIZER R6SH2VP
665 000 2005 INST MANUAL-N2DL (1)
665 000 2012 INST MANUAL-N2DL (2)
665 000 2708 INST MANUAL - N2DL (3)
665 000 2487 WIRE TIE DIAGRAM
SKZZ0272 MAINS LEAD TIE
645 054 1155 CORD,POWER-3.OMK - N2DJ
CE30LC3BK-C-00
CABINET PARTS DIFFERENCES ONLY
24 665 000 2715 ASSY,BUTTON POWER-N2DM
25 665 000 2753 ASSY,CABINET FR -N2DM
26 665 000 2722 ASSY,CABINET BACK-N2DM
27 665 000 2739 HOLDER SIDE AV-N2DM
28 665 000 2746 FRAME KEY-N2DM
29 610 315 1366 MESH-SPK-SPRAYED BLACK
20
21
19
18
3/29

N2DL/N2DW -16-
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following
parts list be used for components replacement pointed out by the mark .
!
!
013N2DL ELECTRICAL PARTS
LIQUID CRYSTAL DISPLAY
EL901 645 067 6222 LCD(V296W1-L14)
ELECTRICAL
FN902 645 068 3763 MOTOR,FAN DC
SP901 645 059 8685 SPEAKER,8,BOX
SP902 645 062 5527 SPEAKER,8,BOX
U901 645 067 6239 UNIT,POWER
WIRES
KX-K10X 645 062 6197 FLEXIBLE FLAT CABLE
K7M-CN1 610 313 9050 CORD 30P 1.25MM(LVDS)
WAC2-C61 610 315 0147 NON STANDARD WIRE ASSY-JP
WCN1-C65 610 316 7879 STANDARD WIRE ASSY-JPN
WCN2-C66 610 316 7886 STANDARD WIRE ASSY-JPN
WKJ-19J 610 316 8029 STANDARD WIRE ASSY-JPN
WKY-14Y 610 316 7862 STANDARD WIRE ASSY-JPN
WSP9L-SP 610 315 0130 NON STANDARD WIRE ASSY-JP
WSP9R-SP 610 316 1648 NONSTANDARD WIRE ASSY
W16P-C60 610 316 7992 STANDARD WIRE ASSY-JPN
W16Q-C62 610 316 8005 STANDARD WIRE ASSY-JPN
W16R-C64 610 316 8012 STANDARD WIRE ASSY-JPN
W16V-C63 610 316 8791 STANDARD WIRE ASSY-JPN
W16W-C67 610 316 7985 STANDARD WIRE ASSY-JPN
W19R-95R 610 316 7947 STANDARD WIRE ASSY-JPN
W8M-18M 610 316 7961 STANDARD WIRE ASSY-JPN
1AA0B10N085A0 ASSY,PWB,MAIN,N2DL
CAPACITOR
C001 403 314 5915 GRM21BR71C474KA01L PT297
C002 403 314 5915 GRM21BR71C474KA01L PT297
C003 403 321 7414 ELECT 100U M 16V
C004 403 330 7719 ELECT 47U M 25V
C005 403 353 2715 ELECT 22U M 25V
C006 403 314 5915 GRM21BR71C474KA01L PT297
Ref. No. Part No. Description
Chassis construction
CE30LC3-C-00
013N2DL ELECTRICAL PARTS (Page 16)
1AA0B10N085A0 ASSY,PWB,MAIN,N2DL (Page 16 - 25)
1AA0B10N0860A ASSY,PWB,AV,N2DJ (Page 25 - 26)
1AA0B10N0860B ASSY,PWB,AC-LINE,N2DJ (Page 26)
1AA0B10H072AF ASSY,PWB,SENSOR,N2PJ (Page 26)
1AA0B10H072AH ASSY,PWB,SIDE-AV,N2PJ (Page 26 - 27)
1AA0B10H072AJ ASSY,PWB,KEY-SW,N2PJ (Page 27)
1AA0B10H072AK ASSY,PWB,IR-LED,N2PJ (Page 27)
1AA0B10H072AL ASSY,PWB,POW-SW,N2PJ (Page 27)
Chassis construction
CE30LC3BK-C-00
013N2DL ELECTRICAL PARTS (Page 16)
1AA0B10N085A0 ASSY,PWB,MAIN,N2DL (Page 16 - 25)
1AA0B10N0860A ASSY,PWB,AV,N2DJ (Page 25 - 26)
1AA0B10N0860B ASSY,PWB,AC-LINE,N2DJ (Page 26)
1AA0B10H072AF ASSY,PWB,SENSOR,N2PJ (Page 26)
1AA0B10H072AH ASSY,PWB,SIDE-AV,N2PJ (Page 26 - 27)
1AA0B10H072AJ ASSY,PWB,KEY-SW,N2PJ (Page 27)
1AA0B10H072AK ASSY,PWB,IR-LED,N2PJ (Page 27)
1AA0B10H072AL ASSY,PWB,POW-SW,N2PJ (Page 27)
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G:±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G:±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W:+100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Material:
CERAMIC............Ceramic
MT-PAPER ..........Metallized Paper
POLYESTER ......Polyester
MT-POLYEST......Metallized Polyester
POLYPRO............Polypropylene
MT-POLYPRO ....Metallized Polypropylene
COMPO FILM......Composite film
MT-COMPO ........Metallized Composite
STYRENE............Styrene
TA-SOLID ............Tantalum Solid
AL-SOLID............Aluminium Solid
ELECT ................Electrolytic
NP-ELECT ..........Non-polarised Electrolytic
OS-SOLID ..........Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT ..........Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C:±0.25% D: ±0.5%
F: ±1% G:±2% J: ±5% K: ±10%
M:±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON ............Carbon
MT-FILM ..............Metal Film
OXIDE-MT ..........Oxide Metal Film
SOLID..................Composition
MT-GLAZE ..........Metal Glaze
WIRE WOUND ....Wire Wound
CERAMIC RES....Ceramic
FUSIBLE RES ....Fusible
Rated Voltage
Rated value: P=pico farad, U=Micro farad
Note: Parts order must contain Service Ref. No., Part No., and descriptions.

-17- N2DL/N2DW
Ref. No.
Part No.
Ref. No. Part No.
Description Description
C007 403 162 6614 ELECT 2.2U M 50V
C008 403 314 5915 GRM21BR71C474KA01L PT297
C009 403 155 2319 GRM188R71H472KA01D PT115
C010 403 155 2319 GRM188R71H472KA01D PT115
C013 403 113 3815 GRM188R71H102KA01D PT115
C014 403 286 8617 ELECT 470U M 16V
C015 403 162 6614 ELECT 2.2U M 50V
C016 403 286 8617 ELECT 470U M 16V
C021 403 281 5215 GRM188F51C224ZA01D PT115
C022 403 281 5215 GRM188F51C224ZA01D PT115
C023 403 281 5215 GRM188F51C224ZA01D PT115
C024 403 281 5215 GRM188F51C224ZA01D PT115
C025 403 323 3612 CERAMIC 0.047U K 50V
C026 403 323 3612 CERAMIC 0.047U K 50V
C027 403 341 7517 ELECT 100U M 25V
C028 403 341 7517 ELECT 100U M 25V
C041 403 281 5215 GRM188F51C224ZA01D PT115
C042 403 281 5215 GRM188F51C224ZA01D PT115
C043 403 281 5215 GRM188F51C224ZA01D PT115
C044 403 281 5215 GRM188F51C224ZA01D PT115
C049 403 155 2319 GRM188R71H472KA01D PT115
C050 403 155 2319 GRM188R71H472KA01D PT115
C101 403 162 5310 ELECT 4.7U M 25V
C102 403 304 1811 ELECT 100U M 6.3V
C103 403 215 2211 GRM188R71H103KA01D PT115
C104 403 175 0814 ELECT 10U M 50V
C105 403 304 1811 ELECT 100U M 6.3V
C106 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C109 403 215 2211 GRM188R71H103KA01D PT115
C120 403 215 2211 GRM188R71H103KA01D PT115
C1200 403 164 0214 GRM188F51E104ZA01D PT115
C1202 403 175 3310 ELECT 47U M 16V
C1203 403 175 3310 ELECT 47U M 16V
C1204 403 175 3310 ELECT 47U M 16V
C1205 403 164 0214 GRM188F51E104ZA01D PT115
C1206 403 145 9915 GRM1885C1H220JZ01D PT115
C1207 403 164 0214 GRM188F51E104ZA01D PT115
C121 403 157 6513 CERAMIC 390P K 50V
C1211 403 153 9310 GRM1885C1H820JZ01D PT115
C1212 403 153 9310 GRM1885C1H820JZ01D PT115
C1213 403 164 0214 GRM188F51E104ZA01D PT115
C1218 403 153 9310 GRM1885C1H820JZ01D PT115
C122 403 215 2211 GRM188R71H103KA01D PT115
C123 403 314 5915 GRM21BR71C474KA01L PT297
C126 403 139 7118 GRM1885C1H120JZ01
C1261 403 266 8217 NP-ELECT 10U M 16V
C1262 403 162 4719 ELECT 10U M 16V
C1269 403 153 9310 GRM1885C1H820JZ01D PT115
C1270 403 164 0214 GRM188F51E104ZA01D PT115
C128 403 314 5915 GRM21BR71C474KA01L PT297
C129 403 269 5916 GRM219R71C224KC01D PT115
C130 403 155 2111 GRM188R71H152KD01D PT115
C131 403 215 2211 GRM188R71H103KA01D PT115
C132 403 215 2211 GRM188R71H103KA01D PT115
C133 403 175 3914 ELECT 10U M 25V
C134 403 149 9218 GRM188F51H103ZA01D PT115
C137 403 256 5011 CERAMIC 560P J 50V
C138 403 256 5011 CERAMIC 560P J 50V
C141 403 215 2211 GRM188R71H103KA01D PT115
C142 403 153 9112 GRM1885C1H5R0CD01D PT115
C143 403 157 3314 GRM1885C1H680JZ01
C144 403 153 9112 GRM1885C1H5R0CD01D PT115
C145 403 215 2211 GRM188R71H103KA01D PT115
C146 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C148 403 215 2211 GRM188R71H103KA01D PT115
C149 403 215 2211 GRM188R71H103KA01D PT115
C1501 403 368 7316 CERAMIC 10U M 6.3V
C1502 403 368 7316 CERAMIC 10U M 6.3V
C1503 403 207 0317 GRM21BF51C105ZA01L PT297
C1511 403 279 4312 GRM21BR71C334KA01L PT297
C1512 403 279 4312 GRM21BR71C334KA01L PT297
C1513 403 157 3611 GRM1885C1H101JZ01D PT115
C1514 403 157 3611 GRM1885C1H101JZ01D PT115
C1601 403 149 9218 GRM188F51H103ZA01D PT115
C1602 403 321 7513 ELECT 220U M 16V
C1603 403 321 7513 ELECT 220U M 16V
C1604 403 149 9218 GRM188F51H103ZA01D PT115
C1605 403 321 7513 ELECT 220U M 16V
C1606 403 149 9218 GRM188F51H103ZA01D PT115
C1607 403 343 4910 ELECT 470U M 25V
C1608 403 149 9218 GRM188F51H103ZA01D PT115
C1609 403 321 7513 ELECT 220U M 16V
C1610 403 149 9218 GRM188F51H103ZA01D PT115
C1611 403 149 9218 GRM188F51H103ZA01D PT115
C1613 403 343 0318 ELECT 470U M 16V
C1614 403 321 7513 ELECT 220U M 16V
C1615 403 149 9218 GRM188F51H103ZA01D PT115
C1851 403 280 1614 ELECT 220U M 16V
C1853 403 280 1614 ELECT 220U M 16V
C1854 403 175 3914 ELECT 10U M 25V
C1855 403 345 6615 CERAMIC 1U M 10V
C1856 403 175 3716 ELECT 4.7U M 50V
C1858 403 149 9218 GRM188F51H103ZA01D PT115
C1861 403 149 9218 GRM188F51H103ZA01D PT115
C1862 403 343 3418 ELECT 10U M 25V
C1863 403 164 0214 GRM188F51E104ZA01D PT115
C1871 403 304 2115 ELECT 47U M 6.3V
C1872 403 149 9218 GRM188F51H103ZA01D PT115
C1873 403 149 9218 GRM188F51H103ZA01D PT115
C1875 403 207 0317 GRM21BF51C105ZA01L PT297
C1876 403 207 0317 GRM21BF51C105ZA01L PT297
C2000 403 164 0214 GRM188F51E104ZA01D PT115
C2001 403 164 0214 GRM188F51E104ZA01D PT115
C2002 403 164 0214 GRM188F51E104ZA01D PT115
C2003 403 113 3815 GRM188R71H102KA01D PT115
C2004 403 164 0214 GRM188F51E104ZA01D PT115
C2005 403 215 0910 CERAMIC 390P J 50V
C2006 403 215 0910 CERAMIC 390P J 50V
C2007 403 164 0214 GRM188F51E104ZA01D PT115
C2008 403 162 4016 ELECT 22U M 6.3V
C2009 403 215 0910 CERAMIC 390P J 50V
C2010 403 215 0910 CERAMIC 390P J 50V
C2011 403 164 0214 GRM188F51E104ZA01D PT115
C2012 403 162 4016 ELECT 22U M 6.3V
C2013 403 162 4016 ELECT 22U M 6.3V
C2014 403 215 0910 CERAMIC 390P J 50V
C2015 403 162 4016 ELECT 22U M 6.3V
C2016 403 164 0214 GRM188F51E104ZA01D PT115
C2017 403 164 0214 GRM188F51E104ZA01D PT115
C2018 403 164 0214 GRM188F51E104ZA01D PT115
C2019 403 164 0214 GRM188F51E104ZA01D PT115
C2021 403 164 0214 GRM188F51E104ZA01D PT115
C2022 403 162 4016 ELECT 22U M 6.3V
C2023 403 215 0910 CERAMIC 390P J 50V
C2024 403 164 0214 GRM188F51E104ZA01D PT115
C2025 403 162 4016 ELECT 22U M 6.3V
C2026 403 215 0910 CERAMIC 390P J 50V
C2027 403 215 0910 CERAMIC 390P J 50V
C2028 403 164 0214 GRM188F51E104ZA01D PT115
C2029 403 162 4016 ELECT 22U M 6.3V
C2030 403 164 0214 GRM188F51E104ZA01D PT115
C2031 403 157 4212 GRM1885C1H221JZ01D PT115
C2032 403 157 2515 GRM1885C1H270JZ01D PT115
C2034 403 157 3819 GRM1885C1H121JZ01D PT115
C2035 403 162 4016 ELECT 22U M 6.3V
C2036 403 164 0214 GRM188F51E104ZA01D PT115
C2037 403 166 9512 GRM188R71C223KA01
C2038 403 166 9512 GRM188R71C223KA01
C2039 403 166 9512 GRM188R71C223KA01
C2040 403 155 1510 GRM1885C1H181JZ01D PT115

-18-
N2DL/N2DW
Ref. No. Part No. Description Ref. No. Part No. Description
C2041 403 157 1914 GRM1885C1H100JZ01
C2042 403 155 1510 GRM1885C1H181JZ01D PT115
C2043 403 155 1510 GRM1885C1H181JZ01D PT115
C2044 403 157 1914 GRM1885C1H100JZ01
C2045 403 155 1510 GRM1885C1H181JZ01D PT115
C2046 403 155 1510 GRM1885C1H181JZ01D PT115
C2047 403 157 1914 GRM1885C1H100JZ01
C2048 403 155 1510 GRM1885C1H181JZ01D PT115
C2051 403 155 1510 GRM1885C1H181JZ01D PT115
C2052 403 172 6116 GRM1885C1H271JD01D PT115
C2053 403 157 1914 GRM1885C1H100JZ01
C2054 403 164 0214 GRM188F51E104ZA01D PT115
C2055 403 215 0910 CERAMIC 390P J 50V
C2056 403 215 0910 CERAMIC 390P J 50V
C2057 403 215 0910 CERAMIC 390P J 50V
C2058 403 215 0910 CERAMIC 390P J 50V
C2059 403 215 0910 CERAMIC 390P J 50V
C2060 403 215 0910 CERAMIC 390P J 50V
C2062 403 215 0910 CERAMIC 390P J 50V
C2063 403 164 0214 GRM188F51E104ZA01D PT115
C2067 403 157 3314 GRM1885C1H680JZ01
C3405 403 162 4719 ELECT 10U M 16V
C3406 403 164 0214 GRM188F51E104ZA01D PT115
C3408 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C3421 403 304 1811 ELECT 100U M 6.3V
C3431 403 157 3611 GRM1885C1H101JZ01D PT115
C3433 403 157 3611 GRM1885C1H101JZ01D PT115
C3441 403 157 3611 GRM1885C1H101JZ01D PT115
C3442 403 279 4312 GRM21BR71C334KA01L PT297
C3443 403 157 3611 GRM1885C1H101JZ01D PT115
C3444 403 279 4312 GRM21BR71C334KA01L PT297
C3445 403 157 3611 GRM1885C1H101JZ01D PT115
C3446 403 279 4312 GRM21BR71C334KA01L PT297
C3447 403 157 3611 GRM1885C1H101JZ01D PT115
C3448 403 279 4312 GRM21BR71C334KA01L PT297
C3449 403 164 0214 GRM188F51E104ZA01D PT115
C3450 403 175 3914 ELECT 10U M 25V
C3451 403 269 5916 GRM219R71C224KC01D PT115
C3452 403 164 0214 GRM188F51E104ZA01D PT115
C3453 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C3454 403 157 3611 GRM1885C1H101JZ01D PT115
C3455 403 164 0214 GRM188F51E104ZA01D PT115
C3456 403 207 0317 GRM21BF51C105ZA01L PT297
C3457 403 175 3914 ELECT 10U M 25V
C3458 403 175 3914 ELECT 10U M 25V
C3461 403 175 3914 ELECT 10U M 25V
C3462 403 164 0214 GRM188F51E104ZA01D PT115
C3463 403 175 3914 ELECT 10U M 25V
C3464 403 164 0214 GRM188F51E104ZA01D PT115
C3465 403 164 0214 GRM188F51E104ZA01D PT115
C3466 403 175 3914 ELECT 10U M 25V
C3467 403 164 0214 GRM188F51E104ZA01D PT115
C3468 403 175 3914 ELECT 10U M 25V
C3469 403 164 0214 GRM188F51E104ZA01D PT115
C3470 403 175 3914 ELECT 10U M 25V
C3473 403 207 0317 GRM21BF51C105ZA01L PT297
C3474 403 207 0317 GRM21BF51C105ZA01L PT297
C3475 403 215 2211 GRM188R71H103KA01D PT115
C3476 403 215 2211 GRM188R71H103KA01D PT115
C3477 403 175 3914 ELECT 10U M 25V
C3478 403 164 0214 GRM188F51E104ZA01D PT115
C3479 403 164 0214 GRM188F51E104ZA01D PT115
C3481 403 139 7118 GRM1885C1H120JZ01
C3482 403 139 7118 GRM1885C1H120JZ01
C3483 403 164 0214 GRM188F51E104ZA01D PT115
C3484 403 164 0214 GRM188F51E104ZA01D PT115
C3485 403 164 0214 GRM188F51E104ZA01D PT115
C3486 403 164 0214 GRM188F51E104ZA01D PT115
C3487 403 207 0317 GRM21BF51C105ZA01L PT297
C3488 403 215 2211 GRM188R71H103KA01D PT115
C3489 403 207 0317 GRM21BF51C105ZA01L PT297
C3490 403 215 2211 GRM188R71H103KA01D PT115
C6633 403 164 0214 GRM188F51E104ZA01D PT115
C6634 403 162 4719 ELECT 10U M 16V
C6635 403 304 1811 ELECT 100U M 6.3V
C6636 403 164 0214 GRM188F51E104ZA01D PT115
C6637 403 162 4719 ELECT 10U M 16V
C6638 403 304 1811 ELECT 100U M 6.3V
C6639 403 164 0214 GRM188F51E104ZA01D PT115
C6641 403 378 2219 ELECT 470U M 25V
C6642 403 164 0214 GRM188F51E104ZA01D PT115
C6643 403 377 1510 ELECT 1000U M 10V
C6644 403 164 0214 GRM188F51E104ZA01D PT115
C6645 403 162 4719 ELECT 10U M 16V
C6646 403 304 1811 ELECT 100U M 6.3V
C6647 403 164 0214 GRM188F51E104ZA01D PT115
C6648 403 162 4719 ELECT 10U M 16V
C6649 403 304 1811 ELECT 100U M 6.3V
C6651 403 378 2219 ELECT 470U M 25V
C6652 403 164 0214 GRM188F51E104ZA01D PT115
C6653 403 162 5310 ELECT 4.7U M 25V
C6654 403 164 0214 GRM188F51E104ZA01D PT115
C6655 403 113 3815 GRM188R71H102KA01D PT115
C6656 403 370 1517 CERAMIC 0.1U K 50V
C6657 403 377 1510 ELECT 1000U M 10V
C6660 403 175 4119 ELECT 22U M 16V
C6661 403 162 4719 ELECT 10U M 16V
C6662 403 304 1811 ELECT 100U M 6.3V
C6670 403 378 2219 ELECT 470U M 25V
C6671 403 164 0214 GRM188F51E104ZA01D PT115
C6672 403 377 1510 ELECT 1000U M 10V
C6675 403 164 0214 GRM188F51E104ZA01D PT115
C6676 403 162 4719 ELECT 10U M 16V
C6677 403 321 7414 ELECT 100U M 16V
C6681 403 338 2310 ELECT 4.7U M 35V
C6682 403 330 7719 ELECT 47U M 25V
C6691 403 343 3418 ELECT 10U M 25V
C6692 403 175 3716 ELECT 4.7U M 50V
C6693 403 164 0214 GRM188F51E104ZA01D PT115
C6694 403 113 3815 GRM188R71H102KA01D PT115
C6695 403 363 3917 ELECT 100U M 50V
C6696 403 370 1517 CERAMIC 0.1U K 50V
C706 403 157 2911 GRM1885C1H470JZ01D PT115
C713 403 157 2911 GRM1885C1H470JZ01D PT115
C716 403 157 2911 GRM1885C1H470JZ01D PT115
C751 403 164 0214 GRM188F51E104ZA01D PT115
C752 403 164 0214 GRM188F51E104ZA01D PT115
C753 403 164 0214 GRM188F51E104ZA01D PT115
C754 403 164 0214 GRM188F51E104ZA01D PT115
C758 403 321 7414 ELECT 100U M 16V
C761 403 145 9915 GRM1885C1H220JZ01D PT115
C762 403 164 0214 GRM188F51E104ZA01D PT115
C763 403 149 9218 GRM188F51H103ZA01D PT115
C764 403 149 9218 GRM188F51H103ZA01D PT115
C765 403 321 7414 ELECT 100U M 16V
C766 403 164 0214 GRM188F51E104ZA01D PT115
C767 403 321 7414 ELECT 100U M 16V
C801 403 164 0214 GRM188F51E104ZA01D PT115
C802 403 164 0214 GRM188F51E104ZA01D PT115
C803 403 164 0214 GRM188F51E104ZA01D PT115
C804 403 164 0214 GRM188F51E104ZA01D PT115
C805 403 164 0214 GRM188F51E104ZA01D PT115
C806 403 164 0214 GRM188F51E104ZA01D PT115
C807 403 164 0214 GRM188F51E104ZA01D PT115
C808 403 164 0214 GRM188F51E104ZA01D PT115
C809 403 164 0214 GRM188F51E104ZA01D PT115
C810 403 164 0214 GRM188F51E104ZA01D PT115
C811 403 164 0214 GRM188F51E104ZA01D PT115
C812 403 164 0214 GRM188F51E104ZA01D PT115
C813 403 164 0214 GRM188F51E104ZA01D PT115

-19- N2DL/N2DW
Ref. No. Ref. No.
Part No. Part No.Description Description
C814 403 164 0214 GRM188F51E104ZA01D PT115
C815 403 164 0214 GRM188F51E104ZA01D PT115
C816 403 164 0214 GRM188F51E104ZA01D PT115
C817 403 164 0214 GRM188F51E104ZA01D PT115
C818 403 164 0214 GRM188F51E104ZA01D PT115
C819 403 164 0214 GRM188F51E104ZA01D PT115
C820 403 162 4016 ELECT 22U M 6.3V
C821 403 164 0214 GRM188F51E104ZA01D PT115
C822 403 164 0214 GRM188F51E104ZA01D PT115
C823 403 164 0214 GRM188F51E104ZA01D PT115
C824 403 155 4610 CERAMIC MURATA 4P C 50V
C825 403 155 4610 CERAMIC MURATA 4P C 50V
C826 403 164 0214 GRM188F51E104ZA01D PT115
C827 403 164 0214 GRM188F51E104ZA01D PT115
C828 403 164 0214 GRM188F51E104ZA01D PT115
C829 403 164 0214 GRM188F51E104ZA01D PT115
C830 403 164 0214 GRM188F51E104ZA01D PT115
C831 403 164 0214 GRM188F51E104ZA01D PT115
C832 403 164 0214 GRM188F51E104ZA01D PT115
C833 403 164 0214 GRM188F51E104ZA01D PT115
C834 403 164 0214 GRM188F51E104ZA01D PT115
C835 403 164 0214 GRM188F51E104ZA01D PT115
C836 403 113 3815 GRM188R71H102KA01D PT115
C837 403 164 0214 GRM188F51E104ZA01D PT115
C838 403 368 7316 CERAMIC 10U M 6.3V
C841 403 162 4016 ELECT 22U M 6.3V
C842 403 164 0214 GRM188F51E104ZA01D PT115
C843 403 164 0214 GRM188F51E104ZA01D PT115
C844 403 164 0214 GRM188F51E104ZA01D PT115
C845 403 164 0214 GRM188F51E104ZA01D PT115
C846 403 162 4016 ELECT 22U M 6.3V
C847 403 164 0214 GRM188F51E104ZA01D PT115
C848 403 164 0214 GRM188F51E104ZA01D PT115
C849 403 164 0214 GRM188F51E104ZA01D PT115
C850 403 164 0214 GRM188F51E104ZA01D PT115
C851 403 164 0214 GRM188F51E104ZA01D PT115
C852 403 162 4016 ELECT 22U M 6.3V
C853 403 164 0214 GRM188F51E104ZA01D PT115
C854 403 164 0214 GRM188F51E104ZA01D PT115
C855 403 164 0214 GRM188F51E104ZA01D PT115
C856 403 162 4016 ELECT 22U M 6.3V
C857 403 164 0214 GRM188F51E104ZA01D PT115
C858 403 164 0214 GRM188F51E104ZA01D PT115
C859 403 164 0214 GRM188F51E104ZA01D PT115
C873 403 145 9915 GRM1885C1H220JZ01D PT115
C874 403 145 9915 GRM1885C1H220JZ01D PT115
C875 403 164 0214 GRM188F51E104ZA01D PT115
C876 403 149 9218 GRM188F51H103ZA01D PT115
C881 403 323 8815 GRM21BF51C225ZA01K PT115
C882 403 368 7316 CERAMIC 10U M 6.3V
C884 403 162 4016 ELECT 22U M 6.3V
C885 403 162 4016 ELECT 22U M 6.3V
DIODE
D001 407 149 6324 DIODE SFPB-54V
D053 407 149 0817 DIODE 1SS355-TE-17
D054 407 149 0817 DIODE 1SS355-TE-17
D1202 407 206 5618 ZENER D. UDZS-TE-1710B
D1203 407 206 5618 ZENER D. UDZS-TE-1710B
D1221 407 210 5611 DIODE RB500V-40-TE-17
D1222 407 166 1118 DIODE 1SS356-TW11
D1223 407 210 5611 DIODE RB500V-40-TE-17
D131 407 166 1118 DIODE 1SS356-TW11JS
D132 407 166 1118 DIODE 1SS356-TW11JS
D133 407 166 1118 DIODE 1SS356-TW11
D1601 407 149 0817 DIODE 1SS355-TE-17
D1602 407 149 0817 DIODE 1SS355-TE-17
D1851 407 149 0817 DIODE 1SS355-TE-17
D1853 407 149 0817 DIODE 1SS355-TE-17
D1856 407 201 2721 DIODE RB051L-40-TE25
D3401 407 206 5618 ZENER D. UDZS-TE-1710B
D3402 407 206 5618 ZENER D. UDZS-TE-1710B
D3421 407 149 0817 DIODE 1SS355-TE-17
D3441 407 206 5618 ZENER D. UDZS-TE-1710B
D3442 407 206 5618 ZENER D. UDZS-TE-1710B
D3443 407 206 5618 ZENER D. UDZS-TE-1710B
D3444 407 206 5618 ZENER D. UDZS-TE-1710B
D3445 407 149 0817 DIODE 1SS355-TE-17
D6641 407 124 0719 DIODE SFPB-64-V
D6642 407 149 0817 DIODE 1SS355-TE-17
D6643 407 149 0817 DIODE 1SS355-TE-17
D6644 407 149 0817 DIODE 1SS355-TE-17
D6645 407 149 0817 DIODE 1SS355-TE-17
D6646 407 149 0817 DIODE 1SS355-TE-17
D6651 407 213 8520 DIODE SPB-G56SVR
D6652 407 149 0817 DIODE 1SS355-TE-17
D6654 407 149 0817 DIODE 1SS355-TE-17
D6671 407 124 0719 DIODE SFPB-64-V
D6672 407 149 0817 DIODE 1SS355-TE-17
D6673 407 149 0817 DIODE 1SS355-TE-17
D6681 407 221 7116 ZENER D. UDZS-TE-1712B
D6691 407 210 5611 DIODE RB500V-40-TE-17
D6692 407 149 0817 DIODE 1SS355-TE-17
D802 407 149 0817 DIODE 1SS355-TE-17
INTEGRATED CIRCUIT
IC001 409 591 8707 IC LA4919N-E
IC001A 610 315 3452 HEAT SINK
IC001B 610 077 7613 SILICONE GREASE G-746
IC001S1 411 174 4709 SCR S-TPG PAN+SWW 3X10
IC001S2 411 174 4709 SCR S-TPG PAN+SWW 3X10
IC101 409 549 8219 IC TDA9886TS/V4
IC1201 409 180 5902 IC LA7956
IC1202 409 591 2814 IC BA7609F
IC1501 409 311 4121 IC BA7603F
IC1502 409 051 3412 IC TC4066BF-TP1
IC1801 410 514 1101 IC M30262F3GP-D5
IC1802 409 588 6016 IC BD4828G
IC1851 409 039 6619 IC NJM2904-TE1
IC2001 QSTV2310D/42 IC STV2310D/42M TRAY
IC3451 409 550 6815 IC STV8216T TAPING
IC6632 409 588 6313 IC BA33BC0FP
IC6633 409 578 0314 IC BA18BC0FP
IC6634 409 578 0314 IC BA18BC0FP
IC6641 409 533 3312 IC PQ1CZ41H2ZP
IC6642 409 588 6313 IC BA33BC0FP
IC6643 409 578 0314 IC BA18BC0FP
IC6651 409 531 6226 IC FA7701V-TE1
IC6671 409 533 3312 IC PQ1CZ41H2ZP
IC6672 409 497 6312 IC BA09FP-E2
IC6691 409 506 8917 IC FA7700V-TE1
IC701A 410 423 7201 IC THC63LVDM83R
IC801 409 584 4917 IC STV3550
IC802 410 457 0001 IC HY57V281620HCT-H
IC803 410 457 0001 IC HY57V281620HCT-H
IC804 409 578 2110 IC M29W160ET70N6 TRAY
IC805 409 556 0718 IC M24C64WMN6
IC806 409 325 4223 IC PST600DMT
IC807 409 588 6016 IC BD4828G
COIL
L001 645 066 2416 INDUCTOR,180U M
L1201 645 037 1615 SMDCOIL LEM2520T4R7J
L1202 645 037 1615 SMDCOIL LEM2520T4R7J
L1203 645 037 1615 SMDCOIL LEM2520T4R7J
L1205 645 037 1615 SMDCOIL LEM2520T4R7J
L1501 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1502 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1503 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1504 401 105 7919 MT-GLAZE 0.000 ZA 1/16W

-20-
N2DL/N2DW
Part No.
Ref. No. Description Ref. No. Part No. Description
L1505 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1506 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1507 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1508 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1509 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1510 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1511 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1512 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1513 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1514 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1601 645 037 4500 INDUCTOR,1000 OHM
L1602 645 037 4500 INDUCTOR,1000 OHM
L1603 645 037 4500 INDUCTOR,1000 OHM
L1604 645 037 4500 INDUCTOR,1000 OHM
L1605 645 023 2978 INDUCTOR,800 OHM
L1606 645 037 4500 INDUCTOR,1000 OHM
L1607 645 023 2978 INDUCTOR,800 OHM
L1611 645 036 3894 BLM21PG221SN1D E258
L1612 645 036 3894 BLM21PG221SN1D E258
L1613 645 036 3894 BLM21PG221SN1D E258
L1614 645 036 3894 BLM21PG221SN1D E258
L1615 645 036 3894 BLM21PG221SN1D E258
L1616 645 036 3894 BLM21PG221SN1D E258
L1617 645 036 3894 BLM21PG221SN1D E258
L1618 645 036 3894 BLM21PG221SN1D E258
L1619 645 036 3894 BLM21PG221SN1D E258
L1620 645 036 3894 BLM21PG221SN1D E258
L1622 645 036 3894 BLM21PG221SN1D E258
L1623 401 190 1717 MT-GLAZE 0.000 ZA 1W
L1624 401 190 1717 MT-GLAZE 0.000 ZA 1W
L1625 645 036 3894 BLM21PG221SN1D E258
L1626 645 036 3894 BLM21PG221SN1D E258
L1627 401 190 1717 MT-GLAZE 0.000 ZA 1W
L1628 401 190 1717 MT-GLAZE 0.000 ZA 1W
L1629 645 036 3894 BLM21PG221SN1D E258
L1630 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1631 645 036 3894 BLM21PG221SN1D E258
L1632 645 036 3894 BLM21PG221SN1D E258
L1851 645 033 7918 INDUCTOR,10U M
L1871 645 040 6447 INDUCTOR,3.3U M
L1872 645 036 3894 BLM21PG221SN1D E258
L1873 645 036 3894 BLM21PG221SN1D E258
L1874 645 036 3894 BLM21PG221SN1D E258
L1875 645 036 3894 BLM21PG221SN1D E258
L1876 645 036 3894 BLM21PG221SN1D E258
L1877 645 036 3894 BLM21PG221SN1D E258
L1878 645 036 3894 BLM21PG221SN1D E258
L1879 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1880 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1881 645 036 3894 BLM21PG221SN1D E258
L1882 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1883 645 036 3894 BLM21PG221SN1D E258
L1884 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1885 645 036 3894 BLM21PG221SN1D E258
L1889 645 036 3894 BLM21PG221SN1D E258
L1890 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L1891 645 036 3894 BLM21PG221SN1D E258
L1892 645 036 3894 BLM21PG221SN1D E258
L2001 645 037 1622 INDUCTOR,6.8U J
L2002 645 036 3894 BLM21PG221SN1D E258
L2003 645 036 3894 BLM21PG221SN1D E258
L2004 645 036 3894 BLM21PG221SN1D E258
L2005 645 036 3894 BLM21PG221SN1D E258
L2006 645 036 3894 BLM21PG221SN1D E258
L2008 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2011 645 036 3894 BLM21PG221SN1D E258
L2012 645 036 3894 BLM21PG221SN1D E258
L2021 645 037 1622 INDUCTOR,6.8U J
L2024 645 037 1622 INDUCTOR,6.8U J
L2025 645 037 1622 INDUCTOR,6.8U J
L2026 645 037 1622 INDUCTOR,6.8U J
L2030 645 036 3894 BLM21PG221SN1D E258
L2031 645 036 3894 BLM21PG221SN1D E258
L2032 645 036 3894 BLM21PG221SN1D E258
L2033 645 036 3894 BLM21PG221SN1D E258
L2035 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2036 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2037 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2038 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2039 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2040 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2041 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2042 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2043 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2044 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2045 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2046 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2047 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2048 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2049 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2050 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2051 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2052 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2053 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2054 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2055 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2056 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2057 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2058 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2059 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2060 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2061 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2063 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2064 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2065 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2066 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2067 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2068 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L2069 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L3452 645 036 3894 BLM21PG221SN1D E258
L3453 645 036 3894 BLM21PG221SN1D E258
L6062 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L6601 645 023 2978 INDUCTOR,800 OHM
L6630 645 036 3894 BLM21PG221SN1D E258
L6632 645 036 3894 BLM21PG221SN1D E258
L6633 645 036 3894 BLM21PG221SN1D E258
L6634 645 036 3894 BLM21PG221SN1D E258
L6635 645 036 3894 BLM21PG221SN1D E258
L6636 645 036 3894 BLM21PG221SN1D E258
L6637 645 036 3894 BLM21PG221SN1D E258
L6638 645 036 3894 BLM21PG221SN1D E258
L6639 645 036 3894 BLM21PG221SN1D E258
L6641 645 038 4561 INDUCTOR,100U M
L6642 645 036 3894 BLM21PG221SN1D E258
L6643 645 036 3894 BLM21PG221SN1D E258
L6644 645 036 3894 BLM21PG221SN1D E258
L6645 645 036 3894 BLM21PG221SN1D E258
L6651 645 037 7396 INDUCTOR,22U M
L6660 645 036 3894 BLM21PG221SN1D E258
L6661 645 036 3894 BLM21PG221SN1D E258
L6662 645 036 3894 BLM21PG221SN1D E258
L6663 645 036 3894 BLM21PG221SN1D E258
L6665 645 036 3894 BLM21PG221SN1D E258
L6666 645 036 3894 BLM21PG221SN1D E258
L6667 645 036 3894 BLM21PG221SN1D E258
L6668 645 036 3894 BLM21PG221SN1D E258
L6671 645 055 3103 INDUCTOR,47U M
L6691 645 026 1008 INDUCTOR,3.3U M
L6692 645 056 1382 INDUCTOR,2.2M M
L704 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
