Sanyo DP42849 - 42" LCD TV User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
216 W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 54 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . 10.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1012mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 704mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 307mm
REFERENCE No. SM780157
DP42849, N7AE, PRODUCT CODE 113018204
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP42849 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P42849-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 8
COMPONENT AND TESTPOINT LOCATIONS . . . . . . 21
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 24
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 25
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 26
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 32
CONTROL PORT FUNCTIONS. . . . . . . . . . . . . . . . . . . . 35
MAIN SHEET BLOCK DIAGRAM & PERIPHERICALS. . 37
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 39
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 40
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 41
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 42
© Sanyo Manufacturing Corporation 2009

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or
circuit assembly.
7. Incidental body movements, such as, lifting a foot from a
carpeted floor or the rubbing of fabric together can gener-
ate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the
service adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (–) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor  and key to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor or key to adjust the data.
The or key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
ITEM NO. TITLE
POWER
VOL
CH
Volume – :Enter Service Menu
Menu:
Exit Service Menu Cursor :
Select Item
Cursor :
Adjust the data

– 4 –
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC801 (EEPROM) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadecimal
00. See 087 above. If this program code is wrong the TV will
not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadecimal
24. See 088 above. If this program code is wrong the TV will
not operate properly.
No. Title Initial Data Note
1A0 MUTE A0h Audio mute at Power ON
086 VOL 30h Volume setup inspection
087 OP1 00h Option 1 Data (HDMI)
088 OP2 24h Option 2 Data (Display Panel)
101 1R00 00h ROM Correction Data
102 1R01 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
• All data except in gray box area is fixed. Do not change for correct operating.
• Data in gray box is initial and can be set according to adjusment information.

– 5 –
POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
CPU it is necessary to disconnect the AC cord for a
short time.
CPU (IC800) is programmed so the set will go to standby
mode when there is circuit failure as described below.
(Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC800 pin 48 and pin 23.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within three seconds.
48
18
IC800 (SUB-CPU)
1,2
5,6
2
4,2
23
Power Fail
Power On
Power Fail
1
(LVDS)
Power Board
Main
D1660
D1683
K8B
D1651
D1674
IC1680
9V
Q1651
5V
IC1670
15V
K8B
LVDS_POW
D1633
3,6
D1632 IC1630
3.3V

– 6 –
STAND REMOVAL
Note: Position TV face down on a padded or cushioned
surface to protect the screen and finish.
Remove 4 screws (B: 6x16) to take the stand off.
MECHANICAL DISASSEMBLY
A
Back Lid
CAUTION:
This LCD TV uses several different kinds of screws. Using
the correct screw is necessary to prevent damage. Lead
wires must be redressed to their previous locations after
servicing. The Earth sheet and gasket are provided to pre-
vent interference to other radio and television receivers.
The Earth sheet and gasket should be returned to its previ-
ous position after servicing.
MAIN BOARD REMOVAL
Remove 5 screws (C: 3X14) to take the Main Board off.
POWER UNIT REMOVAL
Remove 6 screws (C: 3X14) to take the Power Unit off.
BACK LID REMOVAL
Remove 2 screws (A: 3x6) to take the Back Lid off.
BB
Main BoardPower Unit
CC
C
C
C
C
C
CC
C
C

– 7 –
BACK CABINET REMOVAL
Remove 17 screws to take the back cabinet off.
(C: 3x14, 13pcs; D: 4x8, 4 pcs)
RC LED BOARD REMOVAL
Remove 1 screw (C: 3x14) to take the RC LED board off.
KEY SW BOARD REMOVAL
Remove 1 screw (C:3x14) to take the KEY SW board off.
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.
LCD PANEL REMOVAL
Lift up the LCD panel from front cabinet.
SPEAKER REMOVAL
Remove 2 screws (E: 3x14) to take off each speaker.
C
C
D
D
C
D
CC
CC
CC
C
D
C
C
C
CC
Speaker
Speaker Holder
RC LED Board
C
C
KEY SW Board

– 8 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.

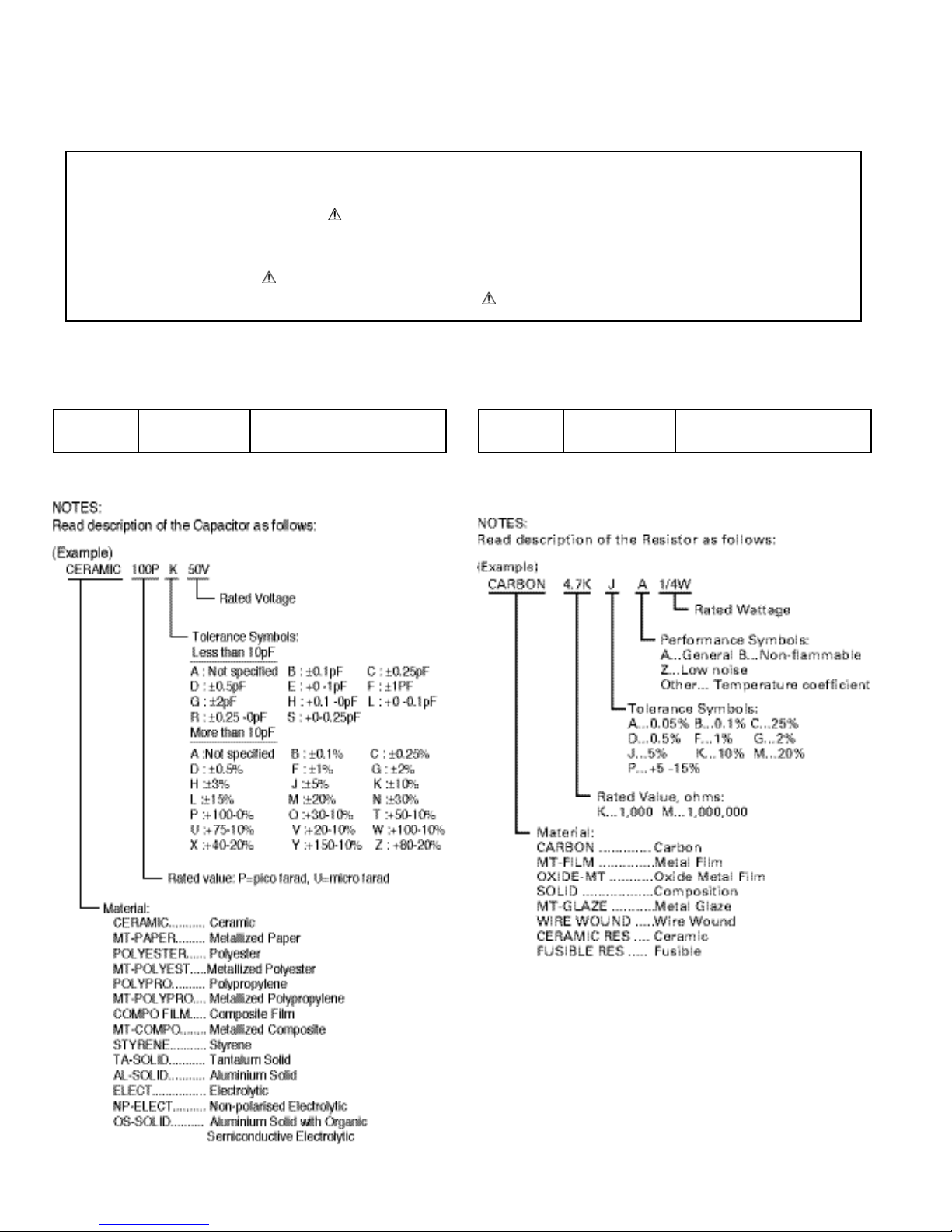

CAPACITORS RESISTORS

– 9 –
Schematic
Location Part No. Description
CAPACITORS
C016 CK1E105KGMBNG CERAMIC 1U K 25V
C017 CE1E102MZVANN ELECT 1000U M 25V
CEXLB1E102VEN ELECT 1000U M 25V
C019 CK1A105KLZBNG CERAMIC 1U K 10V
C020 CK1H104KLZBNG CERAMIC 0.1U K 50V
C021 CK1A105KLZBNG CERAMIC 1U K 10V
C022 CK1A105KLZBNG CERAMIC 1U K 10V
C023 CK1A105KLZBNG CERAMIC 1U K 10V
C024 CK1E474KLZBNG CERAMIC 0.47U K 25V
C025 CK1H104KLZBNG CERAMIC 0.1U K 50V
C026 CK1H104KLZBNG CERAMIC 0.1U K 50V
C027 CK1E224KLZBNG CERAMIC 0.22U K 25V
C028 CK1A105KLZBNG CERAMIC 1U K 10V
C029 CK1E474KLZBNG CERAMIC 0.47U K 25V
C030 CK1H104KLZBNG CERAMIC 0.1U K 50V
C031 CE1H100MZVANN ELECT 10U M 50V
CEXLB1H100VEN ELECT 10U M 50V
C032 CK1E105KGMBNG CERAMIC 1U K 25V
C033 CK1A105KLZBNG CERAMIC 1U K 10V
C034 CK1A105KLZBNG CERAMIC 1U K 10V
C035 CK1A105KLZBNG CERAMIC 1U K 10V
C038 CK1A105KLZBNG CERAMIC 1U K 10V
C039 CK1A105KLZBNG CERAMIC 1U K 10V
C040 CK1E474KLZBNG CERAMIC 0.47U K 25V
C041 CK1H104KLZBNG CERAMIC 0.1U K 50V
C042 CK1H104KLZBNG CERAMIC 0.1U K 50V
C043 CK1E224KLZBNG CERAMIC 0.22U K 25V
C044 CK1E474KLZBNG CERAMIC 0.47U K 25V
C045 CK1H104KLZBNG CERAMIC 0.1U K 50V
C046 CK1H104KLZBNG CERAMIC 0.1U K 50V
C047 CK1E105KGMBNG CERAMIC 1U K 25V
C050 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C800 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C801 CK1H104KLZBNG CERAMIC 0.1U K 50V
C802 CK1A105KLZBNG CERAMIC 1U K 10V
C803 CK1H104KLZBNG CERAMIC 0.1U K 50V
C806 CEXLB0J221VDN ELECT 220U M 6.3V
C808 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C809 CK1A105KLZBNG CERAMIC 1U K 10V
C813 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C820 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C821 CC1H180JLZCNG CERAMIC 18P J 50V
C822 CC1H220JLZCNG CERAMIC 22P J 50V
C1000 CEXLB1H4R7VDN ELECT 4.7U M 50V
C1002 CK1A105KLZBNG CERAMIC 1U K 10V
C1004 CK1A105KLZBNG CERAMIC 1U K 10V
C1006 CK1A105KLZBNG CERAMIC 1U K 10V
C1009 CK1A105KLZBNG CERAMIC 1U K 10V
C1010 CK1A105KLZBNG CERAMIC 1U K 10V
C1012 CK1A105KLZBNG CERAMIC 1U K 10V
C1014 CK1A105KLZBNG CERAMIC 1U K 10V
C1016 CK1A105KLZBNG CERAMIC 1U K 10V
C1025 CC1H471JLZCNG CERAMIC 470P J 50V
C1201 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1610 CC1H221JLZCNG CERAMIC 220P J 50V
C1611 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1612 CK1A105KLZBNG CERAMIC 1U K 10V
C1613 CK1E103KMNBNG CERAMIC 0.01U K 25V
C1614 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1615 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1617 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1618 CK1E103KMNBNG CERAMIC 0.01U K 25V
C1619 CK1A105KLZBNG CERAMIC 1U K 10V
C1620 CEXLB0J102VDN ELECT 1000U M 6.3V
C1621 CK1A105KLZBNG CERAMIC 1U K 10V
C1623 CC1H331JLZCNG CERAMIC 330P J 50V
C1625 CE0J222MZVANN ELECT 2200U M 6.3V
C1625 CEXLB0J222VEN ELECT 2200U M 6.3V
C1631 CEXLB0J221VDN ELECT 220U M 6.3V
C1634 CEXLB0J102VDN ELECT 1000U M 6.3V
C1636 CK1H563KLZBNG CERAMIC 0.056U K 50V
C1637 CK1H333KLZBNG CERAMIC 0.033U K 50V
C1642 CK1A105KLZBNG CERAMIC 1U K 10V
C1644 CEXLB0J102VDN ELECT 1000U M 6.3V
C1645 CK1H333KLZBNG CERAMIC 0.033U K 50V
C1646 CK1H333KLZBNG CERAMIC 0.033U K 50V
C1649 CK1H682KLZBNG CERAMIC 6800P K 50V
C1652 CEXLB1C102VDN ELECT 1000U M 16V
C1654 CK1E103KMNBNG CERAMIC 0.01U K 25V
C1655 CK1E103KMNBNG CERAMIC 0.01U K 25V
C1656 CC1H391JLZCNG CERAMIC 390P J 50V
C1658 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1659 CK1E105KGMBNG CERAMIC 1U K 25V
C1660 CEXLB1C101VDN ELECT 100U M 16V
C1662 CEXLB1C102VDN ELECT 1000U M 16V
C1664 CEXLB1C101VDN ELECT 100U M 16V
C1665 CK1E105KGMBNG CERAMIC 1U K 25V
C1666 CEXLB0J102VDN ELECT 1000U M 6.3V
C1667 CK1E105KGMBNG CERAMIC 1U K 25V
C1668 CC1H221JLZCNG CERAMIC 220P J 50V
C1669 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1672 CEXLB1V471VDN ELECT 470U M 35V
C1674 CE1E102MZVANN ELECT 1000U M 25V
CEXLB1E102VEN ELECT 1000U M 25V
C1675 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1679 CC1H221JLZCNG CERAMIC 220P J 50V
C1680 CK1A105KLZBNG CERAMIC 1U K 10V
C1681 CC1H221JLZCNG CERAMIC 220P J 50V
C1693 CC1H102JLZCNG CERAMIC 1000P J 50V
C1801 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1811 CK1H102KLZBNG CERAMIC 1000P K 50V
C2403 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2404 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2405 CK1A105KLZBNG CERAMIC 1U K 10V
C2407 CK1A105KLZBNG CERAMIC 1U K 10V
C2409 CC1H101JLZCNG CERAMIC 100P J 50V
C2410 CC1H101JLZCNG CERAMIC 100P J 50V
C2416 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2417 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2418 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3902 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
Schematic
Location Part No. Description

– 10 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C3904 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5501 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5503 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5504 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5505 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5506 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5507 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5508 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5509 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5510 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5511 CC1H221JLZCNG CERAMIC 220P J 50V
C5512 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5513 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5517 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5518 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5519 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5521 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5523 CK0J476KGBBNG CERAMIC 47U K 6.3V
C5524 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5525 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5526 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5527 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5529 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5530 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5532 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5534 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5535 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5536 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5537 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5538 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5539 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5540 CC1H101JLZCNG CERAMIC 100P J 50V
C5541 CK1H102KLZBNG CERAMIC 1000P K 50V
C5542 CK1H102KLZBNG CERAMIC 1000P K 50V
C5544 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5546 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5548 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5549 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5550 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5551 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5552 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5553 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5555 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5556 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5557 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5558 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5559 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5560 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5561 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5562 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5564 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5565 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5567 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5568 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5569 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5570 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5571 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5572 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5573 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5574 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5575 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5576 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5577 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5578 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5579 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5580 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5581 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5582 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5583 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5584 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5585 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5586 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5587 CC1H120JLZCNG CERAMIC 12P J 50V
C5588 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5589 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5590 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5591 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5592 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5593 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5594 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5595 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5597 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5598 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5600 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5601 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5602 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5603 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5604 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5605 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5606 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5607 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5608 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5609 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5610 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5611 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5614 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5616 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5617 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5618 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5619 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5620 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5621 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5628 CC1H2R0CLZCNG CERAMIC 2P C 50V
C5629 CC1H1R0CLZCNG CERAMIC 1P C 50V
C5650 CC1H470JLZCNG CERAMIC 47P J 50V
C5651 CC1H470JLZCNG CERAMIC 47P J 50V
C5652 CC1H470JLZCNG CERAMIC 47P J 50V
C5653 CC1H470JLZCNG CERAMIC 47P J 50V
C5654 CC1H470JLZCNG CERAMIC 47P J 50V
C5655 CC1H470JLZCNG CERAMIC 47P J 50V
C5656 CC1H470JLZCNG CERAMIC 47P J 50V

– 11 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5657 CC1H470JLZCNG CERAMIC 47P J 50V
C5658 CC1H470JLZCNG CERAMIC 47P J 50V
C5659 CC1H470JLZCNG CERAMIC 47P J 50V
C5660 CC1H470JLZCNG CERAMIC 47P J 50V
C5661 CC1H470JLZCNG CERAMIC 47P J 50V
C5702 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5703 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5704 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5705 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5706 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5707 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5708 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5709 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5710 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5711 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5712 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5713 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5714 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5715 CK0J105KMNBNG CERAMIC 1U K 6.3V
C5716 CK1C104KMNBNG CERAMIC 0.1U K 16V
C5717 CK1E103KMNBNG CERAMIC 0.01U K 25V
C5718 CK1H333KLZBNG CERAMIC 0.033U K 50V
C5731 CEXLB0J221VDN ELECT 220U M 6.3V
C5734 CEXLB0J102VDN ELECT 1000U M 6.3V
C5735 CK1H333KLZBNG CERAMIC 0.033U K 50V
C5736 CEXLB0J102VDN ELECT 1000U M 6.3V
C5751 CE1V470MZVANN ELECT 47U M 35V
CEXLB1V470VEN ELECT 47U M 35V
C5755 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5756 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5802 CC1H680JLZCNG CERAMIC 68P J 50V
C5803 CC1H680JLZCNG CERAMIC 68P J 50V
C5804 CC1H680JLZCNG CERAMIC 68P J 50V
C5806 CC1H270JLZCNG CERAMIC 27P J 50V
C5807 CC1H270JLZCNG CERAMIC 27P J 50V
C5808 CC1H270JLZCNG CERAMIC 27P J 50V
C5810 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5811 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5812 CC1H5R0CLZCNG CERAMIC 5P C 50V
C5814 CC1H120JLZCNG CERAMIC 12P J 50V
C5815 CC1H120JLZCNG CERAMIC 12P J 50V
C5816 CC1H120JLZCNG CERAMIC 12P J 50V
C5818 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5819 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5820 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5821 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5822 CEXLB1H100VDN ELECT 10U M 50V
C5823 CEXLB1H100VDN ELECT 10U M 50V
C5901 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5902 CK1E224KLZBNG CERAMIC 0.22U K 25V
C6101 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6102 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6103 CC1H470JLZCNG CERAMIC 47P J 50V
C6105 CC1H470JLZCNG CERAMIC 47P J 50V
C6106 CC1H470JLZCNG CERAMIC 47P J 50V
C6108 CEXLB0J102VDN ELECT 1000U M 6.3V
C6110 CEXLB0J102VDN ELECT 1000U M 6.3V
C6111 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6112 CK1H104KLZBNG CERAMIC 0.1U K 50V
C6115 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6130 CK1H102KLZBNG CERAMIC 1000P K 50V
C6131 CK1H102KLZBNG CERAMIC 1000P K 50V
C6133 CC1H120JLZCNG CERAMIC 12P J 50V
C6134 CC1H120JLZCNG CERAMIC 12P J 50V
C6135 RGFR000ZTCANL MT-GLAZ E 0.000 ZA 1/10W
C6136 RGFR000ZTCANL MT-GLAZ E 0.000 ZA 1/10W
C6207 CEXLB1H100VDN ELECT 10U M 50V
C6208 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6223 CK1A105KLZBNG CERAMIC 1U K 10V
C6250 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6251 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6252 CEXLB1V470VDN ELECT 47U M 35V
C6253 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6254 CK1H103KLZBNG CERAMIC 0.01U K 50V
C6255 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6256 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6257 CK0J106KGMBNG CERAMIC 10U K 6.3V
C6258 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6259 CK0J106KGMBNG CERAMIC 10U K 6.3V
C6260 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6270 CE1H100MZVANN ELECT 10U M 50V
CEXLB1H100VEN ELECT 10U M 50V
C6272 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6274 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6275 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6276 CE1H100MZVANN ELECT 10U M 50V
C6276 CEXLB1H100VEN ELECT 10U M 50V
C6277 CE1H100MZVANN ELECT 10U M 50V
CEXLB1H100VEN ELECT 10U M 50V
C6278 CK1A105KLZBNG CERAMIC 1U K 10V
C6279 CK1A105KLZBNG CERAMIC 1U K 10V
C6301 CC1H471JLZCNG CERAMIC 470P J 50V
C6302 CC1H680JLZCNG CERAMIC 68P J 50V
C6303 CC1H680JLZCNG CERAMIC 68P J 50V
C6304 CC1H680JLZCNG CERAMIC 68P J 50V
C6305 CC1H471JLZCNG CERAMIC 470P J 50V
C6306 CC1H680JLZCNG CERAMIC 68P J 50V
C6309 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6310 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6312 CEXLB1H100VDN ELECT 10U M 50V
C6314 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6316 CEXLB1C101VDN ELECT 100U M 16V
C6321 CK1A105KLZBNG CERAMIC 1U K 10V
C6322 CK1A105KLZBNG CERAMIC 1U K 10V
C6324 CK1A105KLZBNG CERAMIC 1U K 10V
C6501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6502 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6503 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6531 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6533 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6561 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6563 CK1H104ZLZFNG CERAMIC 0.1U Z 50V

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C6605 CK1A105KLZBNG CERAMIC 1U K 10V
C6609 CEXLB1V471VDN ELECT 470U M 35V
C6611 CK1E103KMNBNG CERAMIC 0.01U K 25V
DIODES
D001 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D800 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D801 DZUDZS3.9B--G ZD UDZS-TE-173.9B
D1602 DDSS3P3-E3--G DIODE SS3P3-E3/84A
D1603 DDSS3P3-E3--G DIODE SS3P3-E3/84A
D1604 DDSS3P3-E3--G DIODE SS3P3-E3/84A
D1605 DDSS3P3-E3--G DIODE SS3P3-E3/84A
D1632 DZUDZS3.0B--G ZENER DIODE UDZS3.0B-TE-1
D1633 DD1SS352----G DIODE 1SS352-(TPH3)
D1633 DD1SS355----G DIODE 1SS355-TE-17
D1651 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1660 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1670 DDSS3P3-E3--G DIODE SS3P3-E3/84A
D1674 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1683 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D1800 DD1SS352----G DIODE 1SS352-(TPH3)
DD1SS355----G DIODE 1SS355-TE-17
D2402 DDRB551V-30-G DIODE RB551V-30-TE-17
D2403 DDRB551V-30-G DIODE RB551V-30-TE-17
D3900A 1AV2SA9SD01D- SPACER
D3900 DLSPR-39MVWFN LED SPR-39MVWF
D6500 DDRB551V-30-G DIODE RB551V-30-TE-17
D6501 DDRB551V-30-G DIODE RB551V-30-TE-17
D6502 DDRB551V-30-G DIODE RB551V-30-TE-17
D6503 DDRB551V-30-G DIODE RB551V-30-TE-17
INTEGRATED CIRCUITS
IC001 QLV49152V-E-P IC LV49152V-TLM-E
IC002 QTC7SET08FU-P IC TC7SET08FU-(TE85L)
IC800 QXXAAJQ0973— IC LC87F2932AVU-Y09LCD
IC800A QXXGA0500125M IC LC87F2932AVU-QIP-E
IC800C 1AA6P4P1853— LABEL-LC87F2932AVU-Y09LCD
IC801 QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
QXXAVC986—-P IC CAT24C02WI-GT3
IC804 QTC7SET14FU-P “IC TC7SET14FU-(TE85L,F”
IC1200 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF—-P IC TC4052BF(EL)
IC1610 QBD9845FV—-P IC BD9845FV-E2
IC1611 QBD9845FV—-P IC BD9845FV-E2
IC1630 QXXAVD077—-G IC PQ033EHS2ZPH
IC1640 QXXAVD076—-G IC PQ018EHS2ZPH
IC1660 QXXAVC692—-P IC PQ1LAX95MSPQ
IC1670 QLA5774MPE—P IC LA5774MP-DL-E
IC1801 QTC7SET08FU-P IC TC7SET08FU-(TE85L)
IC2401 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2402 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2403 QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
QXXAVC986—-P IC CAT24C02WI-GT3
IC2404 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2405 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC5500A 1AA2HER0052— HEAT SINK SHEET-N7BE
IC5500 QXXAVD053—-M IC 215-0691008-00
IC5700 QXXAVD057—-P IC HYB18TC512160CF-1.9
QXXAVD134—-M IC K4T51163QG-HCF8
IC5730 QXXAVD076—-G IC PQ018EHS2ZPH
IC5750 QXXAAJQ0972— IC HY27US08561A N7AE
IC5750A QXXAVD058—-M IC HY27US08561A
IC5750C 1AA6P4P1852— LABEL-HY27US08561A N7AE
IC5900 QXXAVD046—-P IC XC6108N28AMR
IC6250 QCS4352-CZZ-P IC CS4352-CZZ
IC6270 QPCM1808PWR-P IC PCM1808PWR
IC6300 QBA4558RF-E2P IC BA4558RF-E2
QNJM4558M—-P IC NJM4558M-TE2
IC6501 QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
QXXAVC986—-P IC CAT24C02WI-GT3
IC6502 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF—-P IC TC4052BF(EL)
IC6531 QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
QXXAVC986—-P IC CAT24C02WI-GT3
IC6561 QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
QXXAVC986—-P IC CAT24C02WI-GT3
IC6601 QRT9711CGB—P IC RT9711CGB
COILS
L004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L005 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L006 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L007 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L011 1LB4L26B1180G INDUCTOR 10U M
L012 1LB4L26B1180G INDUCTOR 10U M
L013 1LB4L26B1180G INDUCTOR 10U M
L014 1LB4L26B1180G INDUCTOR 10U M
L800 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L801 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L1000 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L1200 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L1600 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1601 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1602 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1604 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1606 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1608 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1609 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1610 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1613 1LB4L26B0740G “INDUCTOR , 220 OHM”

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
L1614 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1620 1AV4L26B5930N “INDUCTOR,10U”
L1621 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1622 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1623 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1624 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1625 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1640 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1644 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1645 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1646 1AV4L26B5930N “INDUCTOR,10U”
L1650 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1652 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1660 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1670 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1671 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1674 1AV4L2JJ470KN “INDUCTOR,47U K”
L1676 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1677 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1686 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1687 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1800 1LB4L26B0740G “INDUCTOR , 220 OHM”
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5500 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5501 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5502 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5503 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5504 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5505 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5509 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5511 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5513 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5514 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5515 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5516 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5517 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5518 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5519 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5520 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5521 1LB4L26B0700G “INDUCTOR , 120 OHM”
L5522 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5523 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5524 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5525 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5650 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5651 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5652 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5653 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5654 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5655 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L5701 1LB4L26B0740G “INDUCTOR , 220 OHM”
L5731 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5751 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5802 1AV4L2GA150JG “INDUCTOR,15U J”
L5803 1AV4L2GA150JG “INDUCTOR,15U J”
L5804 1AV4L2GA150JG “INDUCTOR,15U J”
L6100 RGF1200JTCANL MT-GLAZE 120 JA 1/10W
L6101 RGF1200JTCANL MT-GLAZE 120 JA 1/10W
L6103 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L6105 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L6117 1LB4L26B0740G “INDUCTOR , 220 OHM”
L6131 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L6132 1AV4L2GAR47JG “INDUCTOR,0.47U J”
L6250 1LB4L26B0740G “INDUCTOR , 220 OHM”
L6251 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L6252 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L6301 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6302 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6303 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6304 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6305 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6306 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6307 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6308 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6309 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6603 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q001 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q800 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q801 TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
TXXLBB005—-P TR MMBTSA1235F
Q806 TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
TXXLBB005—-P TR MMBTSA1235F
Q807 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q808 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1001 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1002 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1200 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1201 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1202 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1203 T2SC3928A1R-P TR 2SC3928A1R

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1600 TAO4449——-P TR AO4449
Q1602 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1603 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1630 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1631 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1633 T2SC2411K-Q-P TR 2SC2411K-T146-Q
Q1640 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1641 TAO4449——-P TR AO4449
Q1650 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1651 TMCH6331-S-EG TR MCH6331-S-TL-E
Q1670 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1801 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1802 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1805 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1806 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q2400 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q2401 TUM6K1N——-P TR UM6K1N-TN
Q5501 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5730 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5802 TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
TXXLBB005—-P TR MMBTSA1235F
Q5803 TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
TXXLBB005—-P TR MMBTSA1235F
Q5804 TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
TXXLBB005—-P TR MMBTSA1235F
Q5806 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5807 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5808 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6302 T2SC2411K-Q-P TR 2SC2411K-T146-Q
Q6303 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6304 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6306 TMCH6331-S-EG TR MCH6331-S-TL-E
Q6500 T3LN01C-E—-P TR 3LN01C-TB-E
Q6501 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6502 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6503 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6504 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6510 TXXAVB021—-K TR UPA672T-T1-A
Q6511 TXXAVB021—-K TR UPA672T-T1-A
Q6512 TXXAVB021—-K TR UPA672T-T1-A
Q6523 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6530 T3LN01C-E—-P TR 3LN01C-TB-E
Q6553 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6560 T3LN01C-E—-P TR 3LN01C-TB-E
Q6584 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6600 T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
RESISTORS
R009 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R010 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R011 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R013 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R014 RGF1001JTCANL MT-GLAZE 1K JA 1/10W

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R015 RGF2701FTCANL MT-GLAZE 2.7K FA 1/10W
R016 RGF6801FTCANL MT-GLAZE 6.8K FA 1/10W
R017 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R021 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R022 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R023 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R024 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R025 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R800 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R801 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R802 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R803 RGF10R0JTCANL MT-GLAZE 10 JA 1/10W
R805 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R806 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R807 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R810 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R811 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R813 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R818 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R819 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R820 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R821 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R826 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R827 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R828 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R829 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R830 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R831 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R833 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R836 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R838 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R840 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R841 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R844 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R847 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R848 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R851 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R852 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R853 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R854 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R857 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R858 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R859 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R860 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R861 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R862 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R865 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R867 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R871 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R875 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R876 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R877 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R878 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R879 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R881 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R883 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R884 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R885 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R886 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R887 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R888 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R890 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R891 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R892 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R893 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R894 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R895 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R896 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R897 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R899 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1005 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1006 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1012 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1014 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1015 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1016 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1018 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1019 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1020 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1021 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1022 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1036 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1037 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1038 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1040 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1041 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1042 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1043 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1044 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1045 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1046 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1047 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1048 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1049 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1050 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1051 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1052 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1053 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1054 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1055 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1056 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1057 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1058 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1064 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1072 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1077 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1078 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1079 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1080 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1096 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1098 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1100 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W

– 16 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R1102 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1104 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1106 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1108 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1110 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1200 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1201 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1202 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1203 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1205 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1207 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1208 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1209 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1600 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1607 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1611 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1612 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R1613 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1614 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1615 RGF7501JTCANL MT-GLAZE 7.5K JA 1/10W
R1616 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1617 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1618 RGF6801FTCANL MT-GLAZE 6.8K FA 1/10W
R1619 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1620 RGF4700FTCANL MT-GLAZE 470 FA 1/10W
R1621 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1622 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1623 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1624 RGF18R0JTCANL MT-GLAZE 18 JA 1/10W
R1625 RN1R005JTFANL MT-FILM 0.005 JA 1W
R1627 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1631 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1632 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1633 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1639 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1642 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1643 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1644 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1650 RGF1504JTCANL MT-GLAZE 1.5M JA 1/10W
R1651 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1652 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1654 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1655 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R1657 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1659 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1660 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1661 RGF6801FTCANL MT-GLAZE 6.8K FA 1/10W
R1662 RGF5602FTCANL MT-GLAZE 56K FA 1/10W
R1663 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1666 RG147R0JTEANL MT-GLAZE 47 JA 1W
R1667 RG122R0JTEANL MT-GLAZE 22 JA 1W
R1668 RGF2202FTCANL MT-GLAZE 22K FA 1/10W
R1669 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1670 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1671 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1672 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1673 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1674 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1675 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1676 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1678 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1680 RN1R005JTFANL MT-FILM 0.005 JA 1W
R1681 RGF18R0JTCANL MT-GLAZE 18 JA 1/10W
R1682 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1683 RGF68R0JTCANL MT-GLAZE 68 JA 1/10W
R1684 RG14700JTEANL MT-GLAZE 470 JA 1W
R1696 RGF33R0JTCANL MT-GLAZE 33 JA 1/10W
R1699 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1800 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1801 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1802 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1805 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1806 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1808 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1810 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1811 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1812 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1826 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1827 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1829 1LB4L26B0700G INDUCTOR“, 120 OHM”
R1830 1LB4L26B0700G INDUCTOR“, 120 OHM”
R1831 1LB4L26B0700G INDUCTOR“, 120 OHM”
R1833 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1834 CK1A105KLZBNG CERAMIC 1U K 10V
R1839 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1842 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1843 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1844 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1847 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1848 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1850 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1851 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1852 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1853 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1854 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1855 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1856 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1869 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1901 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1902 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1903 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R1904 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1905 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1906 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1907 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R2404 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2405 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2406 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R2407 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R2408 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R2409 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R2410 RGF1000JTCANL MT-GLAZE 100 JA 1/10W

– 17 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R2411 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2414 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R2415 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R2419 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2420 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2421 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2422 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2426 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2427 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2428 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2429 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2430 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2432 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2434 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2435 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2436 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R2437 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R2438 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2445 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2446 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2447 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2448 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2449 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2455 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2456 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2457 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2458 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2459 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2460 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2461 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R3200 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3203 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3903 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R3908 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R3909 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R3911 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3912 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5500 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5502 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5503 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5511 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5515 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R5516 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5517 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5532 RGF1000FTCANL MT-GLAZE 100 FA 1/10W
R5533 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5534 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5535 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5536 RGF1000FTCANL MT-GLAZE 100 FA 1/10W
R5538 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5539 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5540 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5542 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5543 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5544 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5545 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5547 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5549 RGF2701FTCANL MT-GLAZE 2.7K FA 1/10W
R5550 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5552 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5553 RGF3300FTCANL MT-GLAZE 330 FA 1/10W
R5557 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5558 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5559 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5560 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5562 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5563 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R5564 RGF1500JTCANL MT-GLAZE 150 JA 1/10W
R5565 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5566 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5567 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5568 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5569 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R5570 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5650 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5652 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5654 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5656 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5658 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5660 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5700 RGF1000FTCANL MT-GLAZE 100 FA 1/10W
R5701 RGF1000FTCANL MT-GLAZE 100 FA 1/10W
R5702 RGG56R0FTHANL MT-GLAZE 56 FA 1/16W
R5703 RGG56R0FTHANL MT-GLAZE 56 FA 1/16W
R5731 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5732 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5733 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R5735 RGF68R0JTCANL MT-GLAZE 68 JA 1/10W
R5751 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5776 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5802 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5803 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5804 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5806 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5807 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5808 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5815 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5817 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5819 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5822 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5823 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5824 RGF6800JTCANL MT-GLAZE 680 JA 1/10W
R5826 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5827 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5828 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5833 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5834 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5835 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5836 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5837 RGF1000JTCANL MT-GLAZE 100 JA 1/10W

– 18 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5838 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5839 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5840 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5843 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5846 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5847 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5848 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R5900 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5901 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5902 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5950 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R5951 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5954 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5955 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5956 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5957 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5959 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R5960 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6100 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6101 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6104 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6105 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6107 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R6109 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R6113 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6115 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6116 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6130 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6201 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6203 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6210 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6212 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6232 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6233 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6234 RGF22R0JTCANL MT-GLAZE 22 JA 1/10W
R6250 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6252 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6253 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6255 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6256 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6257 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6258 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6259 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6260 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6261 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6270 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6271 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6275 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6276 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6277 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6278 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6280 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6301 RGF2201FTCANL MT-GLAZE 2.2K FA 1/10W
R6302 RGF3302FTCANL MT-GLAZE 33K FA 1/10W
R6303 RGF2201FTCANL MT-GLAZE 2.2K FA 1/10W
R6304 RGF3302FTCANL MT-GLAZE 33K FA 1/10W
R6305 RGF6802FTCANL MT-GLAZE 68K FA 1/10W
R6306 RGF6802FTCANL MT-GLAZE 68K FA 1/10W
R6310 RGF2201FTCANL MT-GLAZE 2.2K FA 1/10W
R6311 RGF3302FTCANL MT-GLAZE 33K FA 1/10W
R6312 RGF2201FTCANL MT-GLAZE 2.2K FA 1/10W
R6313 RGF3302FTCANL MT-GLAZE 33K FA 1/10W
R6314 RGF6802FTCANL MT-GLAZE 68K FA 1/10W
R6315 RGF6802FTCANL MT-GLAZE 68K FA 1/10W
R6317 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6318 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6323 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6331 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6332 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6357 RG11500JTEANL MT-GLAZE 150 JA 1W
R6358 RG11500JTEANL MT-GLAZE 150 JA 1W
R6359 RG11500JTEANL MT-GLAZE 150 JA 1W
R6364 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6367 RGF1504JTCANL MT-GLAZE 1.5M JA 1/10W
R6369 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6370 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6371 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6372 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6374 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6376 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6378 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6380 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6381 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R6382 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6384 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6500 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6501 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6502 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6503 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6504 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6505 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6506 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6507 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6508 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6509 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6510 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6511 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6512 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6513 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6514 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6515 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6516 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6517 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6518 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6519 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6520 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6521 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6522 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6524 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6525 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R6526 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6527 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W

– 19 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R6528 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6529 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6530 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6531 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6532 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6535 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6539 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6540 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6541 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6542 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6543 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6544 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6545 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6546 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6547 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6548 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6549 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6550 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6551 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6552 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6554 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R6555 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6556 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6557 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6560 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6561 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6562 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6565 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6566 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6567 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6569 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6570 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6571 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6572 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6573 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6575 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6576 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6577 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6578 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6579 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6580 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6581 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R6582 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R6583 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6585 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6587 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R6591 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6592 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6599 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6611 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6613 RGF4R70JTCANL MT-GLAZE 4.7 JA 1/10W
R6614 RGF4R70JTCANL MT-GLAZE 4.7 JA 1/10W
R6615 RGF1502JTCANL MT-GLAZE 15K JA 1/10W
R6616 RGF1502JTCANL MT-GLAZE 15K JA 1/10W
R6617 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R6618 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R6622 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6623 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6624 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R6630 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R6631 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R6650 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R6651 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R6652 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
CRYSTAL / FILTERS
X5500 1AV4V10B9220G “OSC,CRYSTAL 54.1MHZ”
X800 1AV4V11B1771G “OSC,CERAMIC 8.00MHZ”
X801 1AV4V10B0560N “OSC,CRYSTAL 32.768KHZ”
SWITCHES
SW1901 1AV4S10B0722J “SWITCH,PUSH”
SW1902 1AV4S10B0722J “SWITCH,PUSH”
SW1903 1AV4S10B0722J “SWITCH,PUSH”
SW1904 1AV4S10B0722J “SWITCH,PUSH”
SW1905 1AV4S10B0722J “SWITCH,PUSH”

– 20 –
Schematic
Location Part No. Description Schematic Location Part No. Description
MISCELLANEOUS
A100 1AA0B10N25600 “ASSY,PWB,MAIN_A N7AE”
A200 1AA0B10N26100 “ASSY,PWB,CONTROL N7AE”
A201 1AA0B10N2610A “ASSY,PWB,KEY_SW N7AE”
A202 1AA0B10N2610B “ASSY,PWB,RC_LED N7AE”
A3900 1AV4U20C11701 “UNIT,REMOCON RECEIVER”
A6100 1AV4F1BAZ0100 “TUNER,U/V”
EL901 1AV4T40C05500 LCD(LC420WUN-SBA1)
K19CTR 1AV4J10AV083N “PLUG,8P”
K19K 1AV4J10AR061N “PLUG,6P”
K39K 1AV4J10EA063N “PLUG,6P”
K1003 1LB4J31B01101 “TERMINAL, BOARD”
K1004 1LB4J12B11700 “JACK,RCA-9”
K1005 1LB4J12B11600 “JACK,RCA-6”
K2401 1LB4J12B11900 “JACK,PHONE D3.6”
K2402 1LB4J11B0630N “SOCKET,D-SUB 15P”
K5LVDS 1AV4J10XE400G “PLUG,40P”
K6501 1AV4J11B8591G “SOCKET,IF(HDMI) 19P”
K6502 1AV4J11B8591G “SOCKET,IF(HDMI) 19P”
K6503 1AV4J11B8591G “SOCKET,IF(HDMI) 19P”
K8B 1AV4J10FT140N “PLUG,PWB 14P”
K8CTR 1AV4J10AU085N “PLUG,8P”
K8L 1AV4J10AU055N “PLUG,5P”
KSP 1AV4J10EA043N “PLUG,4P”
KUSB 1LB4J11B0550N “SOCKET,USB 4P”
SP901 1LB4A10B08700 SPEAKER, 8
SP902 1LB4A10B08700 SPEAKER, 8
W901 1AV4W10B19804 CORD,POWER-2.0MK-VTR-02
WK5LV 1AA4W30B55900 CORD 42INCH,40P-51P(LVDS)
POWER BOARD
U901 1AV4U20C39200 UNIT,POWER
