Service Manual
Colour Television
PRODUCT CODE: 111354516
ORIGINAL VERSION: Chassis No. EB6
Model No. CE32WN4
Give complete “SERVICE REF. NO.” for parts
order or servicing. It is shown on the rating plate
at the cabinet back of the unit.
Note
This T.V. receiver will not work properly in foreign
countries where the television transmission
system and power source differ from the design
specifications. Refer to the specification table on
page 2.
CONTENTS
Safety precautions ..........................................................................................................................................2
Chassis Diagrams............................................................................................................................................3
Disassembly ....................................................................................................................................................4
Service adjustments [Option Setting] ..............................................................................................................5
Service adjustments [Service Adjustment]-[Adjustment] ..........................................................................6 -10
CPU port functions ........................................................................................................................................11

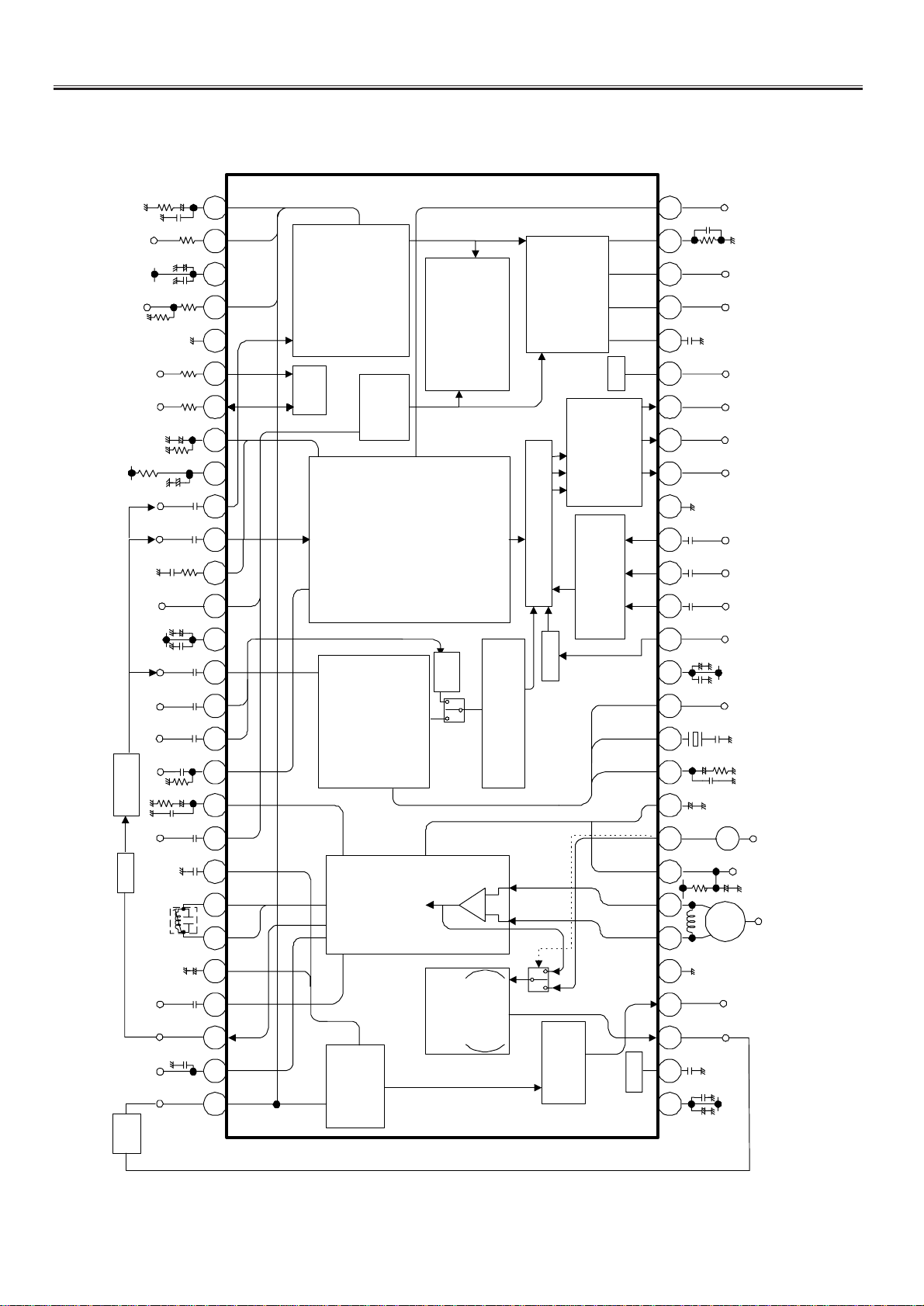

IC block diagrams ..................................................................................................................................12 - 13
Pin description of semi-conductors................................................................................................................14

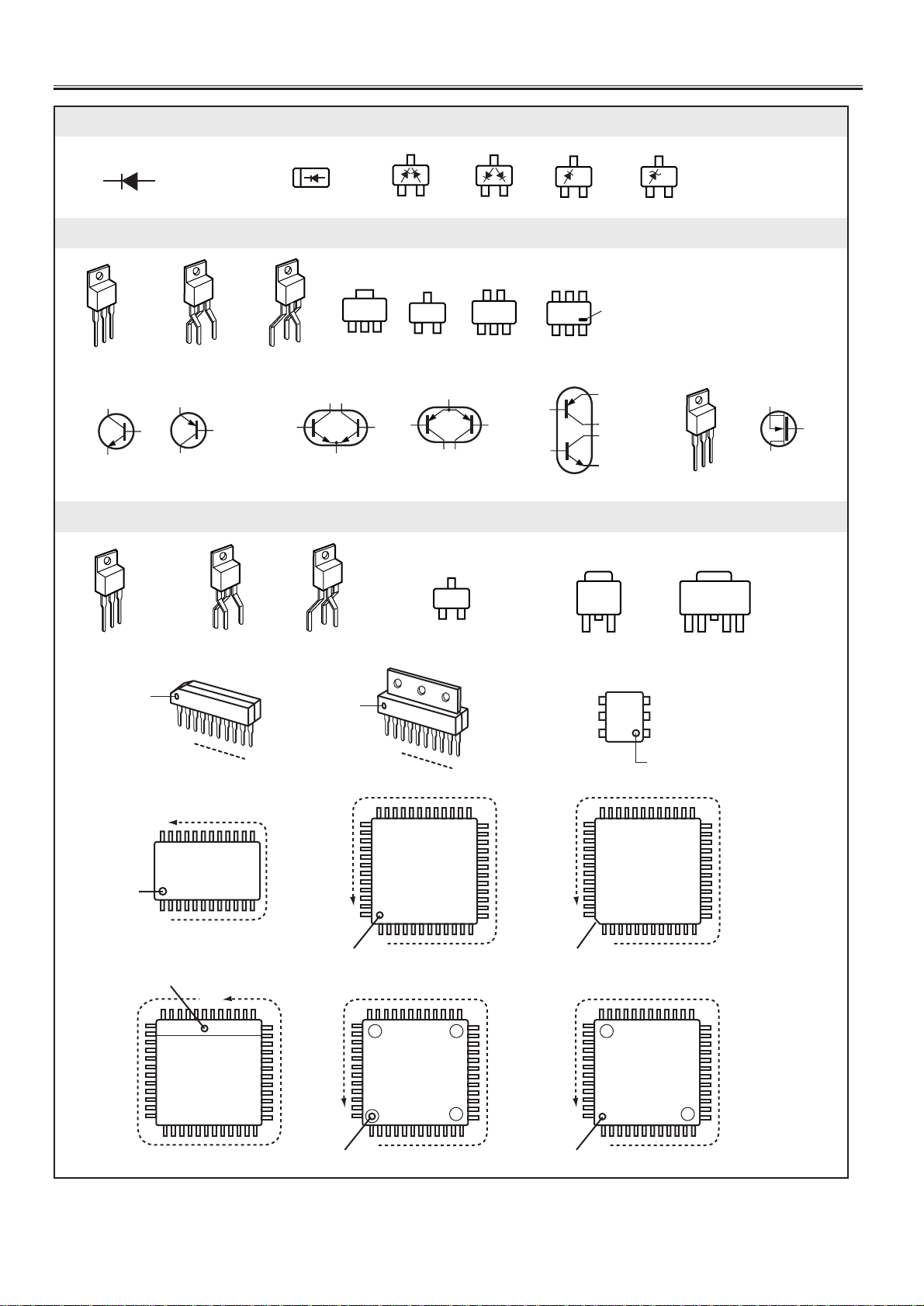

Parts description and reading in schematic diagram ....................................................................................15
Cabinet parts list ............................................................................................................................................16
Electrical parts list ..................................................................................................................................17 - 23
CE32WN4

EB6-D chassis
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor
networks etc.Before returning any television to the
customer, the service technician must be sure that it
is completely safe to operate without danger of
electrical shock.
2
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high
voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark . No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark .
!
!
!
SPECIFICATIONS
Power source AC 220~240V 50Hz
Television System B/G, D/K
Colour system PAL/NTSC4.43 on Air
(PAL/NTSC4.43/NTSC3.58 in AV mode)
Channel coverage VHF: E2-E12, R1-R12
UHF: 21-69
CATV: X, Y, Z, S1-S41
Aerial input impedance 75ohm
AV terminals
AV1: CENELEC Standard
Input: Composite video, RGB and audio-L/R
Output: TV-output with composite video and audio-L/R
AV2: CENELEC Standard
Input: Composite video, S-VHS and audio-L/R
Output: Monitor-output with composite video and audio-L/R
Sound output 5.0 x 2
(continuous) (watts)
Picture tubes (Inches) 28
Dimensions (WxHxD) 736 x 597 x 494 mm
Weight 32 kg
Specifications subject to change without notice.

3EB6-D chassis
This is a basic diagram for all models and therefore differs slightly from the actual block diagram.
1 5
7 10
SP902
SPEAKER
IC001
AUDIO-OUT
<LA4270>
IC201
IF/VIDEO/CHROMA/DEF
<TB1251>
6
7
50 51 54
34 35 15
16
17
18
IF-IN X132
A101
TUNER
IF
SCL
SDA
L171
Pix
Video-Out
SIF-OUT
K1002
SCART SC2
K1001
SCART SC1
48 46 43 39 38
BLK/R/G/B-IN
SCL
SDA
25 26 32 20 21 22
CRT
HEATER
200V
Q701
Q711
Q721
B
R
GPICTURE
TUBE
H.V
FOCUS/SCREEN
T451 FLYBACK
R
G
B
Q431 Q430
Q432
H-OUTPUT
D.Y
V-OUT
V-FB
H-OUT
4
2
IC501
V-OUTPUT
<LA7833>
IC1201
AV-VIDEO-SW
<LA7954>
IC1202
C-SW
<NJM2233BD>
BLK
R
G
B
45
18 17 16
15 34 33
54
11 21
20
8
1
19
MUTE
IC801
CPU
IC3451
NICAM/
STEREO
RC-IN
A1901
RC RECEIVER
KEY-IN
KEY SW
SDA
SCL
SDA
SCL
IC803
MEMORY
PROTECT
POWER
D641
9V
IC642
D647
5V-1
24V
IC643
Q661
Q651
Q682 Q685
25V
150V
Q641
Q686
D615
12
13
14
11 18 15
5
3
2 8
Q611
SW901
D603-D606
AC
C607
Q613
Reg.
C-IN
C-IN
Y-IN Video/Y-IN
Video/Y-Out
Video-IN
SYNC-IN
R/G/B-OUT
T611
CONVERTER
D637 D646
5V
IC641
Q666
AERIAL
5V
12
60 61
3
6918
731

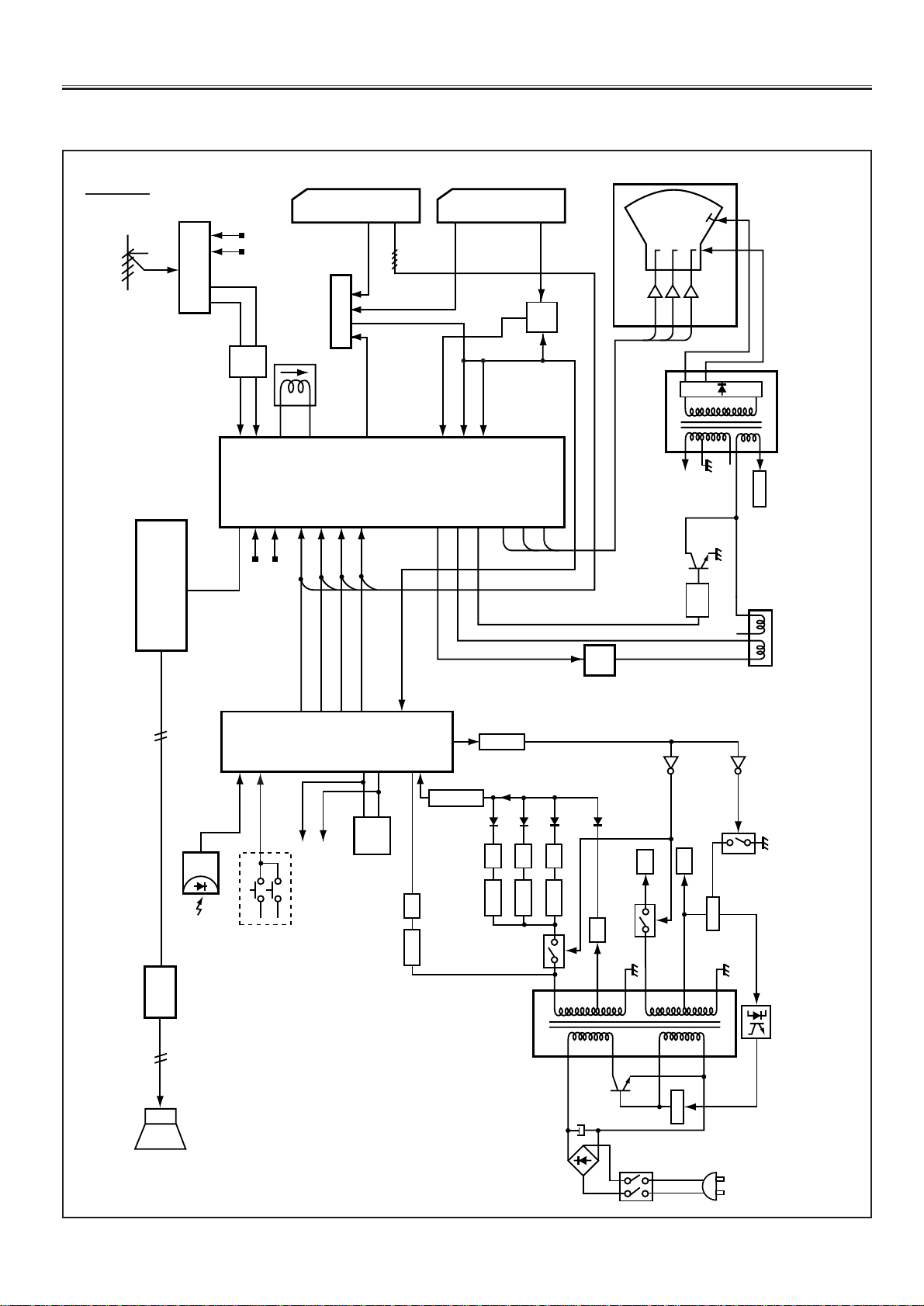

Outline
Fig.-1
CHASSIS DIAGRAMS

4
EB6-D chassis

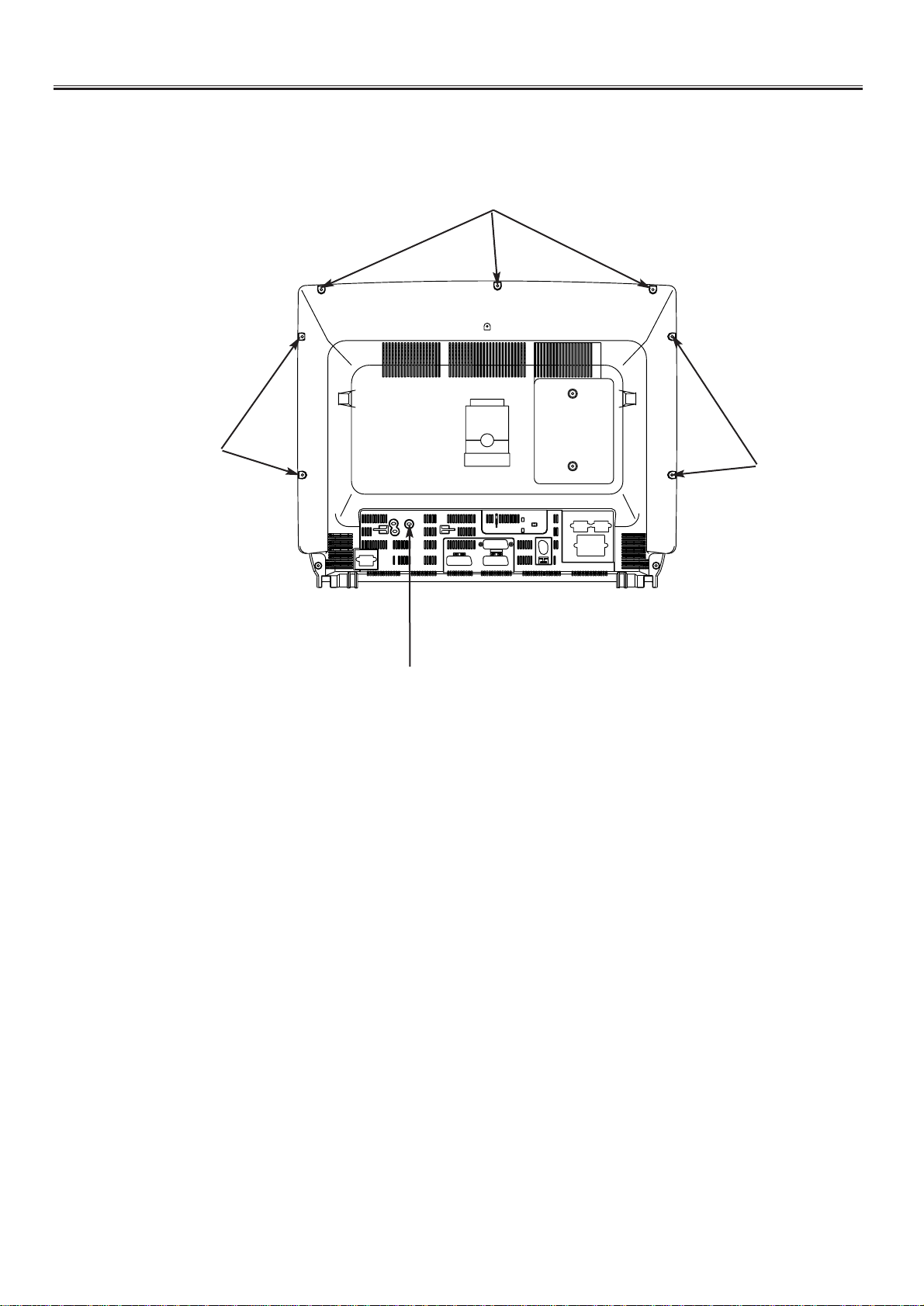

DISASSEMBLY
CABINET BACK DISASSEMBLY
1. Remove 8 screws(A) to take the cabinet back off.
(A)
(A)
(A)
(A)

5EB6-D chassis
SERVICE ADJUSTMENTS
To enter the Option Mode
+ Press and hold the F/OK button on the remote control and P▼button on the front panel of the TV. The option
window will appear on the screen.
To set the option mode
+ Highlight the desired option item by using the P▲or P▼ button .
+ To switch the option mode, use the Volume - (LEFT) or Volume + (RIGHT) button.
+ The data which is set in the option mode is stored into the memory IC automatically.
Following table shows the available option items and default setting mode.
Exit from the Option Mode
+ Press the MENU button.
Option Mode Mode Description & Note
ON-TIMER ON or OFF On-timer available, default “ON”
Wel. Text ON or OFF Display message when first set up, default “ON”
P&P ON or OFF Plug & Play mode, default “ON”
SORT MODE Tuning Tuning mode, default “Tuning”
or Sorting
Destination BG/DK Destination option ,BG, BG/DK, SECAM, I-UK,
I-IRE, default “BG/DK”
3D Surround ON or OFF 3D Surround available, default “ON”
2 step mute ON or OFF Mute mode option, default “OFF”
AV3 mode ON or OFF Front AV mode option, default “ON”
ONTIMER ON
Wel.TEXT ON
P&P ON
SORT MODE Tuning
Destination BG/DK
3D Surround ON
2 step mute OFF
AV3 mode ON
[After replacing the Memory IC (IC803)]
The memory IC, IC803, stores the feature setting data of TV set and service adjustments data for each circuit,
therefore, when the memory IC is replaced, it should be programmed by following “OPTION SETTING” and
“SERVICE ADJUSTMENT”.

6
EB6-D chassis
[SERVICE ADJUSTMENT]
To enter the Service Mode
+ Press and hold the “GREEN” button and the P▼ button on front control panel. The adjustment item will be
displayed on the screen.
To select the mode and service item and change data value
+ Select the desired adjustment mode (Image or Regular mode )by using the P▲or P▼button and then press
the Volume + (RIGHT) button.
+ To select the adjustment item, use the P▲or P▼button.
+ To change the service data, use the Volume -(LEFT) or Volume + (RIGHT) button.
+ The data which is set in the service mode is stored into the memory IC automatically.
Note: Some items of the service adjustments for this chassis are controlled by the CPU, IC801, and the
adjustments are carried out by using the RC handset.
IMPORTANT NOTICE
Do not attempt to adjust service adjustments not listed below otherwise it may cause loss of
performance and product safety.
01 P V-P 05 Regular
01 AGC 2A
Image mode Regular mode
SERVICE ADJUSTMENTS
Adjustment No.
and Item name Adjustment No.
and Item name Adjustment Data
Adjustment Data
The available adjustment items are as follows;
Image : This can be adjusted for picture images/shapes.
Regular : This can be adjusted for the service adjustment.
other : This is for factory setting. Do not adjust.
TB1251 : This is for the factory setting. Do not adjust.
* Do not adjust items in the “other” and “TB1251” otherwise
the TV set may not operate properly.

7EB6-D chassis
ADJUSTABLE SERVICE ADJUSTMENT
IMPORTANT NOTICE
Do not attempt to change the data value of service items not listed in the table below otherwise it may cause loss
of performance and product safety. If you can not restore the data value of each service item, please initialize the
memory IC following to the below description “INITIALIZATION OF MEMORY IC” and re-adjust all of service
adjustments.
[Image]
[Regular]
Exit from the Service Mode
+ Press the MENU button or turn off the TV set by using the Mains switch.
Item No. OSD Description
1 AGC AGC Adjustment
2 -- Cut-off Adjustment
3 GRY Grey Scale Adjustment [White Balance]
4 CTR Contrast Adjustment (Factory use, use default setting data)
5 SCR Screen adjustment (Factory use, use default setting data)
6 OSD On-screen Display Positioning Adjustment
Item No. OSD Description
01 P V-P P Vertical Position Adjustment
02 P H-P P Horizontal Position Adjustment
03 P V-L P Vertical Linearity Adjustment
04 P VSC P Vertical S-Correction Adjustment
05 P V-S P Vertical Size Adjustment
06 P H-S P Horizontal Size Adjustment
07 P PCC P Pin Cushion Adjustment
08 P TCC P Trapezoid Distortion Adjustment
10 P CCC P Corner Correction Adjustment
[INITIALIZATION OF MEMORY IC]
To initialize the memory IC (IC803), press and hold the “NORMAL” button and then press the P▼ button
on the front control panel, and then turn the Mains switch Off and On. Now the initialization is completed.
When initialized the memory IC, all of the setting data (option setting data and service adjustment data) stored in
the IC are reset to the default value. It is necessary to set the option setting and readjust the service adjustments
listed on the above.
SERVICE ADJUSTMENTS

8
EB6-D chassis
1. Receive white raster pattern.
2. Set controls to normal.
3. Connect digital voltmeter to test point TP-B and GND.
4. Adjust voltage to 150 ±0.5V by using VR641 (28”).
1. Input and tune an RF signal which is VHF ch05
175.25MHz with 63dBuV/75Ω terminated signal gain.
2. Connect digital voltmeter to test point TP-A and GND.
3. Enter the service mode and select mode “Regular”,
and select item “01 AGC”.
4. Press the LEVEL+ or LEVEL - button to adjust
voltage to be 3.2Vdc.
By using FOCUS VR, adjust focus control for well defined
scanning lines.
CUT-OFF ADJUSTMENT
1. Select AV mode with no signal input.
2. Enter the service mode and select mode “Regular”,
item “02”. The horizontal line will appear on the
screen.
3. Adjust the Screen VR on the FBT to obtain the one
colour to be just visible.
4. By using the buttons 1, 2, 4, 5, 7, 8 on the remote
control, adjust the line to be white.
The key allocation is as follows;
Button No. Operation
1 Increase Red
2 Decrease Red
4 Increase Green
5 Decrease Green
7 Increase Blue
8 Decrease Blue
DRIVE ADJUSTMENT
5. Receive the white raster signal.
6. Select item “03 GRY”.
7. Adjust [R-Drive] and [B-Drive] control to obtain proper
white balance by using LEVEL+ or LEVEL - button.
a) Select [R-Drive] or [B-Drive] by using the P▲or
P▼button.
b) Adjust [R-Drive] or [B-Drive] by using the LEVEL+
or LEVEL - button.
1. Receive circular pattern .
2. Enter the service mode and select mode “Image”, item
“02 P H-P”.
3. Press the LEVEL+ or LEVEL - button to adjust
horizontal centre.
HORIZONTAL WIDTH ADJUSTMENT
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter the service mode and select “Image”, and item
“06.P H-S”.
3. Press the LEVEL+ or LEVEL - button to adjust the
horizontal width.
HORIZONTAL POSITION ADJUSTMENT
Regular 
03 GRY 3F
 3F

[R-Drive]
[B-Drive]
Adjustable Range:
00 ~ 3F ~ FF
GREY SCALE ADJUSTMENT
FOCUS ADJUSTMENT
RF-AGC ADJUSTMENT
+B ADJUSTMENT
[ADJUSTMENTS]
To adjust each service data, please see “SERVICE ADJUSTMENT” on pages 8&9 for entering the service mode ,
selecting service item and adjusting the service data value.
IMPORTANT NOTICE
Do not attempt to adjust the following service adjustments except requiring the readjustments in servicing
otherwise it may cause loss of performance and product safety.
SERVICE ADJUSTMENTS

9EB6-D chassis
PCC ADJUSTMENT
1. Receive cross hatch pattern and set screen mode to
“FULL”.
2. Enter the service mode and select “Image”, and item
“07.P PCC”.
3. Press the LEVEL+ or LEVEL - button to adjust the
vertical line to be straight.
TRAPEZOID ADJUSTMENT
1. Receive cross hatch pattern and set screen mode to
“FULL”.
2. Enter the service mode and select “Image”, and item
“08.P TCC”.
3. Press the LEVEL+ or LEVEL - button to correct the
trapezum distortion of the vertical line.
1. Receive circular pattern.
2. Connect a digital volt-meter to both terminals of R453,
and a high voltage meter to CRT anode.
3. Confirm high voltage to be 29.0KV ± 1 KV at beam
current reading 1.3mV (28”).
1. Receive circular pattern.
2. Enter the service mode and select mode “Image, item
“01 P V-P”.
3. Press the LEVEL+ or LEVEL - button to adjust
vertical centre.
1. Receive circular pattern .
2. Enter the service mode and select mode “Image”, item
“05 P V-S”.
3. Press the LEVEL+ or LEVEL - button to adjust the
vertical height.
1. Receive circular pattern.
2. Enter the service mode and select mode “Regular”,
and select item “06 OSD”. The OSD test bar will
appear on the top of screen.
3. Press the LEVEL+ or LEVEL - button to adjust proper
OSD positioning.
❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚❚
OSD POSITIONING ADJUSTMENT
VERTICAL SIZE ADJUSTMENT
VERTICAL POSITION ADJUSTMENT
HIGH-VOLTAGE CONFIRMATION
PCC ADJUSTMENT
SERVICE ADJUSTMENTS

10
EB6-D chassis
SW601
F601
Q613
Q461
Q462
T611
Q612
TP-B
Q611
SW1901
SW1902
SW1903
SW1904
Q666 IC803
VR641
Q661
Q641
Q651
Q432
Q442
Q431
T431
TP15 K1002
IC1201
K1001
SW501
IC1202
IC501
TP14
KCC
IC3451
IC801
K1101
IC3501
KBB
IC201
TP-A
KSF2
T131
KSF1
IC001
K1921
T451 A101
R453
K701
Q701-B
Q701-A
Q740 Q711-A
Q711-B Q721-A
Q721-B
K7Q
Q751
K7P
SERVICE ADJUSTMENTS

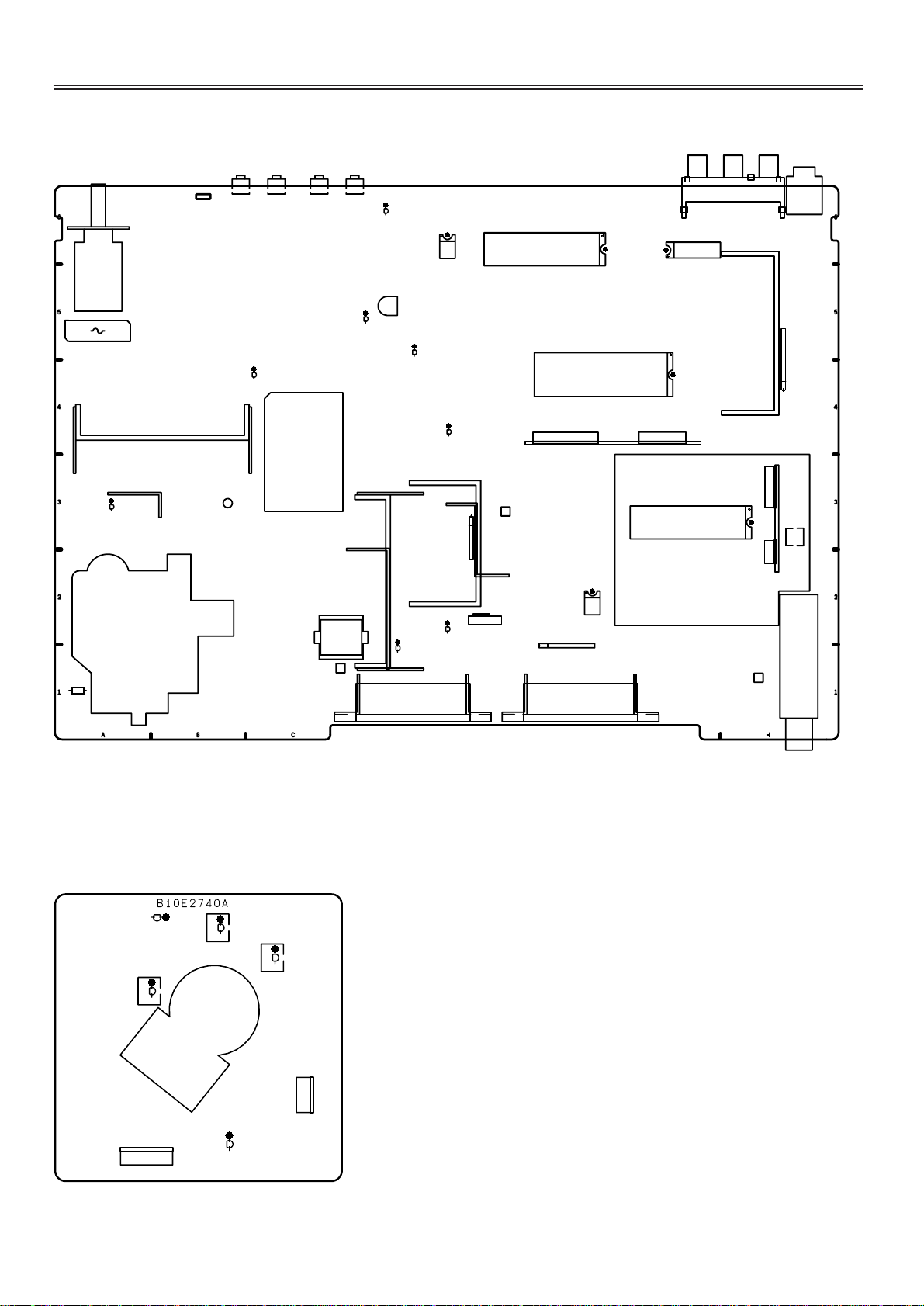

Component Locations
Main Board
CRT Board

11 EB6-D chassis
CPU PORT FUNCTIONS
Pin No. Function Name Function IN/OUT
1 RC IN RC Signal Input IN
2 RESET Reset Input IN
3 AUD-MUTE TV Audio Mute Output “L”: Mute On OUT
4 P0.6 Note used --
5 P0.5 Note used --
6 P0.4 Note used --
7 P0.3 Note used --
8 KEY IN Key Switch Signal Input IN
9 P0.1 Note used --
10 P0.0 Note used --
11 PROTECT Power Failure Detect Input “L”: Error IN
12 P3.6 Note used --
13 P0.6 Note used --
14 WE Write Enable OUT
15 B-OUT Blue Output OUT
16 G-OUT Green Output OUT
17 R-OUT Red Output OUT
18 BF-OUT Fast Blanking Output OUT
19 SDA SDA IN/OUT
20 SCL SCL OUT
21 VDD Power IN
22 JDTO Not used --
23 N.C Not used --
24 Vpp Not used --
25 AVDD3 Analogue VDD of PLL --
26 TEST0 Test --
27 MCFM Test --
28 JTCK Test --
29 TXCF Analogue pin for the Teletext slicerline PLL --
30 CVBS0 Not used --
31 AVDD2 Analogue Power Supply IN
32 JTMS Not used --
33 CVBS2 Composite Video Signal Input IN
34 CVBS1 Composite Video Signal Input IN
35 AGND Digital Ground --
36 GND Analogue Ground --
37 JTRSTO Test --
38 PXFM Analogue pin for the Display Pixel Frequency Multiplier --
39 AVDD Analogue Power Supply IN
40 H-SYNC Horizontal Sync. Input IN
41 V-SYNC Vertical Sync. Input IN
42 ACK Answer for STATUS OUT
43 STATUS Request for bus open IN
44 IGNOA RGB on/off Switch OUT
45 AMP-MUTE Mute on/off SWitch OUT
46 P4.4 Not used --
47 LED2 LED Drive OUT
48 P4.6 S-Video --
49 P4.7 Not used --
50 OSCOUT Oscillator Output OUT
51 OSCIN Oscillator Input IN
52 RF AGC RF Gain Control IN
53 P2.4 Not used --
54 POWER Power on/off Switch OUT
55 IF AGC IF Auto gain Control IN
56 8PIN AV Input Detect IN

12
EB6-D chassis
IC BLOCK DIAGRAMS
IC201 TB1251 <IF/Video/Chroma/Def.>
56 505152535455 49 434445464748 42 363738394041 35 293031323334
1 765432 8 1413121110915 212019181716 22 282726252423
SDA
SCL
Sync in
I2C Bus
IF
Cutoff/Drive
<R.G.B.CUTTOFF>
<R.G.B.DRIVE>
Matrix / SW
RGB Interface
Bright <RGB BRT>
Uni-Color<RGB CONT>
Mode SW
EW PROC.
<H.SIZE>
<EW PARA.>
<TRAPEZIUM>
<EW CONER>
EHT H/V
<EHT.H> <EHT.V>
Y IN
V PROC.
<V.SIZE>
<V.LINEAR.> <V-S CORR.>
<V.SHIFT>
FM DEMOD.
Gain Sw
L SECAM AM
AUDIO ATT
<ATT>
Chroma DEMOD.
PAL/NTSC/SECAM
1H delay line
1 X'tal
<TINT>
<color system>
<F ID>
<Killer Sence>
EW OUT
Y Proc.
Clamp C-TRAP <c-trap> Black Stretch <B.S.> DC restore <DC rest> Y-γ<γ>
Y-D.L. <DL> A.C. <P.SHARP> Sub-Cont <S.CONT> Uni-Color <CONT> Bright <BRT> WPS HalfT. <H.T> <ABL START P> <ABL GAIN>
PIF Proc.
L-SECAM
DEF Proc.
H,V synchronization
<Lock det.>
<Sync det>
<AFC1 Gain>
Chroma Baseband Proc.
<Color>
<Unicolor>
Clamp
BBTINT
IF IN
SAW
IF GND
AFT OUT Ripple F
IF AGC
+
APC Filter
+
4.43MHz X'tal
CW OUT
Ys/Ym
EXT.R IN
EXT.G IN
EXT.B IN
RGBVcc(9V)
+
R OUT
G OUT
B OUT
V BIAS
FILTER
V NFB
V OUT
DC NF
+
SIF OUT
VSM OUT
C in
BLACK Det
+
Cb in
DC Restor
ABCL IN
YCVcc(5V)
+
Dig GND
YC GND
H OUT
HVcc(9V)
FBP IN/SCP OUT
DE-EMP.
Dig.VDD
+
+
EHT in
IF DET OUT
Hcorr IN/SIF IN
PIF tank
6.5MHz
BPF TRAP AVSW
LOOP Filter
+
IFVcc(5V)
+
AUDIO OUT
V RAMP
1'st SIF IN
ref R
Split SIF Processor
6.5MHz
Uni-SIF beet up
RF AGC
+
SAW
H.AFC
+
Cr in
PIFVCO
BIAS Filter
BIAS BIAS

13 EB6-D chassis
IC501 LA7833 <Vertical Output>
GND
VERTICAL
DRIVE VERTICAL
OUTPUT V-OUTPUT
VCC
6
4
3
15 LA7833
THERMAL
PROTECTION
PUMP UP
7
2
V-DRIVE PLS
INPUT
IC BLOCK DIAGRAMS
IC3451 TDA9875A <NICAM & Stereo Sound Decoder>
SUPPLY
SOUND IF
(SIF)
ANALOG
SCROSSBAR
SWITCH
NICAM
DECODER
DEMATRIXCLOCK
PEAK
DETECTION LEVEL
ADJUST LEVEL
ADJUST
ADC(2)
DAC(2)
SUPPLY
DAC
SUPPLU DAC
REFERENCE
SUPPLY
OPERATIONAL
AMPLIFIERS
AUDIO PROCESSING
DAC(2)
DAC(2)
TEST
TDA9875
DIGITAL SUPPLY
DIGITAL
SELECT
I2C BUS
AUDIO
INTERFACE
TIMING
DETECT DAC
NICAM
DEMODULA-
TION
FM(AM)
DEMODULA-
TION
IDENTIFICA-
TION
I2C BUS
INTERFACE INPUT SWITCH
AGC, ADC
SIF1
SIF2
12
10
9
20
3
13
4 5 18
17
21
27
SDI1 SDI2
SDO1 SDO2
SCK
WS
VDDD1
VDDD2
VSSD1 VSSD2
CREST
TEST1 TEST2
SYSCLK
XRALO
XTALI
SDA
SCL
ADDR2 ADDR1
P2 P1
26 25 24 22 23 15 64 14 49 16
28
30

57
58
60
61 MOL
MOR
AUXOL
AUXOR
CREST CREST
CREST
Vref(n) Vref(n) Vref2 VSSG VSSA2 VDDA2 PCAPL PCAPR CAPR2 CAPR1 CAPL1 CAPL2
LOL LOR SCOL2 SCOR2 SCOL1 SCOR1 MOMOIN EXTIL EXTIR SCIL2 SCIR2 SCIL1 SCIR1 PCLK NICAM Iref Vref1 VSSA1 VDDA1 Vtune
50 53
59
CREST
56
40 39 46 35 43 38 55 54 44 45
41 42 62 63 52 51 48 47 29 32 31 37 36 34 33
1 2 8
11
6 7
19

14
EB6-D chassis
PIN DESCRIPTION OF SEMICONDUCTORS
A
K
C
BE
C2
C1
B1 B2
E
C
CBE
KA
C
B
E
B2
B1
C1 C2
E
E
B
C
B2
B1
C1 C2
E
B2
B1 C1
C2
E1
E2
K
AA
A
KK
K
A
K
A
C
BECBEC
B
E
1
2
3
4
5
6
Index
12N
Index Index
12N
2
13
(IN) (OUT)
(GND)
21 4
2
1
3
Index
1
N
Index 1
N
Index 1
N
Index 1
N
Index 1
N
Index
1N
2
131
232
1
3
RESET GND
Vdd
5
3
D
GSD
G
S
K: Cathode
A: Anode
C: Collector
B: Base
E: Emitter
D: Drain
G: Gate
S: Source
●Diode
●Transistor/FET
●IC
E1
C2
E2 C1
B2
B1
Index
●Diode
●Transistor/FET
●IC
FET

15 EB6-D chassis
PARTS DESCRIPTION AND READING IN SCHEMATIC DIAGRAM
1. The parts specification of resistors, capacitors and
coils are expressed in designated code. Please
check the parts description by the following code
table.
2. Some of transistors and diodes are indicated in mark
for the substitution of parts name. Please check the
parts name by the following code table.
3. Voltages and waveforms were taken with a video
colour bar signal(1Vp-p at 75 ohms terminated) and
controls to normal.
4. Voltages were taken with a high-impedance digital
voltmeter.
Example 2000 K K 1000 BG
Characteristic
Example 160 E M 10
Capacitance value
Tolerance
Type
Rated voltage
Excepting electric capacitors, all
capacitance values of less than 1
are expressed in µF and more
than 1 are in pF.
Example L2 C1 4R7 K N
Tolerance
Inductance value
Manufacture code
Unique code
Mark Material
E Electrolytic
P Electrolytic (non-polarized)
C Ceramic (temperature compensation)
K Ceramic
F Polyester
N Polypropylene
M Metalized polypropylene
H Metalized polypromylar
B Ceramic (semiconductor)
G Metalized polyestel
Y Composite film
S Styrol
T Tantalum oxide solid electrolytic
U Organic semiconductive electrolyte
D Electric double layer electrolytic
Mark Tolerance
A not specified
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
E ±2.5
H±3
J±5
K±0
M±20
N±30
P +100 -0
Q +30 -10
T +50 -10
U +75 -10
V +20 -10
W +100 -10
X +40 -20
Y +150 -10
Z +80 -20
Mark Tolerance (nH) Mark Tolerance (%)
C ±0.25 G ±2
D ±0.5 J ±5
S ±0.3 K ±10
A ±0.2 L ±15
M±20
Coil Reading
Capacitor Reading
Example 1/2 D J 10K B
Example 6 W K 8.2
Example 1/2 C K 1M
Resistor Reading
Characteristic
Z (Carbon fuse)
B (Non-burnable)
Resistance value
Tolerance (see below table)
Material (see below table)
Rated wattage (W)
K indicates in KΩ
M indicate in MΩ
Note: Resistor which is indicated with resistance value only are 1/6W
carbon resistor. Resistor which is indicated with material,
tolerance and value are 1/4W rated wattage.
Mark Material
D Carbon
N Metal film
S Oxide metal film
C Solid
G Metal glaze
W Wire wounding or cement
H Ceramic
F Fusible
Mark Tolerance
A ±0.05
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
J±5
K±10
M±20
P +5 -15
Z used in 0 ohm
●Material table ●Tolerance table
●Material table ●Tolerance table
Mark Type number
R 1S2076A,1S2473,1N4148
AA 1S2076A,1S2473,1SS133,1N4148
●Diode
Mark Type number
-- 2SC536 2SC945A 2SC1815 2SC1740S
AD NF, NG PA, QA, RA Y, GR Q, R, S
AE NF, NG PA, QA O, Y, GR Q, R, S
●Transistor
(1) NPN type
Diode/Transistor Type Reading
Mark Type number
-- 2SA608 2SA564A 2SA1015 2SA933S
AB NF R Y, GR R
AC NF Q, R O, Y, GR Q, R
(2) PNP type
Mark Type number
-- 2SA1179 2SA1037K 2SA1037AK 2SC2812 2SC2412K
AJ M6, M7 R, S R, S
AH L6, L7 R, S
(3) Chip type

-16-
C3SVV

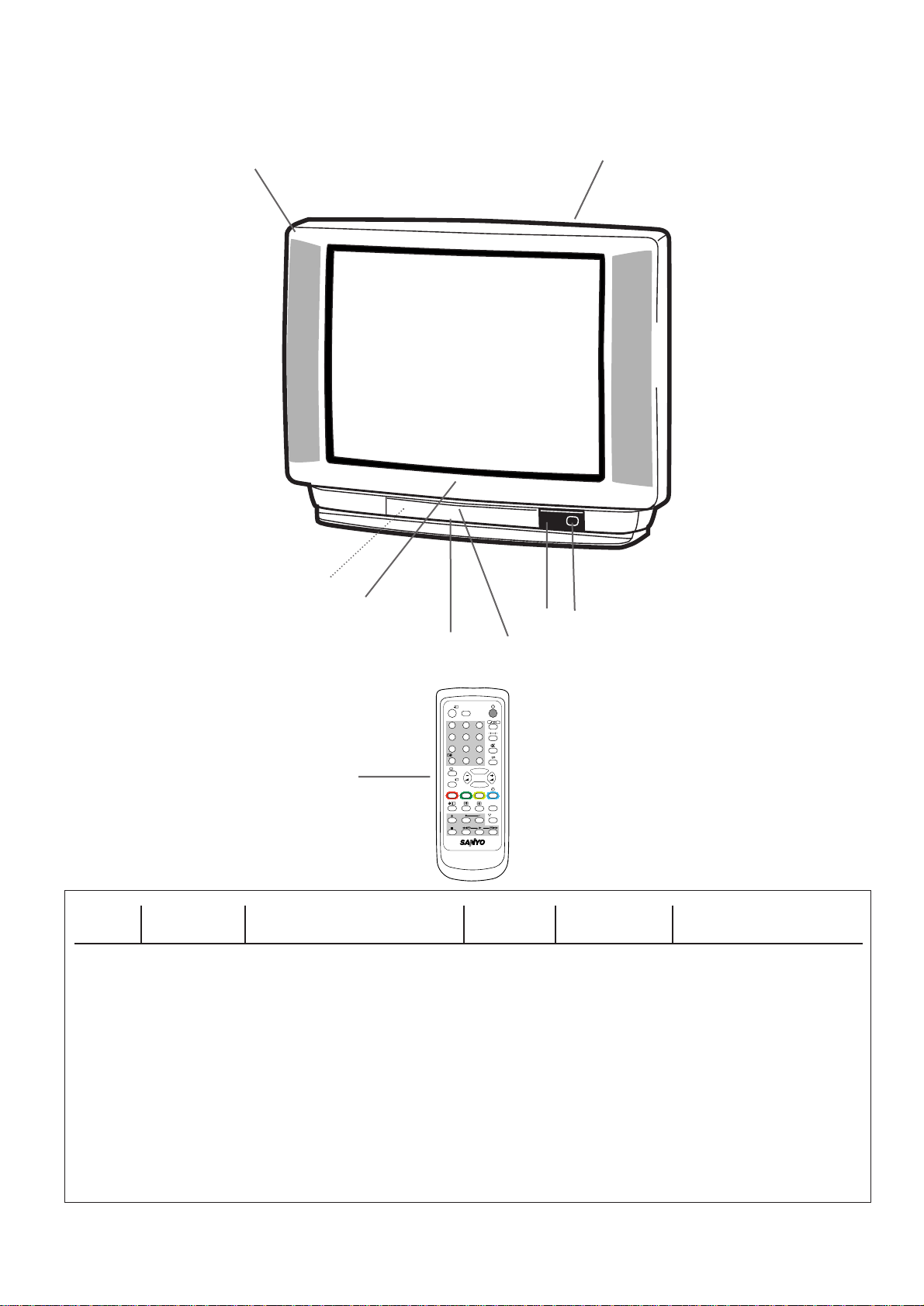

CABINET PARTS LIST FOR MODEL CE28BN5-C-00
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
Ref. No. Part No. Description Ref. No. Part No. Description
CABINET PARTS
1 610 273 1767 ASSY,CABINET FR-F7SDV
2 610 261 6057 BUTTON POWER-F3SCM
3 610 286 7688 CABINET BACK-G-F3SLV-A
4 610 286 7763 DOOR-F7SGV
5 610 261 6132 DEC BOARD-F3SCM
6 610 275 0232 DEC CONTROL SHEET-F3JPV
7 610 261 3032 COIL SPRING-E7GCS
8 645 023 4316 BADGE,SANYO*46.2X13.5L45
9 645 019 2449 LATCH PUSH,7.9X6.9BK
ACCESSORIES
10 JXMKE RC TRANSMITTER
SKP10303 INST MANUAL - C3JVV(1)
SKP10304 INST MANUAL - C3JVV(2)
SKP10308 INST MANUAL - C3JVV(3)
SKP20335 SHEM DIAG -C3SVV-00
645 027 6927 BATTERY
P▲
P▼
BASS
TV/
A•B
WIDE
TXT/TV
Y?
PP
F
/OK
MENU/
i
X
0
7
1
4
8
5
23
6
9
-/-- CS
9
6
45
8
10
7
1
2
3

C3SVV
-17-
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark .
!
!
OUT OF CIRCUIT - 013C3SVV
COIL
L901 645 041 8037 PRE-FORM,D-COIL,28-TOTOKU
PICTURE TUBE
Q901 414 011 1602 A66EHJ13X38 50HZ,52% POL.
MISCELLANEOUS
SP901 610 232 3986 SPEAKER
SP902 610 232 3986 SPEAKER
W901 645 012 7632 EURO PLUG +2P HOUSE @ 2.1
W902 610 286 1594 GND,WIRE CONEC.C2WAV
1AA0B10H056E0 ASSY,PWB,MAIN C3SVV
CAPACITOR
C001 403 044 9521 ELECT 100U M 25V
C003 403 207 0317 SMD 1MF GRM40Y5V105Z16PT
C004 403 155 2111 CERAMIC 1500P K 50V
C005 403 047 3100 ELECT 47U M 25V
C006 403 207 0317 SMD 1MF GRM40Y5V105Z16PT
C007 403 155 2111 CERAMIC 1500P K 50V
C008 403 044 9521 ELECT 100U M 25V
C009 403 157 6612 CERAMIC GRM39X7R471K50PT
C010 403 201 5011 16 YK 330 M TA K0811
C011 403 224 5012 GRM188F51C154ZA01D MUR.
C012 403 224 5012 GRM188F51C154ZA01D MUR.
C013 403 154 1917 35 YK 1000 M TA K1220
C014 403 224 5012 GRM188F51C154ZA01D MUR.
C015 403 224 5012 GRM188F51C154ZA01D MUR.
C016 403 218 8151 25 YK 1000 M TA 1020
C017 403 218 8151 25 YK 1000 M TA 1020
C052 403 113 3815 CERAMIC 1000P K 50V
C056 403 155 1510 CERAMIC 180P J 50V
C1002 403 323 8815 GRM40Y5V225Z16VPT SMDCAP
C1003 403 323 8815 GRM40Y5V225Z16VPT SMDCAP
C1004 403 323 8815 GRM40Y5V225Z16VPT SMDCAP
C101 403 233 1517 50 YK 4R7 M TA 0511
C1010 403 157 3611 CERAMIC 100P J 50V
C1012 403 157 3611 CERAMIC 100P J 50V
C1013 403 157 3611 CERAMIC 100P J 50V
C1014 403 113 3815 CERAMIC 1000P K 50V
C1015 403 233 0817 ELECT 10U M 50V
C1016 403 113 3815 CERAMIC 1000P K 50V
C1017 403 233 0817 ELECT 10U M 50V
C102 403 039 3507 ELECT 470U M 6.3V
C1020 403 149 9218 CERAMIC 0.01U Z 50V
!
!
!
Ref. No. Part No. Description
Chassis construction
CE28BN5-C-00
OUT OF CIRCUIT - 013C3SVV (Page 17)
1AA0B10H056E0 ASSY,PWB,MAIN C3SVV (Page 17~22)
1AA0B10H047B0 ASSY,PWB,HARMONICS EB6 AC (Page 22)
1AA0B10E595B0 ASSY,PWB,CRT C2WBV (Page 22~23)
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G:±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G:±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W:+100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Material:
CERAMIC............Ceramic
MT-PAPER..........Metallized Paper
POLYESTER ......Polyester
MT-POLYEST......Metallized Polyester
POLYPRO ..........Polypropylene
MT-POLYPRO ....Metallized Polypropylene
COMPO FILM......Composite film
MT-COMPO ........Metallized Composite
STYRENE............Styrene
TA-SOLID............Tantalum Solid
AL-SOLID............Aluminium Solid
ELECT ................Electrolytic
NP-ELECT ..........Non-polarised Electrolytic
OS-SOLID ..........Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT ..........Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Material:
CARBON Carbon
MT-FILM Metal Film
OXIDE-MT Oxide Metal Film
SOLID Composition
MT-GLAZE Metal Glaze
WIRE WOUND Wire Wound
CERAMIC RES Ceramic
FUSIBLE RES Fusible
Rated Voltage
Rated value: P=pico farad, U=Micro farad
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
Tolerance Symbols:
A:±0.05% B:±0.1% C:±0.25%D:±0.5%
F:±1% G:±2% J: ±5% K:±10%
M:±20% P:+5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000

Ref. No. Part No. Part No.
Description Ref. No. Description
-18-
C3SVV
C1021 403 157 3611 CERAMIC 100P J 50V
C1022 403 279 4312 CERAMIC 0.33U K 16V
C1024 403 157 3611 CERAMIC 100P J 50V
C1025 403 260 2944 MT-COMPO 0.33U J 50V
C1026 403 113 3815 CERAMIC 1000P K 50V
C1027 403 233 0817 ELECT 10U M 50V
C1028 403 113 3815 CERAMIC 1000P K 50V
C1029 403 233 0817 ELECT 10U M 50V
C103 403 039 3507 ELECT 470U M 6.3V
C104 403 233 0817 ELECT 10U M 50V
C106 403 149 9218 CERAMIC 0.01U Z 50V
C109 403 149 9218 CERAMIC 0.01U Z 50V
C110 403 149 9218 CERAMIC 0.01U Z 50V
C113 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C1202 403 248 1618 16 YK 47 M TA 0511
C1203 403 149 9218 CERAMIC 0.01U Z 50V
C1204 403 233 0817 ELECT 10U M 50V
C1205 403 233 0817 ELECT 10U M 50V
C1206 403 298 9619 CERAMIC 0.1U K 16V
C1207 403 233 0817 ELECT 10U M 50V
C121 403 149 9218 CERAMIC 0.01U Z 50V
C1212 403 153 9310 CERAMIC 82P J 50V
C1213 403 233 0817 ELECT 10U M 50V
C1214 403 153 9310 CERAMIC 82P J 50V
C1215 403 153 9310 CERAMIC 82P J 50V
C1217 403 233 0817 ELECT 10U M 50V
C1218 403 153 9310 CERAMIC 82P J 50V
C122 403 164 0214 CERAMIC 0.1U Z 25V
C124 403 157 1518 CER.GRM39COG3R0C50PT
C125 403 069 8315 CERAMIC 0.01U Z 50V
C128 403 241 3807 ELECT 220U M 10V
C130 403 157 2515 CERAMIC 27P J 50V
C131 403 149 9218 CERAMIC 0.01U Z 50V
C135 403 149 9218 CERAMIC 0.01U Z 50V
C136 403 149 9218 CERAMIC 0.01U Z 50V
C138 403 149 9218 CERAMIC 0.01U Z 50V
C139 403 237 7941 MT-COMPO 0.22U J 50V
C140 403 233 0817 ELECT 10U M 50V
C141 403 207 0317 SMD 1MF GRM40Y5V105Z16PT
C143 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C144 403 113 3815 CERAMIC 1000P K 50V
C145 403 149 9218 CERAMIC 0.01U Z 50V
C146 403 248 1618 16 YK 47 M TA 0511
C148 403 248 2813 50 YK 2R2 M TA 0511
C1900 403 038 1633 ELECT 100U M 6.3V
C201 403 149 9218 CERAMIC 0.01U Z 50V
C203 403 269 5916 CERAMIC 0.22U K 16V
C204 403 149 9218 CERAMIC 0.01U Z 50V
C205 403 149 9218 CERAMIC 0.01U Z 50V
C206 403 149 9218 CERAMIC 0.01U Z 50V
C207 403 149 9218 CERAMIC 0.01U Z 50V
C208 403 248 1618 16 YK 47 M TA 0511
C209 403 164 0214 CERAMIC 0.1U Z 25V
C210 403 086 2300 NP-ELECT 1U M 50V
C211 403 113 3815 CERAMIC 1000P K 50V
C212 403 086 2300 NP-ELECT 1U M 50V
C213 403 233 0817 ELECT 10U M 50V
C214 403 149 9218 CERAMIC 0.01U Z 50V
C216 403 233 0817 ELECT 10U M 50V
C217 403 160 0020 ELECT 470U M 10V
C218 403 149 9218 CERAMIC 0.01U Z 50V
C219 403 155 2418 CERAMIC 5600P K 50V
C220 403 207 0317 SMD 1MF GRM40Y5V105Z16PT
C230 403 269 5916 CERAMIC 0.22U K 16V
C231 403 113 4119 CERAMIC 2200P K 50V
C232 403 233 3818 CERAMIC 10P C 50V
C233 403 248 1618 16 YK 47 M TA 0511
C234 403 164 0214 CERAMIC 0.1U Z 25V
C235 403 164 0214 CERAMIC 0.1U Z 25V
C236 403 164 0214 CERAMIC 0.1U Z 25V
C237 403 164 0214 CERAMIC 0.1U Z 25V
C240 403 113 4119 CERAMIC 2200P K 50V
C241 403 067 7895 MT-COMPO 0.47 J 50V
C242 403 237 8057 MT-COMPO 0.1U J 50V
C243 403 157 7015 CERAMIC 1800P K 50V
C244 403 215 2211 CERAMIC 0.01U K 50V
C247 403 233 0817 ELECT 10U M 50V
C251 403 314 5915 SMD CAP GRM40X7R474K16
C252 403 314 5915 SMD CAP GRM40X7R474K16
C3411 403 157 3611 CERAMIC 100P J 50V
C3412 403 157 3611 CERAMIC 100P J 50V
C3413 403 157 3611 CERAMIC 100P J 50V
C3414 403 157 3611 CERAMIC 100P J 50V
C3441 403 279 4312 CERAMIC 0.33U K 16V
C3442 403 279 4312 CERAMIC 0.33U K 16V
C3443 403 279 4312 CERAMIC 0.33U K 16V
C3444 403 279 4312 CERAMIC 0.33U K 16V
C3452 403 314 5915 SMD CAP GRM40X7R474K16
C3453 403 157 2911 CERAMIC 47P J 50V
C3454 403 164 0214 CERAMIC 0.1U Z 25V
C3456 403 164 0214 CERAMIC 0.1U Z 25V
C3458 403 157 2911 CERAMIC 47P J 50V
C3459 403 248 1618 16 YK 47 M TA 0511
C3461 403 248 1410 50 YK 1R0 M TA 0511
C3476 403 314 5915 SMD CAP GRM40X7R474K16
C3477 403 248 1618 16 YK 47 M TA 0511
C3480 403 248 1618 16 YK 47 M TA 0511
C3481 403 248 1618 16 YK 47 M TA 0511
C3482 403 149 9218 CERAMIC 0.01U Z 50V
C3483 403 149 9218 CERAMIC 0.01U Z 50V
C3484 403 248 1618 16 YK 47 M TA 0511
C3485 403 149 9218 CERAMIC 0.01U Z 50V
C3486 403 248 1410 50 YK 1R0 M TA 0511
C3487 403 248 1410 50 YK 1R0 M TA 0511
C3492 403 149 9218 CERAMIC 0.01U Z 50V
C3493 403 149 9218 CERAMIC 0.01U Z 50V
C3494 403 164 0214 CERAMIC 0.1U Z 25V
C3495 403 164 0214 CERAMIC 0.1U Z 25V
C422 403 299 3210 POLYPRO 0.027U J 400V
C423 404 079 1607 MT-POLYPRO 0.012U H 1.5K
C424 403 299 3012 POLYPRO 0.015U J 400V
C431 403 068 5612 CERAMIC 0.056U Z 25V
C432 403 075 7111 CERAMIC 1000P K 500V
C433 403 076 3112 CERAMIC 3900P K 500V
C434 403 054 0703 ELECT 47U M 35V
C437 403 066 6106 MT-POLYEST 0.47U J 250V
C441 403 309 2100 POLYPRO 0.3U J 400V
C445 403 233 0817 ELECT 10U M 50V
C450 403 248 2813 ELECT 2.2U M 50V
C451 404 063 5703 NP-ELECT 100NW1R0MTA-6311
C463 408 173 8208 POLYESTER 6800P K 100V
C466 403 188 0808 MT-POLYEST 2.2U J 100V
C468 403 233 1111 ELECT 22U M 50V
C481 403 076 1415 CERAMIC 2700P K 500V
C482 403 159 7409 MT-POLYEST 0.1U K 250V
C501 403 194 3800 ELECT 2200U M 25V
C502 403 217 1103 ELECT 220U M 35V
C503 403 139 7514 CERAMIC 39P J 50V
C512 403 194 3800 ELECT 2200U M 25V
C513 403 233 0817 ELECT 10U M 50V
C514 403 233 0817 ELECT 10U M 50V
C600 403 076 4010 CERAMIC 4700P K 500V
C601 404 056 1408 MT-POLYEST 0.1U M 250V
C602 404 056 1408 MT-POLYEST 0.1U M 250V
C603 403 076 6727 CERAMIC DE0607-486B102K1K
C604 403 076 6727 CERAMIC DE0607-486B102K1K
C607 404 050 9509 ELECT 150U M 400V 85C
C613 403 179 1213 POLYESTER 4700P J 50V
C614 403 237 8057 MT-COMPO 0.1U J 50V
C615 403 179 3217 POLYESTER 0.015U J 50V
C616 403 165 6215 CERAMIC 1000P K 2K
C617 403 179 2418 POLYESTER 0.022U K 50V
C631 404 073 4505 DE1210-1 E 222M-KX
C633 403 214 4404 ELECT 470U M 35V
C637 403 158 1309 ELECT 2200U M 35V
!
!
!

Ref. No. Part No. Description Ref. No. Part No. Description
-19- C3SVV
C640 403 218 8200 ELECT 2200U M 25V
C641 403 165 6017 CERAMIC 1000P K 1K
C642 404 085 6900 200YXF100MCA100U M 200V
C643 403 113 3815 CERAMIC 1000P K 50V
C646 403 165 6126 CERAMIC 470P K 1K
C647 403 157 6810 CERAMIC 680P K 50V
C648 403 038 1603 ELECT 100V M 6.3V
C649 403 195 8804 ELECT 100U M 16V
C650 403 038 9708 ELECT 330U M 6.3V
C666 403 248 1618 16 YK 47 M TA 0511
C682 403 258 3619 16 YK 33 M TA 0511
C685 403 248 1410 50 YK 1R0 M TA 0511
C801 403 149 9218 CERAMIC 0.01U Z 50V
C802 403 248 1618 16 YK 47 M TA 0511
C803 403 164 0214 CERAMIC 0.1U Z 25V
C807 403 164 0214 CERAMIC 0.1U Z 25V
C810 403 269 5916 CERAMIC 0.22U K 16V
C811 403 233 0817 ELECT 10U M 50V
C812 403 164 0214 CERAMIC 0.1U Z 25V
C814 403 155 2210 CERAMIC 3300P K 50V
C816 403 155 2319 CERAMIC 4700P K 50V
C817 403 145 9915 CERAMIC 22P J 50V
C818 403 155 2319 CERAMIC 4700P K 50V
C819 403 145 9915 CERAMIC 22P J 50V
C822 403 113 4119 CERAMIC 2200P K 50V
C824 403 153 9310 CERAMIC 82P J 50V
C826 403 257 0817 50 YK 0R47 M TA 0511
C827 403 260 3030 ECQ-V1H564JL3 0.56U J 50
C833 403 157 2515 CERAMIC 27P J 50V
C834 403 157 2515 CERAMIC 27P J 50V
C835 403 155 2319 CERAMIC 4700P K 50V
C836 403 157 2911 CERAMIC 47P J 50V
C861 403 155 1312 CERAMIC 150P J 50V
DIODE
D041 408 008 2406 DIODE 1N4148
D1002 407 063 8319 Z.DIODE MTZJT-77-11C
D1003 407 063 8319 Z.DIODE MTZJT-77-11C
D1007 407 063 8319 Z.DIODE MTZJT-77-11C
D1008 407 063 8319 Z.DIODE MTZJT-77-11C
D101 407 100 0214 ZENER DIODE MTZJ36A
D1010 407 063 8319 Z.DIODE MTZJT-77-11C
D1011 407 012 4416 DIODE 1SS133-T-77
D1012 407 012 4416 DIODE 1SS133-T-77
D1013 407 012 4416 DIODE 1SS133-T-77
D1014 407 012 4416 DIODE 1SS133-T-77
D1015 407 012 4416 DIODE 1SS133-T-77
D1016 407 012 4416 DIODE 1SS133-T-77
D1021 407 063 8319 Z.DIODE MTZJT-77-11C
D1022 407 063 8319 Z.DIODE MTZJT-77-11C
D1023 407 063 8319 Z.DIODE MTZJT-77-11C
D1024 407 063 8319 Z.DIODE MTZJT-77-11C
D1025 407 063 8319 Z.DIODE MTZJT-77-11C
D1026 407 063 8319 Z.DIODE MTZJT-77-11C
D1051 407 063 8319 Z.DIODE MTZJT-77-11C
D1052 407 063 8319 Z.DIODE MTZJT-77-11C
D1202 407 063 8319 Z.DIODE MTZJT-77-11C
D1203 407 063 8319 Z.DIODE MTZJT-77-11C
D1901 407 120 9706 LED LN28RPL
D1901A 610 269 4703 HOLDER LED A-E6YC
D3441 407 063 8319 Z.DIODE MTZJT-77-11C
D3442 407 063 8319 Z.DIODE MTZJT-77-11C
D3443 407 063 8319 Z.DIODE MTZJT-77-11C
D3444 407 063 8319 Z.DIODE MTZJT-77-11C
D431 407 063 9613 ZENER DIODE MTZJ9.1A
D438 407 095 8001 DIODE ERD07-15L
D439 407 006 4128 DIODE ERB44-04V1
D442 408 007 8607 DIODE 1N4148
D445 407 012 4416 DIODE 1SS133-T-77
D446 407 063 9415 ZENER DIODE MTZJ8.2A
D466 407 077 9705 ZENER DIODE MTZ20A
D469 407 007 7415 DIODE EU1 52MM
D481 407 005 9629 DIODE ERA22-04-V1 52MM
D482 407 012 4416 DIODE 1SS133-T-77
D501 407 005 7328 DIODE EM01Z
D502 407 118 2217 ZENER DIODE 1Z75
D603 407 009 6921 DIODE RM11C
D604 407 009 6921 DIODE RM11C
D605 407 009 6921 DIODE RM11C
D606 407 009 6921 DIODE RM11C
D614 408 007 8607 DIODE 1N4148
D615 407 173 2907 PHOTO COUPLE PC123F2
D616 408 007 8607 DIODE 1N4148
D617 407 007 6606 DIODE ES1
D618 408 007 8607 DIODE 1N4148
D619 407 063 8319 Z.DIODE MTZJT-77-11C
D630 407 007 7613 DIODE EU2
D633 407 166 2303 DIODE ERC-91-02L
D635 407 129 6706 DIODE RU4YX LF-L1
D637 407 012 4416 DIODE 1SS133-T-77
D641 407 012 4416 DIODE 1SS133-T-77
D642 407 009 8816 DIODE RU3AM
D643 408 008 2406 DIODE 1N4148
D644 408 008 2406 DIODE 1N4148
D645 407 099 5511 ZENER DIODE MTZJ6.2C
D646 407 012 4416 DIODE 1SS133-T-77
D647 407 012 4416 DIODE 1SS133-T-77
D663 407 063 8319 Z.DIODE MTZJT-77-11C
D666 407 063 8913 ZENER DIODE MTZJ5.6C
D683 408 008 2406 DIODE 1N4148
D685 407 099 5610 ZENER DIODE MTZ6.8A 26MM
D826 407 099 4811 Z DIODE MTZJ-T77-4.3B
D831 407 012 4416 DIODE 1SS133-T-77
INTEGRATED CIRCUIT
IC001 409 017 7505 IC LA4270
IC001-1 610 251 4186 AUDIO H/SINK ASSY EB6D
IC001-2 411 099 1500 SCR PAN+SW+W 3X12
IC1201 409 161 3408 IC
IC1202 409 268 8504 IC NJM2233BD
IC201 409 504 3300 IC TB1251CN VER 6.3
IC3451 409 445 1403 IC TDA9875A/V2
IC501 409 192 5709 IC LA7833
IC501-1 610 282 6647 ASSY,HEAT SINK V-C2WC
IC501-2 411 036 3208 SCR PAN+SW+W 3X10
IC641 409 241 5407 IC BA178M05T
IC642 409 367 2809 IC BA178M09T
IC643 409 241 5407 IC BA178M05T
IC801 410 409 3609 IC ST92195C7B1/EXU 1PAGE
IC803 409 343 6302 IC 24LC04B/P
COIL
L1003 610 078 5946 PIPE CORE
L1010 645 001 4550 PEAKING COIL 10UHK
L1011 645 001 4550 PEAKING COIL 10UHK
L1012 645 001 4550 PEAKING COIL 10UHK
L1013 645 001 4550 PEAKING COIL 10UHK
L1017 610 078 5946 PIPE CORE
L1020 645 001 4550 PEAKING COIL 10UHK
L1021 645 001 4550 PEAKING COIL 10UHK
L1022 645 001 4550 PEAKING COIL 10UHK
L1023 645 001 4550 PEAKING COIL 10UHK
L1202 645 003 8518 P.COIL LAP02TA4R7K 26MM
L1204 645 003 8518 P.COIL LAP02TA4R7K 26MM
L1205 645 003 8518 P.COIL LAP02TA4R7K 26MM
L1206 645 003 8518 P.COIL LAP02TA4R7K 26MM
L121 645 001 5526 COIL 6.8UK LAPO2TA6R8K
L171 645 040 2715 TRANS,OSC 38.9MHZ
L240 645 001 4550 PEAKING COIL 10UHK
L241 645 001 4550 PEAKING COIL 10UHK
L242 645 001 4550 PEAKING COIL 10UHK
!
!
!

Ref. No. Part No. Part No.
Description Ref. No. Description
-20-
C3SVV
L3450 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
L3452 645 001 5441 PEAKING COIL
L3456 645 001 5441 PEAKING COIL
L3457 645 001 5441 PEAKING COIL
L3459 645 018 9999 INDUCTOR,120U
L3469 645 003 8518 P.COIL LAP02TA4R7K 26MM
L431 645 0085 628 INDUCTOR,1U M
L432 645 002 4511 CORE,PIPE
L441 645 036 7380 COIL,LINEARITY
L442 610 219 0342 COIL
L461 645 005 5645 AR635LY-1038K 2200UHK
L462 610 000 0261 COIL 349UH
L501 645 008 5642 INDUCTOR,3.3U K
L601 645 019 3873 LINE FILTER-SAMWHA TECOM
L607 610 237 1000 PIPE CORE
L608 610 237 1000 PIPE CORE
L635 610 078 5946 PIPE CORE
L641 610 078 6820 PIPE CORE
L801 645 003 8549 P.COIL LAPO2TA5R6K 26MM
L802 645 008 2887 P.COIL LALO2TB5R6K 52MM
L803 645 003 8549 P.COIL LAPO2TA5R6K 26MM
L861 645 003 8549 P.COIL LAPO2TA5R6K 26MM
TRANSISTOR
Q002 405 014 4519 TR 2SC2412KT146/R
Q005 405 014 4519 TR 2SC2412KT146/R
Q042 405 014 4519 TR 2SC2412KT146/R
Q043 405 134 5925 TR 2SA1037AK-T146-R
Q1001 405 014 4519 TR 2SC2412KT146/R
Q1002 405 134 5925 TR 2SA1037AK-T146-R
Q1003 405 014 4519 TR 2SC2412KT146/R
Q1006 405 134 5925 TR 2SA1037AK-T146-R
Q1007 405 134 5925 TR 2SA1037AK-T146-R
Q1008 405 134 5925 TR 2SA1037AK-T146-R
Q1010 405 014 4519 TR 2SC2412KT146/R
Q1011 405 014 4519 TR 2SC2412KT146/R
Q1202 405 014 4519 TR 2SC2412KT146/R
Q1203 405 014 4519 TR 2SC2412KT146/R
Q1205 405 134 5925 TR 2SA1037AK-T146-R
Q1206 405 014 4519 TR 2SC2412KT146/R
Q121 405 014 4519 TR 2SC2412KT146/R
Q122 405 014 4519 TR 2SC2412KT146/R
Q131 405 134 5925 TR 2SA1037AK-T146-R
Q132 405 134 5925 TR 2SA1037AK-T146-R
Q133 405 014 4519 TR 2SC2412KT146/R
Q141 405 015 9721 TR 2SC2814-F4-TB
Q153 405 134 5925 TR 2SA1037AK-T146-R
Q242 405 134 5925 TR 2SA1037AK-T146-R
Q243 405 134 5925 TR 2SA1037AK-T146-R
Q244 405 134 5925 TR 2SA1037AK-T146-R
Q3452 405 014 4519 TR 2SC2412KT146/R
Q3453 405 014 4519 TR 2SC2412KT146/R
Q3454 405 014 4519 TR 2SC2412KT146/R
Q3455 405 014 4519 TR 2SC2412KT146/R
Q431 405 018 0616 TR 2SC3332-S
Q432 406 015 2501 ON5111 (BU2708DX) PH.
Q432-1 610 252 1108 H HEAT SINK E7LC
Q461 405 064 7307 TR 2SB1274-Q-RA
Q461-1 610 251 5916 HEAT SINK PCC E7LC
Q462 406 007 2106 TR JC546A
Q501 405 014 4519 TR 2SC2412KT146/R
Q611 406 007 1901 TR JC556A
Q612 405 058 0208 TR 2SC3807-R-CTV-YA
Q613 405 095 0407 TR 2SC4429-L-YB
Q613-1 610 251 5893 POW HEAT SINK E7LC
Q641 406 007 1901 TR JC556A
Q651 405 009 7003 TR 2SB985-S
Q661 405 009 7003 TR 2SB985-S
Q666 406 007 2007 TR JC546B
Q682 405 014 4519 TR 2SC2412KT146/R
Q685 405 014 4519 TR 2SC2412KT146/R
Q686 405 134 5925 TR 2SA1037AK-T146-R
Q804 405 014 4519 TR 2SC2412KT146/R
Q805 405 014 4519 TR 2SC2412KT146/R
Q807 405 134 5925 TR 2SA1037AK-T146-R
Q871 405 014 4519 TR 2SC2412KT146/R
RESISTOR
R001 401 027 2620 CARBON 5K6 JA 1/6W
R002 401 105 0613 MT-GLAZE 10K JA 1/16W
R003 401 105 5311 MT-GLAZE 4.7K JA 1/16W
R004 401 026 1327 CARBON 27K JA 1/6W
R005 401 105 0613 MT-GLAZE 10K JA 1/16W
R006 401 026 1327 CARBON 27K JA 1/6W
R007 401 105 5311 MT-GLAZE 4.7K JA 1/16W
R008 401 027 2620 CARBON 5K6 JA 1/6W
R011 401 025 5425 CARBON 2R2 JA 1/4W 26MM
R012 401 025 5425 CARBON 2R2 JA 1/4W 26MM
R041 401 105 0613 MT-GLAZE 10K JA 1/16W
R046 401 105 6516 MT-GLAZE 680 JA 1/16W
R047 401 105 0613 MT-GLAZE 10K JA 1/16W
R048 401 105 0613 MT-GLAZE 10K JA 1/16W
R1000 401 026 7428 CARBON 39K JA 1/6W 26MM
R1001 401 105 4710 MT-GLAZE 39K JA 1/16W
R1002 401 027 6628 CARBON 75 JA 1/6W
R1003 401 027 6628 CARBON 75 JA 1/6W
R1004 401 105 6011 MT-GLAZE 5.6K JA 1/16W
R1005 401 027 6628 CARBON 75 JA 1/6W
R1006 401 105 5212 MT-GLAZE 470 JA 1/16W
R1007 401 027 6628 CARBON 75 JA 1/6W
R1008 401 105 5212 MT-GLAZE 470 JA 1/16W
R1009 401 027 6628 CARBON 75 JA 1/6W
R101 401 105 0415 MT-GLAZE 100 JA 1/16W
R1010 401 026 9620 CARBON 470 JA 1/6W 26MM
R1011 401 027 6628 CARBON 75 JA 1/6W
R1012 401 105 2815 MT-GLAZE 2.2K JA 1/16W
R1013 401 105 2815 MT-GLAZE 2.2K JA 1/16W
R1014 401 105 5915 MT-GLAZE 560 JA 1/16W
R1015 401 105 5915 MT-GLAZE 560 JA 1/16W
R1016 401 105 4710 MT-GLAZE 39K JA 1/16W
R1017 401 027 6628 CARBON 75 JA 1/6W
R1018 401 027 6628 CARBON 75 JA 1/6W
R1019 401 027 6628 CARBON 75 JA 1/6W
R102 401 105 0415 MT-GLAZE 100 JA 1/16W
R1020 401 105 2815 MT-GLAZE 2.2K JA 1/16W
R1021 401 105 2815 MT-GLAZE 2.2K JA 1/16W
R1022 401 105 5915 MT-GLAZE 560 JA 1/16W
R1023 401 105 5915 MT-GLAZE 560 JA 1/16W
R1024 401 105 2914 MT-GLAZE 22K JA 1/16W
R1025 401 105 5311 MT-GLAZE 4.7K JA 1/16W
R1026 401 105 0415 MT-GLAZE 100 JA 1/16W
R1027 401 105 0514 MT-GLAZE 1K JA 1/16W
R1028 401 105 4017 MT-GLAZE 330 JA 1/16W
R1029 401 025 8228 CARBON 22K JA 1/6W
R103 401 061 4400 OXIDE-MT 33K JA 1W
R1030 401 105 1511 MT-GLAZE 1.5K JA 1/16W
R1031 401 105 0613 MT-GLAZE 10K JA 1/16W
R1032 401 105 0613 MT-GLAZE 10K JA 1/16W
R1033 401 105 0613 MT-GLAZE 10K JA 1/16W
R1113 401 105 2914 MT-GLAZE 22K JA 1/16W
R1201 401 105 3218 MT-GLAZE 270 JA 1/16W
R1203 401 105 3218 MT-GLAZE 270 JA 1/16W
R1215 401 105 0415 MT-GLAZE 100 JA 1/16W
R1216 401 105 7315 MT-GLAZE 820 JA 1/16W
R1217 401 105 5212 MT-GLAZE 470 JA 1/16W
R1218 401 105 3416 MT-GLAZE 27K JA 1/16W
R1219 401 105 0613 MT-GLAZE 10K JA 1/16W
R1220 401 105 7315 MT-GLAZE 820 JA 1/16W
R1221 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
R1224 401 105 2815 MT-GLAZE 2.2K JA 1/16W
R1225 401 105 0514 MT-GLAZE 1K JA 1/16W
R1226 401 105 1016 MT-GLAZE 1.2K JA 1/16W
!
