Colour Television
Service Manual
Model CE28DFN3-B
Service Ref. No. CE28DFN3-B-00
PRODUCT CODE: 111361003
ORIGINAL VERSION: Chassis No. EB8-D
Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission
system and power source differ from the design
specifications. Refer to the specifications for the
design specifications
CE28DFN3-B
Contents
Safety precautions/Specifications ..................................................................................................................2
Block diagrams ..............................................................................................................................................3
Cabinet Disassembly......................................................................................................................................4
Adjustment and Repair Procedures............................................................................................................5~9
CPU Functions ..............................................................................................................................................................................10~11
Component Locations ..................................................................................................................................12
IC Block Diagrams..................................................................................................................................13~15
Pin description of semiconductors................................................................................................................16
Part Description and reading of schematic diagram ....................................................................................17
Cabinet Parts List ........................................................................................................................................18
Electric Parts List....................................................................................................................................19~24
-+
Please use Schematic Diagram SKP20528
with this Service Manual.

-2-
C7VDS
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube
must be the same type as the original including suffix letter. Excessive high voltage may produce potentially
hazardous X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit.
Refer to this service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds
specified limits, take necessary corrective action. Carefully follow the instructions for +B1 volt power supply
adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
SPECIFICATIONS
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark . No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark .
!
!
!
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor networks
etc. Before returning any television to the customer,
the service technician must be sure that it is completely
safe to operate without danger of electrical shock.
Power source AC 220~240V, 50Hz
Television system System I
Colour system PAL/NTSC4.43 (PAL/NTSC4.43/NTSC3.58 IN AV MODE)
Receiving channel UHF: #21~69
Aerial input impedance 75ohm
Rear AV terminal
AV1: CENELEC standard
INPUT: Composite video, RGB and Audio L/R
OUTPUT: TV-output with composite video and audio L/R
AV2: CENELEC standard
INPUT: Composite video, RGB, S-VHS and Audio L/R
OUTPUT: Monitor output with composite video and Audio L/R
Front AV terminal
AV3: RCA jacks
INPUT: Composite video and Audio L/R
Sound output(Music) 12 x 2
Dimensions (WxHxD) 786 x 519 x 500mm
Weight 34.8 Kg

-3- C7VDS

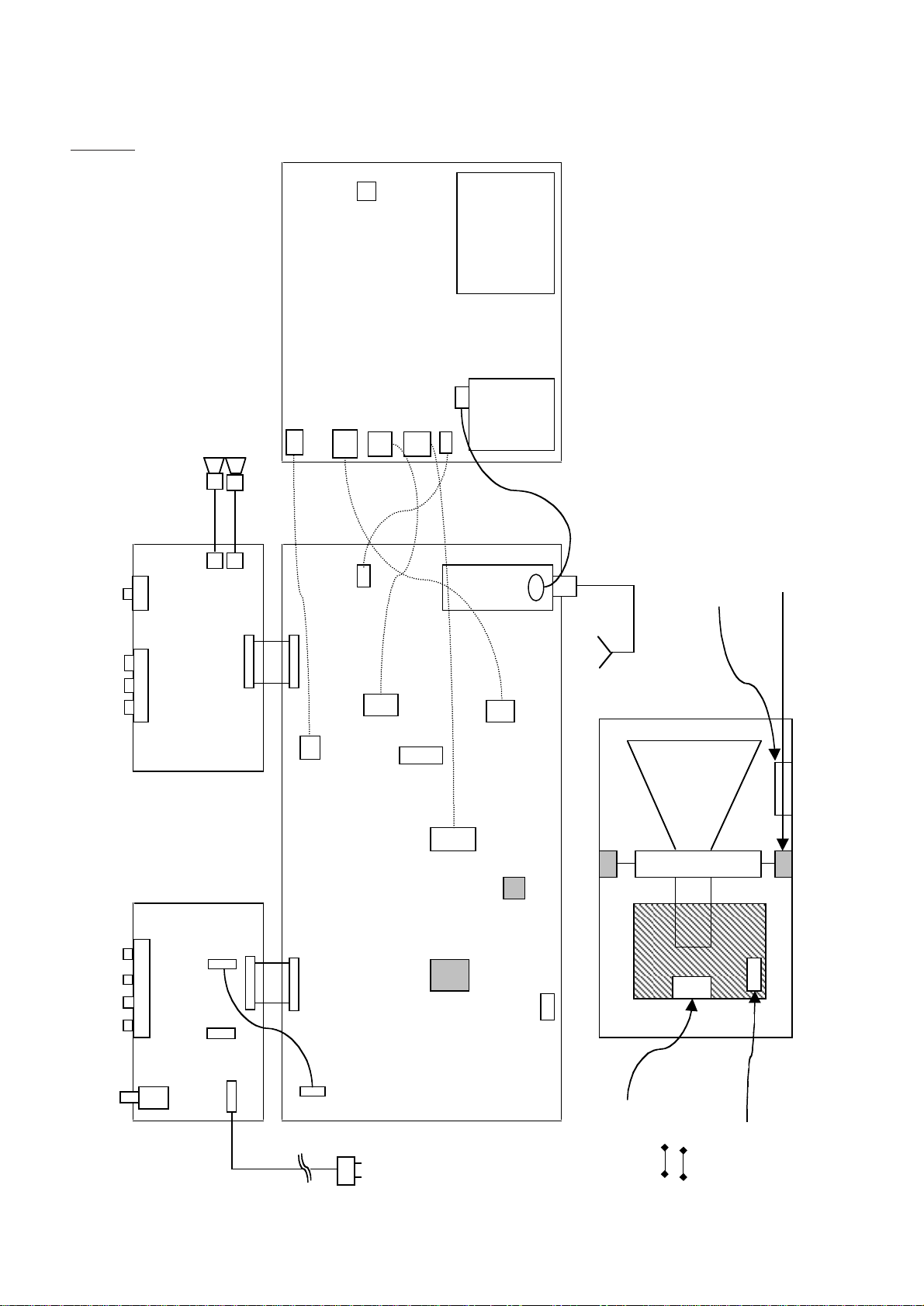

BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
AV3 H/P
ON/OFF
FRONT UNIT A FRONT UNIT B
1AA0B10E689AA 1AA0B10E689AB
K16E K16F SPK - L
K19H SPK - R
K16FF K1103
K2 PL8004
KA KH
KF MAIN UNIT DIGITAL MODULE
1AA0B10H068PA K5 PL8003 1AV4U20B64200
240VAC
K4 PL8002A PL8006
K9 PL8002B
K4A KP PL8005
K3
K4B
KQ
K4B (VERTICAL) RF IN K2 - 6V SUPPLY -PL8004
K7P K3 - AUDIO- PL8003
K4 - COMM - PL8002A
KQ K7Q K9 - VIDEO- PL8002B KP K7P K5 - GND -PL8005
K16E - DEGAUSSING
K7Q
K4A (HORIZONTAL)
DIGITAL TUNER
A101 CI SLOT
PWB SOCKET 1AA0B10H068PB
Outline

-4-
C7VDS
(A) (A)
CABINET DISASSEMBLY
CABINET BACK DISASSEMBLY

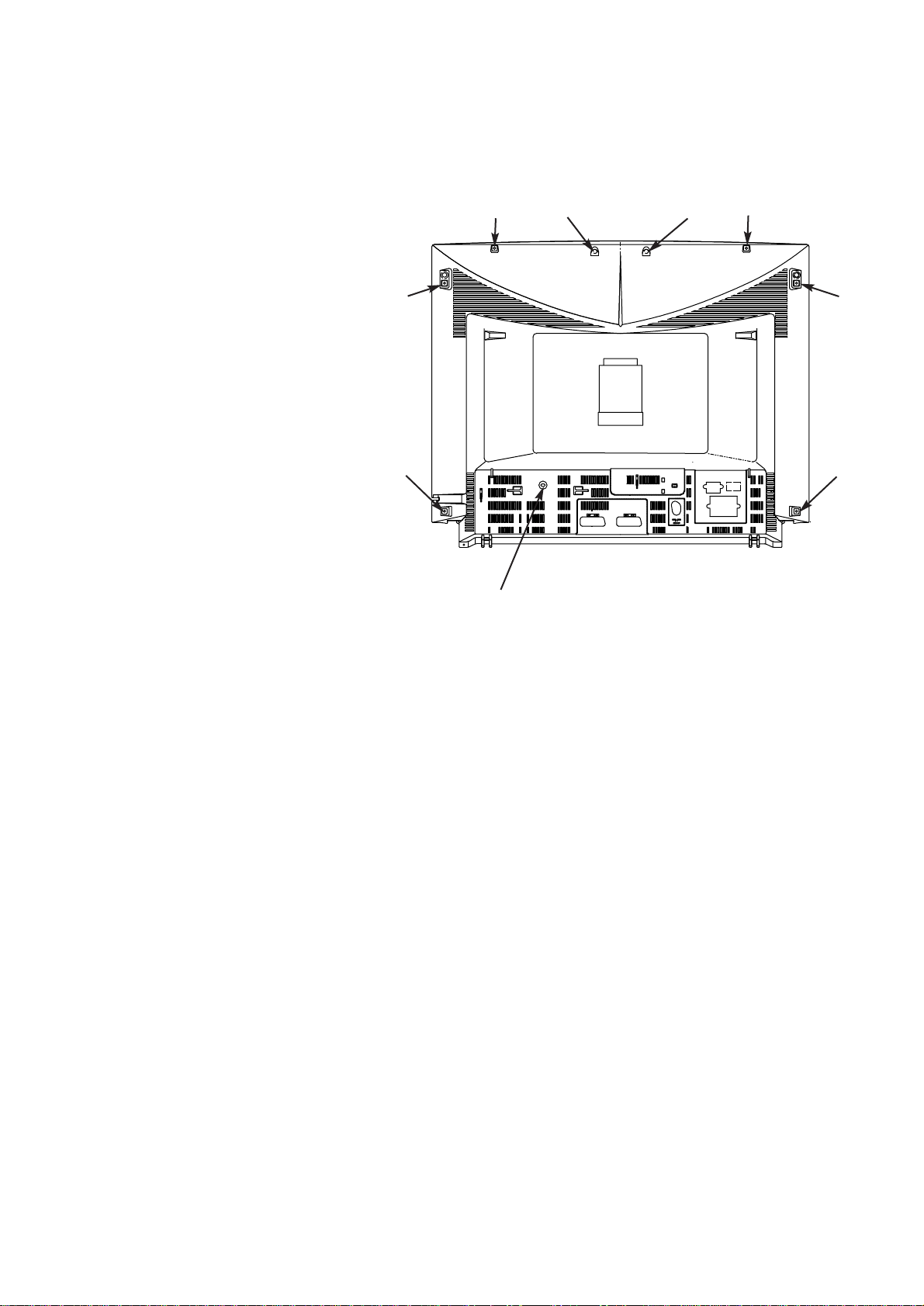

1. Remove 9 screws(A) for 28”
2. Pull out the cabinet back.
(A)
(A)
(A)
(A)
(A)
(A)
(A)

-5- C7VDS
OPTION SETTING
[After replacing the Memory IC (IC801)]
The memory IC, IC801, stores the option data of TV set and service adjustments data for each circuit, therefore,
when the memory IC is replaced, it should be programmed to the following settings and “SERVICE ADJUSTMENT”
on pages 6 to 9.
To enter to the Option Mode
+ Press and hold the F/OK button on the remote control and P▼button on the front panel of the TV. The option
window will appear on the screen.
To set the Option Mode
+ Highlight the desired option item by using the P▲or P▼ button .
+ To switch the option mode, use the Volume - (LEFT) or Volume + (RIGHT) button.
+ The data which is set in the option mode is stored into the memory IC automatically.
The following table shows the available option items and default setting mode.
Exit from the Service Mode
+ Press the MENU button.
Option Mode Mode Description & Note
SORT MODE SORTING or Tuning mode, default “SORTING”
TUNING
PLUG & PLAY ON or OFF Plug & Play mode, default “ON”
WELCOME TEXT ON or OFF Display message when first set up, default “ON”
AUTO VOLUME ON or OFF Auto volume default “OFF”
SURROUND ON or OFF Surround sound default “ON”
VIRT SUB WOOFER ON or OFF Virtual Sub Woofer default “ON”
WIDE ON or OFF Wide mode, default “ON”
AV3 ON or OFF Front AV disable, default “ON”
SORT MODE SORTING
PLUG & PLAY ON
WELCOMETEXT ON
AUTOVOLUME OFF
SURROUND ON
VIRT SUBWOOFER ON
WIDE ON
AV3 ON
OPTION
ADJUST : EXIT : RECALL
OPTION MODE FOR CE28DFN3-B-00
i
/

-6-
C7VDS
SERVICE ADJUSTMENTS
After replacing the Memory IC (IC801)]
The memory IC, IC801, stores the service adjustments data for each circuit, therefore, when the memory IC is
replaced, it should be programmed by using “OPTION SETTING” on previous page and the following adjustments.
ADJUSTABLE SERVICE ADJUSTMENT
Service Item Number. Symbol 1 Symbol 2 Frequency Wide Mode
13 A01 Track. mode 50Hz Full Track. Mode(HCO)
14 A02 Vert. Zoom 50Hz Full Vertical zoom
15 A03 Vert. Slope 50Hz Full Vertical slope
16 A04 Vert. Shift 50Hz Full Vertical shift
17 A05 Vert. Ampl. 50Hz Full Vertical amplitude
18 A06 S-Corr. 50Hz Full S-correction
19 A07 V.Lin.Ctrl. 50Hz Full V.Lin.Ctrl.
20 A08 V.Linearity 50Hz Full V.Linearity
21 A09 EW Width 50Hz Full EW width
22 A10 Hor. Shift 50Hz Full Horizontal shift
23 A11 EW Parabola 50Hz Full EW parabola/width
24 A12 Trapezium 50Hz Full EW trapezium
25 A13 UC Parabola 50Hz Full EW upper corner parabola
26 A14 LC Parabola 50Hz Full EW lower corner parabola
27 A15 Hor. Bow 50Hz Full Horizontal bow
28 A16 Parallel 50Hz Full Horizontal parallelogram
29 A17 Vert. Scroll 50Hz Full Vertical Scroll
30 A18 H BLK SW 50Hz Full RGB blanking mode
31 A19 H BLK L 50Hz Full Timing of wide blanking front(WBF)
32 A20 H BLK R 50Hz Full Timing of wide blanking rear(WBR)
33 A21 OSVE 50Hz Full Black current measuring lines in overscan
34 A22 EVB 50Hz Full Extended vertical blanking
35 B02 Vert.Zoom 50Hz Natural / or 4:3 squeeze mode Vertical zoom
36 B09 EW Width 50Hz Natural / or 4:3 squeeze mode EW width
37 B10 Hor. Shift 50Hz Natural / or 4:3 squeeze mode Horizontal shift
38 B11 EW Parabola 50Hz Natural / or 4:3 squeeze mode EW parabola/width
39 B12 Trapezium 50Hz Natural / or 4:3 squeeze mode EW trapezium
40 B13 UC Parabola 50Hz Natural / or 4:3 squeeze mode EW upper corner parabola
41 B14 LC Parabola 50Hz Natural / or 4:3 squeeze mode EW lower corner parabola
42 B15 Hor. Bow 50Hz Natural / or 4:3 squeeze mode Horizontal bow
43 B16 Parallel 50Hz Natural / or 4:3 squeeze mode Horizontal parallelogram
44 B17 Vert.Scroll 50Hz Natural / or 4:3 squeeze mode Vertical Scroll
Explanation
Item No. OSD Description
6 Screen adjustment
151 WPR - N R - Drive adjustment
152 WPG - N G - Drive adjustment
304 AGC Take Over AGC adjustment
314 TXT - H - POS OSD Positioning adustment
IMPORTANT NOTICE
Do not attempt to adjust service adjustments not listed above otherwise it may cause loss of performance and product safety.
GEOMETRY SERVICE DATA

-7- C7VDS
To enter to the Service Mode
+ Press and hold the GREEN button on the remote control and then press the P▼button on the cabinet.
To select the service item and change data value
+ To select the adjustment item, use the P▲or P▼button.
+ To change the service data, use the Volume -(LEFT) or Volume + (RIGHT) button.
+ The data which is set in the service mode is stored into the memory IC automatically.
SERVICE MODE
SERVICE SERVICE SOFTWARE
ITEM ITEM VERSION
NUMBER DESCRIPTION
Exit from the Service Mode
+ Press the MENU button or turn off the TV set by using the Mains switch.
INITIALISATION OF MEMORY IC
To initialise the memory IC (IC801), press and hold the NORMAL button on the remote control, then press
the P▼button on the front panel of the TV set. The tv set will switch into standby mode. Turn the Mains switch Off
and On, then switch on from standby. The initialisation is now completed.
When initialised the memory IC and all of the setting data (option data and service adjustment data) stored in the IC
are reset to the default value. It is necessary to set the option settings and readjust the service adjustments listed in
this manual and to re-tune all the channels.
SERVICE
000 EB8D 3_52
i

-8-
C7VDS
ADJUSTMENTS
IMPORTANT NOTICE
Do not attempt to adjust the following service adjustments except when adjustments are required in servicing
otherwise it may cause loss of performance and product safety.
1. Receive white raster pattern.
2. Set controls to normal.
3. Connect digital voltmetre to test point TP-B and GND.
4. Adjust voltage to 150 ±0.5V by using VR641.
1. Input and tune an RF signal which is UHF to the clear-
est station.
2. Connect digital voltmetre to test point TP-A and GND.
4. Enter the service mode and select item no. 304. AGC
TAKE OVER
5. Press the LEVEL+ or LEVEL - button to adjust volt-
age to be 3.2Vdc.

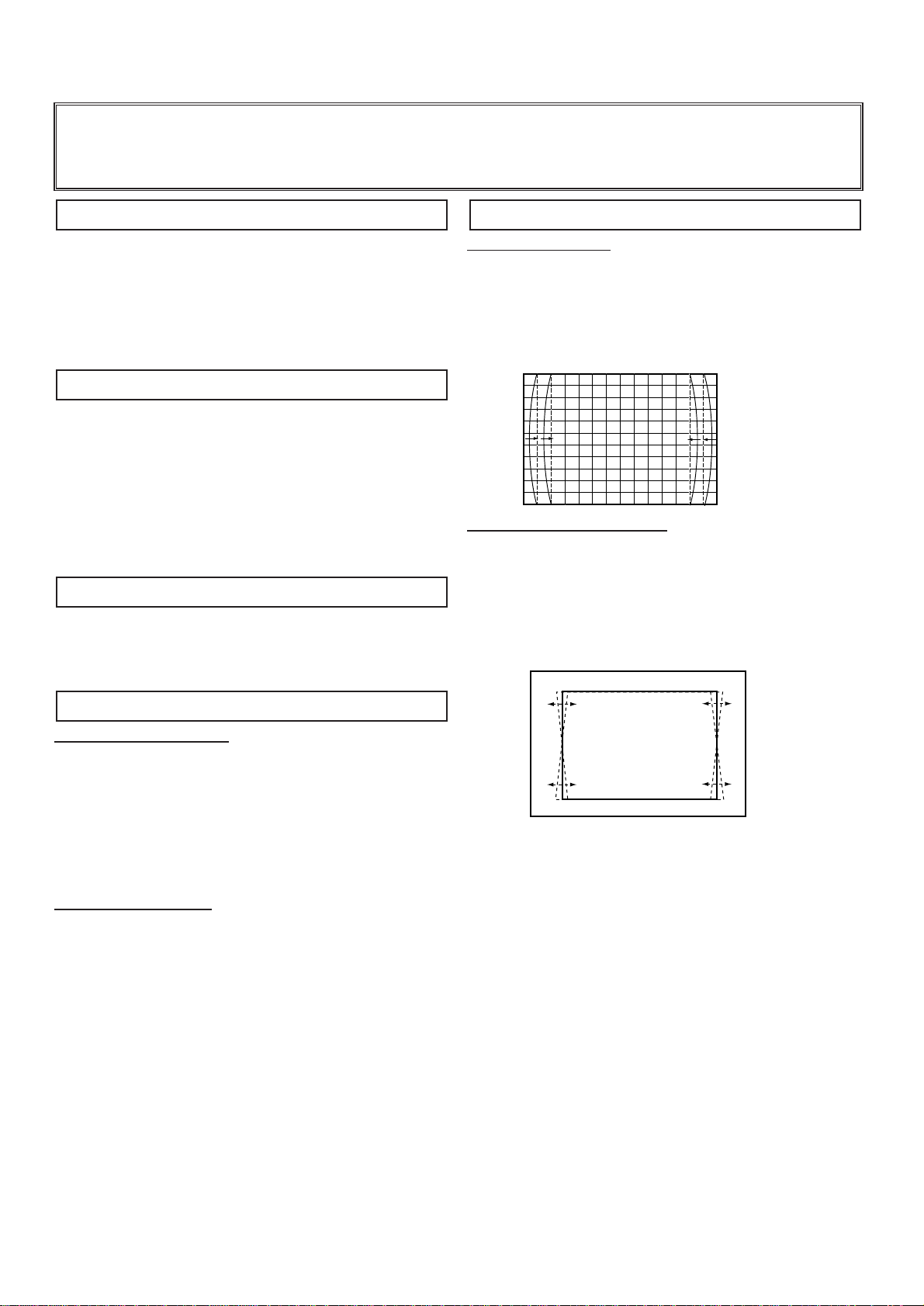

By using FOCUS VR, adjust focus control for well
defined scanning lines.
SCREEN ADJUSTMENT
1. Enter the service mode and select item no. 6.
COLLAPSED LINE
2. Turn screen VR until collapsed line is just visible then
stop turning. Press menu key on remote control to exit
the service mode.
DRIVE ADJUSTMENT
3. Select item no.151. WPR - N (R-Drive) or 152. WPG -
N (G-Drive) and adjust both initially to 20.
4. Change data value of each item by using LEVEL + or
LEVEL - button to obtain the proper white balance.
PCC ADJUSTMENT
1. Receive cross hatch pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 23. EW
PARABOLA
3. Press the LEVEL+ or LEVEL - button to adjust the
vertical line to be straight.
TRAPEZOID ADJUSTMENT
1. Receive cross hatch pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 24.
TRAPEZIUM
3. Press the LEVEL+ or LEVEL - button to correct the
trapezum distortion of the vertical line.
PCC ADJUSTMENT
GREY SCALE ADJUSTMENT
FOCUS ADJUSTMENT
AGC ADJUSTMENT
+ B VOLTAGE ADJUSTMENT

-9- C7VDS
CORNER ADJUSTMENT
1. Receive cross hatch pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 25. UC
PARABOLA for top corner adjustment OR item no.
26. LC PARABOLA for bottom corner adjustment.
3. Press the LEVEL+ or LEVEL - button to correct the
distortion of the vertical line around the corners.
HORIZONTAL CENTRING ADJUSTMENT
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 22. HOR.
SHIFT.
3. Press the LEVEL+ or LEVEL - button to adjust the
horizontal centre.
HORIZONTAL WIDTH ADJUSTMENT
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter to the service mode and select item 21. EW
WIDTH.
3. Press the LEVEL+ or LEVEL - button to adjust the
horizontal width.
1. Receive circular pattern and set screen mode to
“FULL”.
2. Set controls for brightness and contrast to maximum.
3. Connect high-voltage meter to the anode of CRT and
GND.
4. Confirm that voltage is 26 kV ±1.0kV at maximum
beam current 1.2mA ± 0.05
VERTICAL CENTRING ADJUSTMENT
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no.16.VERT
SHIFT.
.3 Press the LEVEL+ or LEVEL - button to adjust the
vertical centre.
VERTICAL HEIGHT ADJUSTMENT
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 17. VERT
AMPL.
3. Press the LEVEL+ or LEVEL - button to adjust the
vertical height.
1. Receive circular pattern and set screen mode to
“FULL”.
2. Enter the service mode and select item no. 314. TXT -
H - POS.
3. Press the LEVEL+ or LEVEL - button to adjust
proper OSD positioning.
OSD POSITIONING ADJUSTMENT
VERTICAL ADJUSTMENT
HIGH-VOLTAGE CONFIRMATION
HORIZONTAL ADJUSTMENT
314 TXT - H - POS 7

-10-
C7VDS
CPU PORT FUNCTIONS
Pin No Function Name Function In/Out
1 VSS Gnd --
2 VSS Gnd
3 1v8_1 1.8v Supply --
4 3v3 3.3v Supply --
5 Vref 3.3v Reference --
6 Vref V Ref Gnd --
7 Vref 3.3v Reference --
8 Vref V Ref Gnd --
9 Vref 3.3v Reference --
10 XTAL IN Clock Oscillator In
11 XTAL OUT Clock Oscillator Out
12 Vss Gnd --
13 Vguard sw --
14 Dec Dig 1.8v source supply Out
15 5v 5v Supply --
16 Phi 2 Phi 2 --
17 Phi 1 Phi 1 --
18 Gnd Gnd --
19 Sec pii --
20 Dec BG --
21 EW Drive parabola out Out
22 VdrB Vertical drive B Out
23 VdrA Vertical drive A Out
24 Vif 1 Vision IF 1 In
25 Vif 2 Vision IF 2 In
26 Vsc --
27 I Ref Reference current --
28 Gnd Gnd --
29 Sif 1 Sound IF 1 In
30 Sif 2 Sound IF 2 In
31 Agc Auto matic gain control In
32 Eht Eht In
33 SSif/Ref Iin/Avl/Ref Out --
34 Audio in Scart L In
35 Audio in Scart R In
36 Audio Out Scart L Out
37 Audio Out Scart R Out
38 --
39 Qsso/Amo/AudioEm --
40 Gnd --
41 PLL IF Phase Lock Loop If --
42 SifAgc SifAgc --
43 IFVo Scart 1 Video Out
44 FmRo --
45 V8Audio Switches --
46 AgcsSif --
47 V5P2 5v Supply --
48 Svo/IfVo/Cbvs1 Scart 2 Video Out
49 Audio4 L In Scart 2 Audio L In
50 Audio4 R In Scart 2 Audio R In
51 Y4/Cvbs4 Av3 Video In
52 C4 --
53 Audio2InL Av3 Audio L In
54 Audio2InR Av3 Audio R In
55 Cvbs2/y Scart 1 Video In
56 Audio3InL --
57 Audio3InR --
58 Y3/Cvbs Scart 2 Video In
59 C3 Scart 2 Chroma In In
60 Audio Out L SL Audio out Left Speaker Out
61 Audio Out L SR Audio Out Right Speaker Out
62 Audio Out HPL Scart Audio L Out 2 / monitor Out Out
63 Audio Out HPR Scart Audio R Out 2 / monitor Out Out
64 Pip --

-11- C7VDS
CPU PORT FUNCTIONS (continued)
Pin No Function Name Function In/Out
65 SVM Scan Velocity Modulation Out
66 FbiSo Flyback In SandCastle Out In/out
67 Hout Horizontal Drive Out Out
68 VssComb Gnd
69 V5Comb 5v Supply --
70 Vin/R2/Pr Scart 2 R-In In
71 Uin/B2/Pb Scart 2 B-In In
72 Yin/G2/Y Scart 2 G-In In
73 Y Sync Y Sync In
74 Y out Yout Out
75 Uout/Fb in Scart 2 Fast Blanking In
76 Vout/Sw01 --
77 Fbl3 Scart 1 Fast Blanking In
78 R3/Pr Scart 1 R-In In
79 G3/Y Scart 1 G-In In
80 B3/Pb Scart 1 B-In In
81 Gnd 3 Gnd --
82 V5P3 5vSupply --
83 BCL Beam Current Limiting In
84 Iblack --
85 Rout Red Drive Out
86 Gout Green Drive Out
87 Bout Blue Drive Out
88 V3.3A1 3.3v Supply --
89 RefAdn Ref Gnd --
90 V3.3RefAdp 3.3v Supply --
91 RefAd --
92 GndA Gnd --
93 V1.8A 1.8v Supply --
94 V3.3A2 3.3v Supply --
95 VssAdc Gnd --
96 V1.8Adc 1.8v Supply --
97 Into Remote control In In
98 P10/Int1 SCl In/out
99 P121/TO SDA In/out
100 V1.8C2 1.8v Supply --
101 VssC2 Gnd --
102 P04/I2Sws --
103 P03/I2SCLk --
104 P02/I2SDOC --
105 P01/I2SDOC --
106 P00/I2SDi1 StandBy Out
107 P13/T1 On/Off Out
108 P16/SCL SCL In/out
109 P17/SDA SDA In/out
110 V3.3P 3.3v Supply --
111 P20/Tpwm Relay On/Off Out
112 P21/Pwmo LED Drive Out
113 STATUS Status In/out
114 ALK Alk In/out
115 P30/Adco Scart 1 Pin8 Function In
116 P31/Adc1 Scart 2 Pin8 Function In
117 V1.8C1 1.8v Supply --
118 DecV1v8 1.8v Supply --
119 P32/Adc2 AGC In
120 P33/Adc2 Key scan in In
121 VssC1+P1 Gnd --
122 P24/Pwm3 Audio Mute Out
123 P25/Pwm4 L/L’switch (Export only) Out
124 V1.8C3 1.8v Supply --
125 Vssc3 Gnd --
126 P12/Int2 --
127 P14/Rx Power Fail In
128 P:15/Tx Natural Wide Switch

-12-
C5WDS
COMPONENT LOCATIONS
DIP
2
DANGER LIVE MAINS
***
B10E0090A
DB=UK_PCB CELL=B10E00900
17
31
1
E
E
E
14
5
8
4
3
21
E
EB8D
3
1
E
E
B10E00900
B10E0090B
***
3
12
E
1
2
3
14
5
8
C023
KF-1
KF-2
KF
R601
JW16
KP
C104
C103
C102
C101
K1001
KEM2
TP-A
A101
K1003
K1002
KSC
T451
R602
IC601-1
R632
R631
D610
IC601
C614
R613
R606 T611
C609
R607
T131
C1001
C1011
KCPA
KH
KA
R614
K701
K7V
K7Y
R725
R742
R715
R705
K7Q
IC701
K7P
C710
Q461
D469
Q462
C468
R474
D461
C450
Q461-1
X201
X122A
X122
C214
X121
C229
C233
C236
C239
K3
K9
C256
C268
C271
C281
C283
C288
C203
C209
K4
C803
Q204
C210
C206
C205
Q202
IC801
D438
R466
D441
Q451
D481
C421
C423
L441
C422
C424
T431
R433
R451
R448
C432
Q431
R441
L442
L461
D439
C451
L462
KQ
C486
C441
C443
C445
R443
C446
JW17
R452
R486
R480
C434
R449
C466
Q432-2
K4A
K4A-1
K4A-2
C420
C529
C502
C503
C501
R502
C511
D501
K4B
R512
R510
R511
R515
R501
IC501-2
IC501
C010
C009
IC001
IC001
C021
C022
J006
C667
D633A
C655
K2
Q642
C637
C686
D648
L643
TP-B
C650
IC643
D642
IC641
VR641
C633
C642
Q651
D630
R106
D506
D639
C643
D633
R667
C682
C841
C648
R637
R435
C645
C685
R692
R691
R512A
IC666
KGG
KGG-1 KGG-2
JW1
JW2
KEM1
Q402
C691
R699
C481
JW3
JWA JWB
JD
JB
IC1611
C1611
D1603
R1603
R1601
D1601
C1603
IC1601
R1607
D1602
T1601
D1612
R648
R644
K5
MAIN BOARD / CRT BOARD

-13- C7VDS

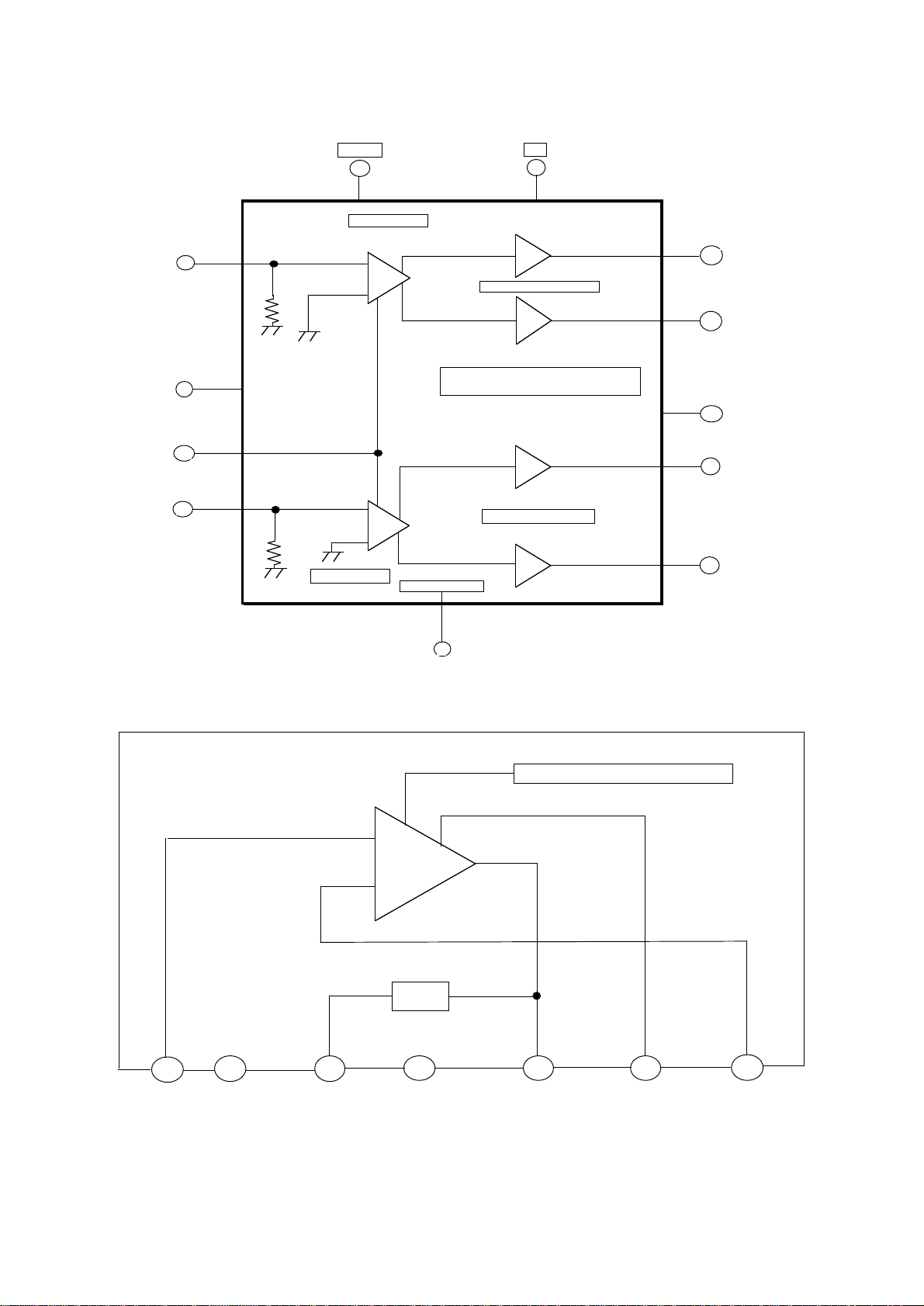

IC BLOCK DIAGRAMS
IC001 LA42072-E <Audio Output>
Vcc GND SHORTING PROTECTION CIRCUIT.
LOAD SHORTING PROTECTION CIRCUIT
THERMAL PROTECTION CIRCUIT
OUTPUT AMPLIFIER
OUTPUT AMPLIFIER
INPUT AMPLIFIER
INPUT AMPLIFIER
3
2
12
6
5 7
4
PRE GND
IN 1
IN 2
1
RIPPLE FILTER
STAND BY Vcc
9
10
MUTE
RIPPLE FILTER
- OUT 2
POWER
GND
+ OUT 1
11 - OUT 1
8+ OUT 2
R In = 20Ko
R In = 20Ko
IC501 LA78045 <Vertical Output>
THERMAL PROTECTION CIRCUIT
-
+
PUMP
UP
VER
OUTPUT
5
4
GND
PUMP UP
OUT
3
NON INV. INPUT
7
OUTPUT STAGE Vcc
6
Vcc
2
INVERTING
INPUT
1
AMPLIFIER

-14-
C5WDS
Internal power supply Input Under voltage protection
Oscillator
Falling edge detection
Burst On
Burst Off
Latch for Burst circuit
Logic
4
15
3
2
Block Diagram TN6Q03/04
Driver
Over current/FB comparator
Reference Voltage
Over voltage protection
Over heat protection Latch
Circuit
VDD pin
EDGE pin
FB pin SOURCE (GND) pin
DRAIN pin
IC601

-15- C7VDS

-16-
C5WDS

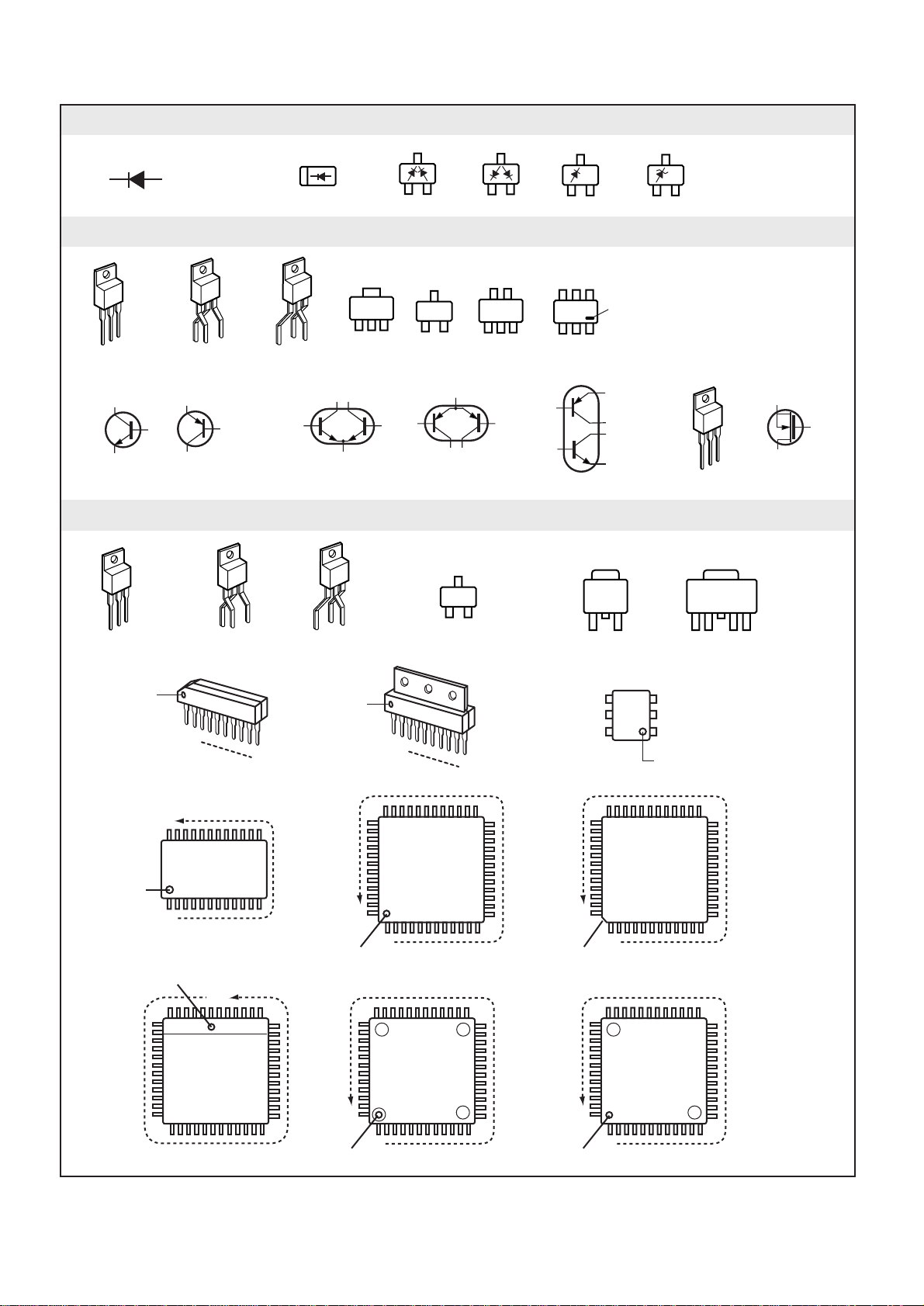

PIN DESCRIPTION OF SEMICONDUCTORS
A
K
C
BE
C2
C1
B1 B2
E
C
CBE
KA
C
B
E
B2
B1
C1 C2
E
E
B
C
B2
B1
C1 C2
E
B2
B1 C1
C2
E1
E2
K
AA
A
KK
K
A
K
A
C
BECBEC
B
E
1
2
3
4
5
6
Index
12N
Index Index
12N
2
13
(IN) (OUT)
(GND)
21 4
2
1
3
Index
1
N
Index 1
N
Index 1
N
Index 1
N
Index 1
N
Index
1N
2
131
232
1
3
RESET GND
Vdd
5
3
D
GSD
G
S
K: Cathode
A: Anode
C: Collector
B: Base
E: Emitter
D: Drain
G: Gate
S: Source
●Diode
●Transistor/FET
●IC
E1
C2
E2 C1
B2
B1
Index
●Diode
●Transistor/FET
●IC
FET

-17- C7VDS

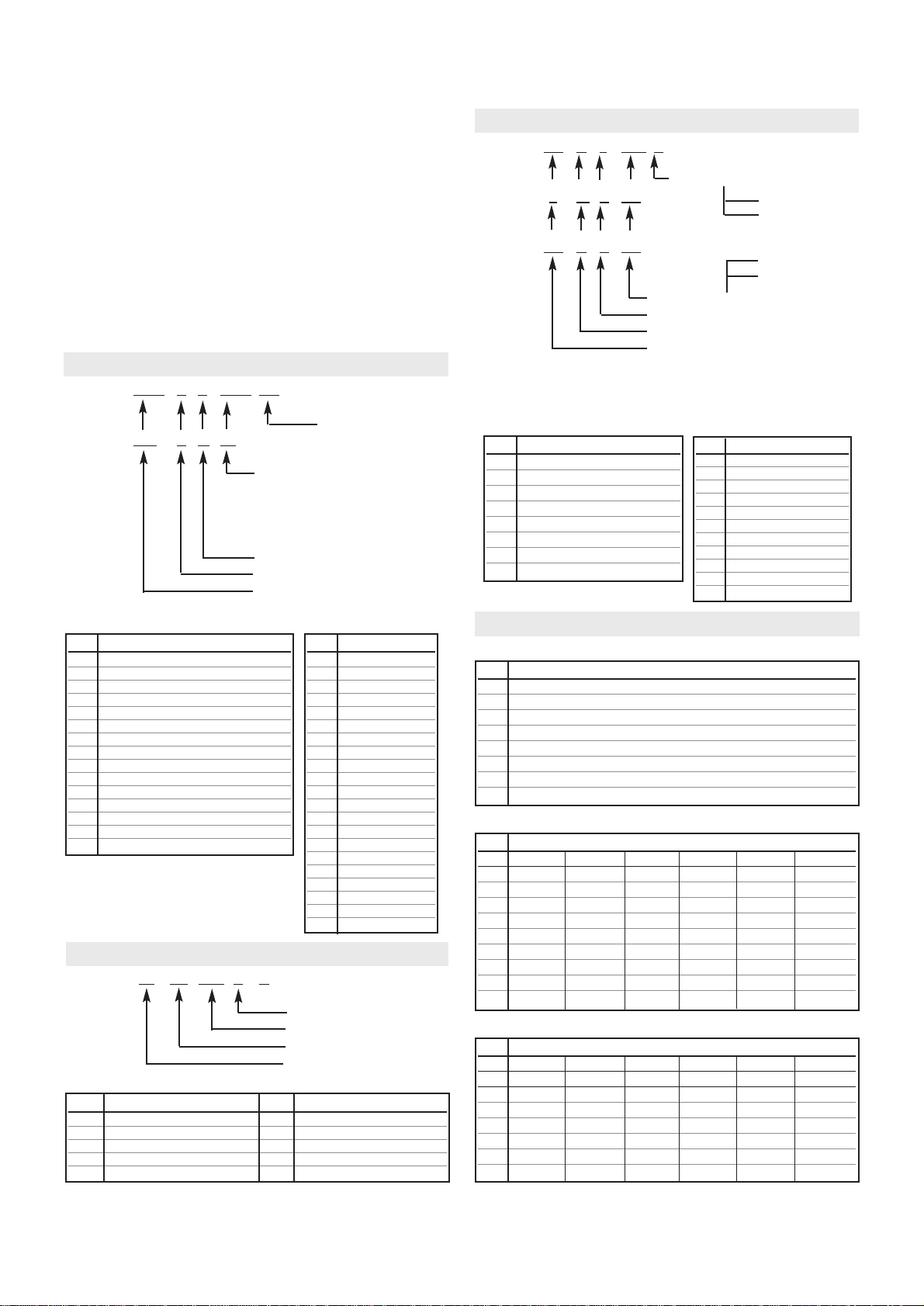

PARTS DESCRIPTION AND READING IN SCHEMATIC DIAGRAM
1. The parts specification of resistors, capacitors and
coils are expressed in designated code. Please
check the parts description by the following code
table.
2. Some of transistors and diodes are indicated in
mark for the substitution of parts name. Please
check the parts name by the following code table.
3. Voltages and waveforms were taken with a video
colour bar signal(1Vp-p at 75 ohms terminated) and
controls to normal.
4. Voltages were taken with a high-impedance digital
voltmetre.
Example 2000 K K 1000 BG
Characteristic
Example 160 E M 10
Capacitance value
Tolerance
Type
Rated voltage
Excepting electric capacitors, all
capacitance values of less than 1
are expressed in µF and more
than 1 are in pF.
Example L2 C1 4R7 K N
Tolerance
Inductance value
Manufacture code
Unique code
Mark Material
E Electrolytic
P Electrolytic (non-Polarised)
C Ceramic (temperature compensation)
K Ceramic
F Polyester
N Polypropylene
M Metalised polypropylene
H Metalised polypromylar
B Ceramic (semiconductor)
G Metalised polyester
Y Composite film
S Styrol
T Tantalum oxide solid electrolytic
U Organic semiconductive electrolyte
D Electric double layer electrolytic
Mark Tolerance
A not specified
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
E ±2.5
H±3
J±5
K±0
M±20
N±30
P +100 -0
Q +30 -10
T +50 -10
U +75 -10
V +20 -10
W +100 -10
X +40 -20
Y +150 -10
Z +80 -20
Mark Tolerance (nH) Mark Tolerance (%)
C ±0.25 G ±2
D ±0.5 J ±5
S ±0.3 K ±10
A ±0.2 L ±15
M±20
Coil Reading
Capacitor Reading
Example 1/2 D J 10K B
Example 6 W K 8.2
Example 1/2 C K 1M
Resistor Reading
Characteristic
Z (Carbon fuse)
B (Non-burnable)
Resistance value
Tolerance (see below table)
Material (see below table)
Rated wattage (W)
K indicates in KΩ
M indicate in MΩ
Note: Resistor which is indicated with resistance value only are
1/6W carbon resistor. Resistor which is indicated with materi-
al, tolerance and value are 1/4W rated wattage.
Mark Material
D Carbon
N Metal film
S Oxide metal film
C Solid
G Metal glaze
W Wire wounding or cement
H Ceramic
F Fusible
Mark Tolerance
A ±0.05
B ±0.1
C ±0.25
D ±0.5
F±1
G±2
J±5
K±10
M±20
P +5 -15
Z used in 0 ohm
●Material table ●Tolerance table
●Material table ●Tolerance table
Mark Type number
-- 1S1555,1S2473,1S2076,1SS133,DS442,1SS176
K 1S1555,1S2473,1S2076,DS442
L 1S1555,1S2076A,1S2471
M 1SS133,1SS176,GMA01
N 1S1555,1S2473,1S2076,1SS133,DS442,1SS176,1N4148
P 1S1555,1S2076A,1S2471,1N4148
R 1S1555,1S2076,1S2473,DS442,1N4148
AA 1S1555,1S2076,1S2473,1SS133,DS442,1SS176,1N4148,GMA01
●Diode
Mark Type number
-- 2SC536 2SC945A 2SC1815 2SC1740 2SC1740S KSC945C
A E, F, G P, Q, R O, Y, G Q, R, S Q, R, S
B E, F, G P, Q, R O, Y, G Q, R, S
D F, G P, Q Y, G Q, R, S
F F, G P G R, S
H F, G P, Q Y, G Q, R, S Y, G
I E, F, G P, Q, R O, Y, G Q, R, S Y, G
G F, G P G R, S G
AD F, G Q, R Y, GR Q, R, S
AE E, F, G Q, R O, Y, GR Q, R, S
●Transistor (NPN type)
Mark Type number
-- 2SA608 2SA564A 2SA1015 2SA933 2SA933S KSA733C
Y E, F Q, R O, Y, G Q, R
WF R Y,GR
V E, F Q, R O, Y, G Q, R Y, G
U F R Y, G R G
Z E, F Q, R O, Y, G Q, R Q, R
AB F R Y Q, R
AE E, F Q, R O, Y R
●Transistor (PNP type)
Diode/Transistor Type Reading

-18-
C7VDS

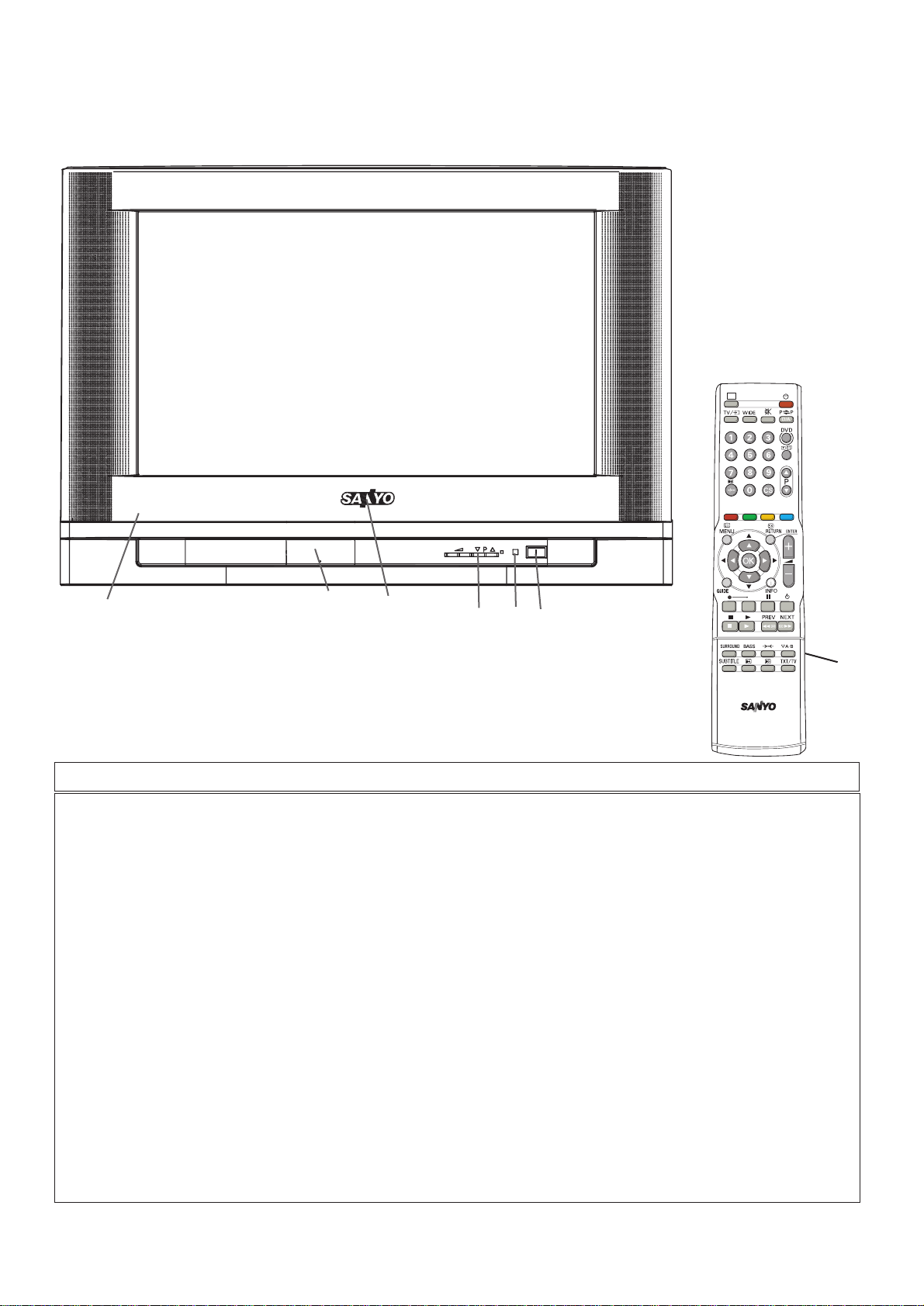

CABINET PARTS LIST FOR MODEL CE28DFN3-B-00
CABINET PARTS
1 610 319 1287 CABINET FRONT-C7VA
2 665 000 4375 BUTTON POWER-C7VA
3 665 000 4382 BUTTON UNITED-C7VA
4 610 308 4428 CABINET BACK-C6AD
5 610 319 1331 DOOR-C7VA
6 665 000 4368 DEC IND-C7VA
7 610 253 2449 AC CORD HOLDER-U-D4VA
8 645 043 5058 BADGE,SANYO*53.5X12L53.3
ACCESSORIES
9 1AV0U10B40701 ASSY,REMOCON JXPTB
645 044 8416 BATTERY 1.5V,R03
665 000 3699 INST MANUAL - C7VD/ZD
665 000 3705 QUICK SET UP - C7VD/ZD
Item Part No. Description
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
9
DS
-+
8
132
56

C7VDS
-19-
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following
parts list be used for components replacement pointed out by the mark .
!
!
013C7VDS ELECTRICAL PARTS
COIL
L901 645 068 0137 DEGAUSS 28" W/F SAMSUNG
PICTURE TUBE
Q901 414 012 9003 CRT W66QDE993X011
MISCELLANEOUS
A900 645 061 5016 UNIT,UK DIGITAL
SP901 645 047 2046 SPEAKER 8 H125/1039
SP902 645 047 2046 SPEAKER 8 H125/1039
WTU 610 309 1914 CORD,SHIELD 1L-1L,L=160,K
W901 645 011 8838 3P AC CORD +2P HOUSE @2.1
W902 610 310 7622 GND CON.EB7D 28"1220MM
1AA0B10H068RA ASSY,PWB,MAIN C7VDS
CAPACITOR
C003 403 314 5915 GRM21BR71C474KA01L PT297
C004 403 314 5915 GRM21BR71C474KA01L PT297
C005 403 215 2310 GRM188R71H123KA01D PT115
C006 403 215 2310 GRM188R71H123KA01D PT115
C011 403 269 5916 GRM219R71C224KC01D PT115
C012 403 269 5916 GRM219R71C224KC01D PT115
C013 403 269 5916 GRM219R71C224KC01D PT115
C014 403 269 5916 GRM219R71C224KC01D PT115
C015 403 269 5916 GRM219R71C224KC01D PT115
C016 403 269 5916 GRM219R71C224KC01D PT115
C017 403 269 5916 GRM219R71C224KC01D PT115
C018 403 269 5916 GRM219R71C224KC01D PT115
C021 403 047 3120 ELECT 47U M 25V
C022 403 195 8408 ELECT 2.2U M 50V
C023 403 218 8151 25 YK 1000 M TA 1020
C024 403 157 1914 GRM1885C1H100JZ01
C025 403 153 9112 GRM1885C1H5R0CD01D PT115
C026 403 068 9016 CERAMIC 100P K 50V
C040 403 113 4119 GRM188R71H222KA01D PT115
C057 403 113 3815 GRM188R71H102KA01D PT115
C1001 403 248 1618 16 YK 47 M TA 0511
C1003 403 157 3611 GRM1885C1H101JZ01D PT115
C1005 403 113 3815 GRM188R71H102KA01D PT115
C1006 403 157 3611 GRM1885C1H101JZ01D PT115
C1007 403 113 3815 GRM188R71H102KA01D PT115
C101 403 233 1111 ELECT 22U M 50V
C1011 403 248 1618 16 YK 47 M TA 0511
C1013 403 157 3611 GRM1885C1H101JZ01D PT115
C1014 403 157 3611 GRM1885C1H101JZ01D PT115
C1016 403 113 3815 GRM188R71H102KA01D PT115
C1017 403 113 3815 GRM188R71H102KA01D PT115
C102 403 039 3527 ELECT 470U M 6.3V
C1031 403 113 3815 GRM188R71H102KA01D PT115
!
!
!
!
!
Ref. No. Part No. Description
Chassis construction
CE28DFN3-B-00
013C7VDS ELECTRICAL PARTS (PAGE 19)
1AA0B10H068RA ASSY,PWB,MAIN C7VDS (PAGE 19 - 24)
1AA0B10H068RB ASSY,PWB,SOCKET C7VDS (PAGE 24)
1AA0B10E689AB ASSY,PWB,FRONT-B AV3 (PAGE 24)
1AA0B10E689AA ASSY,PWB,FRONT-A MAINS (PAGE 24)
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G:±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G:±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W:+100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Material:
CERAMIC............Ceramic
MT-PAPER ..........Metallized Paper
POLYESTER ......Polyester
MT-POLYEST......Metallized Polyester
POLYPRO............Polypropylene
MT-POLYPRO ....Metallized Polypropylene
COMPO FILM......Composite film
MT-COMPO ........Metallized Composite
STYRENE............Styrene
TA-SOLID ............Tantalum Solid
AL-SOLID............Aluminium Solid
ELECT ................Electrolytic
NP-ELECT ..........Non-polarised Electrolytic
OS-SOLID ..........Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT ..........Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C:±0.25% D: ±0.5%
F: ±1% G:±2% J: ±5% K: ±10%
M:±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON ............Carbon
MT-FILM ..............Metal Film
OXIDE-MT ..........Oxide Metal Film
SOLID..................Composition
MT-GLAZE ..........Metal Glaze
WIRE WOUND ....Wire Wound
CERAMIC RES....Ceramic
FUSIBLE RES ....Fusible
Rated Voltage
Rated value: P=pico farad, U=Micro farad
Note: Parts order must contain Service Ref. No., Part No., and descriptions.

-20-
C7VDS
Part No.
Ref. No. Part No.
Description Ref. No. Description
C1033 403 113 3815 GRM188R71H102KA01D PT115
C1036 403 323 8815 GRM21BF51C225ZA01K PT115
C1037 403 323 8815 GRM21BF51C225ZA01K PT115
C1038 403 323 8815 GRM21BF51C225ZA01K PT115
C1039 403 323 8815 GRM21BF51C225ZA01K PT115
C104 403 233 0817 ELECT 10U M 50V
C1054 403 113 3815 GRM188R71H102KA01D PT115
C1055 403 113 3815 GRM188R71H102KA01D PT115
C106 403 215 2211 GRM188R71H103KA01D PT115
C107 403 215 2211 GRM188R71H103KA01D PT115
C109 403 113 3815 GRM188R71H102KA01D PT115
C110 403 113 3815 GRM188R71H102KA01D PT115
C121 403 067 6274 POLYESTER 0.15U J 50V
C122 403 215 2211 GRM188R71H103KA01D PT115
C123 403 113 3815 GRM188R71H102KA01D PT115
C126 401 105 7919 MT-GLAZE 0.000 ZA 1/16W
C1601 403 279 4807 CERAMIC 100P K 2K
C1602 403 073 6413 CERAMIC 470P K 50V
C1603 403 051 0627 ELECT 4.7U M 50V
C1605 403 16 88701 MT-POLYEST 0.022U K 400V
C1607 403 075 9719 CERAMIC 1800P K 500V
C1611 403 194 3800 ELECT 2200U M 25V
C1613 403 073 8318 CERAMIC 4700P K 50V
C200 403 215 2211 GRM188R71H103KA01D PT115
C201 403 269 5916 GRM219R71C224KC01D PT115
C202 403 269 5916 GRM219R71C224KC01D PT115
C203 403 038 3409 ELECT 1000U M 6.3V
C204 403 164 0214 GRM188F51E104ZA01D PT115
C205 403 241 3817 10 YK 220 M TA 0511
C206 403 241 3817 10 YK 220 M TA 0511
C207 403 269 5916 GRM219R71C224KC01D PT115
C208 403 323 8815 GRM21BF51C225ZA01K PT115
C209 403 195 8824 ELECT 100U M 16V
C210 403 241 3817 10 YK 220 M TA 0511
C211 403 164 0214 GRM188F51E104ZA01D PT115
C212 403 215 2211 GRM188R71H103KA01D PT115
C213 403 157 7312 GRM188R71H682KA01D PT115
C214 403 248 1410 50 YK 1R0 M TA 0511
C216 403 269 5916 GRM219R71C224KC01D PT115
C217 403 284 4314 CERAMIC 0.022U K 50V
C218 403 323 8815 GRM21BF51C225ZA01K PT115
C219 403 113 3815 GRM188R71H102KA01D PT115
C221 403 113 3815 GRM188R71H102KA01D PT115
C222 403 323 8815 GRM21BF51C225ZA01K PT115
C223 403 314 5915 GRM21BR71C474KA01L PT297
C224 403 314 5915 GRM21BR71C474KA01L PT297
C225 403 314 5915 GRM21BR71C474KA01L PT297
C226 403 323 8815 GRM21BF51C225ZA01K PT115
C227 403 323 8815 GRM21BF51C225ZA01K PT115
C228 403 164 0214 GRM188F51E104ZA01D PT115
C229 403 233 0817 ELECT 10U M 50V
C231 403 155 2210 GRM188R71H332KA01D PT115
C232 403 164 0214 GRM188F51E104ZA01D PT115
C233 403 248 2813 50 YK 2R2 M TA 0511
C234 403 164 0214 GRM188F51E104ZA01D PT115
C235 403 157 3611 GRM1885C1H101JZ01D PT115
C236 403 233 0817 ELECT 10U M 50V
C237 403 323 8815 GRM21BF51C225ZA01K PT115
C238 403 164 0214 GRM188F51E104ZA01D PT115
C239 403 233 0817 ELECT 10U M 50V
C240 403 157 3611 GRM1885C1H101JZ01D PT115
C241 403 314 5915 GRM21BR71C474KA01L PT297
C242 403 314 5915 GRM21BR71C474KA01L PT297
C243 403 164 0214 GRM188F51E104ZA01D PT115
C244 403 314 5915 GRM21BR71C474KA01L PT297
C245 403 157 3611 GRM1885C1H101JZ01D PT115
C246 403 314 5915 GRM21BR71C474KA01L PT297
C247 403 323 8815 GRM21BF51C225ZA01K PT115
C248 403 314 5915 GRM21BR71C474KA01L PT297
C249 403 314 5915 GRM21BR71C474KA01L PT297
C251 403 323 8815 GRM21BF51C225ZA01K PT115
C252 403 215 2211 GRM188R71H103KA01D PT115
C256 403 233 0817 ELECT 10U M 50V
C257 403 164 0214 GRM188F51E104ZA01D PT115
C258 403 164 0214 GRM188F51E104ZA01D PT115
C259 403 164 0214 GRM188F51E104ZA01D PT115
C261 403 164 0214 GRM188F51E104ZA01D PT115
C262 403 164 0214 GRM188F51E104ZA01D PT115
C263 403 164 0214 GRM188F51E104ZA01D PT115
C264 403 164 0214 GRM188F51E104ZA01D PT115
C266 403 164 0214 GRM188F51E104ZA01D PT115
C267 403 164 0214 GRM188F51E104ZA01D PT115
C268 403 233 0817 ELECT 10U M 50V
C269 403 164 0214 GRM188F51E104ZA01D PT115
C271 403 258 3619 25 YK 33 M TA 0511
C272 403 215 2211 GRM188R71H103KA01D PT115
C273 403 207 0317 GRM21BF51C105ZA01L PT297
C274 403 207 0317 GRM21BF51C105ZA01L PT297
C275 403 207 0317 GRM21BF51C105ZA01L PT297
C276 403 256 5011 CERAMIC 560P J 50V
C277 403 207 0317 GRM21BF51C105ZA01L PT297
C278 403 207 0317 GRM21BF51C105ZA01L PT297
C279 403 207 0317 GRM21BF51C105ZA01L PT297
C280 403 269 5916 GRM219R71C224KC01D PT115
C281 403 042 2425 ELECT 100U M 16V
C282 403 269 5916 GRM219R71C224KC01D PT115
C283 403 042 2425 ELECT 100U M 16V
C284 403 164 0214 GRM188F51E104ZA01D PT115
C286 403 269 5916 GRM219R71C224KC01D PT115
C287 403 164 0214 GRM188F51E104ZA01D PT115
C288 403 042 2425 ELECT 100U M 16V
C289 403 269 5916 GRM219R71C224KC01D PT115
C292 403 207 0317 GRM21BF51C105ZA01L PT297
C294 403 207 0317 GRM21BF51C105ZA01L PT297
C295 403 207 0317 GRM21BF51C105ZA01L PT297
C296 403 207 0317 GRM21BF51C105ZA01L PT297
C297 403 207 0317 GRM21BF51C105ZA01L PT297
C298 403 207 0317 GRM21BF51C105ZA01L PT297
C299 403 207 0317 GRM21BF51C105ZA01L PT297
C401 403 215 2211 GRM188R71H103KA01D PT115
C402 403 215 2211 GRM188R71H103KA01D PT115
C421 403 343 7911 MT-POLYPRO 7200P H 1.5K
C422 403 084 0318 POLYPRO 0.022U J 630V
C423 403 343 7911 MT-POLYPRO 7200P H 1.5K
C424 403 083 9312 POLYPRO 0.015U J 630V
C432 403 075 7111 DD07-959B102K500 P333
C433 403 076 3112 DD11-959B392K500 P333
C434 403 054 0713 ELECT 47U M 35V
C436 403 036 2513 CERAMIC 47P J 500V
C437 403 066 6106 MT-POLYEST 0.47U J 250V
C439 403 314 5915 GRM21BR71C474KA01L PT297
C441 403 346 6713 ECWF2184N583 MT-POLY PANA
C443 403 349 3125 ECWF2124N583 MT-POLY PANA
C445 403 233 0817 ELECT 10U M 50V
C446 403 364 8822 ECWF2104N583 MT-POLY PANA
C451 404 056 5208 NP-ELECT 100NA2R2MTA-5X11
C463 408 173 8208 POLYESTER 6800P K 100V
C466 403 188 0818 MT-POLYEST 2.2U J 100V
C467 403 207 0317 GRM21BF51C105ZA01L PT297
C468 403 233 1111 ELECT 22U M 50V
C470 403 284 4314 CERAMIC 0.022U K 50V
C481 403 281 9302 ELECT 10U M 250V
C486 403 157 9009 250YK 0R47M TA 0611 ELCAP
C501 403 148 0424 ELECT 1000U M 25V
C502 403 148 0424 ELECT 1000U M 25V
C503 403 050 4408 ELECT 220U M 50V
C505 403 075 8514 CERAMIC 120P K 500V
C506 403 067 7895 MT-COMPO 0.47 J 50V
C507 403 179 2319 POLYESTER 2700P K 50V
C521 403 113 4119 GRM188R71H222KA01D PT115
C529 403 233 0817 ELECT 10U M 50V
C531 403 113 4119 GRM188R71H222KA01D PT115
