Sanyo DP26649 - 26" LCD TV User manual

09/24/10
2009-2A
SANYO
TROUBLESHOOTING GUIDE
(ONLY FOR 2009 MODELS)
This guide is divided into 4 sections/pages depending on type of defect:
page 1) No Green LED Power Light (LED never turns “ON”)
page 2) Green LED Light is “ON”, but Backlights are not “ON”, or only turn “ON &
then OFF”.
page 3) Green LED Light is “ON”, and Backlights are “ON”, but there is no video/OSD.
page 4) Green LED Light turns “ON”, but turns “OFF” within 10 seconds.
Please select the section/page that matches your defect and follow the flow chart.
Only these models can use this guide:
DP26649 (except DP26649-03)
DP32649 (except DP32649-05)
DP42849
DP46819
DP46849
PLEASE KEEP THIS GUIDE.
IT WILL NOT BE PROVIDED FOR EVERY REPAIR.
[email protected]

Repair Flow Chart: Trouble Condition page 1
Green Power LED does NOT turn on.
The TV is Dead.
(TABLE *1) Main Bd.: 5V_STBY Test Points
or
or
(TABLE *2) Power Bd.: 5V_STBY Test Points
Main L1602
5V_STBY on Main Bd.
US1J 26", 32"
US1K 42", 46"
5 V
US1J 26", 32" Power CN2 "4pin"
US1K 42", 46" Power CN2 "3pin"
5 V
Model
5 V
Confirmation Voltage
5V_STBY on Power Bd. Confirmation Voltage
5 V
Model
Main K8B "4pin"
Main K8B "3pin"
Main L1705
On Main Signal Bd.:
Is the "5V_STBY" voltage
supplied?
(see TABLE *1)
no: 0V
Power Bd. is not working.
Replace "Power Bd."
Unplug (K8B) connector on Main Bd.
On Power Bd.:
Is the "5V_STBY"voltage supplied?
(see TABLE *2)
no: 0V
yes: 5
V
Replace "Main Bd."
and "Wiring Harness"
yes: 5
V
Green Power LED:
Does not turn on.
The TV is dead.
Confirm wire harness connections.
And confirm LED again.
On Main Signal Bd.
Is the "5V_STBY" voltage
on "K8CTR 1Pin" ?
no: 0V
yes: 5
V
While pushing the
"Power Key SW": is the 5V from
"KEY SW" supplied to "K8CTR
3pin"?
ye
s
Main Bd. is not working.
Re
p
lace "Main Bd".
N
o voltage (0V) at K8CTR pin 3, or 5V always present
.
Key Switch Assy. unit will be broken.
Replace "Key Switch Assy."
Main Bd. is not working.
Replace "Main Bd"

Repair Flow Chart: Trouble Condition page 2
Green Power LED is on, but LCD backlights are not on.
Backlights are off, or only turn on and back off.
note #1
If the model is DP46849-00, DP46849-03, or DP46819-00 ,
please order the SMPS, in adition to the Inverter. These
versions have a HV Transformer that may not be working.
Change the SMPS first, if that does not fix the no BL
problem, then change the Inverter.
This note only applies to these three 46" units.
(TABLE *1) Main Bd.: 12V & 24V Test Points
or
or
or
or
(TABLE *2) Main Bd.: "Power ON/OFF SW" Test Points
or
or
(TABLE *3) Main Bd.: "BL_ON" Test Points
or
or
(TABLE *4) Power Bd.: "24V" Test Points
or
or
US1J 26", 32" Main K8B "1pin" Main R1702
US1K 42", 46" 5VMain K8B "1pin" Main R1600
Main L1604
24V on Main Bd.
Confirmation Voltage
5V
Power ON/OFF SW on Main Bd.
Main K8B "12pin" Main L1613
Model
Model 12V on Main Bd.
US1J 26", 32" Main K8B "8pin" Main L1604
US1K 42", 46" Main K8B "8pin"
Confirmation Voltage
12 V
12 V
Confirmation Voltage
24 V
42"(00 ver) = 24V, 42"(01 ver) = 15V, 46" = 16V
Model
Model 5V_STBY on Power Bd. Confirmation Voltage
US1J 26", 32" Main K8B "12pin" Main L1712
US1K 42", 46"
US1J 26", 32" Main K8L "3pin" Main R1754 3.3 V
US1K 42", 46" Main K8L "3pin" Main R1829 3.3 V
Model 5V_STBY on Power Bd. Confirmation Voltage
US1J 26", 32" Main K8L "3pin" Main R1754 3.3 V
US1K 42", 46" Main K8L "3pin" Main R1829 3.3 V
On Main Bd.:
Are the 12V and 24V supplied from
Pwer Bd.?
(see TABLE*1)
no: 0
V
Main Bd. is not working.
Replace "Main Bd."
On Main Bd.
Is 5V supllied to "Power ON/OFF SW"
(see TABLE*2)
no: 0
V
yes: 5V
Replace: "Power Bd."
and "Wire Harness"
yes
Power LED turns on.
But, LCD Backlight is not on.
no: 0
V
yes: 3.3V
Yes.
Main Bd. is not working.
Replace "Main Bd."
Inverter Bd. or LCD Panel is not working.
1st: Replace "Inverter Bd." (see note #1)
If Inverter Bd. does not correct problem, then:
2nd: Replace "LCD Panel"
On Main Bd.:
Is the "BL_ON" voltage (3.3V)
supplied from Main Bd.?
(see TABLE*3)
Confirm wire harness connection.
Especially between Power Bd. and
Inverter Bd.
On Main Bd.:
Are the 12V and 24V supplied from
Pwer Bd.?
(see TABLE*1)

Repair Flow Chart: Trouble Condition page 3
Green Power LED and LCD backlights are on,
but no video or OSD.
(TABLE *1) Main Bd.: 12V & 24V Test Points
or
or
or
or
(TABLE *2) Main Bd.: "T-CON Power supply" Test Points
or
or
(TABLE *3) Main Bd.: "LVDS Clock" Test Points
US1K 42", 46" Main K8B "8pin"
Model 24V on Main Bd.
Model 12V on Main Bd.
US1J 26", 32" Main K8B "8pin" Main L1604
US1J 26", 32"
US1J 26", 32" Main K5LV "29pin" Main RB6301
Model Power ON/OFF SW on Main Bd.
US1K 42", 46" Main K8B "12pin" Main L1613
Main L1712Main K8B "12pin"
Confirmation Voltage
12 V
12 V
Confirmation Voltage
24 V
Main L1604
42"(00 ver) = 24V, 42"(01 ver) = 15V, 46" = 16V
Confirmation Voltage
12 V
12 V
Model LVDS Clock on Main Bd. Confirmation Voltage
US1K 42", 46" Main K5LVDS "36pin" Main L6309
US1J 26", 32" Main K5LV "29pin" About 70MHz Clock
US1K 42", 46" Main K5LVDS "12pin" About 70MHz Clock
no: 0V
Replace "Power Bd."
and "Wire harness".
y
e
s
LCD Backlights are ON.
But, TV has no video or OSD.
no: 0V
y
e
s
ye
s
Main Bd. is not working.
Replace "Main Bd."
Main Bd. is not working.
Replace "Main Bd."
T. Cnt. Bd. or LCD Panel is not working.
1st: Replace "T. Cnt. Bd. & LVDS Cable".
If T. Cnt. Bd. & LVDS Cable does not
correct problem, then:
2nd: Replace "LCD Panel"
Is power to T-CON supllied
from Main Bd.?
(see TABLE*2)
Is LVDS Clock outputed?
(see TABLE*3)
Confirm LVDS cable connection.
And check for video/OSD again.
no: 0V or 1.1V constant
On Main Bd.:
Are the 12V and 24V supplied
from Pwer Bd.?
(see TABLE*1)

Repair Flow Chart: Trouble Condition page 4
Power LED turns OFF within 10 sec of Power ON.
(TABLE *1) Main Bd.: "Power ON/OFF SW" Test Points
or
or
(TABLE *2) Main Bd.: 12V & 24V Test Points
or
or
or
or
US1K 42", 46" Main K8B "12pin" Main L1613 42"(00 ver) = 24V, 42"(01 ver) = 15V, 46" = 16V
US1J 26", 32" Main K8B "12pin" Main L1712 24 V
Model 24V on Main Bd. Confirmation Voltage
Confirmation Voltage
12 V
12V on Main Bd.
12 VUS1K 42", 46" Main K8B "8pin" Main L1604
Confirmation Voltage
5V
5V
US1J 26", 32" Main K8B "8pin" Main L1604
Model
US1K 42", 46" Main K8B "1pin" Main R1600
Model 12V on Main Bd.
US1J 26", 32" Main K8B "1pin" Main R1702
On Main Bd.:
Is 5V supplied to "Power_SW"
during LED ON time?
(see TABLE*1)
no: 0
V
Main Bd. Is not working.
Replace "Main Bd."
yes
no: 0
V
y
e
s
no
Pwer Bd. is not working.
Replace "Power Bd." and
"Wire Harness".
Inverter Bd. Is not working.
Replace "Inverter Bd."
Are 12V and 24V supplied
from Pwer Bd. during LED ON
time?
(see TABLE*2)
Unplug cable from Power Bd. to
Inverter Bd.:
Is this symptom changed?
y
e
s
Power LED turns OFF within
10 sec of Power ON.
N
o. T. Cnt. Bd. is not working.
Replace "T. Cnt. Bd."
Unplug cable from Main Bd. to
T. Cnt. Bd.:
Is this symptom changed?
y
e
s
Main Bd. is not working.
Replace "Main Bd."

Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3

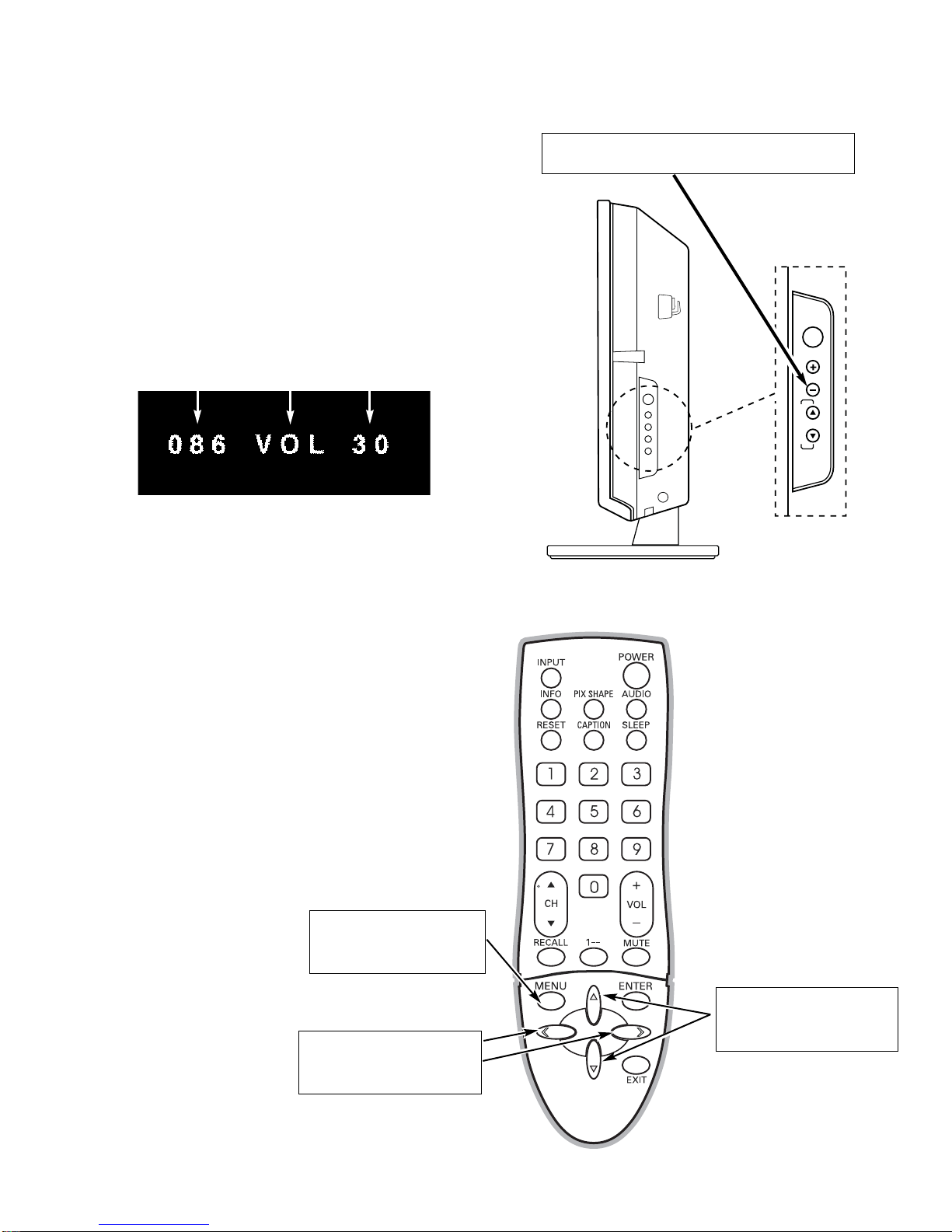

ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4

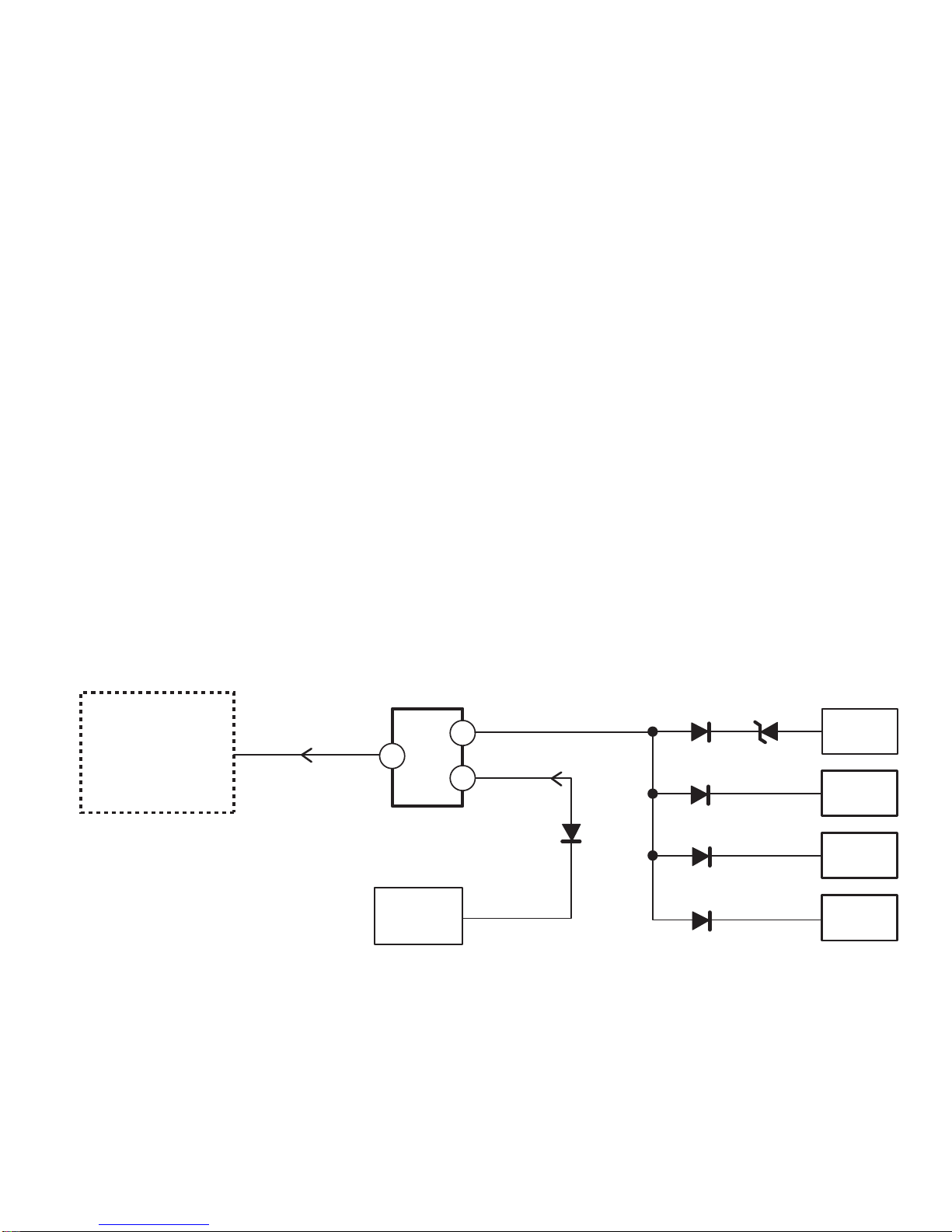

POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5

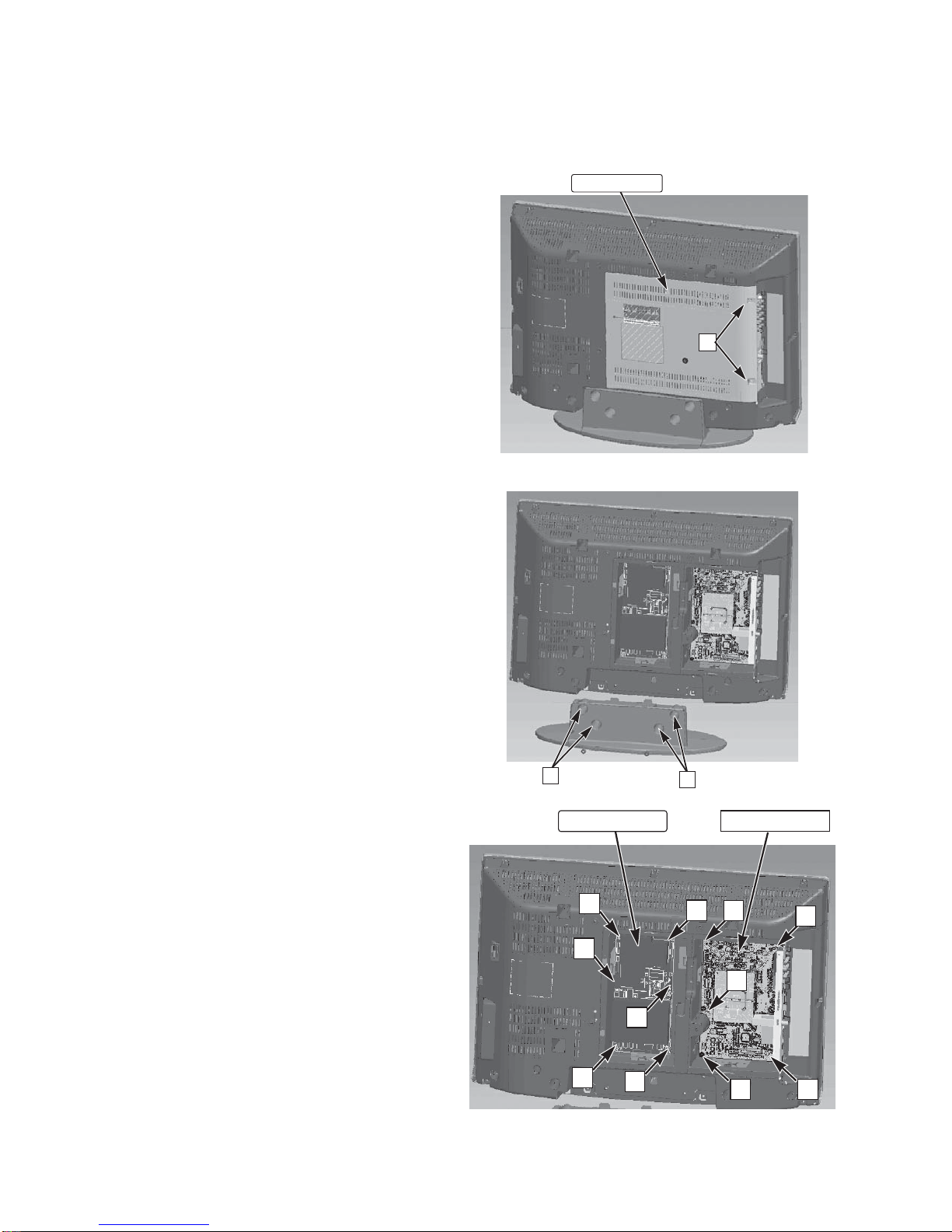

MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 8
COMPONENT AND TESTPOINT LOCATIONS . . . . . . 19
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 22
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 23
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 30
CONTROL PORT FUNCTIONS. . . . . . . . . . . . . . . . . . . . 33
ZORAN 772 PERIPHERICALS . . . . . . . . . . . . . . . . . . . . 35
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 37
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 38
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 39
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 40
Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
78W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 32 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . . 5.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 663mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 228mm
REFERENCE No. SM780158
DP26649, N7GE, PRODUCT CODE 113020004
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP26649 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P26649-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
© Sanyo Manufacturing Corporation 2009

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or
circuit assembly.
7. Incidental body movements, such as, lifting a foot from a
carpeted floor or the rubbing of fabric together can gener-
ate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included
in the CPU that allows remote operation for most of the
service adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume “–“ button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor Lor Mkey to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor <or >key to adjust the data.
The <or >key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
ITEM NO. TITLE
POWER
VOL
CH
INPUTS LOOP
Menu:
Exit Service Menu
Cursor LM:
Select Item
Cursor < >:
Adjust the data
Volume – : Enter Service Menu

– 4 –
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC803 (EEPROM) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadeci-
mal 00. See 087 above. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadeci-
mal 08. See 088 above. If this program code is wrong the
TV will not operate properly.
No. Title Initial Data Note
1A0 MUTE A0h Audio mute at Power ON
086 VOL 30h Volume setup inspection
087 OP1 00h Option 1 Data (TV Guide/HOTEL mode)
088 OP2 08h Option 2 Data (Display Panel)
101 1R00 00h ROM Correction Data
102 1R01 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
• All data except in gray box area is fixed. Do not change for correct operating.
• Data in gray box is initial and can be set according to adjusment information.

– 5 –
POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
SUB-CPU it is necessary to disconnect the AC cord
for a short time.
SUB-CPU (IC800) is programmed so the set will go to stand-
by mode when there is circuit failure as described below.
(Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the SUB-CPU which checks for an abnormal
condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the SUB-CPU
will turn the unit off in 1.5 seconds to prevent further
damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC800 pin 48 and pin 23.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the SUB-CPU will
shut off the power within three seconds.
48
18
IC800 (SUB-CPU)
3
4,2
23
Power Fail
Power On
Power Fail
2
1
(LVDS)
Power Board
Inverter
Main
D1670
D1682
K8B
D1641
D1684
IC1670
9V
IC1640
5V
IC001
12V
IC1680
5V
LVDS
D1621
4,2
D1620 IC1620
3.3V

– 6 –
MECHANICAL DISASSEMBLY
CAUTION: This LCD TV uses several different kinds of screws. Using the correct screw is necessary to
prevent damage. Lead wires must be redressed to their previous locations after servicing.
1. BACK LID REMOVAL
Remove 2 screws to take the back Lid off. (A: 3x6)
A
Back Lid
2. STAND REMOVAL
Position TV face down on a padded or cushioned surface
to protect the screen and finish.
Remove 4 screws (B: 6X16) to take the stand off.
3. MAIN BOARD REMOVAL
Remove 5 screws (C: 3X14) to take the main board off.
4. POWER UNIT REMOVAL
Remove 6 screws (C: 3X14) to take the power unit off.
BB
Main BoardPower Unit
CC
CC
C
C
C
CC
C
C

– 7 –
5. BACK CABINET REMOVAL
Remove 14 screws to take the back cabinet off.
(C: 3x14, 10 pcs; D: 4x8, 4 pcs)
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.
6. LCD PANEL RMOVAL
Lift up the LCD panel from front cabinet.
7. SPEAKER REMOVAL
Remove 2 screws (E: 3x14) to take off each speaker.
C
C
D
D
C
D
CC
CC
CC
C
D
EE
8. RC LED BOARD REMOVAL
Rremove 1 screw (C: 3x14) to take the RC LED board off.
RC LED Board CC
KEY SW Board
9. KEY SW BOARD REMOVAL
Remove 1 screw (C: 3x14) to take the KEY SW board off.

– 8 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS

– 9 –
Schematic
Location Part No. Description
CCAAPPAACCIITTOORRSS
C016 CK1E105KGMBNG CERAMIC 1U K 25V
C017 CEXLB1C222VDJ ELECT 2200U M 16V
C018 CK1A105KLZBNG CERAMIC 1U K 10V
C019 CK1A105KLZBNG CERAMIC 1U K 10V
C020 CEXLB1C102VDJ ELECT 1000U M 16V
C021 CK1A105KLZBNG CERAMIC 1U K 10V
C022 CK1A105KLZBNG CERAMIC 1U K 10V
C023 CK1A105KLZBNG CERAMIC 1U K 10V
C024 CK1E474KLZBNG CERAMIC 0.47U K 25V
C025 CK1H104KLZBNG CERAMIC 0.1U K 50V
C027 CK1E224KLZBNG CERAMIC 0.22U K 25V
C028 CK1A105KLZBNG CERAMIC 1U K 10V
C029 CK1E474KLZBNG CERAMIC 0.47U K 25V
C030 CK1H104KLZBNG CERAMIC 0.1U K 50V
C031 CEXLB1H100VDJ ELECT 10U M 50V
C032 CK1E105KGMBNG CERAMIC 1U K 25V
C033 CK1A105KLZBNG CERAMIC 1U K 10V
C035 CK1A105KLZBNG CERAMIC 1U K 10V
C038 CK1A105KLZBNG CERAMIC 1U K 10V
C039 CK1A105KLZBNG CERAMIC 1U K 10V
C040 CK1E474KLZBNG CERAMIC 0.47U K 25V
C041 CK1H104KLZBNG CERAMIC 0.1U K 50V
C043 CK1E224KLZBNG CERAMIC 0.22U K 25V
C044 CK1E474KLZBNG CERAMIC 0.47U K 25V
C045 CK1H104KLZBNG CERAMIC 0.1U K 50V
C047 CK1E105KGMBNG CERAMIC 1U K 25V
C048 CK1H104KLZBNG CERAMIC 0.1U K 50V
C049 CK1H104KLZBNG CERAMIC 0.1U K 50V
C050 CK1H104KLZBNG CERAMIC 0.1U K 50V
C051 CK1H104KLZBNG CERAMIC 0.1U K 50V
C800 CK1A105KLZBNG CERAMIC 1U K 10V
C801 CK1H104KLZBNG CERAMIC 0.1U K 50V
C802 CC1H470JLZCNG CERAMIC 47P J 50V
C804 CEXLB0J221VDJ ELECT 220U M 6.3V
C805 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C806 CC1H270JLZCNG CERAMIC 27P J 50V
C807 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C813 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C815 CC1H270JLZCNG CERAMIC 27P J 50V
C816 CC1H270JLZCNG CERAMIC 27P J 50V
C817 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C818 CC1H220JLZCNG CERAMIC 22P J 50V
C819 CC1H220JLZCNG CERAMIC 22P J 50V
C1000 CEXLB1V470VDJ ELECT 47U M 35V
C1002 CK1A105KLZBNG CERAMIC 1U K 10V
C1004 CK1A105KLZBNG CERAMIC 1U K 10V
C1006 CK1A105KLZBNG CERAMIC 1U K 10V
C1008 CK1A105KLZBNG CERAMIC 1U K 10V
C1010 CK1A105KLZBNG CERAMIC 1U K 10V
C1012 CK1A105KLZBNG CERAMIC 1U K 10V
C1014 CK1A105KLZBNG CERAMIC 1U K 10V
C1016 CK1A105KLZBNG CERAMIC 1U K 10V
C1600 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1601 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1602 CEXLB1V471VDJ ELECT 470U M 35V
C1603 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1604 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1605 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1606 CK1A105KLZBNG CERAMIC 1U K 10V
C1607 CEXLB0J102VDJ ELECT 1000U M 6.3V
C1608 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1609 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1611 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1612 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1616 CK1H473KLZBNG CERAMIC 0.047U K 50V
C1620 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C1622 CEXLB0J221VDJ ELECT 220U M 6.3V
C1623 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1624 CEXLB1V471VDJ ELECT 470U M 35V
C1640 CEXLB1C101VDJ ELECT 100U M 16V
C1641 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1642 CK1H223KLZBNG CERAMIC 0.022U K 50V
C1643 CK1A105KLZBNG CERAMIC 1U K 10V
C1645 CK1H472KLZBNG CERAMIC 4700P K 50V
C1646 CK1A105KLZBNG CERAMIC 1U K 10V
C1647 CEXLB0J102VDJ ELECT 1000U M 6.3V
C1670 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1672 CEXLB1V470VDJ ELECT 47U M 35V
C1673 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1674 CEXLB1V471VDJ ELECT 470U M 35V
C1680 CEXLB1V471VDJ ELECT 470U M 35V
C1681 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1682 CEXLB1C102VDJ ELECT 1000U M 16V
C1683 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1687 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1691 CK1H104KLZBNG CERAMIC 0.1U K 50V
C1692 CK1H102KLZBNG CERAMIC 1000P K 50V
C1836 CK1H103KLZBNG CERAMIC 0.01U K 50V
C1837 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2403 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2404 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2405 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2406 CEXLB0J221VDJ ELECT 220U M 6.3V
C2408 CK1A105KLZBNG CERAMIC 1U K 10V
C2410 CK1A105KLZBNG CERAMIC 1U K 10V
C2440 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C2445 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3902 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3904 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5500 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5501 CK1A105KLZBNG CERAMIC 1U K 10V
C5502 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5503 CK1A105KLZBNG CERAMIC 1U K 10V
C5504 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5505 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5506 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5507 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5508 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5509 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5510 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5511 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
Schematic
Location Part No. Description

– 10 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5512 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5513 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5515 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5516 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5517 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5518 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5519 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5521 CK1A105KLZBNG CERAMIC 1U K 10V
C5522 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5523 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5524 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5525 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5526 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5527 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5528 CC1H471JLZCNG CERAMIC 470P J 50V
C5529 CC1H471JLZCNG CERAMIC 470P J 50V
C5530 CK1A105KLZBNG CERAMIC 1U K 10V
C5531 CK1A105KLZBNG CERAMIC 1U K 10V
C5532 CC1H471JLZCNG CERAMIC 470P J 50V
C5533 CC1H471JLZCNG CERAMIC 470P J 50V
C5534 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5535 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5536 CK1A105KLZBNG CERAMIC 1U K 10V
C5537 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5538 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5539 CC1H471JLZCNG CERAMIC 470P J 50V
C5540 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5541 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5542 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5543 CC1H120JLZCNG CERAMIC 12P J 50V
C5544 CC1H3R0CLZCNG CERAMIC 3P C 50V
C5545 CC1H390JLZCNG CERAMIC 39P J 50V
C5546 CC1H120JLZCNG CERAMIC 12P J 50V
C5547 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5548 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5549 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5550 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5551 CK1A105KLZBNG CERAMIC 1U K 10V
C5552 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5553 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5554 CK1A105KLZBNG CERAMIC 1U K 10V
C5555 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5556 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5558 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5559 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5560 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5561 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5563 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5564 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5565 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5566 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5568 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5569 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5570 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5572 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5574 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5575 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5576 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5577 CK1A105KLZBNG CERAMIC 1U K 10V
C5578 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5580 CK1E474KLZBNG CERAMIC 0.47U K 25V
C5581 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5583 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5585 CC1H221JLZCNG CERAMIC 220P J 50V
C5588 CK1A105KLZBNG CERAMIC 1U K 10V
C5589 CK1A105KLZBNG CERAMIC 1U K 10V
C5590 CK1A105KLZBNG CERAMIC 1U K 10V
C5591 CK1A105KLZBNG CERAMIC 1U K 10V
C5592 CK1A105KLZBNG CERAMIC 1U K 10V
C5593 CK1A105KLZBNG CERAMIC 1U K 10V
C5594 CK1A105KLZBNG CERAMIC 1U K 10V
C5595 CK1A105KLZBNG CERAMIC 1U K 10V
C5596 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5597 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5598 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5599 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5600 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5601 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5602 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5603 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5604 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5607 CC1H150JLZCNG CERAMIC 15P J 50V
C5608 CC1H220JLZCNG CERAMIC 22P J 50V
C5609 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5611 CK1H103KLZBNG CERAMIC 0.01U K 50V
C5612 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5613 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5614 CK1E224KLZBNG CERAMIC 0.22U K 25V
C5616 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5618 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5619 CK1A105KLZBNG CERAMIC 1U K 10V
C5620 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5621 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5622 CK1A105KLZBNG CERAMIC 1U K 10V
C5623 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5624 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5625 CK0J106KGMBNG CERAMIC 10U Z 6.3V
C5627 CC1H680JLZCNG CERAMIC 68P J 50V
C5628 CC1H680JLZCNG CERAMIC 68P J 50V
C5629 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5630 CK1A105KLZBNG CERAMIC 1U K 10V
C5631 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5632 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5647 CC1H221JLZCNG CERAMIC 220P J 50V
C5648 CC1H221JLZCNG CERAMIC 220P J 50V
C5649 CC1H221JLZCNG CERAMIC 220P J 50V
C5650 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
C5651 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
C5652 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
C5653 CC1H221JLZCNG CERAMIC 220P J 50V
C5654 CC1H221JLZCNG CERAMIC 220P J 50V

– 11 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5655 CC1H221JLZCNG CERAMIC 220P J 50V
C5700 CK1A105KLZBNG CERAMIC 1U K 10V
C5701 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5702 CK1A105KLZBNG CERAMIC 1U K 10V
C5703 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5704 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5705 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5707 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5708 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5709 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5711 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5712 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5713 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5750 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5751 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5752 CEXLB0J221VEJ ELECT 220U M 6.3V
C5800 CC1H680JLZCNG CERAMIC 68P J 50V
C5801 CC1H680JLZCNG CERAMIC 68P J 50V
C5802 CC1H680JLZCNG CERAMIC 68P J 50V
C5803 CC1H270JLZCNG CERAMIC 27P J 50V
C5804 CC1H270JLZCNG CERAMIC 27P J 50V
C5805 CC1H270JLZCNG CERAMIC 27P J 50V
C5806 CC1H150JLZCNG CERAMIC 15P J 50V
C5807 CC1H150JLZCNG CERAMIC 15P J 50V
C5808 CC1H150JLZCNG CERAMIC 15P J 50V
C5809 CC1H120JLZCNG CERAMIC 12P J 50V
C5810 CC1H120JLZCNG CERAMIC 12P J 50V
C5811 CC1H120JLZCNG CERAMIC 12P J 50V
C5812 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5813 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5814 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5815 CK1H104KLZBNG CERAMIC 0.1U K 50V
C5816 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5817 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5901 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5902 CK1E224KLZBNG CERAMIC 0.22U K 25V
C6100 CK1H102KLZBNG CERAMIC 1000P K 50V
C6102 CC1H270JLZCNG CERAMIC 27P J 50V
C6103 CC1H270JLZCNG CERAMIC 27P J 50V
C6104 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6105 CEXLB0J221VDJ ELECT 220U M 6.3V
C6107 CEXLB1C102VDJ ELECT 1000U M 16V
C6108 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6111 CK1H102KLZBNG CERAMIC 1000P K 50V
C6112 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C6113 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C6250 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6251 CEXLB1V470VEJ ELECT 47U M 35V
C6252 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6253 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6254 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6255 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6270 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6271 CEXLB1V470VEJ ELECT 47U M 35V
C6272 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6273 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6274 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6275 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6300 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6301 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6302 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6303 CEXLB1C221VDJ ELECT 220U M 16V
C6304 CEXLB1V470VDJ ELECT 47U M 35V
C6305 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6382 CK1A105KLZBNG CERAMIC 1U K 10V
C6500 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6550 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6551 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6600 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6601 CK1A105KLZBNG CERAMIC 1U K 10V
C6602 CEXLB1V471VDJ ELECT 470U M 35V
C6701 CK1A105KLZBNG CERAMIC 1U K 10V
C6702 CK1H104KLZBNG CERAMIC 0.1U K 50V
C6703 CK1A105KLZBNG CERAMIC 1U K 10V
C6705 CEXLB0J221VEJ ELECT 220U M 6.3V
C6706 CEXLB0J102VEJ ELECT 1000U M 6.3V
SC1000 CC1H150JLZCNG CERAMIC 15P J 50V
SC1001 CC1H150JLZCNG CERAMIC 15P J 50V
SC1003 CC1H150JLZCNG CERAMIC 15P J 50V
SC2400 CC1H221JLZCNG CERAMIC 220P J 50V
SC2401 CC1H221JLZCNG CERAMIC 220P J 50V
DDIIOODDEESS
D017 DDSS3P3-E3—G DIODE SS3P3-E3/84A
D020 DDSS3P3-E3—G DIODE SS3P3-E3/84A
D801 1AV2SA9SD01D- SPACER
D1620 DZUDZS3.0B—G ZD UDZS3.0B-TE-17
D1621 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1640 DDSS3P3-E3—G DIODE SS3P3-E3/84A
D1641 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1670 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1680 DDSS3P3-E3—G DIODE SS3P3-E3/84A
D1682 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1684 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1762 DD1SS352——G DIODE 1SS352-(TPH3)
DD1SS355——G DIODE 1SS355-TE-17
D1901 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
D2403 DDRB551V-30-G DIODE RB551V-30-TE-17
D2404 DDRB551V-30-G DIODE RB551V-30-TE-17
D3900 DZUDZS3.9B—G ZD UDZS-TE-173.9B
D3900A DLSPR-39MVWFN LED SPR-39MVWF

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
IINNTTEEGGRRAATTEEDDCCIIRRCCUUIITTSS
IC001 QLV49152V-E-P IC LV49152V-TLM-E
IC025 QTC7SET08FU-P IC TC7SET08FU
IC800 QXXAAJQ0973— IC LC87F2932AVU-Y09LCD
IC800A QXXGA0500125M IC LC87F2932AVU-QIP-E
IC803 QXXAVC986—-P IC CAT24C02WI-GT3
QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
IC905 QTC7SET08FU-P IC TC7SET08FU
IC1600 QMP2108DK—-P IC MP2108DK-LF-Z
IC1620 QLM1117S-ADJP IC LM1117S-ADJ
IC1640 QLV5803M-E—P IC LV5803M-TE-L-E
IC1670 QLM1117S-ADJP IC LM1117S-ADJ
IC1680 QLA5774MPE—P IC LA5774MP-DL-E
IC1690 QXXAVD055—-P IC XC61CN4202MR
IC2401 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2402 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2403 QXXAVC986—-P IC CAT24C02WI-GT3
QLE24C023M-EP IC LE24C023M-TLM-E
QXXAVC837—-P IC AT24C02BN-10SU-1.8
IC2440 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC2445 QTC7SH08FU—P IC TC7SH08FU(TE85L)
IC5500 QXXAVD108—-M IC ZR39772HGCF-B
IC5700 QXXAVD132—-M IC H5PS5162FFR-25C
IC5750 QXXAAJQ0990— IC NAND128W3A2BN6E N7BE
IC5750A QXXAVC973—-M IC NAND128W3A
IC5900 QXXAVD046—-P IC XC6108N28AMR
IC6250 QNJM4558M—-P IC NJM4558M-TE2
QBA4558RF-E2P IC BA4558RF-E2
IC6270 QNJM4558M—-P IC NJM4558M-TE2
QBA4558RF-E2P IC BA4558RF-E2
IC6500 QTC7SET08FU-P IC TC7SET08FU
IC6550 QTC7SET08FU-P IC TC7SET08FU
IC6600 QRT9711CGB—P IC RT9711CGB
IC6700 QPQ070XNA1ZPP IC PQ070XNA1ZPH
CCOOIILLSS
L011 1LB4L26B1180G INDUCTOR 10U M
L012 1LB4L26B1180G INDUCTOR 10U M
L013 1LB4L26B1180G INDUCTOR 10U M
L014 1LB4L26B1180G INDUCTOR 10U M
L800 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L1600 1LB4L26B1000N “INDUCTOR,15UH”
1AV4L2WK150MN “INDUCTOR,15U M”
L1601 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1620 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1640 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1641 1LB4L26B1000N “INDUCTOR,15UH”
1AV4L2WK150MN “INDUCTOR,15U M”
L1642 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1643 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1678 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1679 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1680 1LB4L26B1040N “INDUCTOR,68UH”
1AV4L2WK680MN “INDUCTOR,68U M”
L1682 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1683 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1684 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1685 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1688 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1689 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1690 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1700 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1703 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1706 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1708 1LB4L26B0740G “INDUCTOR ,220 OHM”
L1709 1LB4L26B0740G “INDUCTOR ,220 OHM”
L1712 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1713 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1715 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1716 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1725 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1831 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2400 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5500 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5501 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L5503 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5504 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5505 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L5506 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L5507 1AV4L2GAR22JG “INDUCTOR,0.22U J”
L5508 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5509 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L5510 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L5511 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L5512 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5513 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5514 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L5515 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L5517 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5519 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
L5750 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5800 1AV4L2GA150JG “INDUCTOR,15U J”
L5801 1AV4L2GA150JG “INDUCTOR,15U J”
L5802 1AV4L2GA150JG “INDUCTOR,15U J”
L5803 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6100 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6101 1AV4L26B1940G “INDUCTOR,120 OHM”
1LB4L26B0700G “INDUCTOR ,120 OHM”
L6102 1AV4L26B1940G “INDUCTOR,120 OHM”
L6102 1LB4L26B0700G “INDUCTOR ,120 OHM”
L6103 1AV4L2FB3R3MG “INDUCTOR,3.3U M”
L6250 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6270 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6302 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6303 1LB4L26B0740G “INDUCTOR ,220 OHM”
L6304 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6305 1AV4L3CY201MG “IMPEDANCE,200 OHM M”
L6306 1AV4L3CY201MG “IMPEDANCE,200 OHM M”

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
L6550 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6700 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6702 1LB4L26B0740G “INDUCTOR ,220 OHM”
L6705 1LB4L26B0740G “INDUCTOR ,220 OHM”
L6706 1LB4L26B0740G “INDUCTOR ,220 OHM”
L6707 1LB4L26B0740G “INDUCTOR ,220 OHM”
L6750 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
TTRRAANNSSIISSTTOORRSS
Q800 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q804 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q805 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q806 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1001 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1002 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1003 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1004 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1005 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1006 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1007 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1008 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1610 TMCH6331-S-EG TR MCH6331-S-TL-E
Q1680 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1751 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q2400 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q2401 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q2402 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5800 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5801 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5802 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q5803 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5804 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5805 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6301 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6303 TXXLBB006—-P TR MMBTSC3928R
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6304 TMCH6331-S-EG TR MCH6331-S-TL-E
Q6380 TXXLBB005—-P TR MMBTSA1235F
TISA1235AC1EP TR ISA1235AC1E
TISA1235AC1FP TR ISA1235AC1F
Q6501 TUM6K1N——-P TR UM6K1N-TN
TUM6K1N——-P TR UM6K1N-TN
RREESSIISSTTOORRSS
R009 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R010 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R011 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R013 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R014 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R015 RGF5601FTCANL MT-GLAZE 5.6K FA 1/10W
R016 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R021 RGF2R70JTCANL MT-GLAZE 2.7 JA 1/10W
R022 RGF2R70JTCANL MT-GLAZE 2.7 JA 1/10W
R024 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R025 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R028 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R030 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R800 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R801 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R802 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R804 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R807 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R808 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R809 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R813 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R816 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R817 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R820 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R823 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R825 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R827 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R828 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R829 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R830 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R831 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R832 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R833 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R834 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R836 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R837 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R838 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R839 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R840 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R841 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R842 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R843 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R844 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R845 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R846 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R847 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R850 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R851 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R852 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R853 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R854 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R856 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R857 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R858 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R867 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R868 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R871 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R872 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R873 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R874 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R877 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R878 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R879 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R880 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R883 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R884 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R885 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R888 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R889 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R890 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R894 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R897 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R898 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R899 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R900 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R901 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R902 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R903 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R905 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R908 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R910 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R911 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1000 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1004 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1007 CC1H680JLZCNG CERAMIC 68P J 50V
R1008 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1009 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1010 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1011 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1016 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1017 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1018 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1019 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1020 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1021 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1022 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1023 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1031 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1033 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1042 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1043 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1044 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1045 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1046 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1047 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1048 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R1049 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1050 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1051 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1052 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1053 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1054 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1055 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1056 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1057 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1058 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1059 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1060 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1061 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1062 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1063 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1601 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1602 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1603 RGF2201FTCANL MT-GLAZE 2.2K FA 1/10W
R1604 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1605 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1614 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1615 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R1620 RGF1200FTCANL MT-GLAZE 120 FA 1/10W

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R1621 RGF12R0JTCANL MT-GLAZE 12 JA 1/10W
R1622 RGF2200FTCANL MT-GLAZE 220 FA 1/10W
R1641 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1642 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1643 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1644 RGF5600FTCANL MT-GLAZE 560 FA 1/10W
R1645 RGF4701FTCANL MT-GLAZE 4.7K FA 1/10W
R1662 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1670 RGF1200FTCANL MT-GLAZE 120 FA 1/10W
R1671 RGF12R0JTCANL MT-GLAZE 12 JA 1/10W
R1672 RGF8200FTCANL MT-GLAZE 820 FA 1/10W
R1680 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1681 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1682 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1683 RGF1201FTCANL MT-GLAZE 1.2K FA 10-Jan
R1685 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R1686 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R1687 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1688 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1689 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1690 RGF2702JTCANL MT-GLAZE 27K JA 1/10W
R1691 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1692 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R1693 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1702 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1754 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1755 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1765 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1767 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1771 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1831 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1901 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1902 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1903 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R1904 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1905 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1906 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1907 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R2404 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2405 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2406 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2407 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2408 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2411 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2417 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R2418 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R2419 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R2420 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R2421 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2422 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2423 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2424 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R2425 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R2426 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R2427 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R2428 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R2432 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2433 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R2437 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2440 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2442 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R2447 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R2448 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3300 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3301 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3903 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R3908 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R3909 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R3911 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3912 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5501 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5503 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5504 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5505 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5506 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5507 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5508 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5512 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5513 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5514 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5515 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5516 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5517 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5518 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5520 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5522 RGF8200FTCANL MT-GLAZE 820 FA 1/10W
R5524 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5526 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5527 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5529 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5531 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5532 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5538 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5539 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5540 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5542 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5543 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5544 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5545 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5546 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5547 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5548 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5549 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5550 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R5551 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5552 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R5553 RGF3900FTCANL MT-GLAZE 390 FA 1/10W
R5554 RGF3900FTCANL MT-GLAZE 390 FA 1/10W
R5556 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R5557 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R5558 RGF1503JTCANL MT-GLAZE 150K JA 1/10W
R5559 RGF3900JTCANL MT-GLAZE 390 JA 1/10W
