Sanyo DP37647 - 37" Vizzon LCD TV User manual

Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
175W, 1.7A (Max)
Antenna Input Impedance . . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Digital
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
1-99 (Digital)
Remote Ready . . . . . . . . . . 32 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 5.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 939mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 697mm
Depth including base . . . . . . . . . . . . . . . . 219mm
REFERENCE No. SM780143
DP37647, N4PE, PRODUCT CODE 113004304
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments . . . . . . . . . . . . . 3 – 4
Power Failure Circuit . . . . . . . . . . . . . . . . 5
Mechanical Disassemblies. . . . . . . . . 6 – 7
Chassis Electrical Parts List . . . . . . . 8 – 23
Cabinet Parts List . . . . . . . . . . . . . . . . . . 24
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 25 – 26
Block Diagrams . . . . . . . . . . . . . . . . 27 – 38
Troubleshooting Flow Charts . . . . . 39 – 41
Control Port Functions. . . . . . . . . . . 42 – 43
Schematic Notes . . . . . . . . . . . . . . . . . . . 44
Pin Layouts. . . . . . . . . . . . . . . . . . . . . . . . 45
Capacitor and Resistor Codes . . . . . . . . 46
PC Board Connections and Locations . . 47
Schematic Diagrams . . . . . . . . . . . . 49 – 51
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP37647 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P37647-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
with a double “Z” is a registered trademark
of Sanyo Manufacturing Corporation.
© Sanyo Manufacturing Corporation 2007

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provided
inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSATIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis or
circuit assembly.
7. Incidental body movements, such as, lifting a foot from a
carpeted floor or the rubbing of fabric together can gener-
ate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
0.15 μF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.
SAFETY INSTRUCTIONS

1
4 5 6
7 8
0
9
2 3
POWER
INPUT
INFO
RECALL
MENU
CAPTION EXIT
VOL
RESETAUDIOPIX SHAPE
CH
ENTER
1-- MUTE
SLEEP
— 3 —
SERVICE ADJUSTMENTS
Volume + / –:
Adjust Service Menu
Channel  :
Select Item
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the ser-
vice adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (–) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Channel or key to select the desired
service menu item you want to adjust. See page 4
for the On-screen Service Menu.
•Use the Volume + or – key to adjust the data.
The + or – keys will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
V e r 0 5 1
0 8 6 V O L
3 0
ITEM NO. TITLE
Volume – :Enter Service Menu
Menu:
Exit Service Menu

— 4 —
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprossesor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OPT) should be hexadeci-
mal 18. See 087 above. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadeci-
mal 08. See 088 above. If this program code is wrong the
TV will not operate properly.
086 VOL 30h Volume setup inspection
087 OP1 18h Option 1 Data
088 OP2 08h Option 2 Data
101 1R00 00h ROM Correction Data
102 1R02 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
No. Title Initial Data Note

— 5 —

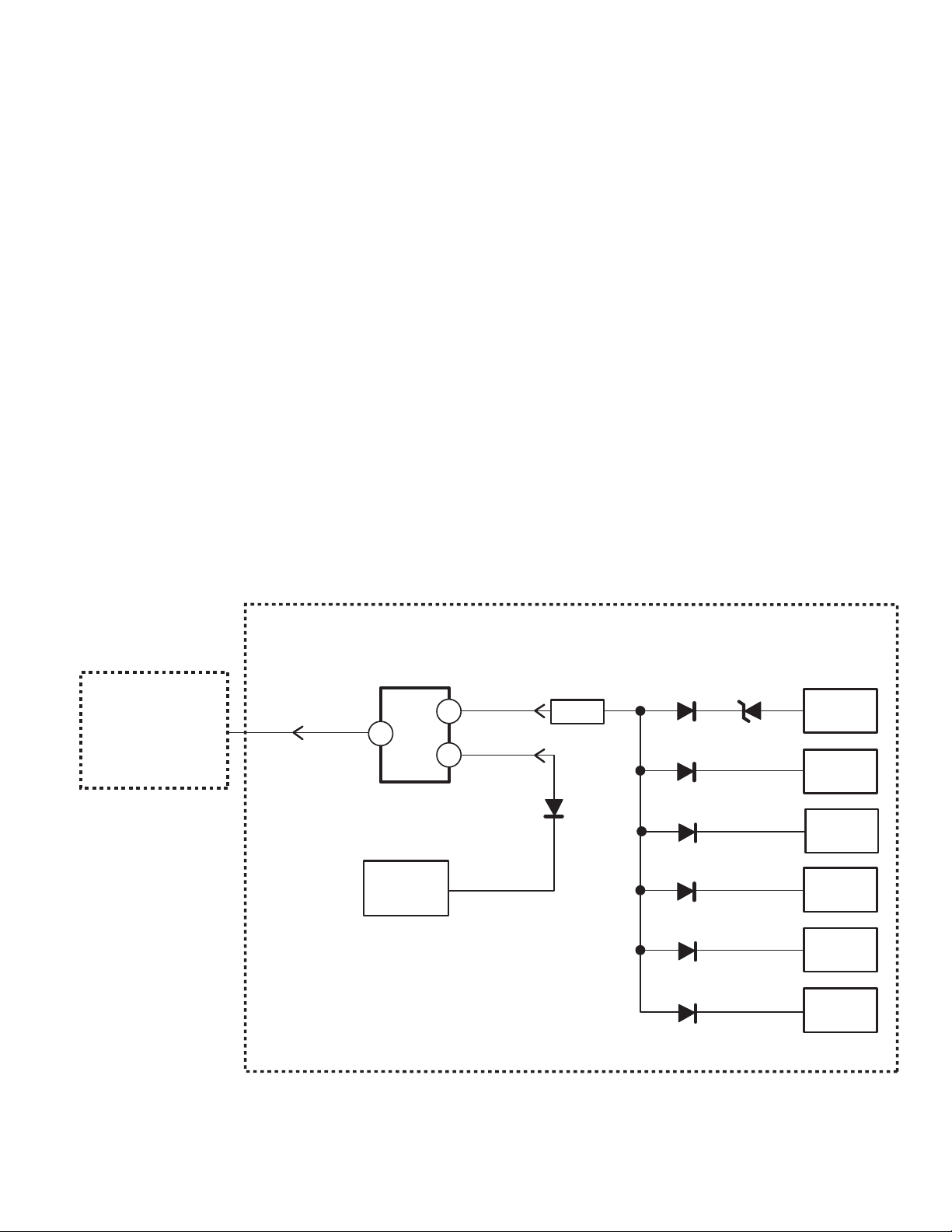

POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for at least
10 seconds.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: This unit is equipped with a Power Surge Protection
feature included in the CPU. If power failure occurs
three times within 15 minutes, the CPU will stop func-
tioning automatically to help prevent secondary
damage. (TV will not turn on by pressing the power
key.) To reset the operating programs within the CPU,
disconnect the AC power cord for at least 10 seconds.
This unit is equipped with a Power Failure Detector function
included in the CPU which checks for an abnormal condi-
tion in the chassis power supplies.
If, while the power is on, a failure is caused by any of the
following that results in a low voltage supply, the CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
1. Power Failure 1: Detected voltage failure for analog
and digital circuits. (Connected to IC801 pin 32.)
2. Power Failure 2: Detected voltage failure for LVDS.
(Connected to IC801 pin 36.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the CPU will shut off
the power within three seconds.
32
14
IC801 (CPU)
D1602 2
9
2
5
D1683
D1604
36
Power Fail
Power On
Power Fail
2
2
1
(LVDS)
Power Unit
Main
D1640
D1661
K8B
D1631
D1621
IC1640
9V
IC1630
5V
IC1620
33V
IC1610
3.3VD
K8B
12V
IC1660
12V
LVDS
Q803
D1651 Audio
Pow

— 6 —
MECHANICAL DISASSEMBLY
BACK CABINET REMOVAL
Remove 14 screws to take the cabinet back off.
(A:4X14, 13pcs; B:4X8, 1pcs;)
STAND REMOVAL
Position TV face down on a padded or cushioned surface to protect the screen and finish.
Remove 4 screws (6X18) and remove stand.
ATTENTION
This LCDTV uses several different kinds of screws. Using the correct screw is required
to prevent damage.
The gaskets are provided to prevent interference to other radio and television
receivers.The gaskets must be returned to their previous positions after servicing.
Lead wires must be redressed to previous positions after servicing.

— 7 —
BOARD AND SPEAKER REMOVAL
1: Main Board Removal
Remove 5 screws (C:3X6) to take the main board
off.
2: Power Unit Removal
Remove 6 screws (C:3X6) to take the power unit off.
3: Control Board Removal
Remove 2 screws (A:4X14) to take the control board
off.
4: Speakers Removal
Remove 4 screws (A:4X14) to remove each speaker.
LCD panel removal Removal
1. Disonnect CN2001, CN1, CN2, KSP, and K8FRA
2. Remove 14 screws (A:4X14, 10pcs, B:4X8, 4pcs) to take the mounting
frames with chassis plate, power unit, and main board off.
3. Lift the LCD panel from the front cabinet.

— 8 —
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A .
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Tolerance Symbols:
A...0.05% B...0.1% C...25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%
Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON .............
MT-FILM ..............
OXIDE-MT ...........
SOLID ..................
MT-GLAZE ...........
WIRE WOUND .....
CERAMIC RES ....
FUSIBLE RES .....
Performance Symbols:
A...General B...Non-flammable
Z...Low noise
Other... Temperature coefficient
Rated Wattage
CARBON 4.7K J A 1/4W
Read description of the Resistor as follows:
NOTES:
(Example)
Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire Wound
Ceramic
Fusible
RESISTORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A :Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H :±3% J :±5% K :±10%
L :±15% M :±20% N :±30%
P :+100-0% Q :+30-10% T :+50-10%
U :+75-10% V :+20-10% W :+100-10%
X :+40-20% Y :+150-10% Z : +80-20%
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF E : +0 -1pF F : ±1PF
G : ±2pF H : +0.1 -0pF L : +0 -0.1pF
R : ±0.25 -0pF S : +0-0.25pF
More than 10pF
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC........... Ceramic
MT-PAPER......... Metallized Paper
POLYESTER...... Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite Film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic
Semiconductive Electrolytic
CAPACITORS

— 9 —
Schematic
Location Part No. Description
MAIN BOARD
CAPACITORS
C001 CPXLB1C100YAN NP-ELECT 10U M 16V
CPXLB1C100ZAN NP-ELECT 10U M 16V
C002 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C006 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C007 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C008 CK1H102KLZBNG CERAMIC 1000P K 50V
C009 CK1H102KLZBNG CERAMIC 1000P K 50V
C010 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C011 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C013 CPXLB1C100YAN NP-ELECT 10U M 16V
CPXLB1C100ZAN NP-ELECT 10U M 16V
C015 CEXLB1C222VDN ELECT 2200U M 16V
C016 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C017 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C018 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C019 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C684 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C688 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C691 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C694 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C697 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C698 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C701 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C702 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C703 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C704 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C705 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C706 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C707 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C708 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C709 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C710 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C711 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C712 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C713 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C714 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C715 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C716 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C717 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C718 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C719 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C720 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C721 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C722 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C723 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C724 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C725 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C726 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C727 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C728 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C729 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C800 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
C804 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
C805 CC1H220JLZCNG CERAMIC 22P J 50V
C806 CC1H220JLZCNG CERAMIC 22P J 50V
C807 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C811 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C813 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C814 CK1H222KLZBNG CERAMIC 2200P K 50V
C815 CC1H220JLZCNG CERAMIC 22P J 50V
C816 CC1H220JLZCNG CERAMIC 22P J 50V
C820 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C825 CC1H470JLZCNG CERAMIC 47P J 50V
C826 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C827 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C829 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C834 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C835 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C836 CC1H120JLZCNG CERAMIC 12P J 50V
C837 CC1H120JLZCNG CERAMIC 12P J 50V
C839 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C840 CK1H333KLZBNG CERAMIC 0.033U K 50V
C841 CEXLB1H2R2VDN ELECT 2.2 U M 50V
CEXLB1H2R2WAN ELECT 2.2U M 50V
C842 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1000 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1001 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C1002 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C1003 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1004 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1011 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1012 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1013 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1014 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1015 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1016 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1017 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C1201 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C1202 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
Schematic
Location Part No. Description

— 10 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C1205 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C1251 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1600 CEXLB1E102VDN ELECT 1K U M 25V
C1601 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1603 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1604 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1606 CEXLB0J102VDN ELECT 1000UM 6.3V
CEXLB0J102WAN ELECT 1000U M 6.3V
C1610 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1611 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1613 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1614 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C1615 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C1618 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1619 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1620 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1621 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1622 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1623 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C1630 CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C1631 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1632 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1633 CEXLB0J102VDN ELECT 1000U M 6.3V
CEXLB0J102WAN ELECT 1000U M 6.3V
C1634 CK1A105ZLZFNG CERAMIC 1U Z 10V
C1640 CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C1641 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1642 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1643 CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C1653 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1660 CEXLB1V471WAN ELECT 470U M 35V
C1661 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1662 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C1663 CC1H470JLZCNG CERAMIC 47P J 50V
C1664 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C1665 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1666 CEXLB1E102VDN ELECT 1K U M 25V
C1667 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1800 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1801 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1903 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C1904 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C1905 CC1H470JLZCNG CERAMIC 47P J 50V
C3200 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3201 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3202 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3203 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3204 CK1H223KLZBNG CERAMIC 0.022U K 50V
C3205 CK1H222KLZBNG CERAMIC 2200P K 50V
C3206 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3208 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3209 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3210 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3211 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3212 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3213 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3214 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3215 CK1H222KLZBNG CERAMIC 2200P K 50V
C3216 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3218 CK1C224KLZBNG CERAMIC 0.22U K 16V
C3219 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3220 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3221 CK1A105ZLZFNG CERAMIC 1U Z 10V
C3222 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C3223 CEXLB1C222VDN ELECT 2200U M 16V
C5503 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5507 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5508 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5509 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5510 CK1A105ZLZFNG CERAMIC 1U Z 10V
C5511 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C5512 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C5513 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5515 CC1H470JLZCNG CERAMIC 47P J 50V
C5516 CC1H470JLZCNG CERAMIC 47P J 50V
C5517 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5518 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C5519 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5520 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5521 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C5522 CK1A105ZLZFNG CERAMIC 1U Z 10V
C5523 CK1A105ZLZFNG CERAMIC 1U Z 10V
C5529 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5531 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5532 CK1A105ZLZFNG CERAMIC 1U Z 10V
C5534 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5535 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5536 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C5539 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5540 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5541 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5542 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5543 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5544 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5545 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5546 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5547 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5548 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5549 CK1H104ZLZFNG CERAMIC 0.1U Z 50V

— 11 —
Schematic
Location Part No. Description
C5550 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5551 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5552 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5553 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C5554 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5555 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5557 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5558 CK1H102KLZBNG CERAMIC 1000P K 50V
C5559 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5560 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5561 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5562 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5563 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5564 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5565 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5566 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5567 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5568 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5570 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5572 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5573 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5574 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5575 CK1A105ZLZFNG CERAMIC 1U Z 10V
C5576 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5580 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5581 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5582 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5583 CK0J106KGMBNG CERAMIC 10U K 6.3V
C5701 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C5702 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5703 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5704 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5705 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5706 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5707 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5708 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5709 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5721 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C5722 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5724 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5725 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5726 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5727 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5728 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5729 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5751 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C5752 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5753 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5754 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5755 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5801 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5803 CC1H120JLZCNG CERAMIC 12P J 50V
C5804 CC1H150JLZCNG CERAMIC 15P J 50V
C5805 CC1H270JLZCNG CERAMIC 27P J 50V
C5806 CC1H680JLZCNG CERAMIC 68P J 50V
C5807 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5808 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5809 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5812 CC1H120JLZCNG CERAMIC 12P J 50V
C5813 CC1H150JLZCNG CERAMIC 15P J 50V
C5814 CC1H270JLZCNG CERAMIC 27P J 50V
C5815 CC1H680JLZCNG CERAMIC 68P J 50V
C5816 CK1C224KLZBNG CERAMIC 0.22U K 16V
C5901 CK1A474KLZBNG CERAMIC 0.47U K 10V
C5904 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C5905 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C5959 CC1H120JLZCNG CERAMIC 12P J 50V
C6051 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6052 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6053 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6054 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6086 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6087 CEXLB1V470VDN ELECT 47U M 35V
CEXLB1V470WAN ELECT 47U M 35V
C6090 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6091 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6094 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6099 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6100 CC1H180JLZCNG CERAMIC 18P J 50V
C6101 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6102 CC1H180JLZCNG CERAMIC 18P J 50V
C6103 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6104 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6106 CC1H560JLZCNG CERAMIC 56P J 50V
C6108 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6110 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6114 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6116 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C6118 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6120 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6122 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6124 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C6126 CEXLB0J102VDN ELECT 1000U M 6.3V
CEXLB0J102WAN ELECT 1000U M 6.3V
C6128 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6130 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6132 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6134 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6138 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6140 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6142 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6144 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6151 CC1H220JLZCNG CERAMIC 22P J 50V
C6153 CC1H220JLZCNG CERAMIC 22P J 50V
C6155 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
Schematic
Location Part No. Description

— 12 —
Schematic
Location Part No. Description Schematic Location Part No. Description
C6156 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6158 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6160 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6162 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6170 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6171 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6172 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6174 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6176 CEXLB0J102VDN ELECT 1000U M 6.3V
CEXLB0J102WAN ELECT 1000U M 6.3V
C6177 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6178 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6180 CK1H102KLZBNG CERAMIC 1000P K 50V
C6181 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6201 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6202 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6203 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6204 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6205 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6206 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6207 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C6208 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6209 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6211 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6212 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6213 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6214 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6215 CK1H103ZLZFNG CERAMIC 0.01U Z 50V
C6216 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6217 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6218 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6219 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6221 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6230 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6231 CC1H220JLZCNG CERAMIC 22P J 50V
C6232 CC1H220JLZCNG CERAMIC 22P J 50V
C6233 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6234 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6235 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6236 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6237 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6238 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6239 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6241 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6242 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6243 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6244 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6245 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6246 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6250 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C6251 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6252 CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C6253 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C6254 CK1A474KLZBNG CERAMIC 0.47U K 10V
C6255 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6256 CK1H123KLZBNG CERAMIC 0.012U K 50V
C6257 CK1H562KLZBNG CERAMIC 5600P K 50V
C6258 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6259 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6260 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6261 CK1H272KLZBNG CERAMIC 2700P K 50V
C6262 CK1H473KLZBNG CERAMIC 0.047U K 50V
C6263 CT1A3R3KDRANG TA-SOLID 3.3U K 10V
C6264 CK1H472KLZBNG CERAMIC 4700P K 50V
C6266 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
C6267 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6268 CT1A100KDRANG TA-SOLID 10U K 10V
C6271 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6272 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6273 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6274 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6276 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6277 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6278 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6279 CK1H472KLZBNG CERAMIC 4700P K 50V
C6281 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6282 CEXLB1H100VDN ELECT 10U M 50V
CEXLB1H100WAN ELECT 10U M 50V
C6283 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6284 CK1H472KLZBNG CERAMIC 4700P K 50V
C6291 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C6292 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C6301 CC1H471JLZCNG CERAMIC 470P J 50V
C6302 CC1H151JLZCNG CERAMIC 150P J 50V
C6305 CC1H151JLZCNG CERAMIC 150P J 50V
C6306 CC1H151JLZCNG CERAMIC 150P J 50V
C6321 CC1H471JLZCNG CERAMIC 470P J 50V
C6322 CC1H151JLZCNG CERAMIC 150P J 50V
C6325 CC1H151JLZCNG CERAMIC 150P J 50V
C6326 CC1H151JLZCNG CERAMIC 150P J 50V
C6341 CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C6342 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6343 CC1H471JLZCNG CERAMIC 470P J 50V
C6344 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6354 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6355 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6361 CK1A105ZLZFNG CERAMIC 1U Z 10V
C6362 CK1H104ZLZFNG CERAMIC 0.1U Z 50V

— 13 —
Schematic
Location Part No. Description
C6363 CEXLB1H4R7VDN ELECT 4.7U M 50V
CEXLB1H4R7WAN ELECT 4.7U M 50V
C6364T CEXLB1C101VDN ELECT 100U M 16V
CEXLB1C101WAN ELECT 100U M 16V
C6365 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6500 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6501 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6506 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6507 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6508 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6509 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6510 CEXLB0J221VDN ELECT 220U M 6.3V
CEXLB0J221WAN ELECT 220U M 6.3V
C6511 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6512 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6513 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6514 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6515 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6516 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6517 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6518 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6551 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6560 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6561 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6562 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6563 CK1H104ZLZFNG CERAMIC 0.1U Z 50V
C6565 CK0J475KLZBNG CERAMIC 4.7U K 6.3V
DIODES
D801 DD1SS355----G DIODE 1SS355 TE-17
D802 DZUDZS6.2B--G ZENER DIODE UDZS6.2B TE-17
D1600 DDD1FM3-----G DIODE D1FM3
D1602 DD1SS355----G DIODE 1SS355 TE-17
D1604 DZUDZS3.0B--G ZD UDZS3.0B-TE-17
D1610 DZUDZS3.9B--G ZD UDZS-TE-173.9B
D1620 DDD1FH3-----G DIODE D1FH3
D1621 DD1SS355----G DIODE 1SS355 TE-17
D1630 DDD1FH3-----G DIODE D1FH3
D1631 DD1SS355----G DIODE 1SS355 TE-17
D1640 DD1SS355----G DIODE 1SS355 TE-17
D1651 DD1SS355----G DIODE 1SS355 TE-17
D1660 DDD1FM3-----G DIODE D1FM3
D1661 DD1SS355----G DIODE 1SS355 TE-17
D1683 DD1SS355----G DIODE 1SS355 TE-17
D1902 DLSLR343MC3FN LED SLR-343MC3F
D3216 DDRB551V-30-G DIODE RB551V-30 TE-17
INTEGRATED CIRCUITS
IC001 QLA42032-E--N IC LA42032-E
IC801 QXXAAJQ0807-- IC LC87F4164AU-Y07LCD02
QXXAVC883---M IC LC874164A-58W0-E
IC802 QXXAVC820---P IC AT24C04N-10SU-1.8
QXXAVC844---P IC CAT24C04WI-GT3
QXXGA0500017P IC LE24C0411M-TLM-E-C
IC805 QTC7SH08FU--P IC TC7SH08FU
IC806 QTC7SET08FU-P IC TC7SET08FU
IC1201 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1251 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC1600 QLA5774MPE--P IC LA5774MP-DL-E
IC1610 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC1620 QXXAVC830---P IC PQ6CU12X2APQ
IC1630 QPQ1CZ41H2FPK IC PQ1CZ41H2FPH
IC1640 QXXAVC692---P IC PQ1LAX95MSPQ
IC1660 QLA5774MPE--P IC LA5774MP-DL-E
IC3200 QNJW1142AV--P IC NJW1142AV
IC5500 QXXAVC847---M IC ZR39660BGCG-B3
IC5700 QXXAVC524---M IC EDD1216AATA-6B-E
IC5720 QXXAVC524---M IC EDD1216AATA-6B-E
IC5750 QXXAAJQ0788-- IC S29GL016A90-US1D
IC5900 QM51957BFP--P IC M51957BFP
IC6050 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6090 QPQ070XNA1ZPP IC PQ070XNA1ZPH
IC6100 QCAS-220/C--M IC CAS-220/C
IC6130 QTC7S08FU---P IC TC7S08FU(TE85L)
QTC7SZ08FU--P IC TC7SZ08FU
IC6200 QXXAVC650---M IC ISL98001CQZ-140
IC6250 QCXA2207N---P IC CXA2207N-T6
IC6270 QXXAVC859---P IC WM8738GED/RV
IC6300 QNJM4558M---P IC NJM4558M-TE2
IC6301 QCD4052BNSR-P IC CD4052BNSR
QTC4052BF---P IC TC4052BF-EL
IC6502 QXXAVC848---J IC TMDS341APFCR
IC6551 QXXAVC854---P IC TC74VHC153FT(EL)
IC6590 QTC7SET08FU-P IC TC7SET08FU
IC6591 QTC7SET08FU-P IC TC7SET08FU
IC6592 QTC7SET08FU-P IC TC7SET08FU
COILS
L001 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L002 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L003 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1000 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1201 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1202 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1600 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1601 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1603 1AV4L2WK150MN INDUCTOR, 15U M
L1604 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1605 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1610 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1611 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1612 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1614 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1615 1LB4L26B0740G INDUCTOR, 220 OHM
L1616 1LB4L26B0740G INDUCTOR, 220 OHM
L1620 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1621 1AV4L2WK560MN INDUCTOR, 56U M
L1630 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1631 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
Schematic
Location Part No. Description

— 14 —
Schematic
Location Part No. Description Schematic Location Part No. Description
L1632 1AV4L2WK560MN INDUCTOR, 56U M
L1640 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1656 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1657 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1658 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1659 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1660 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1661 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1662 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1663 1AV4L2WK151MN INDUCTOR, 150U M
L1664 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1665 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1666 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1670 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1673 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1680 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1681 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1682 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1683 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1684 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1685 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1686 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1687 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1688 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1689 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1690 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1691 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1692 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1693 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1694 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1695 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1696 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1697 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1698 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1699 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1700 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1701 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1702 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1703 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1704 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1706 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1707 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1800 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1801 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1802 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L1803 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1901 1AV4L2B95R6KN INDUCTOR, 5.6U K
1AV4L2GU5R6KN INDUCTOR, 5.6U K
L2001 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2002 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2003 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2004 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2006 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2007 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2008 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2009 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2011 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2012 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2014 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2015 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2016 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L2017 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5500 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5501 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5503 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5504 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5505 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5506 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5508 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5511 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5512 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5515 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5516 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5521 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5522 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5523 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5524 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5525 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5526 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5545 1AV4L2WK150MN INDUCTOR, 15U M
L5553 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5565 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5566 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5751 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5800 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L5801 1AV4L2GA150JG INDUCTOR, 15U J
L5802 1AV4L2GA150JG INDUCTOR, 15U J
L6050 1LB4L26B0740G INDUCTOR, 220 OHM
L6051 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6052 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6091 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6100 1AV4L2GAR22JG INDUCTOR, 0.22U J
L6104 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6106 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6108 1LB4L26B0740G INDUCTOR, 220 OHM
L6110 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6112 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6116 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6118 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6120 1AV4L26B1940G INDUCTOR, 120 OHM
1LB4L26B0700G INDUCTOR, 120 OHM
L6122 1AV4L26B1940G INDUCTOR, 120 OHM
1LB4L26B0700G INDUCTOR, 120 OHM
L6150 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6151 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6153 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6154 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6155 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6156 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6157 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6158 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W

— 15 —
Schematic
Location Part No. Description
L6159 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6160 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6161 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6162 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6165 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6166 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6167 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6168 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6169 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6170 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6171 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6172 1AV4L2FB3R3MG INDUCTOR, 3.3U M
L6174 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6176 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6184 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6185 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6186 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6187 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6188 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6189 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6201 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6202 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6203 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6204 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6206 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6210 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6211 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6212 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6213 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6214 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6215 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6216 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6217 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6220 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6221 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6222 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6223 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6224 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6225 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6226 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6227 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6250 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6270 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6271 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6301 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6354 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6355 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6356 1LB4L26B0740G INDUCTOR, 220 OHM
L6357 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6358 1AV4L3EK201-G IMPEDANCE, 200 OHM -
L6359 1AV4L3EK201-G IMPEDANCE, 200 OHM -
L6360 1AV4L3EK201-G IMPEDANCE, 200 OHM -
L6393 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6394 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6395 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6396 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6501 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6502 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6504 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6506 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6510 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6550 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6551 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6552 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6554 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6555 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6556 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6557 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6558 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6559 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6566 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6567 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6568 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6569 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q101 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q801 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q803 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q804 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Schematic
Location Part No. Description

— 16 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q805 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1006 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1007 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1200 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1201 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1202 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1203 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1251 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1252 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1261 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1262 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1600 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1601 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1603 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1605 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S

— 17 —
Schematic
Location Part No. Description
Q1606 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1661 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q1804 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q1871 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5545 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5801 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5802 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q5803 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5804 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q5901 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q5902 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6100 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6101 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6250 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Schematic
Location Part No. Description

— 18 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q6251 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
Q6360 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6362 T2SC2412K-R-P TR 2SC2412K-T-96-R
T2SC2412K-S-P TR 2SC2412K-T-96-S
T2SC2812-L6-P TR 2SC2812-L6-TB
T2SC2812-L7-P TR 2SC2812-L7-TB
T2SC2812N-L6P TR 2SC2812N-L6-TB
T2SC3928A1R-P TR 2SC3928A1R
T2SC3928A1S-P TR 2SC3928A1S
Q6363 TMCH6306----P TR MCH6306-TL
Q6365 T2SA1037AK-RP TR 2SA1037AK T146 R
T2SA1037AK-SP TR 2SA1037AK T146 S
T2SA1037K-R-P TR 2SA1037K-T-96-R
T2SA1037K-S-P TR 2SA1037K-T-96-S
T2SA1179-M6-P TR 2SA1179-M6
T2SA1179-M7-P TR 2SA1179-M7-TB
T2SA1179N-M6P TR 2SA1179N-M6-TB
T2SA1235A1E-P TR 2SA1235A1E
T2SA1235A1F-P TR 2SA1235A1F
RESISTORS
RB5510 1AV4R1D31024G R-NETWORK 1KX4 1/32W
RB5511 1AV4R1D31024G R-NETWORK 1KX4 1/32W
RB5570 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5571 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5572 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5573 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5574 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5576 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5577 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5578 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5579 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5580 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5581 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB5583 1AV4R1D31504G R-NETWORK 15X4 1/32W
RB6121 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6122 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6123 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6201 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6202 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6203 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6204 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6205 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6206 1AV4R1D33304G R-NETWORK 33X4 1/32W
RB6355 1AV4R1D30R04G R-NETWORK 0X4 1/32W
RB6356 1AV4R1D30R04G R-NETWORK 0X4 1/32W
R001 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R002 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R003 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R004 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R005 RGAR000ZTDANL MT-GLAZE 0.000 ZA 1/2W
R006 RGAR000ZTDANL MT-GLAZE 0.000 ZA 1/2W
R008 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R014 RGB2R20JTBANL MT-GLAZE 2.2 JA 1/4W
R015 RGB2R20JTBANL MT-GLAZE 2.2 JA 1/4W
R016 RGB2R20JTBANL MT-GLAZE 2.2 JA 1/4W
R017 RGB2R20JTBANL MT-GLAZE 2.2 JA 1/4W
R105 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R109 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R110 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R802 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R803 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R804 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R807 RGF6801JTCANL MT-GLAZE 6.8K JA 1/10W
R809 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R812 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R814 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R815 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R816 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R817 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R821 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R822 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R823 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R824 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R828 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R829 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R830 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R831 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R832 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R833 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R834 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R838 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R839 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R840 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R841 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R842 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R843 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R844 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R845 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R846 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R847 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R848 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R849 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R850 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R851 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R854 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R855 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R856 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W

— 19 —
Schematic
Location Part No. Description
R857 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R858 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R859 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R860 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R861 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R862 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R863 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R864 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R865 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R866 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R867 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R868 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R873 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R874 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R875 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R883 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R884 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R885 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R888 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R889 RGF1004JTCANL MT-GLAZE 1M JA 1/10W
R890 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R891 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R893 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R895 RGF4703JTCANL MT-GLAZE 470K JA 1/10W
R1000 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1001 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1002 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1003 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1004 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1005 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1006 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1007 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1008 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1009 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1010 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1011 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1012 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1013 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1014 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1016 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1019 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1020 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1025 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1026 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1031 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1032 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1037 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1038 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1043 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1044 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1049 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1050 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1051 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1052 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1053 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1054 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1055 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1056 RGF1003JTCANL MT-GLAZE 100K JA 1/10W
R1057 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1058 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1059 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1060 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1061 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1062 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1063 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1064 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1065 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1066 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1067 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1068 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1069 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1070 RGF2203JTCANL MT-GLAZE 220K JA 1/10W
R1071 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1072 RGF3303JTCANL MT-GLAZE 330K JA 1/10W
R1073 RGF75R0JTCANL MT-GLAZE 75 JA 1/10W
R1074 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1075 RGF82R0JTCANL MT-GLAZE 82 JA 1/10W
R1200 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1201 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1202 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1203 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1204 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1205 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1206 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1207 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1208 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1209 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1210 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1211 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1212 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1253 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1254 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1255 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1256 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1257 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1261 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1262 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1263 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1264 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1265 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1266 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1267 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1269 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1271 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1600 RGF3300FTCANL MT-GLAZE 330 FA 1/10W
R1601 RGF1200FTCANL MT-GLAZE 120 FA 1/10W
R1602 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1606 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1607 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1608 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1609 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R1611 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
Schematic
Location Part No. Description

— 20 —
Schematic
Location Part No. Description Schematic Location Part No. Description
R1612 RGF5600FTCANL MT-GLAZE 560 FA 1/10W
R1614 RGF4700JTCANL MT-GLAZE 470 JA 1/10W
R1615 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1616 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1617 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1618 RGF1201FTCANL MT-GLAZE 1.2K FA 1/10W
R1619 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1620 RGF2702FTCANL MT-GLAZE 27K FA 1/10W
R1621 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1622 RGF1201FTCANL MT-GLAZE 1.2K FA 1/10W
R1623 RGF1203JTCANL MT-GLAZE 120K JA 1/10W
R1624 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1625 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R1626 RGF1202JTCANL MT-GLAZE 12K JA 1/10W
R1627 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1630 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1631 RGF1501FTCANL MT-GLAZE 1.5K FA 1/10W
R1632 RGF1001FTCANL MT-GLAZE 1K FA 1/10W
R1633 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1636 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1638 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1640 RGF6801FTCANL MT-GLAZE 6.8K FA 1/10W
R1641 RGF5602FTCANL MT-GLAZE 56K FA 1/10W
R1642 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1643 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1644 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1646 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1649 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1657 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1658 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1660 RGF3300FTCANL MT-GLAZE 330 FA 1/10W
R1662 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1663 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1664 RGF1002FTCANL MT-GLAZE 10K FA 1/10W
R1665 RGF1201FTCANL MT-GLAZE 1.2K FA 1/10W
R1666 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1668 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1674 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1675 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1682 RWXAA7R68KKAN WIRE WOUND 0.68 KA 7W
RWXLB7R68KXAL WIRE WOUND 0.68 KA 7W
R1687 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R1688 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1800 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1802 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1803 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1804 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1805 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1806 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1807 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1808 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1809 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1827 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1828 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1829 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1830 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R1831 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R1832 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1835 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1838 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1853 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1855 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1857 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1858 RGF4702JTCANL MT-GLAZE 47K JA 1/10W
R1861 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1871 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R1872 RGF2202JTCANL MT-GLAZE 22K JA 1/10W
R1874 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R1901 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1902 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1903 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R1904 RGF1801JTCANL MT-GLAZE 1.8K JA 1/10W
R1905 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R1906 RGF3901JTCANL MT-GLAZE 3.9K JA 1/10W
R1907 RGF5601JTCANL MT-GLAZE 5.6K JA 1/10W
R1909 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1910 RGF2200JTCANL MT-GLAZE 220 JA 1/10W
R1911 RGF1001JTCANL MT-GLAZE 1K JA 1/10W
R1912 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R3200 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R3201 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5507 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5508 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5509 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5510 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5513 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5514 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5515 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5516 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5517 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5518 RGF1501JTCANL MT-GLAZE 1.5K JA 1/10W
R5519 RGF1501JTCANL MT-GLAZE 1.5K JA 1/10W
R5520 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5521 RGF47R0JTCANL MT-GLAZE 47 JA 1/10W
R5523 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5524 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5525 RGF3900FTCANL MT-GLAZE 390 FA 1/10W
R5527 RGF3302JTCANL MT-GLAZE 33K JA 1/10W
R5528 RGF8200FTCANL MT-GLAZE 820 FA 1/10W
R5529 RGFR000ZTCANL MT-GLAZE 0.000 ZA 1/10W
R5530 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R5531 RGF3300JTCANL MT-GLAZE 330 JA 1/10W
R5532 RGF1501JTCANL MT-GLAZE 1.5K JA 1/10W
R5538 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5540 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5542 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5544 RGF1000JTCANL MT-GLAZE 100 JA 1/10W
R5545 RGF2201JTCANL MT-GLAZE 2.2K JA 1/10W
R5546 RGF1002JTCANL MT-GLAZE 10K JA 1/10W
R5547 RGF3301JTCANL MT-GLAZE 3.3K JA 1/10W
R5548 RGF4701JTCANL MT-GLAZE 4.7K JA 1/10W
R5549 RGF1802JTCANL MT-GLAZE 18K JA 1/10W
