Sanyo XT-49S8200U User manual

Product page
(Ultra HD )
XT-49S8200U
LED TV
E-mail: [email protected]
Need help? Please Call at Toll Free No. 1800 419 5088
To obtain a more detailed Electronic Copy of this
Manual or much further contents,go to product page
at our website www.sanyoappliance.in
Thank you for purchasing this Sanyo product.
Please read these instructions carefully before operating this
Product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
41 mm13.261 mmXT-55S8200U

2
Chapter 1: Introduction
Chapter 2: Connections and Setup
Chapter 3: Using your TV
Chapter 4: Other Information
4
3
4
4
4
5
5
11
11
16
17
17
14
14
14
14
6
6
7
9
15
15
16
Use Environment ................................................................................................................................
Cleaning .............................................................................................................................................
Hanging the TV Set on the Wall ..........................................................................................................
................................................................................................................................
Standard accessories .......................................................................................................................
Optional accessories ...........................................................................................................................
Basic connection .................................................................................................................................
External Equipment.............................................................................................................................
Remote Control Functions .................................................................................................................
.............................................................................................................................. 10
Base Installation
Buttons on the TV
.......................................................................................................................................
Switching off .........................................................................................................................................
13
Initial Setup .............................................................................................................................................
12
Network Connection ...................................................................................................................................
System .................................................................................................................................................
Lock .....................................................................................................................................................
Option Menu .........................................................................................................................................
18
Home Page ............................................................................................................................................
Switching on
Accessing channels ..............................................................................................................................
Watching connected devices ................................................................................................................
Volume...................................................................................................................................................
Using Menu System...............................................................................................................................
14
TV..........................................................................................................................................................
Power connection and aerial...............................................................................................................
Picture....................................................................................................................................................
...................................................................................................................................................
Time .....................................................................................................................................................
Sound
Troubleshooting .................................................................................................................................

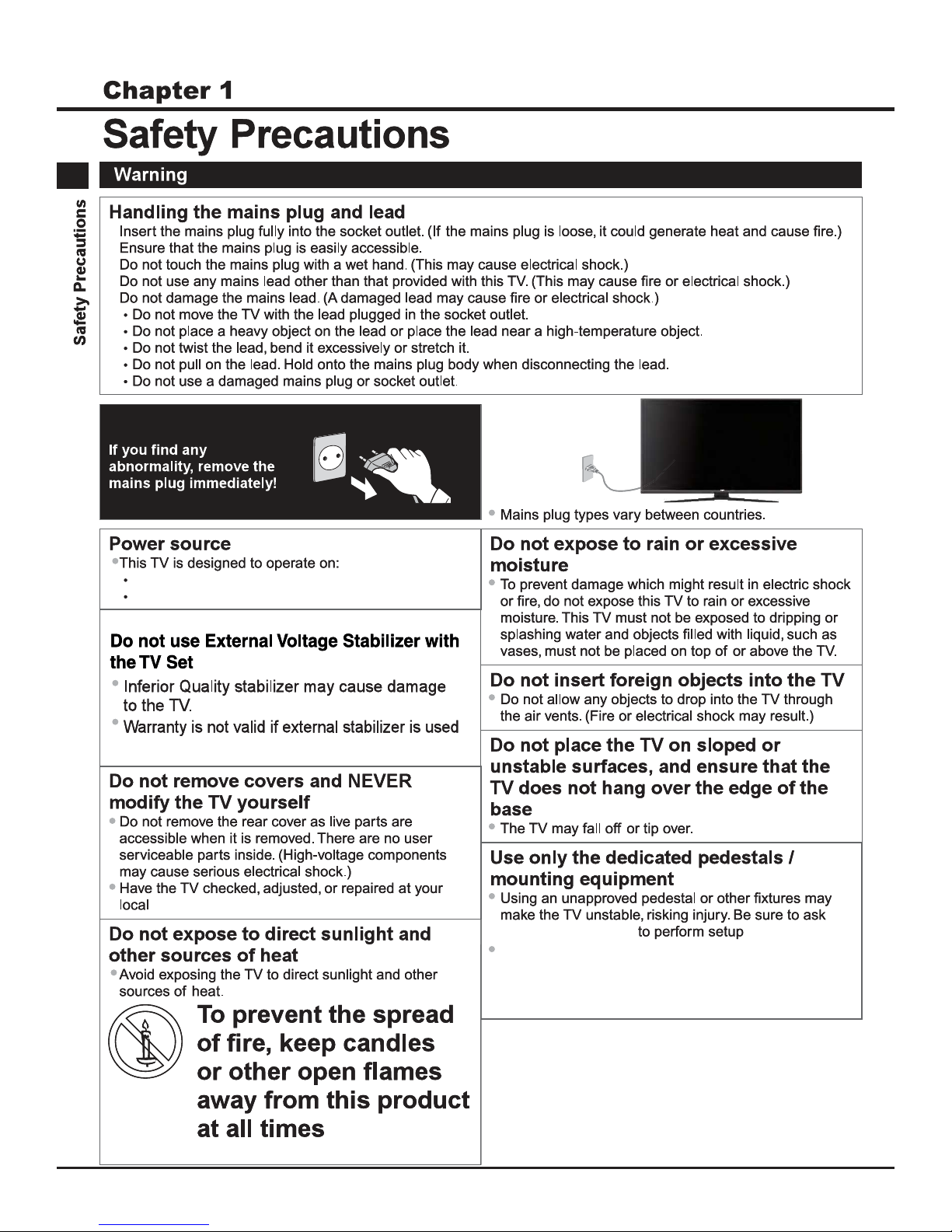

Safety Precautions .............................................................................................................................
21
22
Specifications ....................................................................................................................................
Table of Contents
Multimedia ............................................................................................................................................ 19

Table-top use / Wall Hanging
110 – 240 V ~ 50/60 Hz
When mounting the product on a wall or ceiling,
be sure to install the product according to the
method recommended by the manufacturer. This
is a safety feature.
When mounting the product on a wall or ceiling,
be sure to install the product according to the
method recommended by the manufacturer. This
is a safety feature.
3
Introduction
110 – 240 V ~
50/60 Hz
Sanyo service center.Sanyo service center

4
Cleaning
Clean the set by wiping the screen and the cabinet with
a soft, clean cloth or some special liquid cleaner.
Do not apply excessive force to the screen when
cleaning.
Do not use water or other chemical cleaner to clean the
screen as this may damage the surface of the TV
screen.
Do not place the set on an unstable cart, stand, or table.
Place the set on a place that allows good ventilation.
Do not use the set near damp, and cold areas. Protect
the set from overheating.
Keep the set away from direct sunlight.
Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
Do not use the set near dust place.
Use Environment
Hanging the TV Set on the Wall
Warning: This operation requires two people.
To ensure a safe installation, observe the following safety
notes:
Check that the wall can support the weight of the TV
set and wall mount assembly.
Follow the mounting instructions provided with the wall
mount.
The TV set must be installed on a vertical wall.
Make sure to use only screws suitable for the material
of the wall.
Make sure that the TV set cables are placed so that
there is no danger of tripping over them.
All other safety instructions about our TV sets are also
applicable here.
Note˖
Graphics contained within this operating
instructions are for presentation only.
WARNING:
The batteries shall not be exposed to excessive heat
such as sunshine, fire or the like.
Introduction
Base Installation
*Figures and illustrations in this User Manual are
provided for reference only and may differ from actual
may be changed without notice.
*To bring you better visual experience, please remove
all labels, if any, from TV front panel and screen before
use.
1.To fix the middle support on to the stand base, put it
as shown in the Dia A and fix the screws from bottom
side of stand base.
2.To fix the base lay your TV flat (screen down) on the
edge of a table or bench. Make sure to put down a soft
cushion or cloth so that your TV is not scratched. Refer
Dia B
Dia A Dia B

5
AC cord
Battery
(AAA size, 2 pcs)
Screws
Rear of the TV
Introduction
Remote
Control Pedestal
Accessories may not be placed all together. Take care not to throw them away unintentionally.
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
young children accidentally. Keep these parts out of reach of young children.
Operating
Instructions
Screws:M5x13(4EA)
Screws:ST4*25(4EA)
49”/55” class
12 mm
200mm
200mm
M6*12
Standard accessories
Optional accessories
Sanyo service center
Sanyo
Product page
(Ultra HD)
XT-49S8200U
LED TV
E-mail: [email protected]
Need help? Please Call atToll Free No. 1800 419 5088
Toobtain a more detailedElectronicCopy of this
Manualor much furthercontents,goto product page
at ourwebsite www.sanyoappliance.in
Thankyou for purchasingthis Sanyoproduct.
Pleaseread these instructions carefullybeforeoperating this
Productand retainthem for futurereference.
Theimages shown in thismanual are forillustrativepurposes only.
XT-55S8200U

Introduction
6
1 DIGITAL AUDIO OUT
2 USB 2.0/3.0
3 LAN
4 HDMI 1/2/3
(P.8)
(P.6)
(P.8)
5 AV IN
6 AUDIO OUT
7 ANTENNA
8 HEADPHONE
1 2 3 4 5
6
7
4
(P.7)
(P.8)
(P.12)
(P.7)
(P.7)

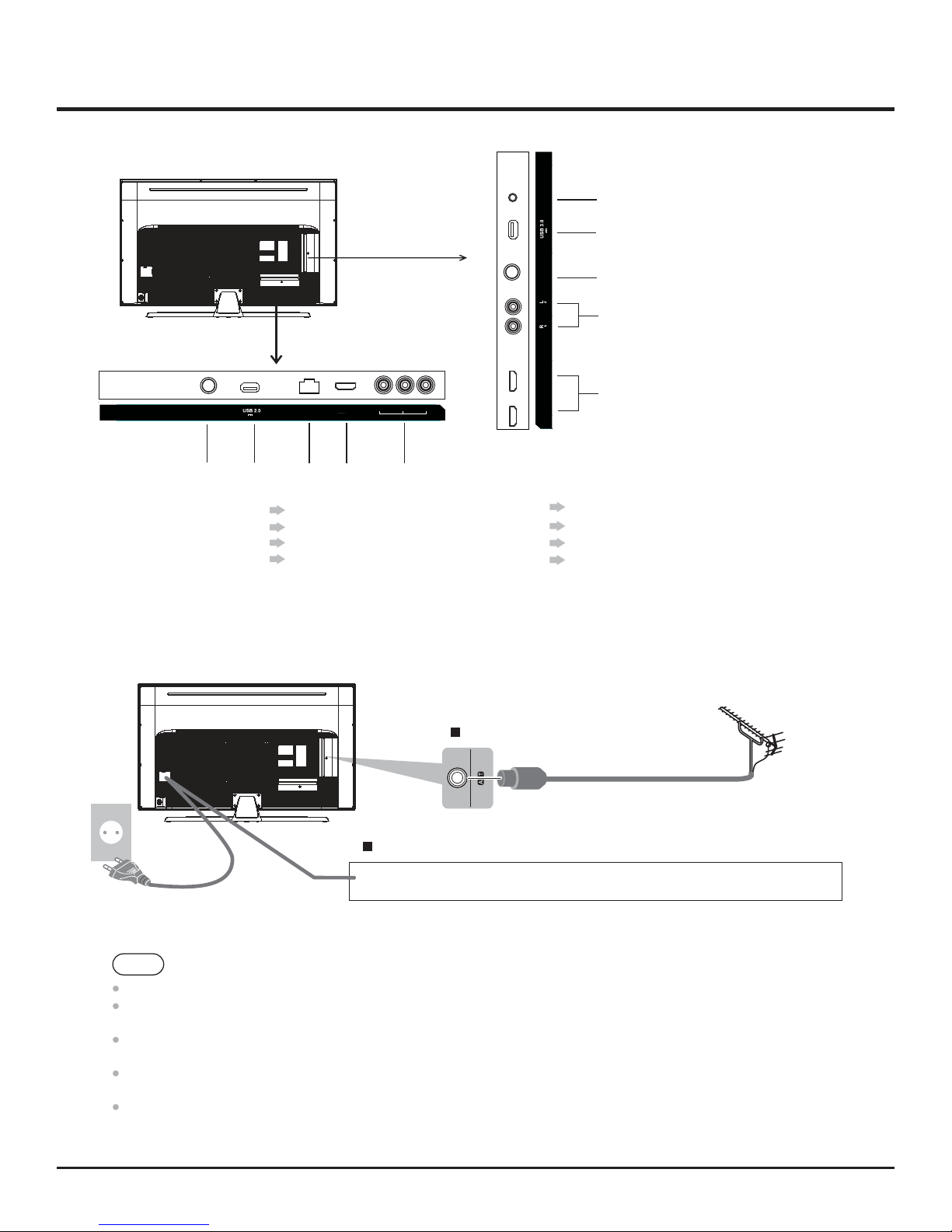

Basic Connection
Terminals
Power connection and aerial
ANTENNA cable
110 – 240 V ~
50/60 Hz
Note
TV
Aerial
Power Connection
Connect the TV’s power cable to a power outlet.
Do not place the RF cable under the TV.
7RREWDLQRSWLPXPTXDOLW\SLFWXUHDQGVRXQGDQDHULDOWKHFRUUHFWFDEOHȍFRD[LDODQGWKHFRUUHFWWHUPLQDWLQJ
plug are required.
If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial
socket and the TV.
Your Sanyo Service Centre or dealer may be able to assist you in obtaining the correct aerial system for
your particular area and the accessories required.
Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs
incurred, are the responsibility of you, the Customer.
AC cord
2
8
LAN HDMI 3
RLVIDEO
AV IN
DIGITAL AUDIO
OUT 5V05A
HEADPHONE
HDMI 1 ANTENNA 
5V09 A
HDMI 2
(SOUND OUT) AUDIO OUT

7
AV Cable are often color-coded to
connectors. Connect yellow to yellow,
red to red, white to white.
HDMI cable
AV CABLE
HDMI3
USB 2.0
Introduction
Rear of the TV
VCR
or Camcorder
Camcorder
Recorder / Player
Game console
or
Never remove the USB device or turn off the TV while using
the USB device.

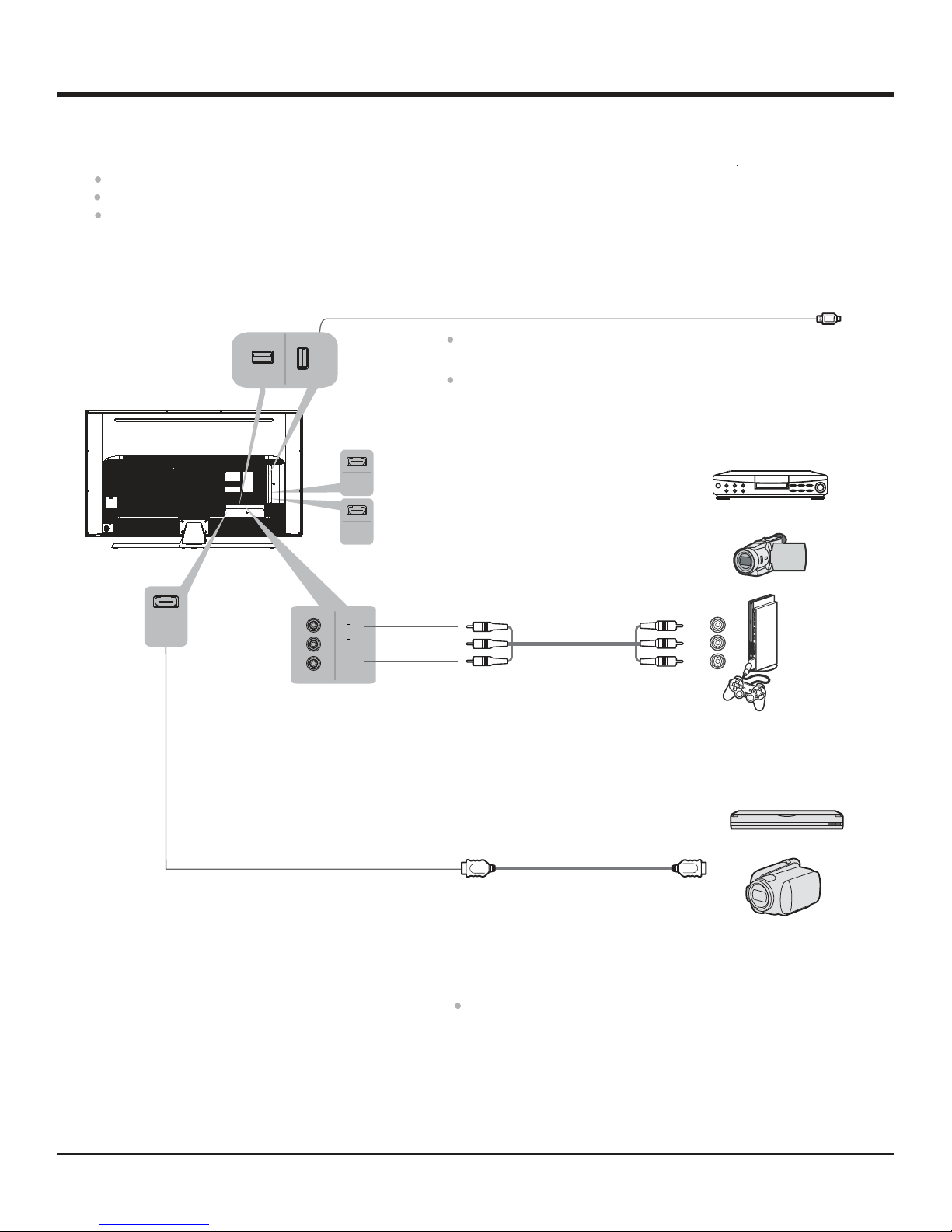

External Equipment
USB devices
HDMI equipment
AV devices
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
Check the type of terminals and cable plugs are correct when connecting.
Please also read the manual of the equipment being connected.
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.
R L VIDEO
HDMI
(SOUND OUT)
2
Note: If your device has an HDMI connection, we recommend
you use that to get the best quality possible.
If the external device has a DVI output only, use a DVI to
HDMI adapter cable to connect to the HDMI terminal.
Note: For the audio receiver control Sound Out, firstly you must
have a device which supports HDMI Sound Out, then connect it
to the HDMI2 port. When the "Sound bar Setting" is enabled on
your TV, the TV set's speakers will mute automatically and the
audio will be outputted on your sound device system.
HDMI1
USB 3.0
RL
- AUDI O - VIDE O
AV IN
The First inserted USB will be regarded as Device C as
default and Second inserted USB would be reflected
as Device D.

8

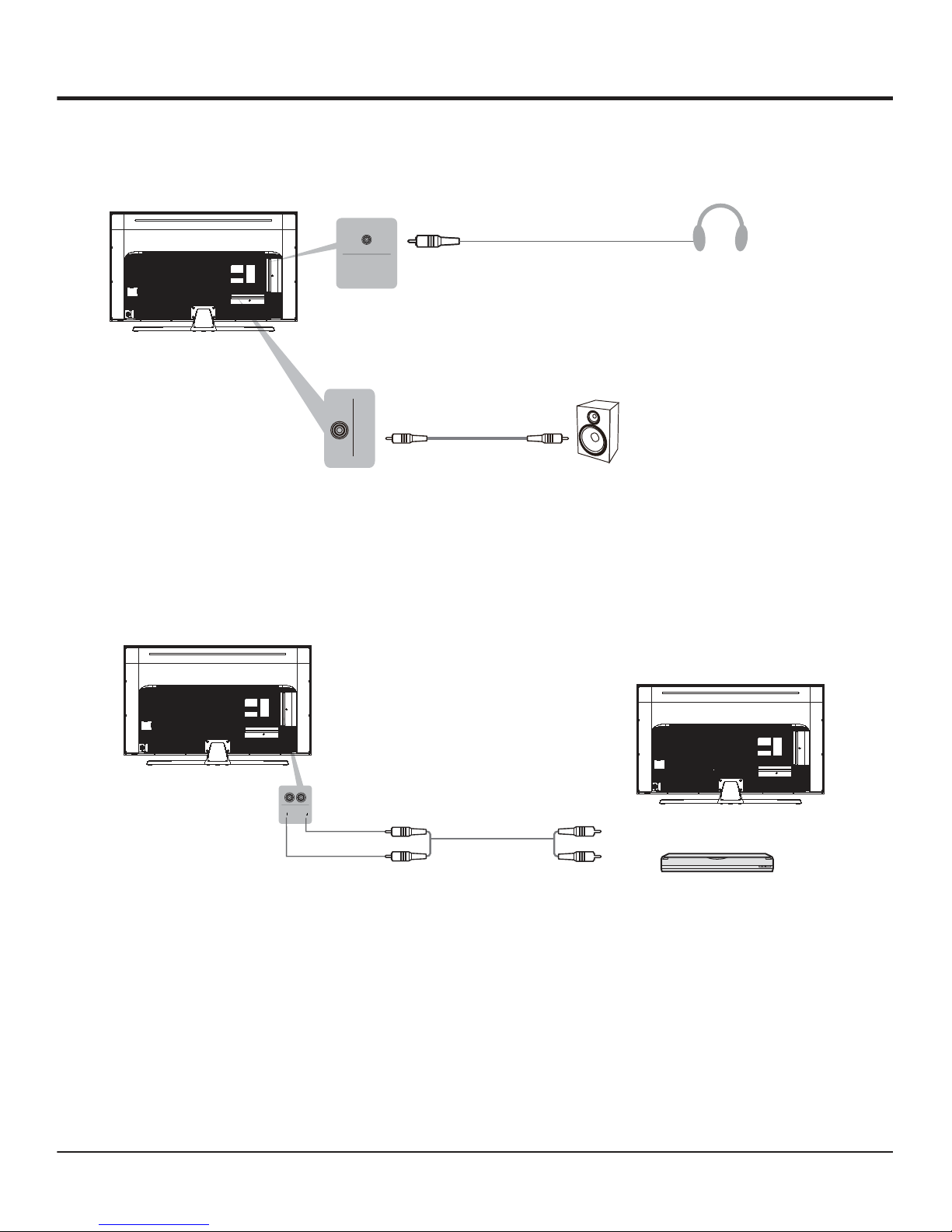

AUDIO Out cable
AUDIO OUT Cable are often color-coded to
connectors.Connect red to red, white to white.
TV
Introduction
HEADPHONE
Rear of the TV
Recorder / Player
Rear of the TV
External Equipment
HEADPHONE
Headphone cable
R L
AUD IO OUT
Digital Audio Out cable
DIGITAL AUDIO
OUT

9
Introduction
Remote Control Functions
Most of your television's functions are available via the menus that appear on the
screen. The remote control supplied with your set can be used to navigate through
the menus and to configure all the general settings.
POWER
(MUTE) Reduces the TV's volume to its minimum level. Press again
to restore the volume.
MUTE
INPUT
RETURN
Displays the status information.
INFO
EXIT
SOUND
MEDIA PLAYER
TV
MENU
OK
OPTION
VOL +/- Increases or decreases the TV's volume.
CH Scans up or down through the current channel list.
Goes to the USB menu.
Goes to the Netflix Home Page.
0-9
Opens the picture preset settings: Standard,Cinema,User,Game and Vivid.
(On/Off button) Turns the TV on or off.
Exit the menu and return to the previous menu.
Goes to the browser Home Page.
HOME Goes to the smart TV Home Page.
Exits the menu system.
Brings up the menu system.
(up, down, left and right direction buttons) Highlights different items
in the menu system and adjusts the menu controls.
Confirms your selection.
Brings up the option menu .
(numeric buttons) Enters channel numbers.
Goes to the YouTube homepage.
when press
/ to select the desired option , then press
opens the Input source list
OK button to select.
Opens the sound modes: Standard,Cinema,Speech,Music and User.
In corresponding mode, press it to enter the right function as hint.
Green(G) button In corresponding mode, press it to enter the right function as hint.
Yellow(Y) button In corresponding mode, press it to enter the right function as hint.
In corresponding mode, press it to enter the right function as hint.
Blue(B) button
OFF TIMER Selects the sleep timer.

10

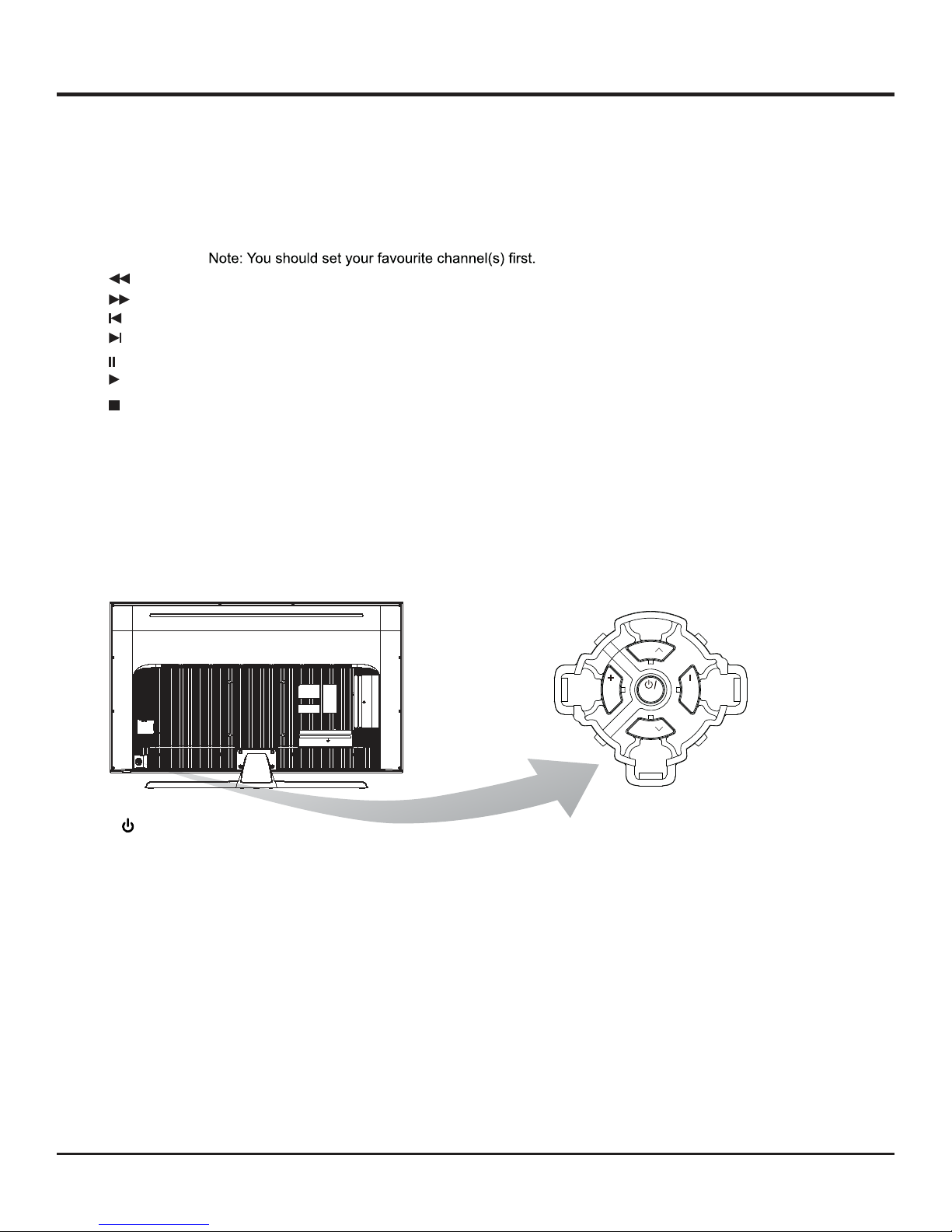

Buttons on the TV
Take a certain model for an example:
Introduction
SUBTITLE
LIST
PRE-CH To return to the previous channel.
ASPECT
TEXT
Aspect Ratio : Selects the picture size Auto,16:9,4:3 and Just Scan.
Note:Some options may not be selectable for certain signal sources.
This key will function as pause in USB mode.
This key will function as play & pause in USB mode.
This key will function as stop in USB mode.
This key will function as backward play in USB.
This key will function as forward play in USB.
This key will function as previous song, video, picture in USB.
This key will function as next song, video, picture in USB.
Displays the channel list menu.
Not Supported.
Press Subbtitle
SUBTITLE to choose subtitle language and AD Switch in DTV mode.
FAV Brings up your favorite channel list.
1. /MENU button
Scans up/down through the channel list. In the menu system, they act like the up/down direction buttons on the
remote and adjust menu controls.
Note: The location and names of the function buttons and power button on the TV may vary according to TV model.
Increases/decreases the volume. In the menu system, they act like the right/left direction buttons on the
remote and adjust menu controls. (Note: In some menus, VOLUME UP also acts like the OK button on the remote.)
3. CHANNEL UP/DOWN button
2. VOLUME UP/DOWN button
Turns the TV on or standby. The TV is on, press it, bring up to the selection menu or press to return to the
previous menu.
CH
CH
VOL VOL
MENU
