Sanyo CE21DN4-C User manual

Colour Television
Service Manual
Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission
system and power source differ from the design
specifications. Refer to the specifications for the
design specifications
Contents
Safety precautions/Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Circuit description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Cabinet Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Service control adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Circuit alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Important notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Electric Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-21
Model CE21DN4-C
Service Ref.No.: CE21DN4-C-01
PRODUCT CODE: 111339616
ORIGINAL VERSION: Chassis No.:EB4-A(MKII)
Part No. SKSM0314 F7KVV MAY 1999
CE21DN4-C

-2-
F7KVV
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high
voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
PRODUCT SPECIFICATIONS
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark . No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark .
!
!
!
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor
networks etc.Before returning any television to the
customer, the service technician must be sure that it
is completely safe to operate without danger of
electrical shock.
Power source AC 220~240V, 50Hz
Television system System B/G, D/K
Colour system PAL/NTSC 4.43/SECAM
Receiving channel VHF: E2-E12, R1~R12
CATV: X, Y, Z, S1-S41
UHF: #21~69
Aerial input impedance 75 ohm
AV terminal
21 Pin socket AV1: CENELEC standard (with RGB/S-inputs)
AV2: CENELEC standard
AV2: RCA Terminal, video and audio (L/R) input
Sound output(Music) 9 watts x 2
Picture tube 51cm diagonal, 90 degree
(Visible picture diagonal) 55cm
Dimensions (WxHxD) 612 x 476 x 486mm
Weight 21 Kg

-3- F7KVV

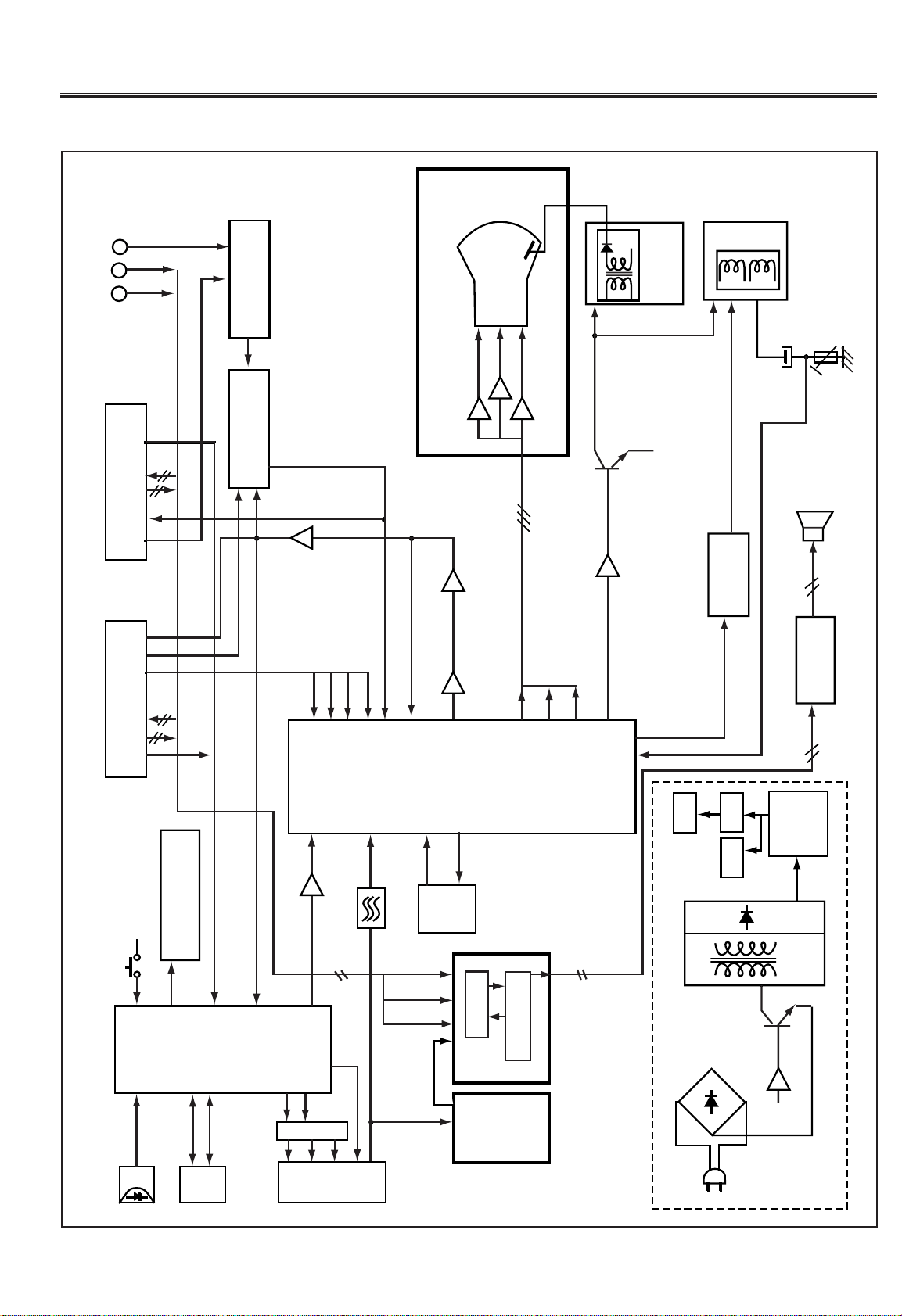

BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
IC801
CPU 21P Scart: AV1 21P Scart: AV2
IC201
IF/Video/Chroma/Def.
IC1202
CVBS int/ext sw. IC1201
CVBS AV2 sw.
CRT Unit FBT
DY
IC001 Audio Output
IC501
Vert. Output
T611
Converter Transformer
Power Supply Circuit
SIF Unit
Audio Unit
Tuner
IC802
Memory
47
49 50
SCL
SDA
RC Pre.amp
6 5
51
52
IC810
Band sw.
14
24
17 18
2 3 4 5
2: Bright 3: Contranst 4: Colour 5: Sharpness
Control Keys
10
VL
VH
U
IF
TU
116
45/46
28/29 30/31
41 48
37
18
19 20
7
13
15 21 22 23 24
X131 SAW Filter
IC271
1H Delay R-Y/B-Y
R-Y/B-Y
CVBS In
Functuin In(AV1/AV2)
11/12
14/16
B
G
R
BLK
External CVBS in
Internal CVBS in
Q151 Q152/Q154
H-Drive Q431 Q432
H-Outpit
V-Drive
V-Feedback
Audio In
Speakers VR501
C512
H
V
HV
Q2601
Q2611
Q2621
Video In
Audio In
L R
Q171
1
63
8 Out 4 Out 2
7
Audio I/O Audio I/OVideo I/O Video I/O
RGB/BLK In
B1: 150V B2: 25V B3: 15V B4: 24V
IC651
IC652
B6: 12V
B8: 5V
L, R L, R
1/ 5 10/ 8
AC In
Q612 Q613
V-In
V-In
R
G
B
CVBS In
AV1 I/O
SIF In
Audio Out L, R
42
IC653
B6: 12V
B7: 8V
3D Surround Decoder
Nicam & Stereo Decoder
AV2 I/O
Front In
Audio

-4-
F7KVV
1. POWER SUPPLY
The power supply circuit of the EB4-A chassis is
composed of a rectifier smoothing circuit, an oscillation
circuit, a control circuit and an output rectifier circuit. The
AC input voltage is full-wave rectified by the rectifier
smoothing circuit, and an unstable DC voltage is
generated at both terminals of the smoothing capacitor
C607. This voltage is input to the oscillation circuit. The
oscillation circuit is provided with a blocking oscillator
circuit that switches the switching transistor Q613 ON
and OFF, and an oscillation frequency and a duty square
wave pulse are generated in the input windings
according to operation of the control circuit. A square-
wave pulse whose size is dependent on the turn ratio of
the input and output windings is obtained in the output
winding. This is rectified in the output rectifier circuit, and
the desired DC voltage is obtained.
2. IF & DEFLECTION (TDA8361)
The IF output signal from the tuner passes through the
SAW filter, and it is input to pin45 and pin46 of IC201.
The signal input to the IC passes through the IF
amplifier, video detection and video amplifier circuits and
is output from pin7 as a composite video signal. And
after this signal is converted to impedance at Q151,
supplies to the video and chroma amplifier stages.
The sync.-separation circuit separates the video signals
applied to pin13(internal video signal) or pin15(external
video signal) to vertical- and horizontal-sync. signals
respectively. The horizontal oscillator requires no
external components and is fully integrated. The
oscillator is always running when the start-pin36 is
supplied with 8V. Horizontal drive signal is output from
pin37. VR361 is for adjustment of the horizontal centring.
The separated vertical-sync. signal from sync. separation
circuit passes through the vertical-separation circuit, and
applied to trigger divider circuit. The horizontal oscillation
pulse and input vertical sync. pulse are monitored by the
trigger divider circuit, and switching 50Hz and 60Hz
system, the vertical amplitude automatically adjusted for
50Hz and 60Hz. The output signal from the trigger
divider is triggered vertical oscillation circuit consisting of
C351, R352 and pin42, and vertical drive pulse is output
from pin43. VR501 is for changing the amount of AC
feedback applied to pin41 and for adjustment of the
vertical amplitude.
3. VIDEO CHROMA & R.G.B. (TDA8361)
The composite video signal output from the pin7 of
IC101 passes through Q151-Q154, and it is supplied to
pin13. The external video signal output from SCART is
supplied to pin15. The video signal input to pin13 or
pin15 is separated to luminance (Y) signal and chroma
signal in IC201. These pins are used in common with
H/V-sync. separation input. The peaking of Y signal is
adjusted by DC voltage of pin14. (“SHARPNESS”
control) The chroma signal is divided into R-Y and B-Y
chroma signals, demodulated in IC201, and output from
pin30 (R-Y) and pin31 (B-Y). These chroma signals pass
through the 1H delay line circuit (IC271), and they are
input to pin29 (R-Y) and pin28 (B-Y). These R-Y/B-Y
signals pass through RGB matrix circuit and RGB
selector circuit of IC101. The internal RGB signals are
generated in RGB matrix circuit and the RGB selector,
consisting linear amplifiers, clamps and selects either the
internal RGB signals or the external RGB signals input
from pin22(R), pin23(G), pin24(B). Selection is controlled
by the voltage at the RGB switch control (pin21) and
mixed RGB modes are possible since RGB switching is
fast. The RGB switch also functions as a fast blanking
pin by blanking the RGB output stages; here internal and
external RGB signals are overruled. The colour gain is
controlled by DC voltage of pin26. (“COLOUR” control)
The contrast control voltage present at pin25, and the
brightness control voltage present at pin17 controls DC
level of RGB signals. The RGB signals are finally
buffered before being available at the RGB output pins
[pin20 (R), pin19 (G), pin18 (R)].
4. AUDIO OUTPUT(TDA7263M)
The audio signals output from the audio unit are input to
pin1(L) and 5(R) of IC171 and passes through the pre-
amplifier circuit and drive circuit, after which it is input to
the audio amplifier. The audio amplifier is an SEPP
(single-ended, push-pull) OTL type and output to pin8(R)
and 10(L) to directly drive the speakers.
5. VERTICAL OUTPUT (LA7832/LA7832)
An IC (LA7832/LA7833) is used for the vertical output
circuit in this chassis. The vertical drive pulse from pin43
of IC201 is input to pin4 of IC501. This pulse drives
IC501, and vertical scanning is performed. In the first half
of scanning a deflecting current is output from pin2 and
passes through the following path:
Vcc(B4) ➞D501 ➞pin3 ➞pin2 ➞DY ➞C512 ➞
VR501/R509. An electric charge is then stored in C512.
In the last half of scanning the current path is C512 ➞
DY ➞ pin2 ➞pin1 ➞ VR501/R509 ➞C512. In this way,
an amplifying sawtooth waveform current flows directly to
DY to perform electron beam defection. Next, in the first
half of the banking period the vertical drive pulse
suddenly becomes OFF, and in order to reduce the
current flowing to DY, the current path becomes as
follows by the inductance of DY:
DY ➞pin2 ➞pin1 ➞VR501/R509 ➞C512 ➞DY. Also,
when the charge of DY has dissipated, the current path
becomes Vcc24V ➞pin6 ➞pin7 ➞ C502 ➞pin3 ➞
pin2➞DY ➞C512 ➞ VR501/R509, and when the
prescribed current value is reached, the vertical drive
pulse becomes ON. This completes one cycle.
CIRCUIT DESCRIPTION

-5- F7KVV
6. HORIZONTAL OUTPUT
A horizontal oscillation signal is output from pin37 of
IC201 and switches the drive transistor Q431. This
switching signal is current amplified by the drive
transformer T431 and drives the output transistor Q432.
When Q432 becomes ON, an amplifying current flows
directly to DY through C441 ➞DY ➞0432 ➞GND, and
defection is performed in the last half of the scanning
period. Next, when Q432 becomes OFF, the charge that
had been stored in DY up to that point releases a
resonance current to the resonant capacitors C421/C423
and charges them. The current stored in C421/C423 is
then flowed back to DY, and an opposite charge is then
stored in DY. This opposite charge then switches the
dumper diode in Q432 ON, the resonance state is
completed, and an amplifying current is then flowed
again directly to DY through the dumper diode. By this
means, deflection in the first half of the scanning period
is performed, and when Q432 becomes ON at the end of
the first half of the scanning period, deflection during the
last half is begun, thus completing one cycle.
In the PCC circuit consisting of Q461 and Q462, the
parabola signal supplied from the vertical circuit is added
at the horizontal output stage and pincushion
compensation is performed by varying the DC voltage
bias. Further, the ABL voltage is feedback to the base of
Q462 to compensate for width variations due to
variations in the beam current.
7. CPU <System and Teletext Control>
Pin description
Pin1: Tuning voltage output
Pin2: Brightness control output (6-bit DAC)
Pin3: Contrast control output (6-bit DAC)
Pin4: Colour control output (6-bit DAC)
Pin5: Sharpness control output(6-bit DAC)
Pin6: Not used (GND)
Pin7: Not used (GND)
Pin8: Power ON/OFF output (H:ON)
Pin9: AFT signal input
Pin10: Option SW1 & Keyboard scan input (DC)
Pin11: Option SW2
Pin12: 50/60Hz switch input (50Hz: Hi)
Pin13: GND
Pin14: TV/AV switch output (TV: Hi)
Pin15: S-VHS switch output (S-VHS: Hi)
Pin16: Option SW3 (2AV: Hi)
Pin17: Function signal input for SCART1
Pin18: Function signal input for SCART2
Pin19: Power LED drive output1
Pin20: Option SW4 & Power LED drive output2
Pin21: Ignore output
Pin22: GND
Pin23: CVBS input0 (Internal)
Pin24: CVBS input1 (Internal/External)
Pin25: Black
Pin26: IREF
Pin27: Odd/Even output
Pin28: GND
Pin29: -
Pin30: V-deflection stop output
Pin31: RGB REF
Pin32: Blue output for OSD
Pin33: Green output for OSD
Pin34: Red output for OSD
Pin35: Blanking output for OSD
Pin36: H-sync. input (Horizontal pulse for OSD)
Pin37: V-sync. input (Vertical pulse for OSD)
Pin38~39: Supply (+5V)
Pin40: OSC GND
Pin41: Oscillator input for CPU
Pin42: Oscillator output for CPU
Pin43: Reset input
Pin44: Supply (+5V)
Pin45: Protect signal input (L:Power circuit defects)
Pin46: Ident. signal input
Pin47: R/C signal input
Pin48: Mute output in no picture
Pin49: I2C bus SCL (Serial clock)
Pin50: I2C bus SDA (Serial date)
Pin51: Option SW5 & Band select output1
Pin52: Band select output2

-6-
F7KVV
CABINET DISASSEMBLY

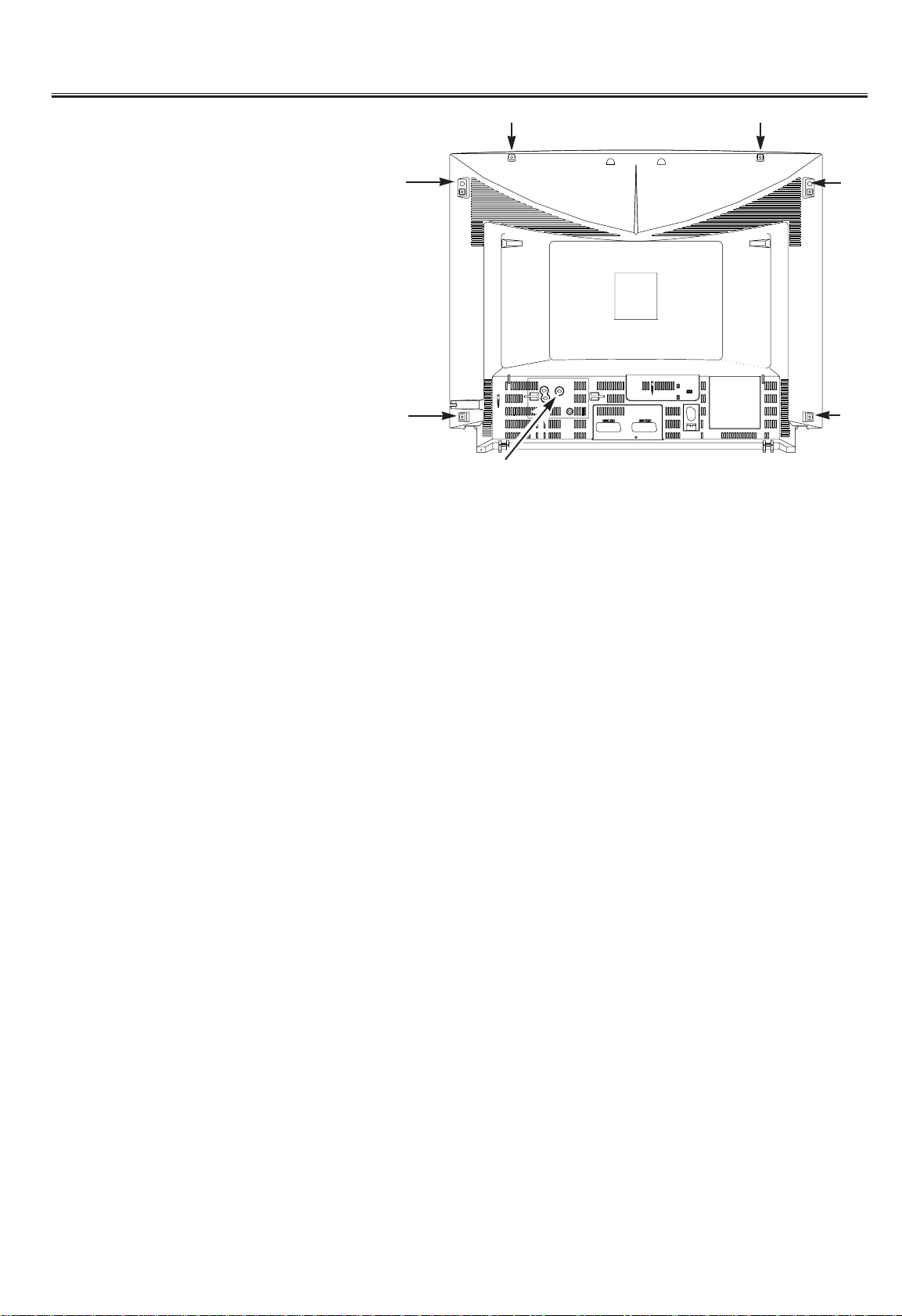

CABINET BACK DISASSEMBLY
1. Remove 7 screws(A).
2. Pull out the cabinet back.
(A)
(A)
(A)
(A)
(A)
(A)
ANT75Ω
(A)

B1 POWER SUPPLY ADJUSTMENT
1. Set VR641 to be mechanical centre before pressing
the main switch.
2. Tune the receiver to PAL circular pattern.
3. Set brightness and contrast controls to normal.
4. Connect digital V-meter to test point "TP-B".
5. By using VR641, adjust voltage to 130 ± 0.5 V.
AFT ADJUSTMENT
1. Tune the receiver to the clearest station.
2. By using T141, adjust AFT to obtain the best picture.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment with weak
signal.
1. Tune the receiver to the clearest station.
2. Set AGC VR(VR131) in direction which causes snow
noise to appear, then in the opposite direction until
snow noise just disappears.
GREY SCALE ADJUSTMENT
[SCREEN VR ADJUSTMENT]
1. Tune the receiver to the white pattern.
2. Set brightness and contrast controls to normal.
3. Set VR602and VR612 to be mechanical centre.
4. Turn VR601, VR611 and VR621 fully counter-
clockwise.
5. Set mode to one horizontal scanning line, how to set
refer to "service mode"
6. Set screen VR for one colour to be just visible.
[BIAS VR ADJUSTMENT]
7. By using VR601, VR611 or VR621, adjust line to be
white.
8. Set screen mode OFF, how to set refer to "service
mode"
[DRIVE VR ADJUSTMENT]
9. By using VR602 and VR612, adjust white balance.
HIGH VOLTAGE & WIDTH ADJUSTMENT
[HIGH VOLTAGE ADJUSTMENT]
1. Tune the receiver to circular pattern.
2. Set brightness and contrast controls to maximum.
3. Connect digital V-meter to both terminals of R224, and
high voltage meter to CRT anode.
4. Confirm high voltage to be 25.0 ± 1 KV at beam
current 1.1mA, and less than 28.0 KV at 0 beam
current.
[H-WIDTH ADJUSTMENT]
5. If H-width is too wide or
narrow, connect or
disconnect a lead wire
J213.
6. Reconfirm high voltage.
H-CENTRE ADJUSTMENT
1. Tune the receiver to circular
pattern.
2. Adjust H-centre by using
VR361.
V-CENTRE ADJUSTMENT
1. Tune the receiver to circular pattern.
2. Adjust V-centre by using SW501.
V-SIZE ADJUSTMENT
1. Tune the receiver to circular pattern.
2. Adjust V-size by using VR501.
FOCUS ADJUSTMENT
By using FOCUS VR, adjust focus control for good
scanning lines.
SERVICE CONTROL ADJUSTMENT
-7- F7KVV
SW601 Main switch
F601 Fuse
611
T481 RC Transformer
o-coupler
SW1901
Prog.+ SW1902
Prog.- SW1903
Vol.+ SW1904
Vol.-
Q641
VR641 +B ADJ. Q681
IC801
CPU
Q501
Q432 H-Output
IC501 V-Outout
IC651 +12V
Scart 2
SW501 V-Centre
VR501 V-Size
IC271 1H Delay IC652
+8V
Scart 1
IC201
IF/Video/Croma/Def.
IC281
VR361 H-Centre
VR131 AGC
T101
T141
SIF Board
A101 Tuner
IC1202 Int./Ext. SW.
IC1201 AV2 SW.
TP-E TP-
Q-SOUND Board
T611 Converter T
TP-B
Q461
Q4
T451 Flyback Transformer
J213
Q501
Q432 H-Output
IC501 V-Outout
Scart 2
SW501 V-Centre
VR501 V-Size
IC271 1H Delay
Scart 1
IC201
IF/Video/Croma/Def.
IC281
VR361 H-Centre
VR131 AGC
T101
SIF Board
A101 Tuner
IC1202 Int./Ext. SW.
IC1201 AV2 SW.
TP-E
Q-SOUND Board
T141
VR641
J213
VR361VR501SW501
VR131

-8-
F7KVV
DC 15.5V
AGC voltage (4.3-4.5V)
Output probe
Input probe
Marker frequency
Sweep ATT
0dB=176mVrms/75
SETTING
C644 +
IC201-pin48
IC201-pin45
(Side b)
IC201-pin7
38.9MHz
20dB
Adjustment
By using T141, adjust "P" to
be maximum amplitude.
Waveform
CIRCUIT ALIGNMENT
VIF alignment
P
P
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe Output probe
SIF alignment
SIF BOARD
DC 12V
AGC voltage(5V DC)
Output probe
Input probe
Sweep ATT
Marker Frequency
Tool-A
SETTING
IC3801-pin9
IC3801-pin13
IC3801-pin5
(Side b)
IC3801-pin17
10dB
38.9MHz
IC3801-pin6
and ground
Adjustment
1. By using T3801, adjust the
VCO oscillation to be "P".
Waveform
0.01
Tool-A
IC3811
IC3801
K38H2 K38H1
T3801

-9- F7KVV
When you replace a memory IC (IC802), it is
necessary to initialise the IC as following step.
A. Initialization
Press and hold the ( ) normalization button on the
remote control handset and press the ( ) programme
+ button on the TV set.
The IC will be initialised automatically to set the
following data.
User control data
Colour : Centre
Brightness : Centre
Contrast : Maximum
Sharpness : Centre
Text. Bright : Centre
Bass : Centre
Treble : Centre
Balance : Centre
Volume : Step 12
B. Service Mode
1. To enter the service mode, press and hold the ( )
Function button on the remote control handset and
press the ( )programme + button on the TV set.
The following OSD appears on the screen.
2. Select desired service item by using the ( )
Function button on the remote control handset.
3. Change date by using the ( )Level + or ()
- button.
4. To return to TV mode press the ( )Recall button
on the remote control handset.
Service mode description
SCREEN: For screen adjustment
To make one horizontal scanning line.
ADJUST DATA
System +000
SCREEN VOL
CPU MK2 1.0
P
P
INITIALIZATION (Important Notice)

-10-
F7KVV
This TV set allows you to set up the following special functions.
■ Maximum volume setting and prohibition of presetting
ITEM-1
Sets the current volume as the maximum volume level and prohibition of
presetting.
SET➞ 0NO
SET➞ 1 YES
■Start up programme position
ITEM-2
Presets the programme position when the set is switched on.
SET -> 0 Last programme position start
SET -> 1 Programme position "1" start
SET -> 2 Programme position "2" start
SET -> 3 Programme position "3" start
SET -> 4 Programme position "4" start
SET -> 5 Programme position "5" start
SET -> 6 Programme position "6" start
SET -> 7 Programme position "7" start
SET -> 8 Programme position "8" start
SET -> 9 "AV1" start
SETTING PROCEDURE
1Press and hold the button on the Remote control handset
and then press the P▲ button on the TV set.
2To select the "Item" number, press the button on the remote
control handset.
3To select the "Set" number, press the or button
repeatedly.
4To return to the normal TV mode, press the button.
✐The setting conditions of all items can be confirmed.
✐Special functions are not cancelled if the TV set is switched off or the
mains disconnected.
ITEM-1 SET -> 0
SPECIAL FUNCTION

F7KVV
-11-
CABINET PARTS LIST
CABINET PARTS
1 610 278 0741 CABINET FRONT-F7KT
2 610 276 5618 BUTTON POWER-F7WC
3 610 278 2349 CABINET BACK -F7KC
4 610 278 4923 DOOR-F7WV
5 610 276 5656 DEC IND-F7WC
6 610 265 4202 HOLDER DC GBR-F3SC
7 610 253 2449 AC CORD HOLDER-U-D4VA
8 610 261 3032 SPRING-E7GC
9 645 030 7355 BADGE,SANYO*53.5X12 GRAY
10 645 019 2449 LATCH PUSH,7.9X6.9BK
11 610 224 5721 CRT CUSHION-B3MY-UK
12 412 009 3003 SPECIAL SCREW
13 411 076 1301 SCR TPG BRZ 4X14
14 411 076 1004 SCR TPG BRZ 4X12
ACCESSORIES
15 JXMCA RC TRANSMITTER
SKP10174 INST MANUAL - F7WV (1)
SKP10175 INST MANUAL - F7WV (2)
SKP10178 INST MANUAL - F7WV (3)
SKP20227 SHEM DIAG -F7KVV
645 027 6927 BATTERY
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
123
456
789
0
-/--
P▲
▼
PPF
P
MENU
i
SURROUND
BASS
TV
TXT
?
X
AB
TV
7
2109 5
1
8
46 12 11
14
Ref. No. Part No. Description Ref. No. Part No. Description
SERVICE REF. NO. CE21DN4-C-01
15
3

F7KVV -12-
Chassis construction CE21D4-C-01
OUT OF CIRCUIT-013F7KVV (Page 12)
1AA0B10H03500 ASSY,PWB,CRT-MK2 F3SSY (Page 12-13)
1AA0B10H018X0 ASSY,PWB,MAIN F7KVV (Page 13~20)
1AA0B10H0330A ASSY,PWB,SIF F3SS (Page 20)
1AA0B10H0330B ASSY,PWB,AUDIO F3SS MK2 (Page 20)
OUT OF CIRCUIT BOARD
PICTURE TUBE
Q901 414 007 9001 CRT A51EBV13X09
COIL
L901 645 002 5624 DEGAUSSING COIL 21INCH
MISCELLANEOUS
SP901 610 232 3986 SPEAKER
610 228 7202 SPEAKER
SP902 610 232 3986 SPEAKER
610 228 7202 SPEAKER
W901 645 012 7632 EURO PLUG +2P HOUSE @ 2.1
W902 610 024 2531 GROUNDING CONNECTOR
ASSY,PWB,CRT F2RC 1AA0B10E24500
TRANSISTOR
Q701 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q711 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q721 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q740 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
Q751 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
CAPACITOR
C701 403 073 2910 CERAMIC 390P K 50V
C711 403 073 2910 CERAMIC 390P K 50V
C721 403 073 2910 CERAMIC 390P K 50V
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
CHASSIS ELECTRICAL PARTS LIST
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
!
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G: ±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G: ±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W: +100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Rated value: P=pico farad, U=Micro farad
Material:
CERAMIC............Ceramic
MT-PAPER..........Metallized Paper
POLYESTER ......Polyester
MT-POLYEST......Metallized Polyester
POLYPRO ..........Polypropylene
MT-POLYPRO ....Metallized Polypropylene
COMPO FILM......Composite film
MT-COMPO ........Metallized Composite
STYRENE............Styrene
TA-SOLID............Tantalum Solid
AL-SOLID............Aluminium Solid
ELECT ................Electrolytic
NP-ELECT ..........Non-polarised Electrolytic
OS-SOLID ..........Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT ..........Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON ............Carbon
MT-FILM..............Metal Film
OXIDE-MT ..........Oxide Metal Film
SOLID..................Composition
MT-GLAZE ..........Metal Glaze
WIRE WOUND ....Wire Wound
CERAMIC RES....Ceramic
FUSIBLE RES ....Fusible

C731 403 077 2728 CERAMIC 1000P P 2K
C735 403 055 8401 ELECT 22U M 250V
C751 403 248 1608 ELECT 47U M 16V
RESISTOR
R701 401 026 3925 CARBON 330 JA 1/6W
R702 401 026 7022 CARBON 3K9 JA 1/6W
R703 401 025 4220 CARBON 1K8 JA 1/6W
R704 401 065 4604 OXIDE-MT 12K JA 2W
R705 401 009 6622 CARBON 3.3K JA 1/2W
R711 401 026 3925 CARBON 330 JA 1/6W
R712 401 026 7022 CARBON 3K9 JA 1/6W
R713 401 026 1020 CARBON 2K7 JA 1/6W
R714 401 065 4604 OXIDE-MT 12K JA 2W
R715 401 009 6622 CARBON 3.3K JA 1/2W
R721 401 026 3925 CARBON 330 JA 1/6W
R722 401 026 7022 CARBON 3K9 JA 1/6W
R723 401 025 4220 CARBON 1K8 JA 1/6W
R724 401 065 4604 OXIDE-MT 12K JA 2W
R725 401 009 6622 CARBON 3.3K JA 1/2W
R727 401 026 9620 CARBON 470 JA 1/6W
R741 401 026 9927 CARBON 4K7 JA 1/6W
R742 401 026 4328 CARBON 3K3 JA 1/6W
R744 401 026 0627 CARBON 270 JA 1/6W
R752 401 024 7430 CARBON 10K JA 1/6W
R753 401 024 7430 CARBON 10K JA 1/6W
VARIABLE RESISTOR
VR701 645 003 5722 VR,SEMI,4.7K N
VR702 645 003 5647 VR,SEMI,1K N
VR711 645 003 5722 VR,SEMI,4.7K N
VR712 645 003 5647 VR,SEMI,1K N
VR721 645 003 5722 VR,SEMI,4.7K N
COIL
L701 645 007 9856 PEAKING COIL 220UH K
L711 645 007 9856 PEAKING COIL 220UH K
L721 645 007 9856 PEAKING COIL 220UH K
DIODE
D701 407 012 4416 DIODE 1SS133-T-77
D711 407 012 4416 DIODE 1SS133-T-77
D721 407 012 4416 DIODE 1SS133-T-77
D751 407 012 4416 DIODE 1SS133-T-77
MISCELLANEOUS
K7M 645 008 4058 TERMINAL PLUG
K7P 645 008 7288 HOUSING PLUG 5P
K7Q 645 008 7264 HOUSING PLUG 3P
K701 645 031 7699 CRT SKT. HPS-014103
ASSY,PWB,MAIN F7KVV 1AA0B10H018X0
TRANSISTOR
Q001 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1001 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1002 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1003 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1004 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1005 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1041 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1042 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1043 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1203 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q121 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q151 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q152 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q153 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q154 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
!
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-13- F7KVV

405 028 7909 TR 2SA608-G-CTV-NP
Q171 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q2001 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q431 405 011 1808 TR 2SC1627-O
405 011 1907 TR 2SC1627-Y
405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q432 406 015 2402 TR BU2508DX(ON5109)
405 022 6809 TR 2SD1651-CTV-YB
Q501 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q611 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q612 405 058 0208 TR 2SC3807-R-CTV-YA
Q613 405 018 9203 TR 2SC3895-T-CTV-YB
Q641 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q681 405 059 9804 TR 2SD1913-Q-RA
405 059 9903 TR 2SD1913-R-RA
405 060 0005 TR 2SD1913-S-RA
Q682 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q801 405 118 4207 TR PH2369
Q835 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q861 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q871 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q872 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q873 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q874 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
INTEGRATED CIRCUIT
IC001 409 301 4906 IC TDA7263M
IC1201 409 018 7603 IC LA7016
IC1202 409 120 3401 IC LA7221
IC201 409 380 8703 IC TDA8361/N5
IC271 409 291 0605 IC TDA4661/V2
409 322 0505 IC TDA4662/V1
IC501 409 183 5008 IC LA7832
IC651 409 143 3402 IC AN78M12 LB
409 365 2900 IC BA178M12T
409 269 1207 IC L78M12CV
409 366 1803 IC MC78M12CT
IC652 409 362 7403 IC AN78M08 LB
409 365 2801 IC BA178M08T
409 285 5203 IC L78M08-RA
409 269 1108 IC L78M08CV
409 366 1704 IC MC78M08CT
IC653 409 241 5407 IC BA178M05T
409 265 4806 IC L78M05CV
409 172 1509 IC MC78M05CT
IC654 409 367 2809 IC BA178M09T
IC801 410 342 3308 IC SAA5296ZP/094
IC802 409 247 7702 IC ST24C02AB1
409 281 8307 IC 24C02A/P
409 333 3700 IC 24LC02B/P
IC810 409 019 6209 IC LA7910
CAPACITOR
C001A 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C002 403 070 9803 CERAMIC 0.015U K 50V
C003A 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C004 403 070 9803 CERAMIC 0.015U K 50V
C005 403 046 3507 ELECT 33U M 25V
C006 403 046 3507 ELECT 33U M 25V
C007 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C008 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C009 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C010 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C011 403 042 4805 ELECT 1000U M 16V
C012 403 042 4805 ELECT 1000U M 16V
C013 403 069 9500 CERAMIC 0.01U Z 50V
C014 403 069 9500 CERAMIC 0.01U Z 50V
C015 403 047 3100 ELECT 47U M 25V
C016 403 085 4008 NP-ELECT 10U M 16V
C017 403 085 4008 NP-ELECT 10U M 16V
C020 403 069 0507 CERAMIC 1000P K 50V
C021 403 052 8503 ELECT 1000U M 35V
C023 403 069 9500 CERAMIC 0.01U Z 50V
C024 403 069 9500 CERAMIC 0.01U Z 50V
C1001 403 069 1702 CERAMIC 1000P K 50V
Ref. No. Part No. Description Ref. No. Part No. Description
-14-
F7KVV

C1002 403 041 8804 ELECT 10U M 16V
C1003 403 009 5708 CERAMIC 100P J 50V
C1004 403 130 3109 CERAMIC 0.047U K 50V
C1005 403 069 1702 CERAMIC 1000P K 50V
C1006 403 041 8804 ELECT 10U M 16V
C1007 403 009 5708 CERAMIC 100P J 50V
C1008 403 130 3109 CERAMIC 0.047U K 50V
C1009 403 041 8804 ELECT 10U M 16V
C101 403 194 4609 ELECT 470U M 16V
C102 403 043 9106 ELECT 47U M 16V
C1021 403 069 1702 CERAMIC 1000P K 50V
C1022 403 041 8804 ELECT 10U M 16V
C1023 403 009 5708 CERAMIC 100P J 50V
C1024 403 041 9405 ELECT 10U M 16V
C1025 403 069 1702 CERAMIC 1000P K 50V
C1026 403 041 8804 ELECT 10U M 16V
C1027 403 009 5708 CERAMIC 100P J 50V
C1028 403 041 9405 ELECT 10U M 16V
C1029 403 041 8804 ELECT 10U M 16V
C103A 403 069 1712 CERAMIC 1000P K 50V
C1031 403 033 4500 CERAMIC 82P J 50V
C104B 403 043 9106 ELECT 47U M 16V
C1041 403 041 8804 ELECT 10U M 16V
C106 403 049 0008 ELECT 1U M 50V
C106A 403 069 9500 CERAMIC 0.01U Z 50V
C107A 403 069 1702 CERAMIC 1000P K 50V
C107B 403 069 9510 CERAMIC CHIP 0.01Z 50V
C108 403 027 1211 CERAMIC 5P J 50V
C109 403 027 1211 CERAMIC 5P J 50V
C110 403 033 4510 CERAMIC 82P J 50V
C1101 403 041 8804 ELECT 10U M 16V
C1103 403 069 1702 CERAMIC 1000P K 50V
C1104 403 041 8804 ELECT 10U M 16V
C1106 403 069 1702 CERAMIC 1000P K 50V
C1107 403 041 8804 ELECT 10U M 16V
C1108 403 033 4500 CERAMIC 82P J 50V
C1109 403 008 7406 CERAMIC 10P D 50V
C114 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C117 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C1200 403 069 9500 CERAMIC 0.01U Z 50V
C1201 403 041 8804 ELECT 10U M 16V
C1202 403 041 8804 ELECT 10U M 16V
C1203 403 069 8305 CERAMIC 0.01U Z 50V
C121 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C131 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C132 403 069 1702 CERAMIC 1000P K 50V
C133 403 069 9500 CERAMIC 0.01U Z 50V
C134 403 049 9803 ELECT 2.2U M 50V
C135 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C136 403 194 4609 ELECT 470U M 16V
C137 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C138 403 069 9500 CERAMIC 0.01U Z 50V
C141 403 028 4409 CERAMIC 56P J 50V
C142 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C143 403 027 1201 CERAMIC 5P C 50V
C146 403 010 8507 CERAMIC 12P J 50V
C151 403 024 2102 CERAMIC 39P J 50V
C162 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C171 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C1901 403 069 1702 CERAMIC 1000P K 50V
C200 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2001 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2002 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2003 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C201 403 014 3409 CERAMIC 18P J 50V
C202 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C203 403 073 9107 CERAMIC 4700P K 50V
C204 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C205 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C206 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C207 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C208 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C209 403 069 1702 CERAMIC 1000P K 50V
C212 403 049 9803 ELECT 2.2U M 50V
C215 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C222 404 045 6605 NP-ELECT 2.2U M 50V
C226 403 138 1602 ELECT 1U M 100V
C231 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C232 403 033 4500 CERAMIC 82P J 50V
C233 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C234 403 033 4500 CERAMIC 82P J 50V
C235 403 008 7406 CERAMIC 10P D 50V
C271 403 069 1702 CERAMIC 1000P K 50V
C272 403 069 1702 CERAMIC 1000P K 50V
C273 403 069 9500 CERAMIC 0.01U Z 50V
C274 403 041 8804 ELECT 10U M 16V
C351 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C352 403 270 3809 MT-POLYEST 0.047U K 63V
403 225 2703 MT-COMPO 0.047U J 50V
C353 403 073 9107 CERAMIC 4700P K 50V
C354 403 049 0008 ELECT 1U M 50V
C361 403 072 5605 CERAMIC 2700P K 50V
C362 403 069 9500 CERAMIC 0.01U Z 50V
C363 403 042 2405 ELECT 100U M 16V
C421 404 046 8400 MT-POLYPRO 8200P J 1.5K
C425 403 324 2406 CERAMIC 330P K 3K
403 287 3601 CERAMIC 330P K 3K
403 232 3007 CERAMIC 330P K 3K
C430 403 075 9709 CERAMIC 1800P K 500V
C432 403 075 7101 CERAMIC 1000P K 500V
C433 403 076 3102 CERAMIC 3900P K 500V
C434 403 229 1207 ELECT 47U M 35V
C437 403 066 6106 MT-POLYEST 0.47U J 250V
C438 403 059 3808 POLYESTER 2200P K 50V
403 179 2606 POLYESTER 2200P K 50V
C441 403 216 7601 POLYPRO 0.36U J 200V
C445 403 049 4204 ELECT 10U M 50V
C481 403 076 1405 CERAMIC 2700P K 500V
C482 403 159 7409 MT-POLYEST 0.1U K 250V
C501 403 054 1502 ELECT 470U M 35V
C502 403 053 2104 ELECT 220U M 35V
C503 403 024 2102 CERAMIC 39P J 50V
C504 403 069 9500 CERAMIC 0.01U Z 50V
C505 403 075 7101 CERAMIC 1000P K 500V
C506 403 183 7901 MT-POLYEST 0.1U K 100V
403 256 4806 MT-COMPO 0.1U J 100V
C511 403 188 1201 MT-POLYEST 0.15U K 100V
403 313 7603 MT-COMPO 0.15U J 100V
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-15- F7KVV

C512 403 148 0404 ELECT 1000U M 25V
C513 403 049 4204 ELECT 10U M 50V
C514 403 049 4204 ELECT 10U M 50V
C600 403 076 4000 CERAMIC 4700P K 500V
C601 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
404 077 6307 MT-POLYPRO 0.1U M 250V
C602 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
404 077 6307 MT-POLYPRO 0.1U M 250V
C603 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C604 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C605 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C606 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C607 404 047 1707 ELECT 220U M 400V
404 069 5905 ELECT 220U M 400V
C613 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C614 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C615 403 058 2604 POLYESTER 0.015U J 50V
403 179 3207 POLYESTER 0.015U J 50V
C616 403 247 6604 CERAMIC 680P K 2K
403 232 2109 CERAMIC 680P K 2K
C617 403 179 1718 POLYESTER 0.033U J 50V
C631 404 060 6505 CERAMIC 2200P M 400V
404 071 4200 CERAMIC 2200P M 400V
404 060 6604 CERAMIC 2200P M 400V
C632 404 044 2806 CERAMIC 470P K 400V
404 071 4606 CERAMIC 470P K 400V
404 060 6901 CERAMIC 470P M 400V
C640 403 069 8305 CERAMIC 0.01U Z 50V
C641 403 247 6505 CERAMIC 680P K 1K
403 262 4401 CERAMIC 680P K 1K
C642A 404 042 4505 ELECT 220U M 160V
C643 403 148 2002 ELECT 470U M 35V
C644 403 148 0701 ELECT 2200U M 25V
C645 403 158 1309 ELECT 2200U M 35V
C651 403 148 0305 ELECT 470U M 16V
C652 403 069 9500 CERAMIC 0.01U Z 50V
C653 403 043 9106 ELECT 47U M 16V
C655 403 126 4400 ELECT 100U M 10V
C661 403 051 0607 ELECT 4.7U M 50V
C681 403 190 4702 ELECT 1000U M 25V
C682 403 069 9500 CERAMIC 0.01U Z 50V
C683 403 147 9606 ELECT 1000U M 10V
C684 403 050 6600 ELECT 3.3U M 50V
C802 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C812 403 049 0008 ELECT 1U M 50V
C814 403 049 0008 ELECT 1U M 50V
C816 403 046 9905 ELECT 4.7U M 25V
C818 403 046 9905 ELECT 4.7U M 25V
C841 403 069 9500 CERAMIC 0.01U Z 50V
C860 403 022 8205 CERAMIC 33P J 50V
C861 403 138 5600 POLYESTER 5600P J 50V
403 179 0800 POLYESTER 5600P J 50V
C871 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C872 403 043 9106 ELECT 47U M 16V
C873 403 018 0503 CERAMIC 22P J 50V
C874 403 018 0503 CERAMIC 22P J 50V
C875 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C878 403 073 9107 CERAMIC 4700P K 50V
C879 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C881 403 069 9500 CERAMIC 0.01U Z 50V
C882 403 041 8804 ELECT 10U M 16V
C883 403 018 0503 CERAMIC 22P J 50V
C884 403 018 0503 CERAMIC 22P J 50V
C892 403 069 9500 CERAMIC 0.01U Z 50V
RESISTOR
R001 401 037 5400 MT-GLAZE 1K JA 1/10W
R002 401 037 9200 MT-GLAZE 1.8K JA 1/10W
R003 401 037 5400 MT-GLAZE 1K JA 1/10W
R004 401 037 9200 MT-GLAZE 1.8K JA 1/10W
R005 401 019 9600 CARBON 47 JA 1/4W
R006 401 014 4105 CARBON 1.5K JA 1/4W
R007 401 019 9600 CARBON 47 JA 1/4W
R008 401 014 4105 CARBON 1.5K JA 1/4W
R009 401 010 1504 CARBON 4.7 JA 1/2W
R010 401 010 1504 CARBON 4.7 JA 1/2W
R011 401 007 7601 CARBON 150 JA 1/2W
R012 401 007 7601 CARBON 150 JA 1/2W
R013 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R014 401 025 7409 CARBON 220 JA 1/6W
R015 401 037 5400 MT-GLAZE 1K JA 1/10W
R016 401 038 6505 MT-GLAZE 47K JA 1/10W
R017 401 037 5608 MT-GLAZE 10K JA 1/10W
R100 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1001 401 038 7601 MT-GLAZE 560 JA 1/10W
R1002 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1003 401 038 7601 MT-GLAZE 560 JA 1/10W
R1004 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1005 401 027 6608 CARBON 75 JA 1/6W
R1006 401 038 5300 MT-GLAZE 39K JA 1/10W
R1007 401 038 3702 MT-GLAZE 33K JA 1/10W
R1008 401 027 6608 CARBON 75 JA 1/6W
R1009 401 027 6608 CARBON 75 JA 1/6W
R101 401 038 6218 MT-GLAZE 47 JA 1/10W
R1010 401 027 6608 CARBON 75 JA 1/6W
R1011 401 037 5202 MT-GLAZE 100 JA 1/10W
R1012 401 027 6608 CARBON 75 JA 1/6W
R1013 401 024 6700 CARBON 100 JA 1/6W
R1014 401 027 6608 CARBON 75 JA 1/6W
R1015 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R1016 401 019 1000 CARBON 390 JA 1/4W
R1017 401 024 7400 CARBON 10K JA 1/6W
R1018 401 038 3504 MT-GLAZE 330 JA 1/10W
R1021 401 038 7601 MT-GLAZE 560 JA 1/10W
R1022 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1023 401 038 7601 MT-GLAZE 560 JA 1/10W
R1024 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1025 401 038 5300 MT-GLAZE 39K JA 1/10W
R1026 401 038 3702 MT-GLAZE 33K JA 1/10W
R1027 401 027 6608 CARBON 75 JA 1/6W
R1028 401 027 6608 CARBON 75 JA 1/6W
R1029 401 026 0607 CARBON 270 JA 1/6W
R1031 401 038 0602 MT-GLAZE 220 JA 1/10W
R1032 401 038 0602 MT-GLAZE 220 JA 1/10W
R1033 401 038 0602 MT-GLAZE 220 JA 1/10W
R1041 401 038 2200 MT-GLAZE 27K JA 1/10W
R1042 401 037 5608 MT-GLAZE 10K JA 1/10W
R1043 401 039 0304 MT-GLAZE 820 JA 1/10W
R1044 401 039 0304 MT-GLAZE 820 JA 1/10W
R1045 401 037 5400 MT-GLAZE 1K JA 1/10W
R1046 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1047 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R1051 401 037 8104 MT-GLAZE 150K JA 1/10W
R1052 401 037 5707 MT-GLAZE 100K JA 1/10W
R1053 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R1054 401 037 8104 MT-GLAZE 150K JA 1/10W
!
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-16-
F7KVV

R1055 401 037 5707 MT-GLAZE 100K JA 1/10W
R1056 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R108 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R110 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1101 401 027 6608 CARBON 75 JA 1/6W
R1102 401 038 2002 MT-GLAZE 270 JA 1/10W
R1103 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1104 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1105 401 037 5707 MT-GLAZE 100K JA 1/10W
R1106 401 037 5707 MT-GLAZE 100K JA 1/10W
R1111 401 037 5608 MT-GLAZE 10K JA 1/10W
R1200 401 022 1905 CARBON 680 JA 1/4W
R1201 401 038 6505 MT-GLAZE 47K JA 1/10W
R1202 401 038 6505 MT-GLAZE 47K JA 1/10W
R1203 401 037 5608 MT-GLAZE 10K JA 1/10W
R1204 401 038 2200 MT-GLAZE 27K JA 1/10W
R1205 401 038 2200 MT-GLAZE 27K JA 1/10W
R1208 401 038 0800 MT-GLAZE 22K JA 1/10W
R1209 401 024 7400 CARBON 10K JA 1/6W
R121 401 027 0309 CARBON 47K JA 1/6W
R131 401 038 0909 MT-GLAZE 220K JA 1/10W
R132 401 038 0909 MT-GLAZE 220K JA 1/10W
R133 401 037 9101 MT-GLAZE 180 JA 1/10W
R134 401 039 0413 MT-GLAZE 8.2K JA 1/10W
R135 401 038 0810 MT-GLAZE 22K JA 1/10W
R137 401 037 5202 MT-GLAZE 100 JA 1/10W
R138 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R141 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R150 401 024 7004 CARBON 1K JA 1/6W
R151 401 022 1905 CARBON 680 JA 1/4W
R152 401 025 3807 CARBON 180 JA 1/6W
R153 401 037 5400 MT-GLAZE 1K JA 1/10W
R154 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R155 401 037 5400 MT-GLAZE 1K JA 1/10W
R156 401 037 5400 MT-GLAZE 1K JA 1/10W
R157 401 039 0908 MT-GLAZE 910 JA 1/10W
R158 401 037 5400 MT-GLAZE 1K JA 1/10W
R159 401 022 1905 CARBON 680 JA 1/4W
R163 401 038 6505 MT-GLAZE 47K JA 1/10W
R171 401 038 6307 MT-GLAZE 470 JA 1/10W
R172 401 025 7409 CARBON 220 JA 1/6W
R173 401 025 7409 CARBON 220 JA 1/6W
R1901 401 037 8005 MT-GLAZE 15K JA 1/10W
R1901A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1902 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R1902A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1903 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R1903A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1904 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R1905 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1906 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1907 401 037 5608 MT-GLAZE 10K JA 1/10W
R1908 401 038 3504 MT-GLAZE 330 JA 1/10W
R1909 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R1911 401 038 6307 MT-GLAZE 470 JA 1/10W
R1921 401 037 6605 MT-GLAZE 120 JA 1/10W
R1922 401 038 5003 MT-GLAZE 390 JA 1/10W
R1924 401 027 5502 CARBON 6.8K JA 1/6W
R2001 401 038 2200 MT-GLAZE 27K JA 1/10W
R2002 401 037 5608 MT-GLAZE 10K JA 1/10W
R2004 401 037 7800 MT-GLAZE 150 JA 1/10W
R2005 401 024 9701 CARBON 12K JA 1/6W
R201 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R202 401 037 5707 MT-GLAZE 100K JA 1/10W
R203 401 024 6700 CARBON 100 JA 1/6W
R204 401 024 6700 CARBON 100 JA 1/6W
R205 401 024 6700 CARBON 100 JA 1/6W
R206 401 037 5202 MT-GLAZE 100 JA 1/10W
R207 401 037 5202 MT-GLAZE 100 JA 1/10W
R208 401 037 5202 MT-GLAZE 100 JA 1/10W
R212 401 026 1000 CARBON 2.7K JA 1/6W
R213 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R214 401 037 5202 MT-GLAZE 100 JA 1/10W
R215 401 038 3702 MT-GLAZE 33K JA 1/10W
R216 401 025 8208 CARBON 22K JA 1/6W
R217 401 025 8208 CARBON 22K JA 1/6W
R218 401 038 7809 MT-GLAZE 56K JA 1/10W
R223 401 015 4708 CARBON 180K JA 1/4W
R224 401 024 7004 CARBON 1K JA 1/6W
R226 401 026 7408 CARBON 39K JA 1/6W
R227 401 024 7400 CARBON 10K JA 1/6W
R231 401 038 2002 MT-GLAZE 270 JA 1/10W
R232 401 038 2002 MT-GLAZE 270 JA 1/10W
R271 401 024 6700 CARBON 100 JA 1/6W
R272 401 024 9008 CARBON 120 JA 1/6W
R351 401 037 5202 MT-GLAZE 100 JA 1/10W
R352 401 012 9300 CARBON 1M JA 1/4W
R353 401 038 0909 MT-GLAZE 220K JA 1/10W
R356 401 037 5202 MT-GLAZE 100 JA 1/10W
R357 401 037 8005 MT-GLAZE 15K JA 1/10W
R361 401 038 5409 MT-GLAZE 390K JA 1/10W
R363 401 038 0800 MT-GLAZE 22K JA 1/10W
R364 401 037 5202 MT-GLAZE 100 JA 1/10W
R365 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R431 401 038 3504 MT-GLAZE 330 JA 1/10W
R432 401 038 3504 MT-GLAZE 330 JA 1/10W
R433 401 010 3102 CARBON 470 JA 1/2W
R434 401 067 9201 OXIDE-MT 390 JA 2W
R435 402 069 8704 WIRE WOUND 8.2 KA 7W
402 076 0609 WIRE WOUND 8.2 KA 7W
R436 401 021 3009 CARBON 5.6K JA 1/4W
R441 401 058 3706 OXIDE-MT 1K JA 1W
R447 401 026 9907 CARBON 4.7K JA 1/6W
R448 401 009 5803 CARBON 330 JA 1/2W
R451 401 064 5701 OXIDE-MT 1.8 JA 2W
R481 401 025 4903 CARBON 180K JA 1/6W
R482 401 027 2600 CARBON 5.6K JA 1/6W
R501 401 026 9907 CARBON 4.7K JA 1/6W
R502 402 051 8705 FUSIBLE RES 4.7 J- 1/2W
R504 401 027 3003 CARBON 56K JA 1/6W
R505 401 024 7400 CARBON 10K JA 1/6W
R506 401 025 1605 CARBON 1.5K JA 1/6W
R507 401 025 3807 CARBON 180 JA 1/6W
R508 401 025 7805 CARBON 2.2K JA 1/6W
R509 401 057 9105 OXIDE-MT 1.2 JA 1W
R511 401 060 7402 OXIDE-MT 270 JA 1W
R513 401 059 3903 OXIDE-MT 1.5K JA 1W
R602 402 067 7709 WIRE WOUND 3.9 KA 7W
402 072 4403 WIRE WOUND 3.9 KA 7W
R611 401 027 2600 CARBON 5.6K JA 1/6W
R615 401 025 8208 CARBON 22K JA 1/6W
R617 401 024 9305 CARBON 1.2K JA 1/6W
R619 401 016 1508 CARBON 22 JA 1/4W
R620 401 007 5805 CARBON 120K JA 1/2W
R621 401 007 5805 CARBON 120K JA 1/2W
R622 401 014 5201 CARBON 15K JA 1/4W
R623 401 025 7805 CARBON 2.2K JA 1/6W
R624 401 068 6902 OXIDE-MT 56 JA 2W
R625 401 067 8204 OXIDE-MT 39 JA 2W
R626 401 016 3304 CARBON 2.2K GA 1/4W
R631 402 000 8305 SOLID 5.6M KA 1/2W
R632 402 000 8305 SOLID 5.6M KA 1/2W
R641 401 012 8105 CARBON 100K JA 1/4W
R642 401 026 9907 CARBON 4.7K JA 1/6W
R643 401 014 6109 CARBON 150K JA 1/4W
R644 401 010 4307 CARBON 47K JA 1/2W
R645 401 025 8208 CARBON 22K JA 1/6W
R646 402 067 3305 WIRE WOUND 4.7 KA 5W
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-17- F7KVV

402 075 5704 WIRE WOUND 4.7 KA 5W
R652 401 065 1801 OXIDE-MT 12 JA 2W
R653 401 067 8204 OXIDE-MT 39 JA 2W
R655 401 065 5809 OXIDE-MT 15 JA 2W
R661 401 068 4700 OXIDE-MT 4.7K JA 2W
R662 401 068 0207 OXIDE-MT 3.9K JA 2W
R681 401 008 1608 CARBON 1.8K JA 1/2W
R682 401 069 1708 OXIDE-MT 68 JA 2W
R684 401 027 8602 CARBON 8.2K JA 1/6W
R685 401 025 8208 CARBON 22K JA 1/6W
R800 401 025 7805 CARBON 2.2K JA 1/6W
R801 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R802 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R803 401 037 9408 MT-GLAZE 180K JA 1/10W
R804 401 024 7400 CARBON 10K JA 1/6W
R806 401 024 7400 CARBON 10K JA 1/6W
R807 401 024 7400 CARBON 10K JA 1/6W
R808 401 019 1901 CARBON 3.9K JA 1/4W
R811 401 025 7805 CARBON 2.2K JA 1/6W
R812 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R813 401 026 4605 CARBON 33K JA 1/6W
R815 401 024 6700 CARBON 100 JA 1/6W
R816 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R817 401 025 7805 CARBON 2.2K JA 1/6W
R817A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R818 401 038 9308 MT-GLAZE 68K JA 1/10W
R819 401 025 7805 CARBON 2.2K JA 1/6W
R820 401 037 5608 MT-GLAZE 10K JA 1/10W
R821 401 038 0800 MT-GLAZE 22K JA 1/10W
R822 401 038 6505 MT-GLAZE 47K JA 1/10W
R823 401 024 9305 CARBON 1.2K JA 1/6W
R824 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R825 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R831 401 037 5608 MT-GLAZE 10K JA 1/10W
R838 401 037 8005 MT-GLAZE 15K JA 1/10W
R839 401 026 4605 CARBON 33K JA 1/6W
R840 401 026 9600 CARBON 470 JA 1/6W
R841 401 038 0800 MT-GLAZE 22K JA 1/10W
R842 401 026 9907 CARBON 4.7K JA 1/6W
R843 401 037 5608 MT-GLAZE 10K JA 1/10W
R844 401 037 9210 MT-GLAZE 1.8K JA 1/10W
R845 401 037 5608 MT-GLAZE 10K JA 1/10W
R846 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R847 401 037 5608 MT-GLAZE 10K JA 1/10W
R848 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R851 401 037 5400 MT-GLAZE 1K JA 1/10W
R852 401 037 5400 MT-GLAZE 1K JA 1/10W
R853 401 038 0800 MT-GLAZE 22K JA 1/10W
R861 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R862 401 038 0800 MT-GLAZE 22K JA 1/10W
R863 401 038 0800 MT-GLAZE 22K JA 1/10W
R864 401 039 0304 MT-GLAZE 820 JA 1/10W
R865 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R866 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R867 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R868 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R869 401 038 2200 MT-GLAZE 27K JA 1/10W
R870A 401 038 0800 MT-GLAZE 22K JA 1/10W
R871 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R872 401 038 3702 MT-GLAZE 33K JA 1/10W
R873 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R874 401 037 5608 MT-GLAZE 10K JA 1/10W
R875 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R876 401 037 5608 MT-GLAZE 10K JA 1/10W
R877 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R878 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R879 401 037 5608 MT-GLAZE 10K JA 1/10W
R880 401 038 6505 MT-GLAZE 47K JA 1/10W
R884 401 037 7800 MT-GLAZE 150 JA 1/10W
R885 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R886 401 037 7800 MT-GLAZE 150 JA 1/10W
R887 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R888 401 037 5202 MT-GLAZE 100 JA 1/10W
R889 401 037 5202 MT-GLAZE 100 JA 1/10W
R891 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R892 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R893 401 037 5400 MT-GLAZE 1K JA 1/10W
R894 401 037 5400 MT-GLAZE 1K JA 1/10W
R895 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R897 401 024 7004 CARBON 1K JA 1/6W
R898 401 024 7004 CARBON 1K JA 1/6W
VARIABLE RESISTOR
VR131 645 006 5422 VR,SEMI,10K N
645 003 5531 VR,SEMI,10K N
610 239 7567 VR B-10K
VR361 645 006 5422 VR,SEMI,10K N
645 003 5531 VR,SEMI,10K N
610 239 7567 VR B-10K
VR501 645 006 5408 VR,SEMI,100 N
645 006 5231 VR,SEMI,100 N
610 232 7908 VR,SEMI,100 N
VR641 645 006 5514 VR,SEMI,2.2K N
645 003 5579 VR,SEMI,2.2K N
610 239 7581 VR B-2K
TRANSFORMER
T101 610 037 4508 S COIL 33R4M-7K
T141 610 037 4522 S COIL
T431 610 000 1053 DRIVE TRANS
610 000 1060 DRIVE TRANS
T451 645 035 5295 TRANS,FLYBACK
T611 645 015 7646 TRANS,POWER,PULSE
645 018 9425 TRANS,POWER,PULSE
T681 610 033 3758 POWER TRANS
610 240 4722 POWER TRANS
COIL
L001 645 008 5635 INDUCTOR,12U K
L002 645 008 5635 INDUCTOR,12U K
L003 645 002 1787 CORE,PIPE
L1002 645 002 1787 CORE,PIPE
L1003 645 001 4567 INDUCTOR,10U K
L1004 645 001 4567 INDUCTOR,10U K
L1005 645 001 4567 INDUCTOR,10U K
L1006 645 001 4567 INDUCTOR,10U K
L101 645 001 4567 INDUCTOR,10U K
L102 645 008 2863 INDUCTOR,4.7U K
L1022 645 002 1787 CORE,PIPE
L1023 645 001 4567 INDUCTOR,10U K
L1024 645 001 4567 INDUCTOR,10U K
L1025 645 001 4567 INDUCTOR,10U K
L1026 645 001 4567 INDUCTOR,10U K
L1027 645 008 2863 INDUCTOR,4.7U K
L1101 645 001 4567 INDUCTOR,10U K
L1102 645 001 4567 INDUCTOR,10U K
L1103 645 008 2863 INDUCTOR,4.7U K
L141 645 001 4567 INDUCTOR,10U K
L151 645 008 2924 INDUCTOR,8.2U K
L152 645 003 9782 INDUCTOR,22U K
L201 645 001 4567 INDUCTOR,10U K
L202 645 001 4567 INDUCTOR,10U K
L203 645 001 4567 INDUCTOR,10U K
L231 645 008 2863 INDUCTOR,4.7U K
L232 645 008 2863 INDUCTOR,4.7U K
L432 645 002 1787 CORE,PIPE
L441A 610 000 0605 LINEARITY COIL
610 210 8071 LINEARITY COIL
!
!
!
!
!
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-18-
F7KVV

L442 610 000 0278 COIL
610 205 1117 COIL
L501 645 008 5642 INDUCTOR,3.3U K
L601 645 012 3337 LINE FILTER
L607 610 237 1000 PIPE CORE
L608 610 237 1000 PIPE CORE
L641 645 002 1787 CORE,PIPE
L642 645 002 1787 CORE,PIPE
L643 645 002 1787 CORE,PIPE
L871 645 008 0203 INDUCTOR,5.6U K
L881 645 001 4697 INDUCTOR,1.5U M
DIODE
D1005 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1007 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1008 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1010 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1011 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1021 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1022 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1023 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1024 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1026 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1027 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1101 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1201 407 053 6803 ZENER DIODE MTZ5.6C
407 057 0104 ZENER DIODE RD5.6EB3
407 151 8501 ZENER DIODE UZ-5.6BCC
D135 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1901-1 610 269 4710 HOLDER LED A-G2CA
D1901A 407 116 6504 LED SLP-181B-51
D1903 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1905 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D201 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D202 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D203 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D210 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D221 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D222 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D271 407 053 6407 ZENER DIODE MTZ5.1C
407 056 8200 ZENER DIODE RD5.1EB3
407 163 8209 ZENER DIODE UZ-5.1BCC
D361 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D431 407 053 8708 ZENER DIODE MTZ9.1A
407 053 8807 ZENER DIODE MTZ9.1B
407 057 9602 ZENER DIODE RD9.1EB1
407 057 9701 ZENER DIODE RD9.1EB2
407 163 9909 ZENER DIODE UZ-9.1BCA
407 162 2703 ZENER DIODE UZ-9.1BCB
D432 407 005 7308 DIODE EM01Z
D442 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D445 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D446 407 151 9003 ZENER DIODE UZ-7.5BCC
407 151 9102 ZENER DIODE UZ-8.2BCA
D481 407 007 7405 DIODE EU1
D482 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D501 407 005 7308 DIODE EM01Z
408 009 9008 DIODE BYD33D
D502 407 118 2207 ZENER DIODE 1Z75
D603 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D604 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D605 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D606 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D614 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D615 407 105 8700 PHOTO COUPLE PC113B
408 009 8407 PHOTO COUPLE CNY17F-3OPT6
D616 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D617 407 007 6606 DIODE ES1
407 007 6903 DIODE ES1Z
408 009 9008 DIODE BYD33D
D618 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D619 407 053 3000 ZENER DIODE MTZ11C
407 054 1807 ZENER DIODE RD11EB3
D641 407 007 7702 DIODE EU2A
D642 407 007 7603 DIODE EU2
407 007 7801 DIODE EU2Z
D643 407 166 2303 DIODE ERC91-02L
D644 407 166 2303 DIODE ERC91-02L
D645 407 053 7206 ZENER DIODE MTZ6.2C
407 053 7503 ZENER DIODE MTZ6.8A
407 057 2801 ZENER DIODE RD6.2EB3
407 057 4003 ZENER DIODE RD6.8EB1
D647 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D651 407 005 7308 DIODE EM01Z
D654 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D661 409 013 0104 IC HZT33
409 026 8005 IC L5630
409 057 5103 IC UPC574J
D681 407 005 7308 DIODE EM01Z
D682 407 053 6803 ZENER DIODE MTZ5.6C
407 057 0104 ZENER DIODE RD5.6EB3
407 151 8501 ZENER DIODE UZ-5.6BCC
D683 407 005 7308 DIODE EM01Z
D684 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D685 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D831 407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
!
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-19- F7KVV

407 013 6508 DIODE 1S2471
D861 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D871 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D872 407 055 7907 ZENER DIODE RD3.6EL
MISCELLANEOUS
423 022 2102 FUSE 250V 4A
F601A 645 000 5077 HOLDER,FUSE
F601B 645 000 5077 HOLDER,FUSE
A101 645 023 4118 TUNER,U/V
A1901 645 007 1546 UNIT,REMOCON RECEIVER
610 224 5806 RC PREAMP 409-1L
K001 645 005 5706 JACK,PHONE D3.6
645 006 4708 JACK,PHONE D3.6
K10B 645 004 2911 PLUG,5P
K1001 645 005 5867 SOCKET,RGB 21P
610 234 3779 SOCKET 21P
K1001Z 610 261 2813 MOUNTING-BRKT F2WV
K1002 645 005 5867 SOCKET,RGB 21P
610 234 3779 SOCKET 21P
K1002Z 610 261 2813 MOUNTING-BRKT F2WV
K1101 645 016 6433 JACK,RCA-3
PS601 408 003 6805 THERMISTOR 902P44E180MR14
408 015 1904 THERMISTOR PA3A5180B270
SW1901 610 011 4432 SWITCH,PUSH
SW1902 610 011 4432 SWITCH,PUSH
SW1903 610 011 4432 SWITCH,PUSH
SW1904 610 011 4432 SWITCH,PUSH
SW501 610 011 2728 SWITCH,LEVER 1P-3T
SW601 645 017 0928 SWITCH,PUSH POWER 2P-2T
X131 421 002 2609 SAW F TSF5315
421 003 3902 SAW F TSF5315U
X151 610 015 2854 TRAP,CERAMIC 5.5MHZ
X152 610 015 3011 TRAP,CERAMIC 6.5MHZ
X201 645 025 2631 OSC,CRYSTAL 4.433619MHZ
645 018 9050 OSC,CRYSTAL 4.433619MHZ
610 249 5577 CRYSTAL OSCILLATOR
X871 645 018 9593 OSC,CRYSTAL 12MHZ
645 015 8339 OSC,CRYSTAL 12MHZ
ASSY,PWB,SIF F3SS 1AA0B10H0330A
TRANSISTOR
Q3811 405 014 4509 TR 2SC2412K T146 R
405 015 8704 TR 2SC2812-L6-TB
INTEGRATED CIRCUIT
IC3801 409 310 8407 IC LA7577N
CAPACITOR
C3805 403 023 4404 CERAMIC 330P J 50V
C3806 403 069 9500 CERAMIC 0.01U Z 50V
C3807 403 069 9500 CERAMIC 0.01U Z 50V
C3808 403 041 8804 ELECT 10U M 16V
C3809 403 069 9500 CERAMIC 0.01U Z 50V
C3810 403 046 9905 ELECT 4.7U M 25V
C3811 403 018 0503 CERAMIC 22P J 50V
C3812 403 048 6308 ELECT 0.47U M 50V
C3813 403 074 6600 CERAMIC 560P K 50V
C3814 403 069 1702 CERAMIC 1000P K 50V
C3815 403 069 9500 CERAMIC 0.01U Z 50V
RESISTOR
R3811 401 038 7502 MT-GLAZE 56 JA 1/10W
R3812 401 037 5608 MT-GLAZE 10K JA 1/10W
R3815 401 037 5400 MT-GLAZE 1K JA 1/10W
R3816 401 038 3504 MT-GLAZE 330 JA 1/10W
R3817 401 039 0304 MT-GLAZE 820 JA 1/10W
R3818 401 037 6704 MT-GLAZE 1.2K JA 1/10W
TRANSFORMER
T3801 610 037 4539 S COIL
MISCELLANEOUS
K38H1 645 027 0185 PLUG,4P
K38H2 645 027 0185 PLUG,4P
X3801 421 007 2109 SAW F TSB5392T
ASSY,PWB,AUDIO F3SS MK2 1AA0B10H0330B
TRANSISTOR
Q1252 405 014 4519 TR 2SC2412KT146/R
Q1253 405 014 4519 TR 2SC2412KT146/R
Q3452 405 014 4519 TR 2SC2412KT146/R
Q3453 405 014 4519 TR 2SC2412KT146/R
Q3501 405 014 4519 TR 2SC2412KT146/R
Q3502 405 014 4519 TR 2SC2412KT146/R
Q3503 405 014 4519 TR 2SC2412KT146/R
INTEGRATED CIRCUIT
IC1251 409 009 2501 IC HD14052BP
409 120 7607 IC MN4052B
409 051 2801 IC TC4052BP
409 059 2209 IC UPD4052BC
IC3451 409 445 1403 IC TDA9875A/V2
IC3500 409 367 2809 IC BA178M09T
409 377 5401 IC L78M09CV
409 370 0007 IC MC78M09CT
IC3501 409 398 9204 IC MM1369AD
409 405 6004 IC MM1369BD
CAPACITOR
C1251 403 248 1618 ELECT 47U M 16V
C3452 403 314 5915 SMD CAP GRM40X5R474K16
C3453 403 026 2813 CERAMIC 47P J 50V
C3454 403 068 0419 CERAMIC 0.1U Z 25V
C3455 401 037 5014 MT-GLAZE 0.000 ZA 1/10W
C3458 403 026 2813 CERAMIC 47P J 50V
C3461 403 248 1410 ELECT 1U M 50V
C3462 401 037 5014 MT-GLAZE 0.000 ZA 1/10W
C3468 403 248 1410 ELECT 1U M 50V
C3469 403 248 1410 ELECT 1U M 50V
C3473 403 279 4312 CERAMIC 0.33U K 16V
C3474 403 279 4312 CERAMIC 0.33U K 16V
C3476 403 314 5915 SMD CAP GRM40X5R474K16
C3477 403 248 1618 ELECT 47U M 16V
C3480 403 248 1618 ELECT 47U M 16V
C3481 403 248 1618 ELECT 47U M 16V
C3482 403 069 9510 CERAMIC CHIP 0.01 Z 50V
C3483 403 069 9510 CERAMIC CHIP 0.01 Z 50V
C3484 403 248 1618 ELECT 47U M 16V
C3485 403 069 9510 CERAMIC CHIP 0.01 Z 50V
C3486 403 248 1410 ELECT 1U M 50V
C3487 403 248 1410 ELECT 1U M 50V
C3490 403 009 5718 CERAMIC 100P J 50V
C3492 403 069 5611 CERAMIC 0.01U K 50V
C3493 403 069 5611 CERAMIC 0.01U K 50V
C3500 403 248 1618 ELECT 47U M 16V
C3501 403 049 4204 ELECT 10U M 50V
C3502 403 075 0716 CERAMIC 6800P K 50V
C3503 403 010 1112 CERAMIC 100
C3504 403 192 5915 CERAMIC 0.1U K 25V
C3505 403 248 1618 ELECT 47U M 16V
C3506 403 248 2813 ELECT 2.2U M 50V
C3507 403 069 5611 CERAMIC 0.01U K 50V
!
!
!
Ref. No. Part No. Description Ref. No. Part No. Description
-20-
F7KVV
