Saregama CARVAAN User manual

INSTALLATION GUIDE
MUSICBAR
1

2
2N WALLMOUNT BRACKETS
4N PLASTIC FASTENER (32mm)
4N SELF THREAD SCREW (3*37.5)
1
2
3
1N WALL MOUNT PAPER TEMPLATE
4
INSTALLATION KIT

WALLMOUNT CARVAAN MUSICBAR

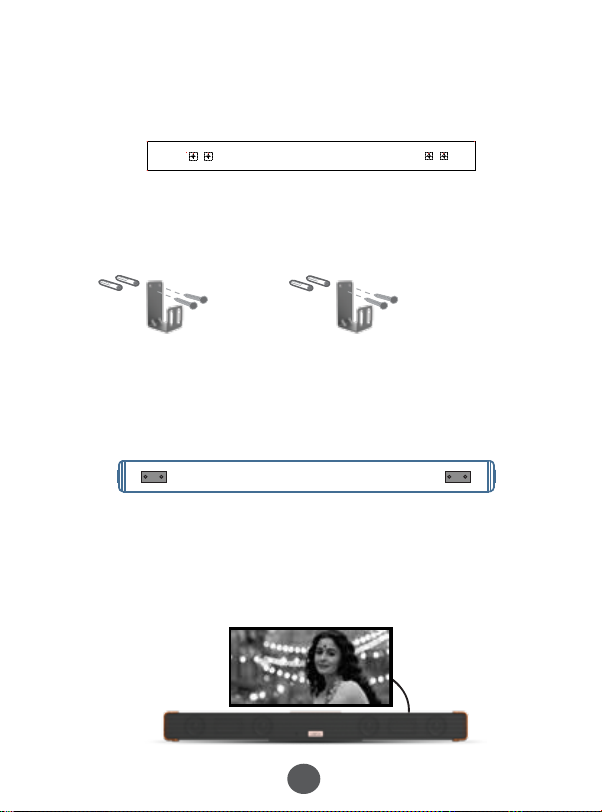

Step 1: Fix the Wall mount brackets and screws
Step 2: Attach Carvaan Musicbar to the wall mounted
brackets
a. Carvaan Musicbar comes attached with wall mount bracket holders on
the back panel of the unit
b. Align the bracket holders with the brackets (wall mounted in Step 1)
and hang the unit
c. Connect any USB or cables (HDMI / Aux / Co-axial) before hanging the
Carvaan Musicbar
a. Stick the wall mount paper template on the wall with a tape & make a
mark on the 2 holes provided on the paper with a pen / pencil
b. Remove the wall mount paper template and drill in the marked locations
c. Put the fasteners (2N) in the drilled holes & attach the wall bracket on the
wall with screws provided (2N)
NOTE: ensure that the paper template is aligned correctly in order to avoid misalignment of the screws
3
WALL MOUNT PAPER TEMPLATE

4
