Sartorius YTM15MA User manual

1000026973
Operating Instructions
YTM15MA
Heating Adjustment Set

Operating Instructions YTM15MA 3
Contents
Contents
1 About These Instructions ........ 4
1.1 Scope ......................4
1.2 Other Applicable Documents...4
1.3 Symbols Used ...............4
1.3.1 Warnings ............ 4
1.3.2 Other Symbols........ 5
2 Safety Instructions .............. 5
2.1 Intended Use ................5
2.2
Personal Protective Equipment . . 5
2.3 Hot Surfaces ................6
3 Installation..................... 7
3.1 Equipment Supplied ..........7
3.2 Inserting the Battery .........8
4 Operation ...................... 8
4.1 Notes on Calibrating the
Moisture Analyzer............8
4.2 Transporting and Removing
the Adjustment Disk..........9
4.3 Need for Calibration/Adjusting
the Heating Module .........11
4.4 Calibrate Heating Module
(MA37|MA160) ............13
4.5 Calibrate/Adjust Heating
Module (MA37|MA160) .....17
4.6 Single-Point Temperature
Adjustment (MA35) .........22
5 Cleaning and Maintenance...... 27
5.1 Changing the Battery........27
5.2 Maintenance ...............27
6 Waste Disposal Policy .......... 27
6.1 General Instructions .........27
6.2 Waste Disposal Policy........28
7 Sartorius Service............... 28
8 Factory Calibration Certificate
(Sample) ...................... 29

4 Operating Instructions YTM15MA
About These Instructions
1 About These Instructions
1.1 Scope
These instructions apply to the following product:
Product Model
Heating Adjustment Set YTM15MA
1.2 Other Applicable Documents
t In addition to these instructions, please observe the
following documents:
− Operating Instructions for the Moisture
Analyzer (MA35|MA37|MA160)
− Instructions for the temperature measuring
instrument
1.3 Symbols Used
1.3.1 Warnings
CAUTION
Denotes a hazard that may result in moderate or minor
injury if it is not avoided.
NOTICE
Denotes a danger that can result in property damage if
the risk is not avoided.

Operating Instructions YTM15MA 5
Safety Instructions
1.3.2 Other Symbols
tRequired action: Describes actions which must
be carried out.
yResult: Describes the result of the activities
carried out.
[ ] Text inside brackets refers to control and
display items.
Figures on the Operating Display
Depending on the device configuration, the figures on
the operating display of the device may differ from
those described in these instructions.
2 Safety Instructions
2.1 Intended Use
The product is used for the calibration and adjustment
of the heating module of a moisture analyzer (MA35|
MA37|MA160). Do not use the product in potentially
explosive environments.
Any further use beyond this is considered improper
and is prohibited. These instructions are part of the
product. The product is intended exclusively for use
in accordance with these instructions.
2.2 Personal Protective Equipment
Personal protective equipment protects against risks
arising from handling the product.
t Wear appropriate personal protective equipment.
t Also follow the instructions posted in the work area
pertaining to personal protective equipment.

6 Operating Instructions YTM15MA
Safety Instructions
2.3 Hot Surfaces
During operation, parts of the device can heat up,
thereby making their surfaces hot. There is a danger
of burns to the body parts that touch these surfaces.
t Avoid contact with hot surfaces.
t Before working with the device: Allow the heating
element and device equipment to cool.
t Do not insert the adjustment disk immediately
after drying.
t Always use the removal tool to transport the
adjustment disk or remove it from the moisture
analyzer after a measurement.
t Allow the adjustment disk to cool on a clean,
temperature-resistant pad before or after
completion of a measurement.
t After cooling, place the adjustment disk back into
the carrying case and store it in a dust-free and
protected location.
t Wear personal protective equipment.

Operating Instructions YTM15MA 7
Installation
3 Installation
3.1 Equipment Supplied
1 2 3 4 5 6
Fig. 3-1: Equipment Supplied
Pos. Product Quantity
1 Carrying case 1
2 Temperature measuring instrument 1
3 Adjustment disk 1
4 Battery 1
5 Disk holder (removal tool) 1

8 Operating Instructions YTM15MA
Operation
Pos. Product Quantity
6 Measurement cable (permanently attached to the
adjustment disk)
1
Not illustrated Instructions for the Heating Adjustment Set
Not illustrated Instructions for the Temperature Measuring Instrument
Not illustrated Factory calibration certificate with serial number
(ref. ID no.)
3.2 Inserting the Battery
t Insert the battery into the temperature measuring instrument (to do this, refer to
the Instructions for the Temperature Measuring Instrument).
4 Operation
4.1 Notes on Calibrating the Moisture Analyzer
When calibrating the moisture analyzer using the heating adjustment set, there is an
examination of whether the moisture analyzer is adjusted to the ambient conditions
at the place of use. A basic heating adjustment has already been carried out at the
factory. This adjustment is valid for many installation sites under laboratory
conditions.
However, if you have particular ambient conditions, e.g. strong direct sunlight or
operation in an exhaust, then an inspection will be necessary.
The adjustment disk has a special coating, which absorbs almost all heat radiation.
This ensures that your measurements are reliably adjustable to all operating sites.
If calibration is carried out, then this must be calibrated in the ambient conditions
present. E.g.: If the moisture analyzer is operated in a room with exhaust, then the
moisture analyzer must also be calibrated at this place of use.

Operating Instructions YTM15MA 9
Operation
The following conditions should be taken into account
when calibrating the moisture analyzer:
− Carry out calibration in a temperate area. The room
temperature should be 20°C.
− Carry out calibration in a clean measurement
location.
− Use a stable and level surface (table).
− Drafts, e.g. from open doors/windows, should be
avoided.
If required: Shield the device.
− The frequent movement of persons in front of the
device should be avoided (unstable conditions).
− Avoid direct sunlight.
− Avoid gases or dusts.
− Establish a safety distance in the direct vicinity of
the device. At least 20 cm on all sides and at least
1 m above the device.
4.2 Transporting and Removing the
Adjustment Disk
CAUTION
Danger of burns due to hot adjustment disk!
t Always use the disk holder (removal tool) to
transport the adjustment disk or remove it from
the moisture analyzer after calibration.
t Allow the adjustment disk to cool on a clean,
temperature-resistant pad before or after
completion of a measurement.
t Only place the adjustment disk back into the
carrying case after cooling.
t Wear personal protective equipment.

10 Operating Instructions YTM15MA
Operation
NOTICE
Danger of damage to the adjustment disk!
The adjustment disk is calibrated according to a
factory-internal test procedure. If the adjustment disk
is damaged, it will lose its measurement accuracy.
Observe the following notes in order to maintain the
measurement accuracy:
t Do not remove or transport the adjustment disk
using a sharp-edged tool (e.g.: pliers or tweezers).
t Do not pull the adjustment disk out of the device
using the measurement cables.
t Do not transport the adjustment disk by holding it
by the measurement cables.
t Keep the adjustment disk clean. Clean any soiling
using water or a soft, lint-free cloth.
t Clean any coarse soiling using a brush.
t Do not use cleaning agents, e.g. solvents or similar
agents.
t Do not scratch the adjustment disk.
t Do not touch the adjustment disk with oily or
greasy fingers.
Remove the adjustment disk using the disk holder
t Squeeze the disk holder on the underside and place
centrally on the adjustment disk.
t Release the disk holder.
y The disk holder is connected with the adjustment
disk.
t Transport the adjustment disk.

Operating Instructions YTM15MA 11
Operation
Putting the adjustment disk down
t Transport the adjustment disk to the moisture
analyzer or the shelf.
t Squeeze the disk holder underneath.
y The adjustment disk is released from the disk
holder.
4.3 Need for Calibration/Adjusting the
Heating Module
In order to check the device, a performance test can
first be carried out (for performance test, see operating
instructions for the moisture analyzer). If this test is
passed, the function of the moisture analyzer is
guaranteed.
If the test produces two negative results in a row, then
as a next step the weighing system of the moisture
analyzer must first be checked (for calibration, see
operating instructions for the moisture analyzer).
If the performance test is failed again after checking
the weighing system, the heating module must be
calibrated (for this, refer to the next section). If
necessary, the heating module must be adjusted.
NOTICE
An adjustment of the heating module is an essential
procedure. Therefore, a precise analysis must be
performed before the calibration as any possible
incorrect calibration can have negative effects on the
measurement results.
After the calibration/adjustment of the heating
module, carry out another performance test. If the
performance test is again failed after calibration/
adjustment of the heating module, please contact
Sartorius Service.

12 Operating Instructions YTM15MA
Operation

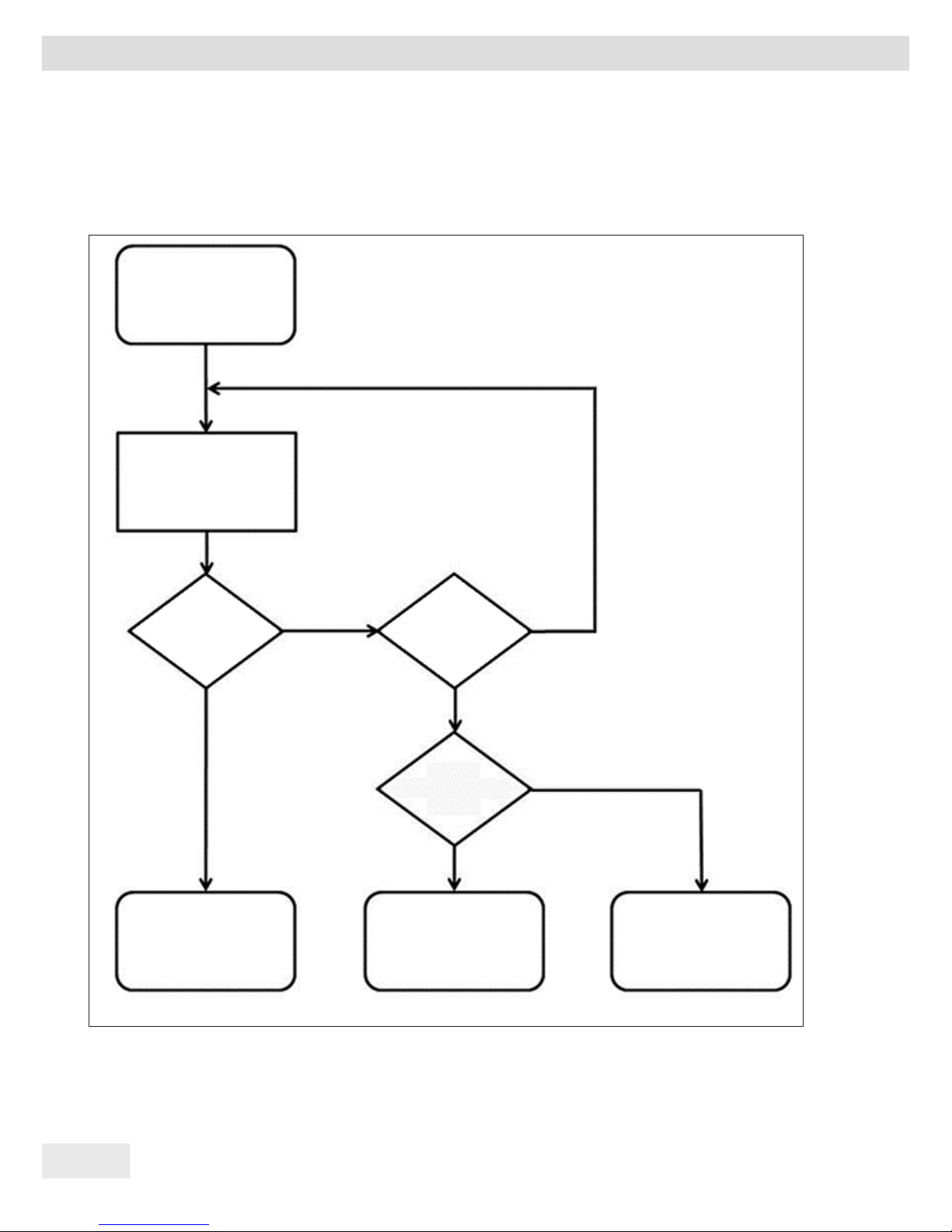

Refer also to the following flow diagram for the
procedure.
Device should be
tested
Run
performance Test
Test OK?
Device is OK.
Heating Module
Calibration/
Adjustment
Weighing system
tested?
Test failed
2x?
Weighing System
Calibration/
Adjustment
no no
no
yes yes
yes
Fig. 3-2: Process of testing the heating module MA37|MA160

Operating Instructions YTM15MA 13
Operation
Reasons for an incorrect measurement may be:
− Non-compliance regarding ambient conditions.
− Intense direct sunlight.
− Strong draft.
− "ReproEasy Pad" was not used correctly during the
performance test. E.g. the protective film was not
removed from the "ReproEasy pad" or the incorrect
side of the "ReproEasy pad" was placed on the pan.
− Weighing system is defective.
4.4 Calibrate Heating Module
(MA37|MA160)
Calibration of the heating module involves calibration
at a fixed temperature setting. The result is saved in
the calibration report.
Carry out the calibration at the subsequent installation
site in order to ensure precise calibration of the
heating module. The calibration takes at least
50 minutes.
System Requirements
− At least 30 minutes have passed since the last
application measurement.
− The device has cooled down with the hood open.

14 Operating Instructions YTM15MA
Operation
Procedure
t Call up the setup menu [Settings].
t Press the [Calibration/Adjustment]
key.
t Press the [Cal./Adjust. of the Heating
Module] key.
t Press the [Calibration] key.
t Open the hood.
t Remove the sample pan if necessary.
;
Settings
Language
Date and Time
Device Information
Calibration/Adjustment
Printout
;
Calibration/Adjustment
MA Performance Test
Adjusting the Weighing System
Cal./Adjust. of the heating module
Calibration Report
;
Cal./Adjust. of the heating module
Calibration
Calibration and Adjustment

Operating Instructions YTM15MA 15
Operation
t Place the connector (1) of the
measurement cable into the
temperature measuring device.
t NOTICE Observe the information in
Chapter 4.2, Page 9. Use the disk
holder to position the adjustment
disk (2) on the pan retainer.
t Close the hood.
t Press the [START] key.
y The heating module will heat up.
The device requires a heating-up time of
45 minutes.
t Wait for the end of the heating-up
phase.
y The time elapsed is shown at the top
of the display.
The heating-up phase is followed by
a stabilization phase (specification in
percent).
t Wait for the end of the stabilization
phase.
y After the end of the stabilization
phase, the device emits a beep.
1
2
Calibrating the heating
Heating temperature 140°C
Remove pan,
position adjustment disk. Close the
hood and press START.
w
02:08
Calibrating the heating
Heating temperature 140°C
Heating-up phase: 45:00 min
42:23
Calibrating the heating
Heating temperature 140°C
Stabilization phase: 14%

16 Operating Instructions YTM15MA
Operation
t Switch on the temperature
measuring instrument.
After the heating-up and stabilization
phase, a total of six temperature values
must be read off and noted down.
t Read and note down the first
temperature value.
After a minute, there is another beep
signaling that it is time to read off the
next temperature value.
t Calculate the average temperature
(mean value).
t Press the [...] key.
t Enter the calculated average
temperature in the following input
screen.
y The result of the calibration is
displayed.
The result of the calibration can
subsequently be called up at any time
via the menu Settings ->
Calibration/Adjustment -> Calibration
Report -> Heating Calibration.
t Switch off the temperature
measuring instrument.
45:12
Calibrating the heating
Heating temperature 140°C
Please read the temperature from the
display of the heating adjustment set.
Please read off the temperature: 1
Average temperature
Calculate the mean value
(T1+T2+T3+T4+T5+T6)/6 and press ...
for the input.
Calibrating the heating
Date and time 2016-04-06 08:21
Target value 140°C
Actual value 143.20°C
Deviation 3.20°C

Operating Instructions YTM15MA 17
Operation
t Remove the measurement cable connector from
the temperature measuring device.
t Allow the device to cool down.
t Open the hood.
t CAUTION Danger of injury due to hot surfaces!
Observe the information in Chapter 4.2, Page 9.
Remove the adjustment disk from the pan retainer
using the disk holder (removal tool) and leave to
cool on a temperature-resistant pad.
y The calibration of the heating module is now
complete.
4.5 Calibrate/Adjust Heating Module
(MA37|MA160)
Calibration and adjustment of the heating module
involves calibration on two fixed temperature settings.
The heating module can be adjusted directly
afterwards depending on the result of the calibration.
The result is saved in the calibration report.
Carry out the calibration at the subsequent installation
site in order to ensure precise calibration of the
heating module. The calibration takes around
100 minutes.
System Requirements
− At least 30 minutes have passed since the last
application measurement.
− The device has cooled down with the hood open.
Procedure
t Call up the setup menu [Settings].

18 Operating Instructions YTM15MA
Operation
t Press the [Calibration/Adjustment]
key.
t Press the [Cal./Adjust. of the Heating
Module] key.
t Press the [Calibration and
Adjustment] key.
t Confirm the query or cancel the
process.
t Open the hood.
t Remove the sample pan if necessary.
;
Settings
Language
Date and Time
Device information
Calibration/Adjustment
Printout
;
Calibration/Adjustment
MA Performance Test
Adjusting the Weighing System
Cal./Adjust. of the heating module
Calibration Report
;
Cal./Adjust. of the heating module
Calibration
Calibration and Adjustment
Calibration/Adjustment
The changes to the heating parameters
may inuence your saved methods.

Operating Instructions YTM15MA 19
Operation
t Place the connector (1) of the
measurement cable into the
temperature measuring device.
t NOTICE Observe the information in
Chapter 4.2, Page 9. Use the disk
holder to position the adjustment
disk (2) on the pan retainer.
t Close the hood.
t Press the [START] key.
y The heating module will heat up.
The device requires a heating-up time of
45 minutes.
t Wait for the end of the heating-up
phase.
y The time elapsed is shown at the top
of the display.
The heating-up phase is followed by
a stabilization phase (specification in
percent).
t Wait for the end of the stabilization
phase.
y After the end of the stabilization
phase, the device emits a beep.
1
2
Heating Module
Adjustment
Remove pan,
position adjustment disk and close hood.
1 Target temperature is 100°C
Press START.
w
02:08
Heating Module
Adjustment
Heating temperature 100°C
Heating-up phase: 45:00 min
42:56
Heating Module
Adjustment
Heating temperature 100°C
Stabilization phase: 23%

20 Operating Instructions YTM15MA
Operation
t Switch on the temperature
measuring instrument.
After the heating-up and stabilization
phase, a total of six temperature values
must be read off and noted down.
t Read and note down the first
temperature value.
After a minute, there is another beep
signaling that it is time to read off the
next temperature value.
t Calculate the average temperature
(mean value).
t Press the [...] key.
t Enter the average temperature in the
following input screen.
t Repeat the process with the second
temperature.
t Follow the instructions on the
operating display.
t Assess the results and perform an
adjustment if necessary.
45:12
Heating Module
Adjustment
Heating temperature 100°C
Please read the temperature from the
display of the heating adjustment set.
Please read off the temperature: 1
50:08
Average temperature
Calculate the mean value
(T1+T2+T3+T4+T5+T6)/6 and press ...
for the input.
Heating Module
Adjustment
2 Temperature is 180°C
Press START to continue.
w
Carry out adjustment?
Date and time 2016-04-07 09:43
Target value 1 100°C
Actual value 1 95.50°C
Deviation 1 -4.50°C
Target value 2 180°C
Actual value 2 180.20°C
Deviation 2 0.20°C
NO YES
