Satson VGA-HDM-CON-0615 User manual

VGA-HDM-CON-0615VGA-HDM-CON-0615
VGA & Audio to HDMI Scaler
Converter
rev: 131218
Made in Taiwan
7.1 CH
AUDIO
7.1 CH
AUDIO
User Manual

Safety and Notice
The VGA-HDM-CON-0615 VGA & Audio to HDMI Scaler Converter has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, the VGA-HDM-CON-0615 should be used with
care. Please read and follow the safety instructions to protect yourself from possible injury and
to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
INTRODUCTION ............................................................................................................
FEATURES .....................................................................................................................
PACKAGE CONTENTS ..................................................................................................
SPECIFICATIONS ..........................................................................................................
PANEL DESCRIPTIONS .................................................................................................
CONNECTION DIAGRAM ..............................................................................................
OSD MENU .....................................................................................................................
OPERATION APPROACH ..............................................................................................
LIMITED WARRANTY ..................................................................................................
TABLE OF CONTENTS
1
1
1
2
3
4
5
6
10

1
INTRODUCTION
The VGA-HDM-CON-0615 VGA & Audio to HDMI Scaler Converter offers an easy and instant
approach for converting analog PC video (VGA) with either digital audio (S/PDIF) or analog stereo audio
to digital HDMI. With this module, VGA based devices such as PC with S/PDIF or analog stereo audio
can readily connect to your HDMI TV. With such a convenience, presentations, demonstrations, or digital
signage become easier and more cost effective.
FEATURES
●IR remote control
●Remote control via Mini-USB
●OSD control interface
●Maximum pixel rate : 165MHz
●S/PDIF & Stereo input supported
●Deinterlacer supported
●Supports nosie reduction and video enhancement features
●Over / under scanning adjustable
●Video H/V mirror supported
●Active video area adjustment supported
●USB rmware upgradable for expanding compatibility
●Wall-mount housing design for easy installation
PACKAGE CONTENTS
● 1x VGA-HDM-CON-0615
● 1x 5V/4A power supply with power cord
● 1x IR Remote control
● 1x Installation software CD
● 1x User Manual

2
SPECIFICATIONS
Model Name VGA-HDM-CON-0615
Technical
Role of usage VGA to HDMI Converter
Frequency bandwidth 165MHz
Audio support Stereo PCM (48KHz only)
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±2kV
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Firmware update Feasible via USB Port
CEC Channel N/A
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
Input
1x VGA + 1xRCA + 1xStereo
Output 1x HDMI
VGA connector HD-15 [15-pin D-sub female]
HDMI connector HDMI [19-pin female]
USB connector Mini B
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 92 x 83 x 28mm [3.6” x 3.3” x 1.1”]
Package 175 x 128 x 134mm [6.9” x 5” x 5.3”]
Carton 662 x 366 x 290mm [2’2” x 1’2” x 1’]
Weight Model 260g [9.1oz]
Package 510g [17.9oz]
Fixedness Wall-mounting case with screws
Power supply 5V 4A DC
Power consumption 5 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]

3
PANEL DESCRIPTIONS

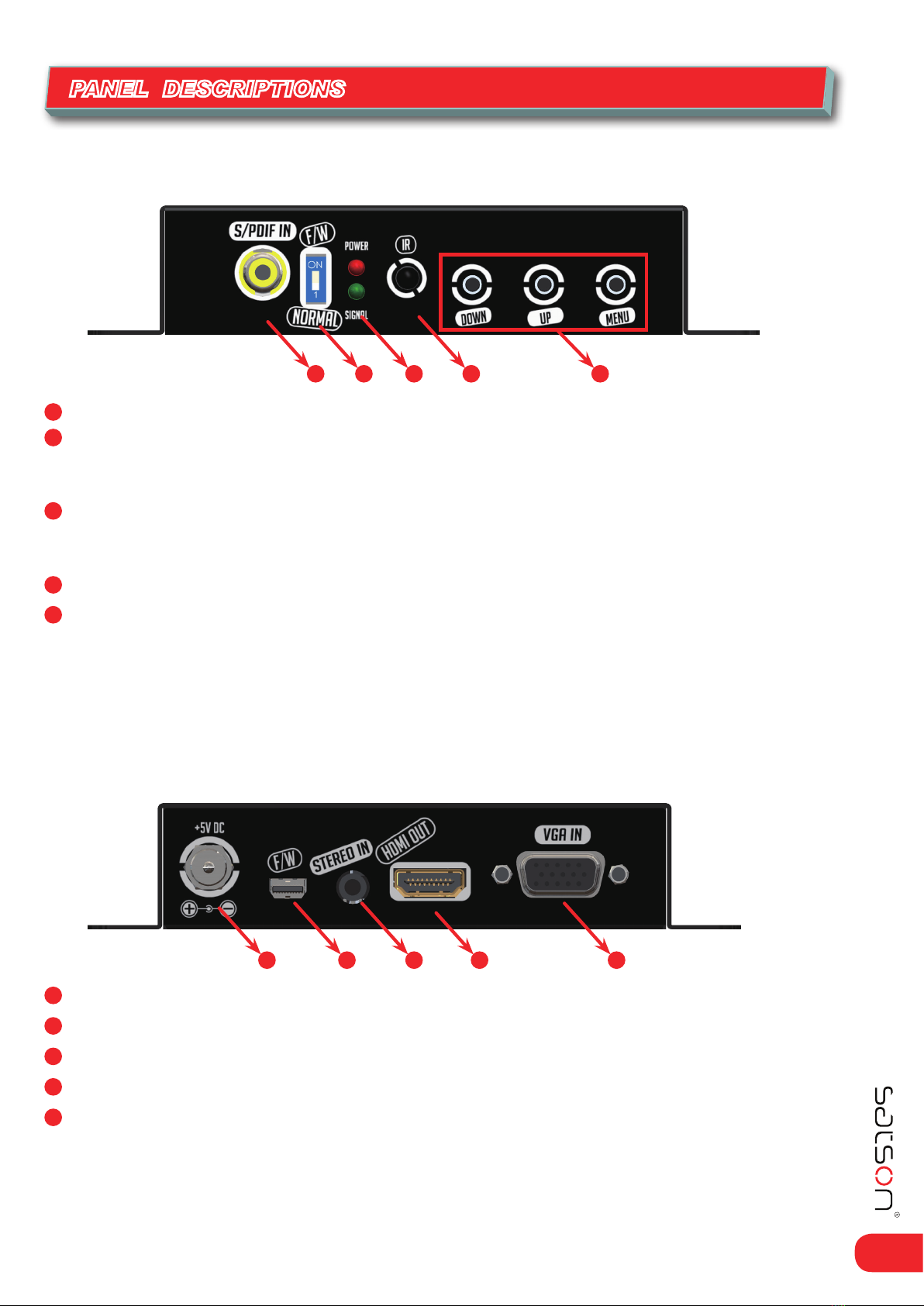

Front Panel
1
S/PDIF AUDIO IN: connect to digital S/PDIF audio source
2
DIP SWITCH: For rmware update
ON []: rmware update mode
OFF []: normal mode
3
LED INDICATOR:
[green]: signal indicator LED
[red]: power indicator LED.
4
IR SENSOR: IR sensor for receiving the IR commands from IR remote
5
PUSH BUTTON
[LEFT]: Down Button
[MID]: Up Botton
[RIGHT]: Menu/Enter Button
Rear Panel
6
+5V DC: Interlocking power jack for 5V DC power supply unit
7
Mini USB: F/W update & control port
8
STEREO AUDIO IN: connect to analog stereo audio source
9
HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
10
VGA IN: connect to a VGA source
1
2
3
4
5
6
9
8
10
7

4
CONNECTION DIAGRAM

5
OSD MENU
1.Output Setup
Out Res.
Output Mode RGB, YCbCr444, YCbCr422
Default Pattern Disable, White, Cross, Hatch, Color, Gray, Windows,
H-Ramp, W-HRamp, W-VRamp, Diagonal
Audio Source Stereo, SPDIF
2.Image
Contrast 0~255 of Contrast Level
Brightness 0~255 of Brightness Level
Saturation 0~255 of Saturation Level
Hue 0~255 of Hue Level
B/W Extension Off, On
Color Tone Off, Skin, Green
Edge Enhance Typ, Mid, Max, Off
Sharpness 0~127 of Sharpness Level
3.Adjustment
Under/Over Scan -50%~50% of Scan Level
Aspect Ratio 16:9, 4:3
H-Mirror Off, On
V-Mirror Off, On
H-Shift -100~100 of H-Shift Level
V-Shift -50~50 of V-Shift Level
4. System
Input Res. Info
Firmware Version
Factory Reset

6
Method A: Push-in Button
Method B: IR Remote Control
OPERATION APPROACH
Button Function
FREEZE Freeze video
ASPECT RATIO Aspect ratio change
BLANK Blank video
EXIT Exit OSD
ENTER Enter key
UP Up key
LEFT Left key
RIGHT Right key
DOWN Down key
MENU Menu on
INPUT INFO Source resolution information
1080p60 Select 1080p60 output resolution
1080i60 Select 1080i60 output resolution
720p60 Select 720p60 output resolution
480p60 Select 480p60 output resolution

7
Method C: Push-in Button
1
2
3
9
4
5
6

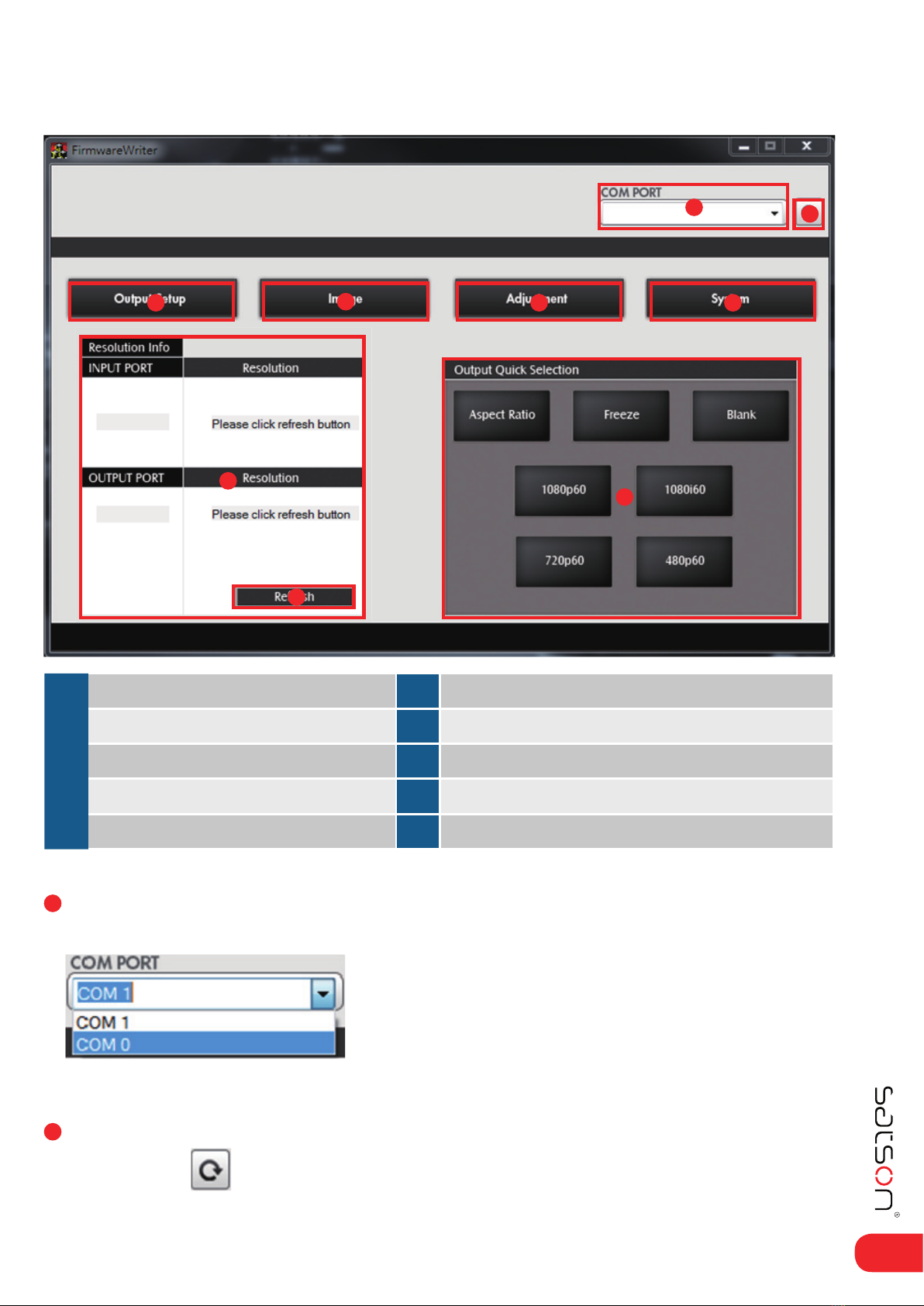

1COM Port Selection 6System Button
2COM Port Detection Button 7Input / Output Resolution Info
3Output Setup Button 8Refresh Input / Output Resolution Info Button
4Image Button 9Output Quick Selection Button
5Adjustment Button
1
COM Port Selection
Please select the application COM PORT
2
COM Port Detection Button
Click this button to detect the COM PORT
7
8

8

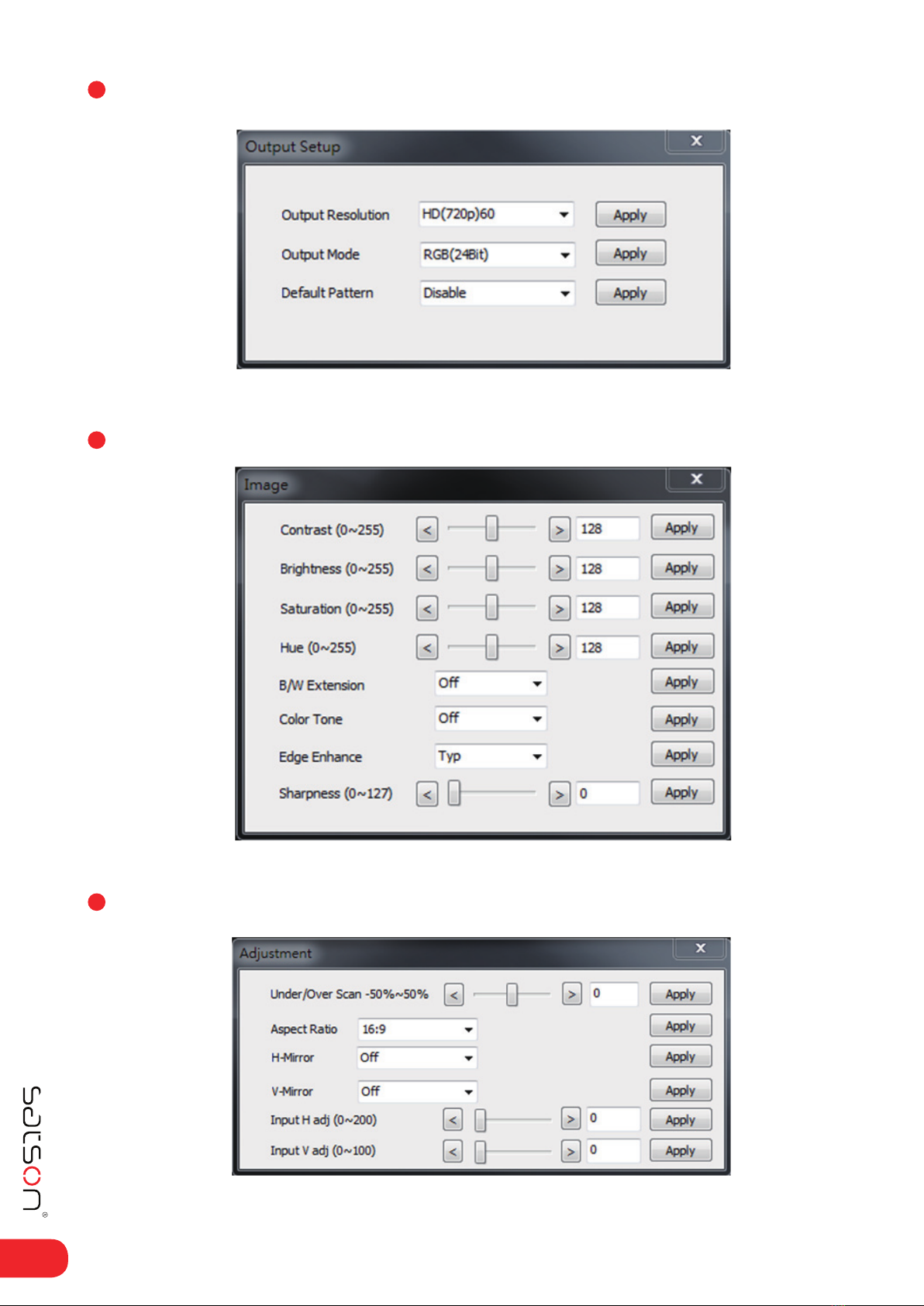

3
Output Setup Button
4
Image Button
5
Adjustment Button

9
6
System Button
1) In-Sync Info : To view the current input resolution
2) Factory Reset Button
3) Firmware Update Button
The steps of rmware update:
a) Unplug Mini-USB connector from device
b) Set the Dip Switch to ON []
c) Connect the device to PC via USB to mini-USB cable
d) Click the FW Update button on software
e) Click “Load File” button to select the FW le
f) Click “Burn” button to start the FW update process
g) Unplug Mini-USB connector from device
h) Set the Dip Switch to OFF []
i) Completed FW update process
7
I/O Port and Resolution Info
To display the information about the I/O Port and the applied Resolution
8
Refresh Button
To refresh the status of the converter
9
Output Quick Selection Button
Common functions for quick setting

LIMITED WARRANTY
The SELLER warrants the VGA-HDM-CON-0615 VGA & Audio to HDMI Scaler Converter to be free
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or
an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or tness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must
be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the VGA-HDM-CON-0615 features and specications
is subject to change without further notice.
