Storage Cabinet
Model 421191
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-28
Français pg 29-32
Español pg 33-36
Lot # 530096 05/28/19
Purchased: __________________
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE STORE.
Share your journey!
sauder.com
CONTACT US FIRST
BEFORE MAKING ANY RETURNS TO THE STORE.
Visit sauder.com/service to order replacement parts, view video assembly tips, or chat with a live rep.
Prefer the phone? Give us a ring at 1-800-523-3987.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
You'll love what we
have in storage.

A RIGHT END (1)
B LEFT END (1)
C UPRIGHT (1)
D BOTTOM (1)
E ADJUSTABLE SHELF (5)
F VALANCE (1)
G SKIRT (1)
H FRONT LEG (2)
I SHELF MOLDING (6)
J LOWER DOOR MOLDING (1)
K UPPER DOOR MOLDING (1)
L FIXED SHELF (1)
M2 BACK (1)
N TOP (1)
O SLIDING DOOR (1)
P REAR LEG (2)
Table of Contents Assembly Tools Required
2-3
4-5
6-28
29-32
33-36
37-38
39
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
421191 www.sauder.com/servicePage 2
Straight Edge Screwdriver

Part Identification Now you know
our ABCs.
A
B
C
D
E
F
G
H
I
J
K
L
M2
N
O
P
H
P
E
E
E
E
I
I
I
I
I
421191www.sauder.com/service Page 3

155M RETAINING
BAR - 2

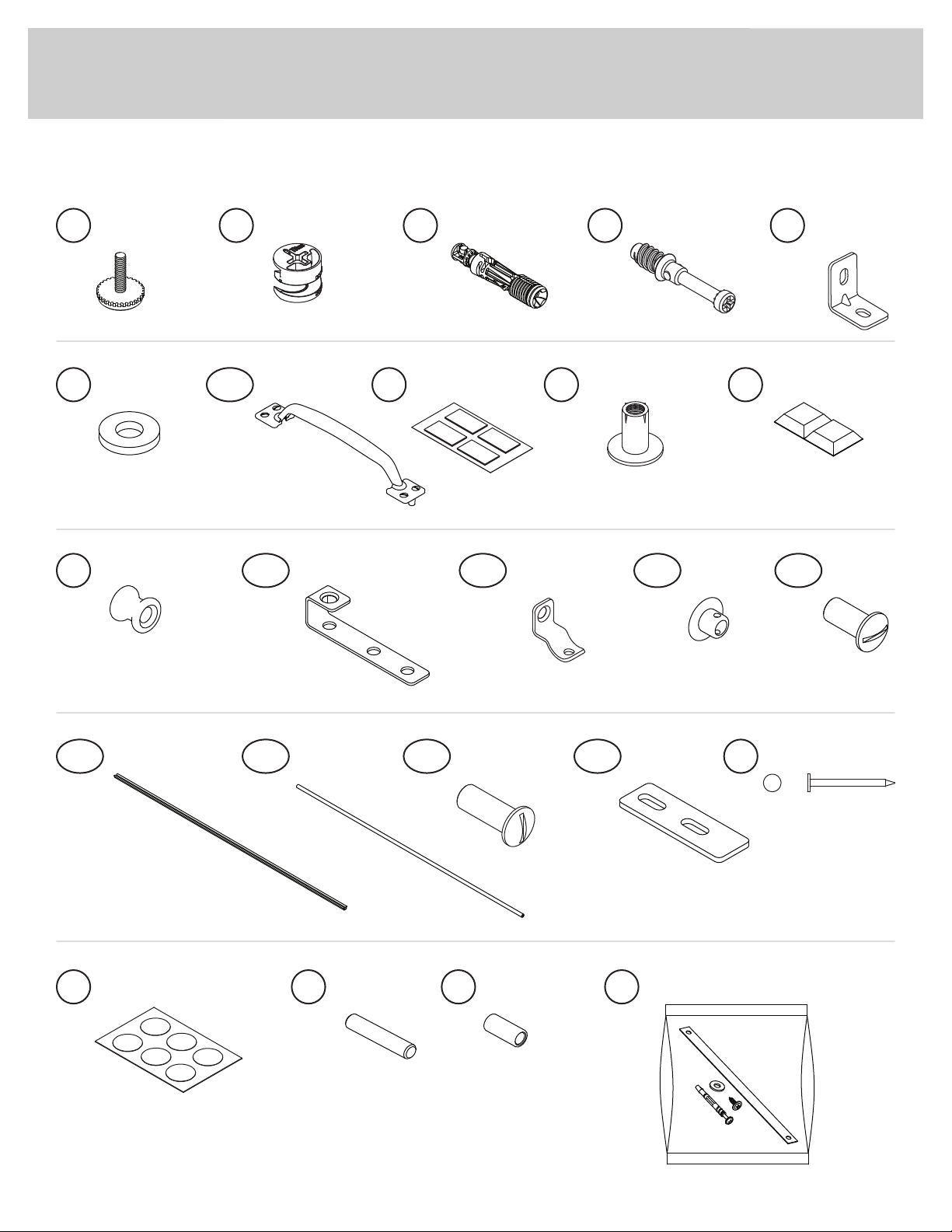

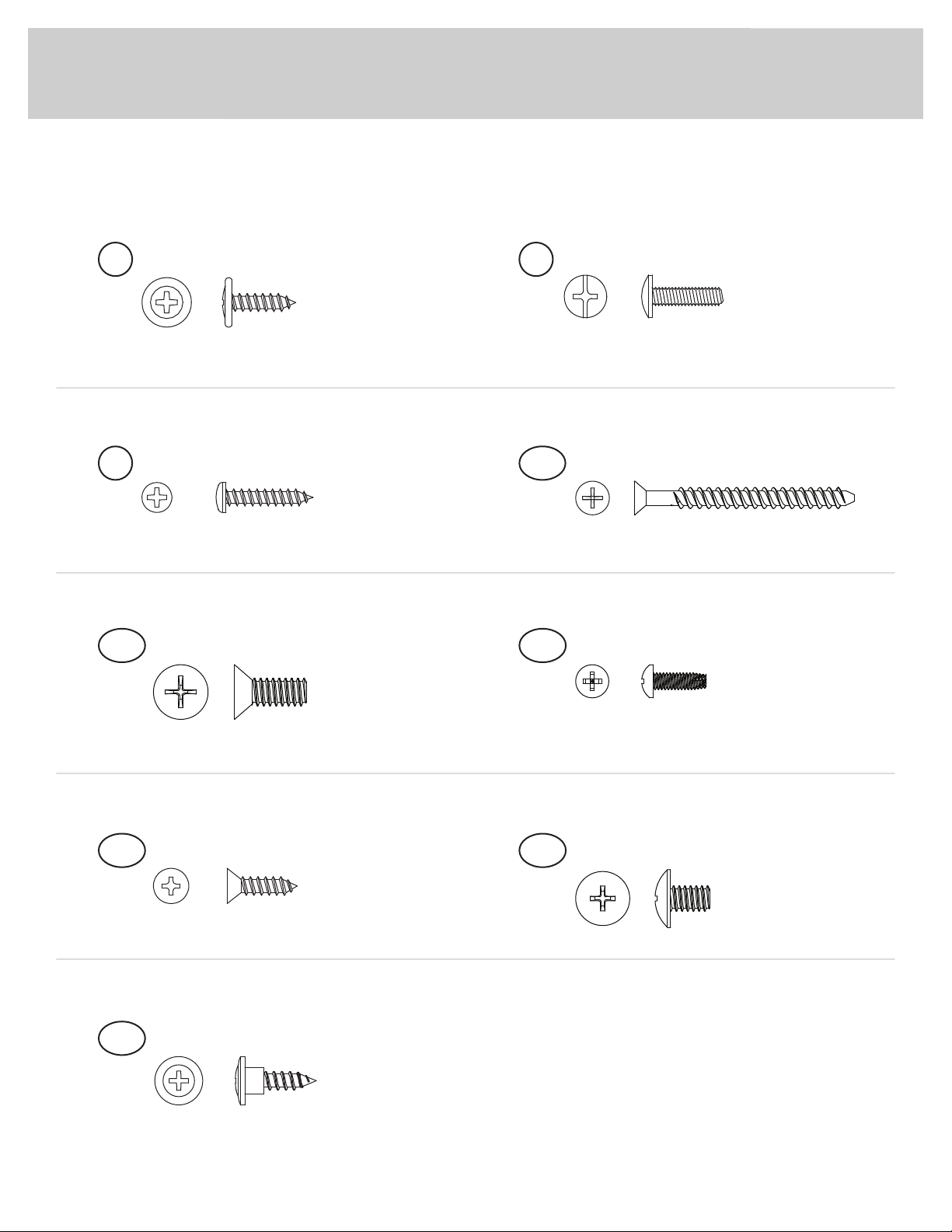

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
PLASTIC
WASHER - 6
9I
METAL
PIN - 20
1R
29M BUMPER CARD - 2
CAM SCREW - 16
8F
NAIL - 60
1N
HIDDEN CAM - 30
1F CAM DOWEL - 14 2F
RUBBER
SLEEVE - 20
2R
DOOR WHEEL - 2
98M DOOR
STOP - 2
106M
WHEEL SUPPORT - 2
104M
111M DOOR TRACK
TUBE - 1
PULL - 1
149K
110M DOOR TRACK - 1
TAPE CARD - 2
4M
421191 www.sauder.com/servicePage 4

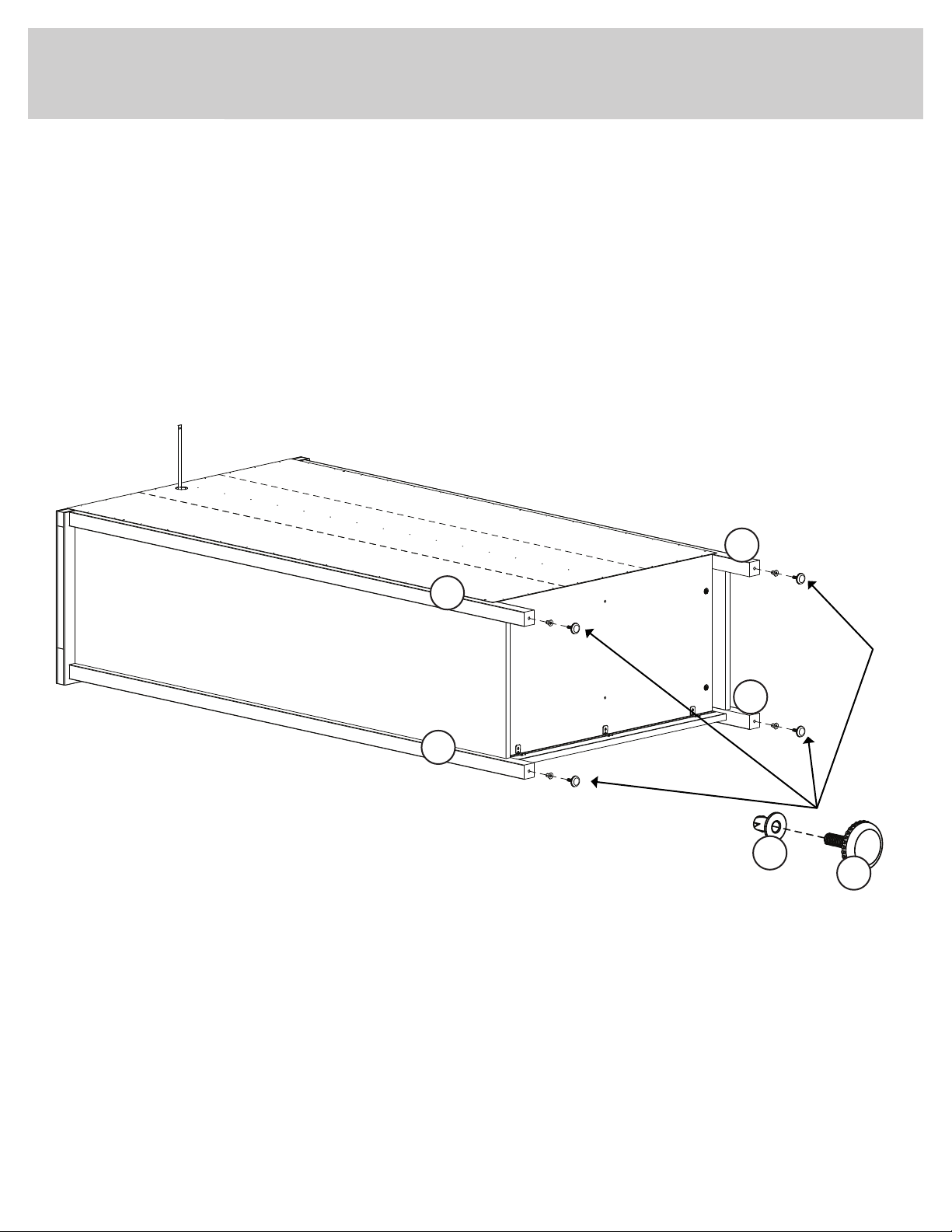

ADJUSTABLE
GLIDE - 4
18E
PROPEL NUT - 4
14M
METAL
BRACKET - 7
4G
APPLIQUE CARD - 5
79P
109M BARREL
NUT - 4
152M LONG BARREL
NUT - 2
105M DOOR TRACK
SUPPORT - 3
FURNITURE TIPPING RESTRAINT KIT - 1
97

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 9/16" LARGE HEAD SCREW - 18
1S
BLACK 1-15/16" FLAT HEAD SCREW - 2
113S
BLACK 5/8" FLAT HEAD SCREW - 2
123S BROWN 1/2" PAN HEAD SCREW - 4 125S
126S BROWN 5/8" FLAT HEAD SCREW - 3 BLACK 3/8" MACHINE SCREW - 4 127S
421191www.sauder.com/service Page 5
15S SILVER 5/8" MACHINE SCREW - 2
BLACK 3/4" PAN HEAD SCREW - 6
85S
BLACK 5/8" LARGE HEAD SCREW - 4
140S

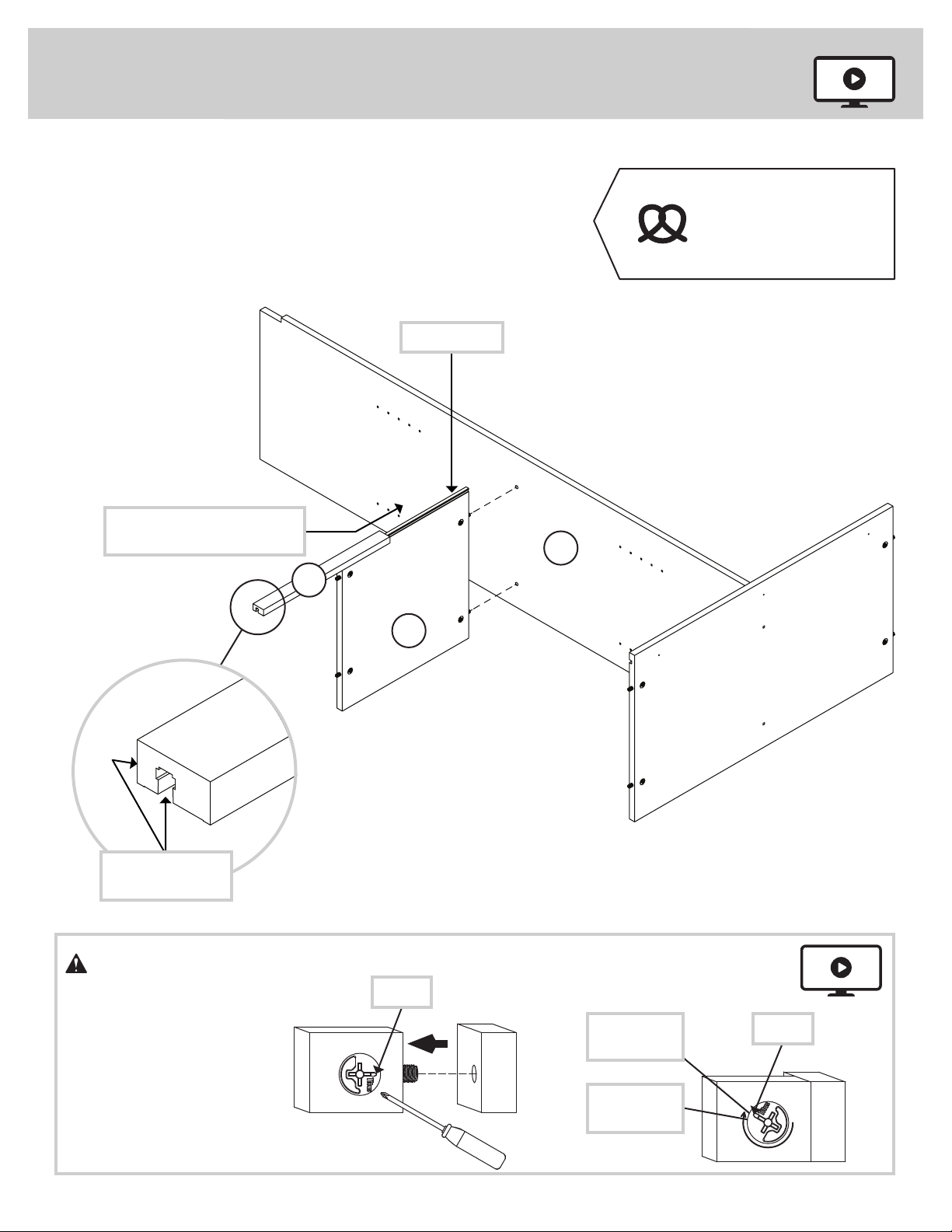

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/service/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.

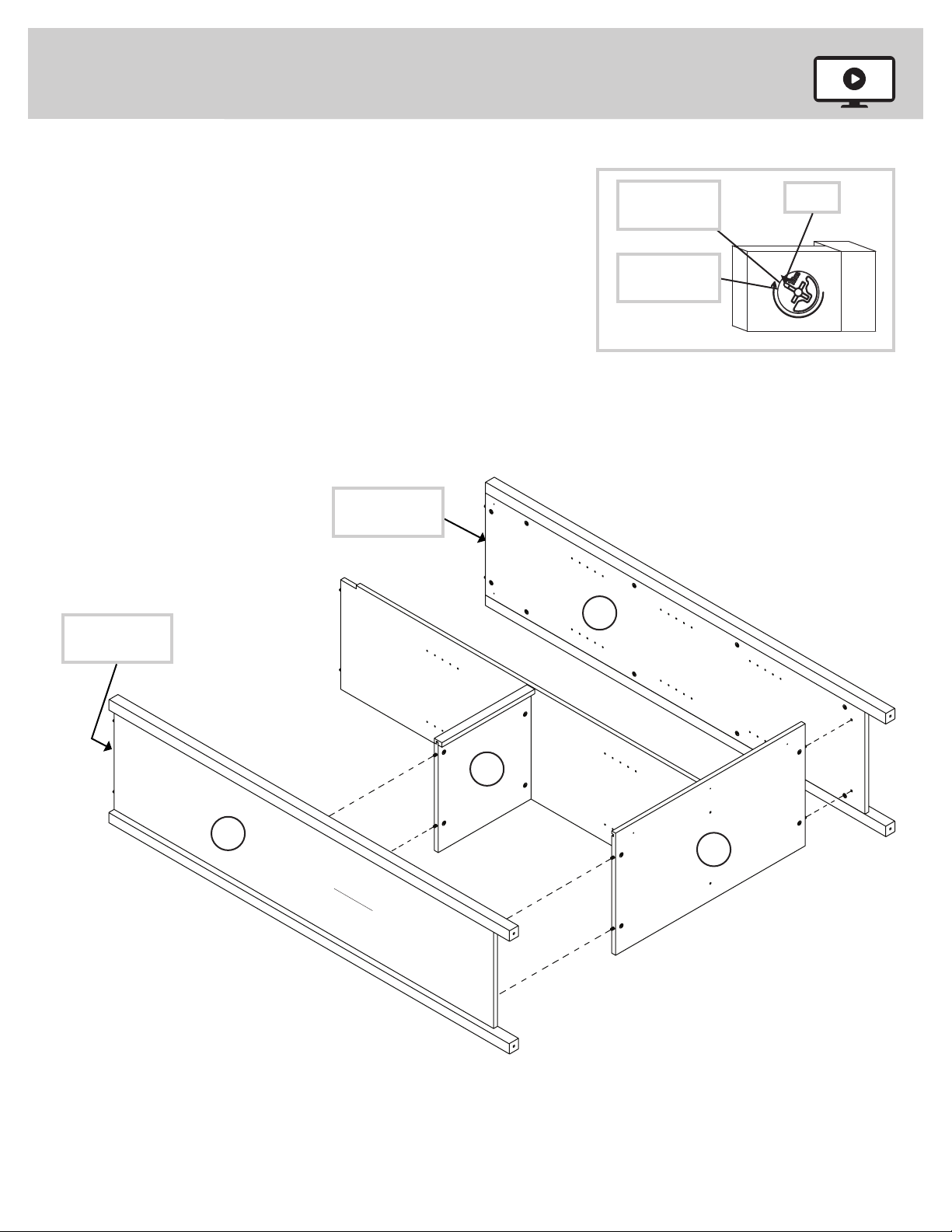

å Push fourteen HIDDEN CAMS (1F) into the ENDS (A and B),
UPRIGHT (C), BOTTOM (D), and FIXED SHELF (L). Then,
insert the metal end of a CAM DOWEL (2F) into each
HIDDEN CAM.
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Arrow
1F
2F
(14 used)
Do not tighten the HIDDEN CAMS in this step.
A
B
C
DL
421191 www.sauder.com/servicePage 6

å Push sixteen HIDDEN CAMS (1F) into the long edges
of the ENDS (A and B).
Step 2
1F
Arrow
(16 used)
Arrow 1F
Arrow
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
A
B
421191www.sauder.com/service Page 7

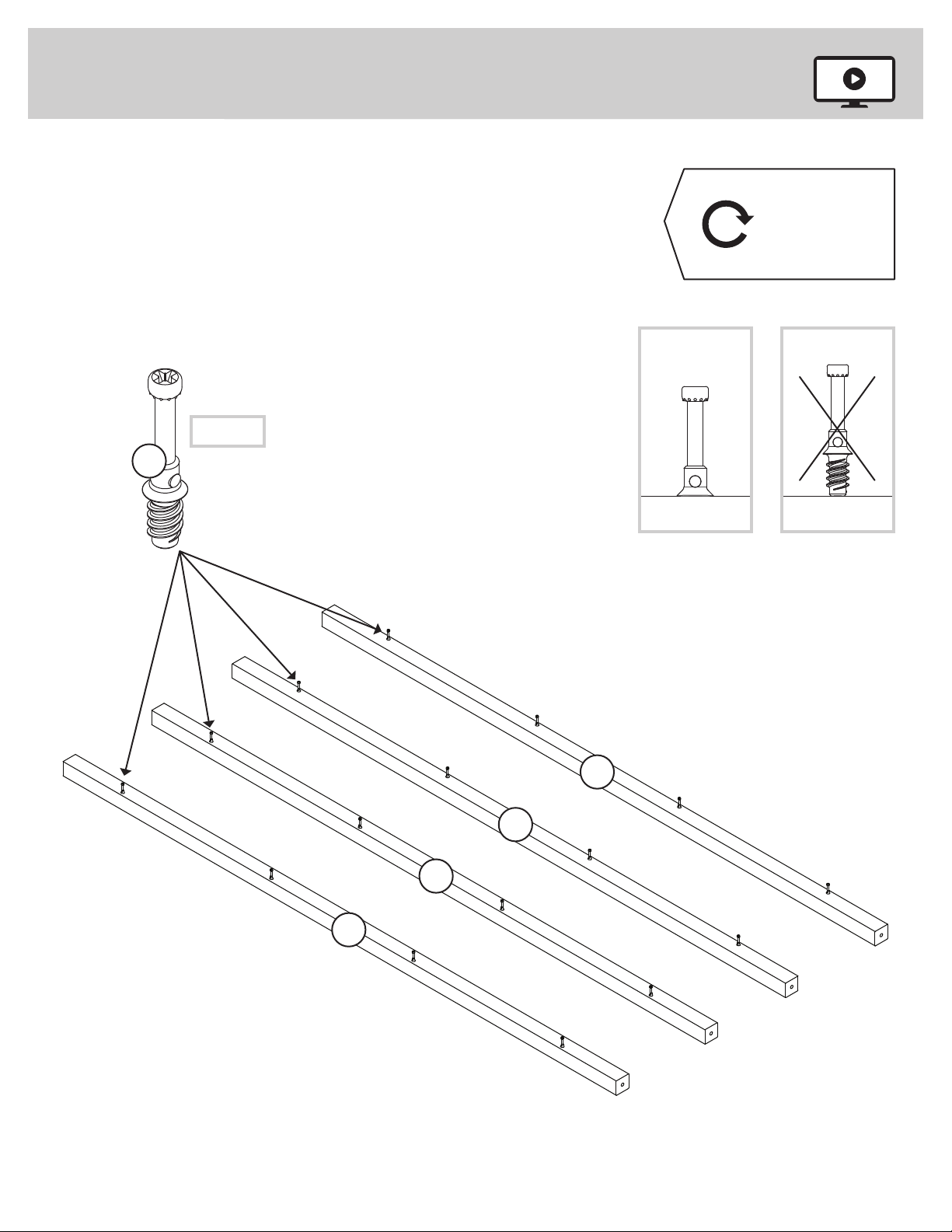

Step 3
8F
å Turn sixteen CAM SCREWS (8F) into the LEGS (H and P).
(16 used)
Remember:
Righty tighty.
Lefty loosey.
421191 www.sauder.com/servicePage 8
P
P
H
H

å Fasten one of each LEG (H and P) to the RIGHT END (A).
Tighten eight HIDDEN CAMS.
Step 4
A
H
P
1
2
Surface with
HIDDEN CAMS
Edge with
CAM DOWELS
These surfaces
should be even.
The LEGS will
overhang this edge.
421191www.sauder.com/service Page 9
These surfaces
should be even.

Step 5
å Fasten the remaining two LEGS (H and P) to the LEFT
END (B). Tighten eight HIDDEN CAMS.
B
H
P
Surface with
HIDDEN CAMS
Edge with
CAM DOWELS
The LEGS will
overhang this edge.
421191 www.sauder.com/servicePage 10
These surfaces
should be even.
These surfaces
should be even.
