Savant IP Audio
SMA-5000, PAV-SIPA125, PAV-AIM7C, PAV-AOM8C
Deployment Guide
Document Number:
009-1571-00
Document Date:
November 2017
Document Supports:
da Vinci 8.7
!

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
2of 34
Contents
To access the link to the topics in this document, click the topic page.
1.!Introduction....................................................................................................4!
1.1.!Before You Begin..............................................................................................4!
2.!Deployment Steps ....................................................................................... 5!
3.!Savant IP Audio Equipment Overview ................................................6!
3.1.!Box Contents and Specifications ...............................................................6!
3.2.!SMA-5000 ...........................................................................................................6!
3.3.!PAV-SIPA125.......................................................................................................8!
3.4.!PAV-AIM7C ....................................................................................................... 10!
3.5.!PAV-AOM8C.......................................................................................................11!
4.!Wiring and Connections...........................................................................12!
4.1.!RS-232 Wiring...................................................................................................12!
4.2.!IR Wiring .............................................................................................................13!
4.3.!Speaker Wiring .................................................................................................13!
4.4.!GPIO..................................................................................................................... 14!
4.5.!Relay .................................................................................................................... 14!
4.6.!Network Connection ..................................................................................... 14!
4.7.!AC Power Connection .................................................................................. 14!
4.8.!Checking and Replacing the Fuse.............................................................15!
5.!Installation..................................................................................................... 16!
5.1.!SMA-5000 ......................................................................................................... 16!
5.2.!PAV-SIPA125......................................................................................................17!
5.3.!PAV-AIM7C/PAV-AOM8C............................................................................17!
6.!Blueprint Configuration ............................................................................18!
6.1.!Basic Blueprint Layout.................................................................................. 18!
6.2.!Adding a Savant IP Audio to a Configuration..................................... 19!
6.3.!Assigning Inputs and Outputs (I/Os)..................................................... 20!
7.!Web User Interface (Web UI).................................................................21!
7.1.!Accessing the Web UI....................................................................................21!
7.2.!Status Tab...........................................................................................................21!
7.3.!Network Tab .....................................................................................................22!
7.4.!Inputs & Outputs Tab ....................................................................................23!
8.!Expansion..................................................................................................... 24!
8.1.!Blueprint Layout 5 IP Audio devices...................................................... 24!
9.!Savant Music ............................................................................................... 26!
10.!System Monitor...........................................................................................27!
10.1.!AVB Info .............................................................................................................27!
10.2.!Savant Music.................................................................................................... 28!
Appendix A: Network Requirements ...................................................... 29!
Appendix B: Document Revision History .............................................. 30!
Appendix C: Retrieving and Setting IP Address...................................31!
Appendix D: DNS (Add, Remove, Query) ..............................................32!
Appendix E: Uninterruptible Power Supply (UPS) .............................33!

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
3of 34
Important Safety Information - Read First
Before installing, configuring, and operating Savant equipment and other
vendor equipment, Savant recommends that each dealer, integrator,
installer, etc. access and read all the required technical documentation.
Savant technical documentation can be located by visiting Savant.com.
Vendor documentation is supplied with the equipment.
Read and understand all safety instructions, cautions, and warnings in
this document and the labels on the equipment.
Safety Classifications in this Document
NOTE:
Provides special information for installing,
configuring, and operating the equipment.
IMPORTANT!
Provides special information that is critical to
installing, configuring, and operating the equipment.
CAUTION!
Provides special information for avoiding situations
that may cause damage to equipment.
WARNING!
Provides special information for avoiding situations
that may cause physical danger to the installer, end
user, etc.
Electric Shock Prevention
ELECTRIC SHOCK!
The source power poses an electric shock hazard that has the
potential to cause serious injury to installers and end users.
ELECTRICAL DISCONNECT:
The source power outlet and power supply input power sockets
should be easily accessible to disconnect power in the event of an
electrical hazard or malfunction.
Weight Injury Prevention
WEIGHT INJURY!
Installing some of the Savant equipment requires two installers to
ensure safe handling during installation. Failure to use two installers
may result in injury.
Safety Statements
Follow all of the safety instructions listed below and apply where
applicable. Additional safety information will be included where
applicable.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
15. To completely disconnect this equipment from the AC mains,
disconnect the power supply cord plug from the AC receptacle.

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
4of 34
1. Introduction
This document will guide the installer through the process of installing, configuring, and adding Savant IP Audio devices to a RacePoint Blueprint®
configuration.
1.1. Before You Begin
Read through this document in its entirety and ensure that the following required items are available:
Savant IP Audio device(s).................................................................................................................................................
Unique ID (UID) of the Savant IP Audio device(s)...................................................................................................
(located on the back of the device)
Savant Host (Smart or Pro) licensed and running da Vinci software...............................................................
SMA-5000 require da Vinci 8.2 or higher
PAV-SIPA125, PAV-AIM7C, PAVAOM8C require da Vinci 8.7 or higher
Savant Development Environment (SDE/MacBook)..............................................................................................
Ethernet network meeting Savants requirements...................................................................................................
See Appendix A: Network requirements

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
5of 34
2. Deployment Steps
Follow these steps to successfully deploy a Savant IP Audio devices. This page can be used as a checklist to record which steps have been completed.
1. Review product specifications and connection details .....................................................................................
See Savant IP Audio Equipment Overview
2. Install the Savant IP Audio devices ...........................................................................................................................
See Savant IP Audio Equipment Overview
3. Install Savant qualified AVB/TSN Network Switch (Optional).......................................................................
See Adding an AVB/TSN Switch
4. Add the Savant IP Audio devices into a RacePoint Blueprint® configuration ..........................................
See Adding a Savant IP Audio to a Configuration

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
6of 34
3. Savant IP Audio Equipment Overview
3.1. Box Contents and Specifications
Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications.
3.2. SMA-5000
Front Panel
Power LED
Green: System has power and is operating normally.
Red: System is in standby mode. In standby mode, most of the controller
circuitry is powered down.
Off: System is not receiving power.
Status LED
Green Blinking: Embedded system is ready, but no communication has been established with the host.
Green: Host has established communications with the embedded system.
Red Blinking: Embedded firmware is running, but has not received a DHCP IP Address.
Red: Host has determined the firmware needs to be updated, but a problem occurred during the process that will initiate a reset.
Amber Blinking: Embedded system has a valid link-local IP Address and is connecting to the host.
Amber: Host is updating the embedded firmware.
Off: Embedded processor is resetting, or is powered up, and is booting the embedded firmware.
Hardware Failure: If a hardware failure occurs, the status LED indication will be interrupted every three seconds with a solid red
indication. For example, if the LED is blinking green when a hardware failure occurs, the LED will alternate between blinking green
and solid red at three-second intervals.
RS-232 LED
Green: RS-232 serial port activity.
Off: No RS-232 serial port activity.
IR LED
Green: IR port signal activity.
Off: No IR port activity.
On/Off button
On: Fully enables all internal power rails and processor.
Off: Disables most internal power rails and processor, but not internal AC/DC power supply.
Hold On/Off button for about 5 seconds to place into standby mode. The Power LED turns red.
Hold On/Off button for about 1 second to take system out of standby mode. The I/O power switch on the back of unit must be On
(I) to enable this function. To turn the power off for the entire system, press the I/O power switch on the rear panel to Off (O).
Reset button
Resets the network.
Hold Reset Button for 5 seconds while powered On to clear network settings. Status LED will blink Red rapidly when reset is
complete.
Zone Protection
Red: Protection mode has been enabled to protect a zone / channel; Typically indicates thermal protection, clipping or over
current.
Off: Protection mode has not been enabled.
AEC
BD
FG

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
7of 34

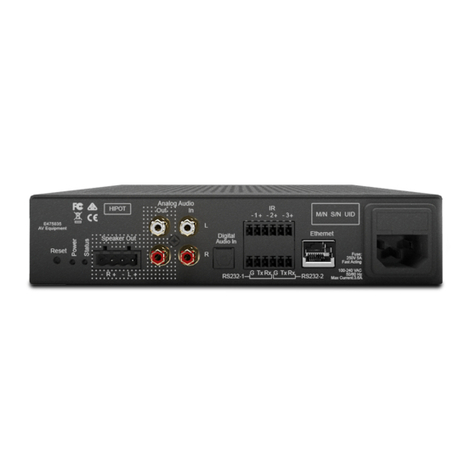

Rear Panel
Speaker
Connections
(4) Speaker output zones
Uses 4-pin Speaker Connectors
NOTE:Compatible with 8 ohm or 4 ohm speakers.
Analog Preamp
Output
(1) Analog stereo line output (Left & Right).
Direct Line Level 2.1-VRMS Output.
Analog Inputs
(2) Analog stereo inputs, RCA line-level inputs;
22 kΩinput impedance.
Digital Audio Out
(1) Digital optical preamp output, line-level 96kHz/24-bit output, fixed volume.
Digital Audio In
(2) Digital optical audio inputs. Supports up to 96kHz/24-bit digital audio in; PCM stereo format only.
IR
(4) IR Ports
Uses 4-pin IR Connectors to send IR signals to control devices with an IR input or IR receiver via an IR flasher (5V tolerant only).
See IR Wiring section for important precautions regarding IR functionality before making any connections.
RS-232
(2) RS-232 Ports
8-pin RJ-45 port used to transmit and receive serial binary data to and from serial controllable devices.
CTS/RTS handshaking availability based on component profile. See RS-232 Connections section for pin-outs.
Ethernet
8-pin RJ-45 female.
10/100/1000 Base-T auto-negotiating port with Link/Activity LEDs
Supports Audio Video Bridging (AVB)
Ethernet Activity
LED
Green Blinking: Activity (Rx/Tx)
Off: No Activity
Ethernet Link LED
Green Solid: Ethernet Link is established
Off: Ethernet link is not established
USB
USB 2.0 Type A
(Reserved for future Use)
Fuse
250V 3A Slow Blow fuse field replaceable.
Power Input
100/240V 50/60 Hz 2.7A
I/O
(power switch)
I(On): Powers On the controller.
O(Off): Powers Off the controller.
N
AEC
B D F
I JG L
H K M

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
8of 34
3.3. PAV-SIPA125
Front Panel
Reset
Resets the network.
Hold Reset Button for 5 seconds while powered On to clear network
settings. Status LED will rapidly blink red when reset is complete.
On/Off
On: Fully enables all internal power rails and processor.
Off: Disables most internal power rails and processor, but not internal AC/DC power supply. Hold On/Off button for about 5
seconds to place into standby mode. The Power LED turns red. Hold On/Off button for about 1 second to take system out of
standby mode. The I/O power switch on the back of unit must be On (I) to enable this function. To turn the power off for the entire
system, press the I/O power switch on the rear panel to Off [O].
Power LED
Green: System has power and is operating normally.
Red: System is in standby mode and most of the controller circuitry is powered down.
Off: System is not receiving power.
Status LED
Green Blinking: Embedded system is ready, but no communication has been established with the host.
Green: Host has established communications with the embedded system.
Red Blinking: Embedded firmware is running, but has not received a DHCP IP Address.
Red: Host has determined the firmware needs to be updated, but a problem occurred during the process that will initiate a reset.
Amber Blinking: Embedded system has a valid link local IP Address and is connecting to the host.
Amber: Host is updating the embedded firmware.
Off: Embedded processor is resetting, or is powered up, and is booting the embedded firmware.
Hardware Failure: If a hardware failure occurs, the status LED indication will be interrupted every three seconds with a solid red
indication. For example, if the LED is blinking green when a hardware failure occurs, the LED will
alternate between blinking green and solid red at three-second intervals.
Relay LED
Green: Relay port activity.
Off: No Relay port activity.
GPIO LED
Green: GPIO port activity.
Off: No GPIO port activity.
Zone Status
Green: Zone in use.
Red: Protection mode has been enabled to protect a zone/channel; typically indicates thermal protection, clipping or over current.
Off: Zone is off and protection mode has not been enabled.

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
9of 34
Rear Panel
Speaker
Connections
(4) Speaker output zones.
Uses 4-pin Speaker Connectors.
NOTE: Compatible with 8 ohm or 4 ohm speakers.
Digital Audio Out
(1) Digital optical preamp output,
line-level 96kHz/24-bit output, fixed volume.
Digital Audio In
(2) Digital optical audio inputs.
Supports up to 96kHz/24-bit digital audio in; PCM stereo format only.
Analog Preamp
Output
(1) Analog stereo line output (Left & Right).
Direct Line Level 2.1-VRMS Output.
Analog Input
(2) Analog stereo inputs (Left & Right),
RCA line-level inputs; 22 kΩinput impedance.
Ethernet
8-pin RJ-45 port
10/100/1000 Base-T auto-negotiating port. Supports Audio Video Bridging (AVB).
Activity LED:
Green Blinking: Activity (Rx/Tx)
Off: No Activity
Link LED:
Green Solid: Ethernet Link is established (any speed).
Off: Ethernet link is not established.
IR
(6) IR Ports
Uses 6-pin IR Connectors to send IR signals to control devices with an IR input or IR receiver via an IR flasher (5V tolerant only).
See IR Wiring section for important precautions regarding IR functionality before making any connections.
Relay
3-pin Control Connector.
See Relay Wiring for pinouts.
Normally Open (NO) Normally Closed (NC) to control devices requiring basic on/off operation. DC Voltage Max: 30V DC 1A.
GPIO
3-pin Control Connector
See GPIO Wiring for pinouts
GPIO Input: When configured as an input the processor will look for a low (<0.8V DC) or a high (>2.4V DC) state. Minimum 0V DC
/ Maximum 12V DC.
GPIO Output: When configured as an output, the port provides a binary output of 0-12V DC 150mA max.
RS-232
8-pin RJ-45 port used to transmit and receive serial binary data to and from serial controllable devices. CTS/RTS handshaking
availability based on component profile. See RS-232 Connections section for pin-outs.
USB
USB 2.0 Type A (reserved for future use)
Power Input
100/240V AC (50/60 Hz) 5.7A
Fuse: 250V 10A slow blow fuse; field replaceable
I/O (power switch):
I (On): Powers On the chassis.
O (Off): Powers Off the chassis.

Savant IP Audio Deployment Guide
Copyright © 2017 Savant System, LLC
009-1551-00 | 171121
10 of 34
3.4. PAV-AIM7C
Front Panel
Power LED
Green: System has power and is operating
normally.
Off: System is not receiving power.
Status LED
Off: Embedded processor is resetting, or is powered up, and is booting the embedded firmware.
Green: Host has established communications with the embedded system.
Green Blinking: Embedded system is ready, but no communication has been established with the host.
Red: Host has determined the firmware needs to be updated, but a problem occurred during the process that will initiate a reset.
Red Blinking: Embedded firmware is running, but has not received a DHCP IP Address.
Amber: Host is updating the embedded firmware.
Amber Blinking: Embedded system has a valid link-local IP Address and is connecting to the host.
Rear Panel
Reset
Resets the network settings of the device. Hold Reset Button for 5
seconds while powered on to clear network settings. Status LED will
rapidly blink red when reset is complete.
RS-232
8-pin RJ-45 port used to transmit and receive serial binary data to and
from serial controllable devices.
CTS/RTS handshaking availability based on
component profile. See RS-232 Connections section for pin-outs.
IR
(6) IR Ports
Uses 6-pin Control Connectors to send IR signals to control devices with an IR input or IR receiver via an IR flasher (5V tolerant
only). See IR Wiring section for important precautions regarding IR functionality before making any connections.
Digital Audio In
(Optical)
(2) Digital optical audio inputs.
Supports up to 96kHz/24-bit digital audio in; PCM stereo format only.
Digital Audio In
(Coaxial)
(2) Digital coaxial audio inputs.
Supports up to 96kHz/24-bit digital audio in; PCM stereo format only.
Analog Inputs
(3) Analog stereo inputs, RCA line-level inputs; 22 kΩinput impedance
Ethernet
8-pin RJ-45 port
10/100/1000 Base-T auto-negotiating port with Link/Activity LEDs.
Supports Audio Video Bridging (AVB).
Ethernet
Activity LED
Green Blinking: Activity (Rx/Tx).
Off: No Activity.
Ethernet Link LED
Green Solid: Ethernet Link is established.
Off: Ethernet link is not established.
Power Input
5V DC 3A
