SAVE MARINE H240 User manual

Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
SAVE MARINE - H240
HYDROGENERATOR
LIMITS AND CONDITIONS FOR USING
Related to warranty - Please read carefully before installation and use
INSTALLATION GUIDE
USER MANUAL
A
B
C
SMH240-v201611ENG-1

1
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
SAVE MARINE - H240
HYDROGENERATOR
LIMITS AND CONDITIONS FOR USING
Related to warranty - Please read carefully before installation and use
A

2
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
Table of contents
1The H240 hydrogenerator................................................................................................... 3
1.1 Field of application .................................................................................................................. 3
1.2 The equipment at a glance...................................................................................................... 3
2Safety instructions .............................................................................................................. 4
2.1 Mechanical hazards................................................................................................................. 4
2.2 Electrical hazards..................................................................................................................... 4
3Conditions and limits of using............................................................................................. 5
3.1 Transom robustness and flatness............................................................................................ 5
3.2 Batteries compatibility ............................................................................................................ 5
3.3 Maximum speed permitted..................................................................................................... 5
3.4 Bad weather ............................................................................................................................ 6
3.5 Setting up and raising of the l’hydrogenerator ....................................................................... 6
3.6 Use in conjunction with a motor............................................................................................. 6
3.7 Reverse gear............................................................................................................................ 6
3.8 Port operations........................................................................................................................ 7
3.9 Anchoring ................................................................................................................................ 7
3.10 Maintenance............................................................................................................................ 7

3
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
1The H240 hydrogenerator
1.1 Field of application
The Save Marine H240 hydrogenerator converts the mechanical energy of a fluid like
water into electrical energy. It works thanks to a clean and renewable energy: the wind.
The H240 hydrogenerator is specifically designed for sail boats.
It recharges the batteries of your boat and procures electric autonomy, ensuring security
and comfort on board.
1.2 The equipment at a glance
The mechanical energy is converted into electrical energy thanks to a turbine equipped
with blades and high efficiency alternator.
The electricity is transmitted to the batteries through a regulator whose main function is
to regulate the electrical power produced by the hydrogenerator and have an optimal
recharge process of the batteries.
Regulator
Batteries
Hydrogenerator
Through-hull
(Profil arm)

4
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
2Safety instructions
2.1 Mechanical hazards
The rotation speed of the blades can be high and represents a potential danger.
Do not touch the blades when rotating
The hydrogenerator is equipped with an articulated mechanism for a quick and easy
positioning into the water.
Do not insert your fingers into the articulated mechanism
When bathing, avoid leaning on the hydrogenerator to get on
board.
2.2 Electrical hazards
The use of electrical equipment facilities requires to take precautions.The flow of
electricity on a boat is a potential danger.
If the material is prematurely deteriorated (bare wiring ...), please
stop immediately the use of the hydrogenerator.
-The regulator provided with hydrogenerator has a heat sink
in order to dissipate the heat:
-Do not touch the electronic box in operation.
-Avoid direct contact with materials that can be affected by
heat (as tissues for example).

5
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3Conditions and limits of using
3.1 Transom robustness and flatness
Check the robustness of the transom. The transom must accept the forces generated by
the hydrogenerator. In case of doubt we strongly recommend to strengthen it. Seek the
advice of a marine professional.
The location on the transom for the home plate should be flat to avoid any torsion which
can cause a breakage of the home plate.
3.2 Batteries compatibility
The hydrogenerator is designed for recharging the service batteries of the sailboat. Do
not connect it to any other device.
The system is compatible with the vast majority of batteries.
3.3 Maximum speed allowed
The force exerted on the hydrogenerator when cruising increases as the square of the
boat speed. The hydrogenerator is designed for a speed range from 0 to 10 knots. A higher
speed even during a short period may cause permanent damages to the hydrogenator.
Do not use at a cruising speed exceeding 10 knots
The regulator continuously records the H240 data, including the speed

6
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3.4 Bad weather
Do not use the hydrogenerator in bad weather, in particular with
strong waves. In that case, remove it from its home plate.
For crosswind-tailwind, care should be taken not to have the hydrogenerator going above
the water due to the heel of the boat. The hydrogenator could be damaged when re-
entering into the water (severe impact).
3.5 Setting up and raising of the hydrogenerator
Place the hydrogenerator in lower operating position ideally when the boat is at rest. Do
not place the H240 into the water (operating position) when the boat speed is above 2
knots. The H240 must be placed into the water, at its operating position, only with arm
strength and thanks to the hydrogenator rope provided for that purpose.
The profile arm of the hydrogenerator should be on the line of the boat prior to raise it.
3.6 Use in conjunction with a motor
The strong thrust and the turbulences due to the use of a motor and applied to the
hydrogenerator may deteriorate the hydrogenerator.
The hydrogenerator must not be placed in operating position (in
the water) when using a motor during navigation. *
* except in a case of extreme urgency – man overboard
3.7 Reverse gear
The hydrogenerator can be damaged when the boat is reversing.
Do not reverse when the hydrogeneratot is in operating
position (placed in the water).

7
Save Marine, une division de Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3.8 Port operations
To avoid any impact during port operations, please remove the hydrogenerator from its
home plate prior to accessing the port.
3.9 Anchoring
Do not leave unnecessarily the hydrogenerator into the water while anchoring in order to
prevent fouling. Remove the hydrogenerator from its home plate and store it.
3.10 Maintenance
Rinse with fresh water before storing for a long period.
Check all bolted connections of the hydrogenerator and the home plate on a regular basis.
The product warranty does not cover damages resulting from:
the nonobservance of the “limits and conditions for using” instructions,
difficult sea conditions and/or type of shipping outside the recreational sailing
course,
shocks in collisions with UFOs (unidentified floating objects) or sea creatures.

1
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
SAVE MARINE - H240
HYDROGENERATOR
INSTALLATION GUIDE
B

2
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
Table of contents
1Parts list............................................................................................................................... 3
1.1 Supplied parts.......................................................................................................................... 3
1.2 Material needed (not included) .............................................................................................. 3
2Description of the different elements ................................................................................ 4
3Pre-installation checklist..................................................................................................... 5
3.1 Select the location of the home plate..................................................................................... 6
3.2 Select the location of the through-hull ................................................................................... 8
3.3 Select the location of the regulator ........................................................................................ 9
4Installation of the various elements ................................................................................. 10
4.1 Installation of the home plate............................................................................................... 10
4.2 Installation of the through-hull and inner cable .................................................................. 11
4.3 Installation of the regulator .................................................................................................. 12
4.4 Connection of the electrical cables ....................................................................................... 12
4.5 Installation of the hydrogenerator........................................................................................ 14
4.5.1 Insert the hydrogenerator into the home plate............................................................ 14
4.5.2 Adjustment of hydrogenerator inclination ................................................................... 14
4.5.3 Adjustment of the control arm...................................................................................... 15
4.5.4 Automatic clamcleat...................................................................................................... 16
5Wi-Fi monitoring tool setup.............................................................................................. 17
6Regulator configuration according the batteries specifications....................................... 18

3
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
1Parts list
1.1 Supplied parts
An hydrogenerator
A home plate
Bolts set to fix the home plate
One cable equipped with through-hull and connectors
Bolts set to fix the through-hull
One regulator
Bolts set to fix the regulator
Two batterie cables (one black and one red with a 40A fuse) equipped with
connectors
One tool to disconnect the cables from the regulator
Spare parts
- Two M8 eyelet lugs for battery
- One 40A fuse
One manual
-limits and conditions for using
-Installation guide
-user’s manual
1.2 Material needed (not included)
•Drilling machine
•Drill Ø6
•Allen keys n° 4, 5, 6
•Open-end wrench n° 8, 10, 13
•Hole saw Ø30
•Sealing paste

4
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
2Description of the different elements
Regulator
Profile arm
Control arm
Adjustable
support
Home plate
Fork
guard locking
pin
Through-hull
Backstop

5
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3Pre-installation checklist
Prior to the installation, you must determine the different locations for the following
elements: home plate, through-hull, regulator.
Drilling is indeed required for the installation of the home plate, through-hull and
regulator.
The hydrogenerator, the through-hull, the regulator and the batteries are inter-connected
with cables having a fixed length.
An electrical schematic is shown hereafter.
Electrical schematic
Inner cable
(already connected to the through-hull)
L = 2 m
Battery cables
L = 5 m
Hydrogenerator cable
(fixed to the H240)
L = 2 m
Through-hull
Batteries
Regulator
Inside of the boat
Outside of the boat

6
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3.1 Select the location of the home plate
The home place is designed to receive the hydrogenerator.
The home plate is composed of 7 holes for its fixation to the transom and one hole for
the hydrogenerator guard locking pin.
Dimension of the home plate
Recommendations for a good positioning:
1- Check the robustness and the flatness of the transom as mentioned in the
“Conditions and limits of using” booklet (page 5).
2- The home plate must be placed as centrally as possible on the transom. This ensures
that the turbine remains submerged when the boat is heeling.
3- The lower part of the home plate should be placed at the waterline transom while the
boat is loaded under normal conditions of navigation. It should not be placed higher
so that the turbine remains immersed when heeling and limit disruptions related to
algae (which usually float on the surface).
Hole for the
guard locking pin
Fixing holes
X 7

7
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
4- Strengthen the transom if necessary and set up the location for the counter-plate
(responsibility of the installation company). Check that there is enough room available
to access the fixing screws.
5- A clearance of 30 cm above the home plate should be free to put in place and pull the
hydrogenerator.
6- A space of 10 cm is necessary between the hull and the profile arm of the hydro.
Mark the location for the subsequent fixing.
Positioning schematic
Clearspace : 30 cm
M6x60 s crew
M6 nut
Counter-plate
(under installer responsibility)
Home plate
Boa t hull
Clearspace
10 cm

8
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]

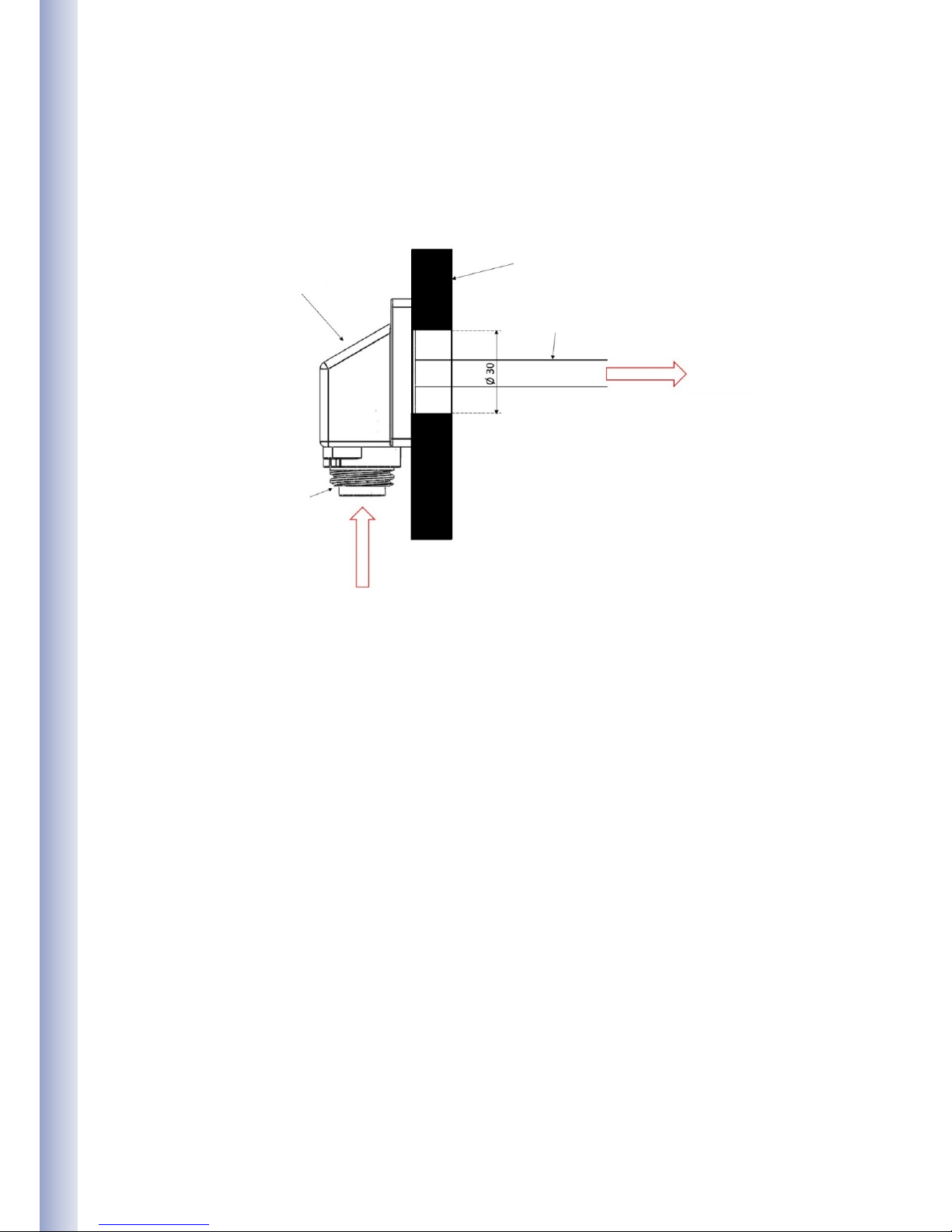

3.2 Select the location of the through-hull
Le through-hull is fixed through the transom.
Trough-hull positioning
Recommendations for a good positioning:
1- Ensure that you have a clear surface of 6x6 cm².
2- Ensure that you get an easy access from inside the boat.
3- The cable length between through-hull and hydrogenerator is 2 meters.
4- The cable length between through-hull and regulator is 5 meters.
5- Place the through-hull as high as possible to ensure an easy connection and
disconnection of the hydrogenator.
Mark the location for the subsequent fixing.
Inside the boat
Outside the boat
Transom
Inner able
Regulator
Trough-hull
Hydrogenerator
Connector to
Hydrogenerator

9
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
3.3 Select the location of the regulator
This device regulates the output signal coming from the generator and optimizes the
recharge of your batteries. It should be located inside the boat.
,
Dimensions of the regulator
Recommendations for a good positioning:
1. It should be easily accessible.
2. It must be in a ventilated space in order to minimize its heating and optimize the
functioning of electronic components.
3. In the upper part of a chest: ensure that it cannot receive direct projection of sea water
and hit by manipulations of stored objects.
4. In one cabin: ensure that it is not in a place of passage.
5. In any cases, it is recommended to set the electronic unit:
a. on a wall that can support its weight (3 kg).
b. on a vertical surface to improve thermal dissipation, with fins in vertical position
c. Leaving a distance of at least 40 cm between the top of the electronic box and the
chest or cabin ceiling.

10
Save Marine, a division of Save innovations
3 rue des arts et métiers, 38000 Grenoble, France I [phone] I [e-mail]
4Installation of the various elements
4.1 Installation of the home plate
Only after completing the necessary verifications and pre-installation checklist.
The home plate must be fixed on a rigid and flat transom. If not flat, it should be
compensated not to stress the home plate when one tightens the screws. Use for that
whashers or holds.
Identify the location outside the boat
Check inside the boat that the location allows
to set the counter plate and check access to
the screws.
Drill a hole with a drill Ø6 and screw
Mark the 6 other holes. Drill using the home
plate as a drilling template.
Do not drill the hole for the guard locking pin
Put sealing paste:
- on the back of the home plate
and around
screw holes
- on the counter plate
Clean and degrease the home plate locations
Outside the boat, position the home plate on
the transom, insert the 7 M6x25 screws
Inside the boat, insert the counter plate
through the M6x25 screw until it contacts the
inner wall. Insert the 7 M6 washers on the
screws M6x25. Screw the bolts on the 7 M6x25
NYLSTOP M6 screws.
